TP-Link 5GHz 150Mbps 23dBi Outdoor CPE- CPE605

Up to 150Mbps on 5GHz wireless data rates

23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

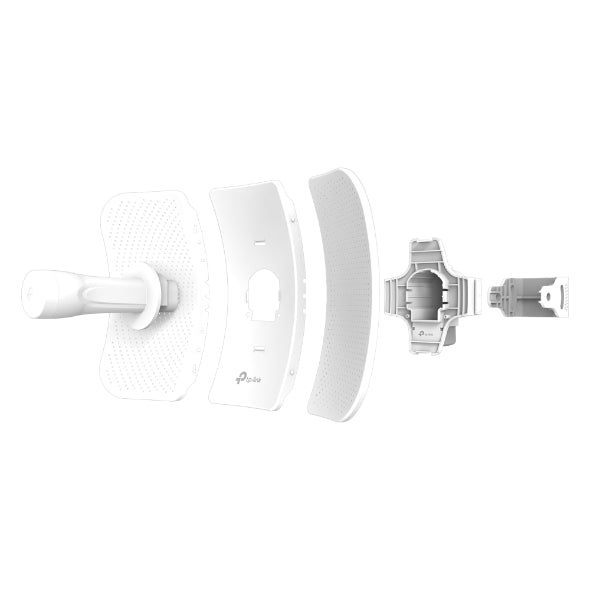

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability

TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation

With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.

CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.

SPECIFICATIONS:

• Processor: Qualcomm 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface: 1 × 10/100Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button
• Power Supply: Passive PoE via LAN (+4,5 pins; -7,8 pins), 16–27VDC
• Dimensions (W × D × H): 350 × 255 × 207 mm (13.8 × 10.0 × 8.1 in.)
• Antenna Gain: 23dBi
• Antenna Beamwidth: 7° (Azimuth), 10° (Elevation)
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Enclosure: Outdoor PC Stabilized Plastic, IP65 Weatherproof (Water and Dust Resistant)
• Wireless Standards: IEEE 802.11a/n
• Proprietary Protocol: TDMA Mode (Pharos MAXtream)
• Wireless Speeds: Up to 150Mbps
• Frequency: 5.15–5.85GHz
• Transmission Power: Up to 23dBm (Adjustable in 1dBm increments)
• IPv6: Yes
• Network Configuration: WAN (Static/Dynamic/PPPoE/L2TP/PPTP), LAN (Static/Dynamic/DHCP), ALG, UPnP, Virtual Server, Port Trigger, SPI Firewall, DoS Protection, Access Control, Static Routing, Bandwidth Control, IP & MAC Binding
• Wireless Features: Pharos MAXtream TDMA, 5/10/20/40MHz Channel Width, Auto Channel Selection, DFS, WDS, WPA/WPA2/WEP Security, Multi-SSID with VLAN Tagging, MAC Filtering, Long-Range PtP
• Management Features: Pharos Control, HTTP/HTTPS, SNMP v2c, SSH, DDNS, Ping Watchdog, System Log
• System Tools: Signal & Performance Monitoring, Spectrum Analyzer, Speed Test, Ping, Traceroute, Antenna Alignment
• System Optimizations: Optimized IGMP Snooping/Proxy for Multicast Applications
• Certification: CE, FCC, RoHS, IP65

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX or Linux (Chrome, Safari, and Firefox recommended)
• Operating Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–95% non-condensing

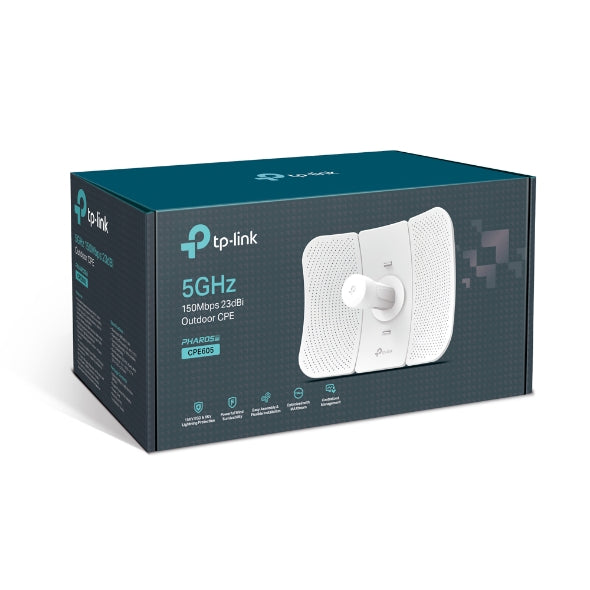

WHAT’S IN THE BOX:

• Outdoor Wireless CPE x1
• 24V 0.25A Passive PoE Adapter x1
• Pole Mounting Kits x1
• AC Power Cord x1
• Installation Guide x1

WARRANTY:

• 24 Months
