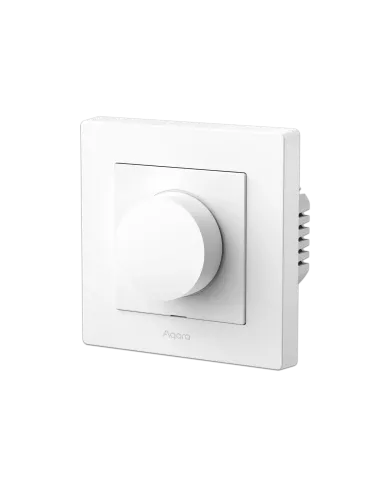

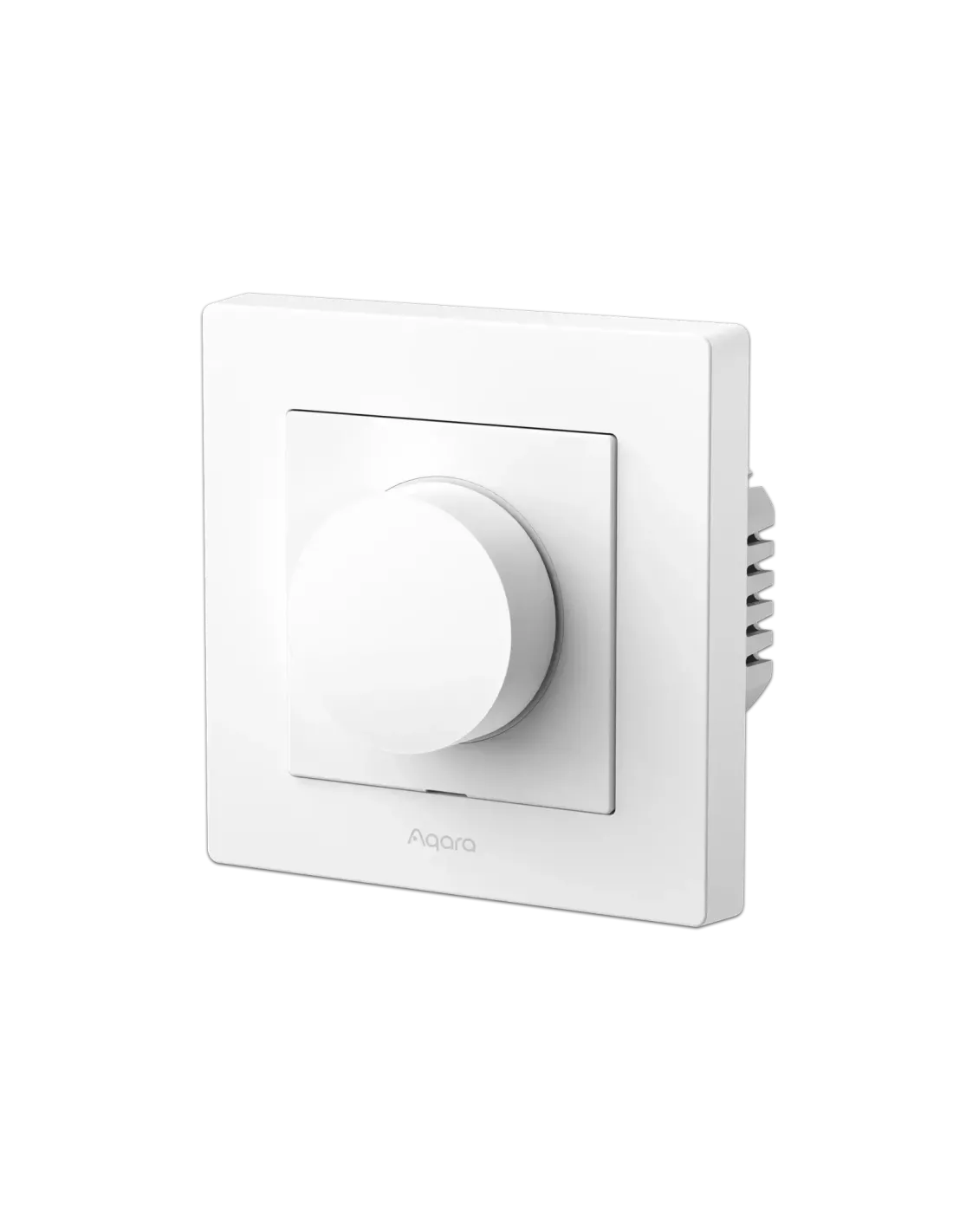

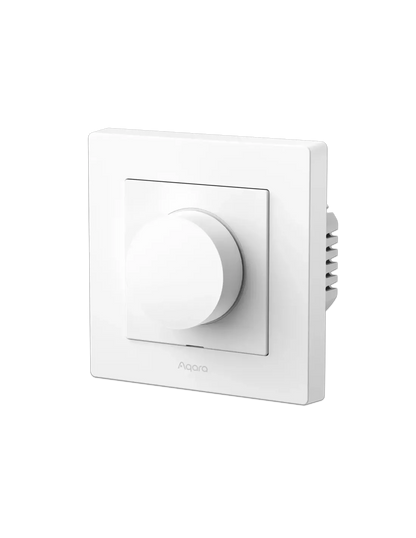

Aqara Dimmer Switch H2 EU - White - Aqara Hub Not Required

*Aqara Hub is required for certain additional features. Thread mode allows direct integration with Matter ecosystems (requires a Matter Controller and Thread Border Router). See images for more details.

Discover the Aqara Light Switch H2, offering dual protocol support (Zigbee & Thread), neutral wire installation, power monitoring, and customizable automation for your smart home. Control lighting effortlessly with voice, app, or schedules.

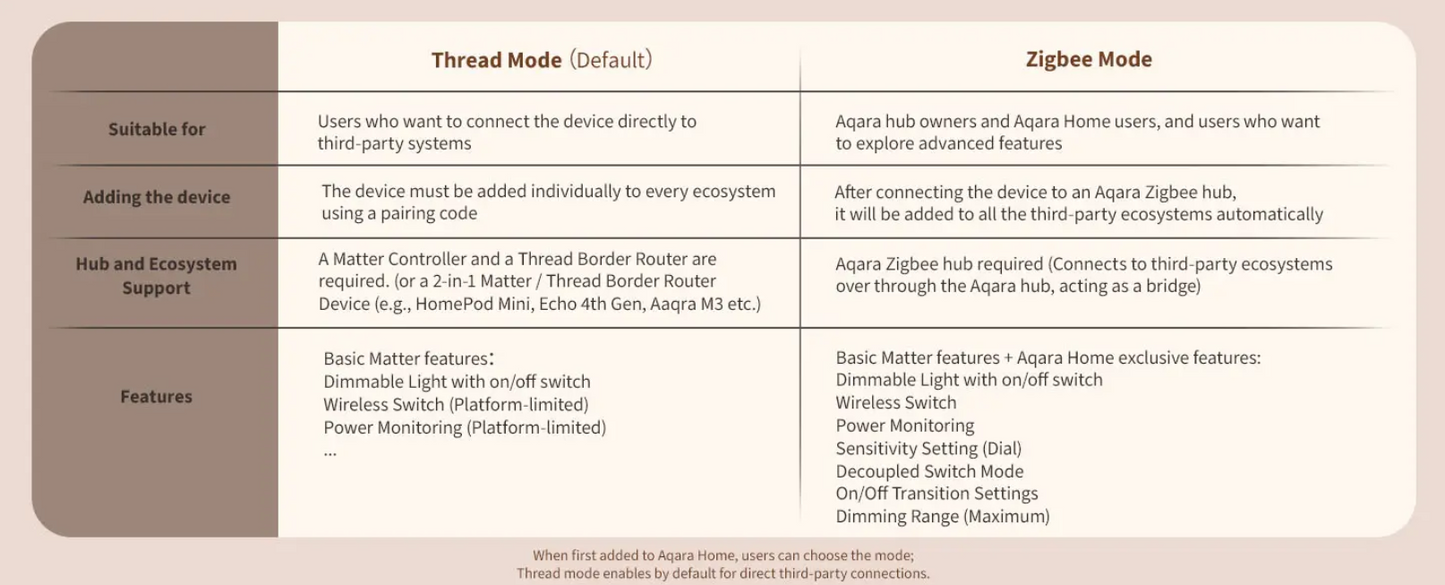

This dimmer switch supports dual protocols. In Thread mode, it connects directly to third-party Matter ecosystems without needing an Aqara hub. In Zigbee mode, it unlocks Aqara-specific features and ensures compatibility with classic Aqara Zigbee hubs. You can switch between the two modes to enjoy Matter integration or Aqara's advanced functions.

Designed for homes with or without a neutral wire, this switch makes installation easy. If there’s no neutral wire, setup is simple. For homes with a neutral wire, it offers extra features like overload protection and power monitoring for greater safety and efficiency.

The dial serves as both a switch and a dimmer. Press to turn on/off and turn to adjust brightness smoothly from 1% to 100%. The default response time is 1.5 seconds, but users can customize it for a more tailored experience.

Users can set minimum and maximum brightness levels via the Aqara Home app in Zigbee mode. This helps prevent flickering or power loss, ensuring smooth operation of low-power lights and maintaining stability at lower brightness levels.

FEATURES:

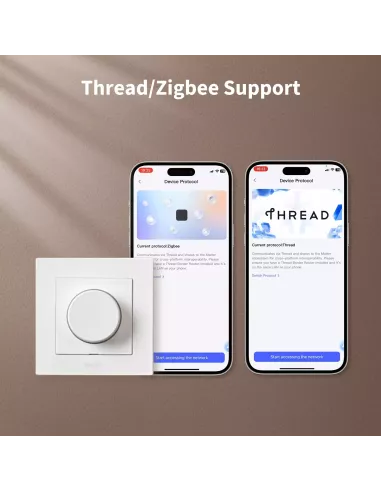

• Thread/Zigbee Support

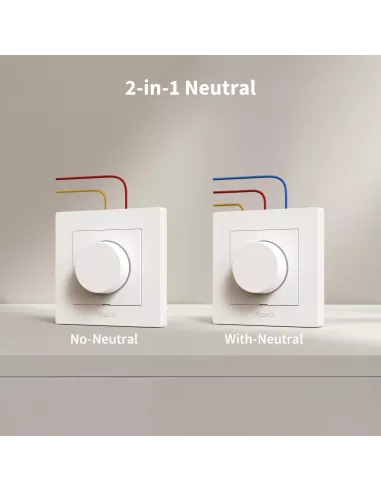

• 2-in-1 Neutral for Easy Installation

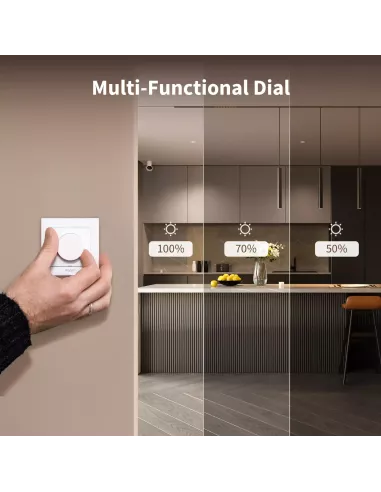

• Multi-Functional Dial
• Wide Light Compatibility
• Power Consumption Monitoring
• Custom Brightness Limits

SPECIFICATIONS:

• Connectivity Protocol: Thread/Zigbee, Bluetooth
• Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, SmartThings, Home Assistant, Homey
• Electrical Rating: 220-240VAC, 50/60Hz
• Rated Load: Incandescent/Halogen ≤ 300W, Dimmable LED/CFL ≤ 200W
• Minimum Power: 4W (Aqara Home via Matter), 9W (other methods), general purpose
• Rated Type: Incandescent, Halogen, LED, CFL, μ
• Product Dimensions: 86 × 86 × 55.45 mm 209g
• Operating Temperature: -10°C~40℃ (14℉~104℉)
• Operating Humidity: 0~95% RH, no condensation

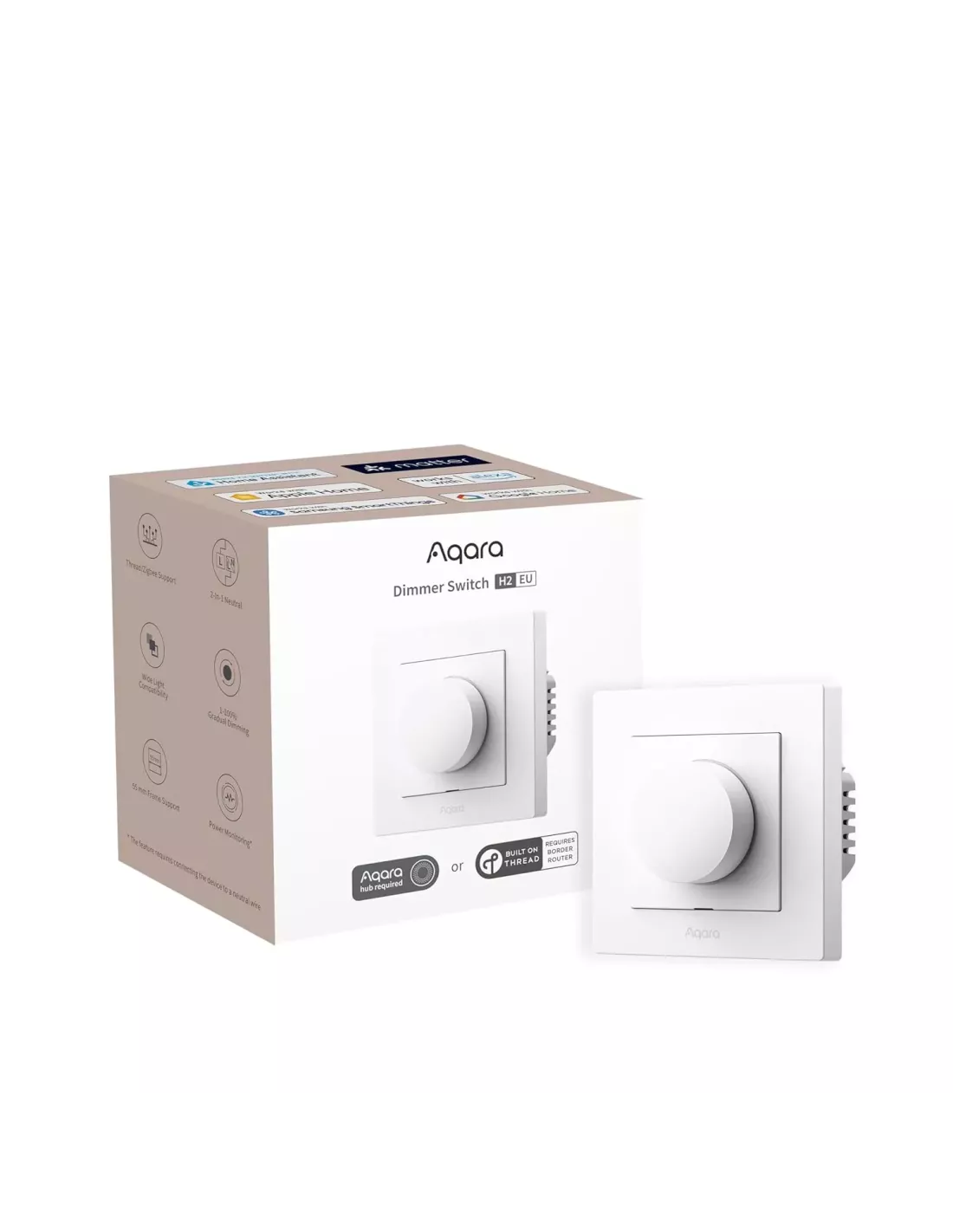

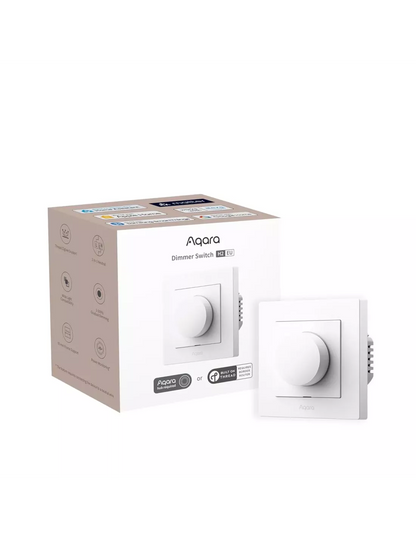

WHAT’S IN THE BOX:

• Dimmer Switch H2 EU x1
• User Manual x1
• Compliance Statement x1
• Screw Kit x1

WARRANTY:

• 12 Months
