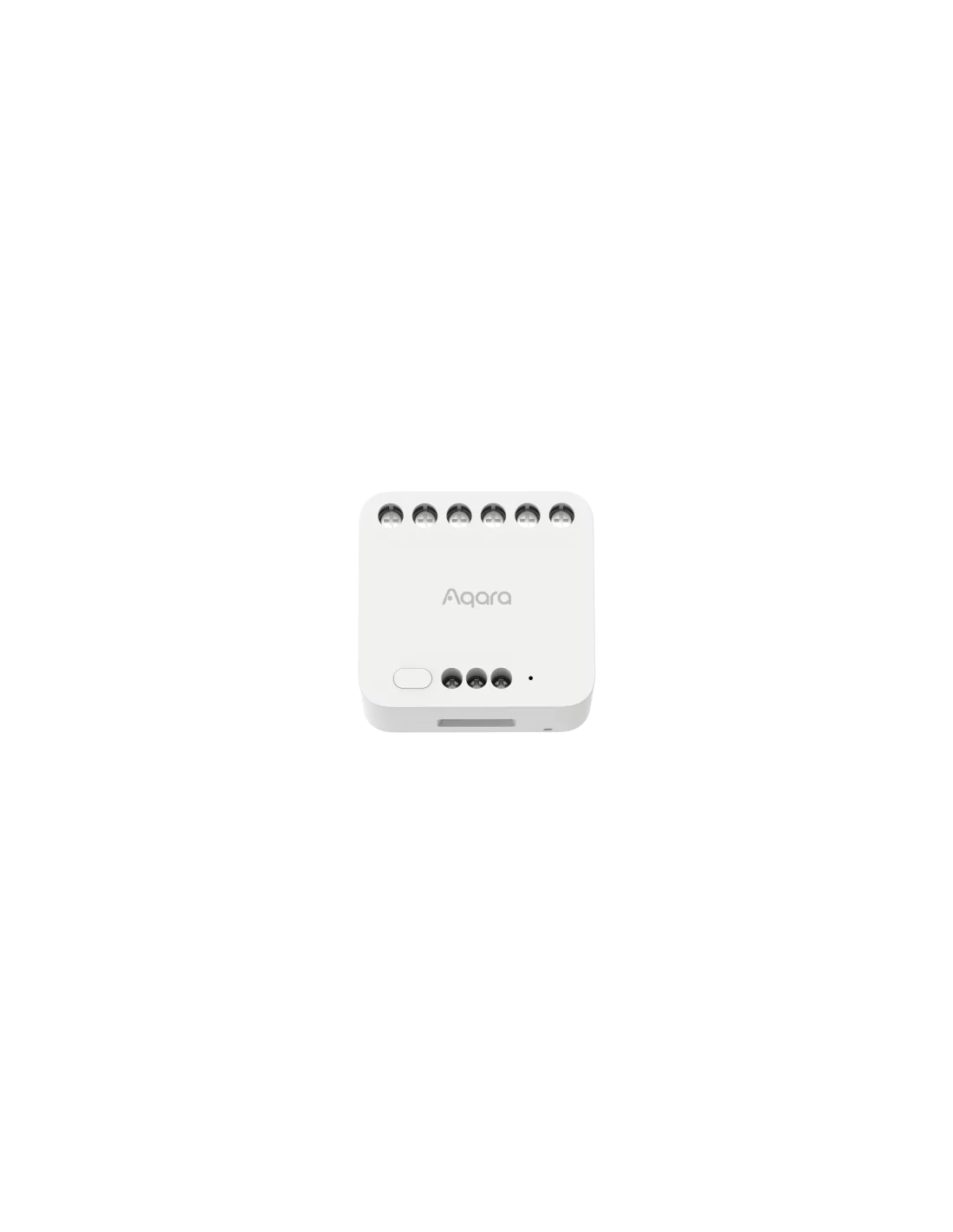

Aqara Dual Relay Module T2 - Aqara Hub Required

*Requires Aqara Hub

The Aqara Dual Relay Module T2 is a device that employs Zigbee technology to regulate power, controlling the on and off functions. It is capable of managing a range of devices including motors, garage doors, lights, switches, and sockets in two modes: dry contact and wet contact.

App remote control, timing control, power statistics, and other functions can be achieved through an Aqara hub. It is also compatible with HomeKit allowing for quick control via the Home app.

Versatile dry contact mode will let you integrate a whole variety of devices into your smart home. The T2 connects to Aqara Zigbee 3.0 hub supporting popular ecosystems: Matter, HomeKit, Google Home, Alexa, and more. Thanks to the Interlock mode, the T2 can also be used as a Roller Shade Switch. Let the morning sunshine gently wake you up and start your day.

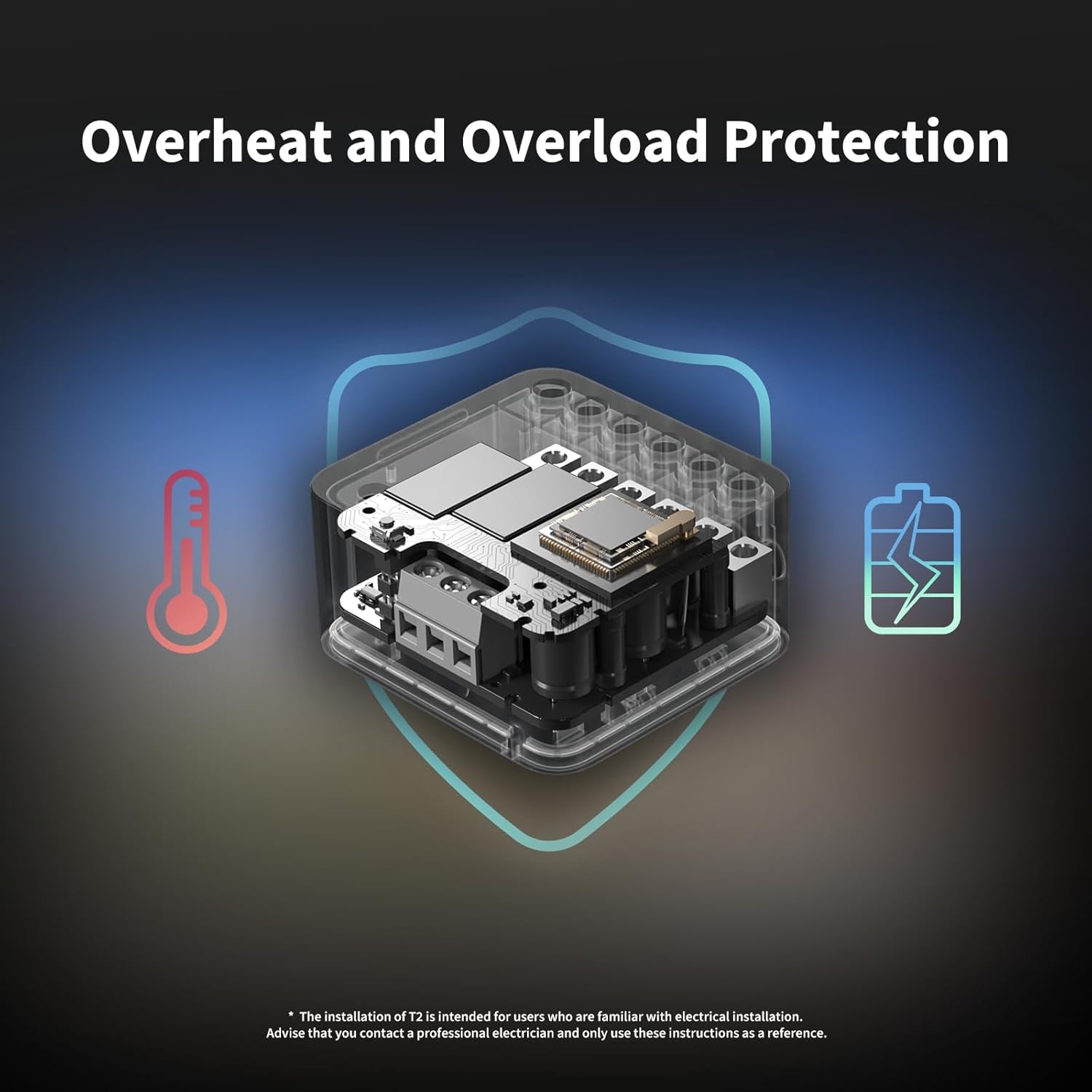

The T2 incorporates advanced energy monitoring and Power Memory for optimal energy control and uninterrupted operation. Enjoy peace of mind with T2's smart safety features: overheat/overload protection and customizable power limit. Converting to wireless switch mode is supported. Thanks to it, the T2 will be able to make an existing wall switch a scene controller and even connect to wired sensors.

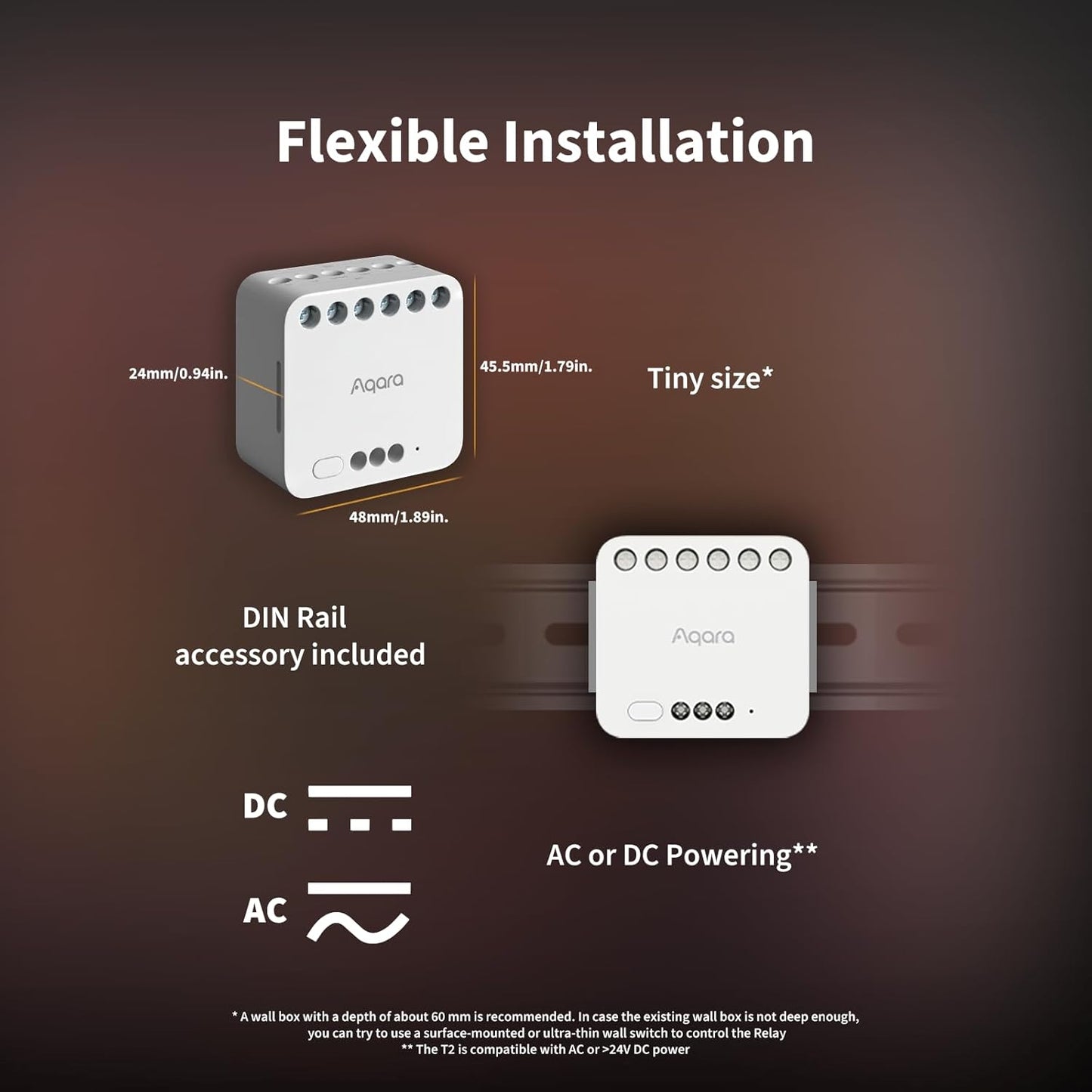

The T2 can be installed near the light, behind the switch and even DIN rail mount, making it easy to install in electrical cabinets and other confined spaces. The versatile design fits round EU wall boxes and other configurations like 86 mm and US-type, enabling usage as a light switch or even behind a wall outlet.

FEATURES:

• Dry Contact Mode
• HomeKit and Matter over Bridge Support
• Interlock and Motor Control

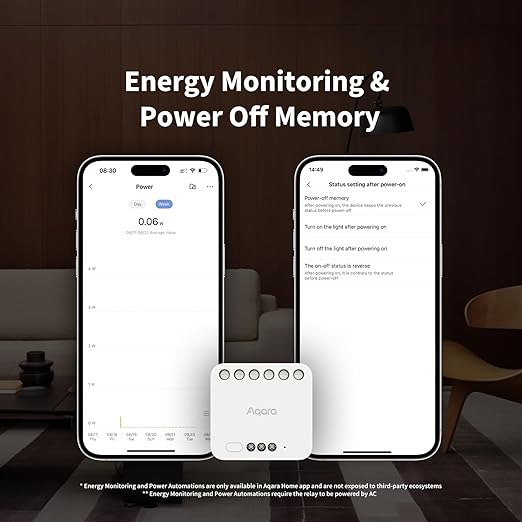

• Energy Monitoring and Power Memory
• Enhanced Safety and Security
• Wireless Switch Mode
• Small Size and Versatile Design

SPECIFICATIONS:

• Model: DCM-K01
• Wireless Protocol: Zigbee
• Rated Parameters(AC): 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1.
• Rated Parameters(DC): 24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load
• Zigbee Operation Frequency: 2405-2475 MHz
• Zigbee Maximum Output Power: ≤ 13 dBm
• Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
• Operating Humidity: 0 ~ 95% RH, no condensation
• Dimensions: 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.)

WHAT’S IN THE BOX:

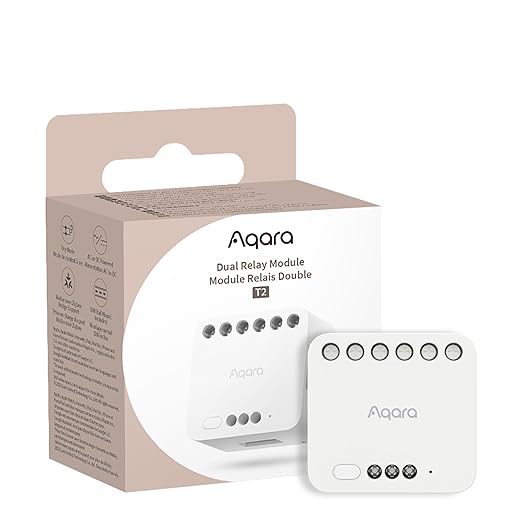

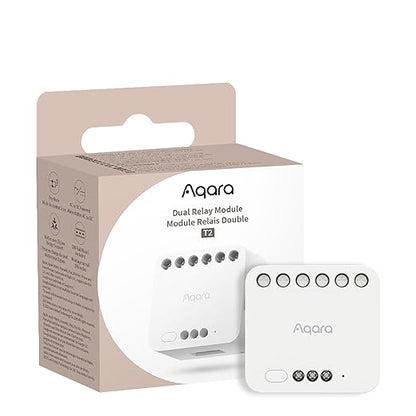

• Dual Relay Module T2 ×1
• DIN Rail Accessory ×1
• Jumper Wire x1
• User Manual x1

WARRANTY:

• 12 Months
