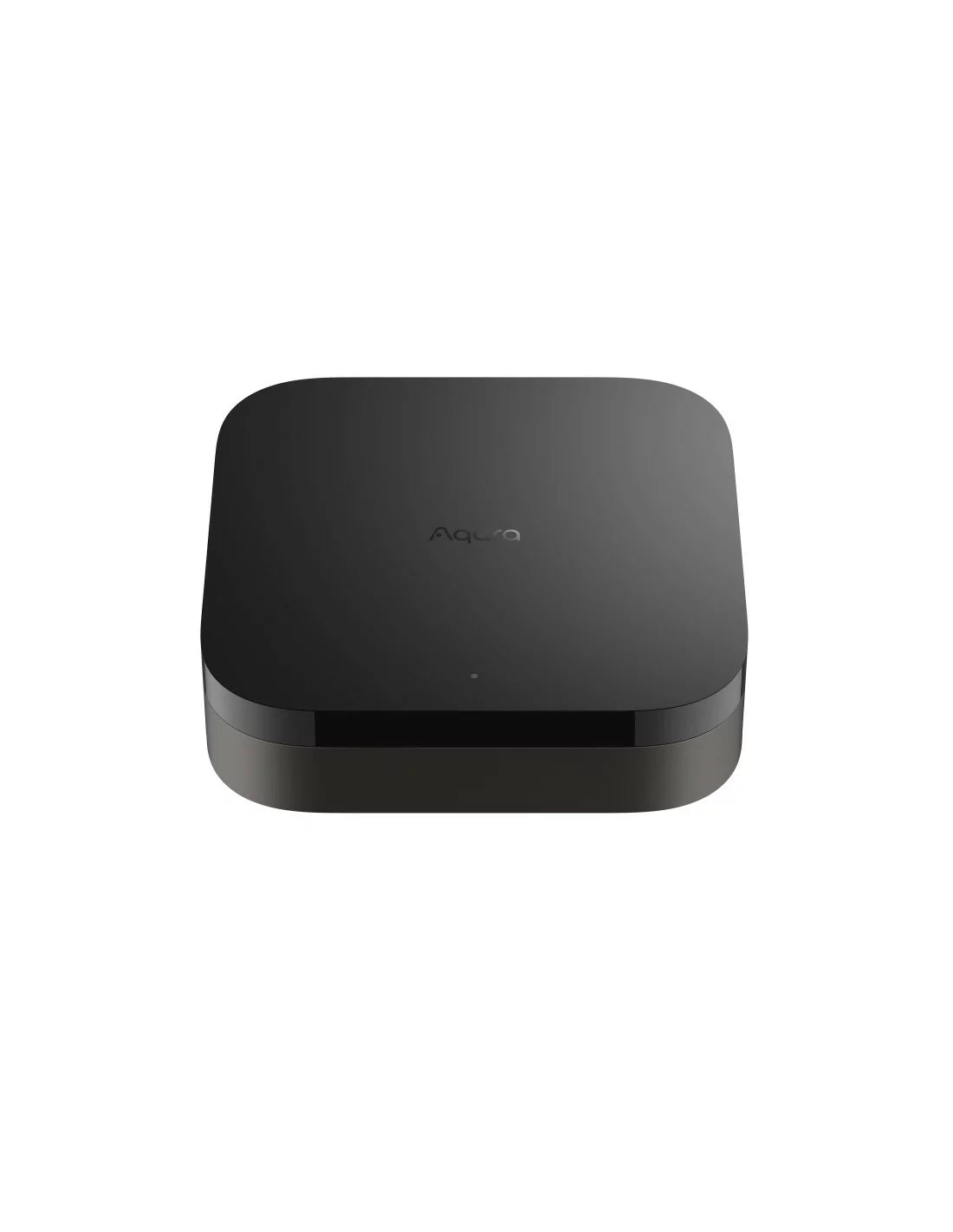

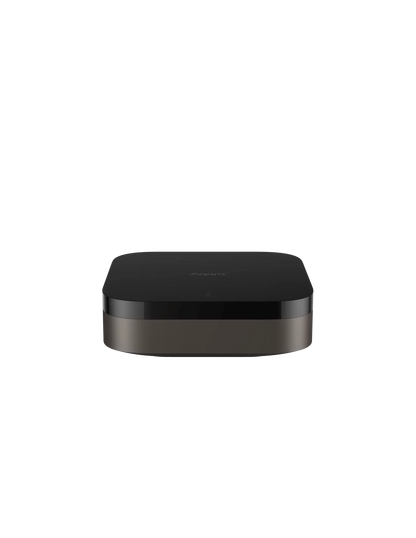

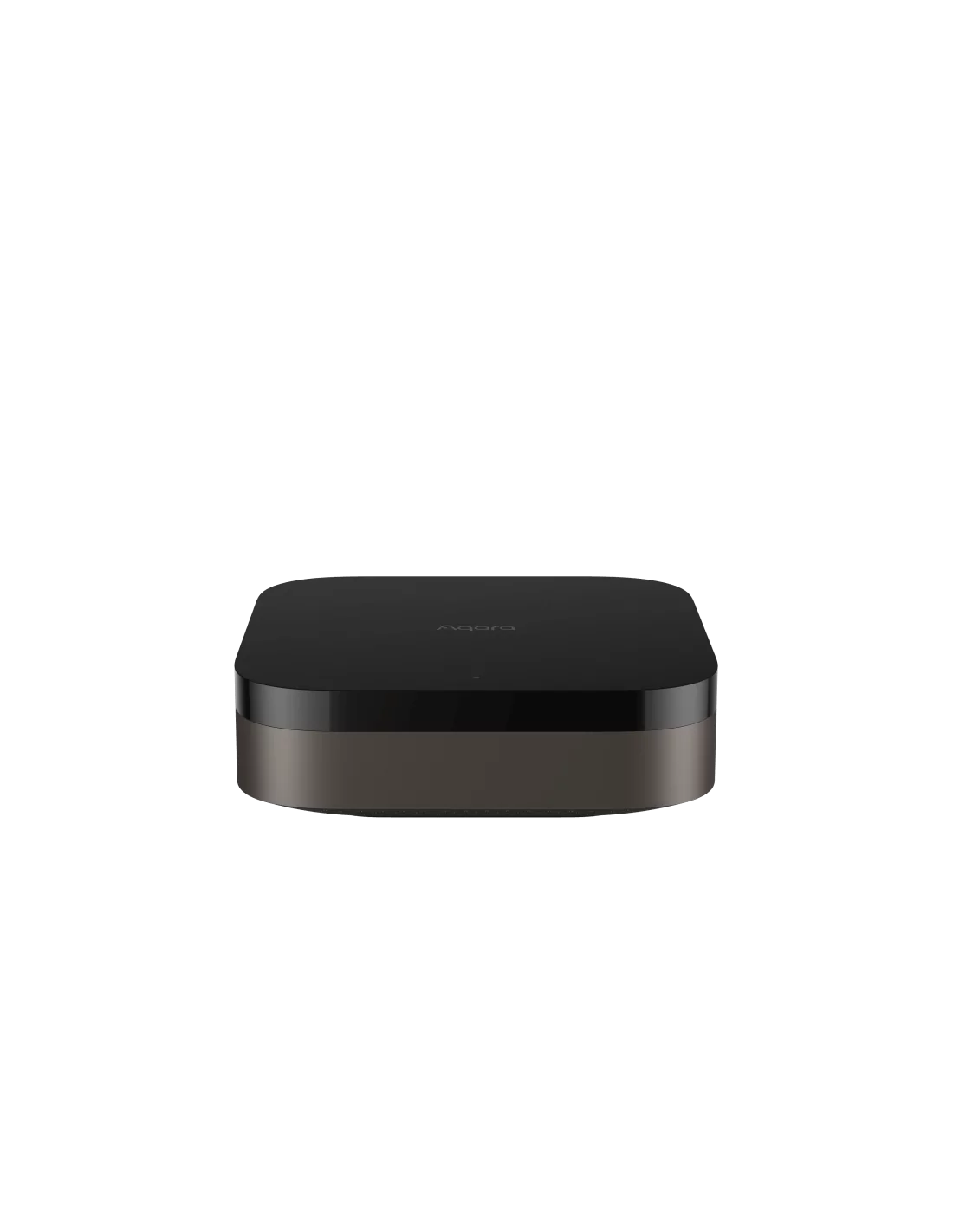

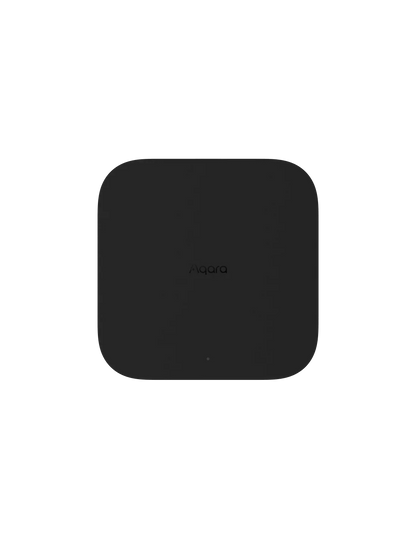

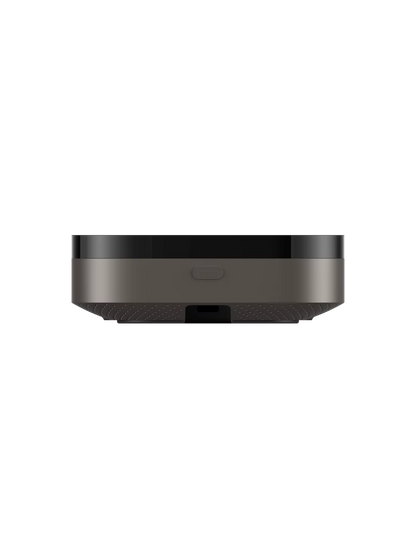

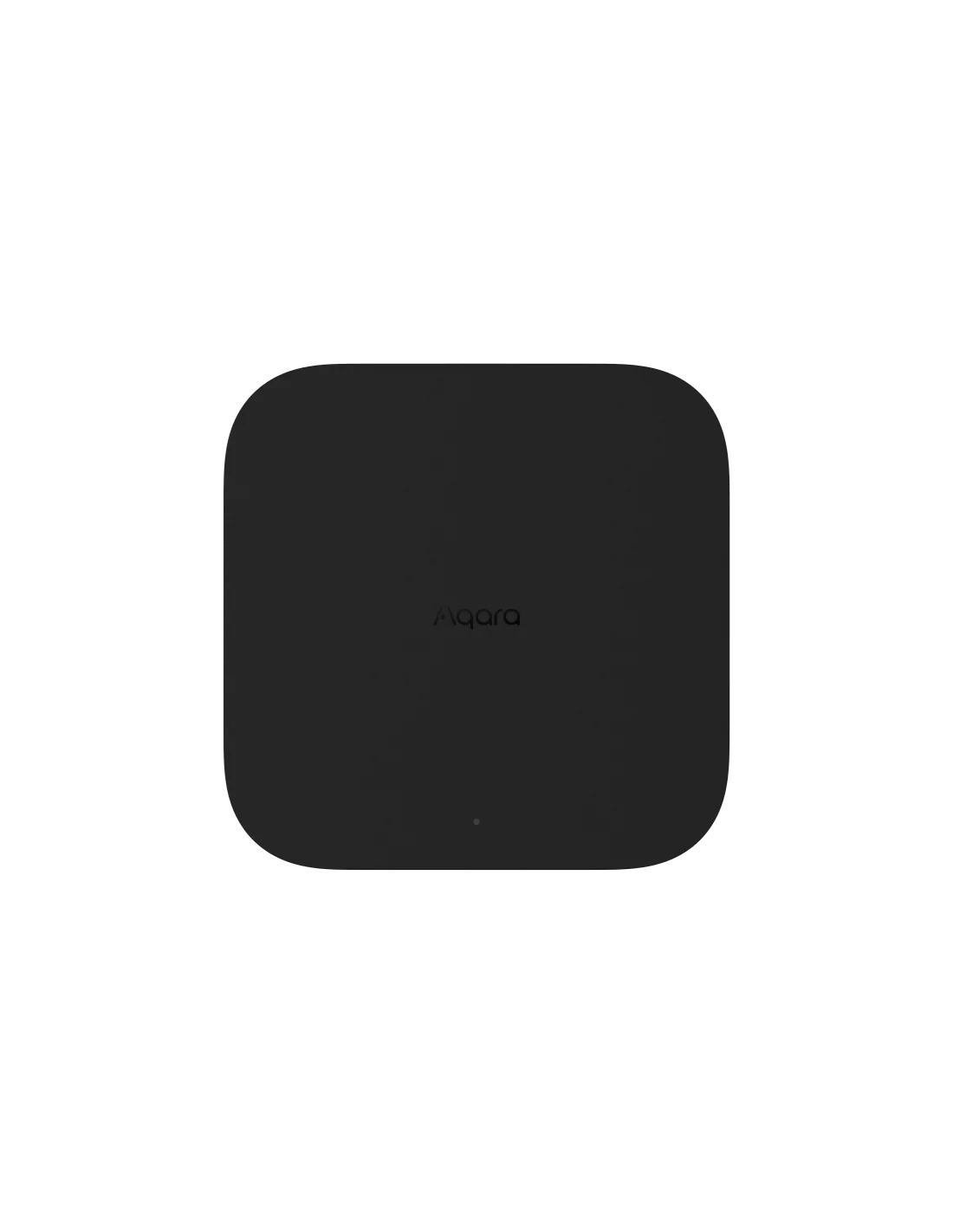

Aqara Smart Hub M3

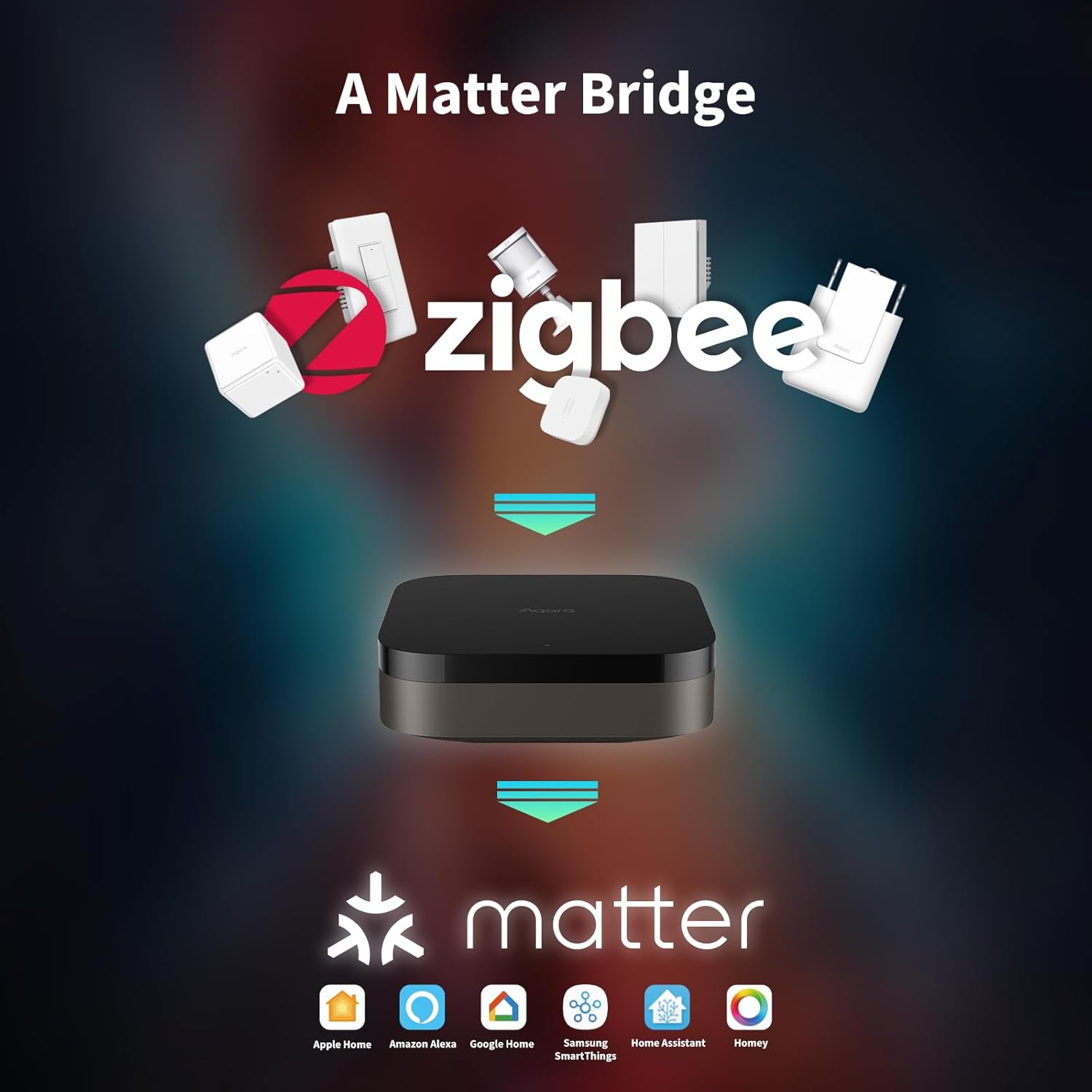

The Aqara Multi-protocol Hub M3 acts as a central control unit for diverse smart home ecosystems, offering Matter Bridge functionality to integrate Aqara Zigbee devices into Matter-compatible systems. This hub supports Zigbee 3.0, Wi-Fi, and Bluetooth communication protocols. It is designed to connect and manage a wide range of smart sensors and controllers, facilitating automation and remote control of devices. The M3 Hub aims to enhance cross-platform compatibility and streamline smart home management.

The M3 is a versatile hub supporting Aqara Zigbee and Thread devices. It integrates third-party devices into the Aqara Home app. Supports advanced Matter bridge functionality, enabling Aqara-exclusive scenes and signals to sync with Matter ecosystems such as Home Assistant for seamless integration. Supports up to 127 Aqara Zigbee devices （** Not third-party Zigbee devices) and 127 Thread devices (Repeaters are needed).

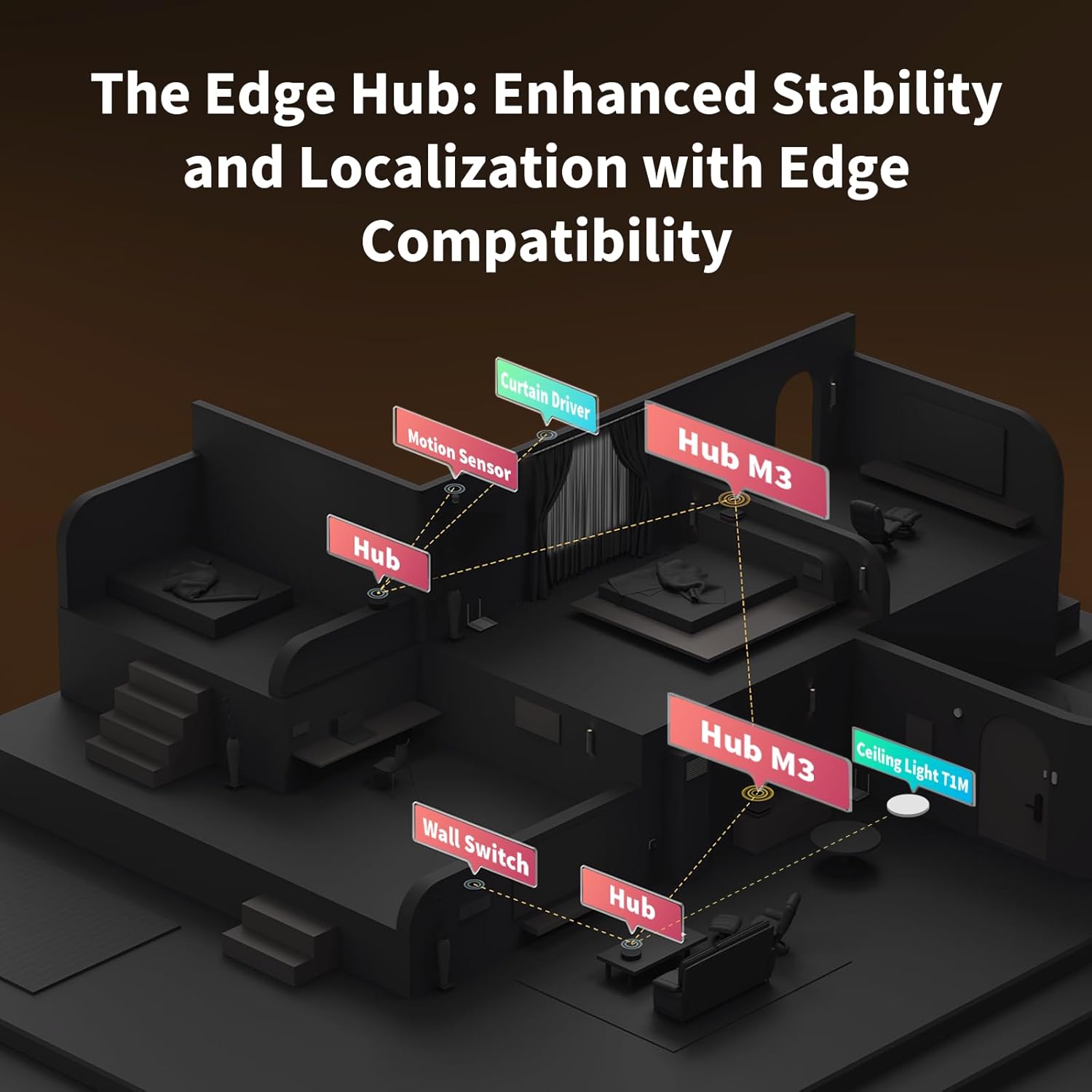

The M3 serves as an Edge Hub, prioritizing local control and automation. Upon integration, it supersedes existing Aqara hubs, shifting the automations among them to local operation (Some cloud-based notifications still require internet). Upgrade-friendly, it supports migrating Zigbee devices from older Aqara hubs.

The 360°IR blaster not only sends commands but also provides accurate status updates by detecting traditional remote use. It connects IR air conditioning units to Matter, functioning as an AC thermostat when paired with an Aqara Temperature and Humidity Sensor. (Note: Only one AC device can be exposed to Matter. Functionality may vary based on the Matter integration app. For Apple Home exposure, use Matter integration instead of HomeKit.)

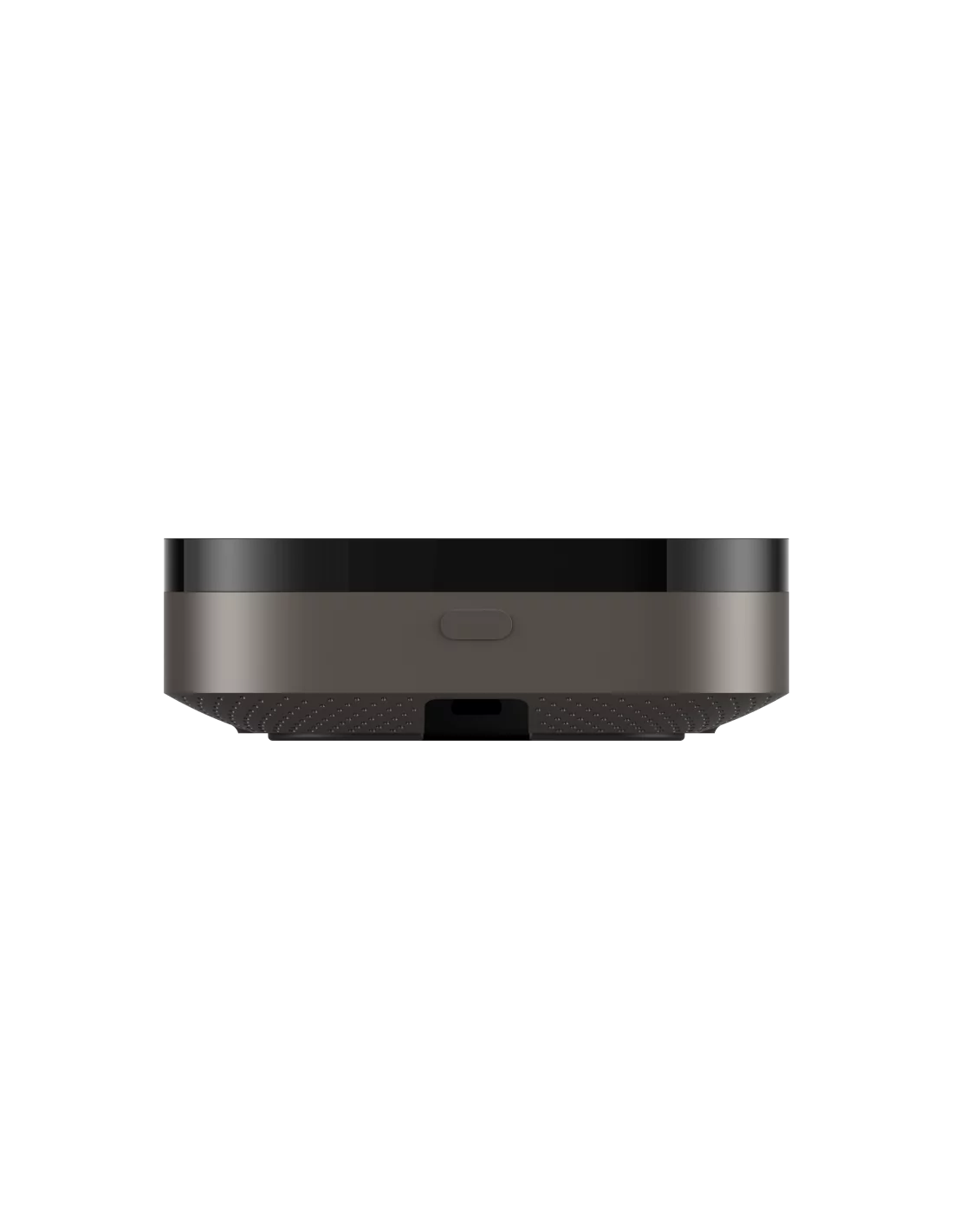

Offering both wired and wireless solutions, the smart home hub M3 provides dual-band Wi-Fi (2.4/5 GHz) with advanced WPA3 security, and a Power over Ethernet (PoE) port. The addition of a USB-C port allows for mini-UPS and power bank connections, delivering unparalleled stability. (2A USB power adapter is not included. ) . Note: To ensure a stable connection, place the Hub M3 between 6 to 19 feet from the router.

The M3 prioritizes privacy by excluding microphone or camera components. It boasts 8GB end-to-end encrypted local storage, for device lists, configuration parameters, and automation configuration data. Additionally, it includes a mount and screws for flexible placement on flat surfaces, walls, or ceilings. Magic Pair technology ensures effortless detection by the Aqara Home app upon power-up.

FEATURES:

• Model: HM-G01D
• Multi-Protocol Hub with Matter Bridge
• Edge Compatibilities and Local Automations
• Smart IR Blaster with Feedback and Learning
• Optimal Wired and Wireless Connectivity
• Privacy-Focused with Encrypted Storage, Easy Setup and Versatile Placement

SPECIFICATIONS:

• Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 GHz / 5 GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth 5.1

• Input Power: 5V ⎓ 2A

• PoE Input: 48V ⎓ 0.27A
• Operating Temperature: 5-10 °C ~ 50 °C (14 °F ~ 122 °F)
• Operating Humidity: 0 ~ 95% RH, no condensation
• Dimensions: 105 × 105 × 36.5 mm

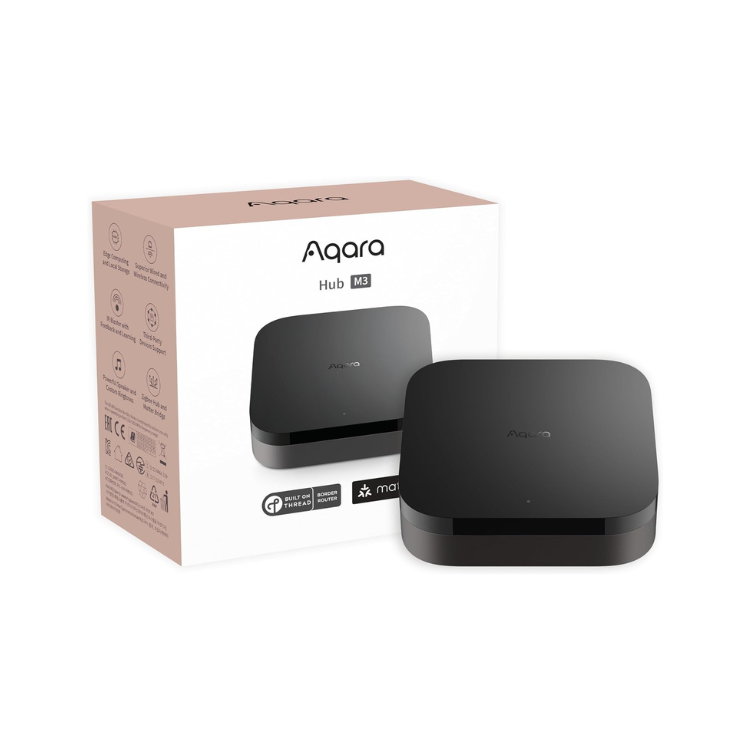

WHAT’S IN THE BOX:

• Hub M3 ×1
• User Manual ×1
• USB-A to USB-C Cable ×1
• Screws & Anchors Kit ×1
• Bracket ×1

WARRANTY:

• 12 Months
