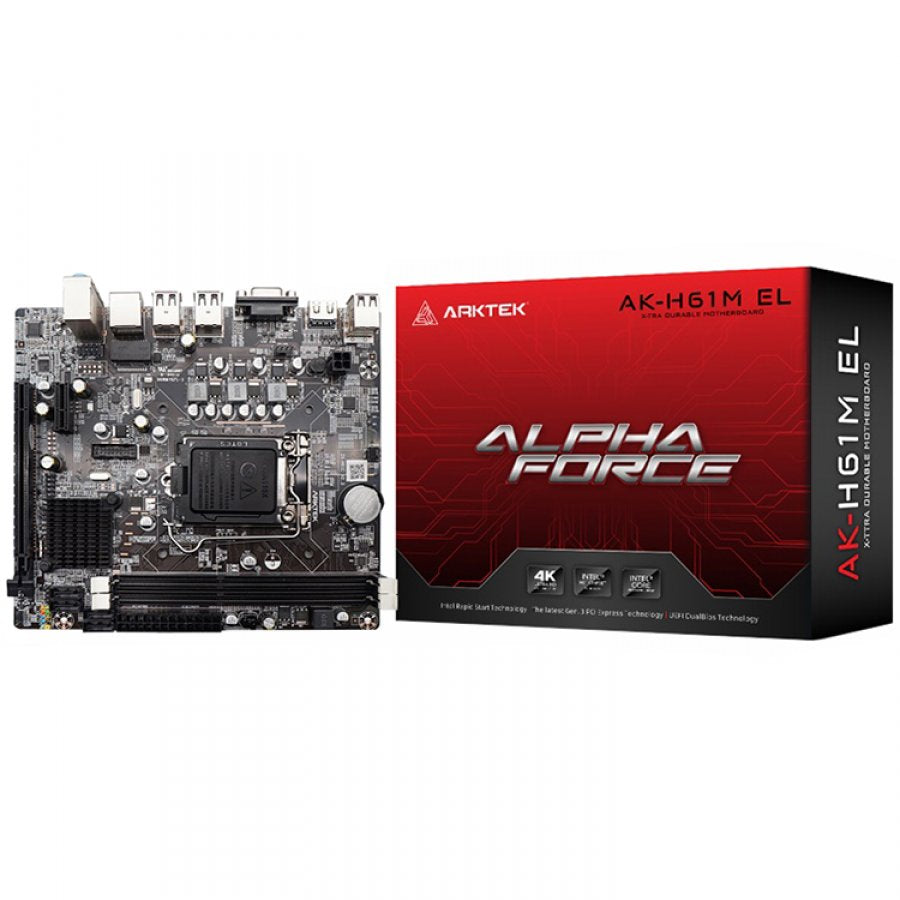

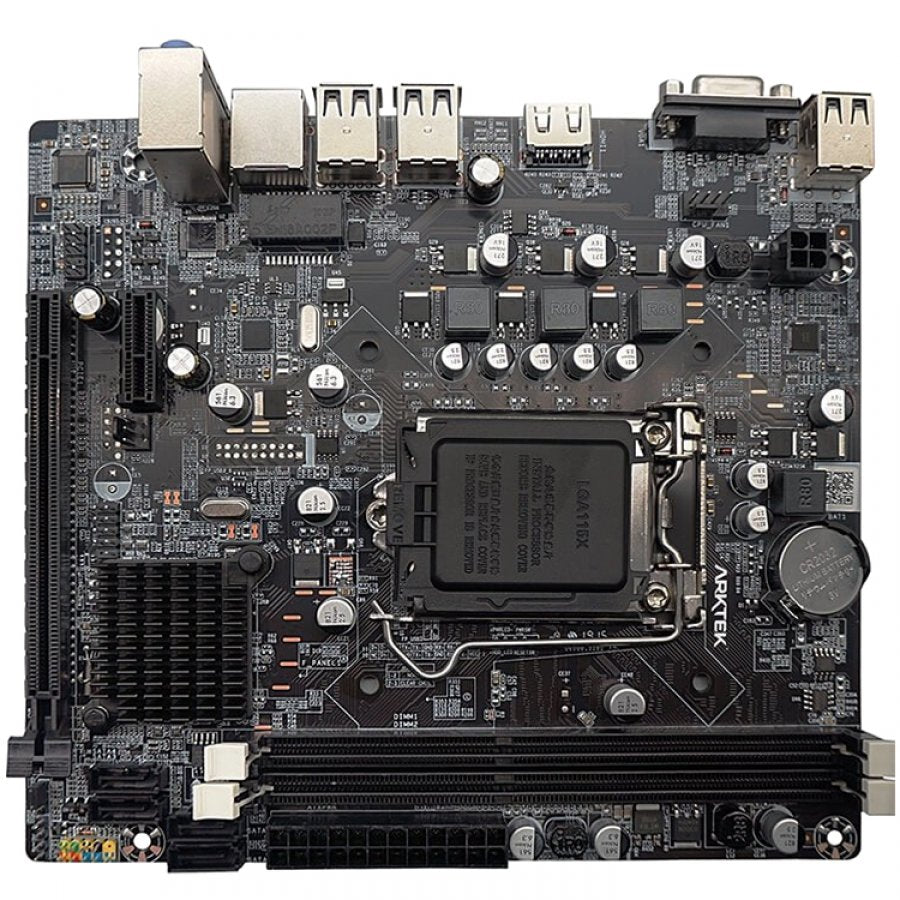

Arktek Intel H61 LGA1155 Micro-ATX DDR3 Motherboard

The Arktek Intel H61 motherboard (AK-H61M EL) supports Intel LGA1155 processors and dual-channel DDR3 memory, providing essential connectivity and expansion options in a Micro-ATX form factor.

• Supports Intel® Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors
• Dual-channel DDR3 memory support
• Supports DDR3 1600/1333/1066 memory
• Realtek 8105E/8111E 100/1000 Mbps LAN (Optional)
• Realtek 6 Channel Audio Codec
• SATA ports x4
• USB 2.0 pinheaders supporting an additional 4 USB 2.0 ports x2
• Front Panel Audio pinheader x1
• PCI Express x16 slot x1
• PCI E x1 slot x1
• Micro-ATX form factor
• 6 mounting holes

SPECIFICATIONS:

• Model: AK-H61M EL

• Chipset: Intel H61

• Processor Socket: Intel LGA1155

• Processor Support: Intel® Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

• On-Board Graphics: Intel® Graphics Media Accelerator X4500 HD

• Memory Type: DDR3

• Memory Support: DDR3 1600/1333/1066

• DIMM Slots: 2 × Memory Slots

• LAN: Realtek 8105E/8111E 100/1000 Mbps (Optional)

• Audio: Realtek 6 Channel Audio Codec

• SATA: 4 × SATA ports

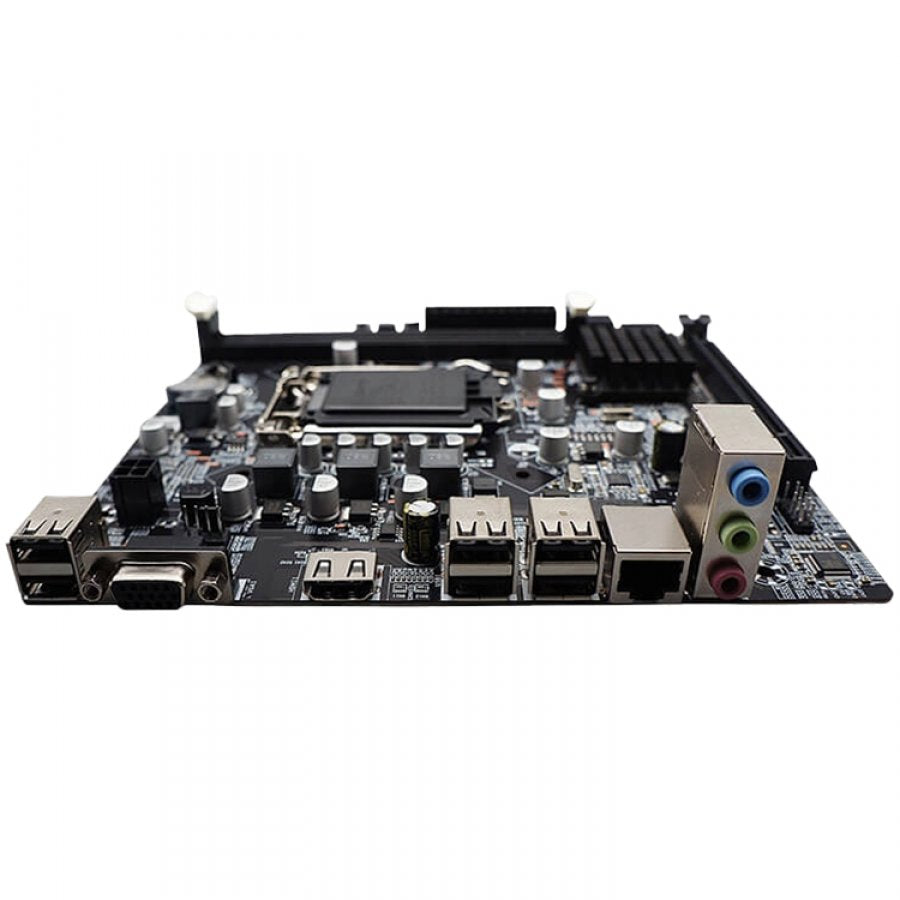

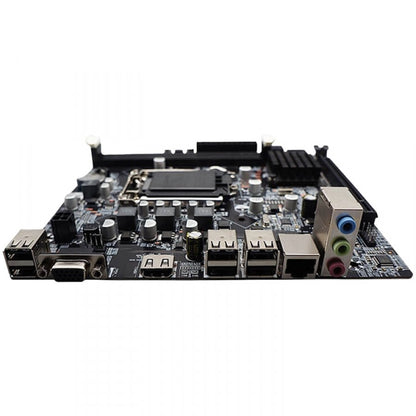

• Back Panel I/O Ports: 1 × VGA port, 1 × Digital Output port, 6 × USB 2.0 ports, 1 × LAN jack, 3 × Audio jacks

• Expansion Slots: 1 × PCI Express x16 slot, 1 × PCI E x1 slot

• Form Factor: Micro-ATX (18.5 × 16.8 cm)

• Mounting: 6 mounting holes

• On-Board Pinheaders / Connectors: 2 × USB 2.0 pinheaders supporting additional 4
• USB 2.0 ports, 1 × Front Panel Audio pinheader

WHAT’S IN THE BOX:

• Arktek Intel H61 LGA1155 Micro-ATX DDR3 Motherboard x1

• SATA Cable x1

• I/O Backboard x1

• User Manual x1

• Driver CD x1
