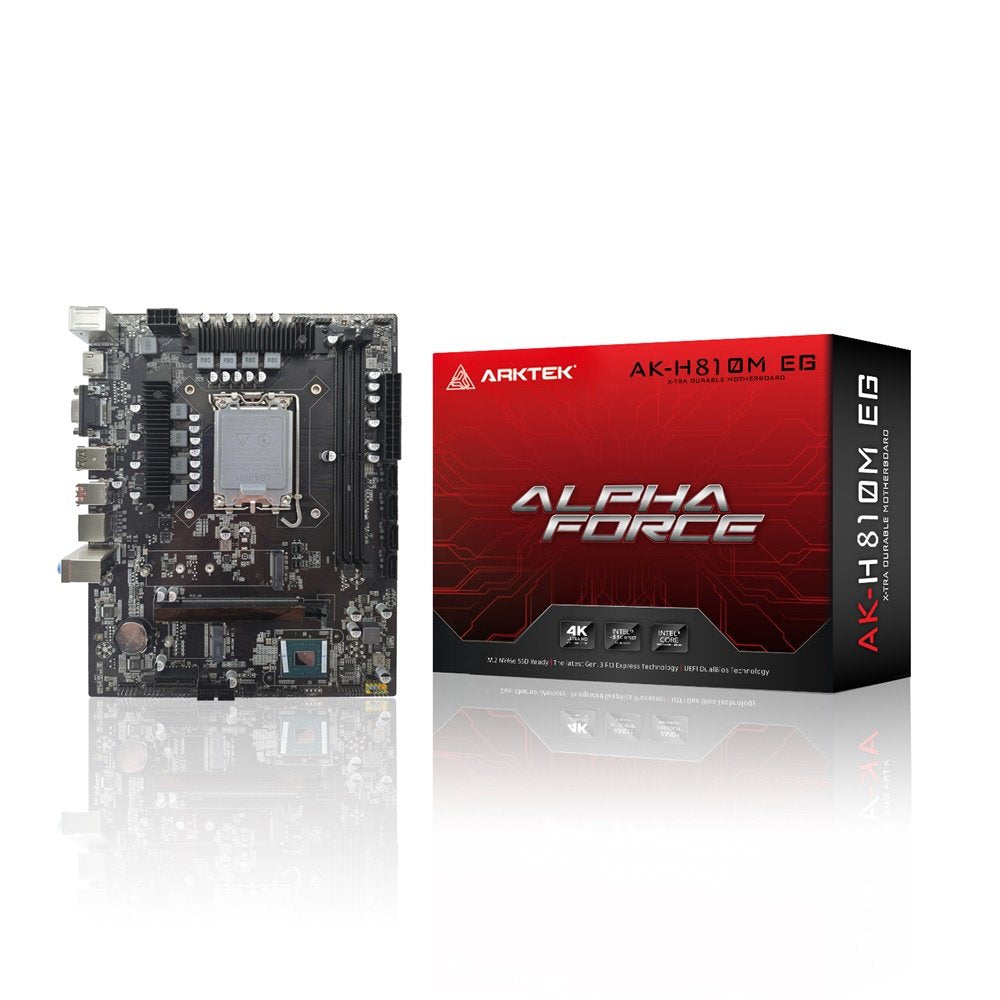

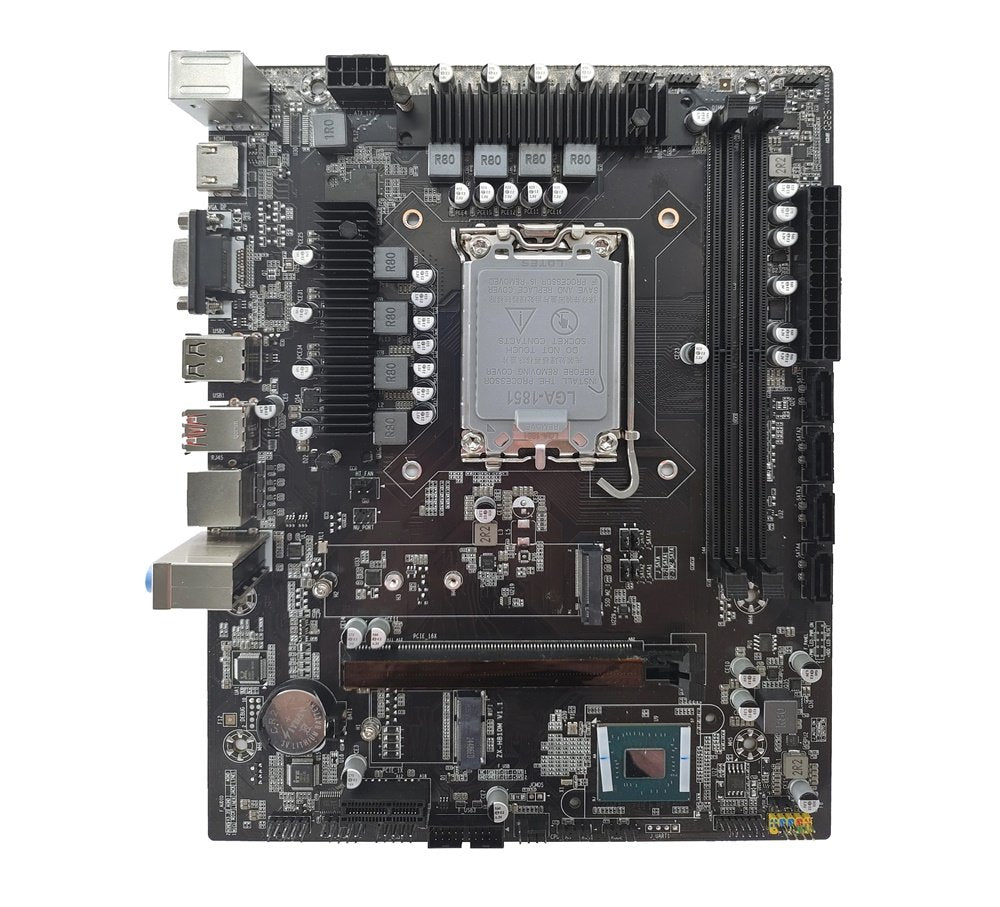

Arktek Intel H810 LGA1851 Micro-ATX DDR5 Motherboard

The Arktek Intel H810 LGA1851 Micro-ATX DDR5 Motherboard supports Intel Socket LGA1851 Intel Ultra 200 Series CPUs and features the Intel H810 chipset with integrated Intel HD Graphics support. It supports 2 x DDR5 memory slots with speeds from 4800 to 6400MHz and up to 64GB per slot. The motherboard includes Realtek 10/100/1000Mbps LAN, built-in 6-channel HD audio, 4 x SATA3.0 ports and 1 x M.2 slot supporting NGFF/NVMe.

FEATURES:

• CPU Support: Supports Intel Socket LGA1851 Intel Ultra 200 Series CPU
• Chipset: Intel H810 Chipset
• On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics support
• Memory: 2xDDR5 4800~6400MHz (Max. up to 64GB each)
• DIMM: 2 x Memory Slots
• LAN: Realtek 10/100/1000Mbps LAN onboard
• Audio: Built-in 6-channel HD audio chip
• SATA: 4 X SATA3.0, 1 X M.2 (supports NGFF/NVMe sign）
• Internal I/O: 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports
• Expansion Slots: 1 x PCI Express x16 slot (Supports 5.0), 1 x PCI Express x1 slot

SPECIFICATIONS:

• CPU Support: Supports Intel Socket LGA1851 Intel Ultra 200 Series CPU
• Chipset: Intel H810
• On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics support
• Memory: 2xDDR5 4800~6400MHz (Max. up to 64GB each)
• DIMM: 2 x Memory Slots
• LAN: Realtek 10/100/1000Mbps LAN onboard
• Audio: Realtek 6-channel HD audio
• Real I/O: 1 x PS2 MS/KB, 1 x VGA port (DP Optional), 1 x HDMI port, 2 x USB 2.0 port, 2 x USB 3.2 port, 1 x LAN jack, 3 x Audio jack
• Internal I/O: 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports
• SATA: 4 X SATA3.0, 1 X M.2 (support NGFF/NVMe sign）
• Form Factor: Micro-ATX (18 x 24 cm)
• Expansion Slots: 1 x PCI Express x16 slot (Supports 5.0), 1 x PCI Express x1 slot
• OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
• Mounting: 6 mounting holes

WHAT’S IN THE BOX:

• Arktek Intel H810 LGA1851 Micro-ATX DDR5 Motherboard x1
• SATA cable x1
• I/O Backboard x1
• User Manual x1
• Driver CD x1

WARRANTY:

• 36 Months
