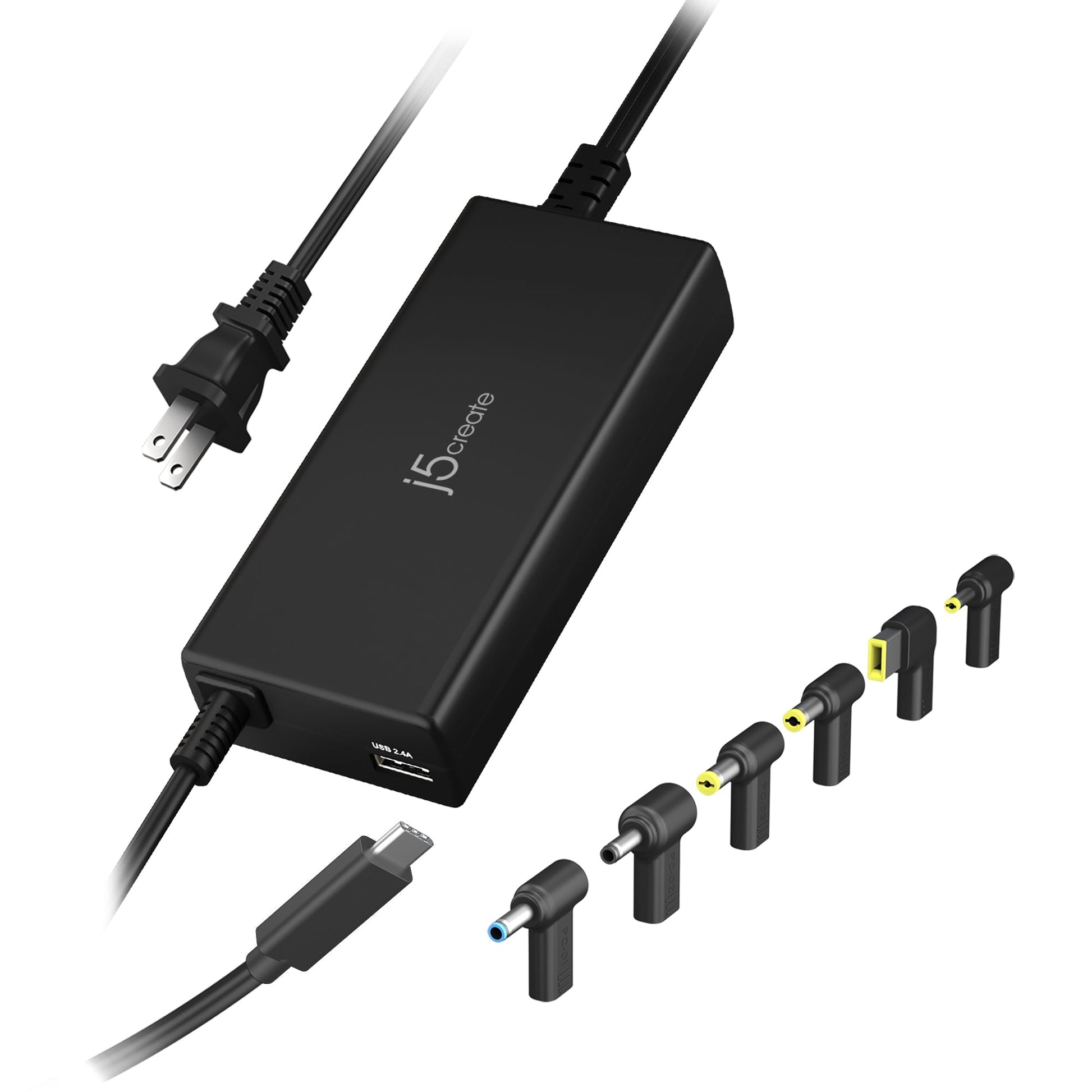

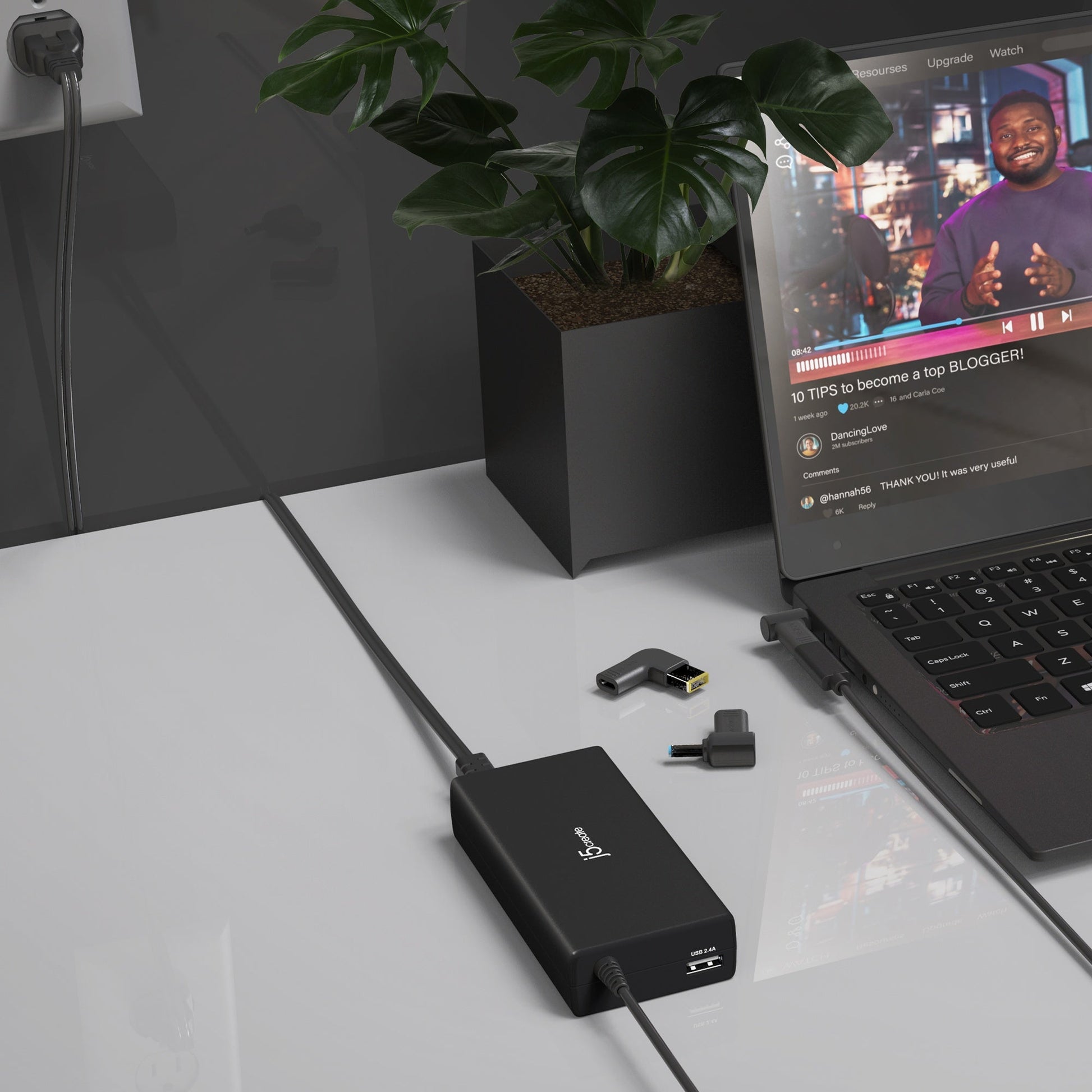

J5create 100W PD USB-C Super Charger with 6 Types of DC Connector - JUP2290DC

The USB-C® super charger has power delivery 3.0 technology allowing you to charge your phones, tablets or laptops at the fastest possible speed, with up to 100W of power. This device is ideal for use with MacBook® (16" /15" MacBook Pro® ), iPhone® 14 /13 / 12 /11 /11 Plus/ XS /XS Max / XR / X /8 / 8 Plus, Nintendo Switch™ , Samsung® Galaxy™ S22 / S21 / S20 /S10e / S10 / S10 Plus / Note10 / Note10 Plus and other devices. The USB™ Type-A ports provide fast charging to your phone and other small devices. The JUP2290DC has a detachable DC Jack and can be converted to an older power adapter that can charge your Lenovo™, Dell™, HP®, Acer®, ASUS® , and Toshiba® laptops.

Surge, overcharging, overcurrent, and overheating safety are also included to keep your devices safe.

FEATURES:

• Provides an enormous 100W of power:
  • 1-port USB-C® power delivery & 1-port USB™ Type-A
• Charging USB-C® port automatically balance up to 100W output:
  • 1 USB-C® power delivery port provides up to 100W output

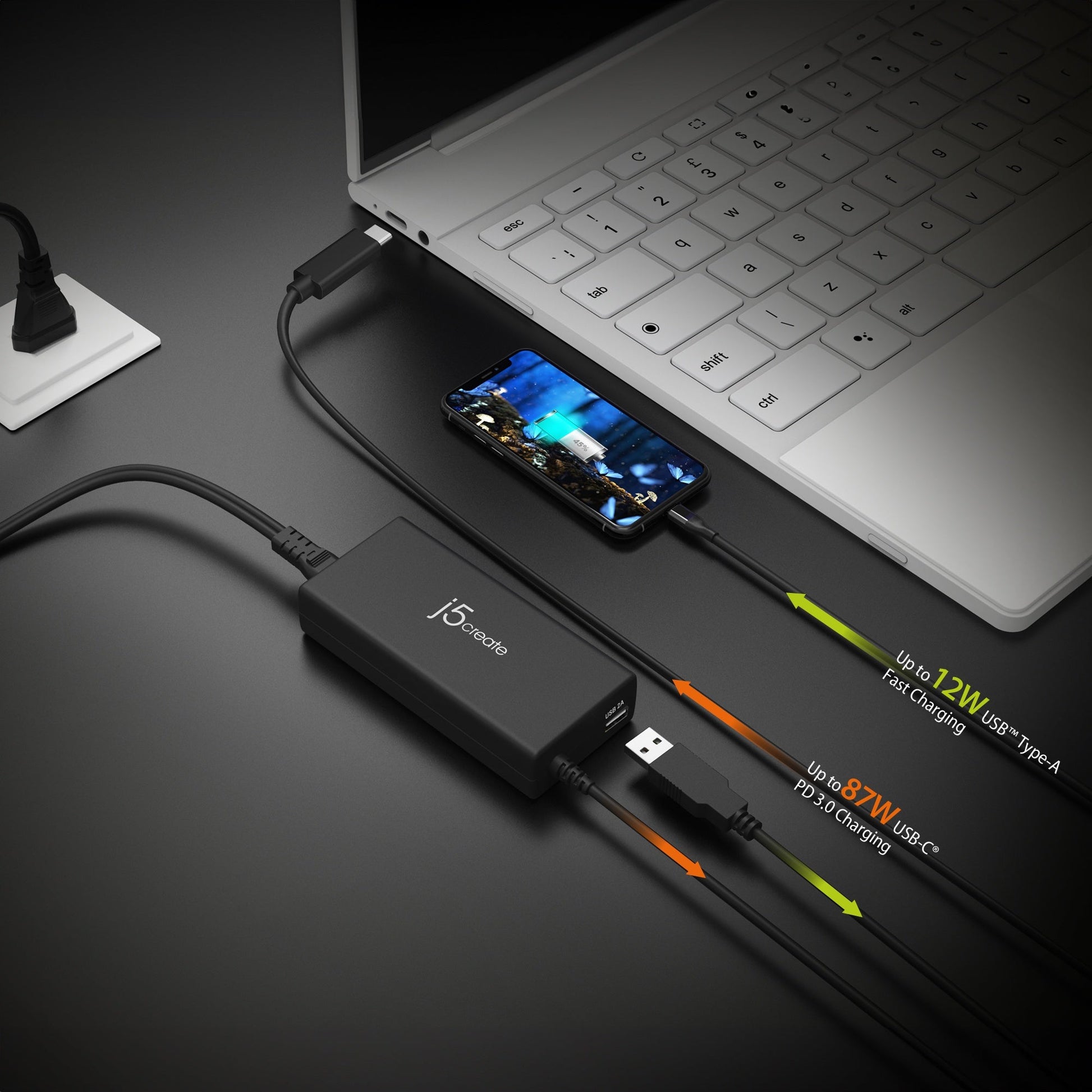

  • When using 2 ports simultaneously, USB-C® port provides up to 87W and USB™ Type-A up to 12W fast charging
• Suitable for mobile phones, tablets, consoles, and notebooks

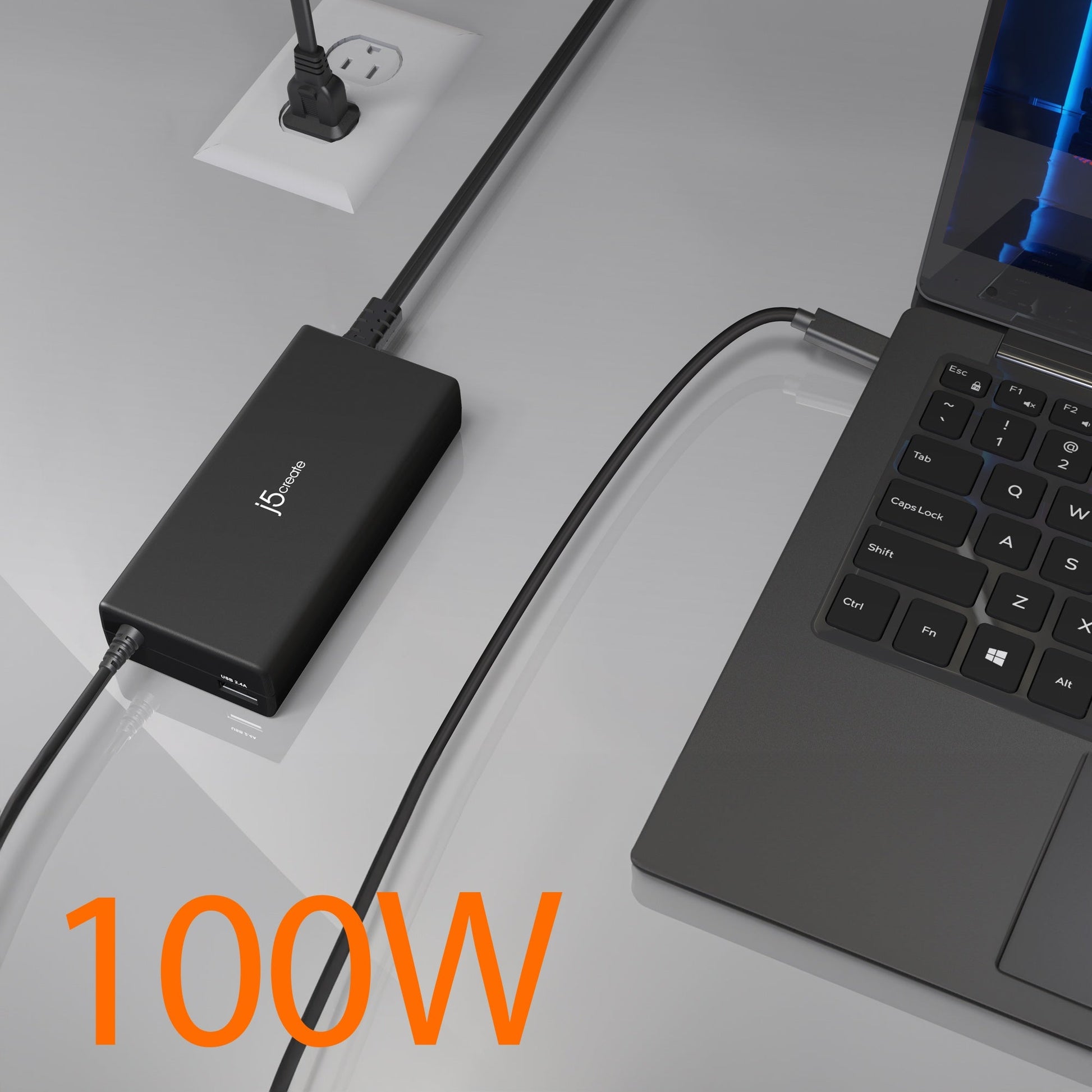

  • Provides up to 100W of power to power the latest 16-inch MacBook Pro®.
  • Provides sufficient power for high-consuming laptops such as the Dell™ Vostro™ 5471 and HP® Spectre™ TPN-Q178
• Amount of time required for fully charging the following devices:
  iPad Pro® 11": 2 hours
  MacBook Pro® 13": 1.5 hours
  MacBook Pro® 15": 1 hours 48 min fully charged
• Save 1 hours charging time compared to Apple® 61W charger when charging MacBook Pro® 15"

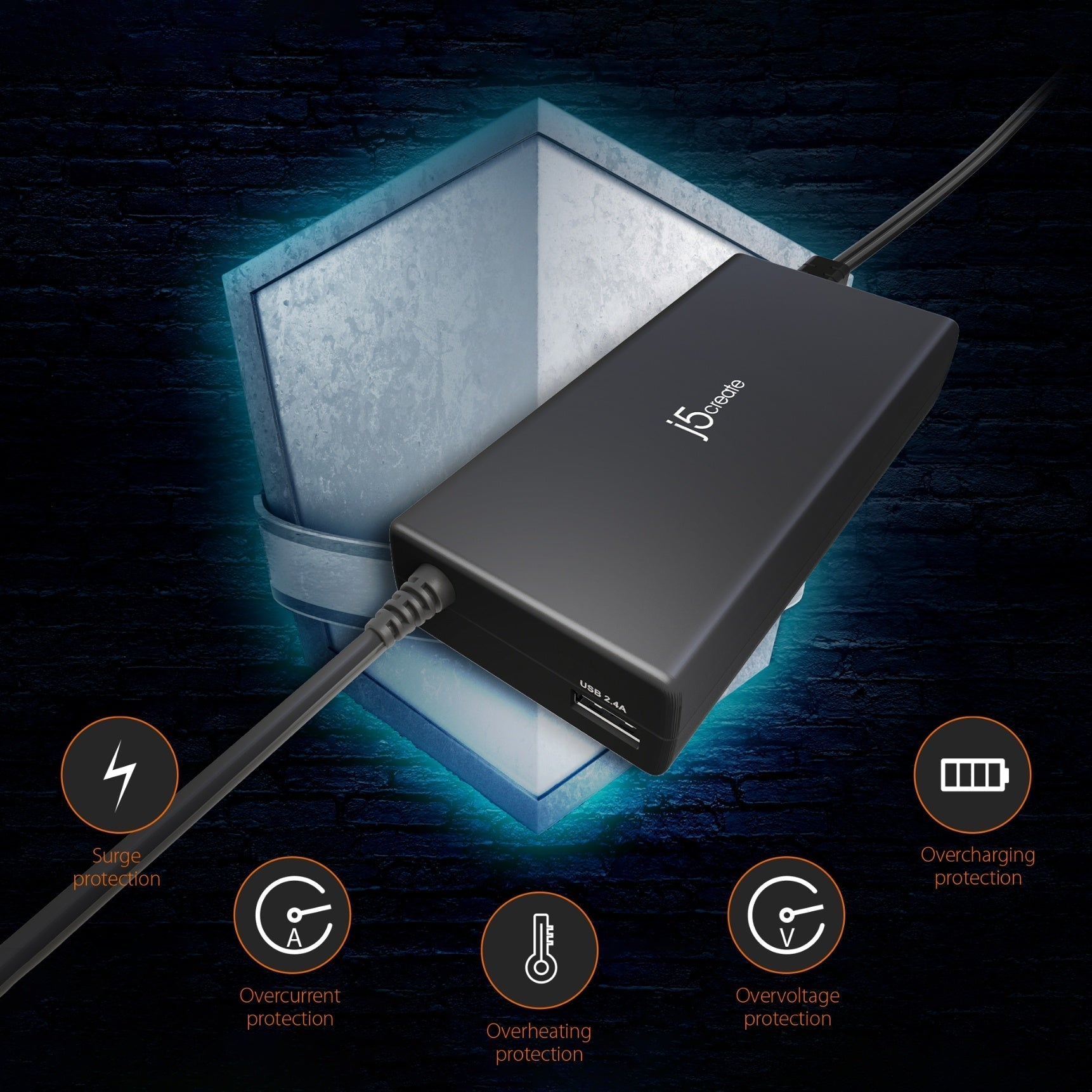

• Surge, overcharging, overcurrent and overheating protection to ensure safe charging
• Built-in intelligent IC to automatically identify device
• JUP2290 with DC Jack adapter can be used as a power adapter for charging various types of computers, and can charge your Lenovo™, Dell™, HP®, Acer®, ASUS®, Toshiba® laptops.
• JUP2290 with DC Jack adapter can be used as a power adapter for charging various types of computers, and can charge your Lenovo™, Dell™, HP®, Acer®, ASUS®, Toshiba® laptops.

Special Notes:

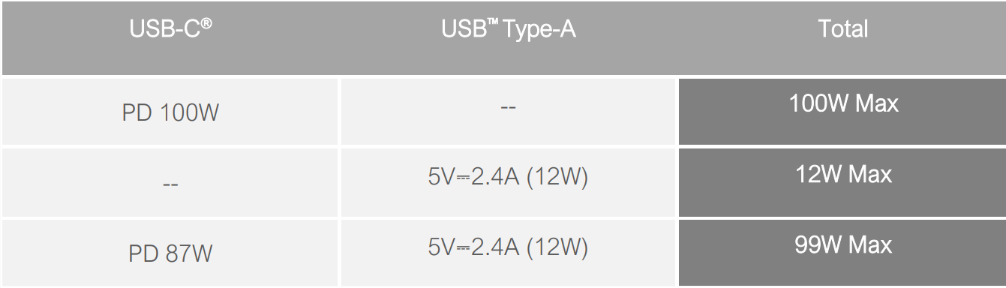

• The most amount of power the charger can provide to a single device is 100W. The maximum combined power output is USB-C® 87W + Type-A 12W
• USB-C® Cable with 5A e-mark is required for charging over 60W
• Detachable power cord length varies by region:
  -US Power Cord (47.24 in. /120 cm)
  -EU/UK/AU Power Cord (39.37 in. /100 cm)
• USB-C® cable: 47.24 in. (120 cm)

SPECIFICATIONS:

• Input: AC 100V–240V, 50–60Hz, 2A (max)
• Ports & Connectors:
  • 1 × USB-C® Male
  • 1 × USB™ Type-A Female
  • 6 × USB-C® to DC Jack Adapters
• USB-C Output
  • 5V/3A
  • 9V/3A
  • 12V/3A
  • 15V/3A
  • 20V/5A (100W max)
• USB-C to DC Jack Adapter Output: 18–20V
• USB Type-A Output: 5V/2.4A (12W max)
• Color: Black
• Enclosure type: Plastic

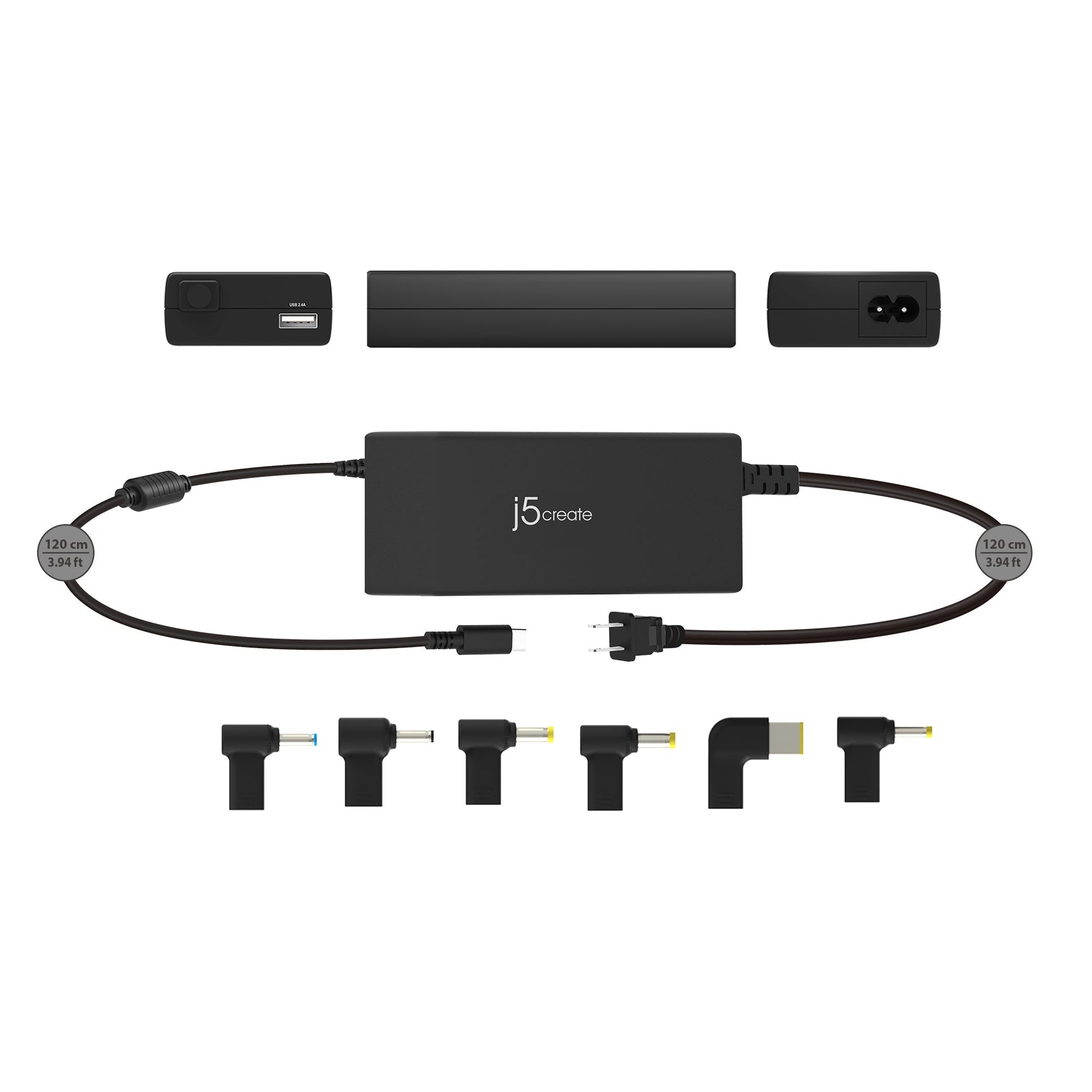

• Cable length:
  • US power cord: 47.24 in (120 cm)
  • EU/UK/AU power cord: 39.37 in (100 cm)
  • USB-C® cable: 47.24 in (120 cm)

• Dimensions (main body):
  • Width: 5 in (127 mm)
  • Height: 2.32 in (59 mm)
  • Depth: 1.29 in (32.7 mm)

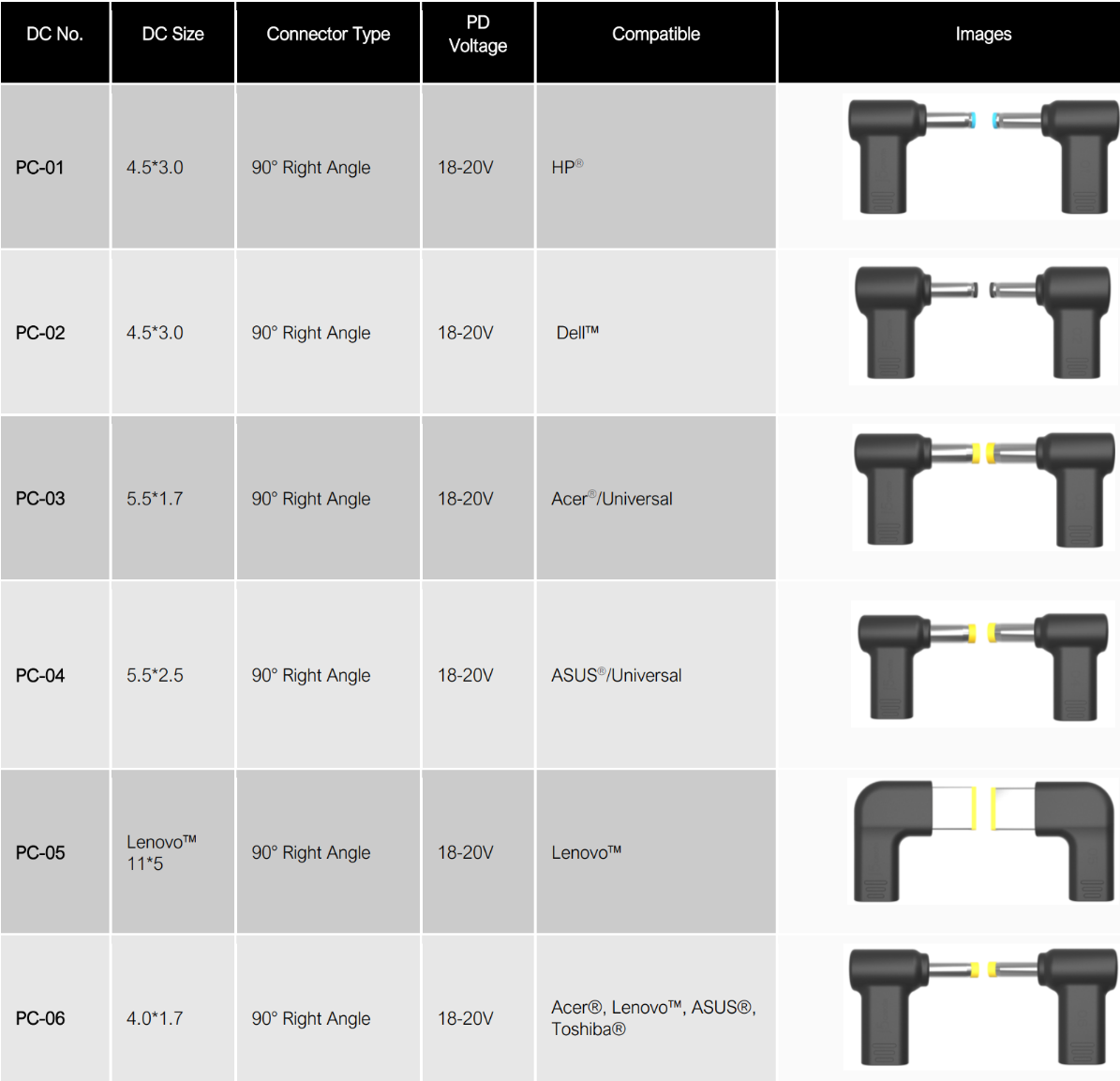

• Dimensions (DC adapters):
  • PC-01: 32.7 × 28.5 × 32 mm
  • PC-02: 31 × 30 × 32 mm
  • PC-03: 32.7 × 28.5 × 32 mm
  • PC-04: 32.7 × 28.5 × 32 mm
  • PC-05: 32.7 × 31 × 32 mm
  • PC-06: 32.7 × 28.5 × 32 mm
• Weight:
  • Main body: ~0.67 lb / 302.5 g
  • PC-01: 5.5 g
  • PC-02: 6.7 g
  • PC-03: 5.5 g
  • PC-04: 5.5 g
  • PC-05: 7.6 g
  • PC-06: 5.1 g
• Environmental
  • Operating temperature: 0–25°C (32–77°F)
  • Operating humidity: <85% non-condensing
  • Storage temperature: -10 to 65°C (14–140°F)
  • Storage humidity: <85% non-condensing

WHAT’S IN THE BOX:

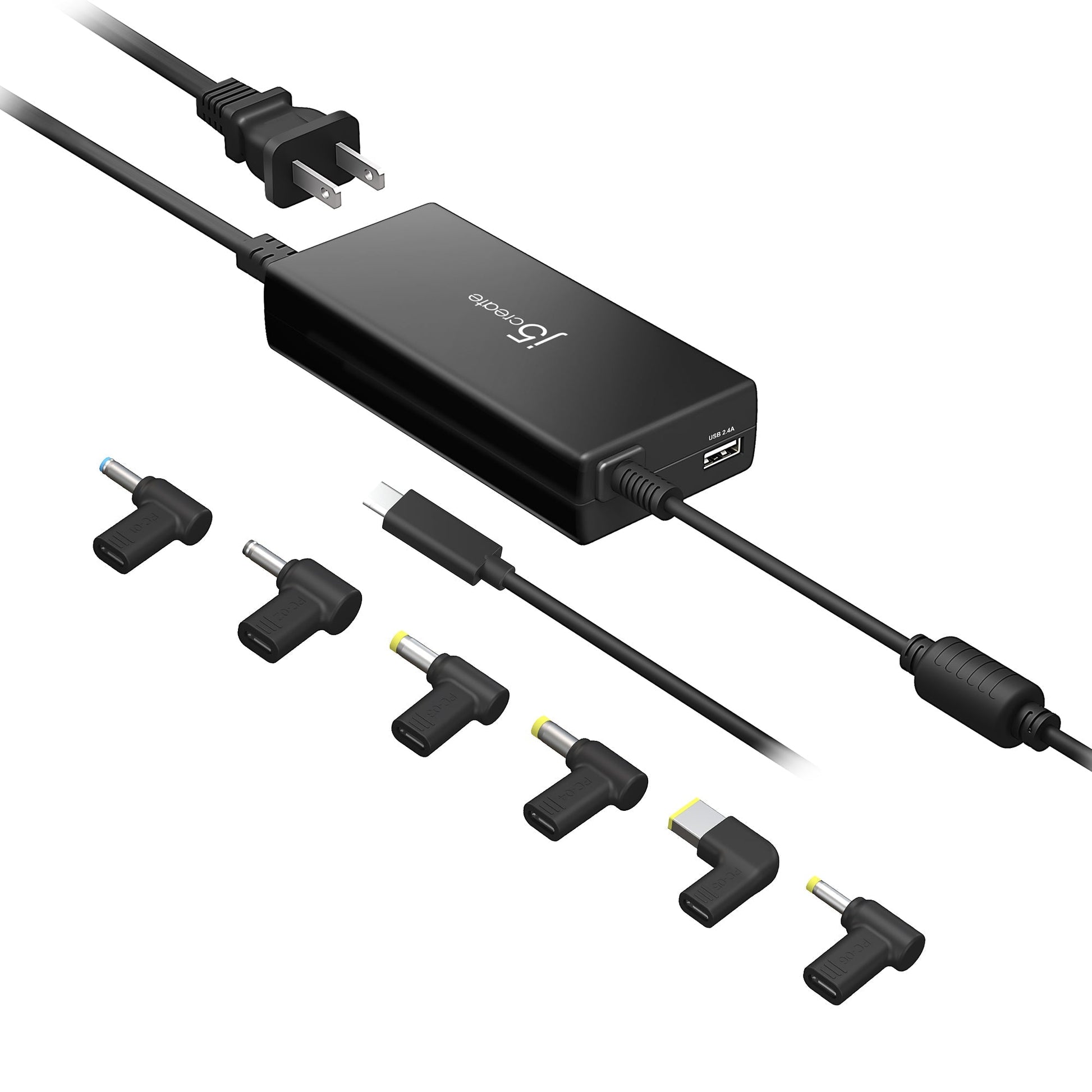

• 100W PD USB-C® Super Charger with 6 Types of DC connector (JUP2290DC) x1
• Detachable power cord length varies by region: x1
  -US Power Cord (47.24 in. /120 cm)
  -EU/UK/AU Power Cord (39.37 in. /100 cm)
• USB-C® to DC Jack connector (6 Types) x6
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
