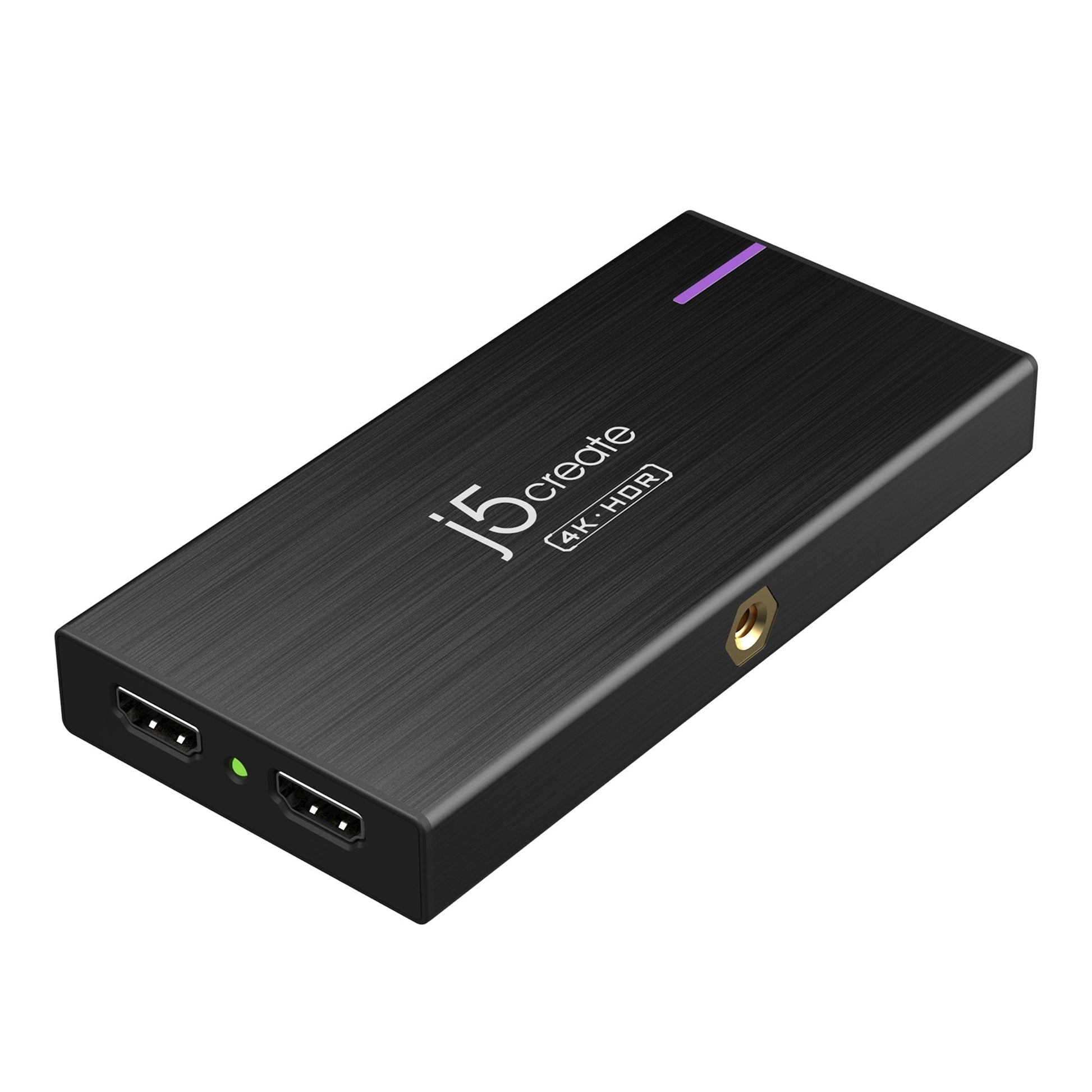

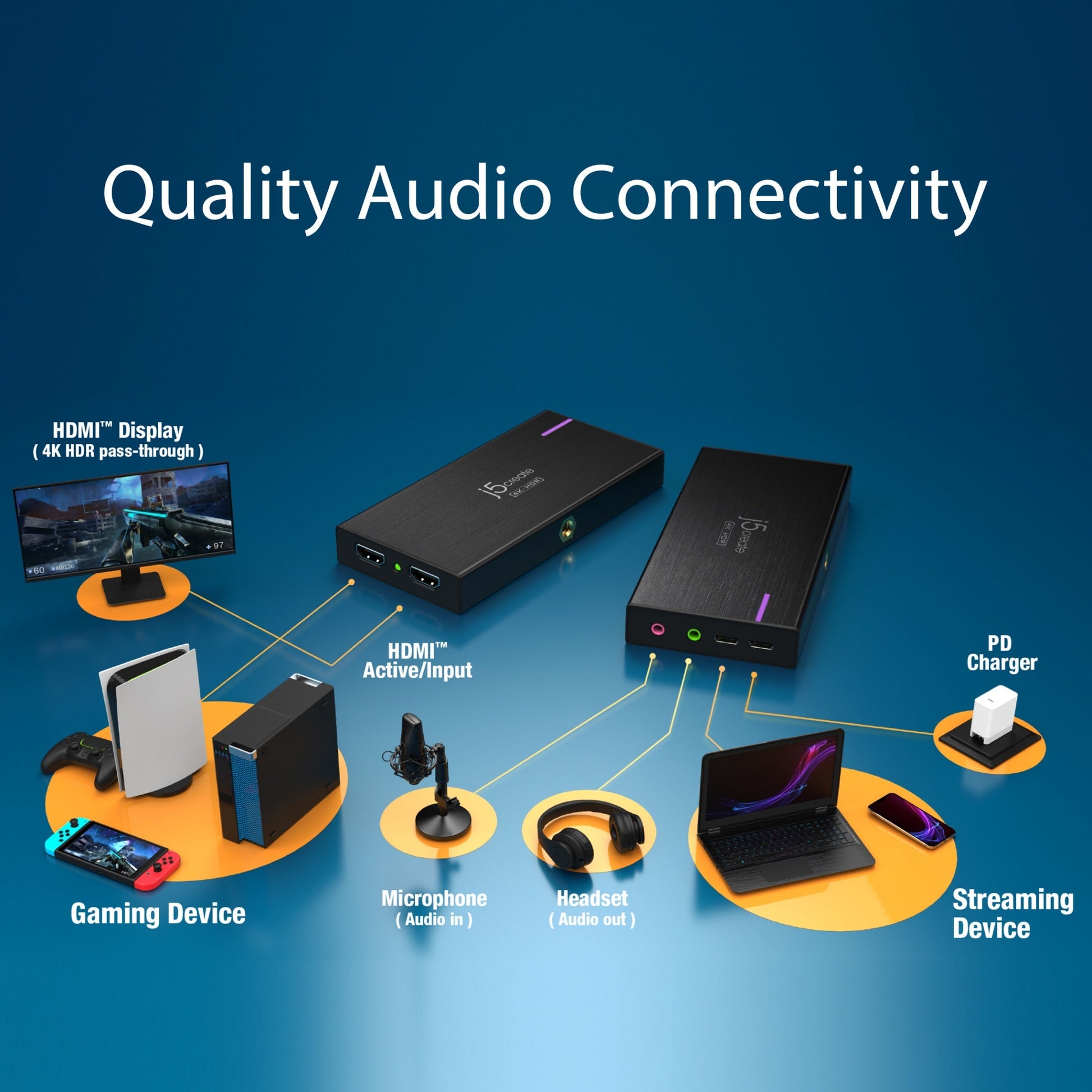

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.
FEATURES:
Uncompressed 4K@30 Capture + 4K@60 Loop Out
4K60 pass-through support (Uncompressed)
Power Only: Orange
No driver installation required

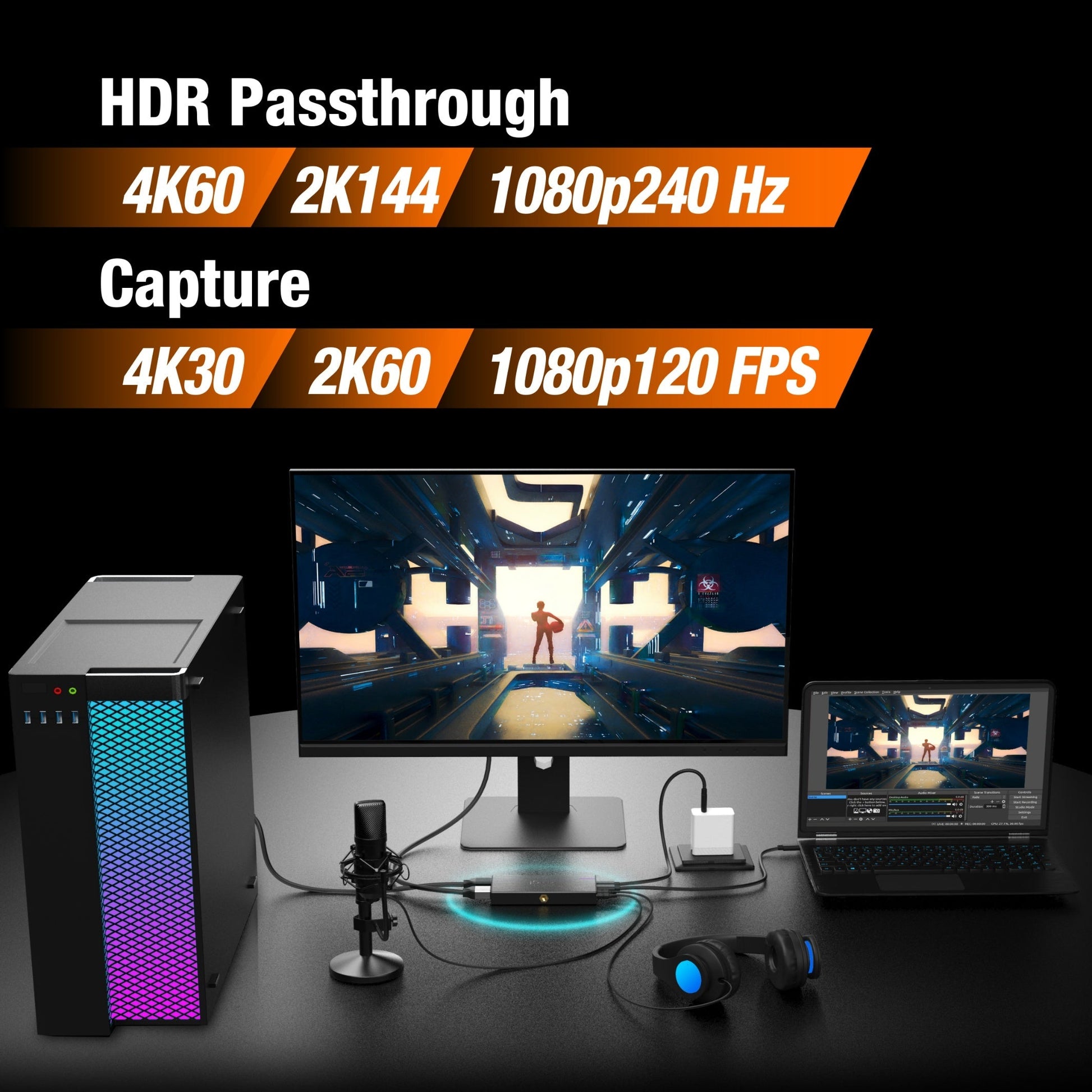

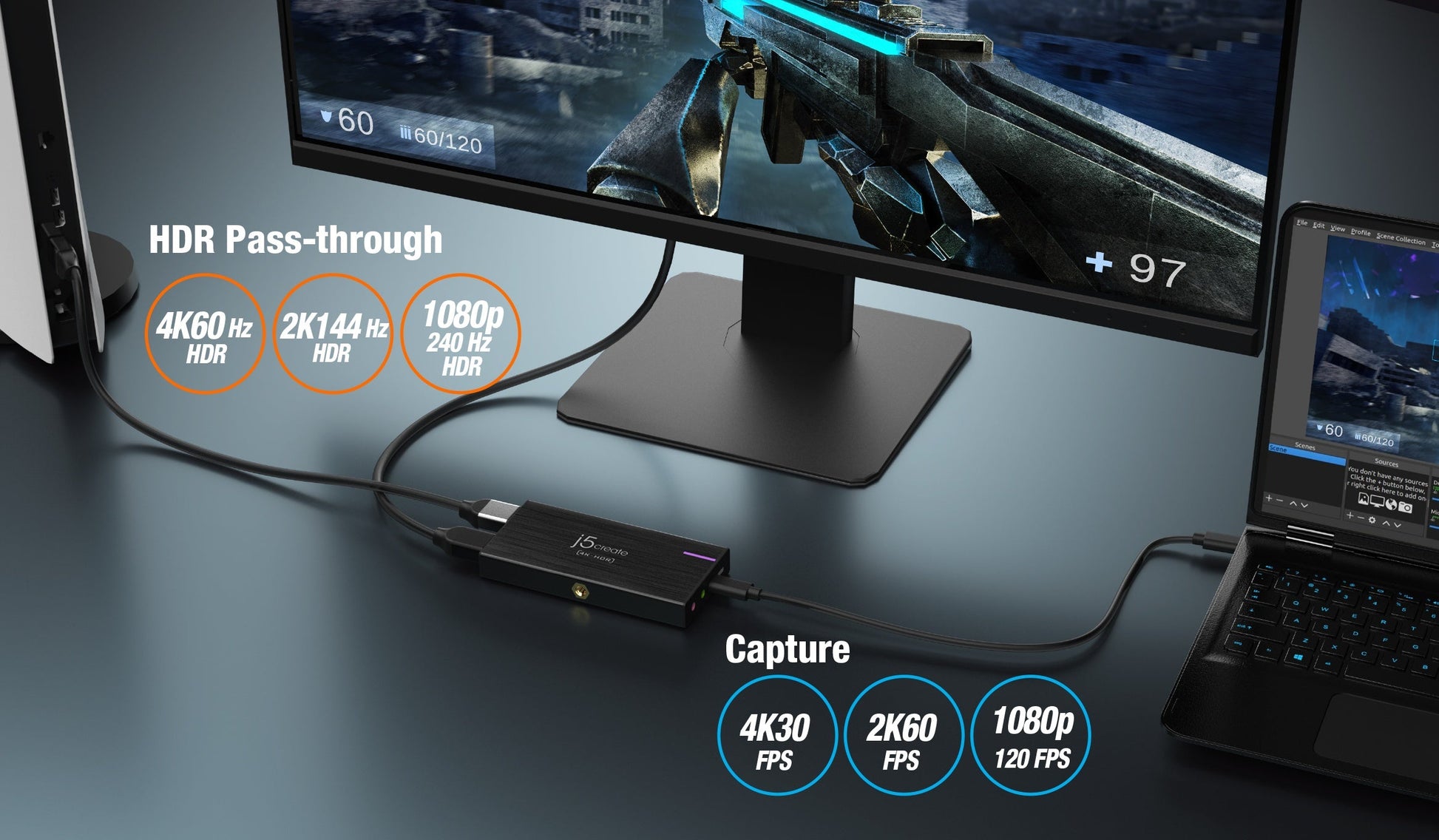

HDR Passthrough: Supports resolutions up to 4K @ 60 Hz, 1440p @ 144 Hz, and 1080p @ 240 Hz
Ultra-low latency stream with high-performance USB-C® 3.2 connection

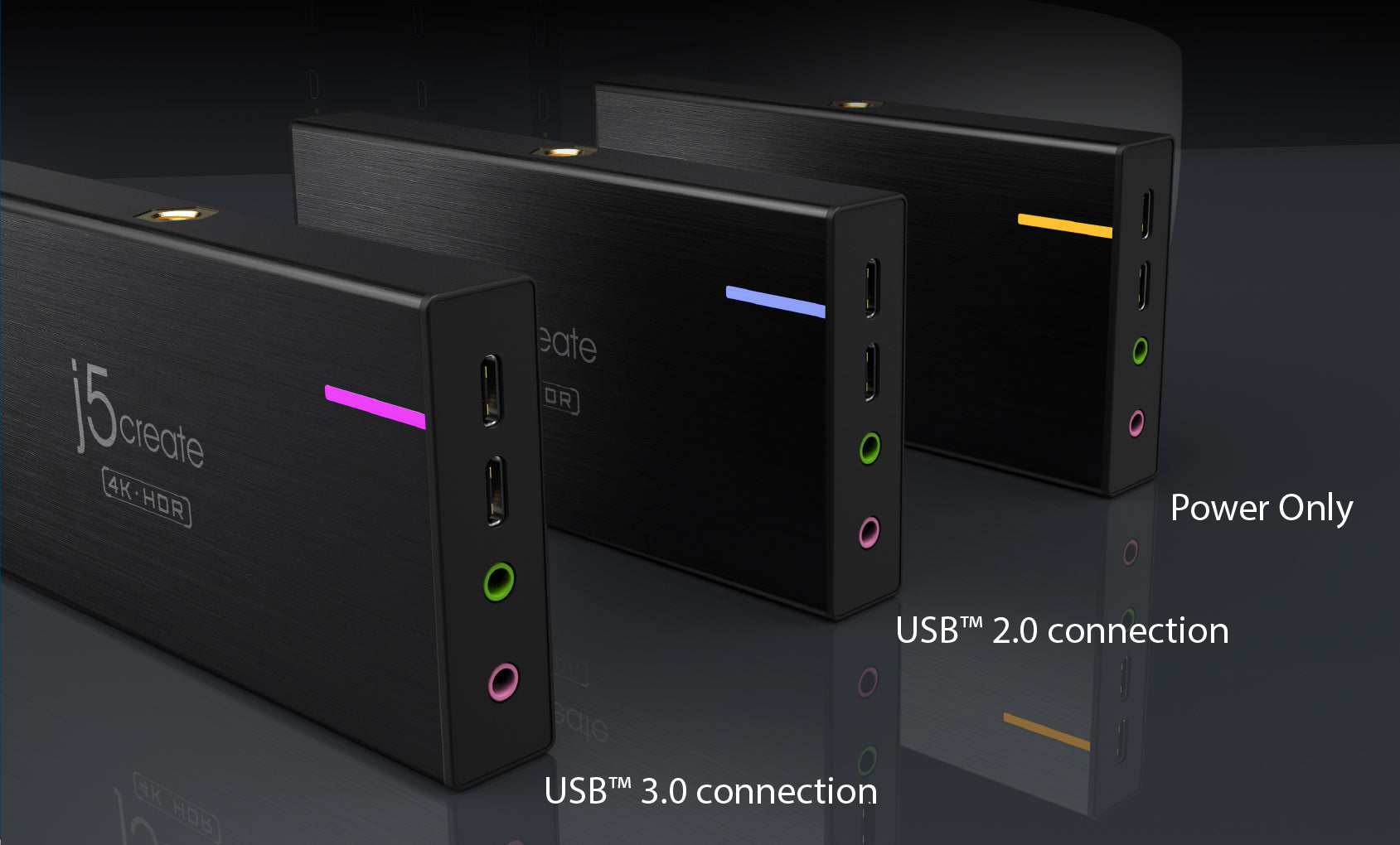

LED indicator to keep track of USB™ speeds and compression rates
USB™ 3.0 connection: Purple (Uncompressed)
USB™ 2.0 connection: Blue (Uncompressed)
System Requirements:
Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
Windows® 7 or later
macOS® 10.12 or later
Android™ 8.1 or later
CPU: Intel® Core™ i7 6700HQ & above
GPU: NVIDA® GTX 960M & above
RAM: 8 GB or higher
SPECIFICATIONS:
Host Connector: 1 × USB-C® 3.2 Female
Video Input: 1 × HDMI™ Female
Video Output: 1 × HDMI™ Female
Audio Input: 1 × 3.5 mm AUX
Audio Output: 1 × 3.5 mm AUX
Video Switcher: N/A
Audio Switcher: N/A
Power Source: Bus-powered

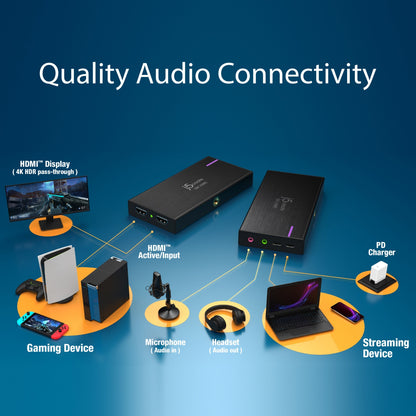

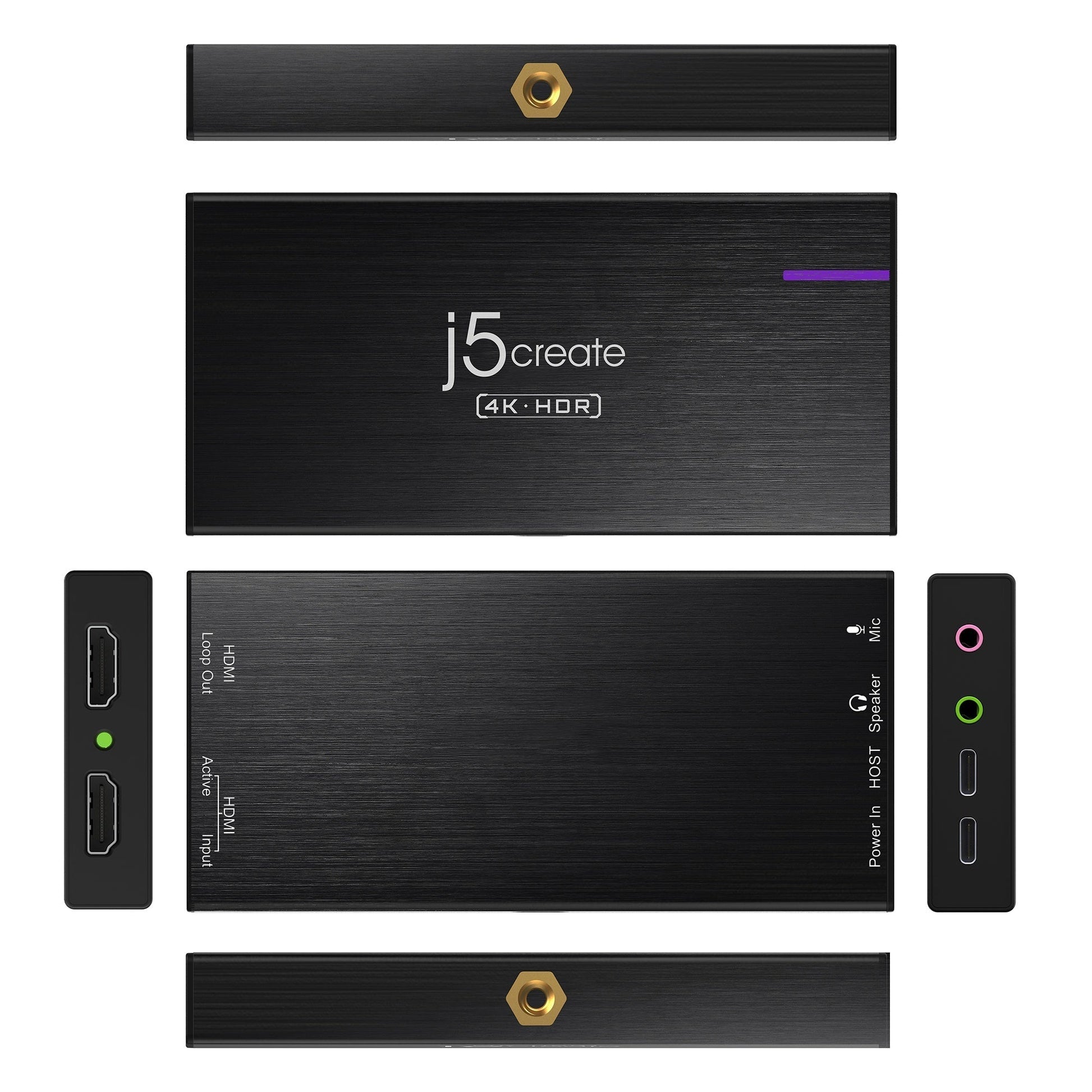

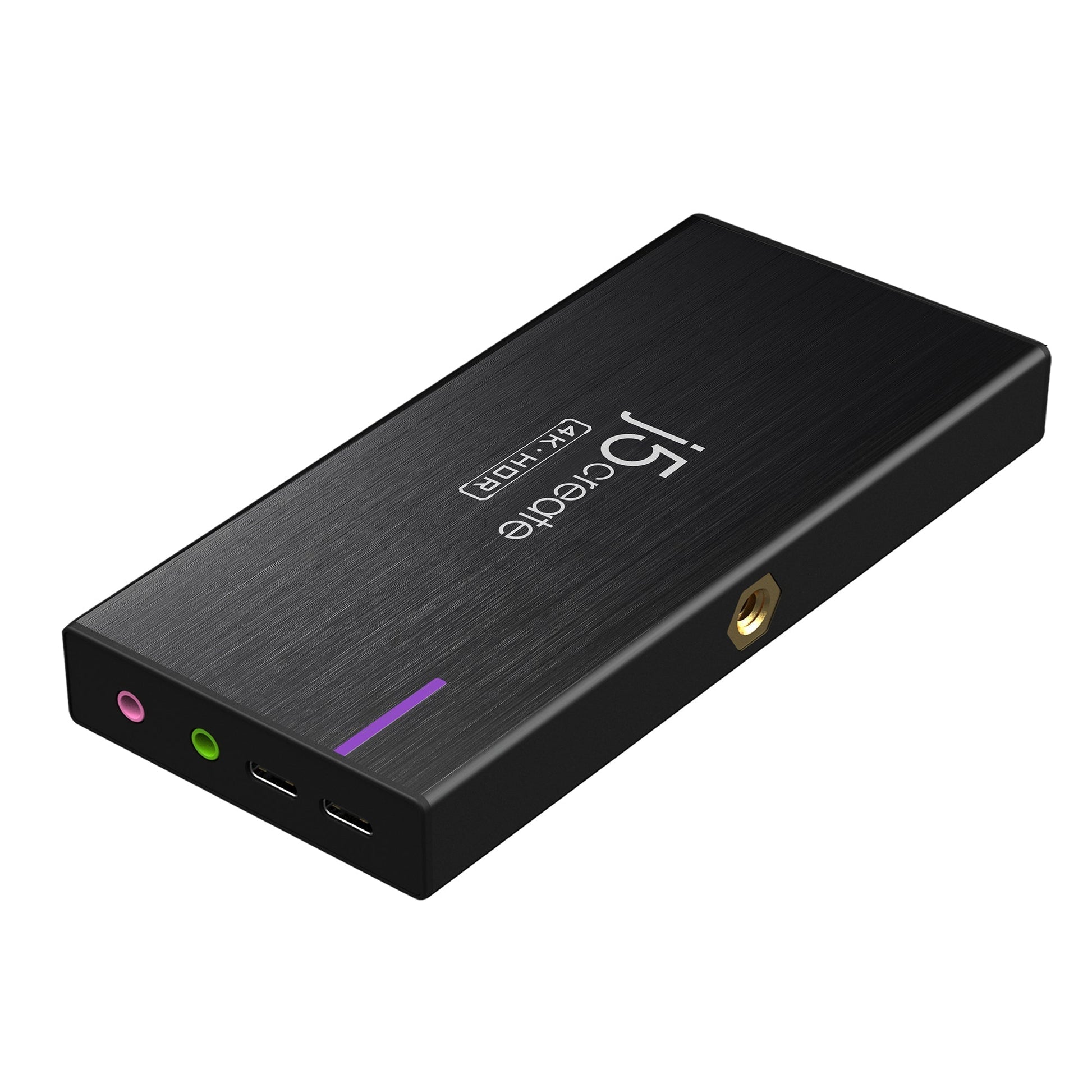

Ports: 1 × USB-C® 3.2 Gen 1, 1 × HDMI™ Input, 1 × HDMI™ Output, 1 × Audio Out (3.5 mm), 1 × Mic In (3.5 mm)
Maximum Capture Resolution: 3840 × 2160
Maximum Passthrough Resolution: 3840 × 2160
Maximum Capture Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p120 FPS
