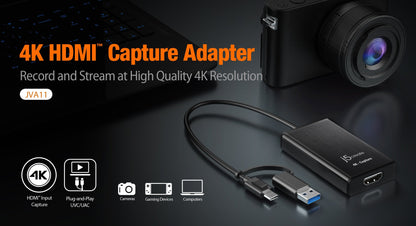

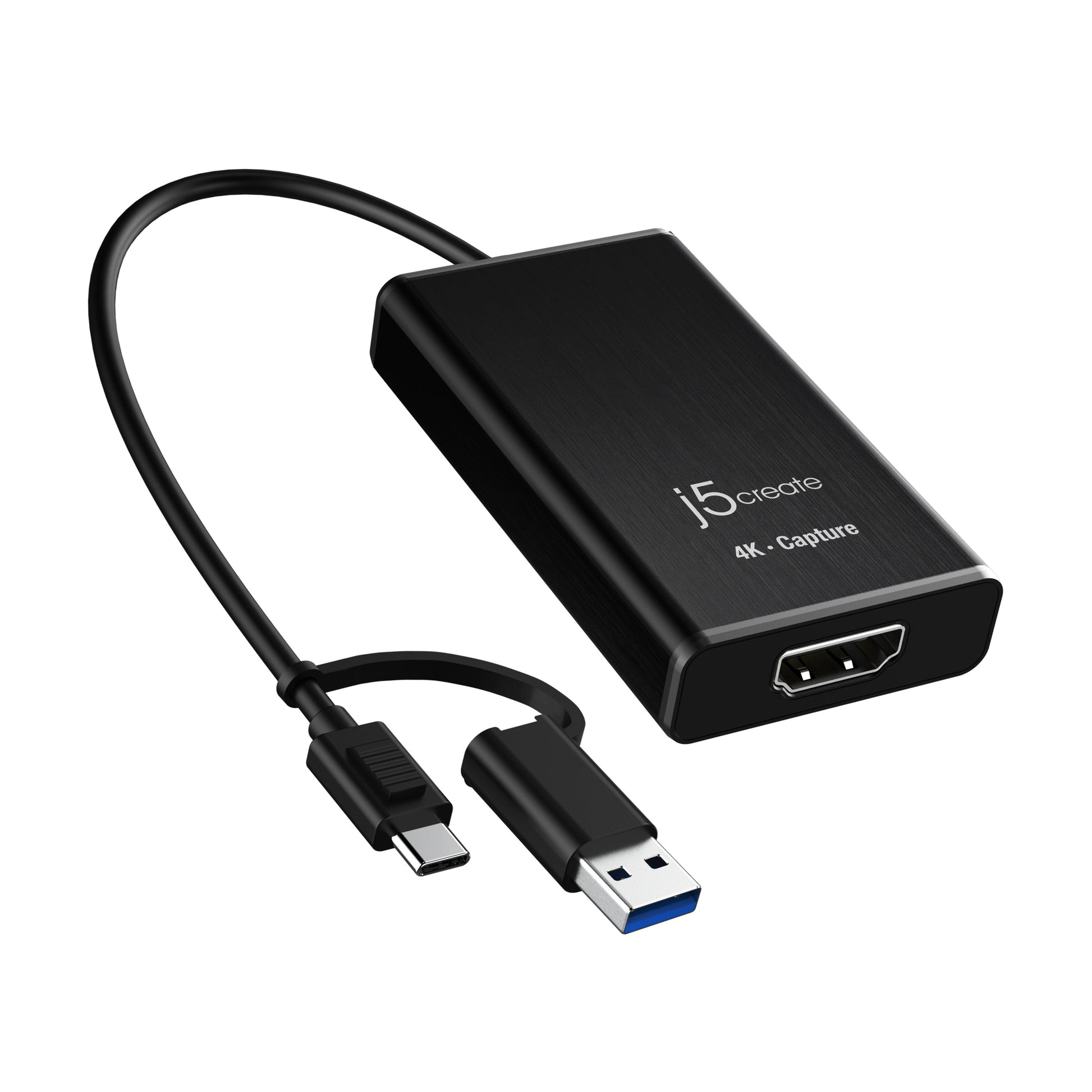

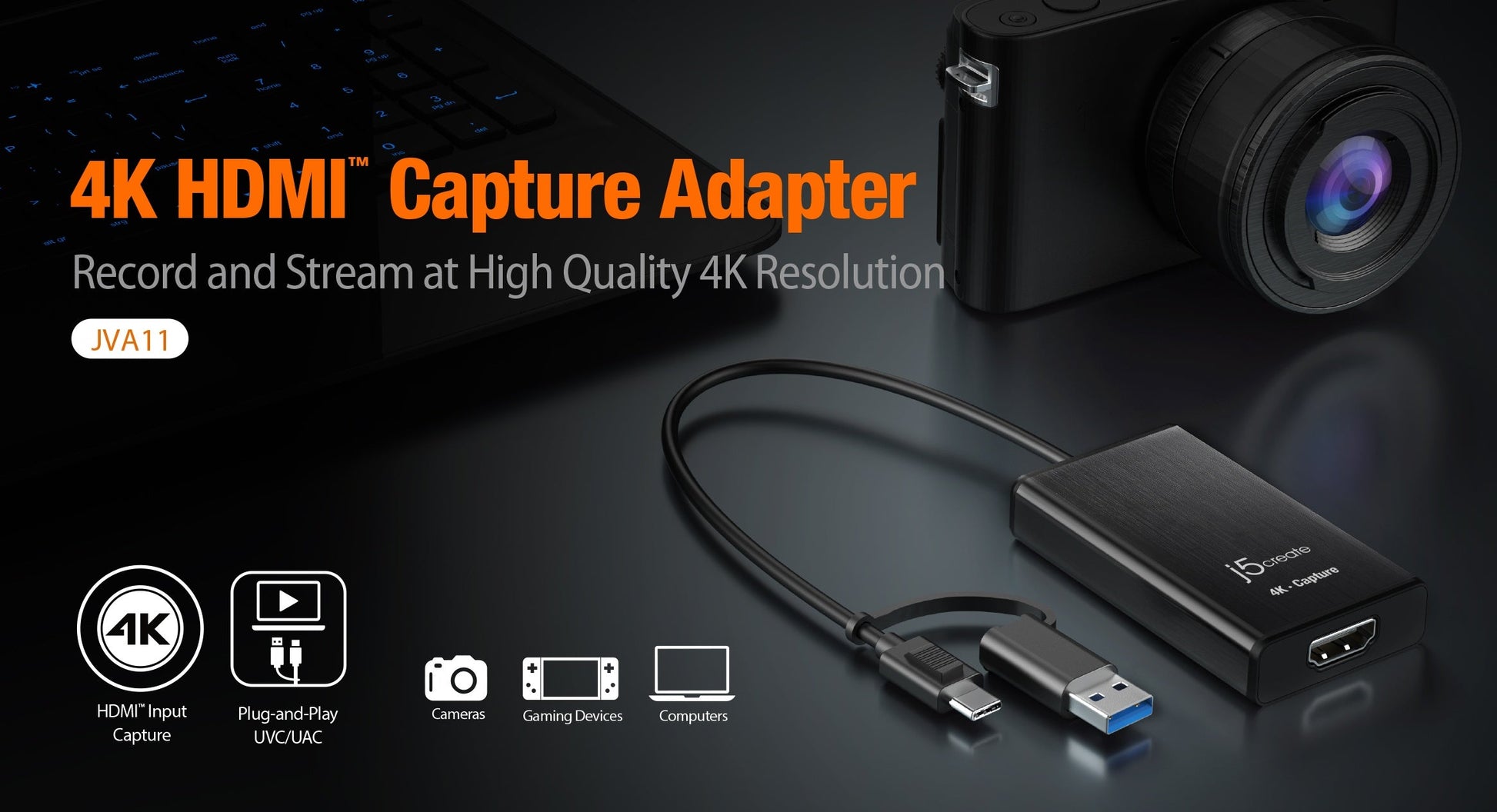

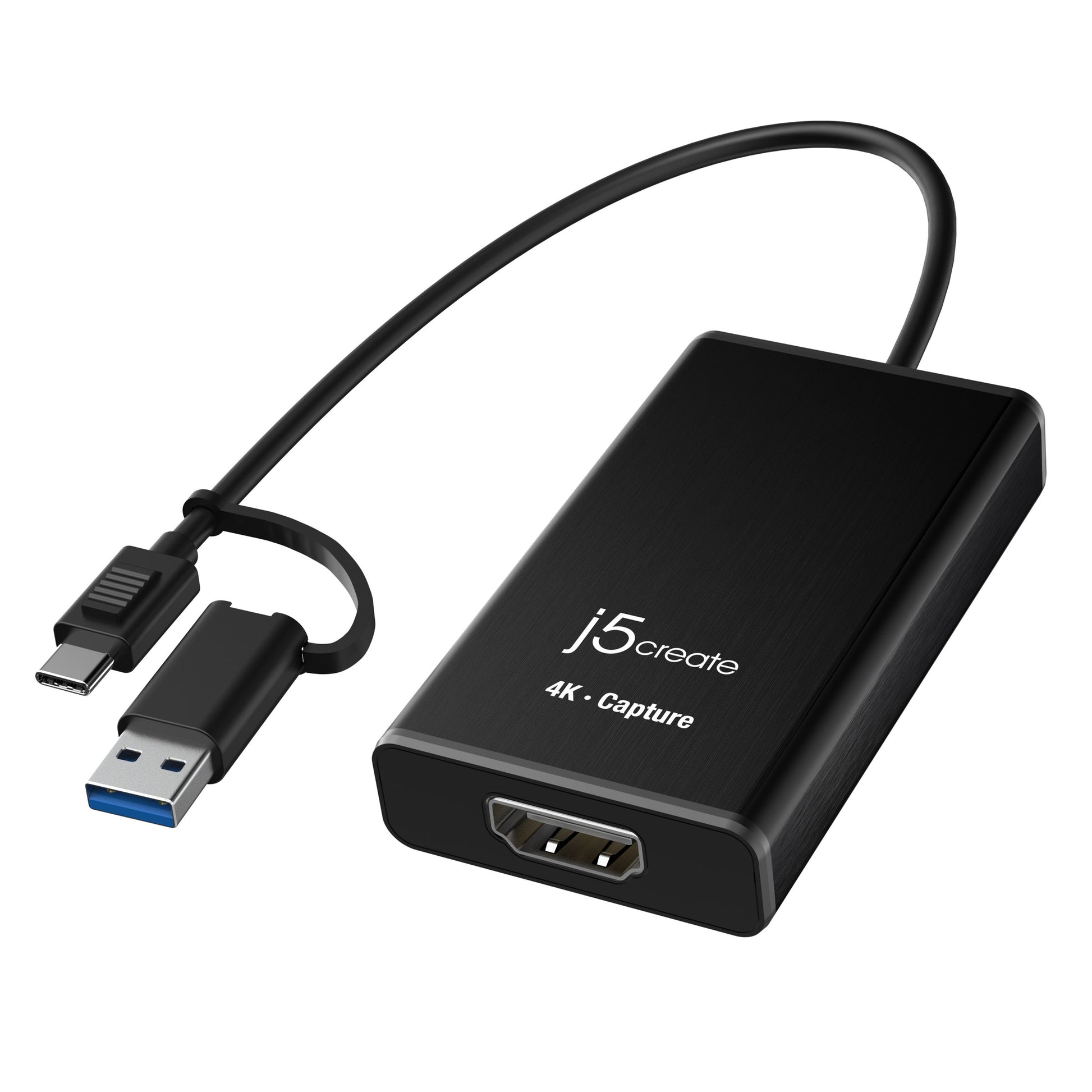

J5create 4K HDMI Capture Adapter - JVA11

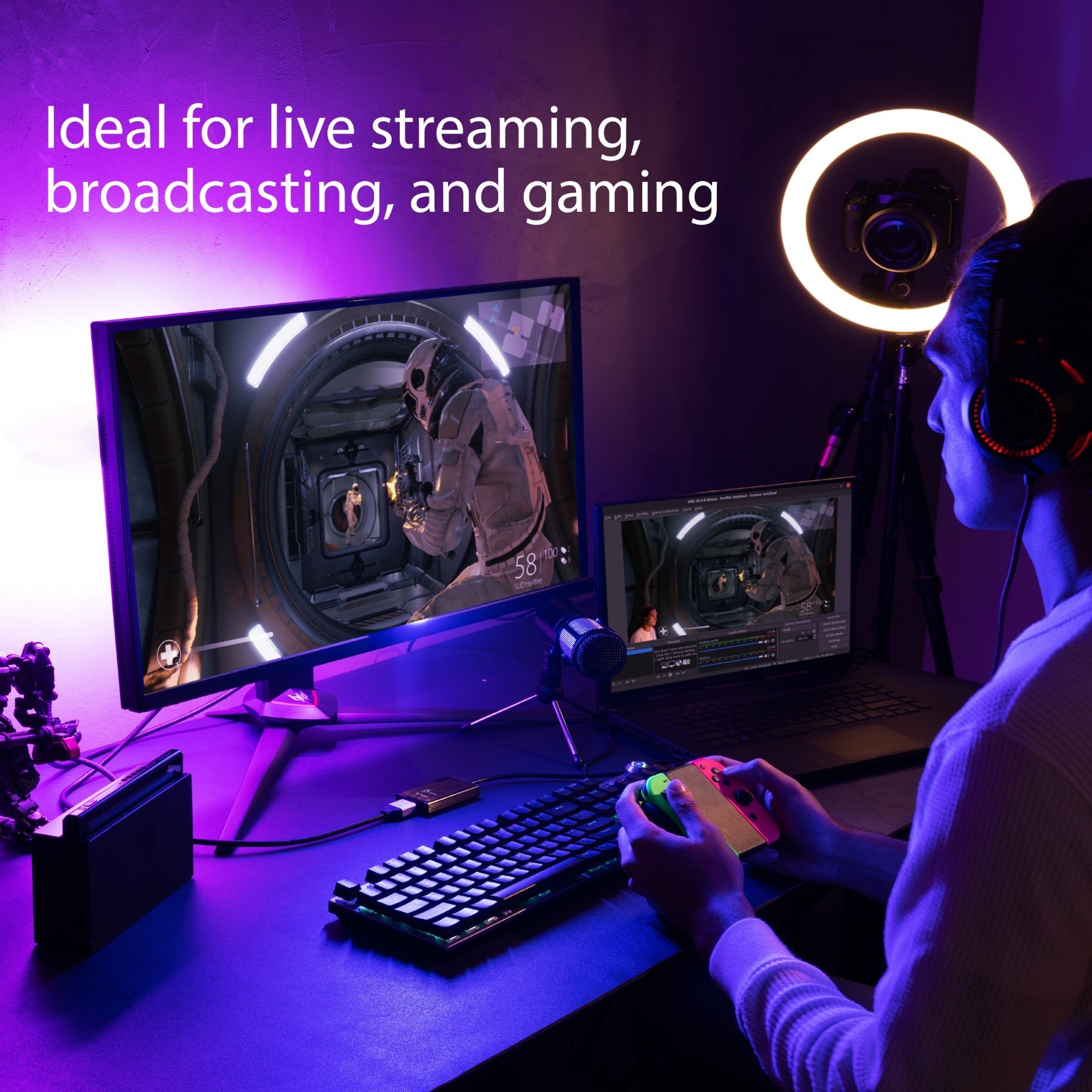

Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.

FEATURES:

• HDMI™ input for capturing
• 4K video and audio high-performance record through USB-C® 3.2 Gen 1
• UVC standard - No driver installation required

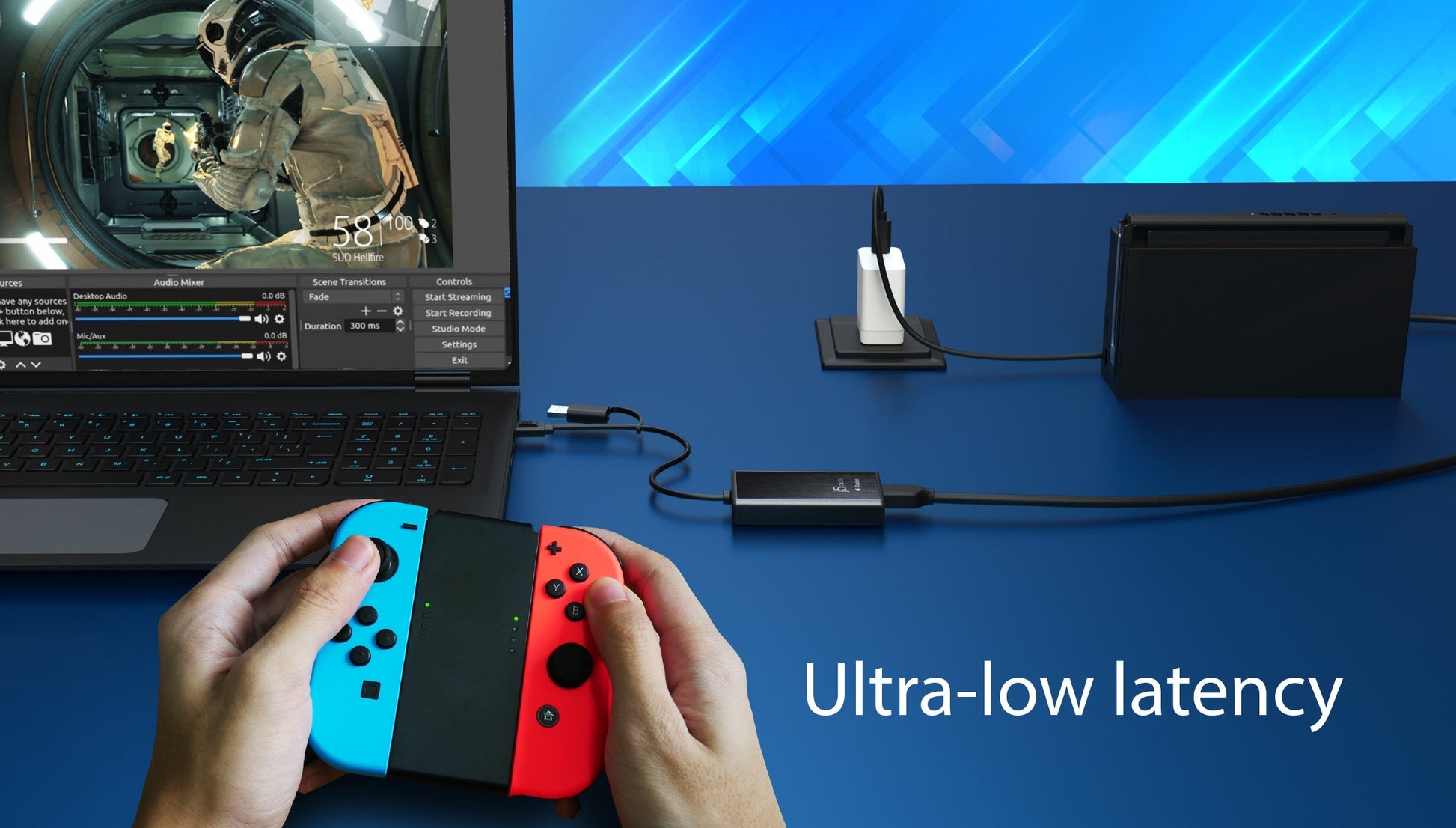

• Ultra-low latency stream through USB-C® 3.2 Gen 1 connection

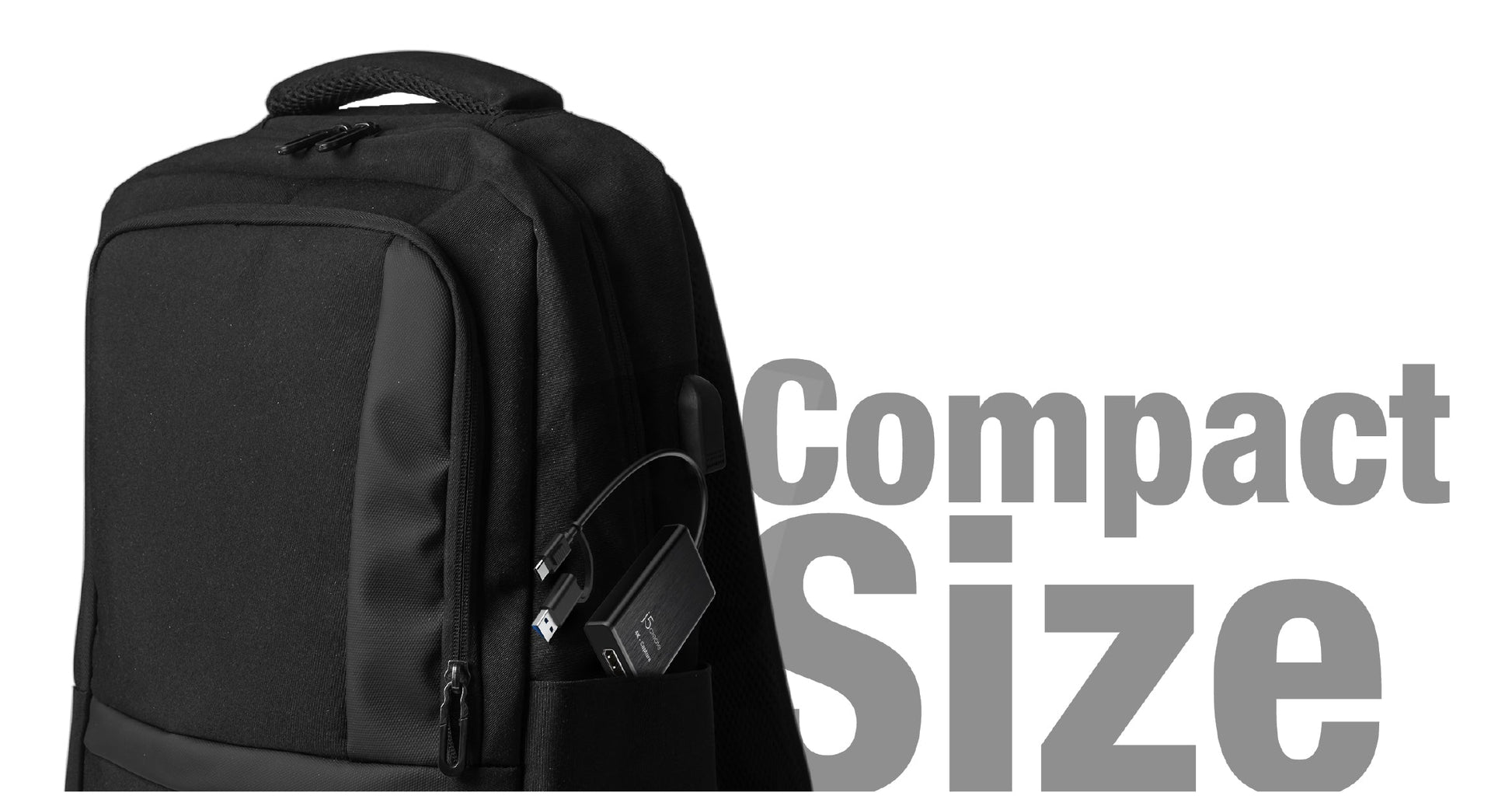

• Field production made easy with its compact size

System Requirements:

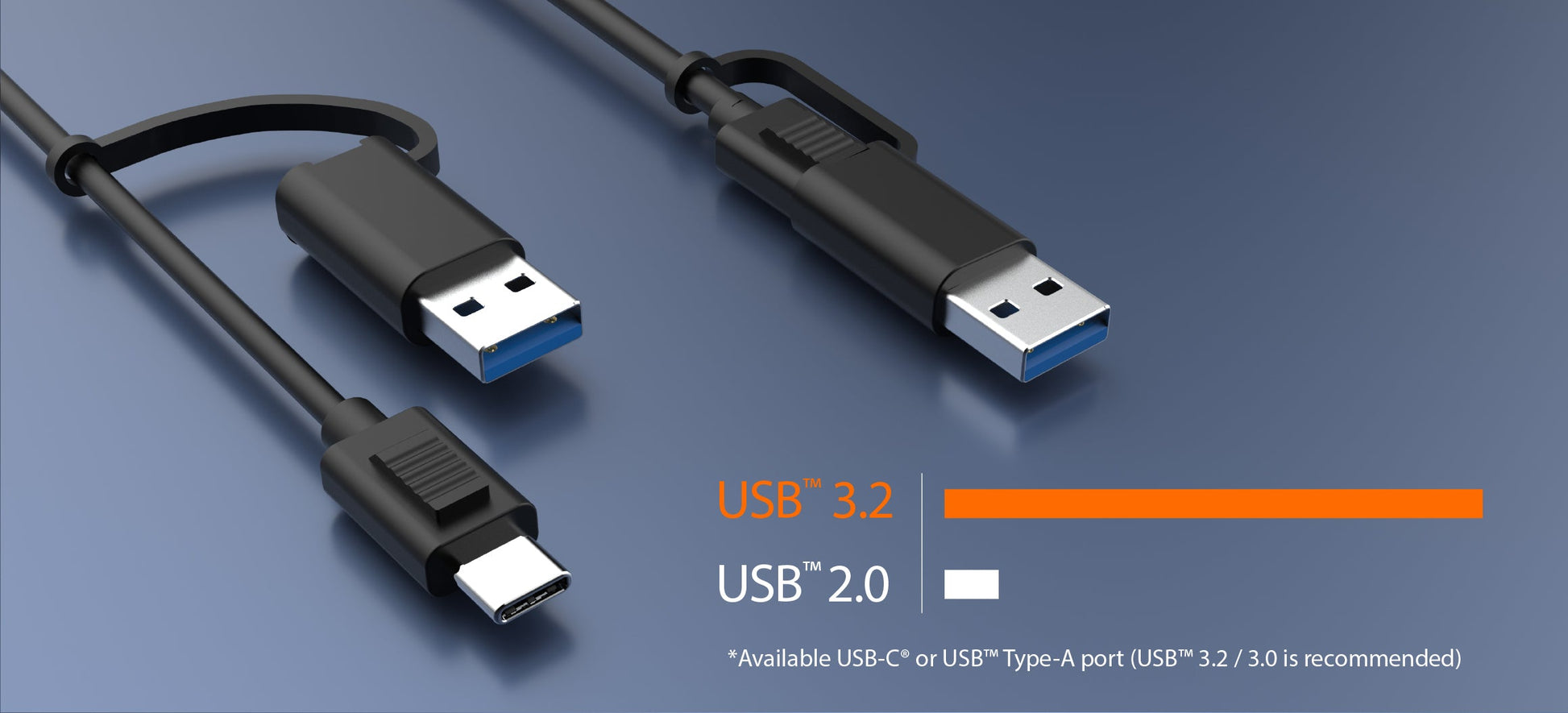

• Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)

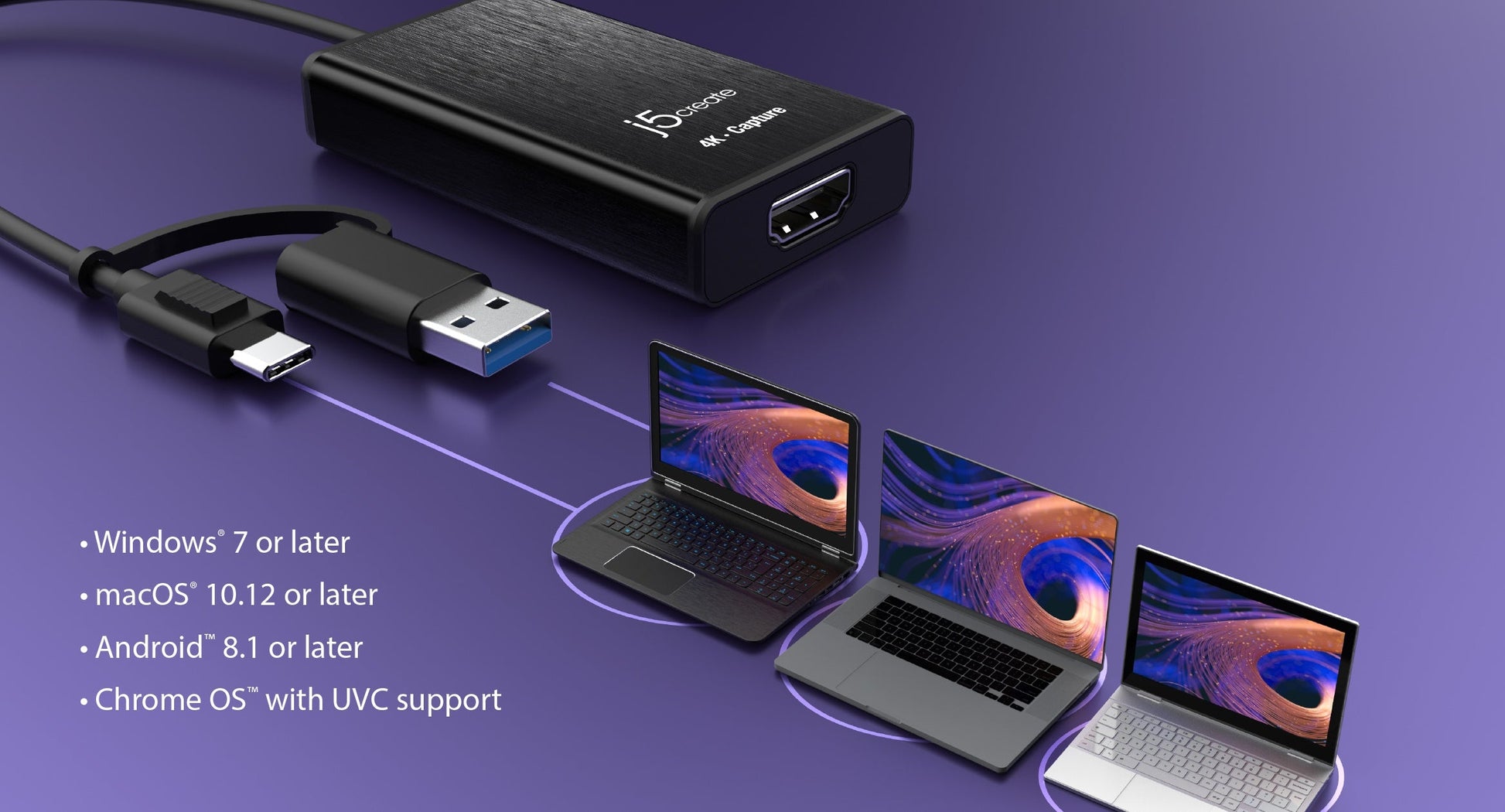

• Windows® 7 or later:
  • macOS® 10.12 or later

  • Android™ 8.1 or later
• Chrome OS™ with UVC support
• CPU: Intel® Core™ i7 6700HQ & above
• GPU: NVIDA® GTX 960M & above
• RAM: 8 GB or higher
• Recommended software:
  • Windows®: OBS™, XSplit® Broadcaster
  • Mac®: OBS™, QuickTime®
  • Android™: CameraFi™

SPECIFICATIONS:

• Host Connector: 1 × USB-C® 3.2 Gen 1 Female (Type-A to USB-C®)

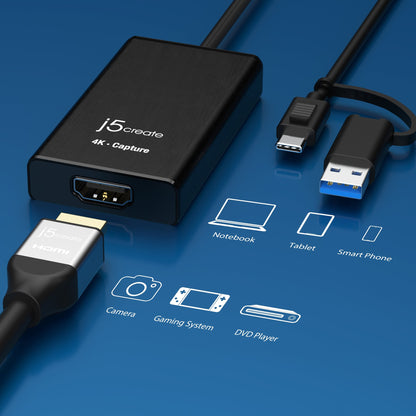

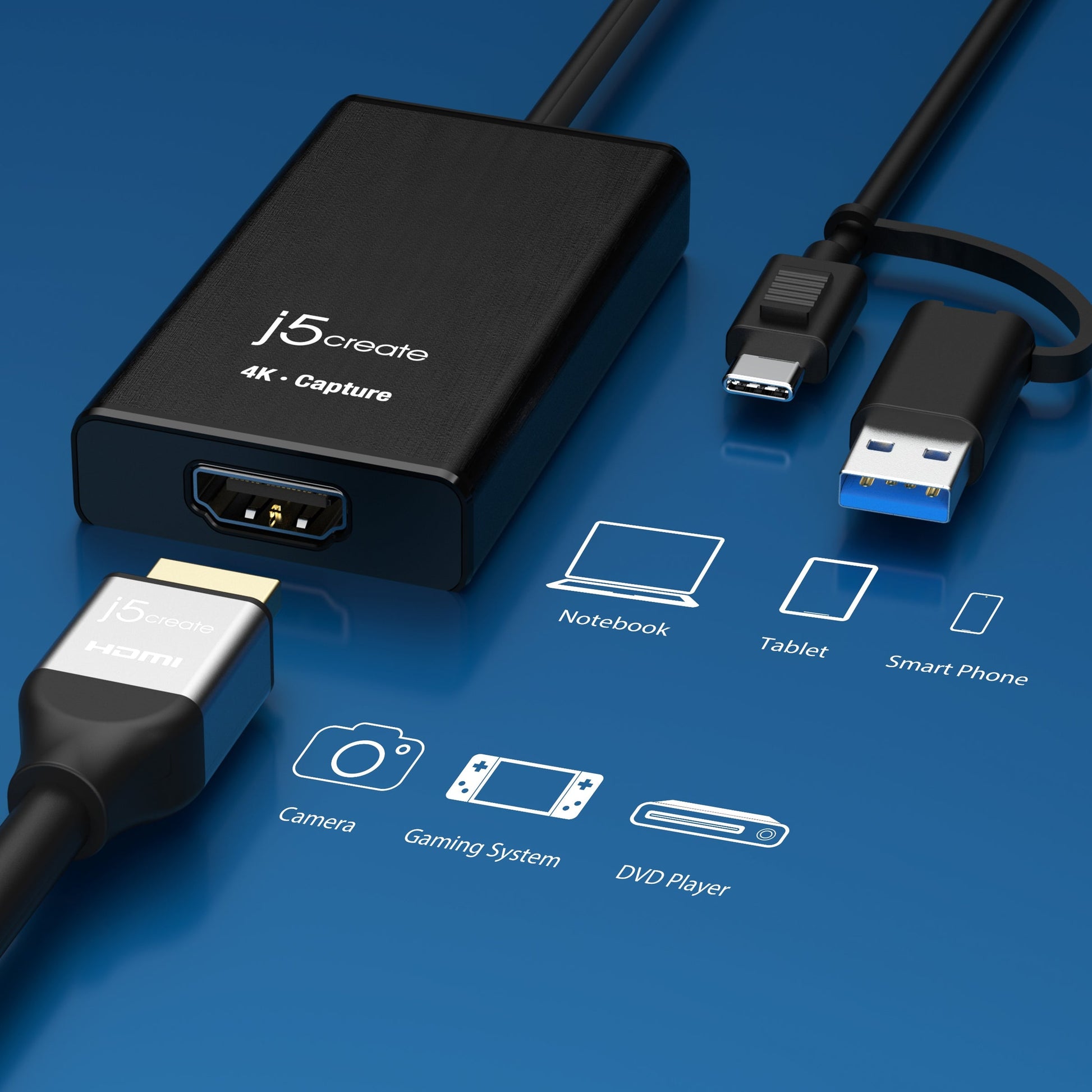

• Video Input: 1 × HDMI™ Female
• Video Output: N/A
• Audio Input: 1 × HDMI™ Female
• Audio Output: N/A
• Video Switcher: N/A
• Audio Switcher: N/A
• Power Source: N/A

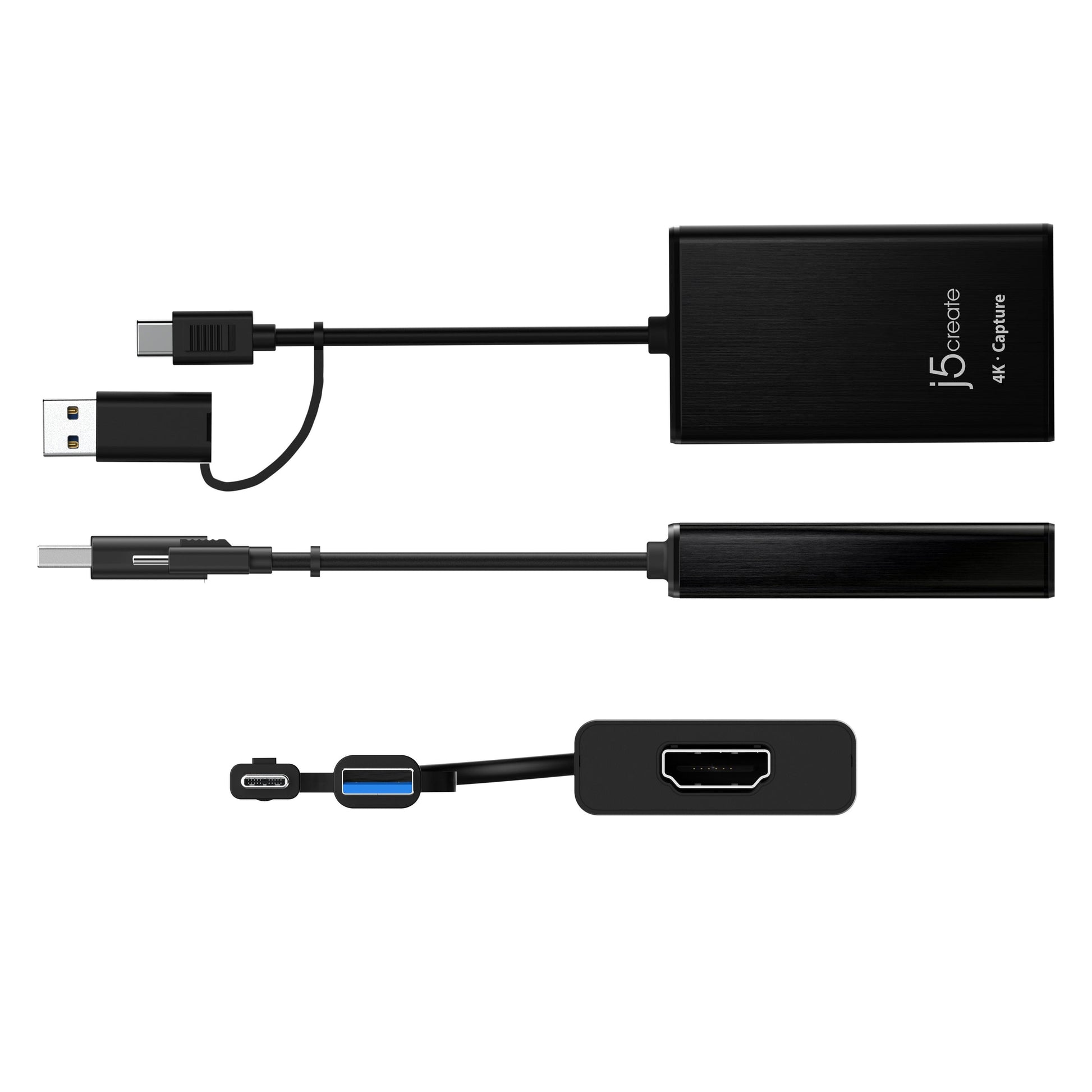

• Ports: 1 × USB-C® 3.2 Gen 1 (Host), 1 × HDMI™ Input
• HDMI™ Input Supported Resolutions: 3840 × 2160 @ 30

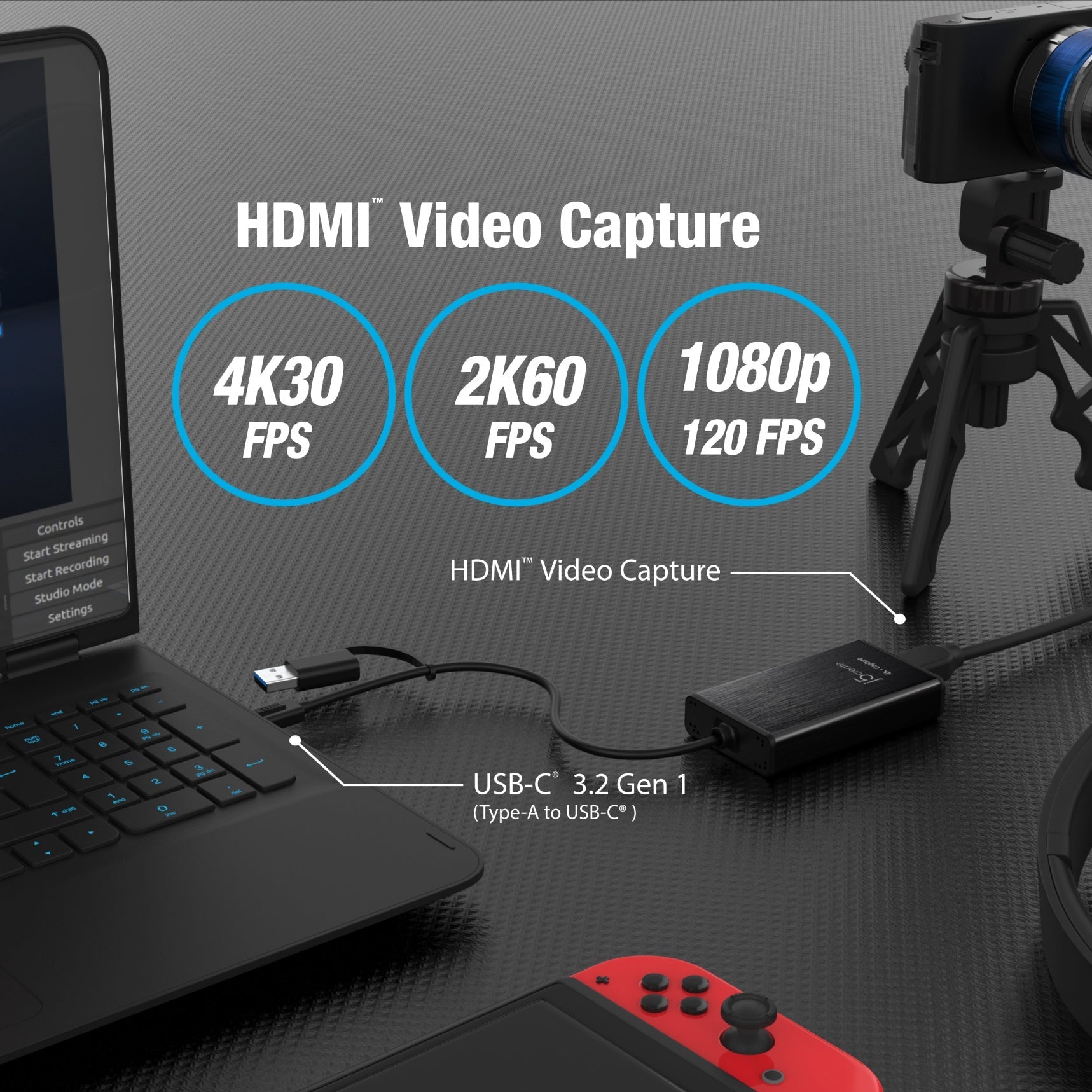

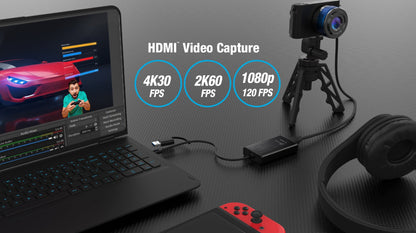

• Maximum Capture Refresh Rate: 4K30 fps, 2K60 fps, 1080p120 fps
• Maximum Display Refresh Rate: N/A
• Audio Channel: 2.1 via HDMI™
• Audio Frequency: 48 kHz
• Microphone: N/A
• Headset: N/A
• Compression: USB™ 3.0: RGB / YUV 4:2:2 / YUV 4:2:0, USB™ 2.0: YUV 4:2:0
• Capture Resolution: USB™ 3.0: 3840 × 2160 @ 30, USB™ 2.0: 1280 × 720 @ 30
• HDR Supported: No
• Power Delivery: N/A
• Power Consumption: ≤ 530mA
• Input Current: 1.5A
• Input Voltage: 5V
• Output Voltage: N/A
• Color: Black
• Enclosure Type: Aluminum
• Cable Length: 7.87 in. (20 cm)
• Product Height: 2.83 in. (72 mm)
• Product Width: 1.61 in. (41 mm)
• Product Depth: 0.56 in. (14.14 mm)
• Product Weight: 1.94 oz (55 g)
• Storage Temperature: 14 to 149°F (-10 to 65°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Humidity: < 80% non-condensing

WHAT'S IN THE BOX:

• JVA11 4K HDMI™ Capture Adapter x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
