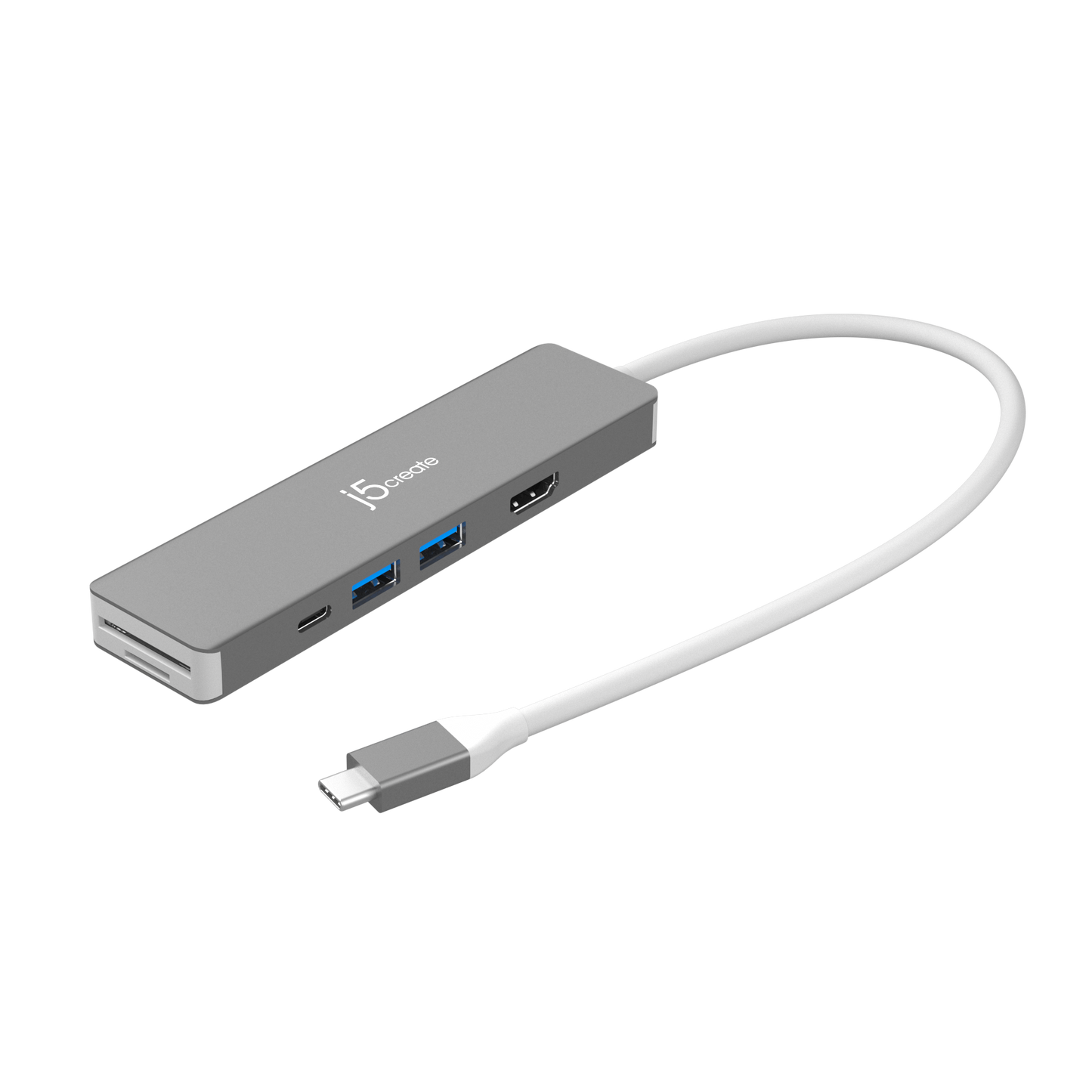

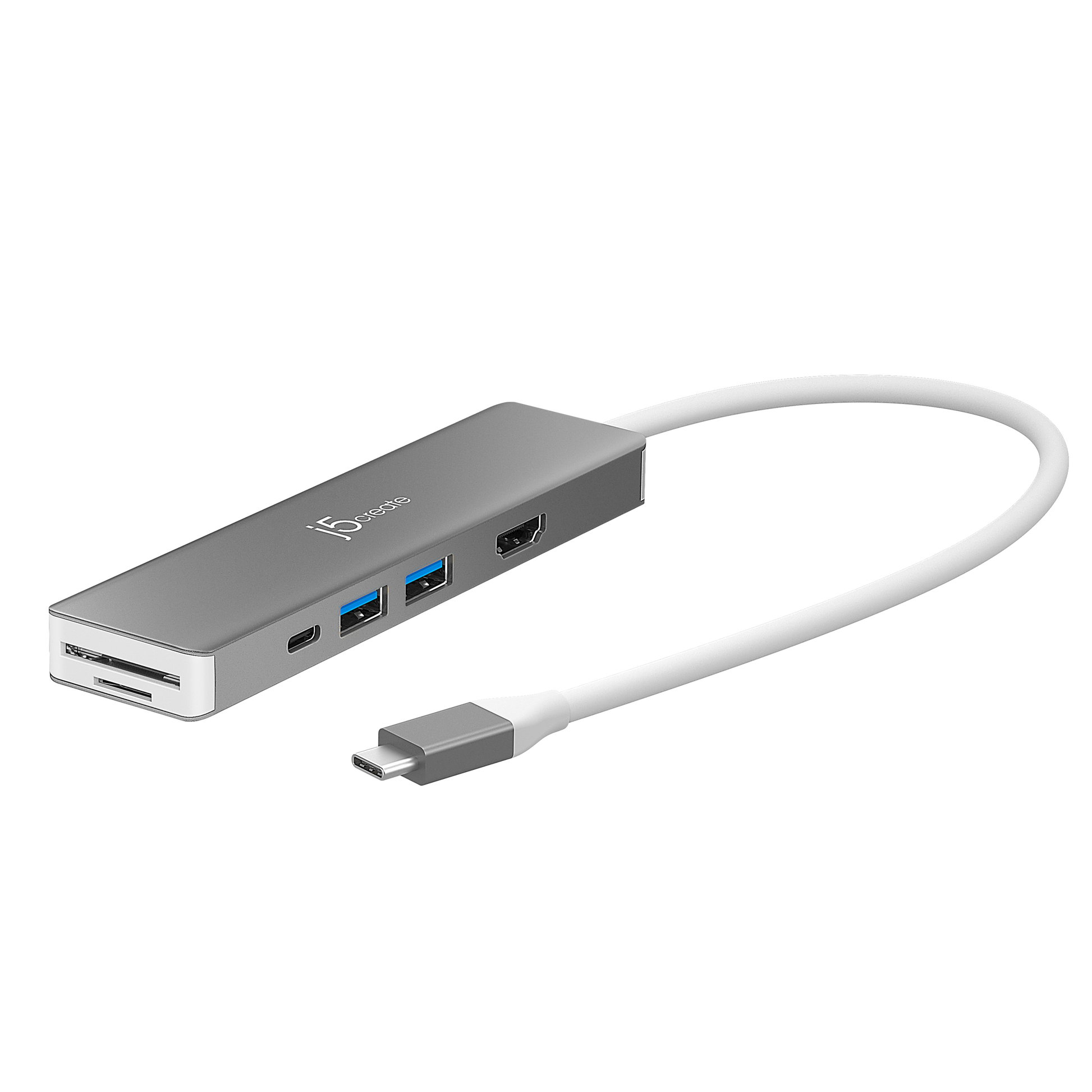

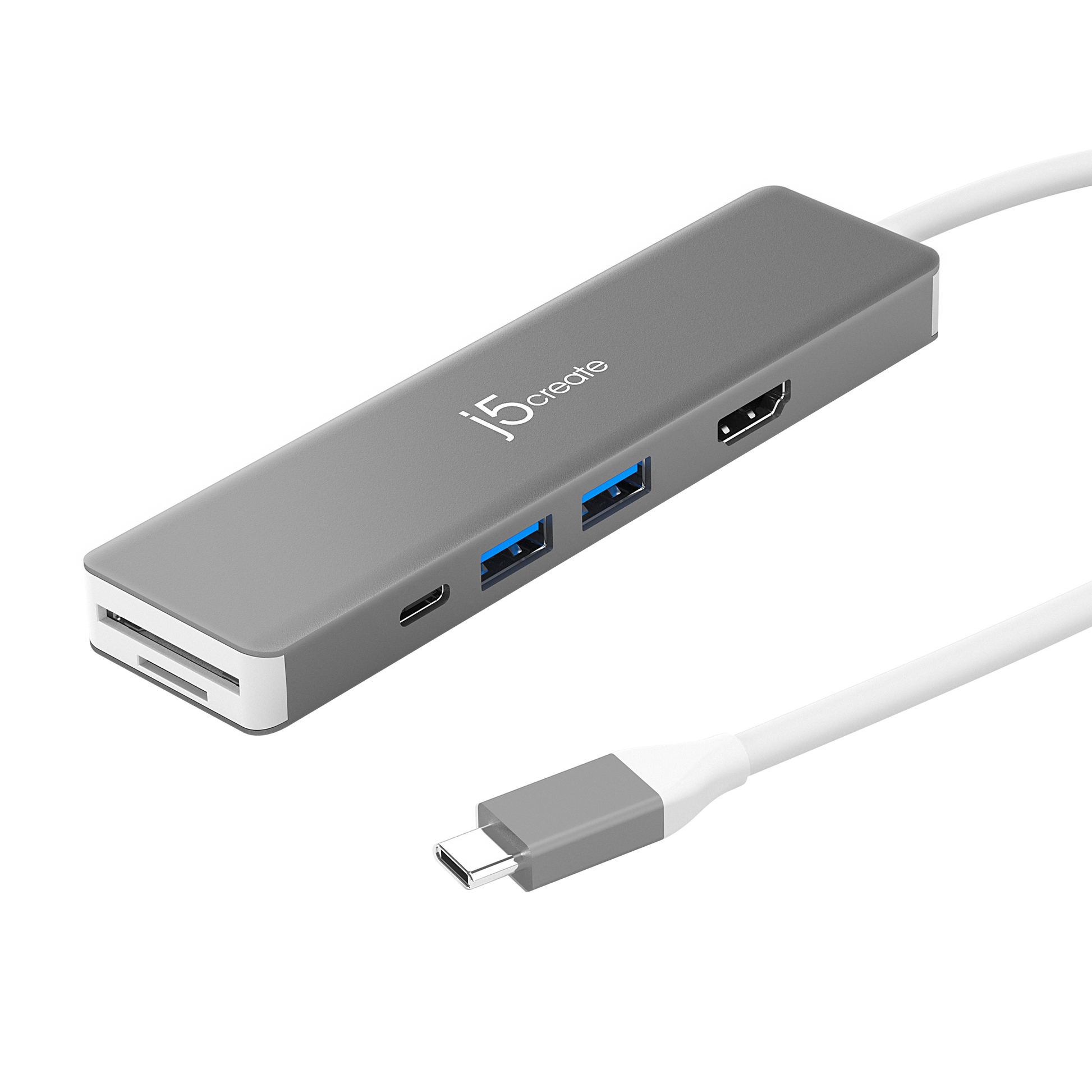

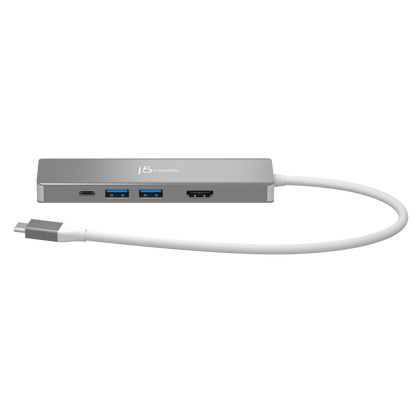

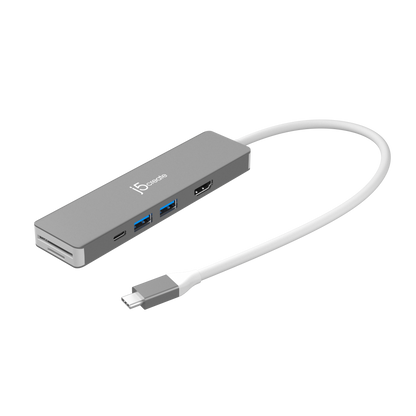

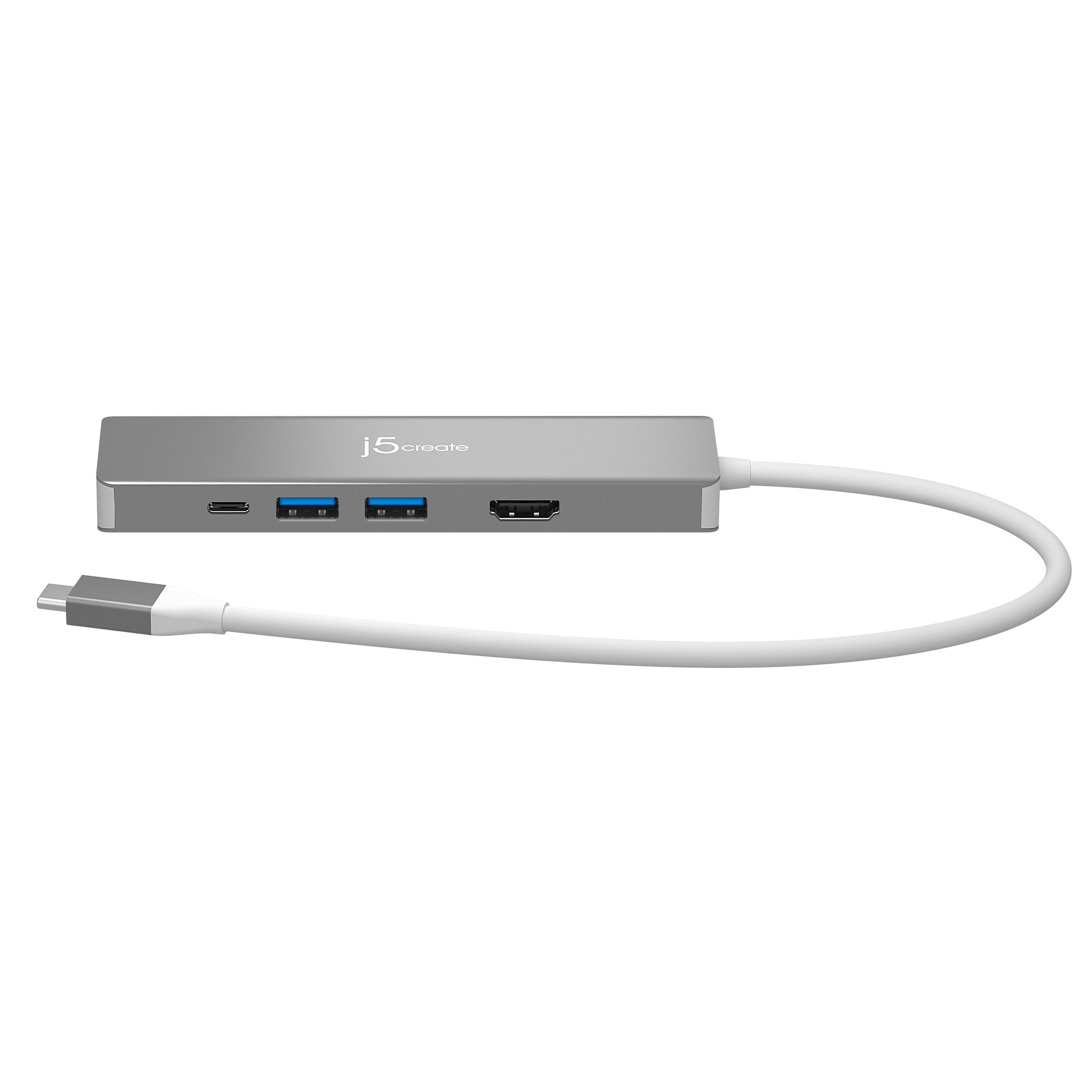

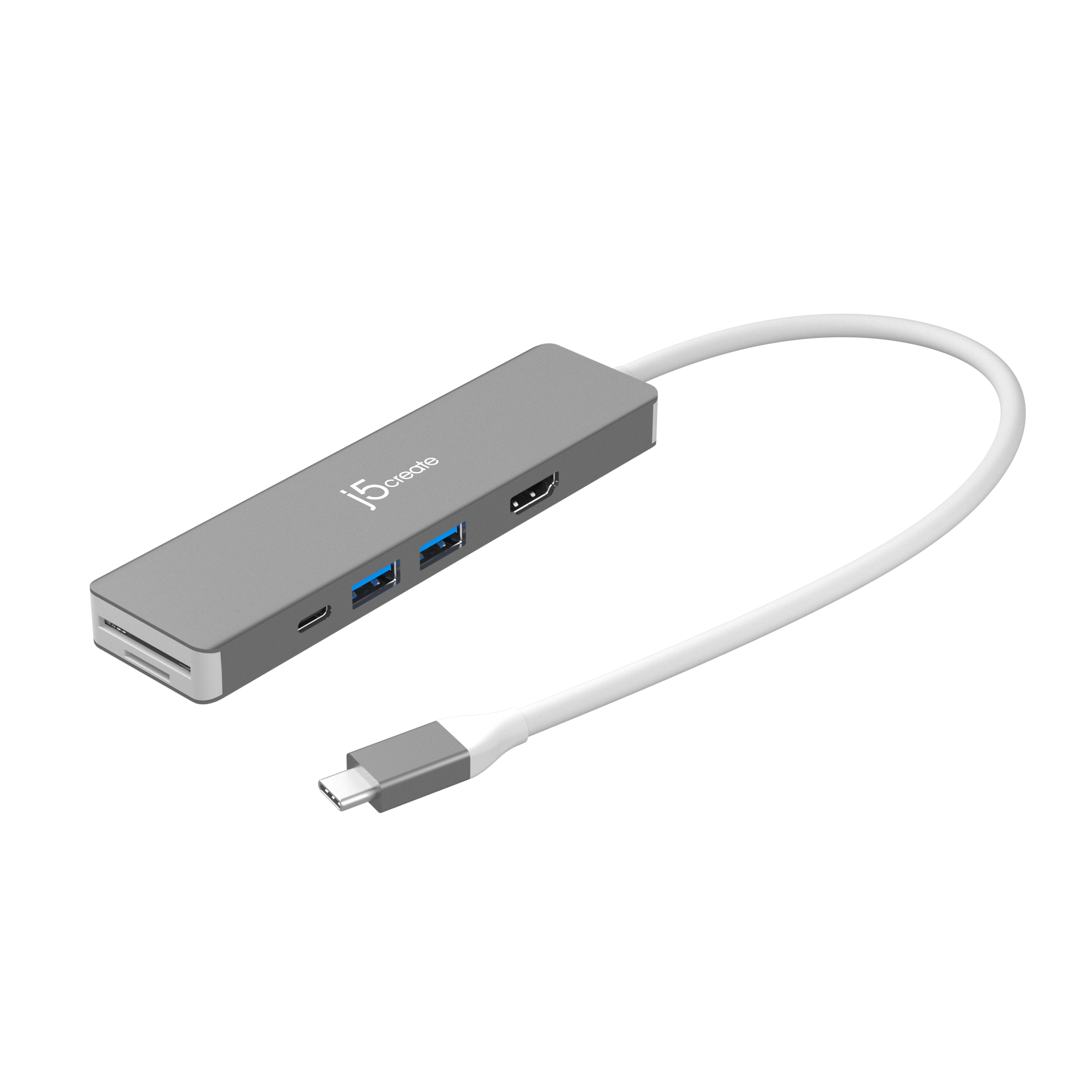

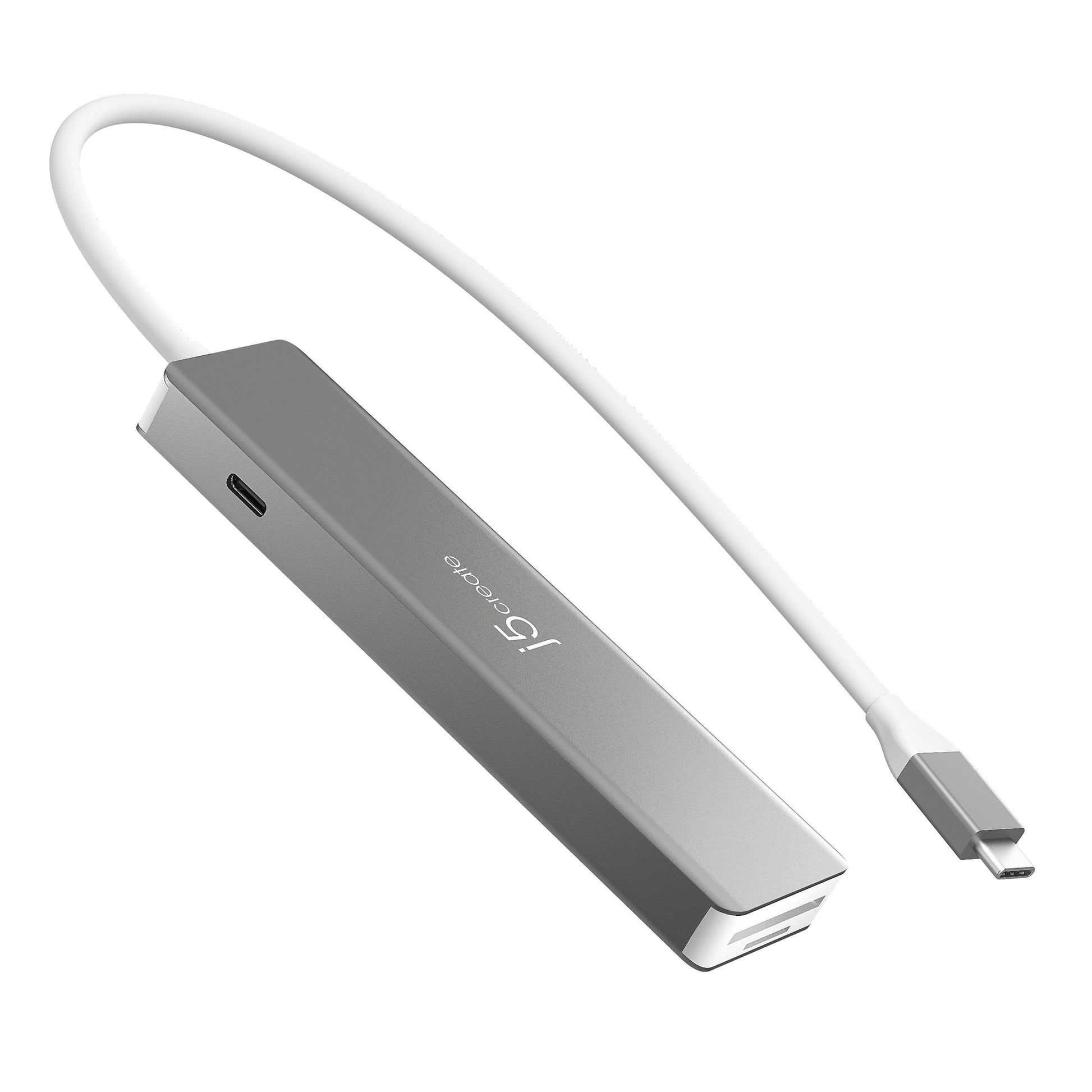

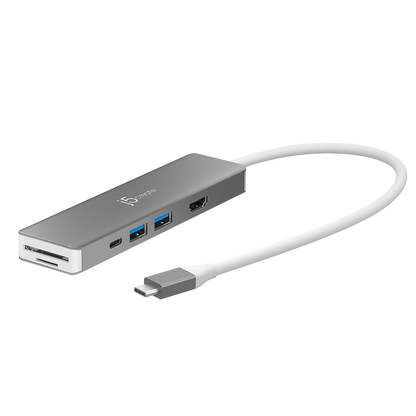

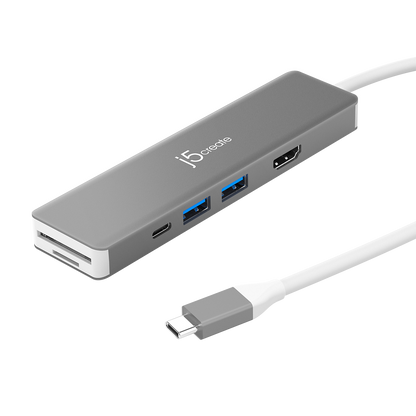

J5create 4K60 Elite USB-C 10Gbps Multi-Adapter - JCD390

The 4K Elite USB-C® Multi-Adapter provides extra connectivity for your computer; featuring video, data storage, and charging all in one. The multi-adapter’s small size makes it easy to carry helps save desk space. The HDMI™ port allows you to connect to a 4K monitor or TV. With USB 3.2 Gen 2 support transferring files quickly and connecting USB™ peripherals is a breeze. The adapter also includes an SD™ and microSD™ card slot for added storage flexibility. This is a plug-and-play device that does not require driver installation so you can use it right away!

FEATURES:

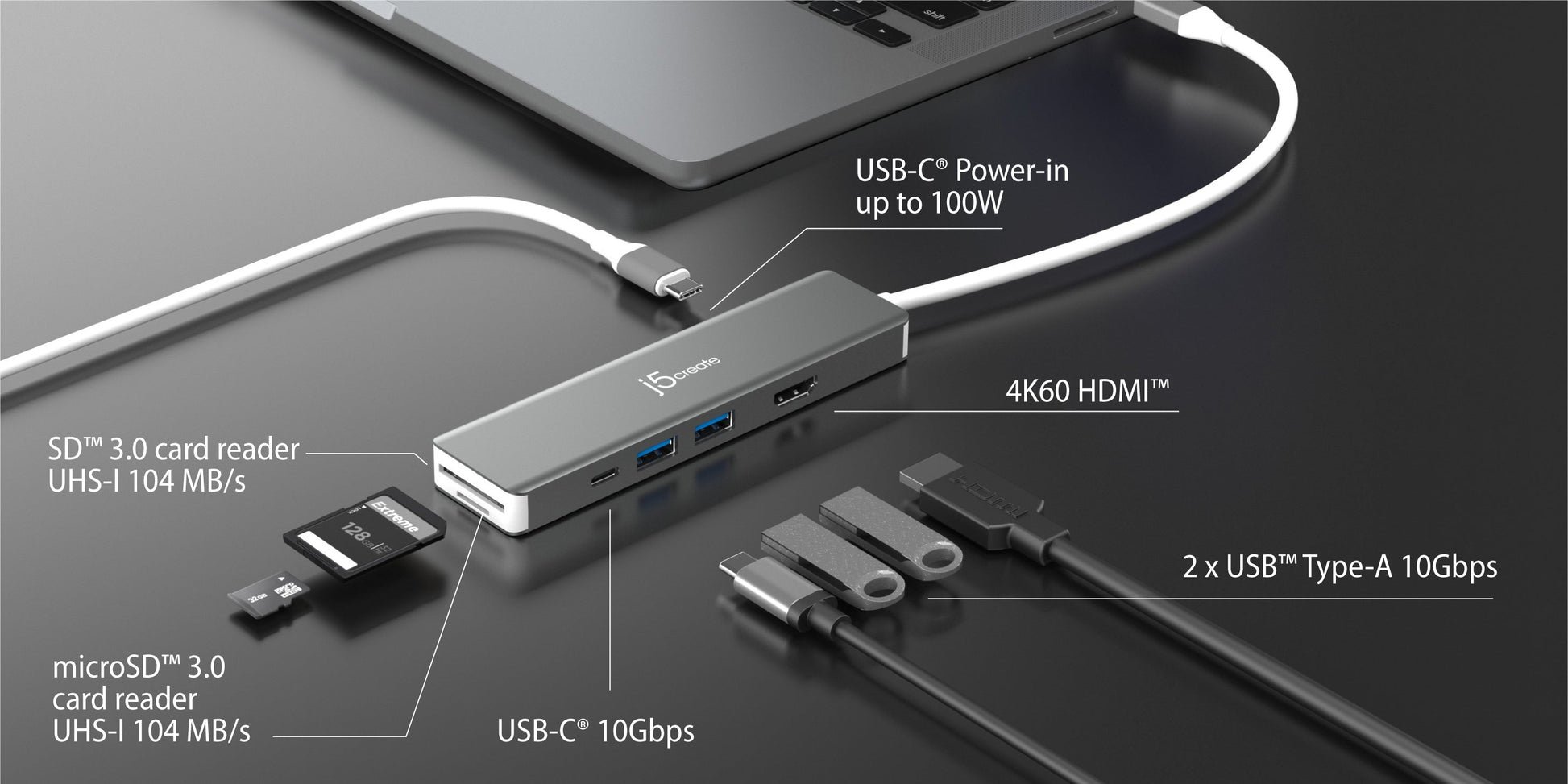

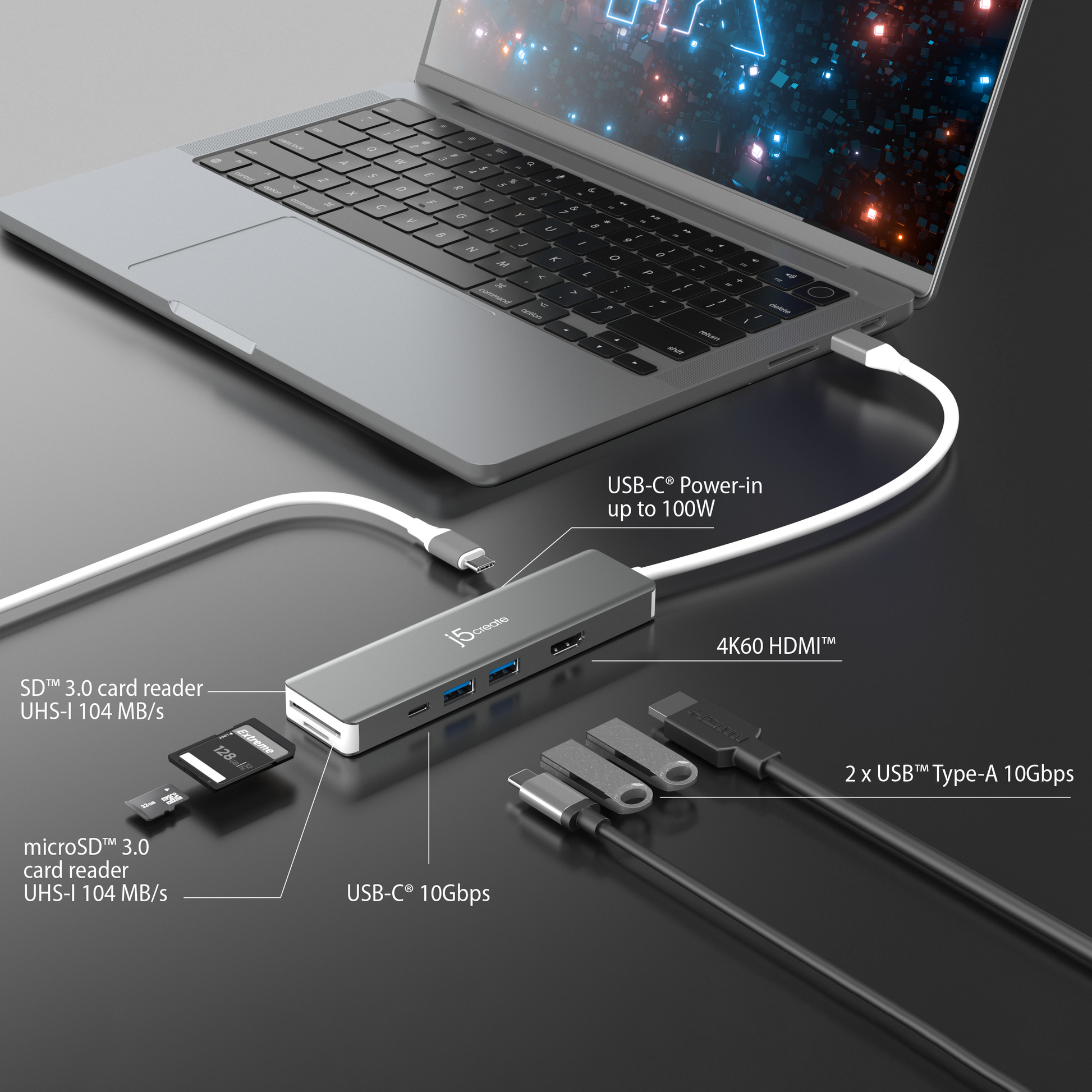

•  The main body include 7 functions:

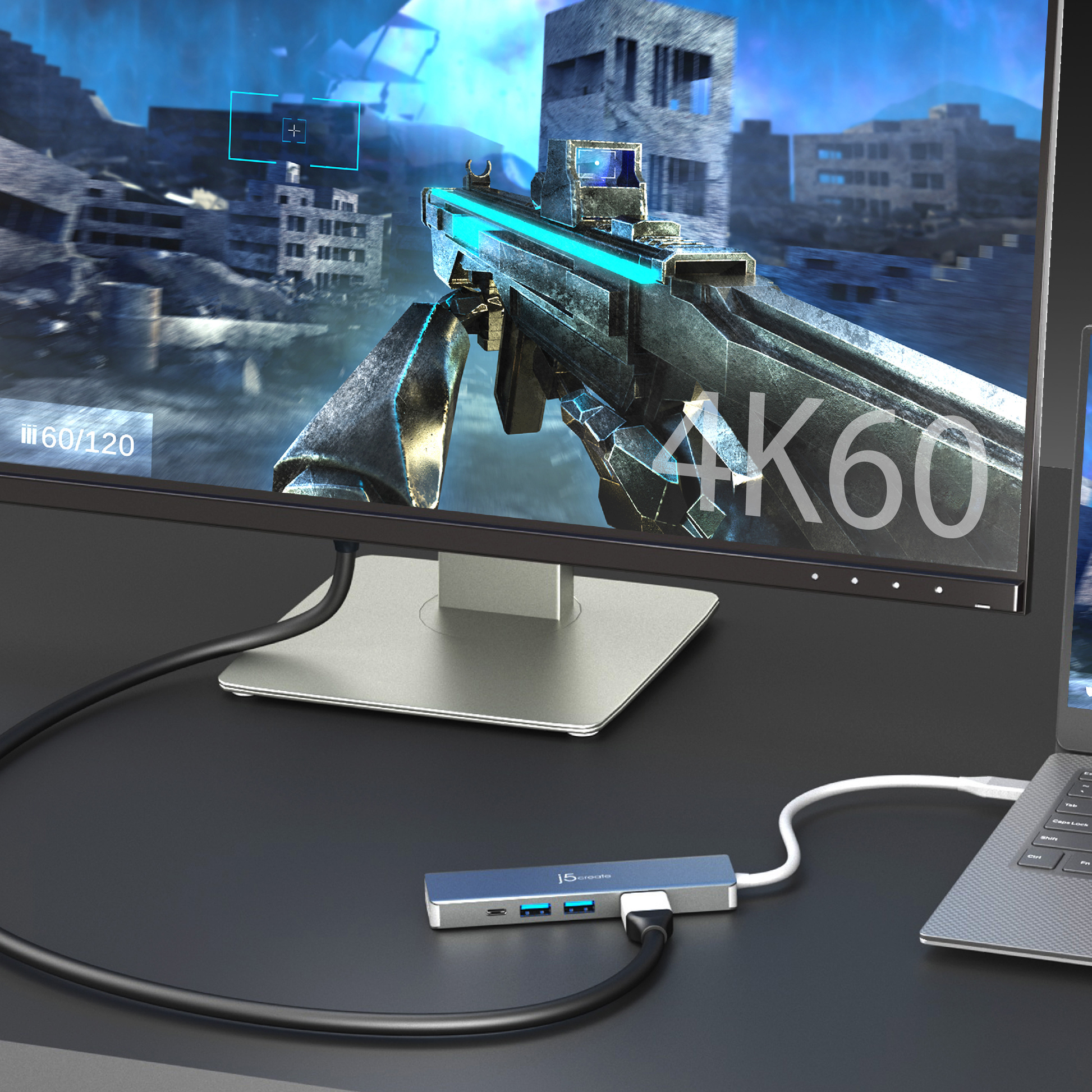

  • 1 x HDMI™ with resolutions up to 4K @ 60 Hz
  • 2 x USB™ Type-A 3.2 Gen 2 ports support 10Gbps
  • 1 x USB-C® 3.2 Gen 2 port supports 10Gbps

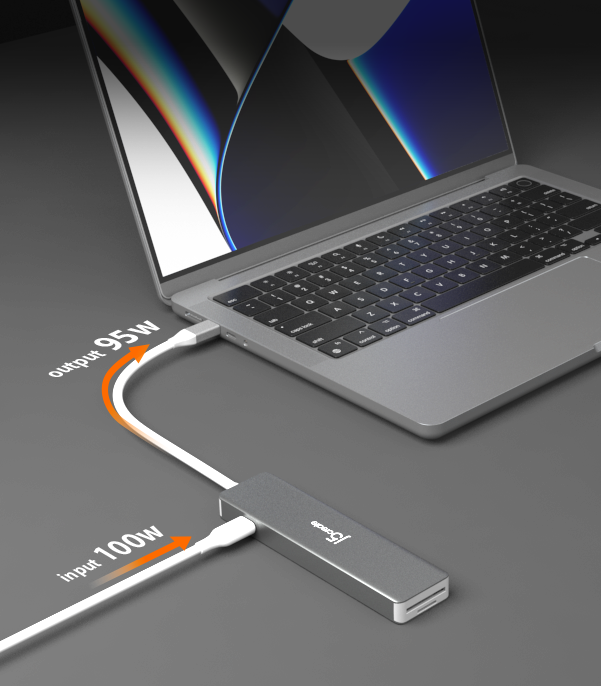

  • 1 x USB-C® PD-in with power delivery 3.0 up to 100W
  • 1 x SD™ 3.0 card reader & writer UHS-I 104 MB/s
  • 1 x microSD™ 3.0 card reader & writer UHS-I 104 MB/s

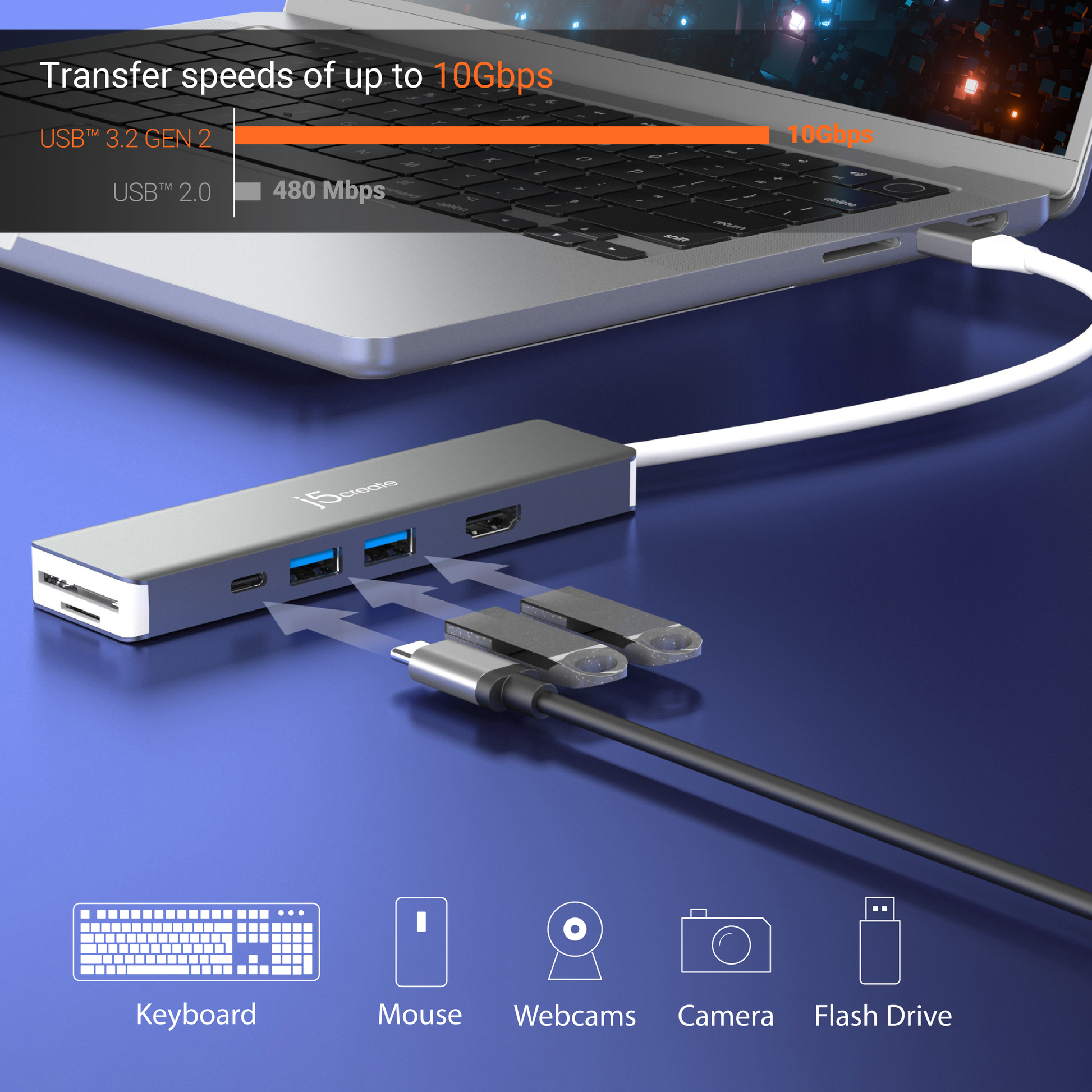

• Upgrade your transfer speed: USB™ 3.2 Gen 2, 10Gbps and SD™ / microSD™ 3.0 UHS- I 104MB/s

System Requirements:

• Available DisplayPort™ Alt Mode over USB-C® port
• USB™ Power Delivery 2.0/3.0 compatible for upstream charging

Special Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• If you are using a high-powered consumption equipment, it is recommended that you use a USB-C® power supply to the power delivery port to ensure maximum performance. Attach a USB-C® power adapter to the power delivery port to ensure maximum performance.
• Do not unplug the power supply during data transmission to avoid data transmission failure or data loss.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time.

SPECIFICATIONS:

• Host Connector: 1 × USB-C® Male (PD 3.0, 100 W)
• Video Output: 1 × HDMI™ Female
• Power Source: Bus-powered or self-powered
• Audio Supported: Yes
• Ports: 1 × HDMI™ (4K @ 60 Hz), 1 × USB-C® 3.2 Gen 2 (10 Gbps), 2 × USB™ Type-A 3.2 Gen 2 (10 Gbps), 1 × USB-C® PD-in (PD 3.0 up to 100 W), 1 × SD™ 3.0 card reader (UHS-I, 104 MB/s), 1 × microSD™ 3.0 card reader (UHS-I, 104 MB/s)
• Maximum Display Resolution: 3840 × 2160
• Maximum Display Refresh Rate: 60 Hz, 1920 × 1080 @ 144 Hz
• Maximum Data Transfer Rate: 10 Gbps
• Displays Supported: 1
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 100 W via USB-C®
• Power Consumption: ≤ 900 mA
• Input Current: Up to 5 A
• Input Voltage: Up to 20 V
• Output Current: Up to 4.75 A
• Output Voltage: Up to 20 V
• Color: Silver / White
• Enclosure Type: Aluminum, ABS Plastic
• Cable Length: 7.87 in. (200 mm)

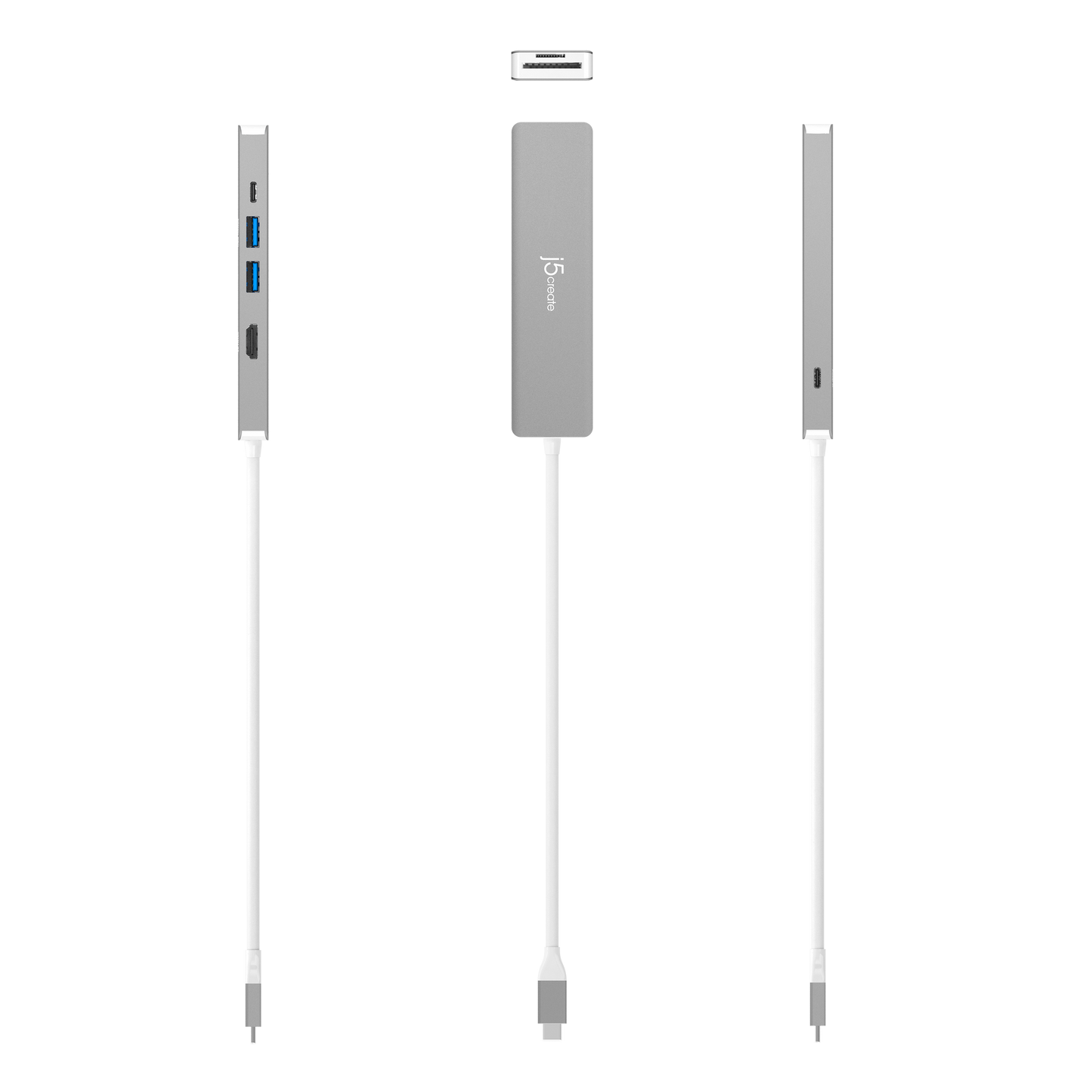

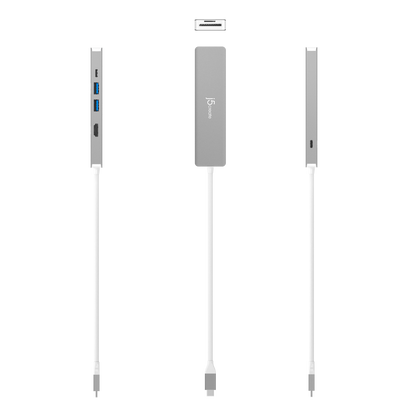

• Product Dimensions: Height 4.99 in. (126.5 mm), Width 1.28 in. (32.6 mm), Depth 0.48 in. (12.2 mm)
• Product Weight: 2.49 oz (70.5 g)
• Storage Conditions: Temperature 0 to 155°F (-17 to 68°C), Humidity < 85% non-condensing
• Operating Conditions: Temperature 30 to 116°F (-1 to 41°C), Humidity < 85% non-condensing

WHAT'S IN THE BOX:

• JCD390 4K Elite USB-C® Multi-Adapter x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
