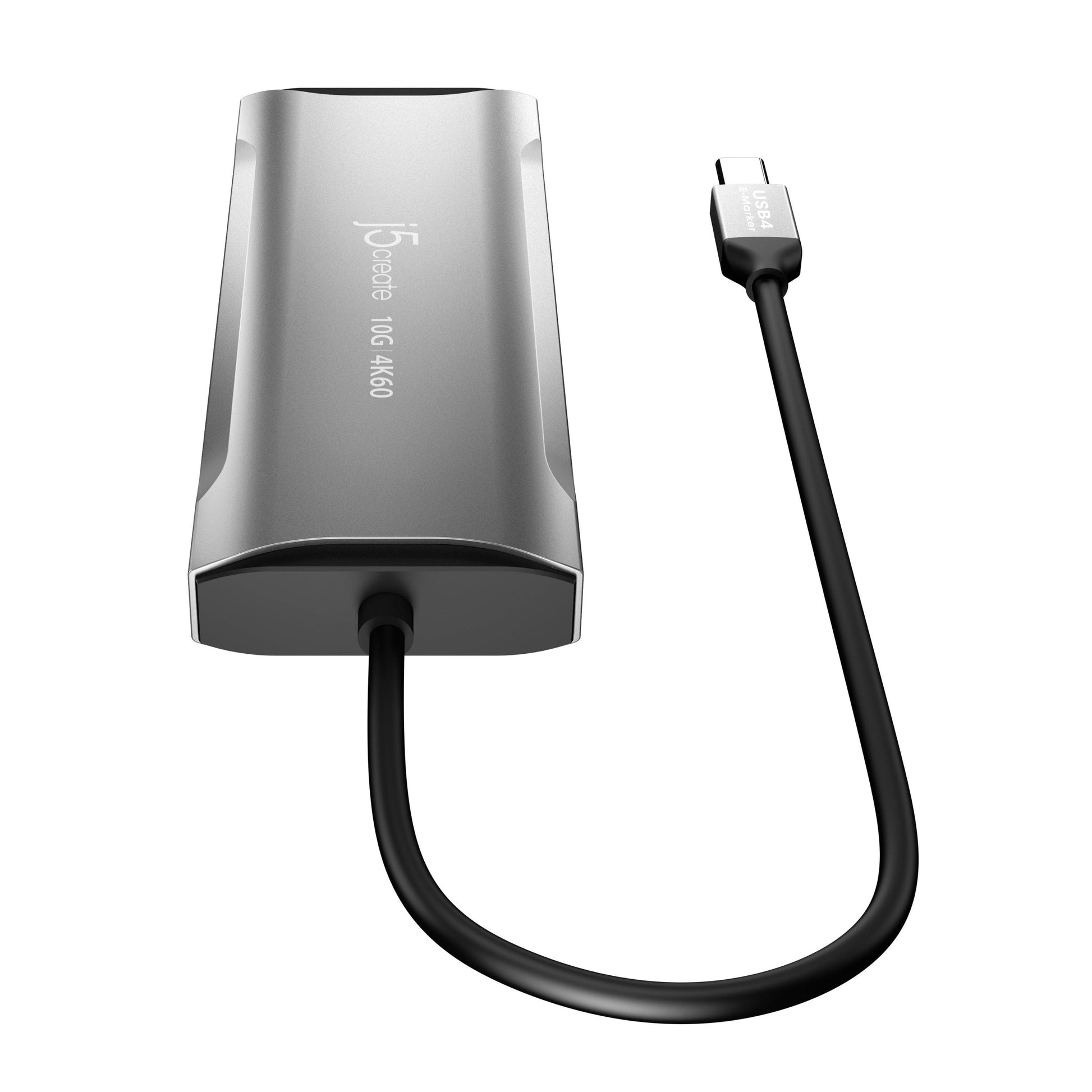

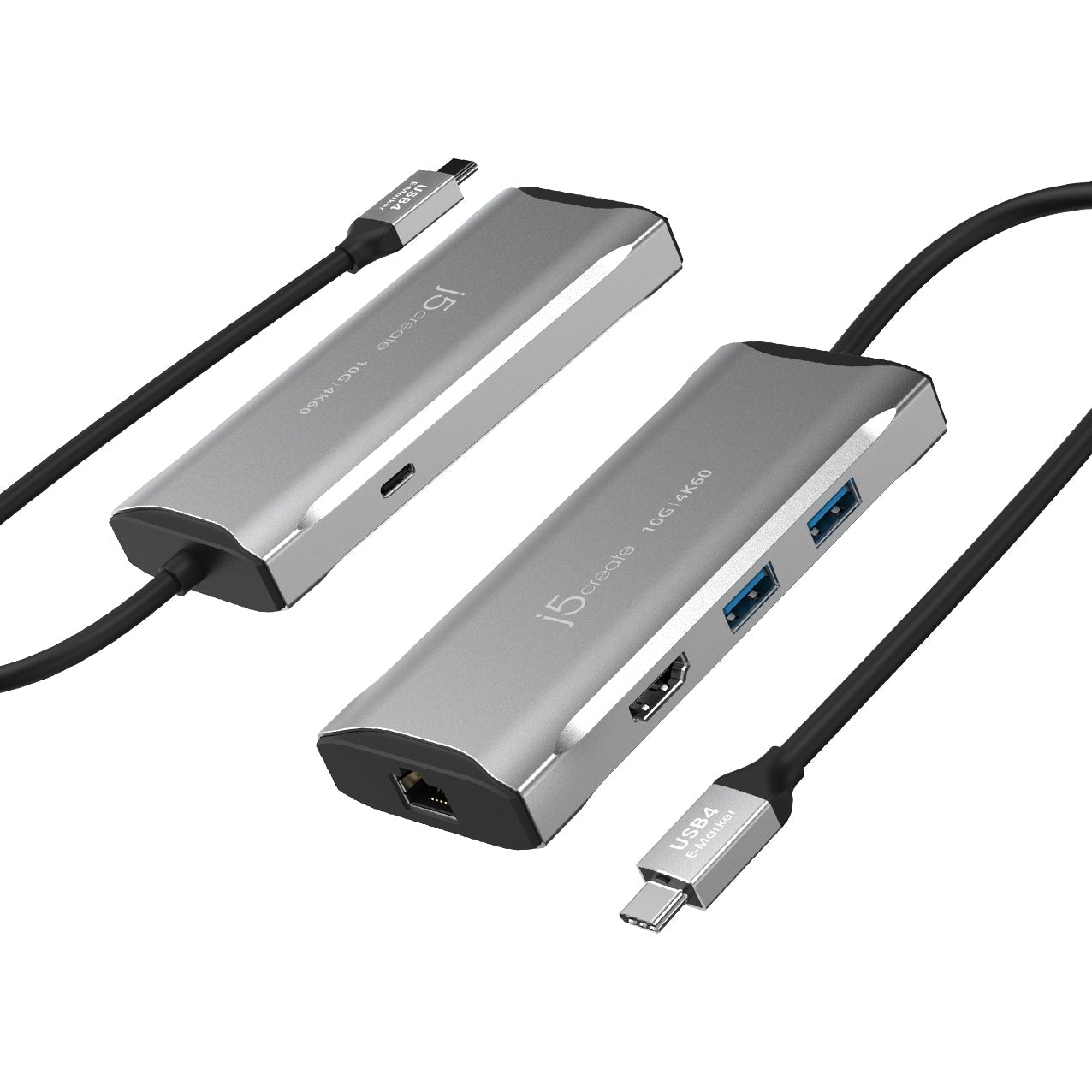

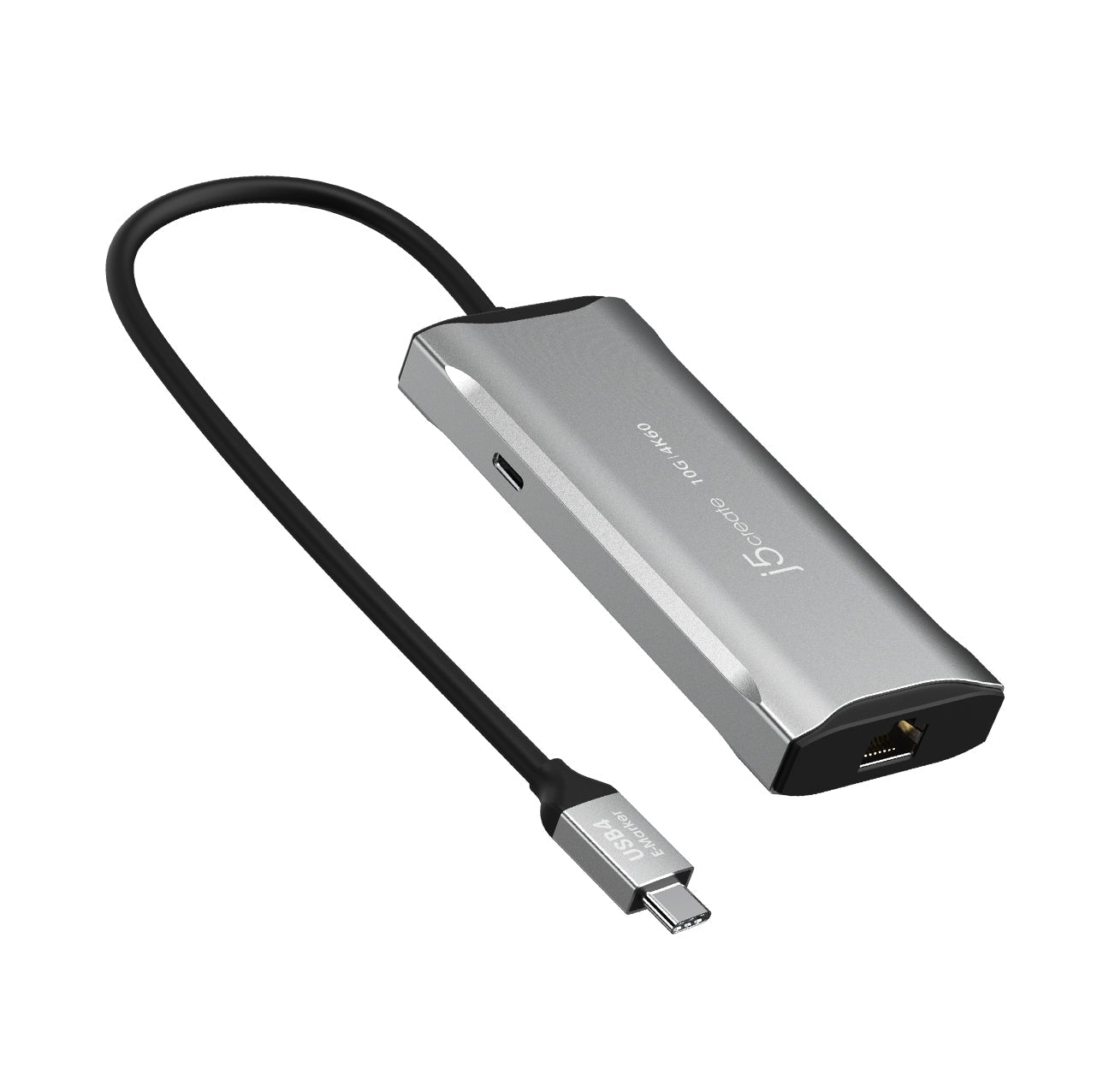

J5create 4K60 Elite USB-C 10Gbps Travel Dock - JCD392

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Travel Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

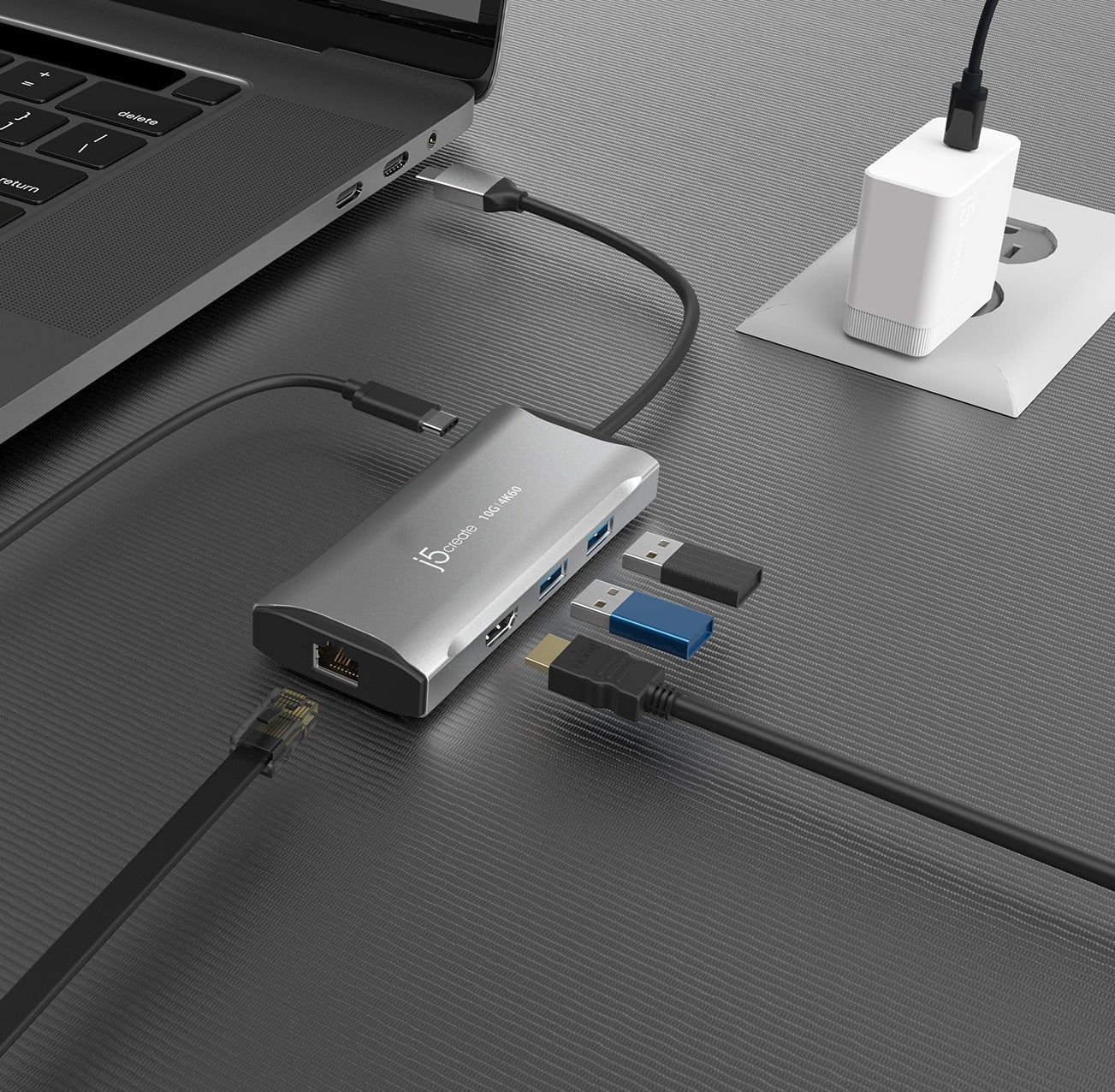

It supports DisplayPort™ 1.4 allowing you to add a 4K 60Hz HDMI™ display and has a Gigabit Ethernet port for adding a wired network. It includes three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. The USB-C® port also offers up to 100W of power pass-through when connected to a power adapter.

FEATURES:

• Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
• Backwards compatible with USB™ 3.2/3.1

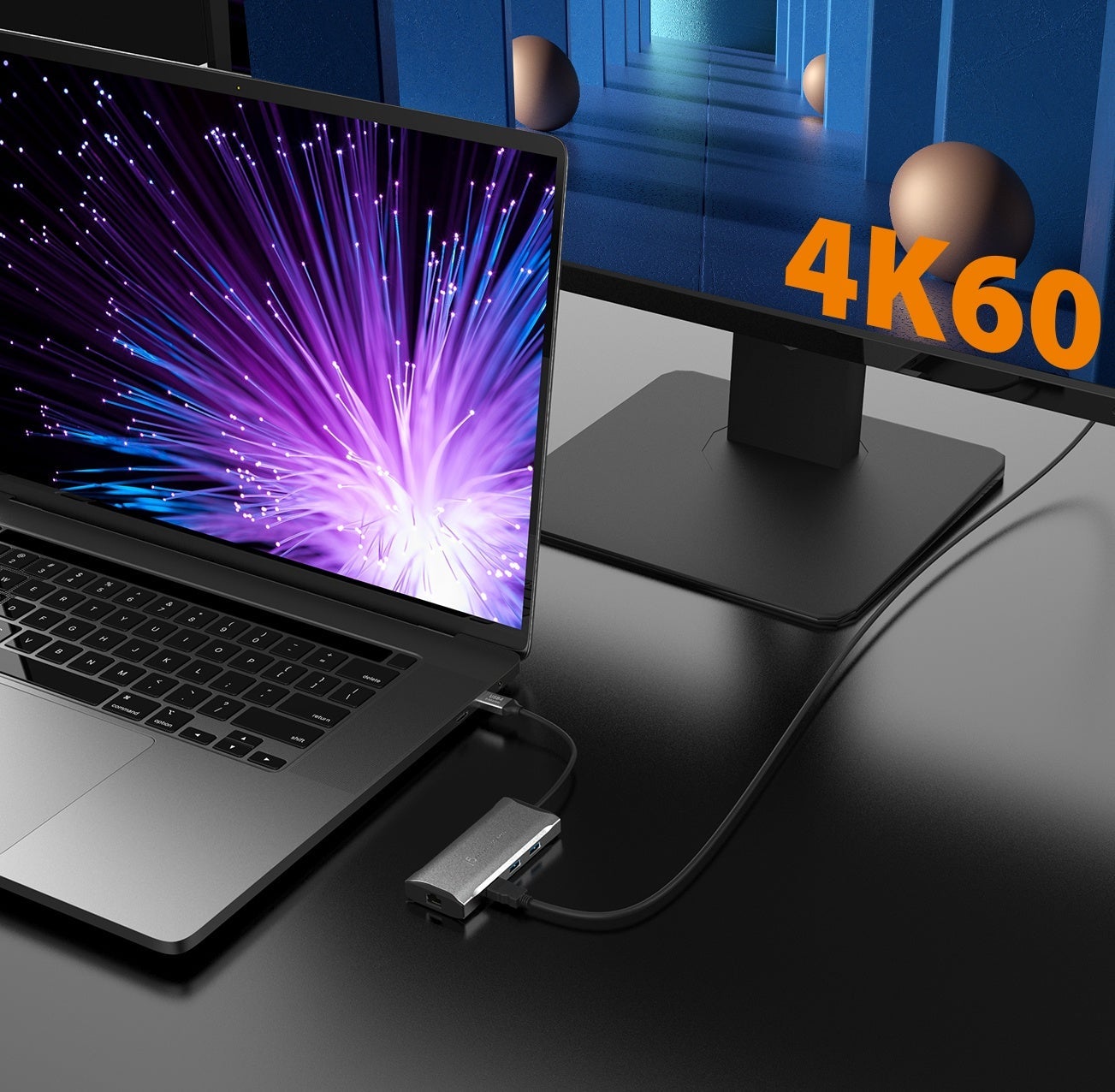

• Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
• Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
• Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS

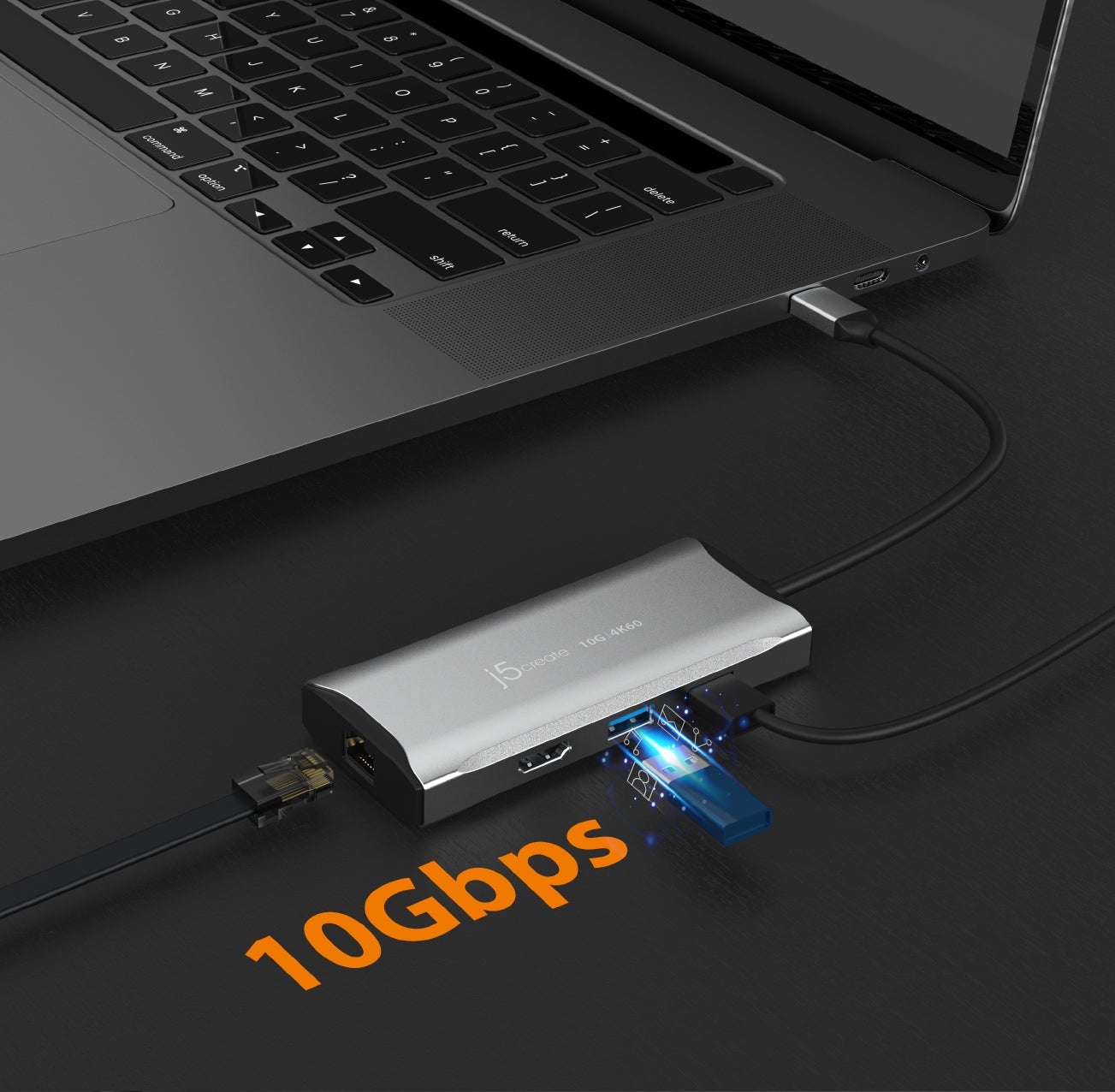

• Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals

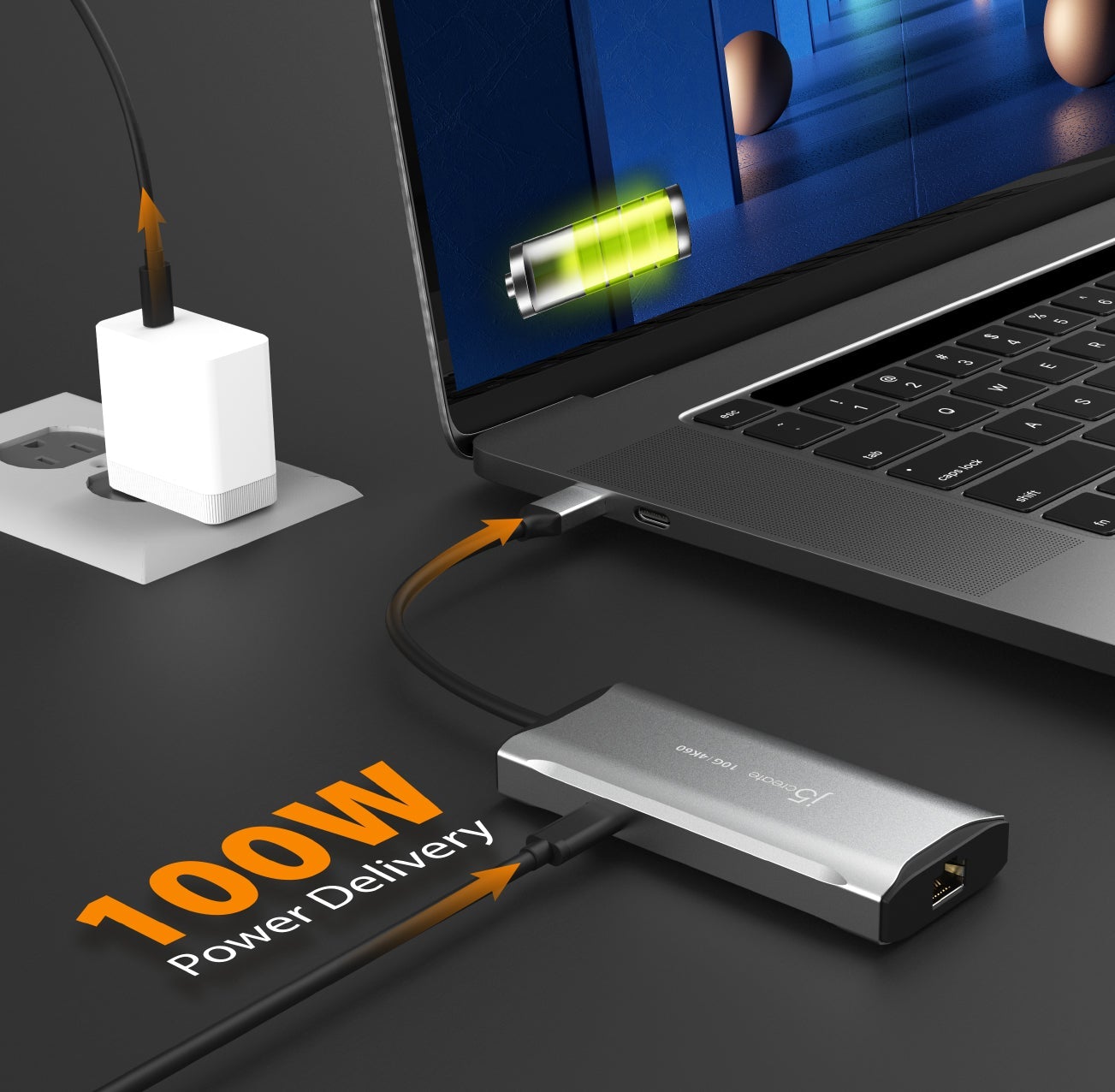

• Charge and power connected laptop and peripherals with 100W Power Delivery

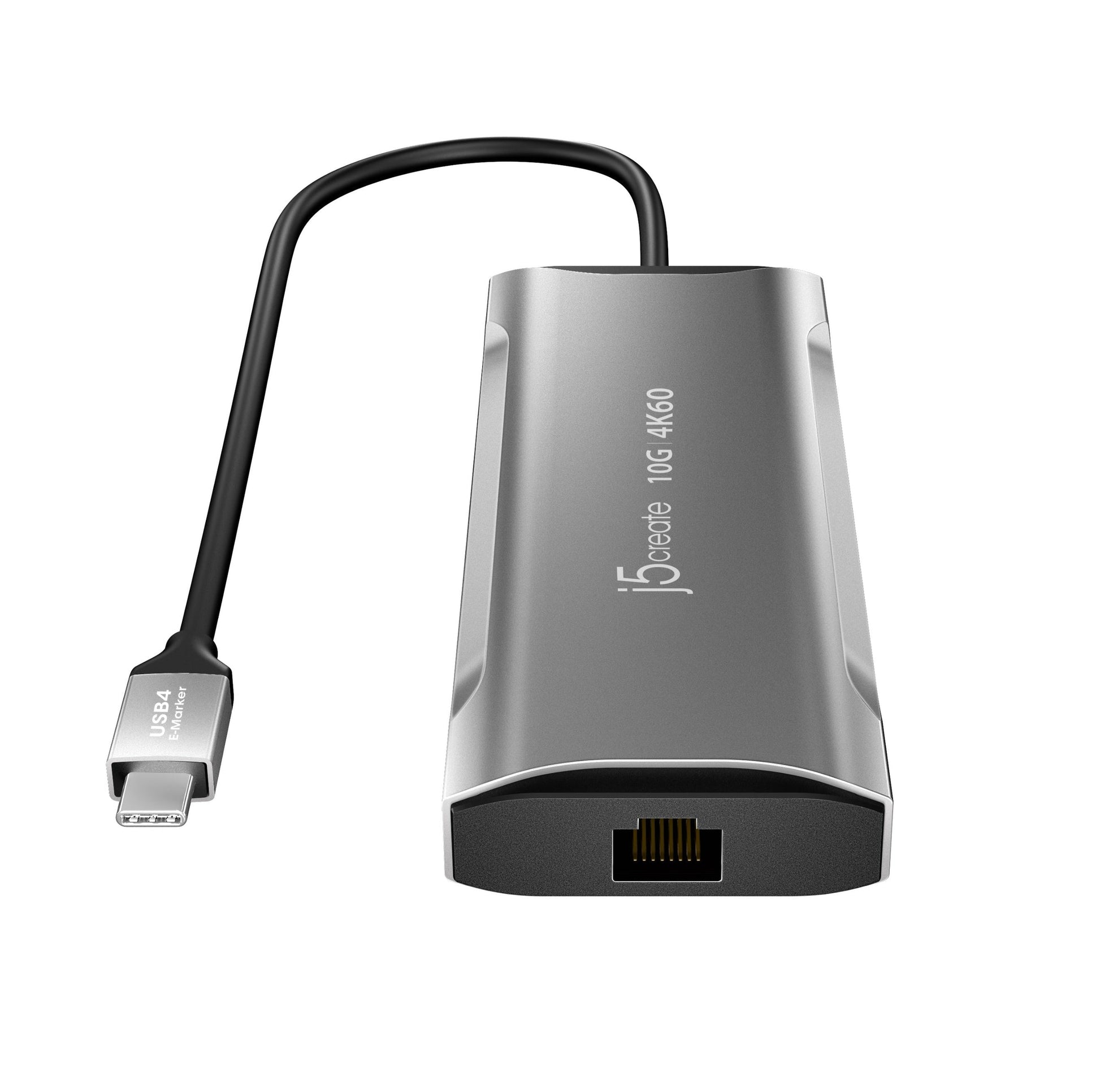

• Easily add a wired network connectivity with the Gigabit Ethernet port
• Plug-and-play, no driver installation required

System Requirements:

• Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
  Please refer to the manufacturer of your computer for more information about your device
• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
  • • Macbook Air® 13" 2019 or later
  • • Macbook Pro® 15" 2017 or later
  • • Macbook Pro® 16"
  • • iPad Pro® 11"/12" 2018 or later
  • • Surface™ Pro 7
  • • Surface™ Laptop 3

SPECIFICATIONS:

• Host Connector: 1 × USB-C® Male
• Video Output: 1 × HDMI™ Female
• Power Source: Bus-powered or self-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes

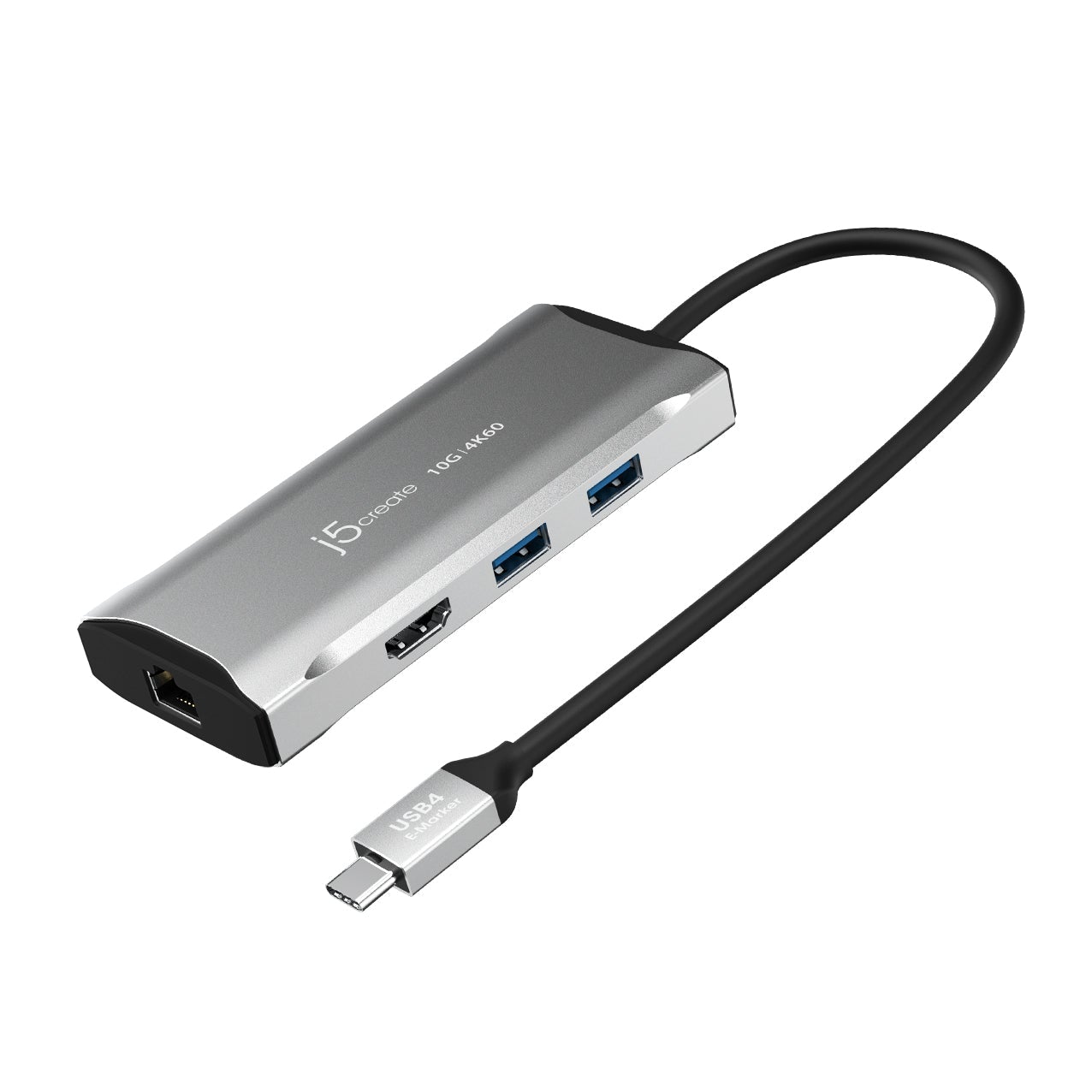

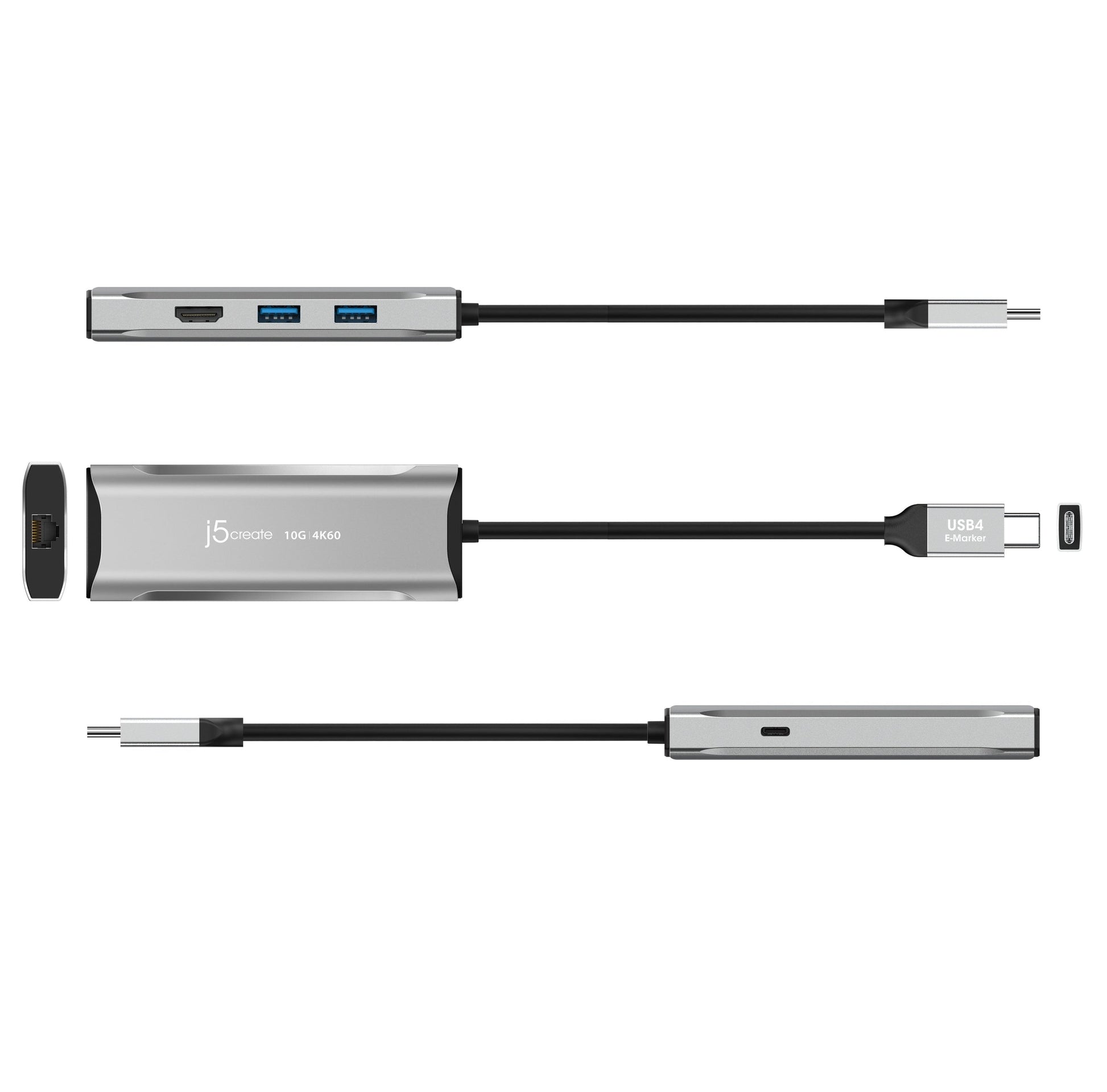

• Ports:
  • 1 × USB-C® SuperSpeed 10Gbps with Power Delivery 3.0
  • 2 × USB™ Type-A SuperSpeed 10Gbps
  • 1 × 4K HDMI™
  • 1 × RJ45 Gigabit Ethernet
• Maximum Display Resolution: 3840 × 2160
• Maximum Display Refresh Rate:
  • 3840 × 2160 @ 60 Hz
  • 2560 × 1440 @ 120 Hz
  • 1920 × 1080 @ 144 Hz (Windows®)
• Maximum Data Transfer Rate: 10 Gbps
• Displays Supported: 1
• Compatible Networks: 10/100/1000
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 400 mA
• Input Voltage: Up to 20V
• Input Current: Up to 5A
• Output Voltage: Up to 20V
• Output Current: Up to 4.5A
• Color: Space Grey
• Enclosure Type: Aluminum
• Cable Length: 5.9 in. (150 mm)
• Height: 0.62 in. (16 mm)
• Width: 4.33 in. (110 mm)
• Depth: 1.85 in. (47 mm)
• 3.06 oz (87 g)
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Operating Humidity: < 85% non-condensing
• Storage Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD392 4K60 Elite USB-C® 10Gbps Travel Dock x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
