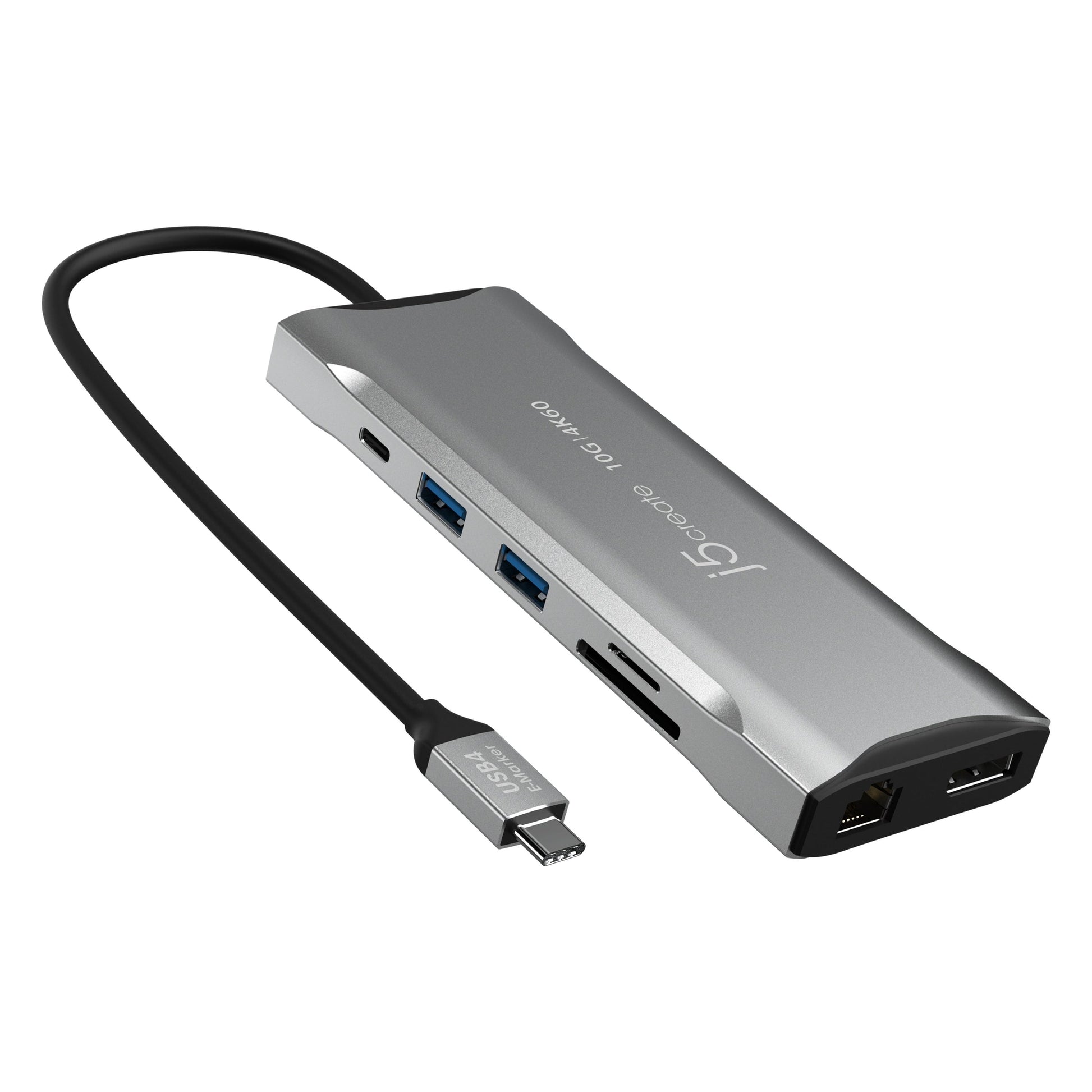

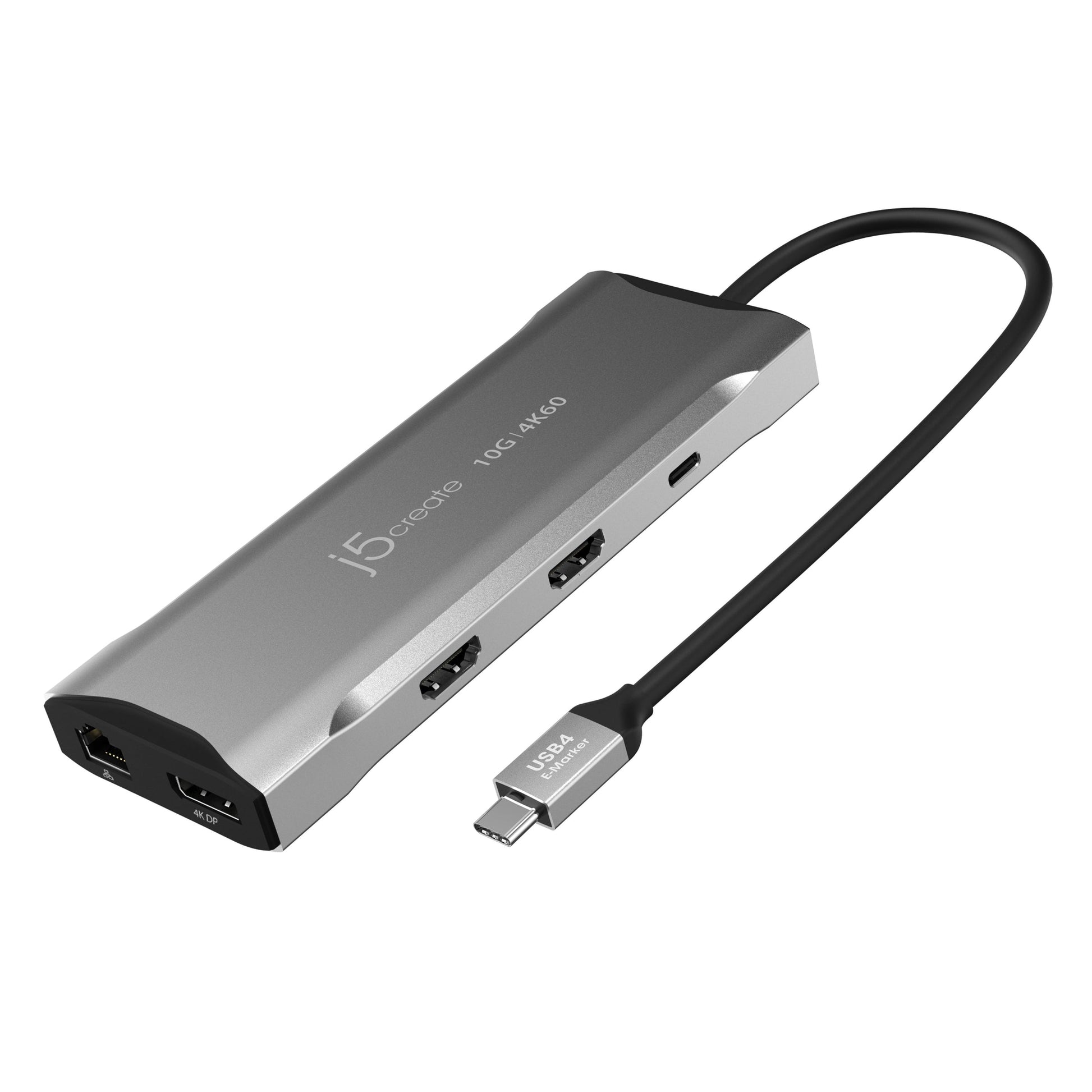

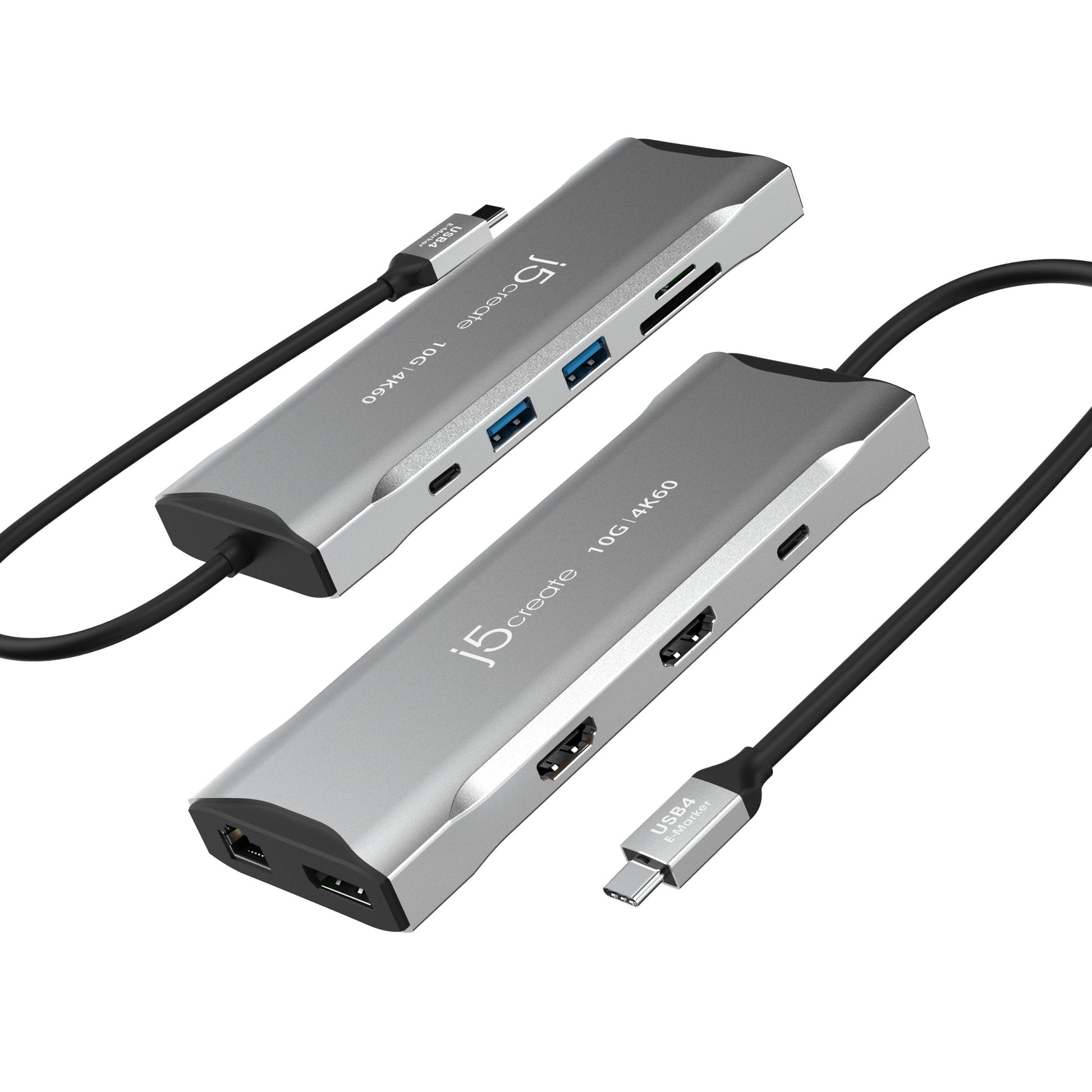

J5create 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock - JCD397

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

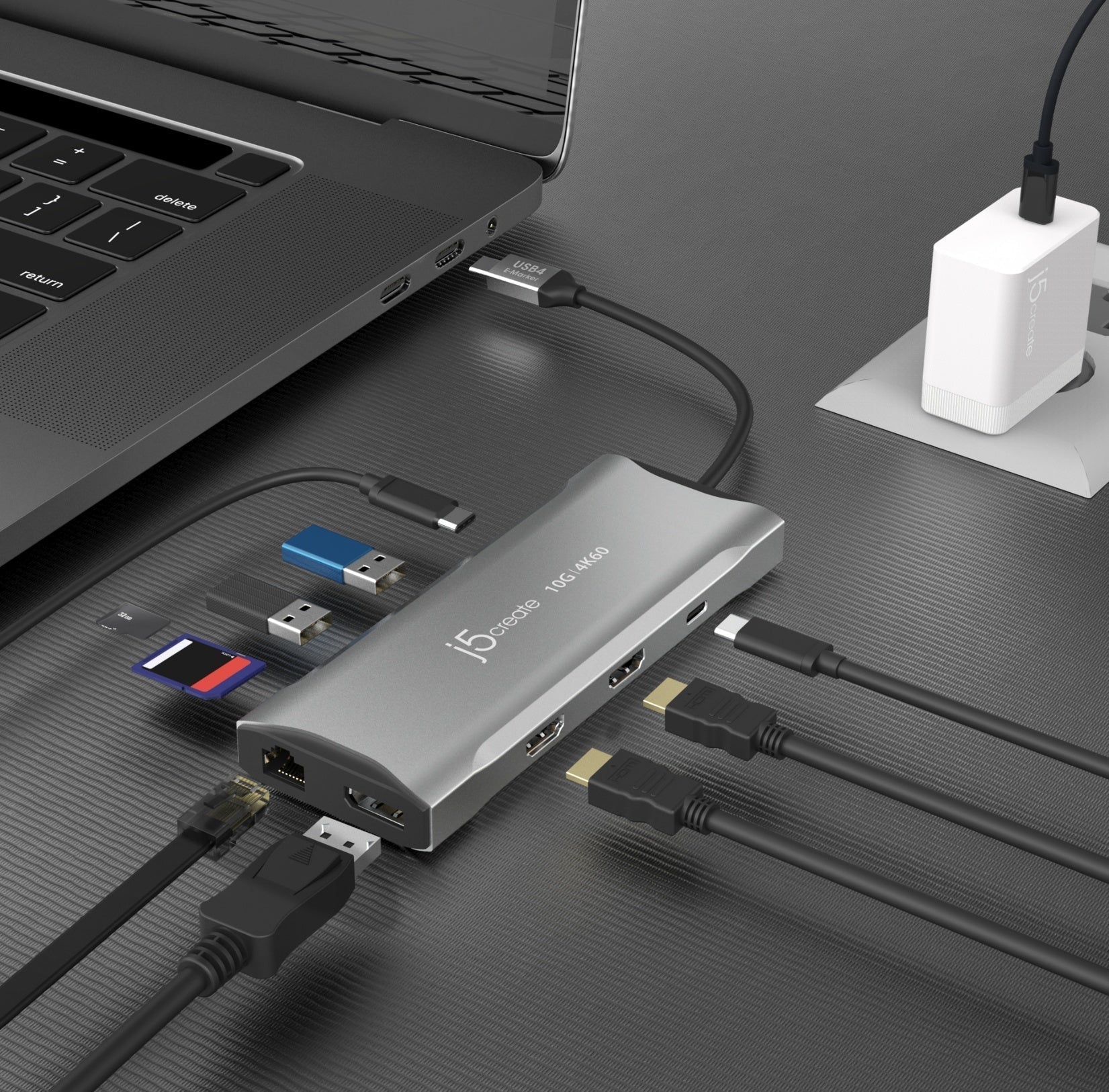

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

FEATURES:

•  Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
• Backward compatible with USB™ 3.2/3.1

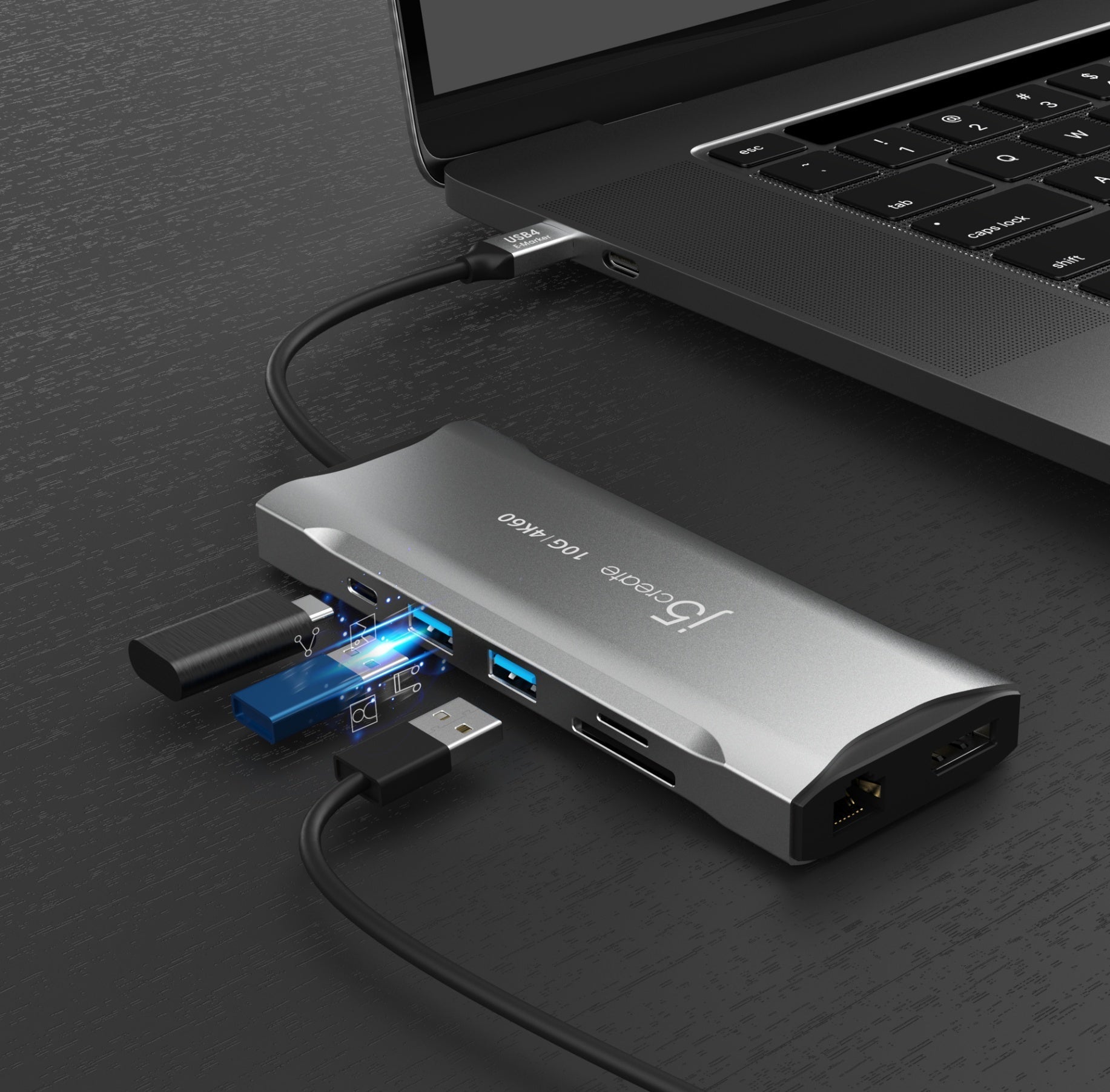

• Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals

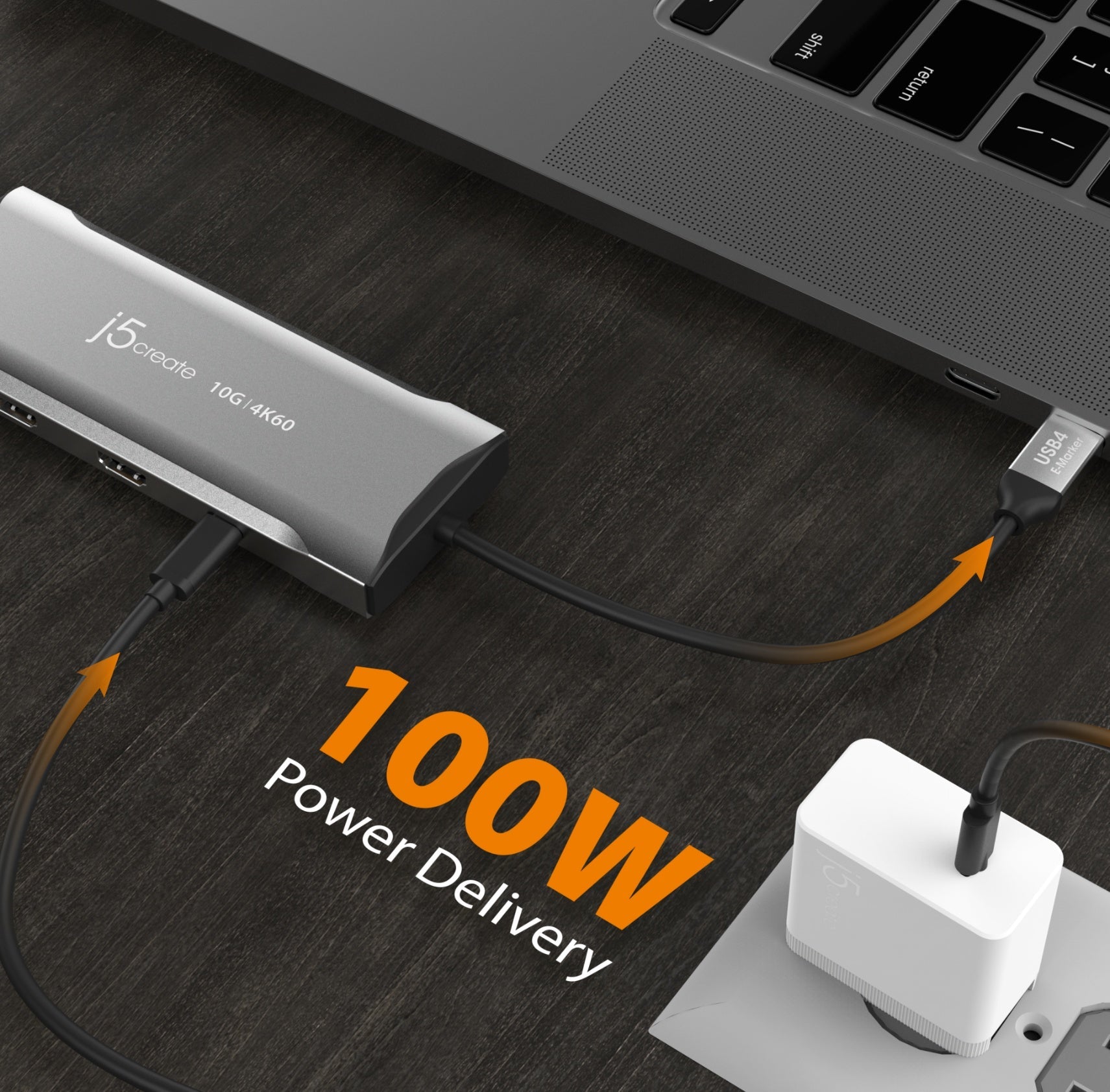

• Charge and power connected laptop and peripherals with 100W Power Delivery

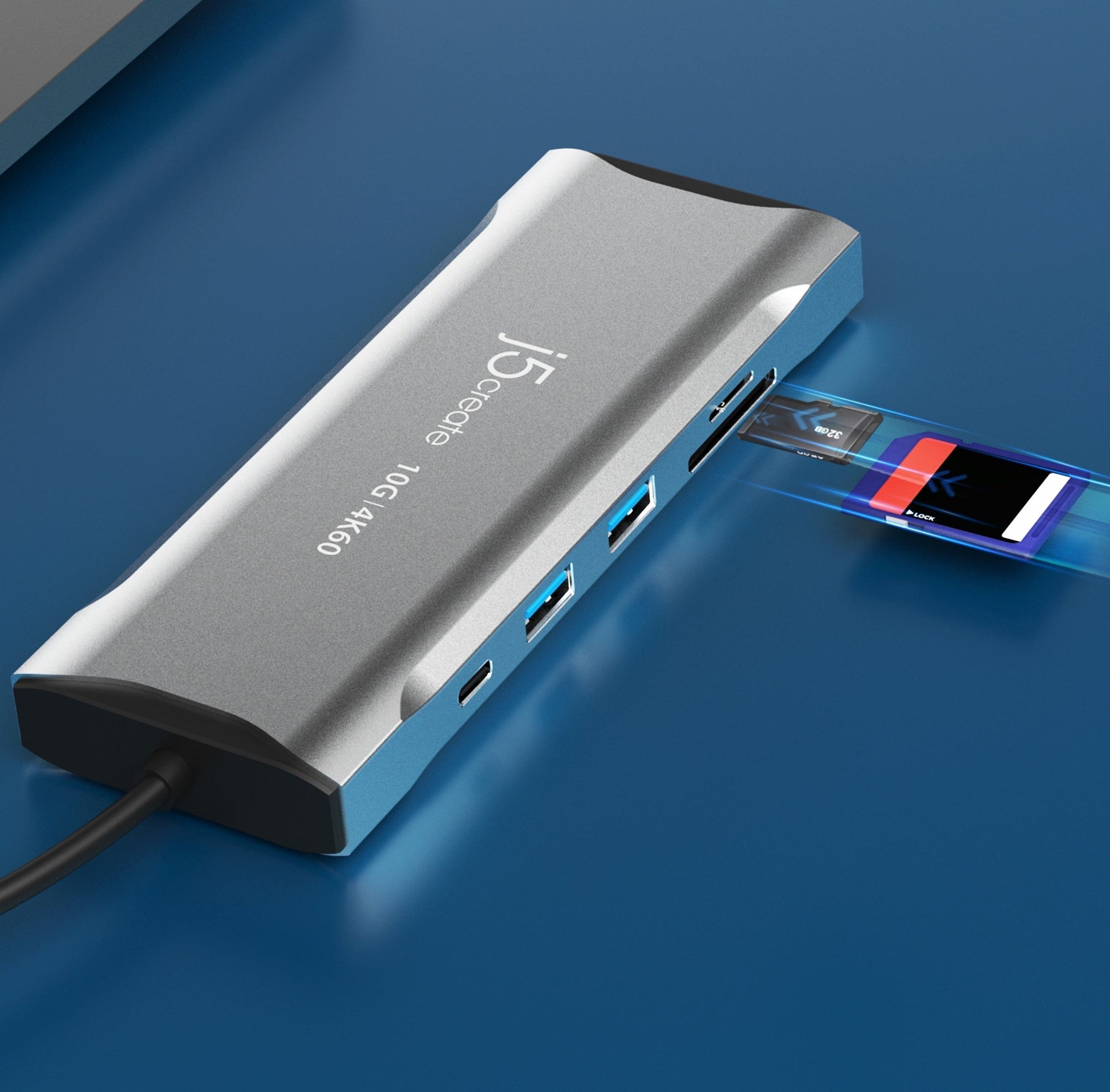

• SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
• Easily add a wired network connectivity with the Gigabit Ethernet port
• Plug-and-play, no driver installation required
• Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.

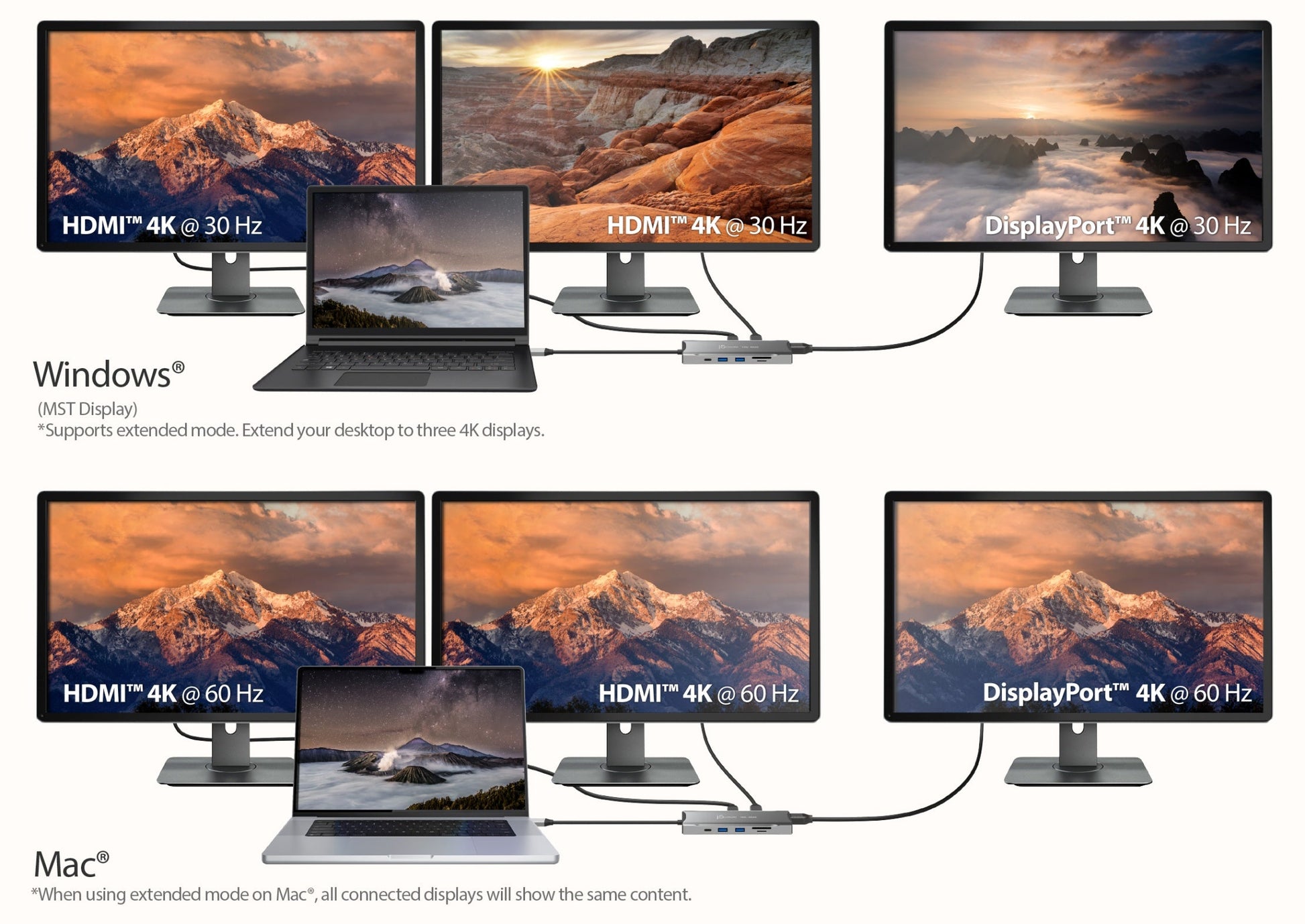

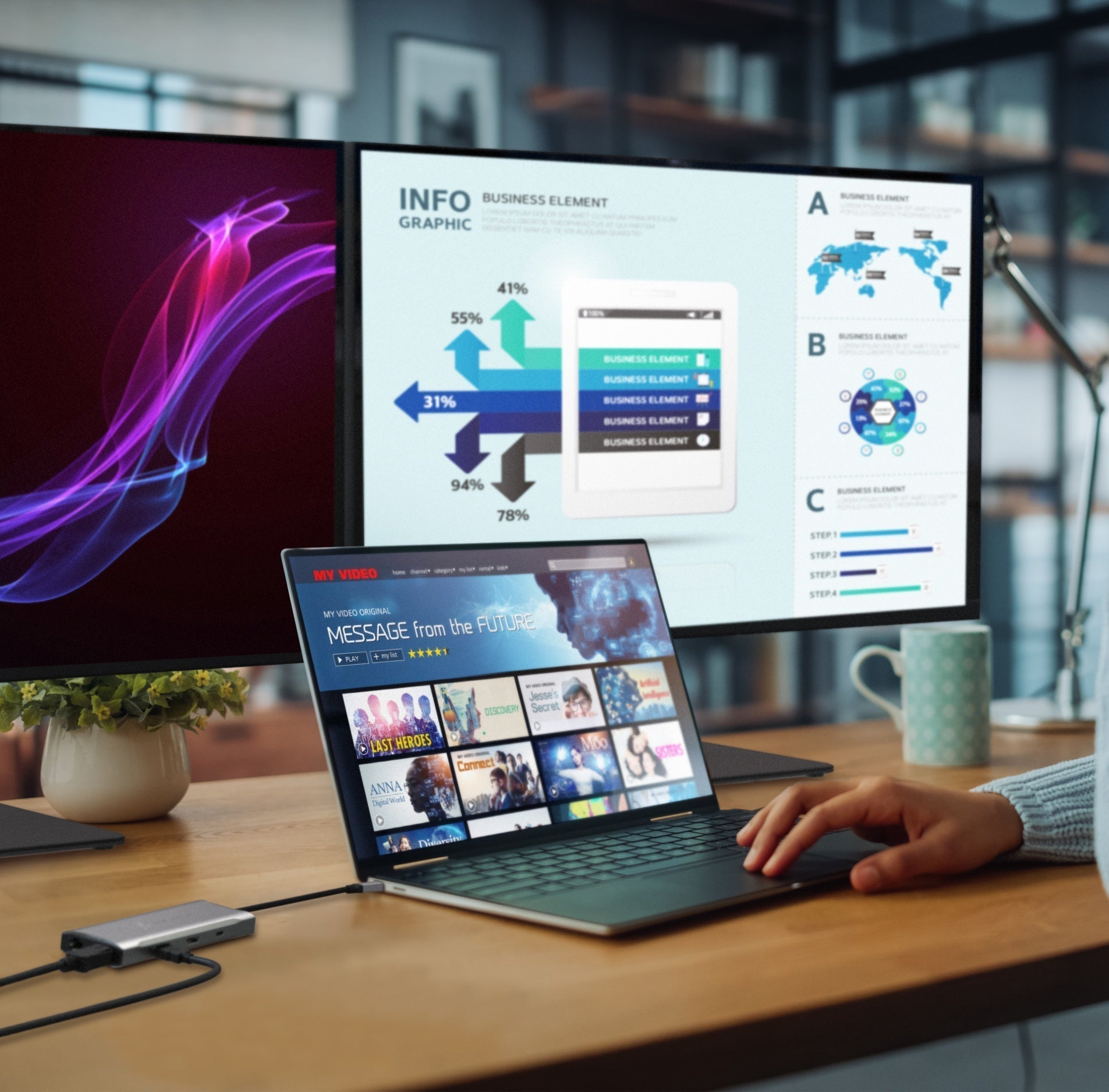

• Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*

System Requirements:

•  Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
  Please refer to the manufacturer of your computer for more information about your device
• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows:
  • Macbook Air® 13" 2019 or later
  • Macbook Pro® 15" 2017 or later
  • Macbook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • Surface™ Pro 7
  • Surface™ Laptop 3

Special Notes:

• A host laptop without MST support can only connect to one additional monitor
• The MST protocol is not currently supported by macOS® or Chrome OS™. The display output is limited to mirrored mode when connected.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)
• The mini dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

SPECIFICATIONS:

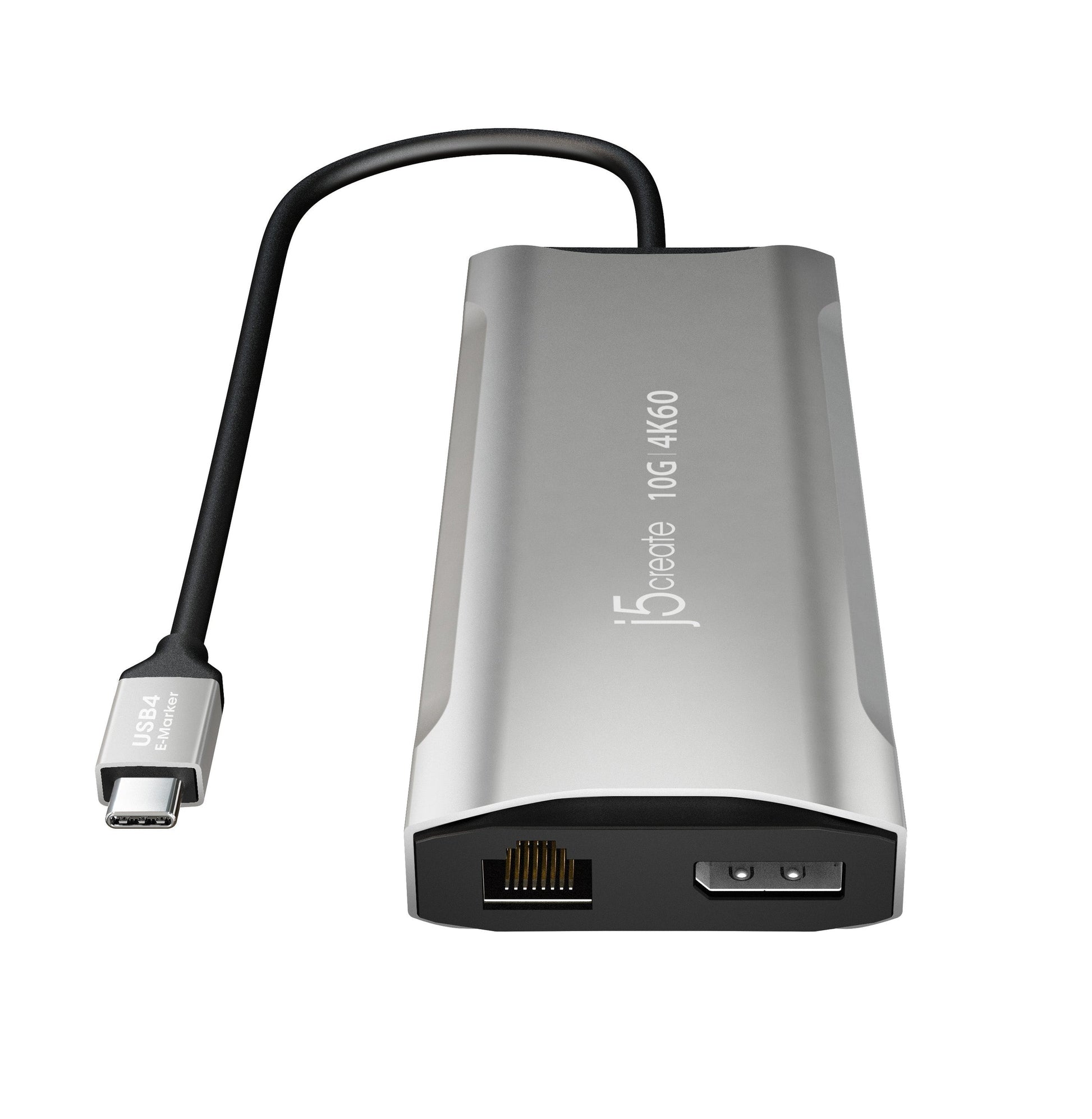

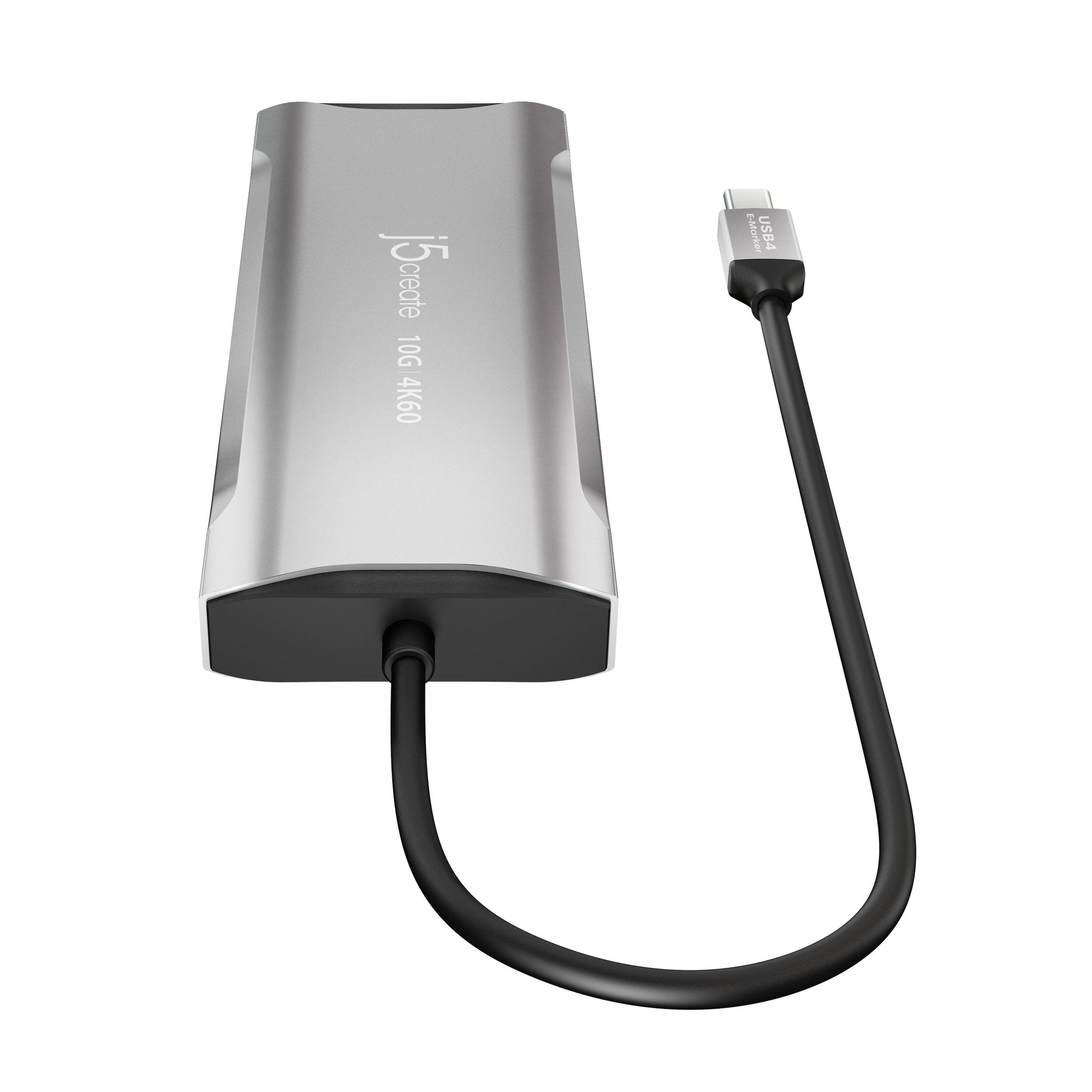

• Host Connector: 1 × USB-C® Male
• Video Output:
  • 2 × 4K60Hz HDMI™ Female
  • 1 × 4K60Hz DisplayPort™ Female
• Display Support Notes:
  • Single display: up to 4K60Hz
  • Dual display: up to Dual 4K60Hz
  • Triple display: up to Triple 4K30Hz
• Power Source: Bus-powered or self-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes
• Ports:
  • 1 × USB-C® (10Gbps)
  • 1 × USB-C® (5Gbps with Power Delivery 3.0)
  • 2 × USB™ Type-A (10Gbps)
  • 1 × USB-C® Power Delivery 3.0
  • 2 × 4K60Hz HDMI™
  • 1 × 4K60Hz DisplayPort™
  • 1 × SD™ & microSD™ 4.0 memory card reader/writer
  • 1 × RJ45 Gigabit Ethernet
• Maximum Display Resolution: 3840 × 2160
• Maximum Display Refresh Rates (Windows® MST):
  • 3840 × 2160 @ 60 Hz
  • 2560 × 1440 @ 120 Hz
  • 1920 × 1080 @ 144 Hz
• Maximum Data Transfer Rate: 10Gbps
• Displays Supported: 3
• Compatible Networks: 10 / 100 / 1000 Mbps
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 650 mA
• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20V
• Color: Space Grey
• Enclosure Type: Aluminum
• Cable Length: 7.87 in. (20 cm)

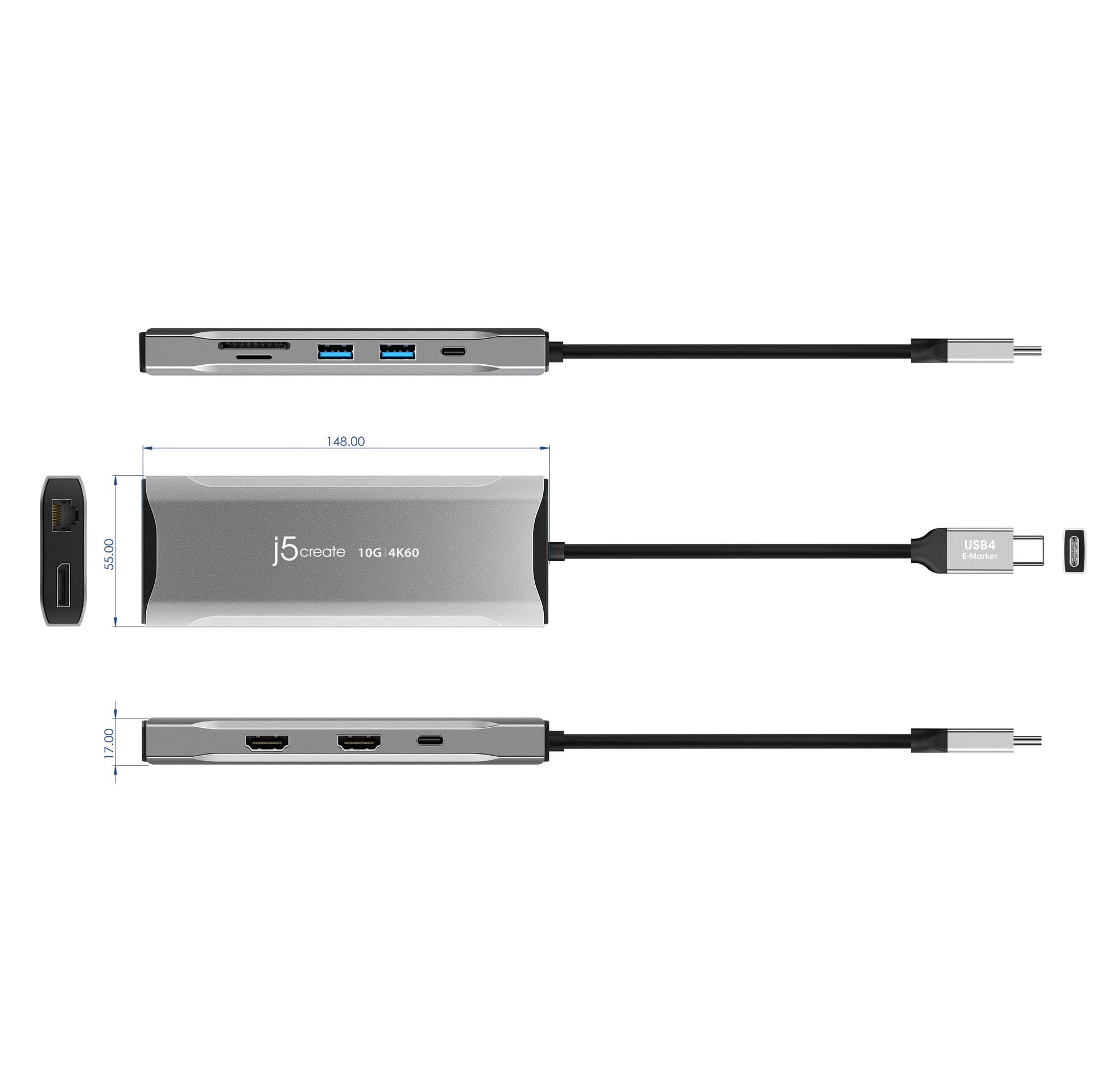

• Product Height: 5.8 in. (148 mm)
• Product Width: 2.17 in. (55 mm)
• Product Depth: 0.67 in. (17 mm)
• Product Weight: 4.36 oz (123.5 g)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Operating Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
