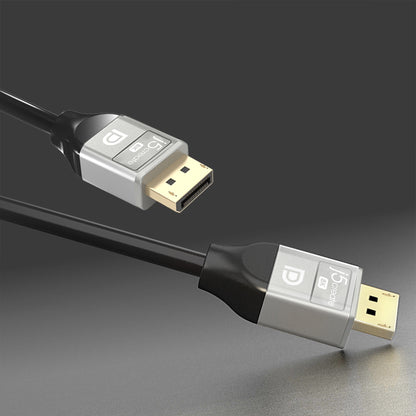

J5create 8K DisplayPort Cable - JDC43
J5create 8K DisplayPort Cable - JDC43
Ready to ship tomorrow
Couldn't load pickup availability
Share

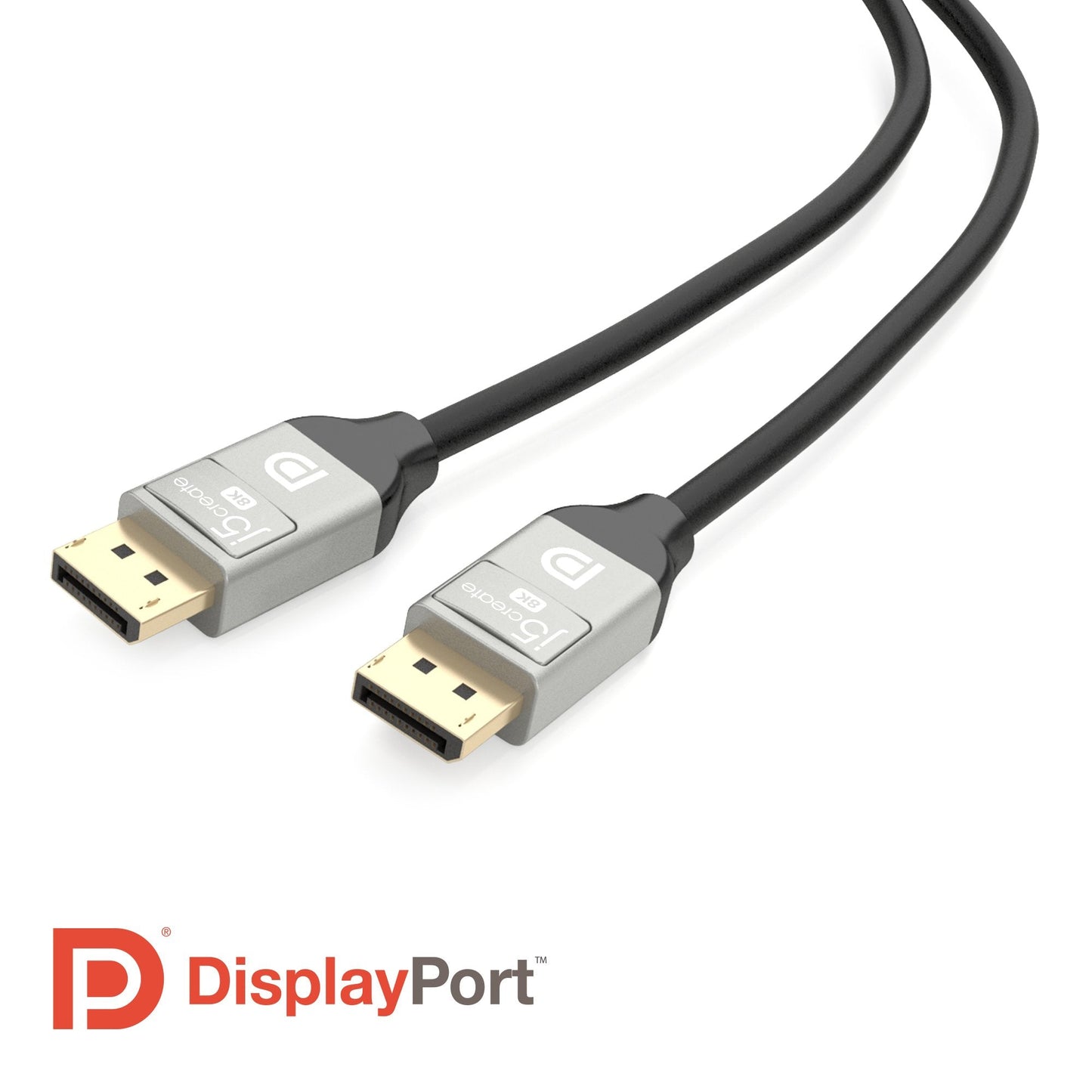

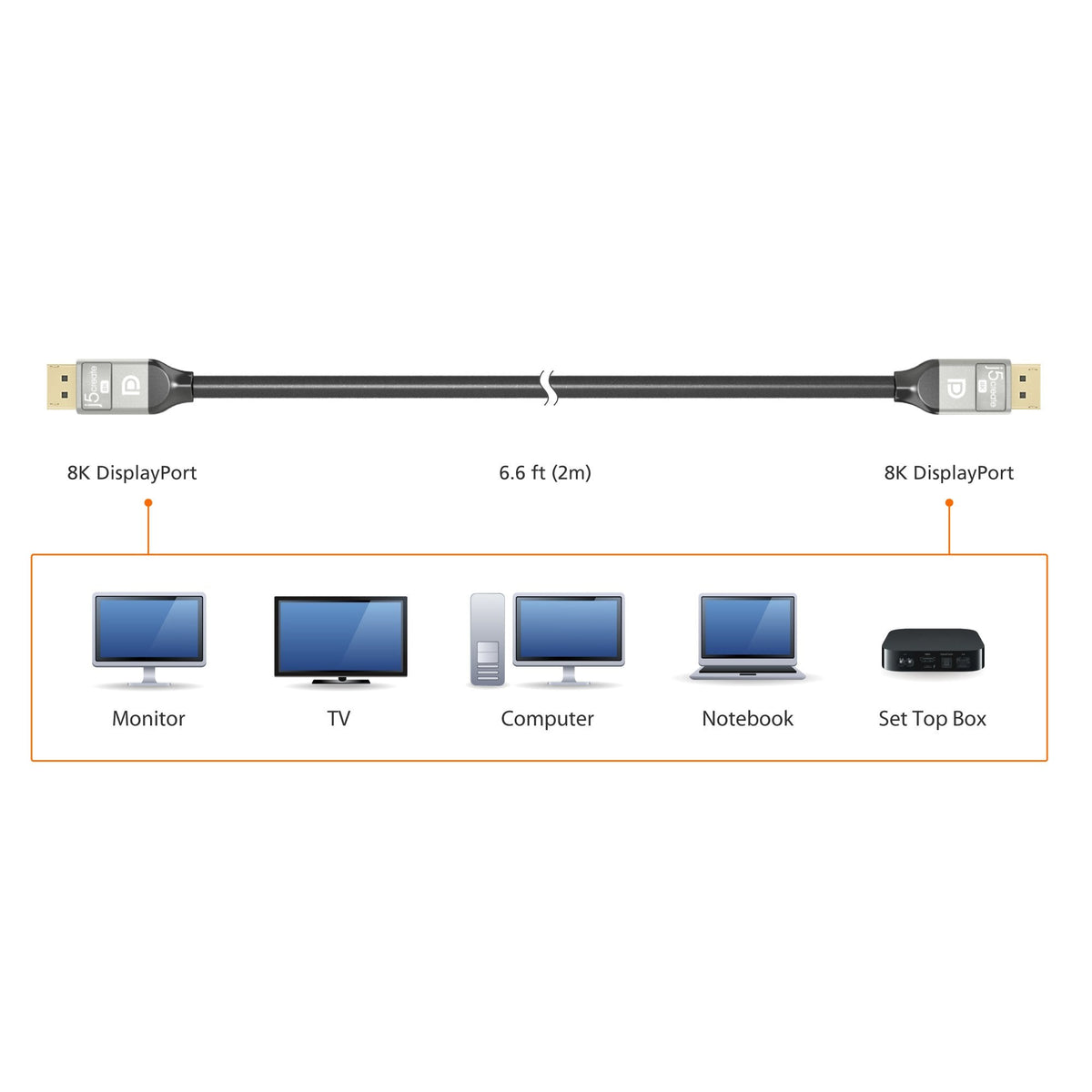

The JDC43 is an 8K DisplayPort™ cables is allow you to connect a DisplayPort™ from a laptop, desktop, or set-top box to a high-resolution monitor, HDTV or projector with DisplayPort™ input.

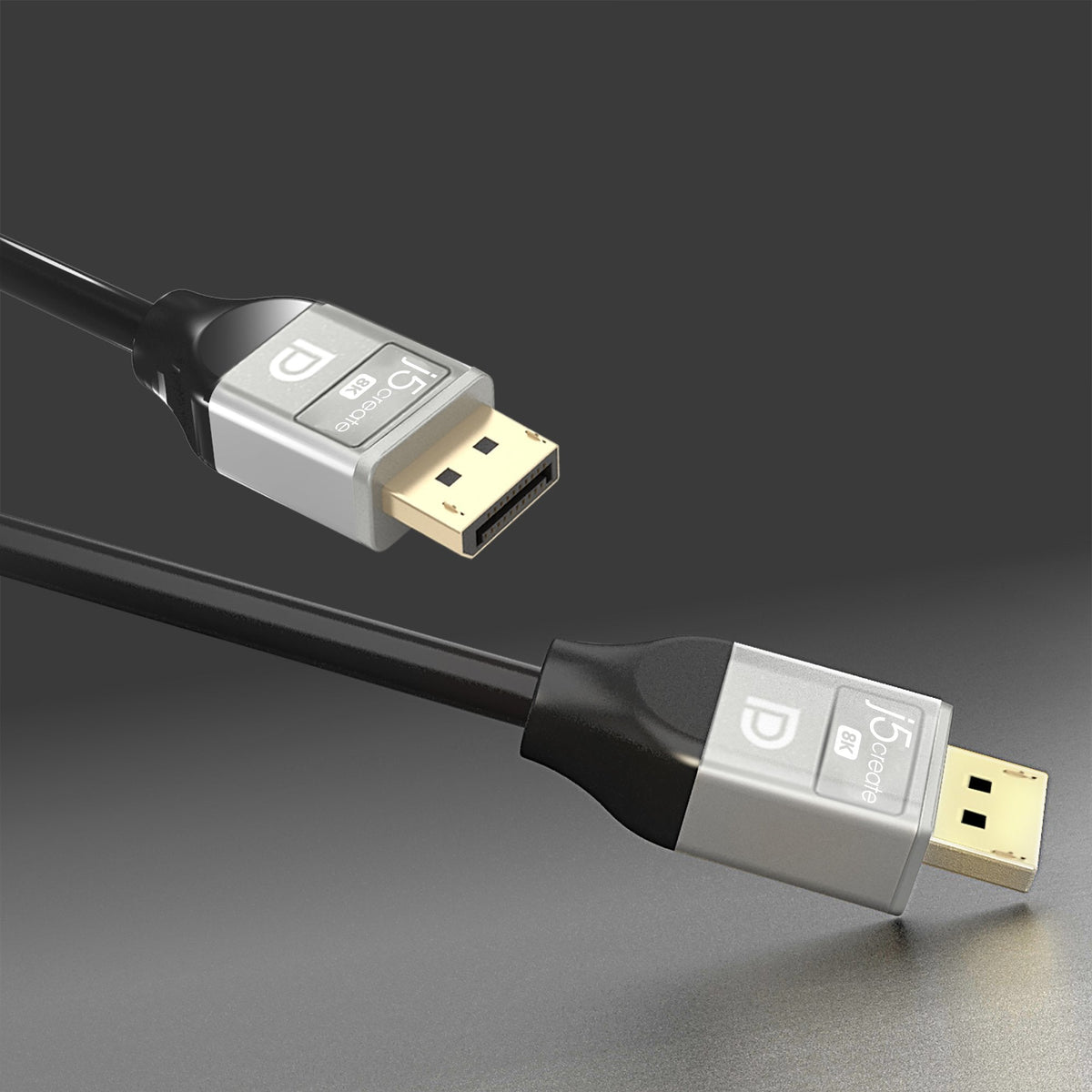

The JDC43 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission. Latched connectors give the 8K DisplayPort™ cable a more secure connection.
The cable transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, and 4K UHD (4096 × 2160) at 120 Hz. The theoretical bandwidth is up to 32.4 Gbps, enough bandwidth to support high-end gaming displays and video cards.
FEATURES:
- DisplayPort™ v1.4 HBR3 certified
- Supports resolutions up to 7680 x 4320 @ 60 Hz/ 4096 x 2160p @ 120 Hz
- Supports data rates/bandwidth up to 32.4 Gbps
- Backward compatible with DisplayPort™ v1.0/v1.1/v1.2
- Triple shielded, tinned copper conductors and gold-plated metal ensures maximum protection and insulation

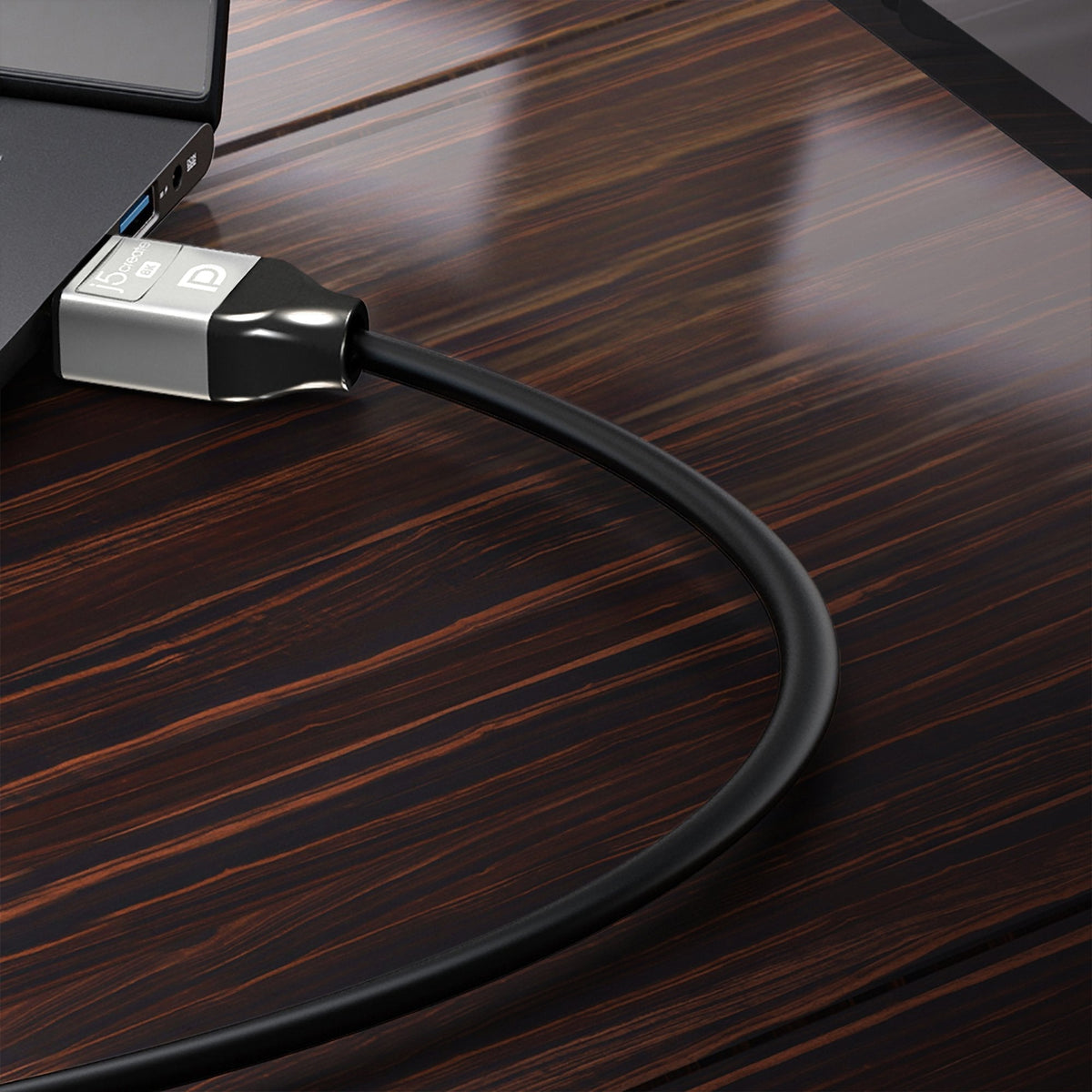

- Latched connectors prevent accidental disconnections
- Length: 6.6 ft (2m) / 3.3 ft (1m) / 9.8 ft (3m)
System Requirements:
- DisplayPort™ -enabled devices
Special Notes:
- A 8K-capable display and host device is required for obtaining the 7680 x 4320 resolution
- The cable can be used with all DisplayPort™-enabled devices, but 8K @ 60 Hz resolution can only be supported on compatible devices
SPECIFICATIONS:
- Cable Jacket Type: PVC
- Cable Shield Type: Foil/Braid Tinned Copper + Al tape

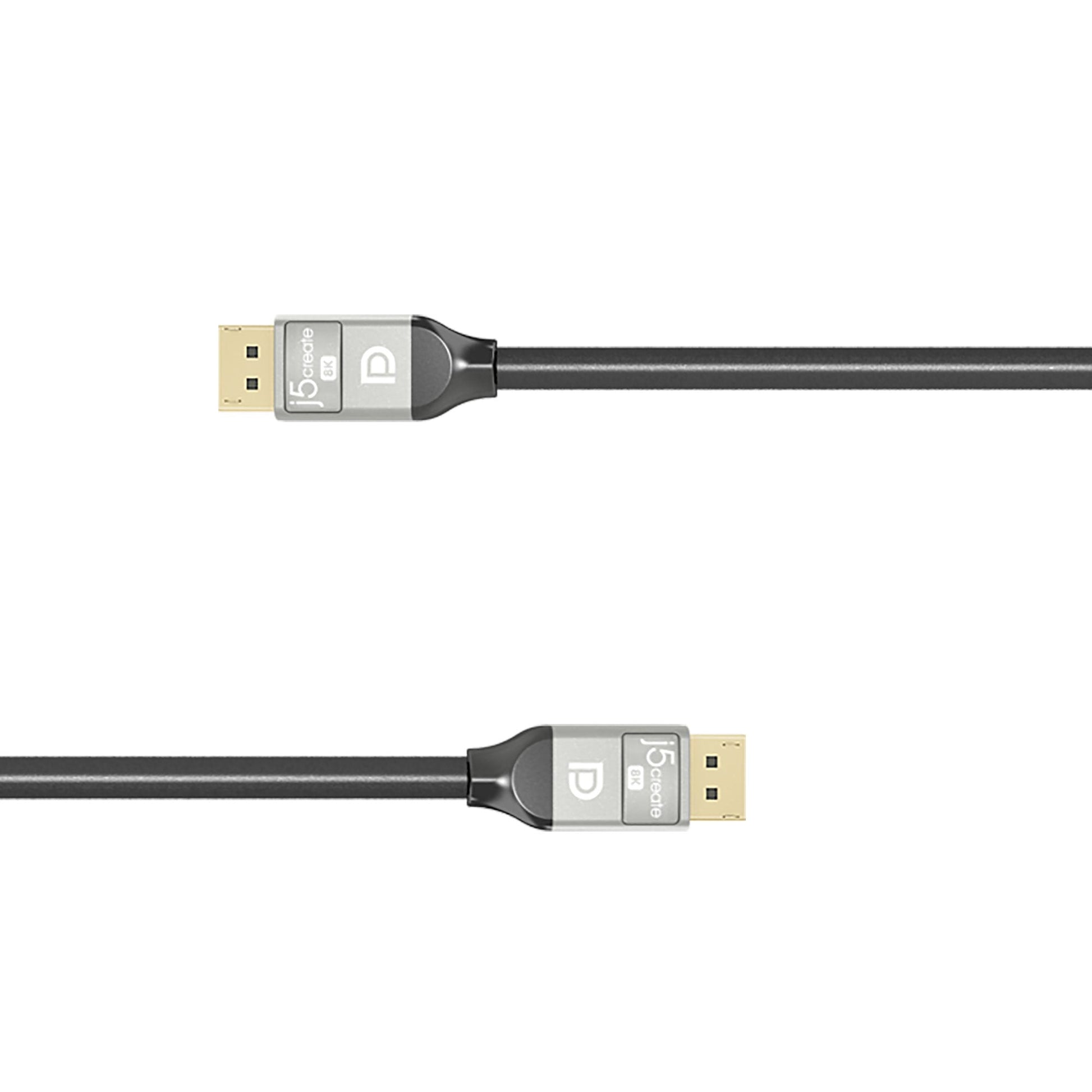

- Connector A: Gold-plated DisplayPort™ Male
- Connector B: Gold-plated DisplayPort™ Male
- Warranty: 1 Year Limited
- Audio Channel: DisplayPort™ v1.4
- Displays Supported: 1
- Max Data Transfer Rate: 32.4 Gbps
- Max Display Refresh Rate: 7680 × 4320 @ 60 Hz / 4096 × 2160 @ 120 Hz
- Max Display Resolution: 7680 × 4320
- Cable Length: JDC43: 6.6 ft (200 cm)
- Color: Black
- Connector Type: DisplayPort™ Male
- Enclosure Type: Plastic
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 98°F (0 to 37°C)
- Product Depth: 0.39 in (10 mm)
- Product Height: 1.57 in (40 mm)
- Product Weight: JDC43: 0.35 lbs (160 g)
- Product Width: 0.74 in (19 mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 14 to 140°F (-10 to 65°C)
WHAT'S IN THE BOX:
- 8K DisplayPort™ Cable x1
WARRANTY:
- 24 Months
