J5create 8K HDMI 2.1 2-Way Splitter - JDSH812

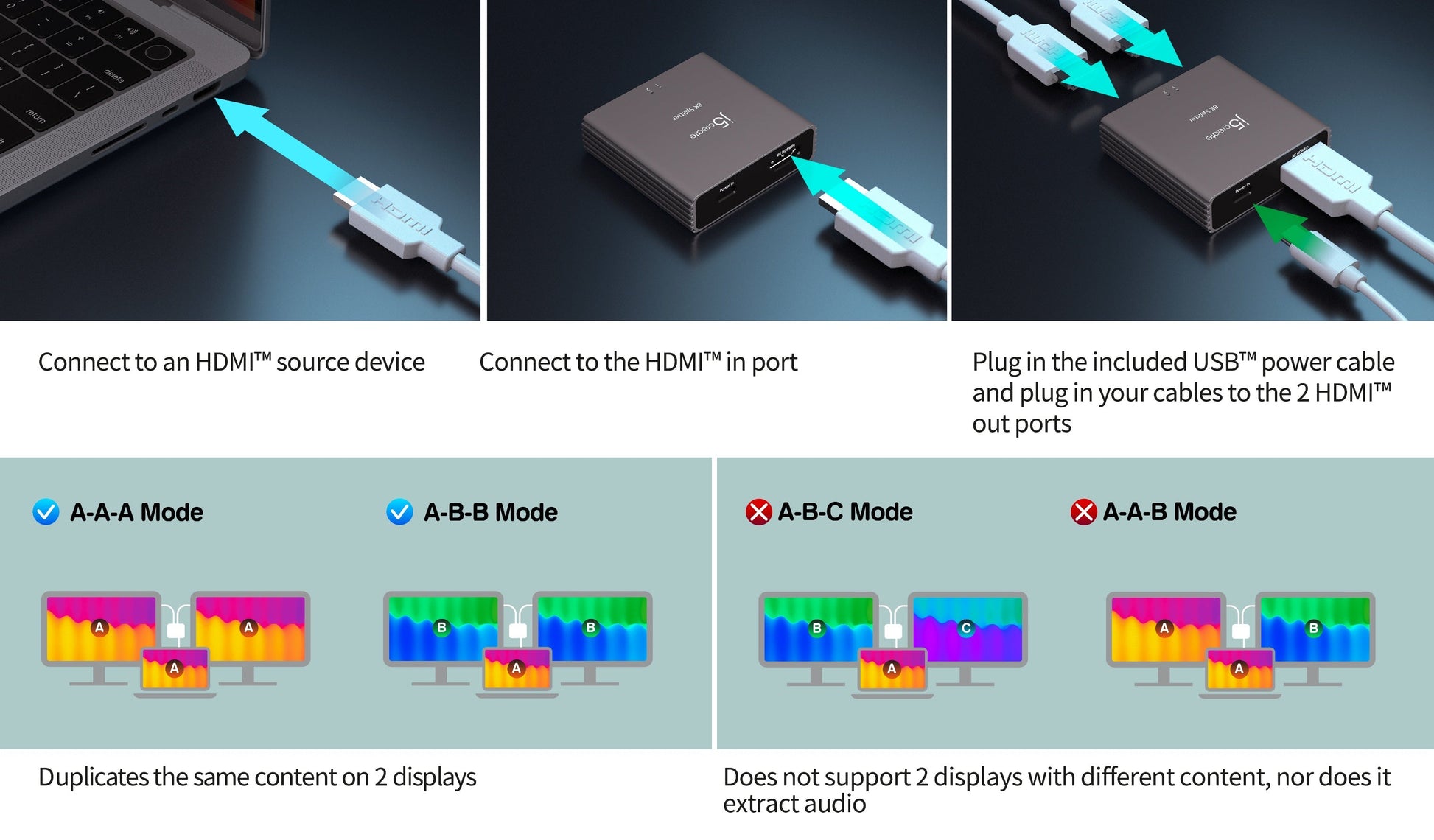

• The HDMI™ splitter allows you to duplicate your HDMI™ image to up to 2 displays.
• Supports impressive resolutions up to 8K@60Hz, 4K@120Hz and is backward compatible with 1440p@240Hz, 1080p @ 240 Hz.
• Plug-and-play makes it effortless to toggle between input sources or displays without drivers.
• 2-channel audio support
• Supports Variable Refresh Rate (VRR), FreeSync™, G-Sync™
• Supports ALLM (Auto Low Latency Mode)
• Audio: DTS-HD/Dolby®-True HD /LPCM7.1/DTS/Dolby®-AC3/DSD

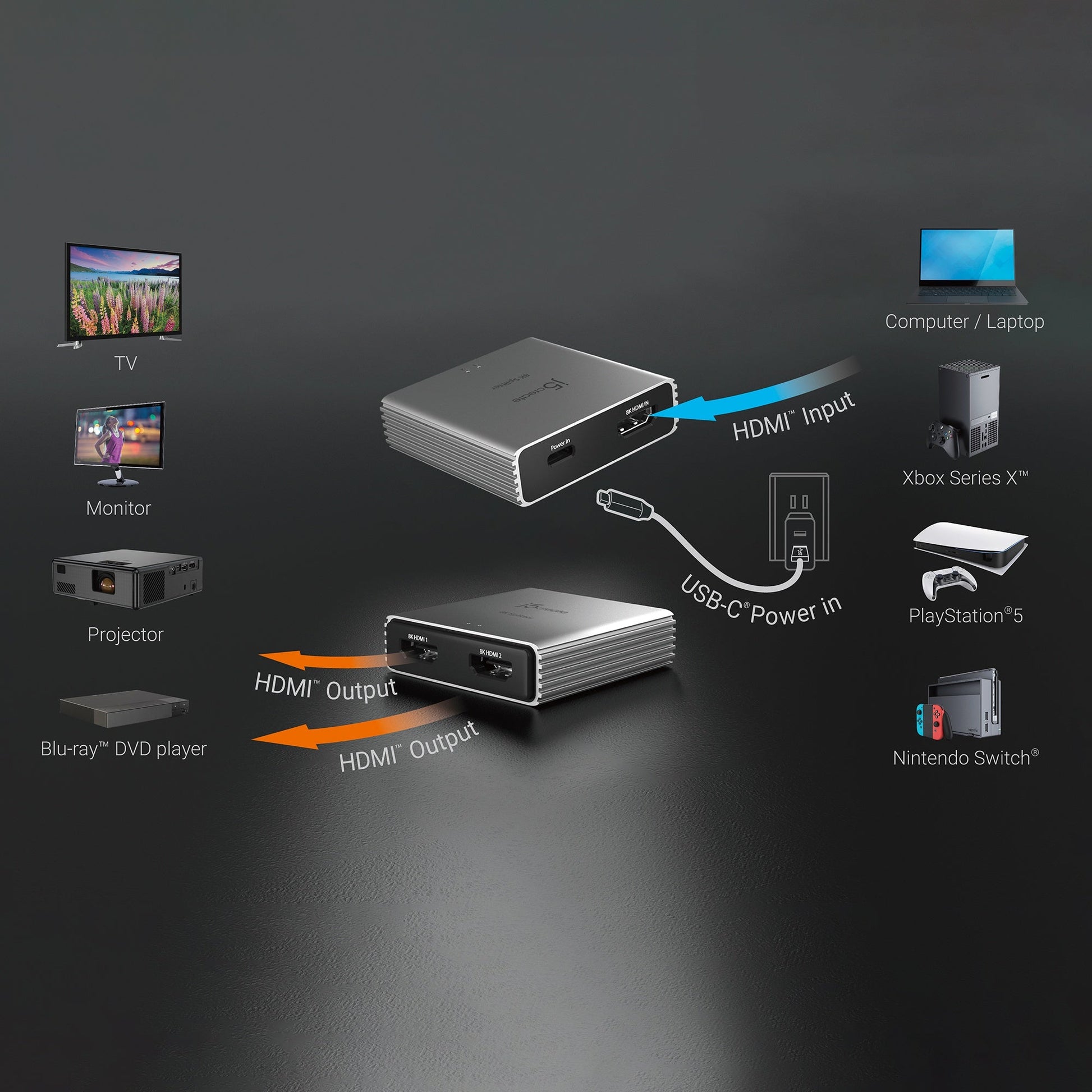

• PS5™/PS4™, Xbox Series X™/Xbox One™, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more.
• Compatible with TVs, monitors, projectors, and other displays.

System Requirements:

• Available HDMI™ 2.1/1.4b port


Special Notes:

• An 8K-capable display is required for obtaining the 7680 × 4320 resolution
• Needs a USB™ Type-A adapter rated at 5V1A or greater to connect to a USB-C® to USB™ Type-A cable.

SPECIFICATIONS:

• Audio supported: Yes — DTS-HD / Dolby® TrueHD / LPCM 7.1 / DTS / Dolby®-AC3 / DSD
• Host connector: HDMI™ Female
• LED indicators: Red light shows video signal

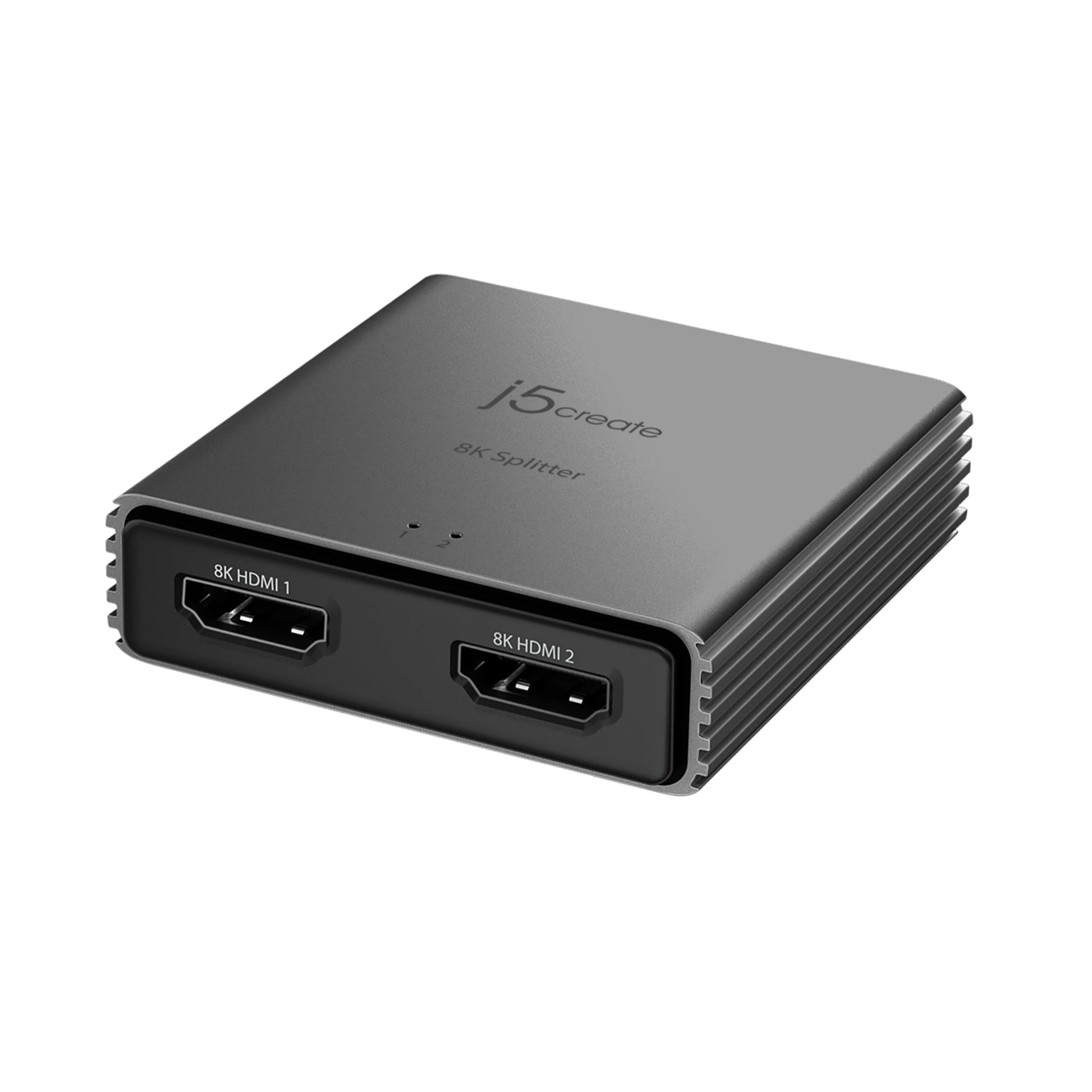

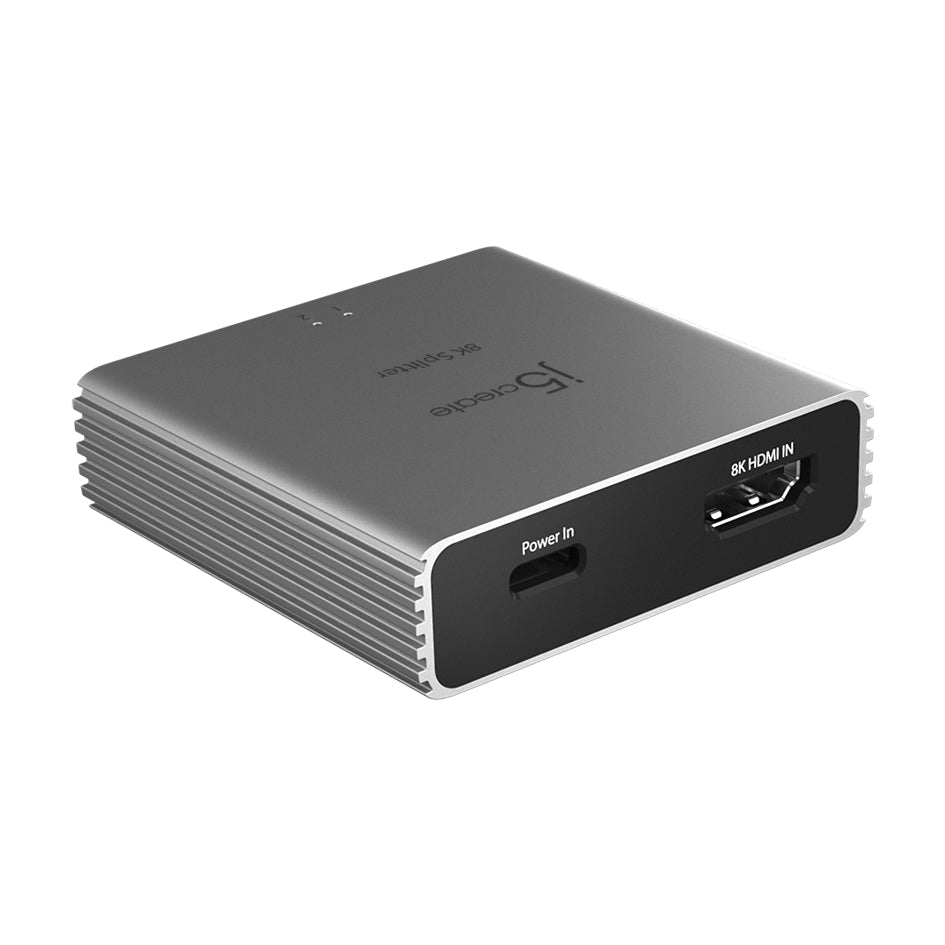

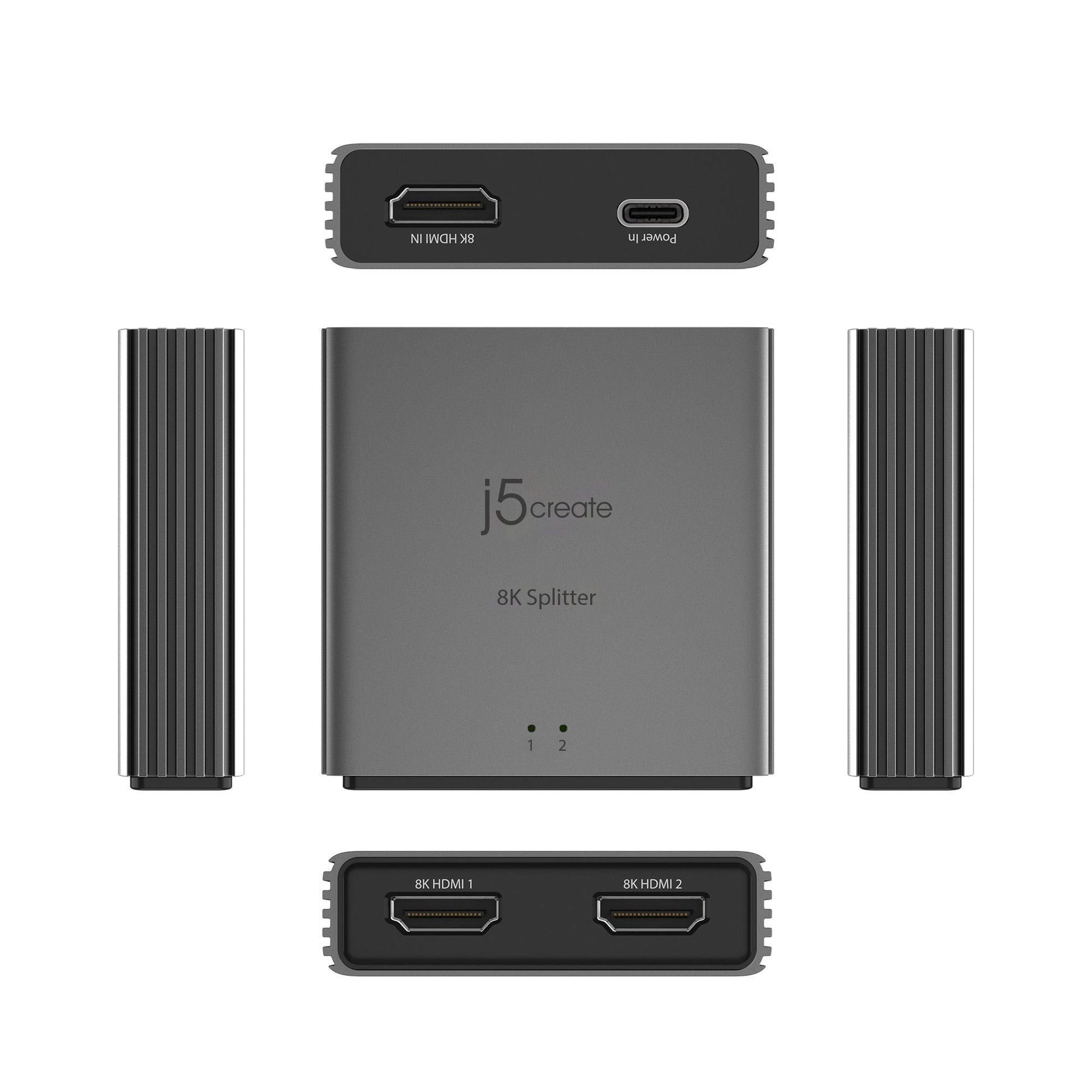

• Ports: 1 - 8K HDMI™ In; 2 - 8K HDMI™ Out
• Power source: Self-powered
• USB pass-through: N/A
• Video output: HDMI™ Female

• Audio channel: 7.1 via HDMI™
• Displays supported: 2
• HDCP compliance: HDCP 2.2/2.3 and HDCP 1.4
• HDR supported: HDR 10 / HDR 10+ / Dolby Vision® / HLG
• Max data transfer rate: N/A
• Max display refresh rate: Maximum Display Refresh Rate (1 Input): 8K @ 60 Hz; 4K @ 120 Hz; 1440p @ 240 Hz; 1080p @ 240 Hz; Maximum Display Refresh Rate (2 Output): 8K @ 60 Hz; 4K @ 120 Hz; 1440p @ 240 Hz; 1080p @ 240 Hz
• Wide screen supported: N/A
• Power consumption: ≤ 500 mA
• Power delivery: N/A
• Cable length: N/A
• Color: Space Grey
• Enclosure type: Aluminum
• Operating humidity: < 85% non-condensing
• Operating temperature: 32 to 104°F (0 to 40°C)

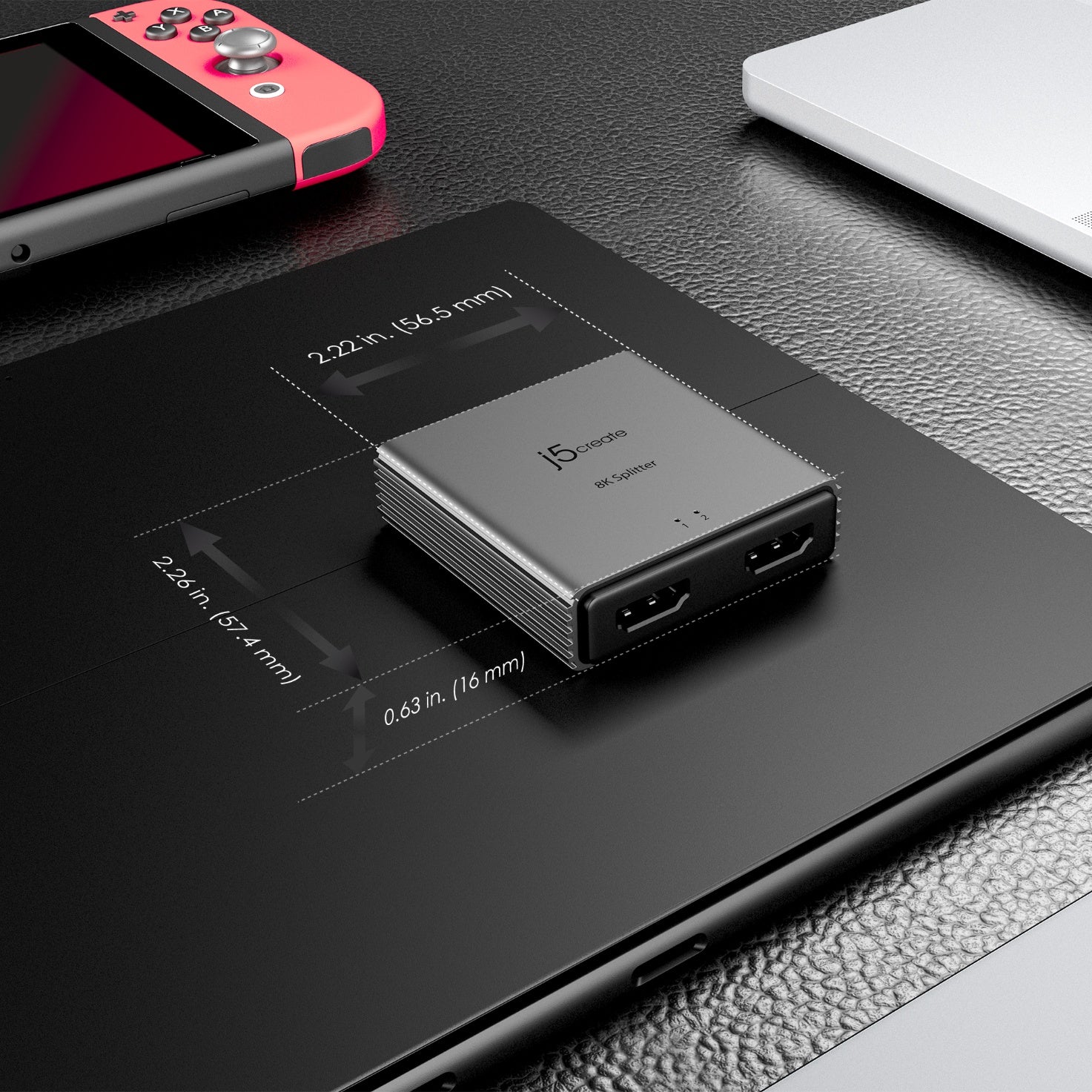

• Product depth: 2.22 in (56.5 mm)
• Product height: 0.63 in (16 mm)
• Product width: 2.26 in (57.4 mm)
• Product weight: 1.59 oz (45 g)
• Storage humidity: < 85% non-condensing
• Storage temperature: 14 to 149°F (-10 to 65°C)

WHAT'S IN THE BOX:

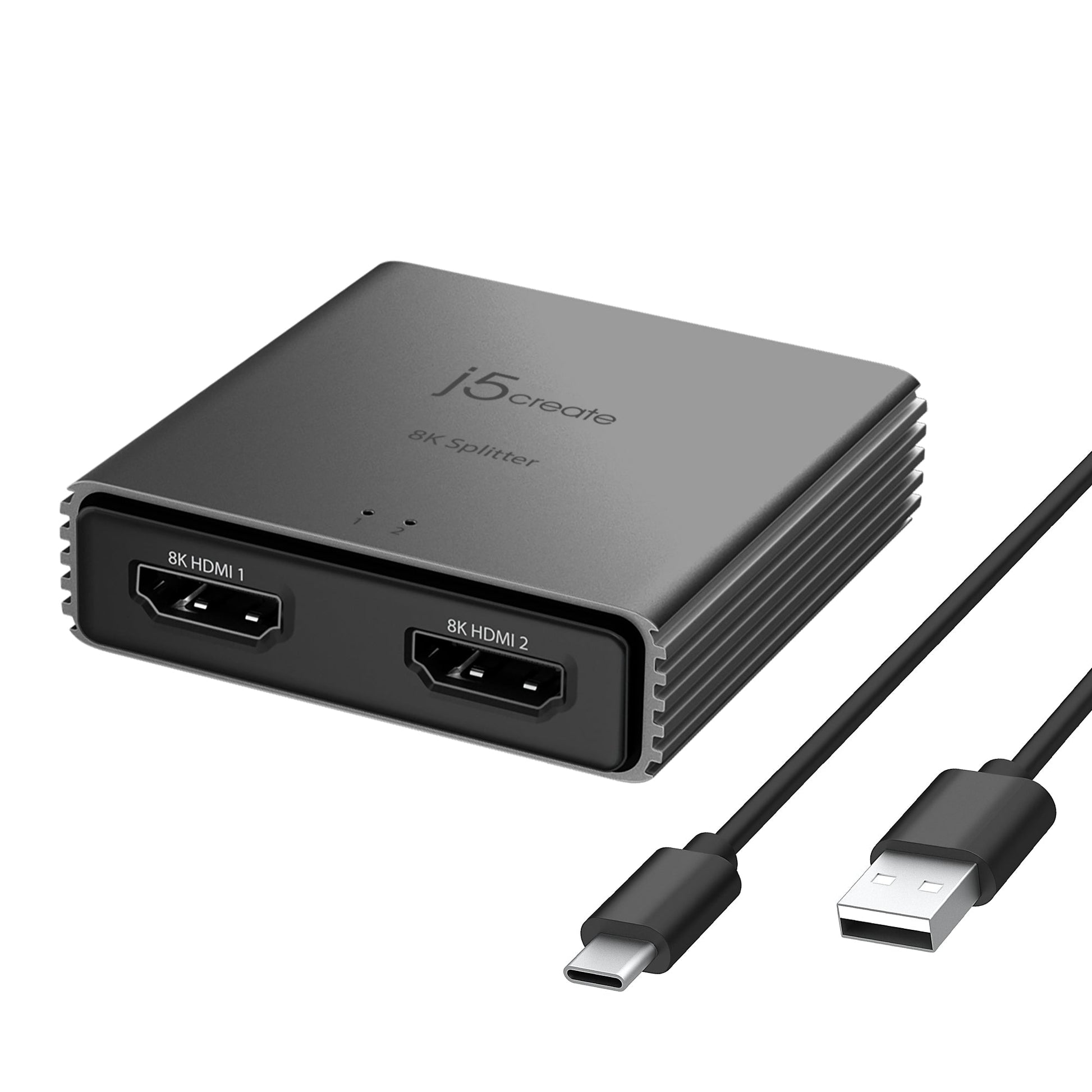

• 8K HDMI™ 2.1 2-Way Splitter (JDSH812) x1

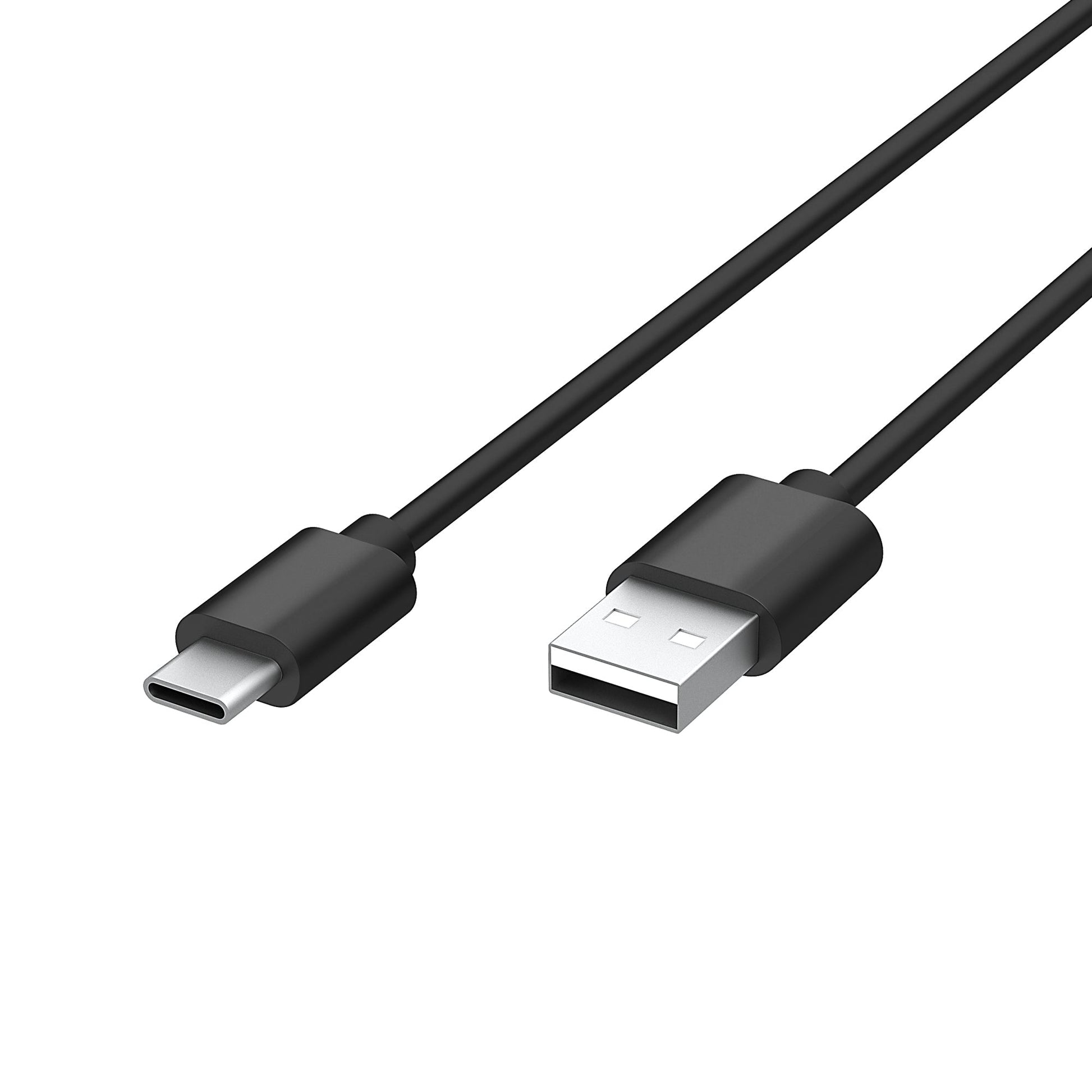

• USB-C® to USB™ Type-A cable included (100 cm/3.3 ft.) x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
