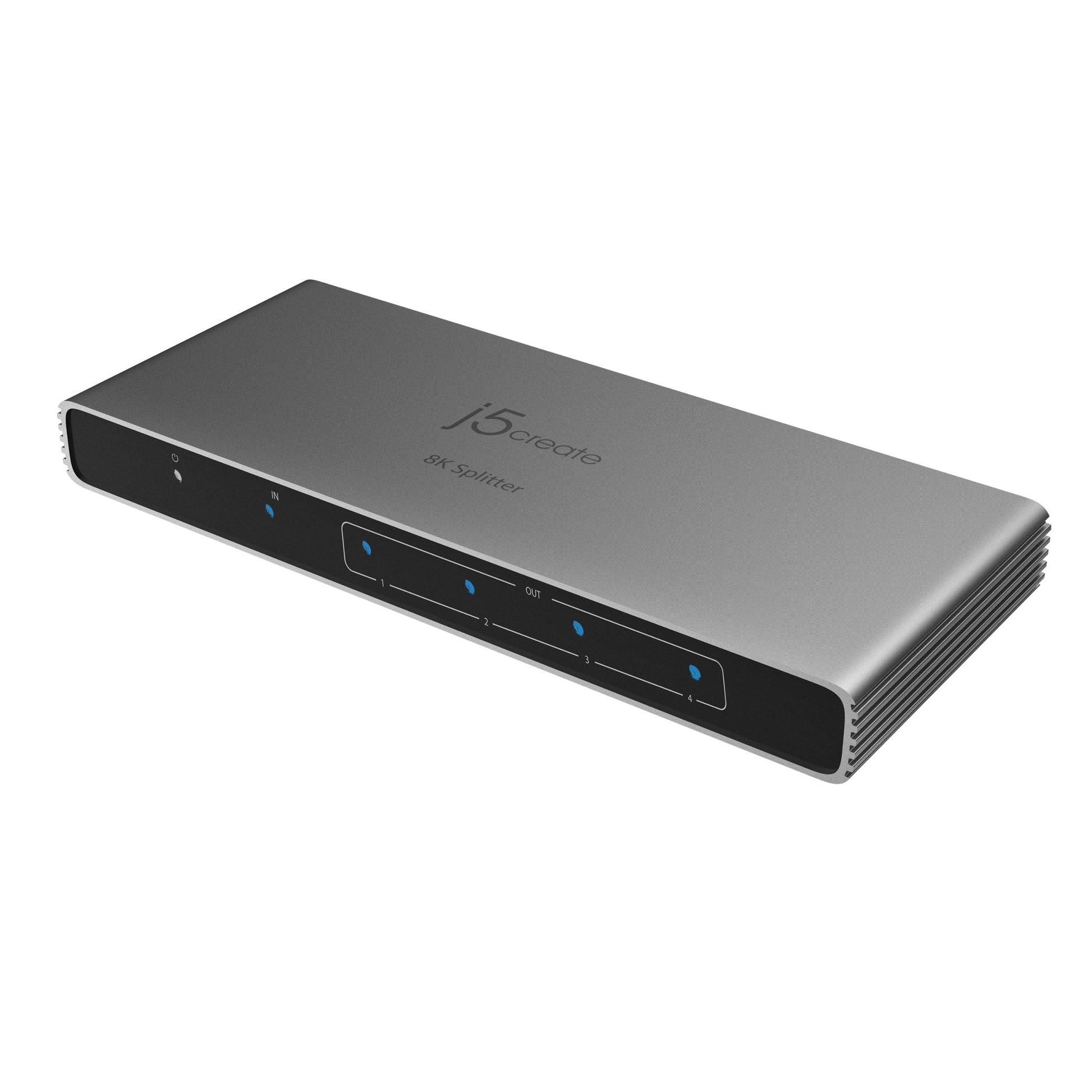

J5create 8K HDMI 2.1 4-Way Splitter - JDSH814

J5create 8K HDMI 2.1 4-Way Splitter - JDSH814

R 1,069.00 ZAR
R 1,069.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

The 8K HDMI™ 2.1 4-Way Splitter out allows you to mirror up to 4 displays. The HDMI™ ports offer versatile connectivity options for a wide range of devices with HDMI™ interfaces. Compatible with PS5™/PS4™, Xbox Series X™/Xbox One™, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more.

It supports impressive resolutions up to 8K@60Hz, 4K@120Hz, and is backward compatible with 1440p@240Hz,1080p @ 240 Hz. Works with TVs, monitors, projectors, and other displays.

Plug-and-play, makes it effortless to toggle between input sources or displays without drivers.

FEATURES:

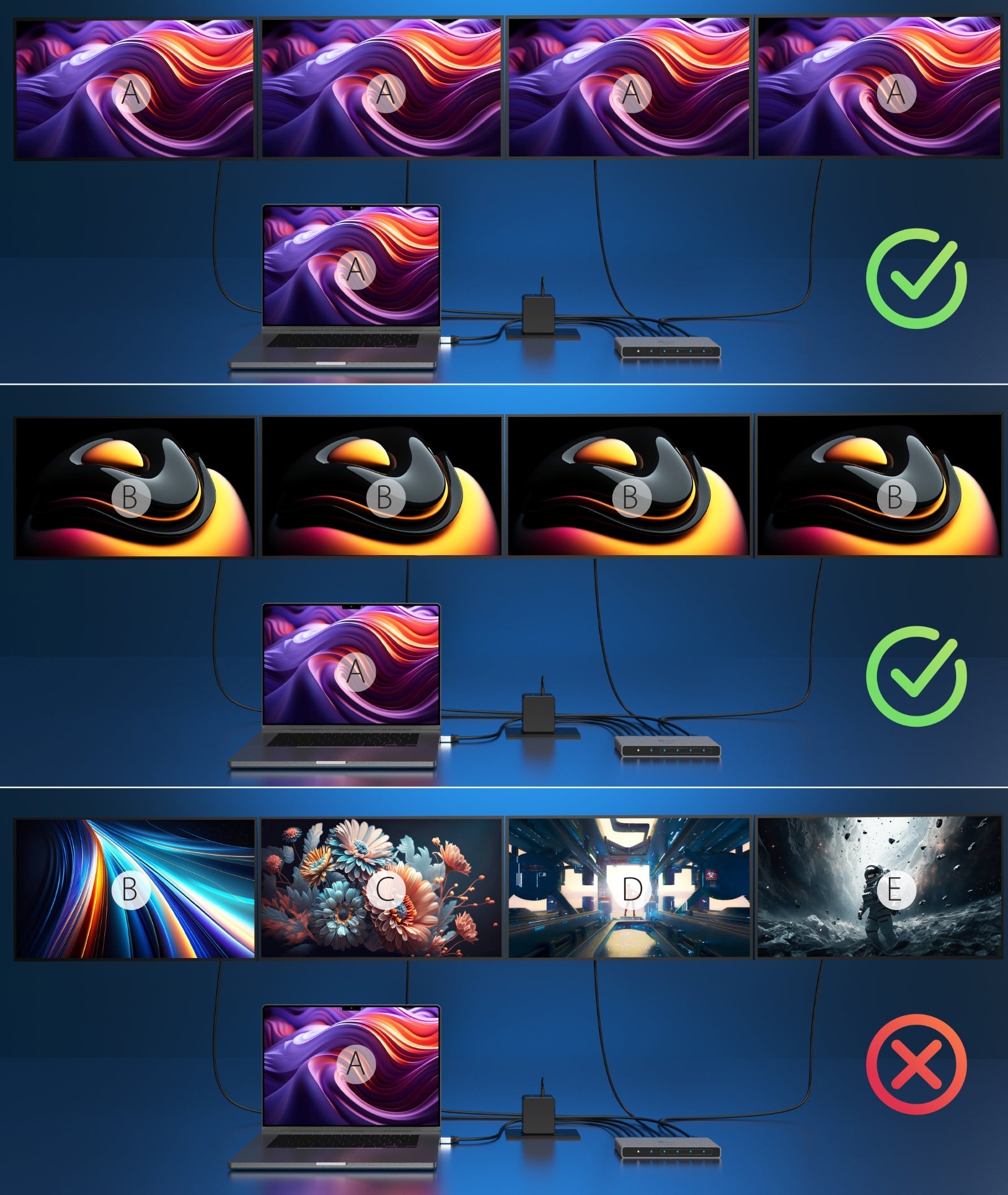

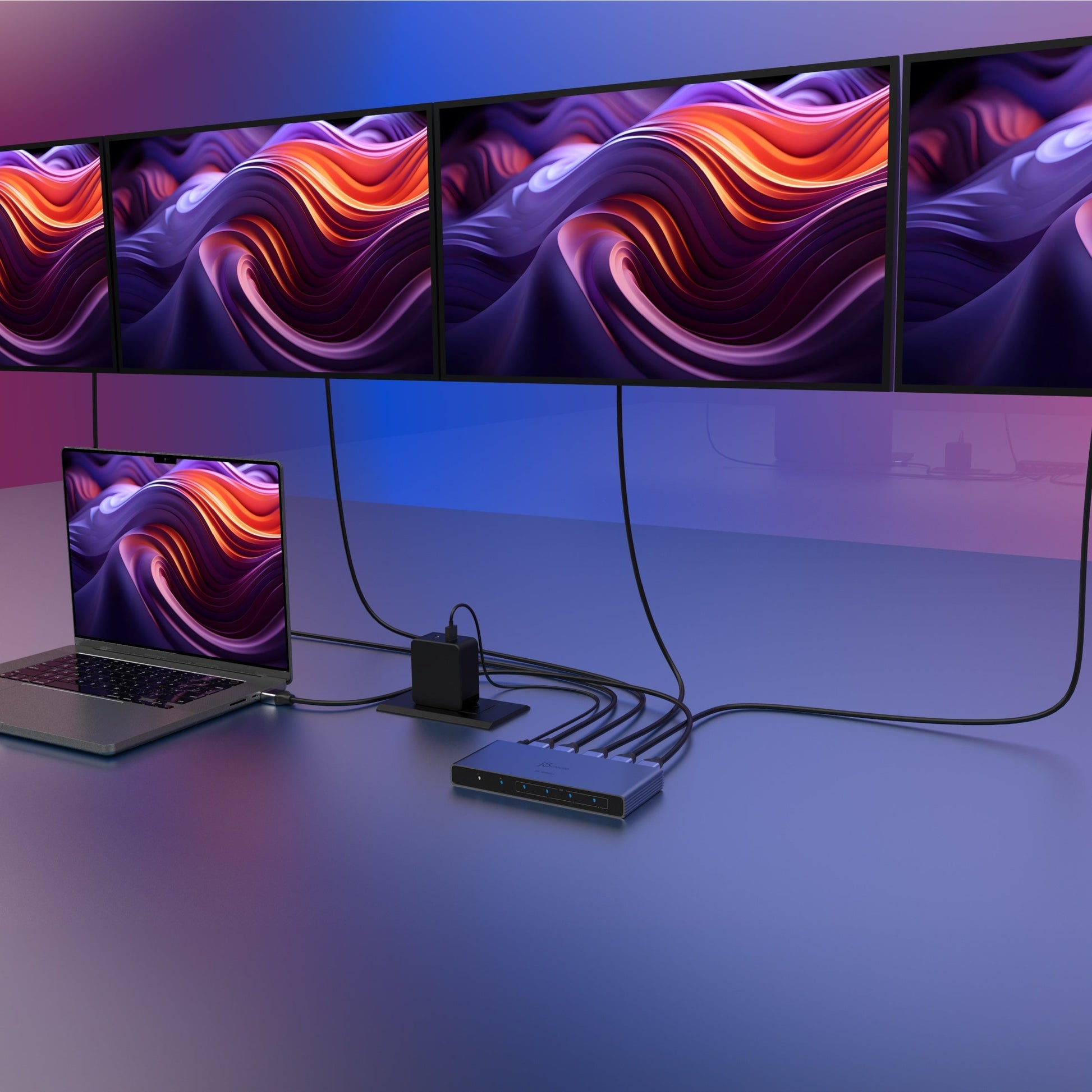

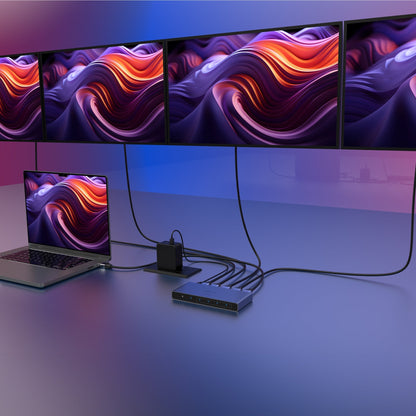

  • The HDMI™ splitter allows you to duplicate your HDMI™ image to up to 4 displays.
  • Supports impressive resolutions up to 8K@60Hz, 4K@120Hz and is backward compatible with 1440p@240Hz, 1080p@240 Hz.
  • Plug-and-play makes it effortless to toggle between input sources or displays without drivers.
  • 2-channel audio support
  • Supports Variable Refresh Rate (VRR), FreeSync™, G-Sync™
  • Supports ALLM (Auto Low Latency Mode)
  • Audio: DTS-HD/Dolby®-True HD /LPCM7.1/DTS/Dolby®-AC3/DSD
  • PS5™/PS4™, Xbox Series X™/Xbox One™, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more.
  • Compatible with TVs, monitors, projectors, and other displays.

System Requirements:

  • Available HDMI™ 2.1/1.4b port

Special Notes:

  • An 8K-capable display is required for obtaining the 7680 × 4320, 3840 x 2160 resolution
  • Needs a DC 5V2A adapter or greater to connect to a USB™ Type-A cable.

SPECIFICATIONS:

  • Audio supported: Yes
  • Host connector: HDMI™ Female

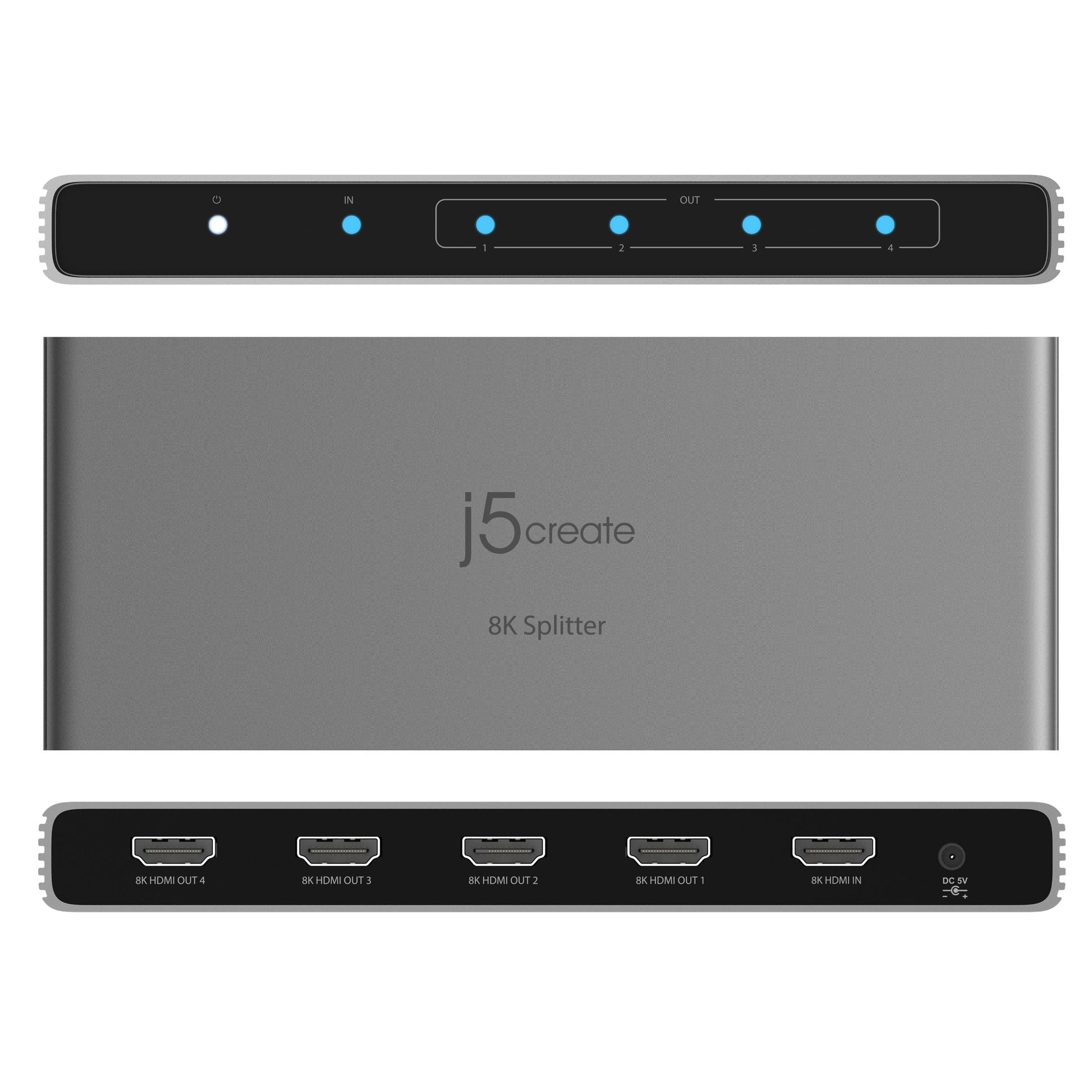

  • LED indicators: White light indicates power status / Blue light indicates video signal

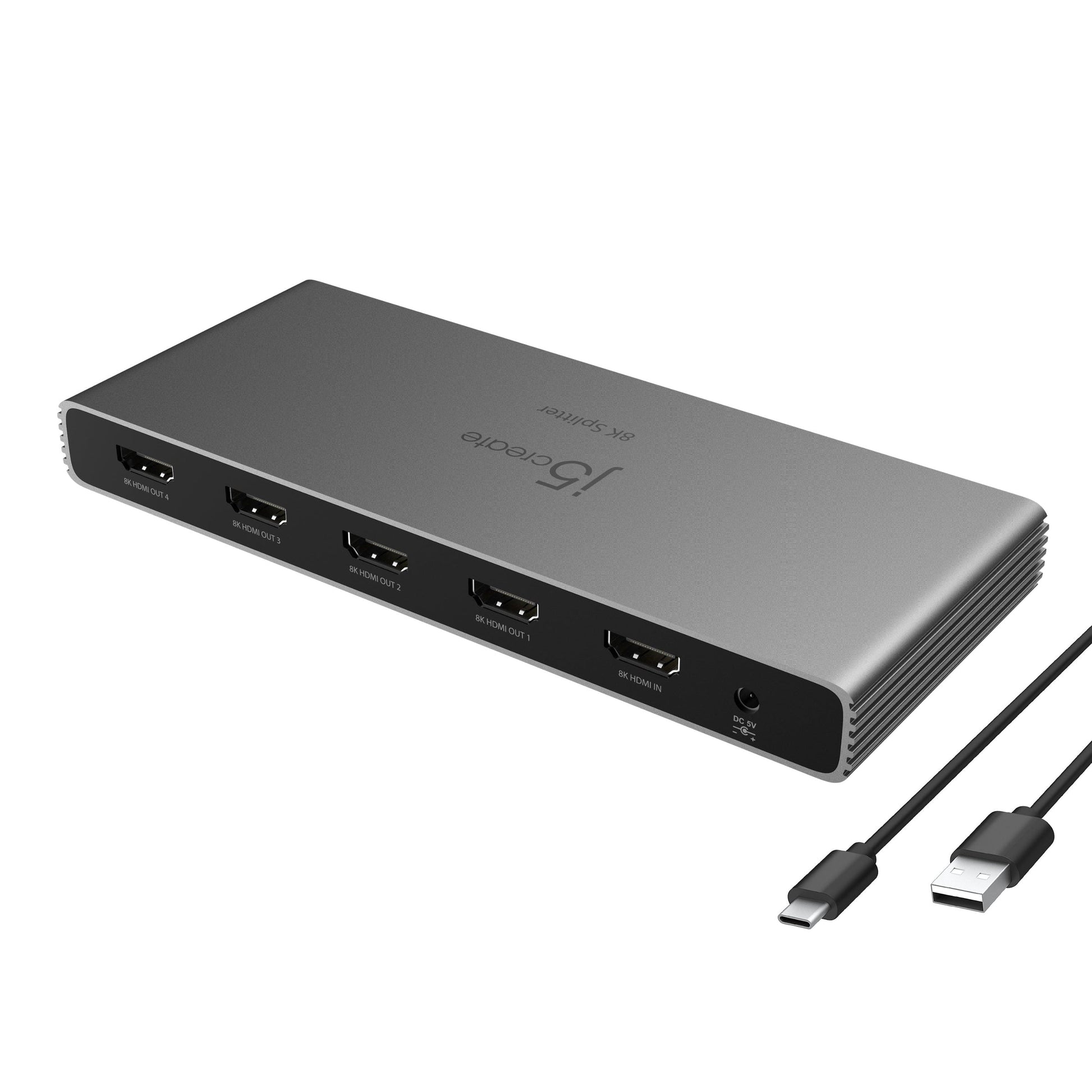

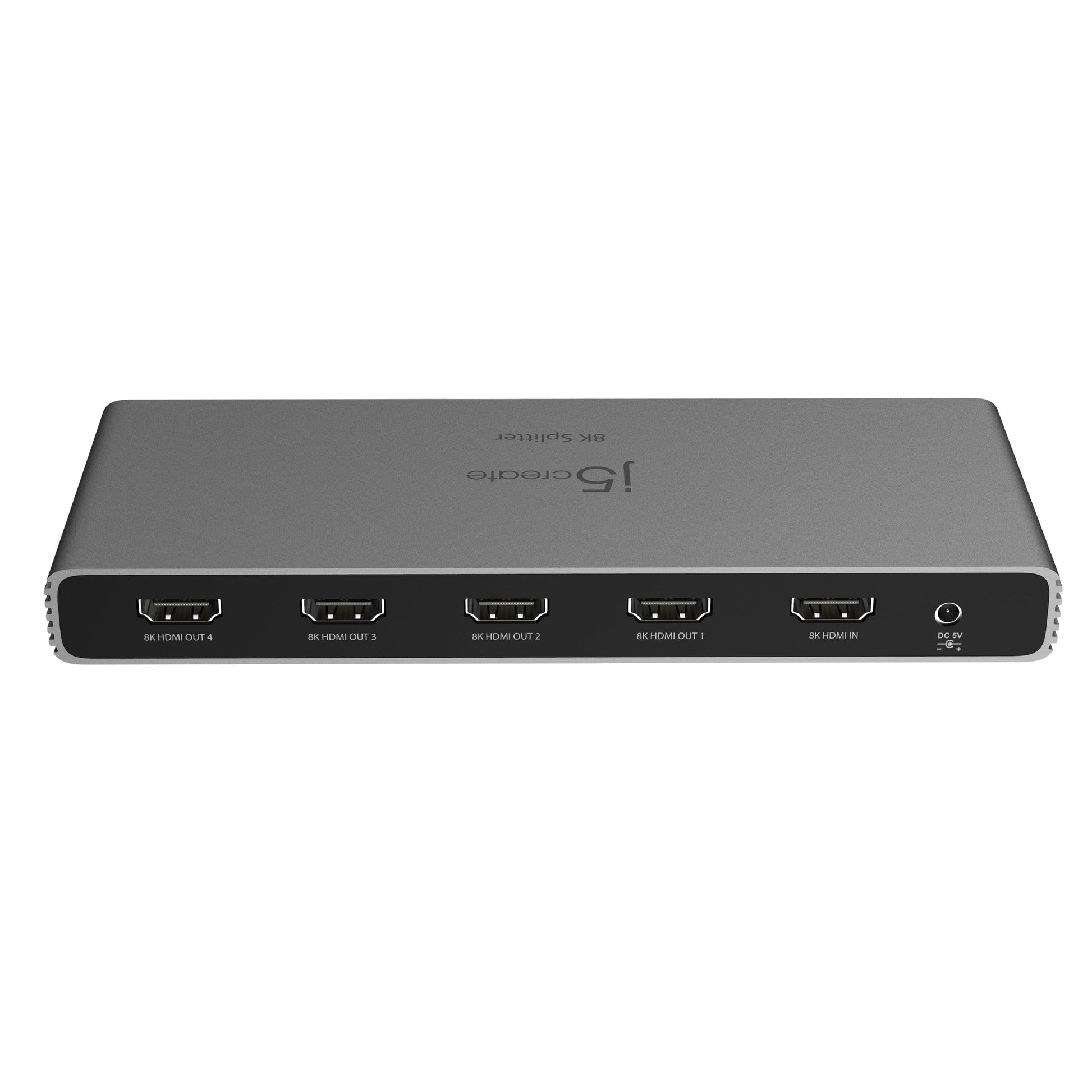

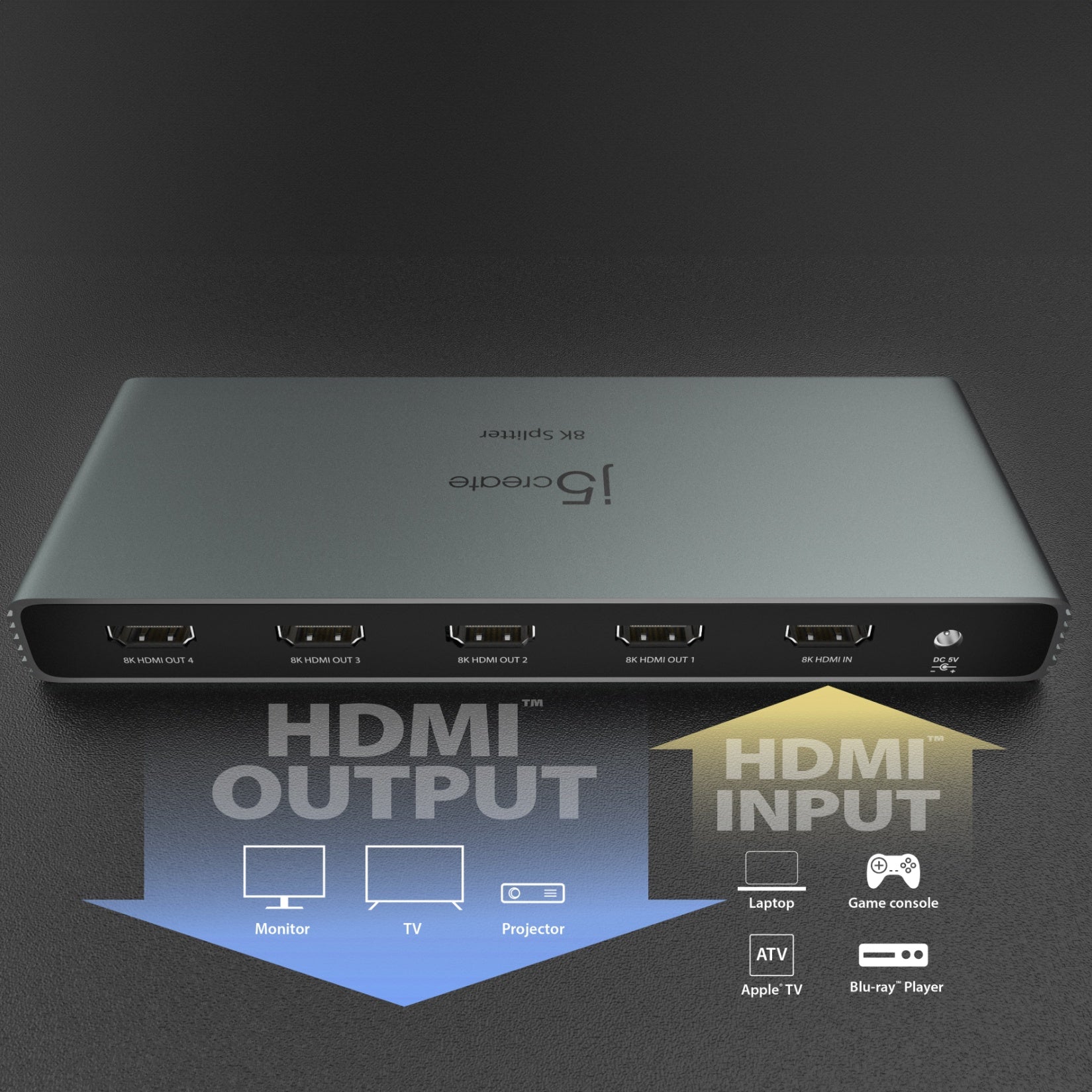

  • Ports: 1 - 8K HDMI™ In; 4 - 8K HDMI™ Out
  • Power source: Self-powered
  • USB pass-through: No
  • Video output: HDMI™ Female
  • Audio channel: DTS-HD / Dolby® TrueHD / LPCM 7.1 / DTS / Dolby®-AC3 / DSD
  • Displays supported: 4
  • HDCP compliance: HDCP 2.2/2.3 and HDCP 1.4
  • HDR supported: HDR 10 / HDR 10+ / Dolby Vision® / HLG
  • Max data transfer rate: N/A
  • Max display refresh rate: Maximum Display Refresh Rate (1 Input): 8K @ 60 Hz; 4K @ 120 Hz; 1440p @ 240 Hz; 1080p @ 240 Hz; Maximum Display Refresh Rate (4 Output): 8K @ 60 Hz; 4K @ 120 Hz; 1440p @ 240 Hz; 1080p @ 240 Hz
  • Max display resolution: 7680 × 4320
  • Wide screen supported: N/A
  • Power consumption: ≤ 500 mA
  • Power delivery: N/A
  • Cable length: N/A
  • Color: Space Grey
  • Enclosure type: Aluminum
  • Operating humidity: < 85% non-condensing
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Product depth: 2.7 in (68.4 mm)
  • Product height: 0.7 in (18 mm)
  • Product width: 6.61 in (168 mm)
  • Product weight: 9 oz (255.5 g)
  • Storage humidity: < 85% non-condensing
  • Storage temperature: 14 to 149°F (-10 to 65°C)

WHAT'S IN THE BOX:

  • 8K HDMI™ 2.1 4-Way Splitter (JDSH814) x1
  • DC to USB™ Type-A cable included (150 cm/ 4.92 ft.) x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
