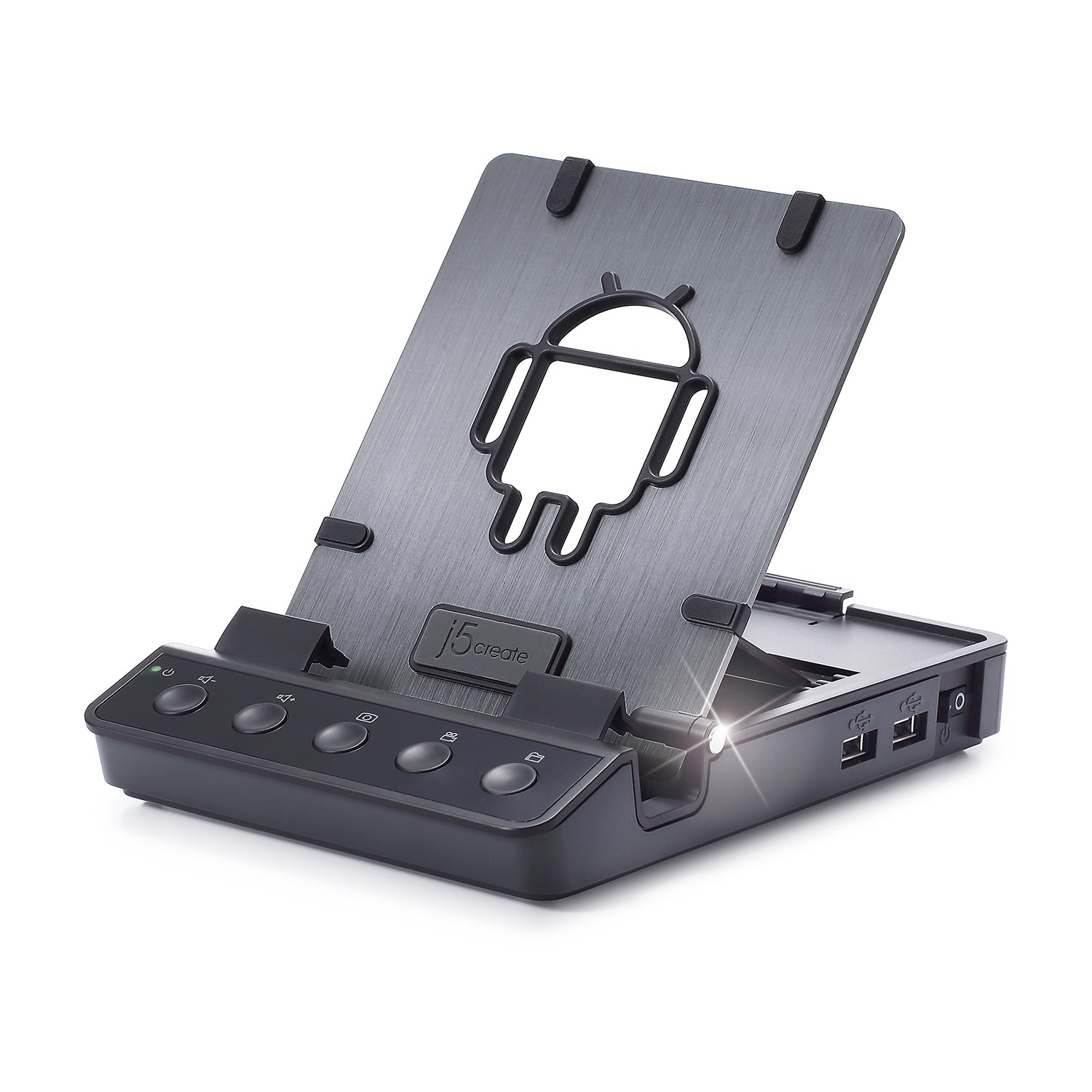

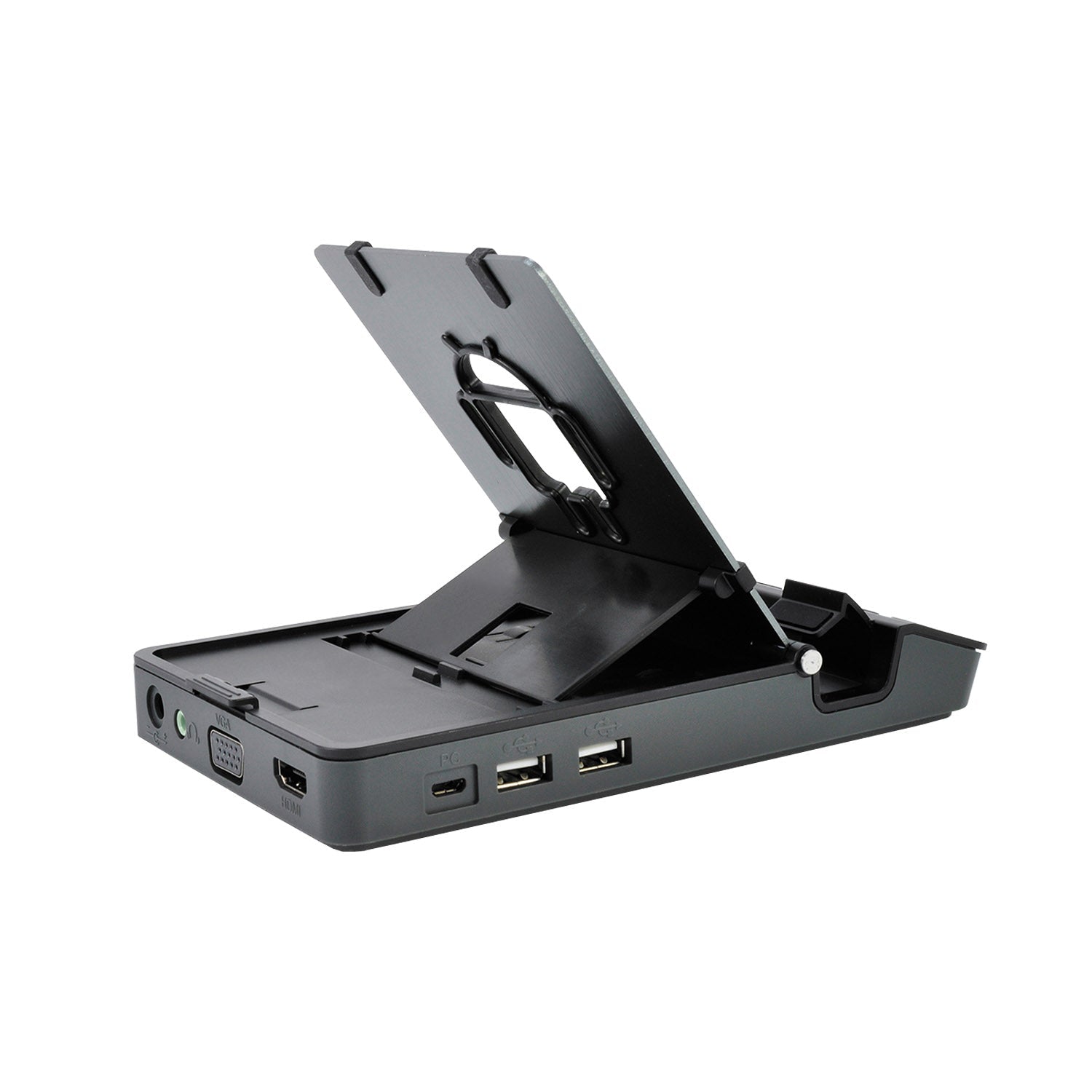

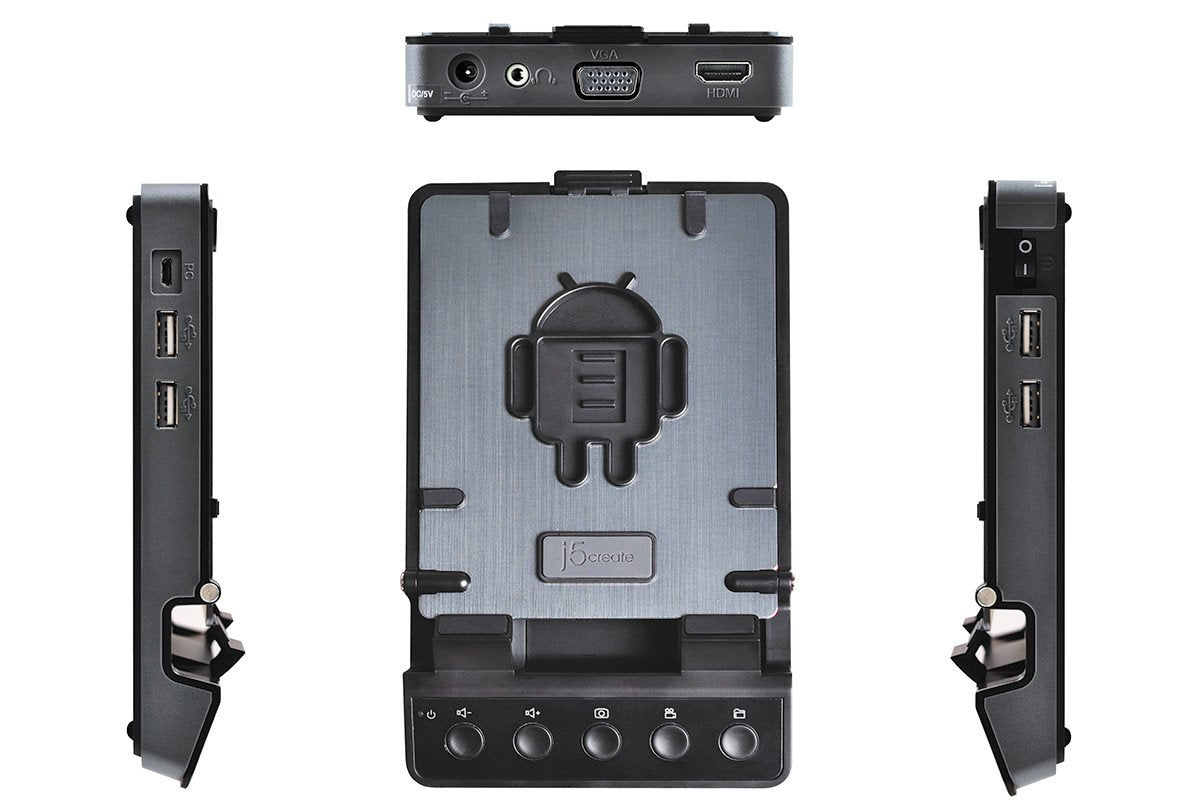

J5create Android Dock Phone / Tablet Workstation - JUD650

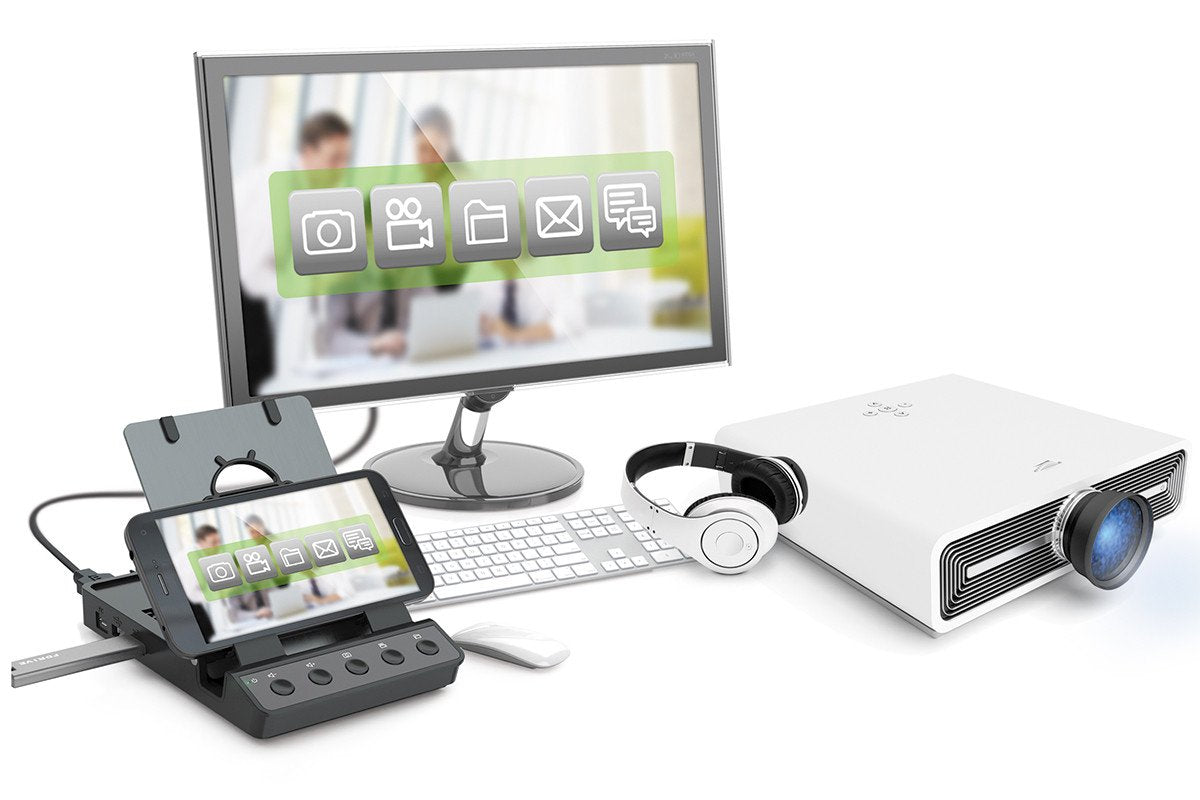

The JUD650 Android^™ Dock gives you ultimate Android^™ control. The Android^™ Dock is adjustable for easier reading and browsing on your Android^™ device. Increase your efficiency with the Android^™ Dock's USB^™ connectivity by utilizing a keyboard, mouse and monitor to navigate and type.

FEATURES:

• HDMI^™/VGA Video, Audio, Keyboard/Mouse, Storage
• Built-in high efficiency processor.
• Android^™ Mirror Mode: Mirror your Android^™ device on a PC for maximum control & efficiency
• Print what you see: Print what you see on your Android^™ phone from your laptop

System Requirements:

• Operating System:
  • Android^™ version 4.4 or later
  • Audio output requires Android^™ Open Accessory
  • Audio Mode enabled by phone vendor
• PC Mode:
  • Windows^® 7, 8, 8.1, 10

SPECIFICATIONS:

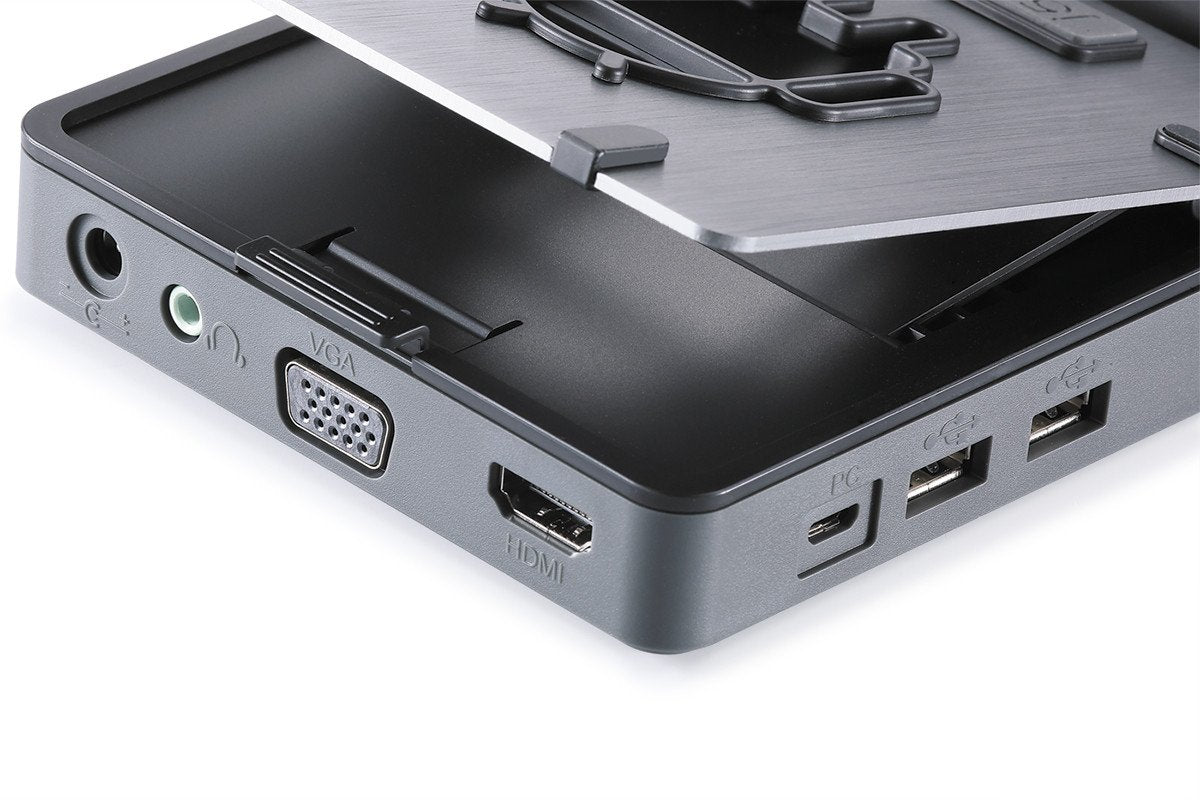

• VGA: D-Sub 15-pin female connector- Maximum resolution: 1920 × 1080
• HDMI™: HDMI™ female connector- Maximum resolution: 1920 × 1080
• Audio Out: 3.5 mm audio jack, 2-channel stereo, 44.1 kHz
• USB™ 2.0 Micro-B: Connects to PC

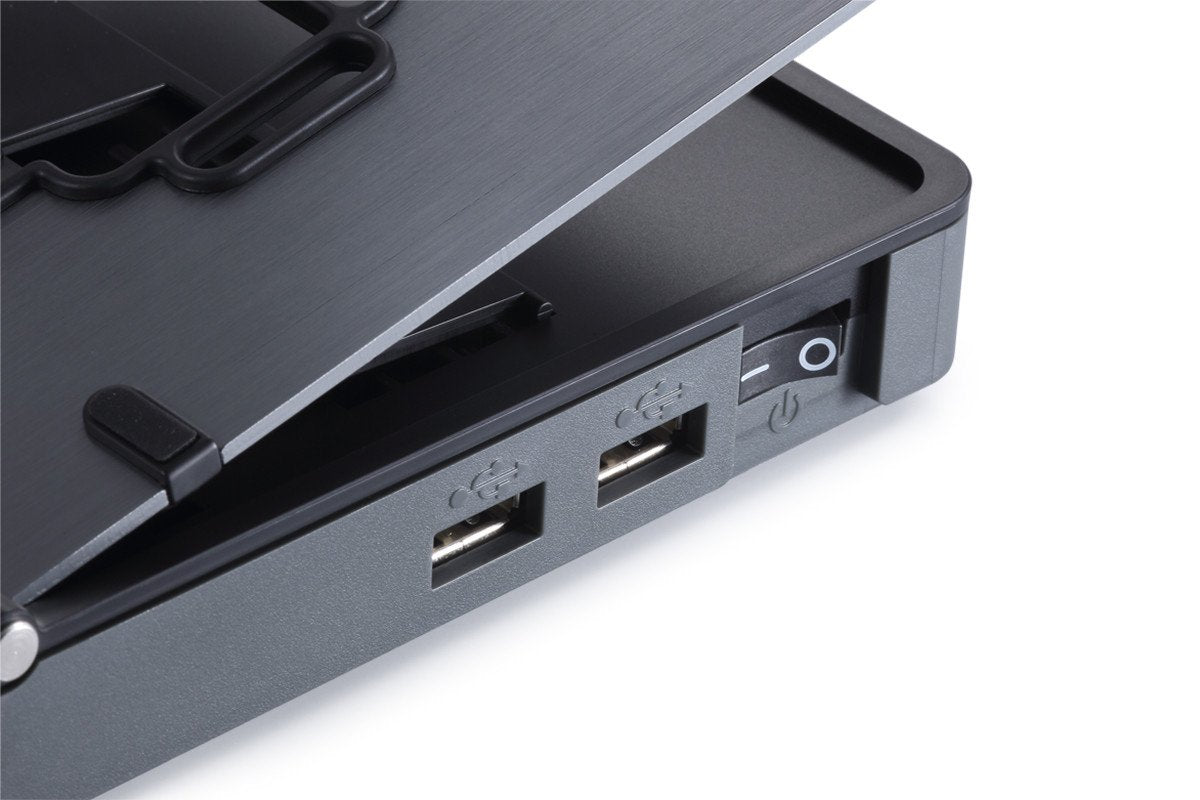

• USB™ 2.0 Type-A:
  • Supports keyboard, mouse, USB drives
  • External hard drives require separate power
  • Supports USB Battery Charging v1.2
• Power Input: Power jack: OD 5.5 × 2.1 mm, DC 5V, 2A or 3A adapter
• On/Off Switch: Power control

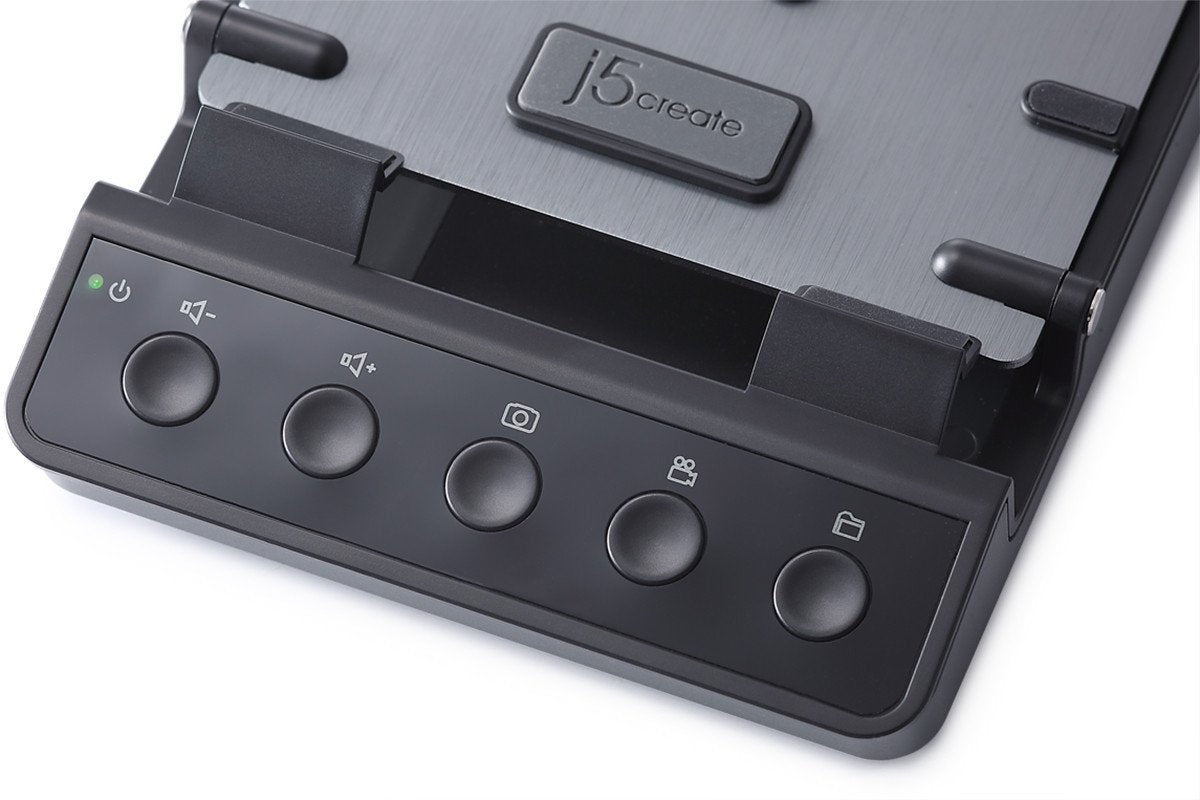

• Front Panel Buttons (left to right):
  • Volume down
  • Volume up
  • Screen capture
  • File manager (PC mode unavailable)
• Red (flickering): Firmware updating
• Yellow (flickering): Booting up
• Green: Working properly
• Housing Material: Plastic and aluminum
• Dimensions: 11 (W) × 2 (H) × 18 (D) cm
• Weight: Approximately 0.49 lbs

WHAT'S IN THE BOX:

• Android^™ Dock JUD650 x1
• Power Adapter x1
• USB^™ Micro B to USB^™ 2.0 Type-A Cable 15.75 inch (40 cm) x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
