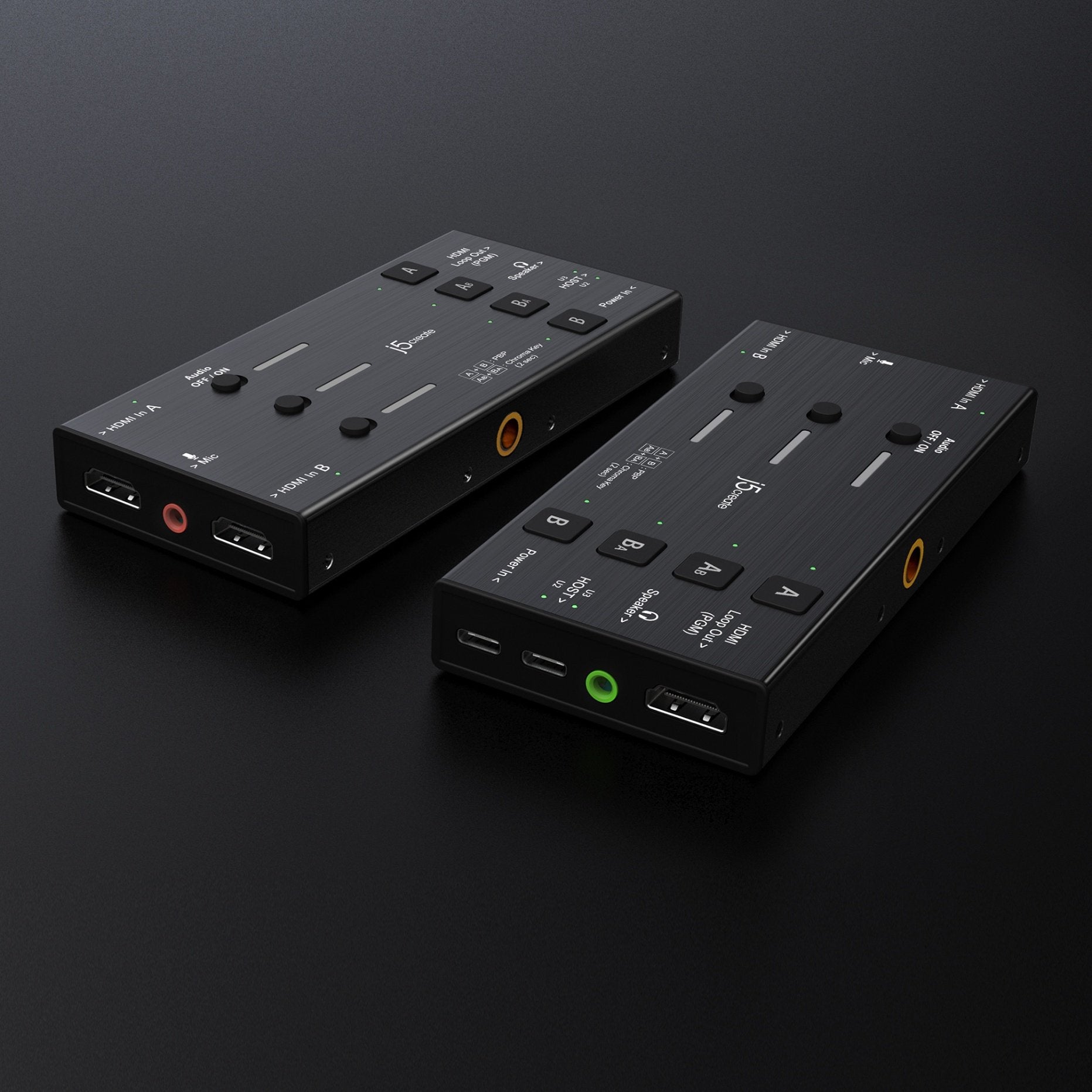

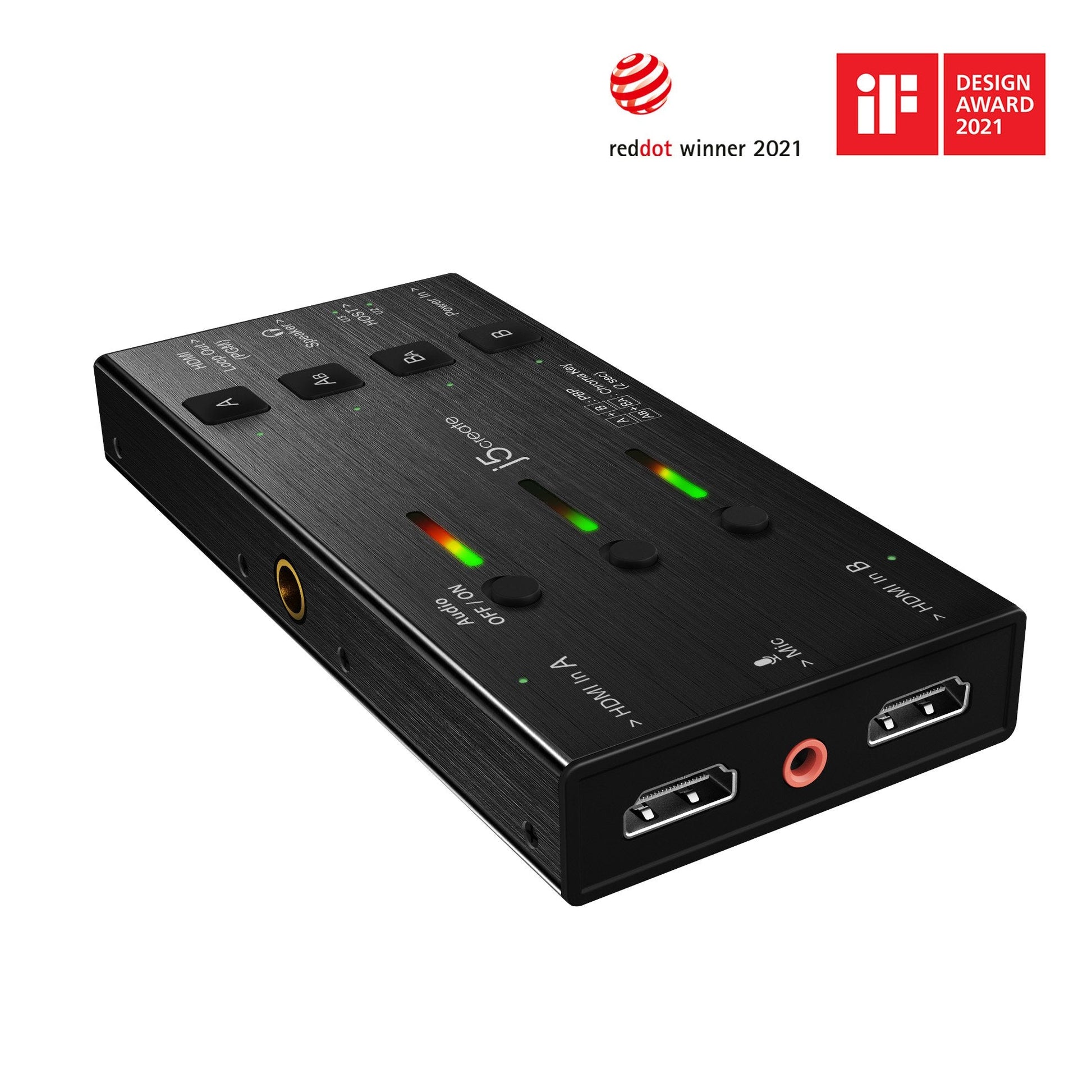

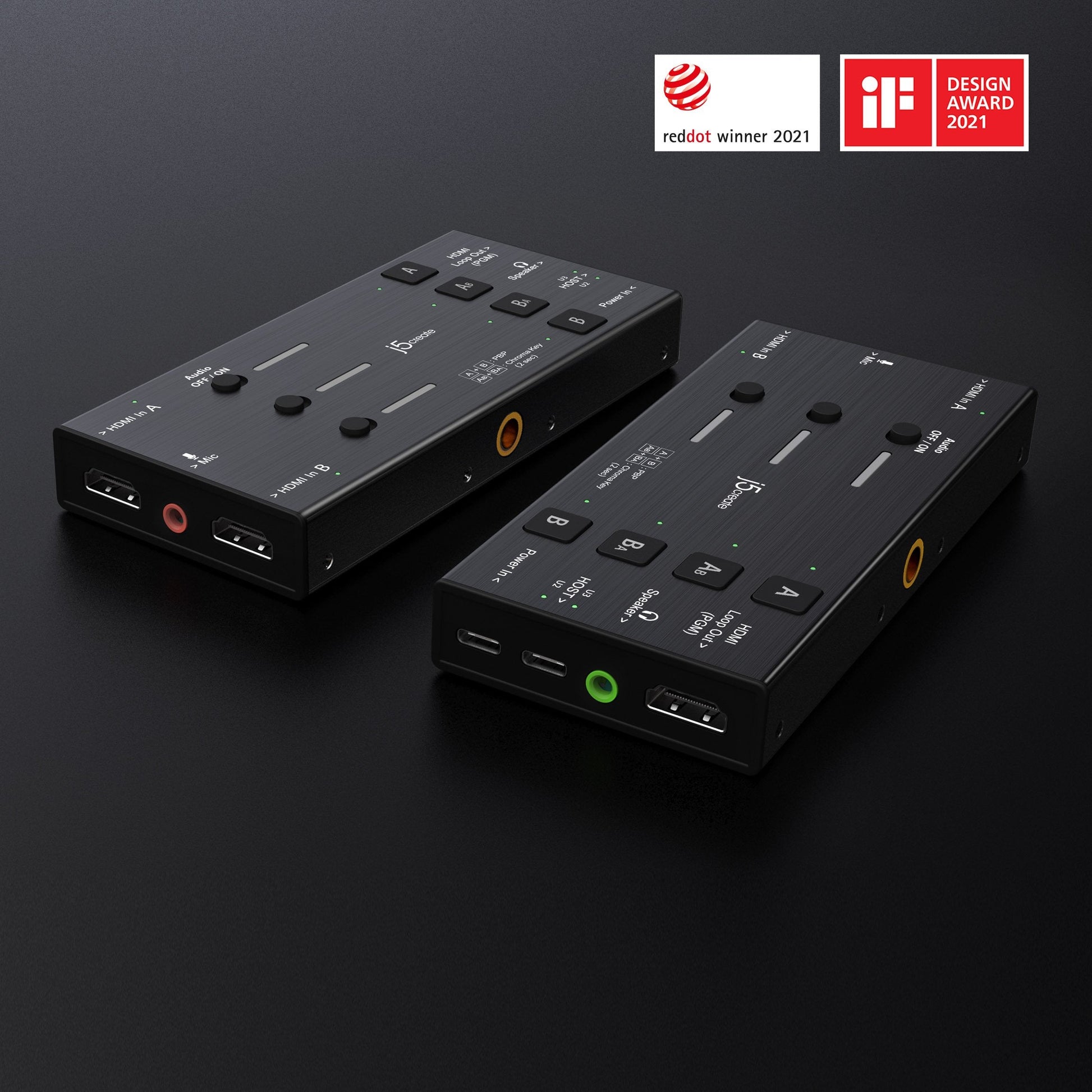

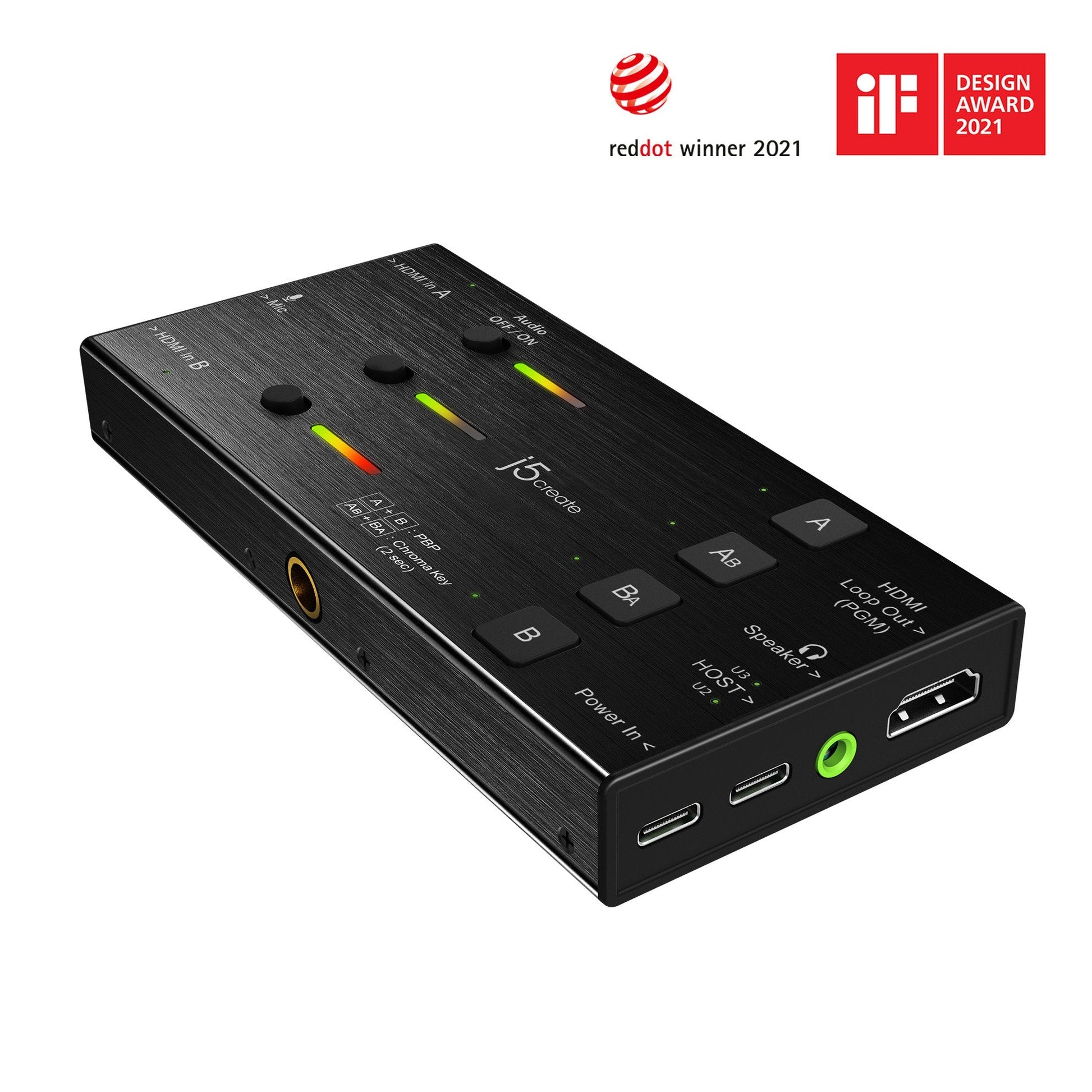

J5create Dual HDMI Video Capture - JVA06

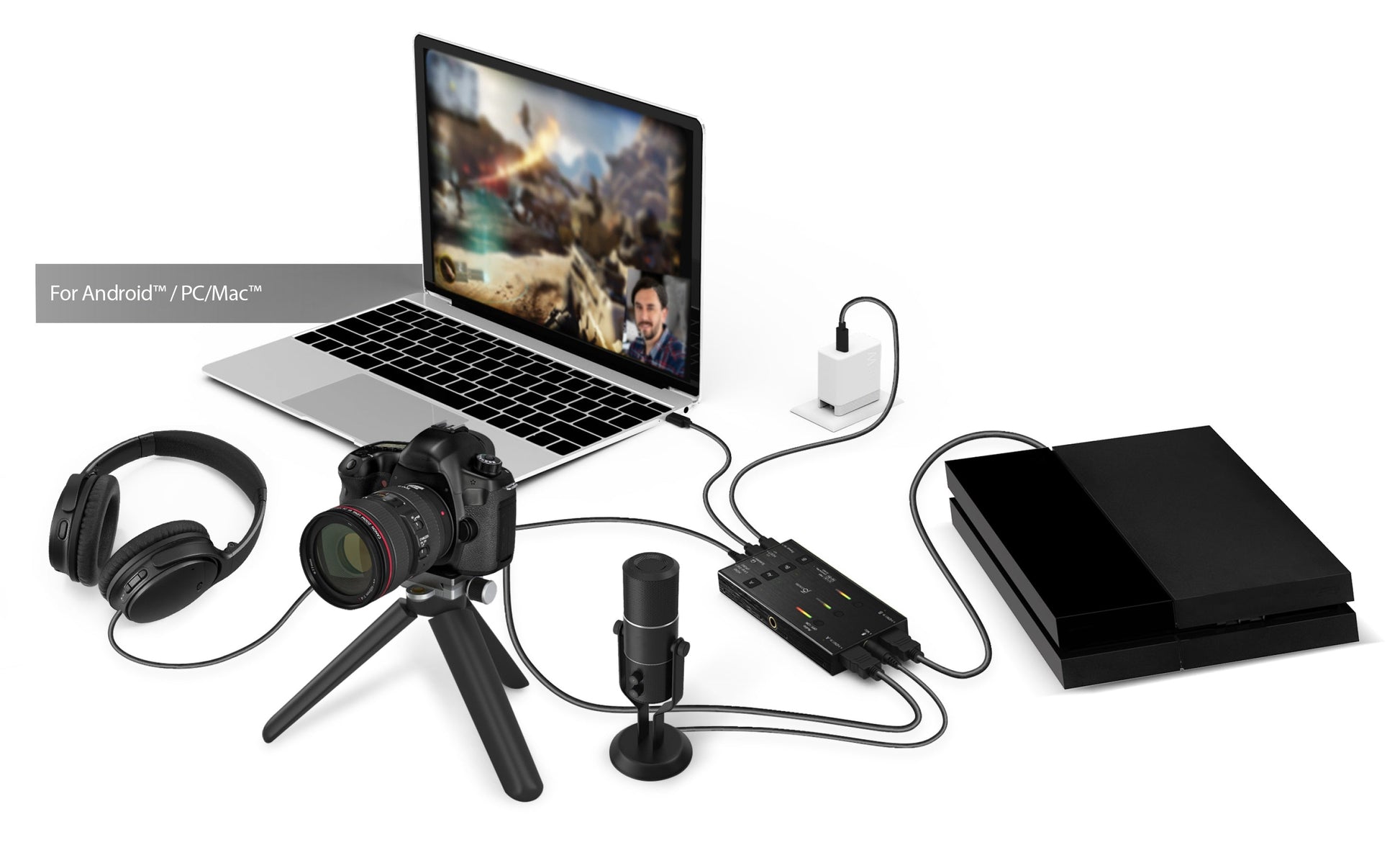

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.

With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

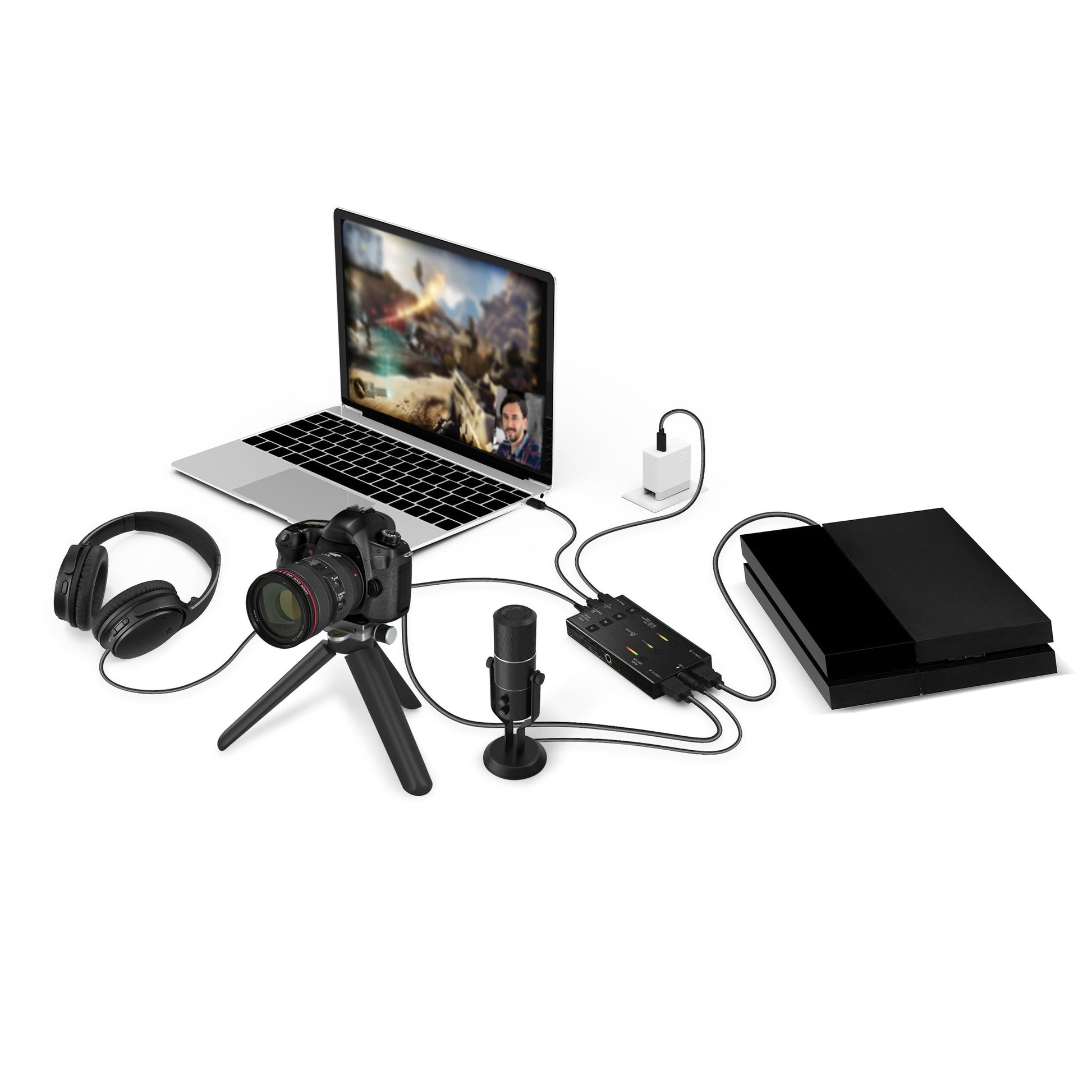

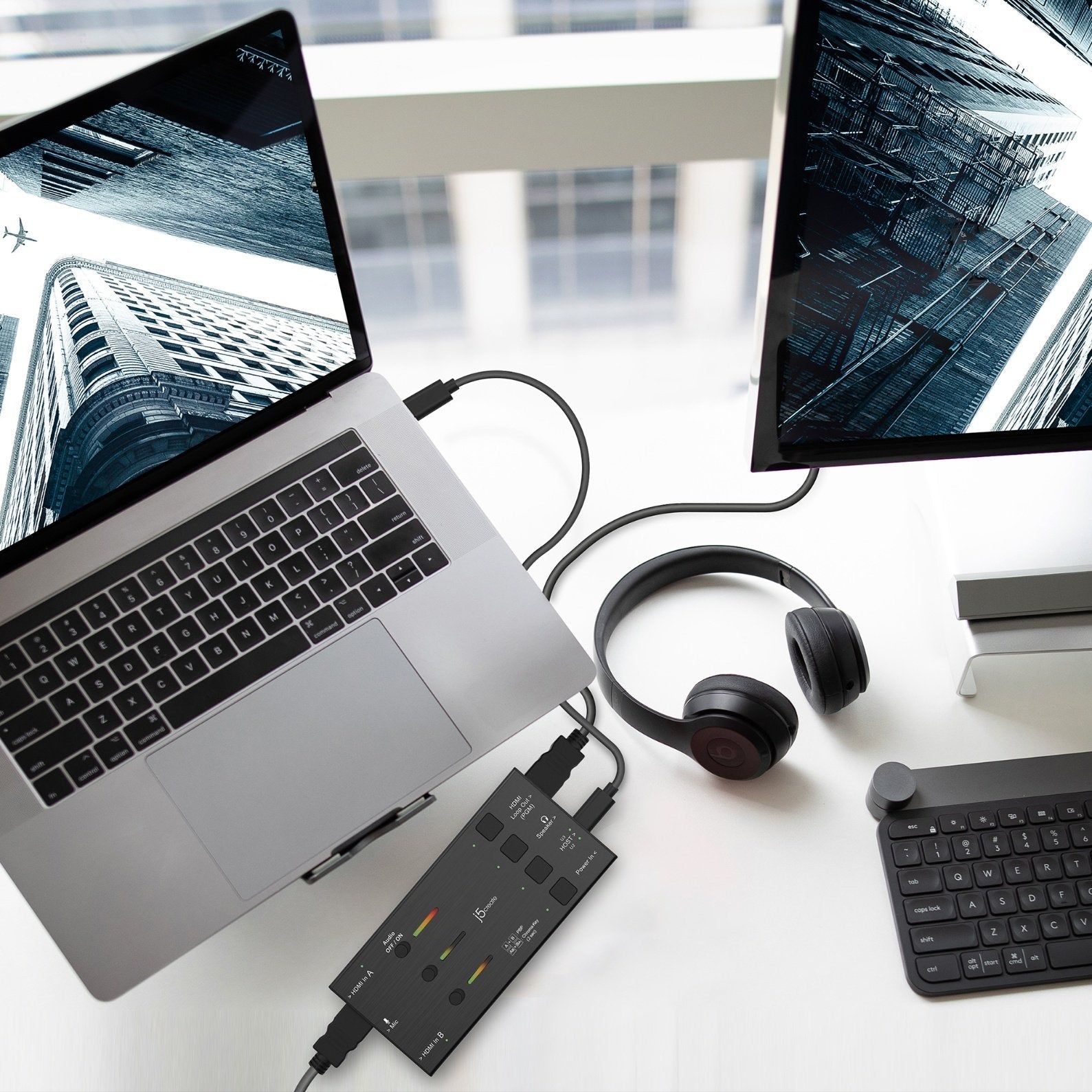

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.

FEATURES:

• Dual HDMI™ input for capturing 2 channels
• Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
• Uncompressed 1080p @ 60 FPS capture via HDMI™ 1.3a
• Supports 1080p 60 HDMI™ loop out (PGM out)

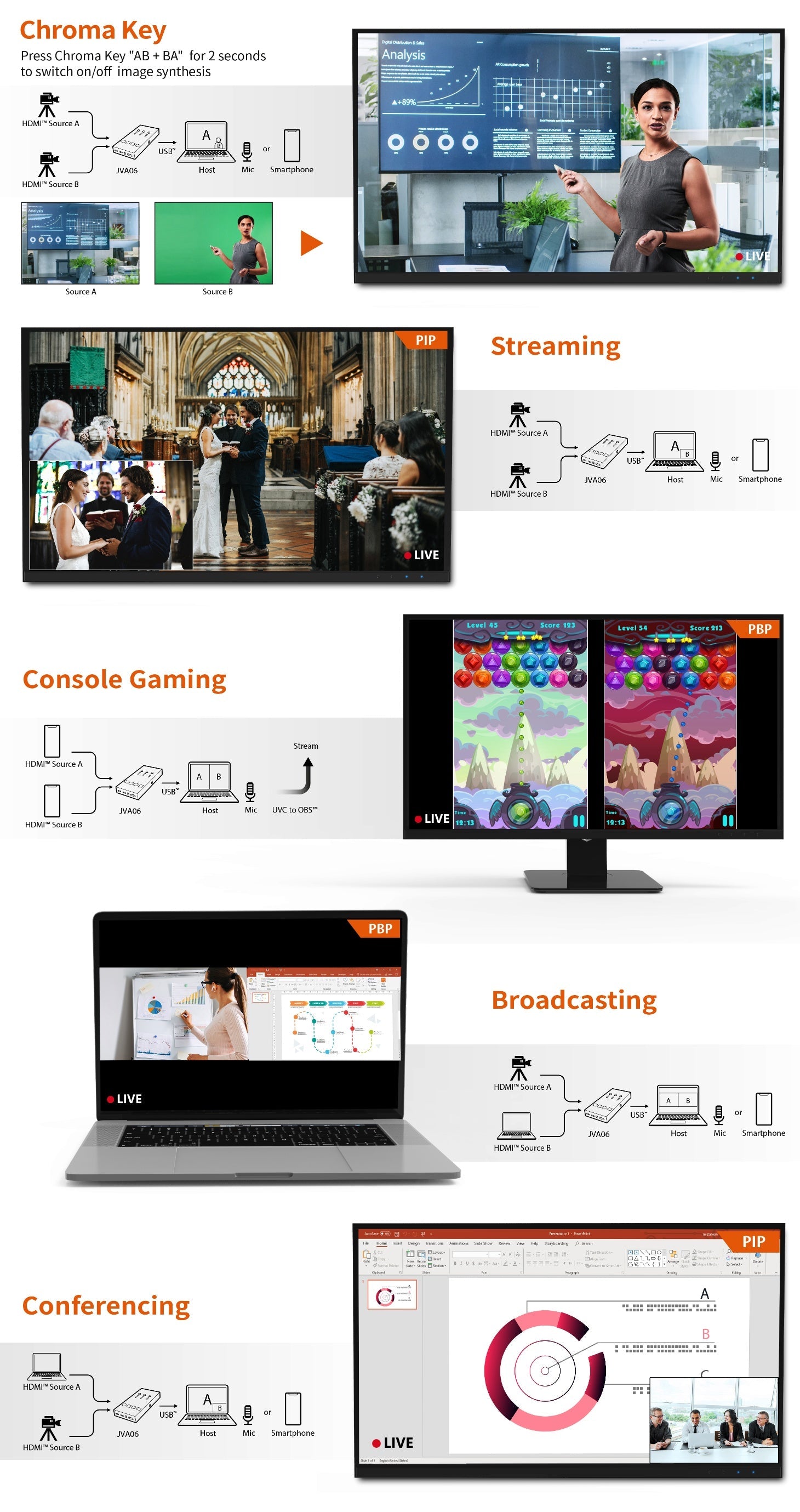

• Six screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

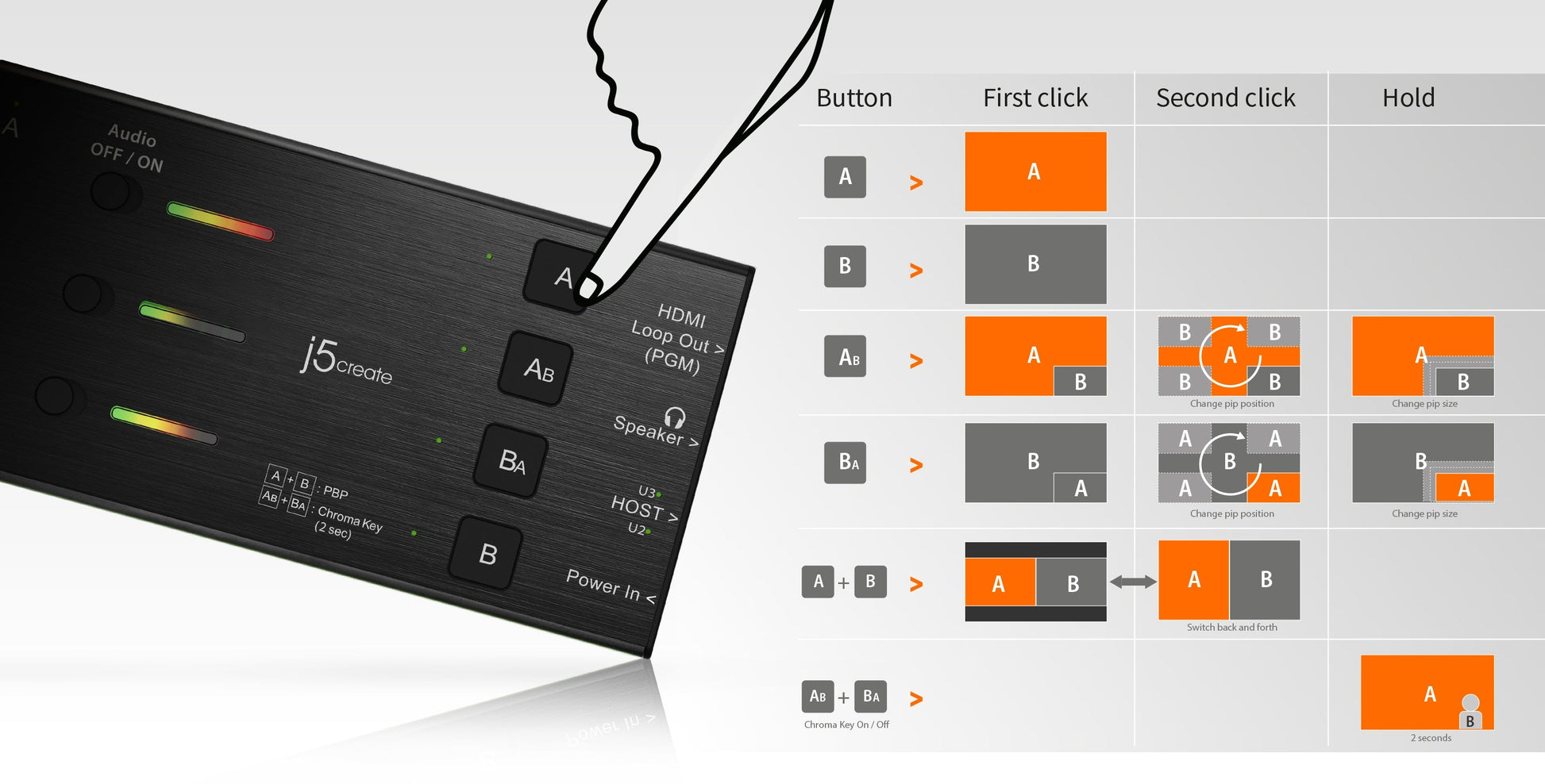

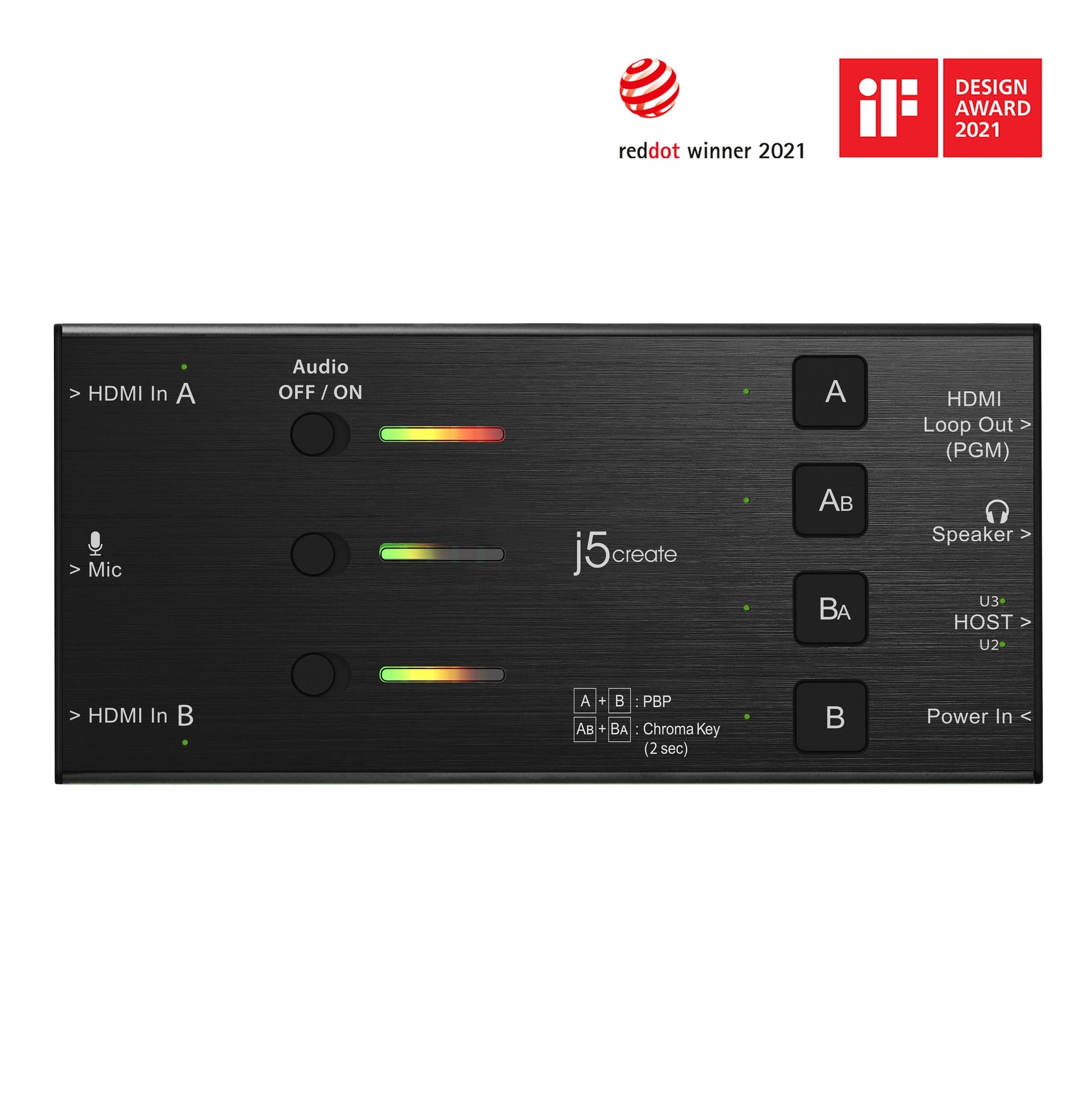

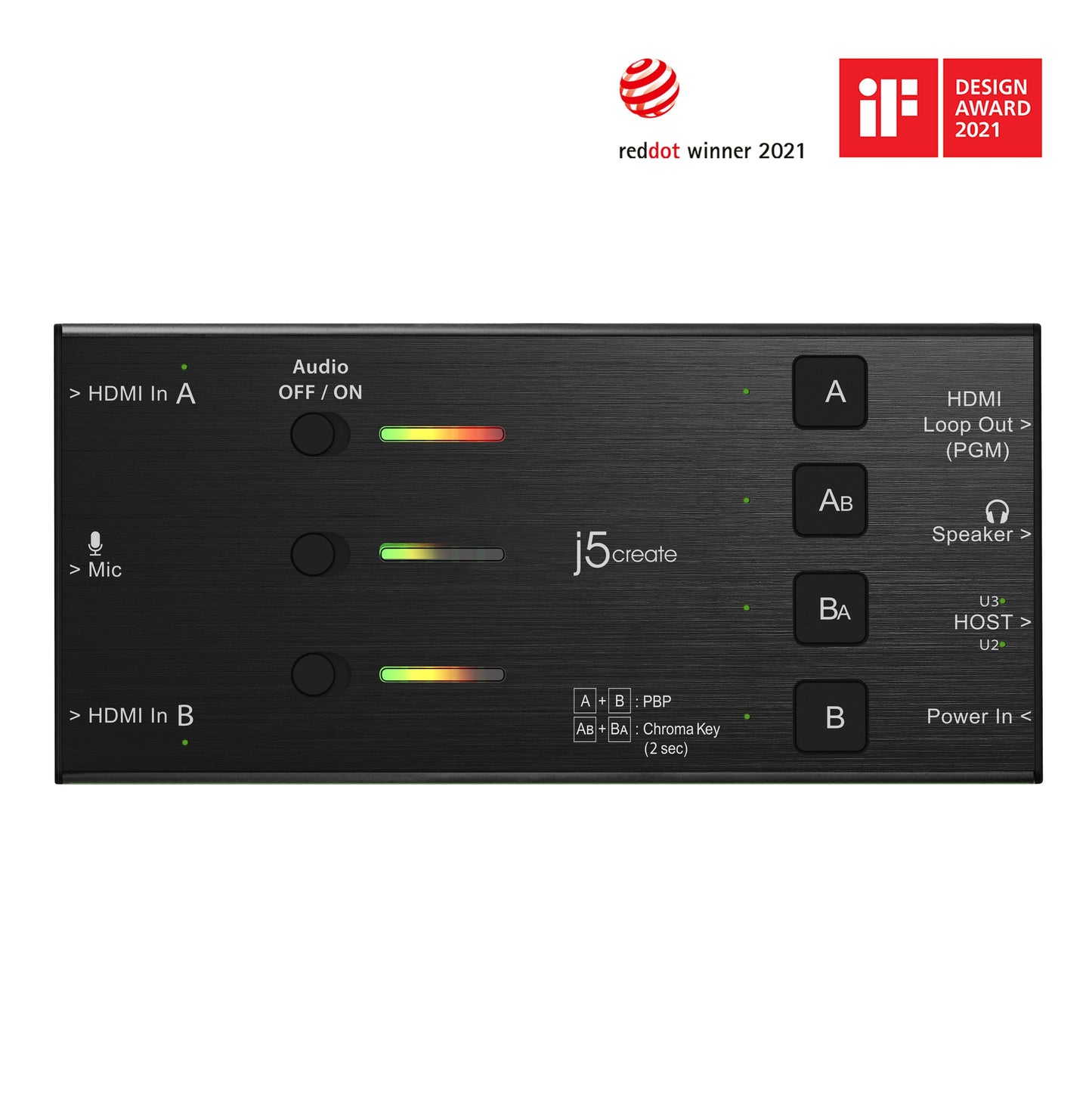

• Easily switch between different screen modes and adjust transition effects with the built-in buttons
• Directly activate Chroma Key features through the built-in controls
• Adjustable segmented window arrangements in PBP (Picture by Picture) mode
• Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
• 3 individual audio mixer on/off switches supported
• 3 channel volume indicators

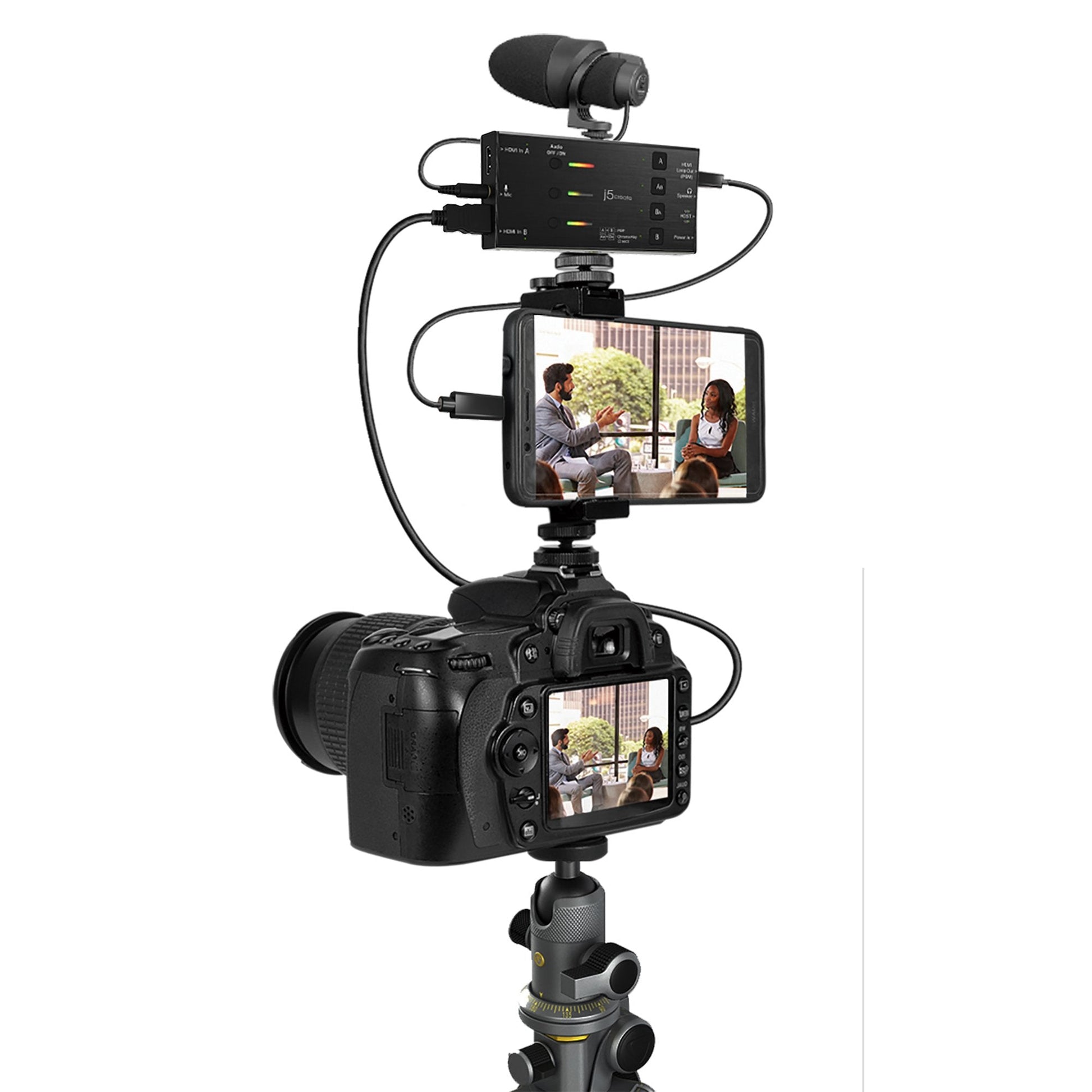

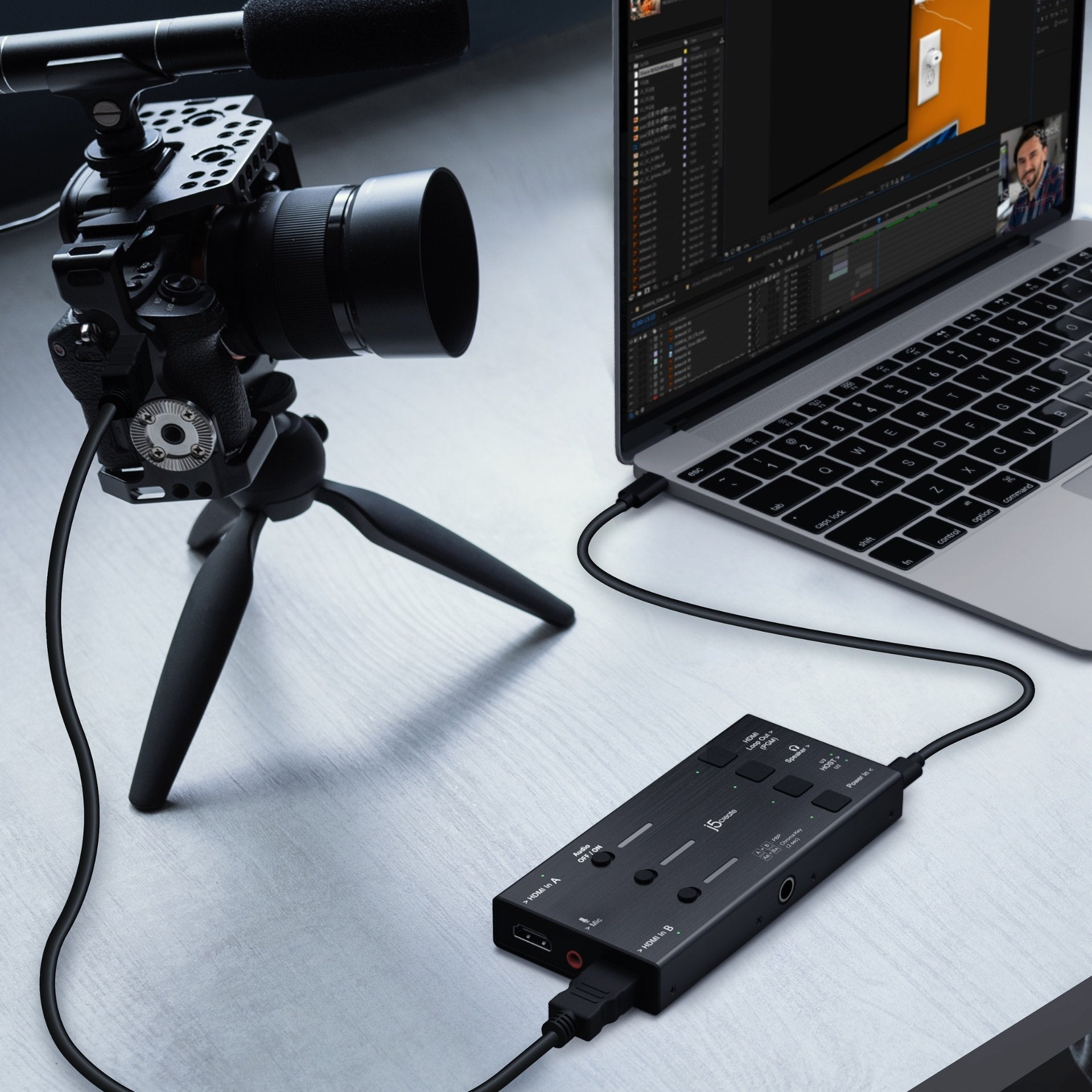

• Easy DSLR attachment with 2 cold shoe adapters (included)

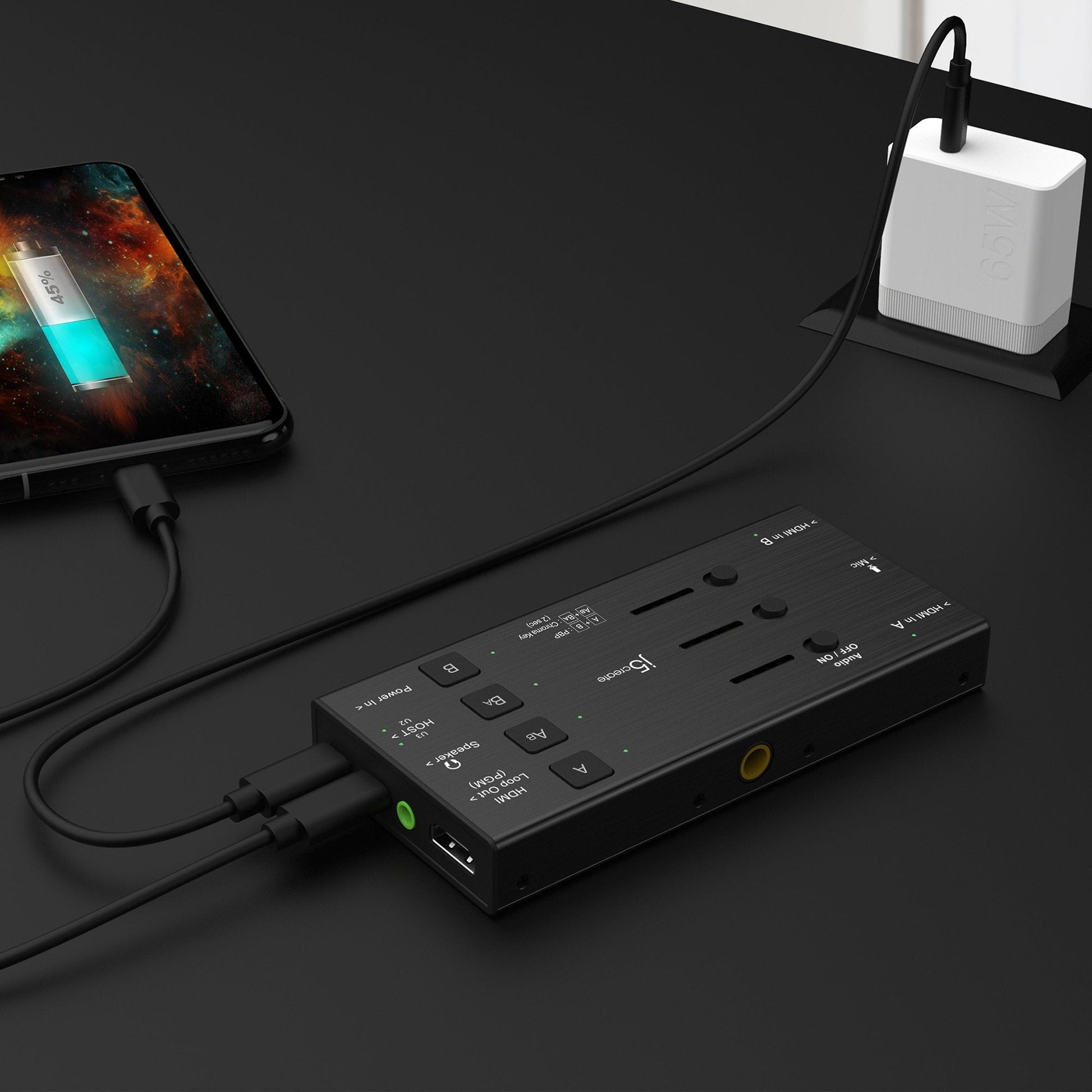

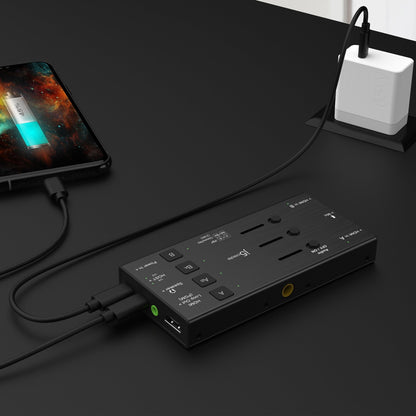

• Supports USB-C™ Power Delivery 3.0
• UVC standard, plug & play
• LED activity indicator:

  • HDMI™ IN
  • USB™ Link
  • Volume Unit

System Requirements:

• Computer - Recommended software OBS™:
  • Windows® 7 and later (Driver installation is required on Windows® 7)
    macOS® X 10.10 and later
    Linux®
  • CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
    CPU: Intel® Core™ i7 Gen 4 & above
  • RAM: 4 GB memory or higher (8 GB is recommended)
• Phone - Recommended software: CameraFi™ Live:
  • Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
  • Android™ 7.0 and higher
  • CPU: Core 2 GHz & above
  • RAM: 4 GB memory or higher

Special Notes:

• The JVA06 can connect to a USB-C® port that does not support Power Delivery, but it will not pass power through the connected device.

SPECIFICATIONS:

• Host Connector: 1 × USB-C™ Male
• Video Input: 2 × HDMI™ Female
• Video Output: 1 × HDMI™ Female
• Audio Input: HDMI™ or 3.5 mm Mic in
• Audio Output: HDMI™ or 3.5 mm Speaker out
• Power Source: Bus-powered or self-powered (USB-C™ PD)

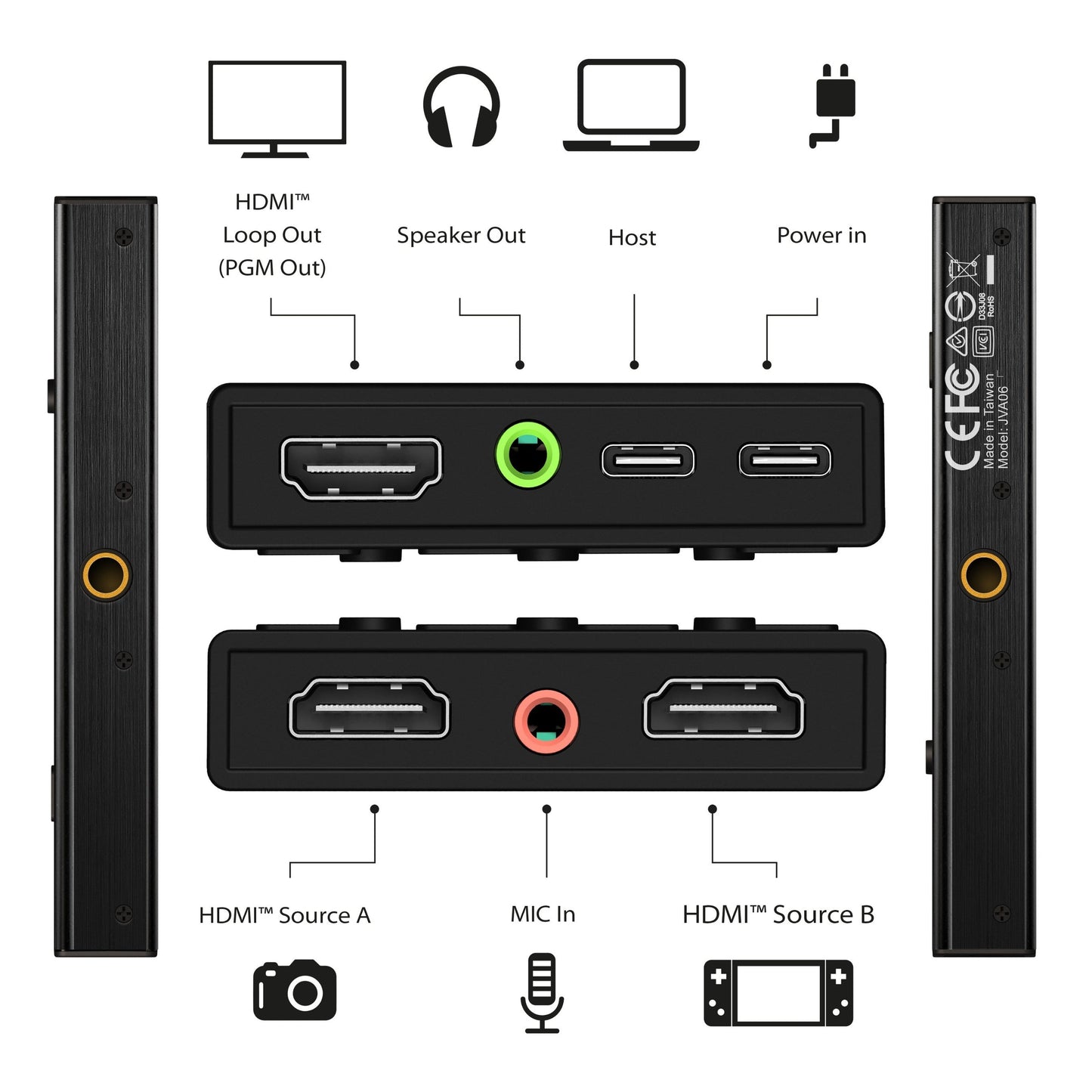

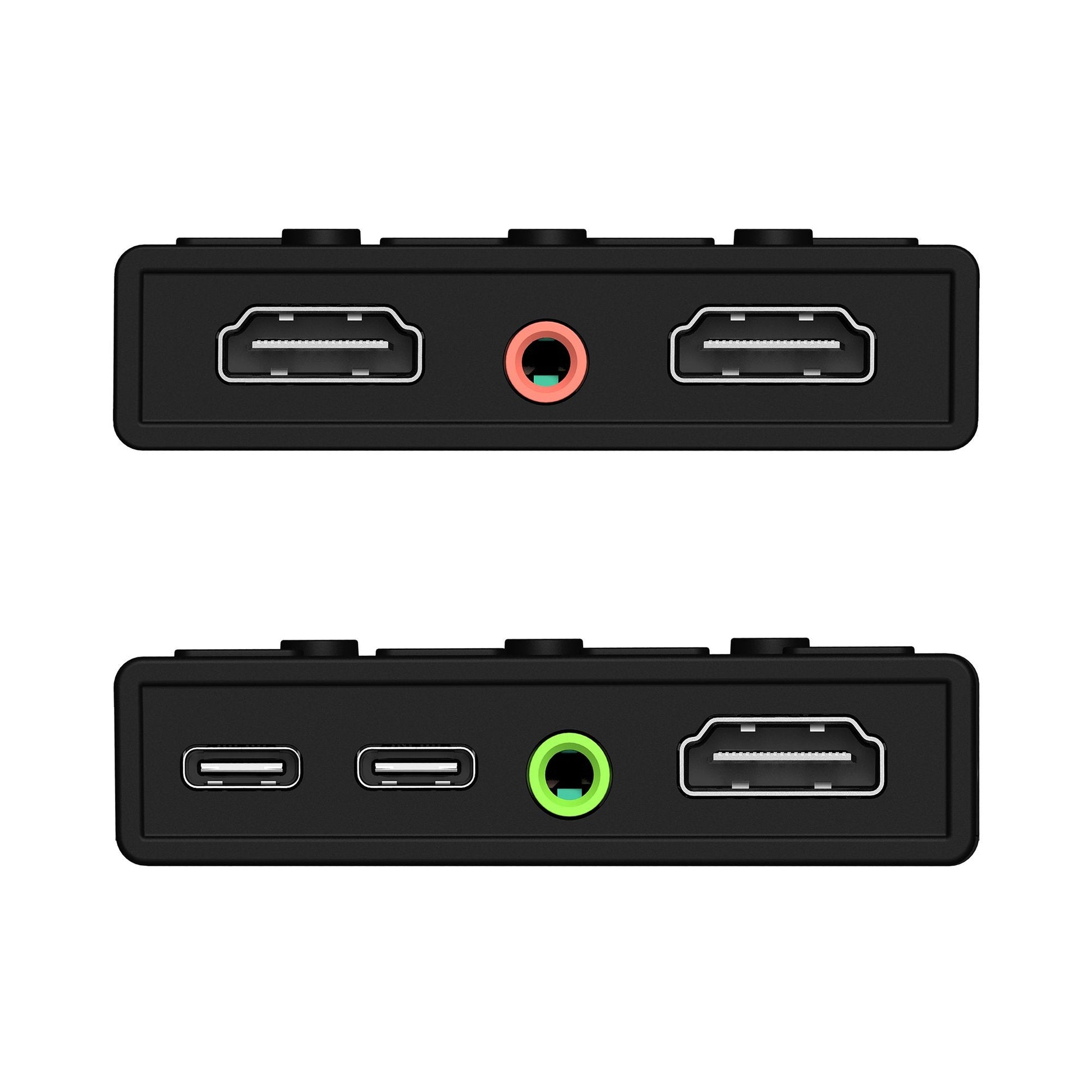

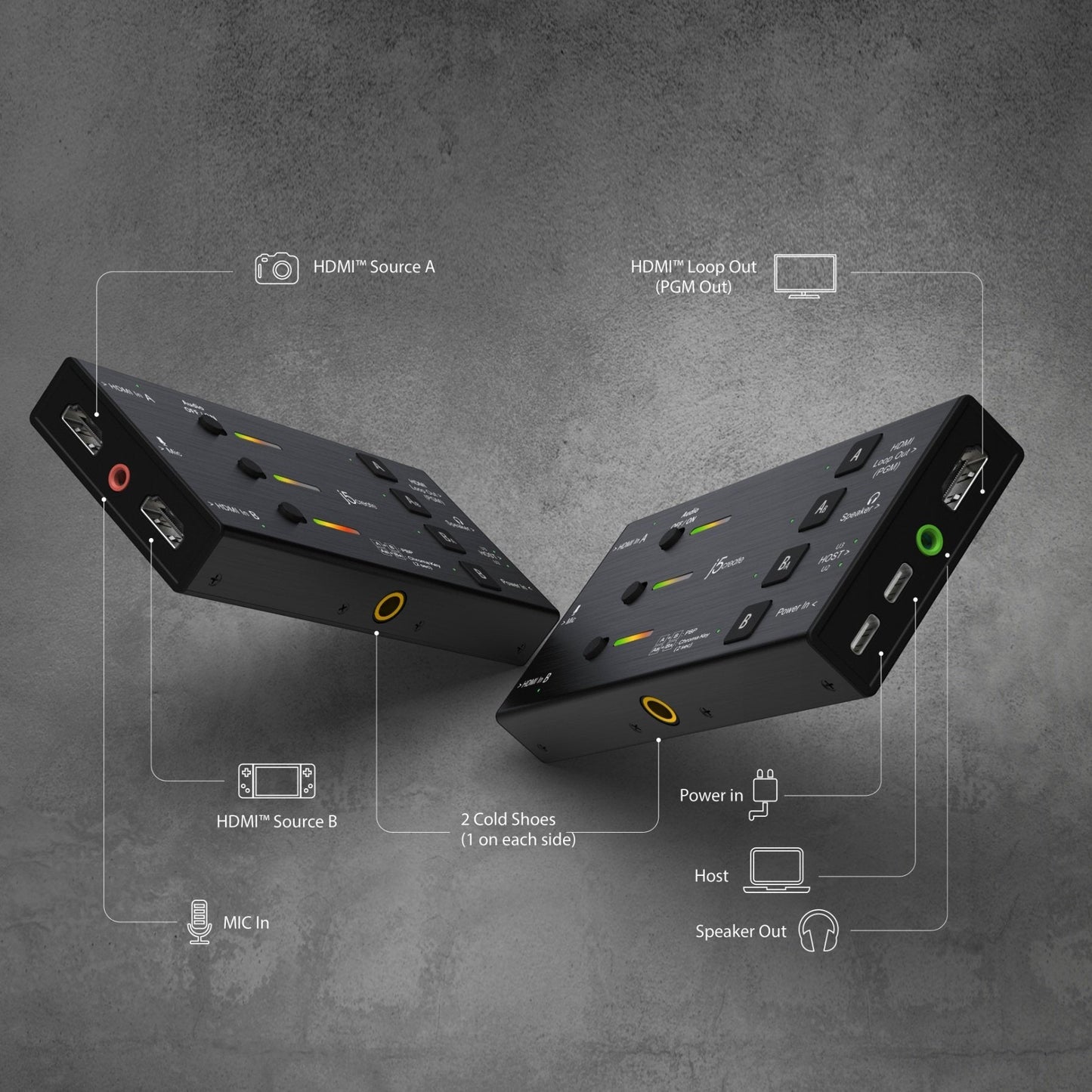

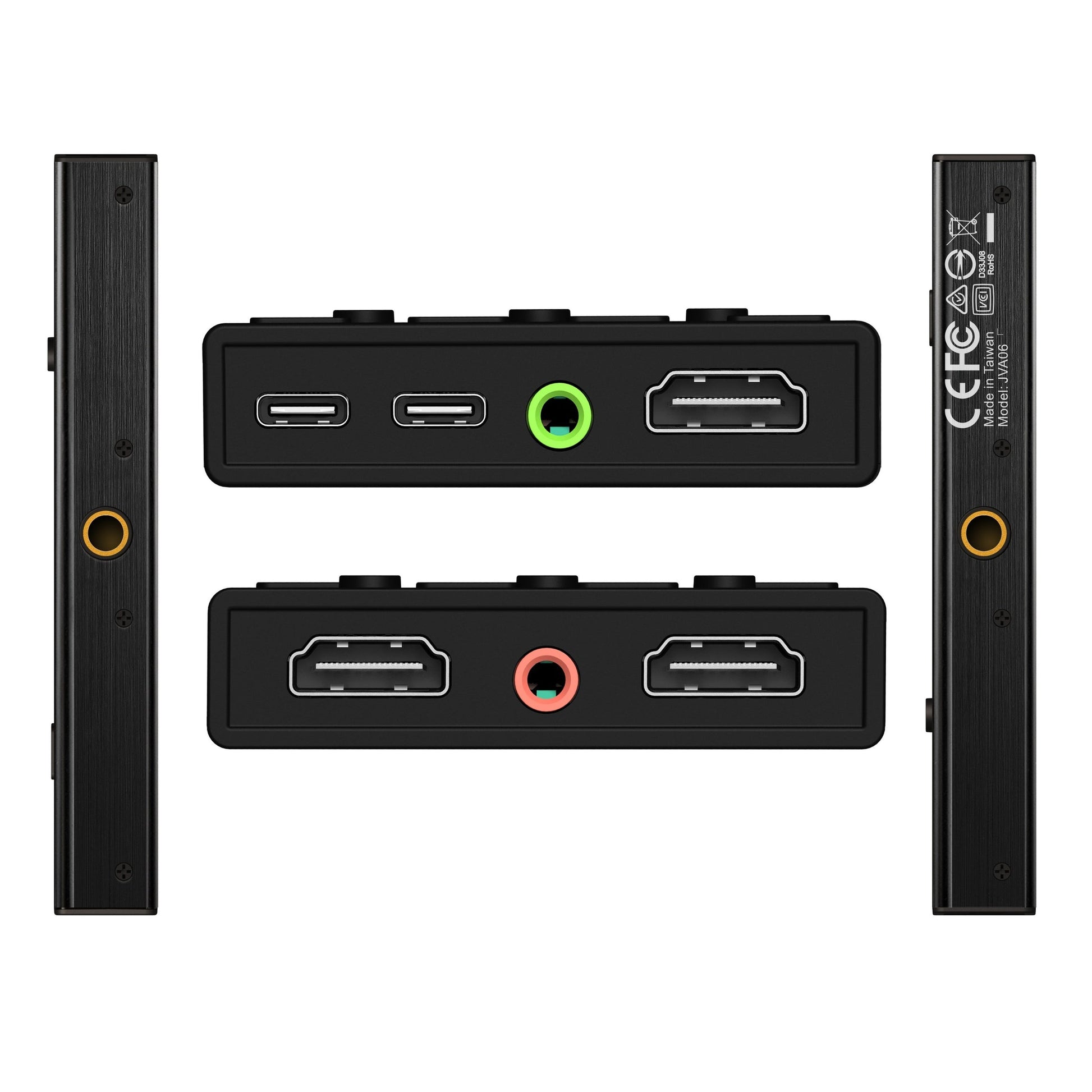

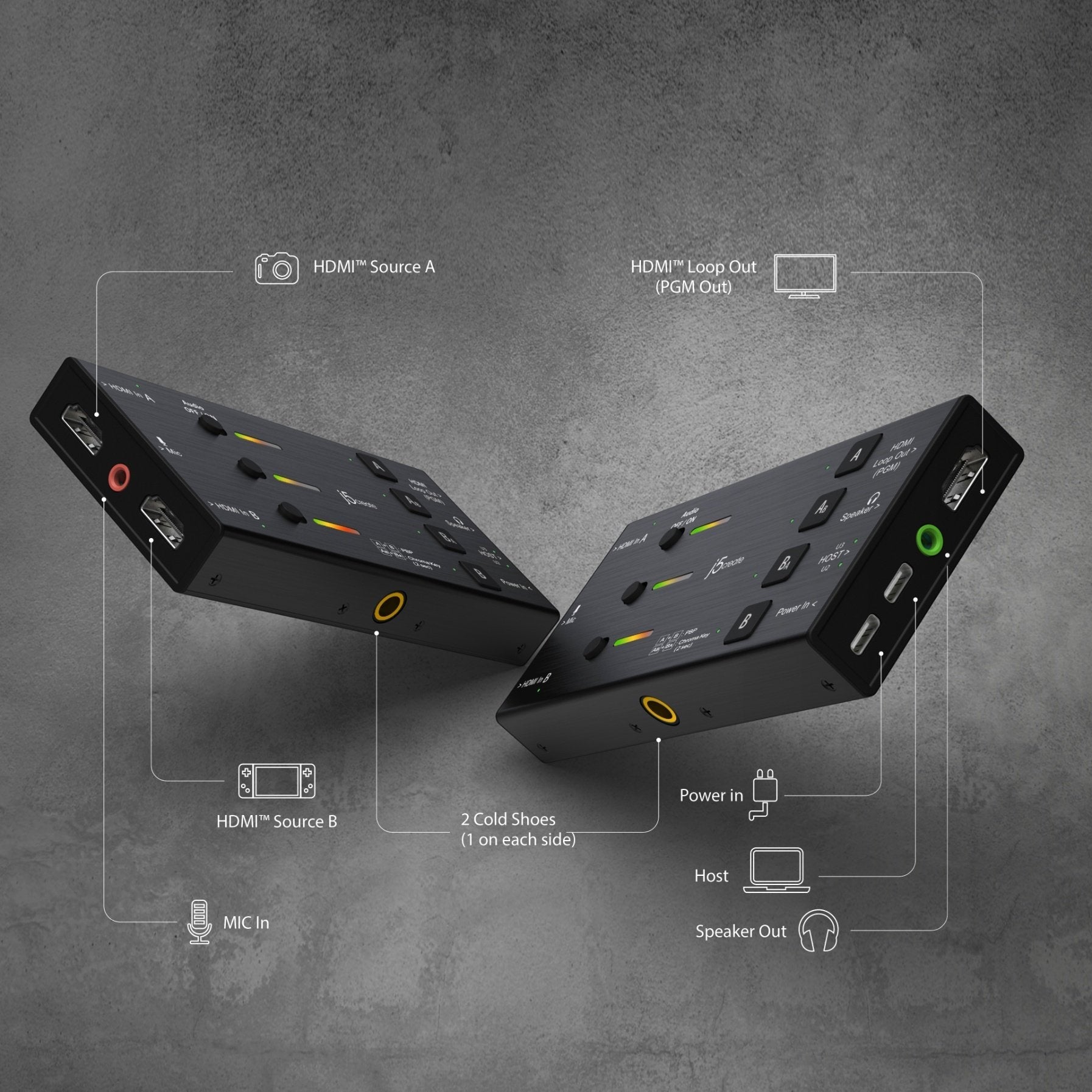

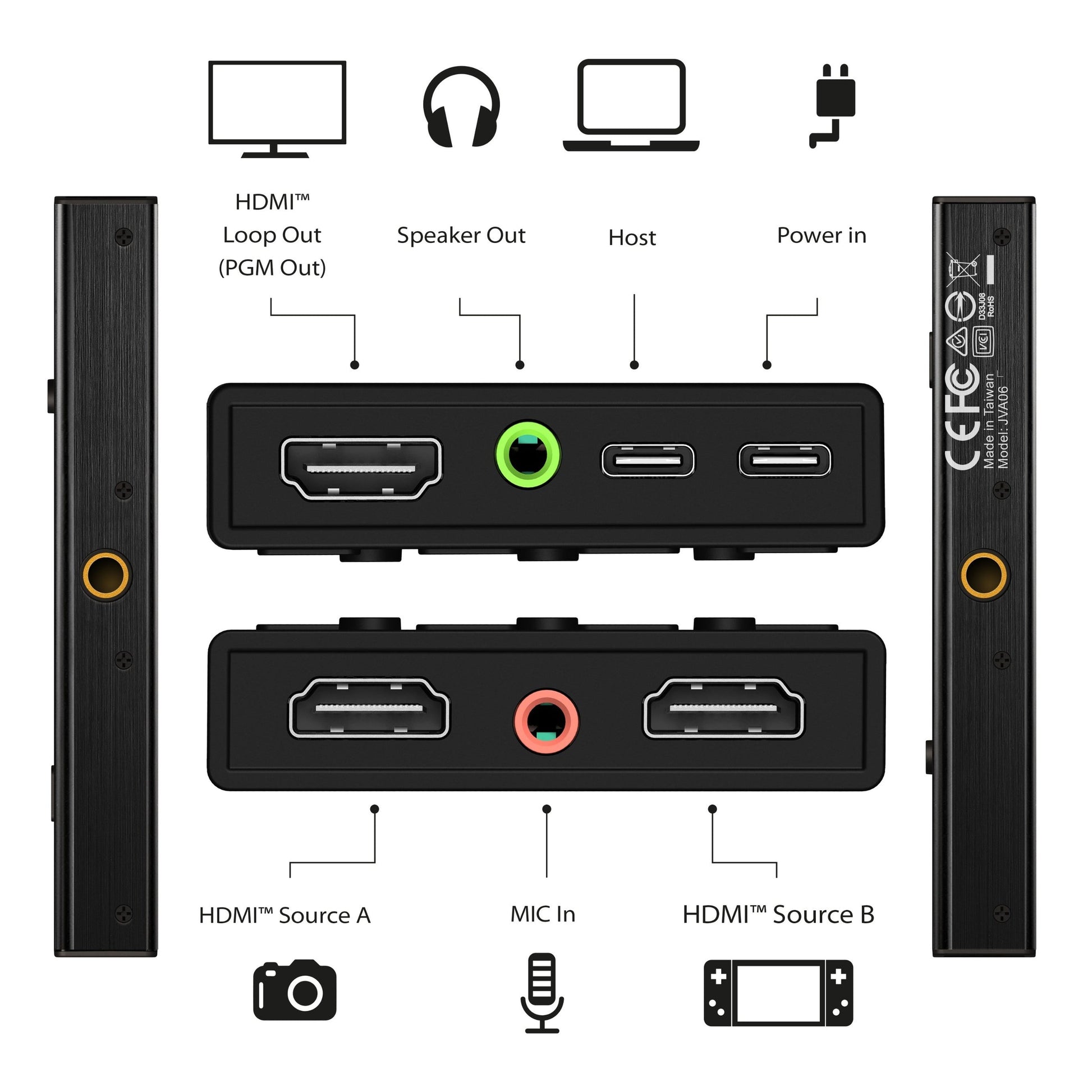

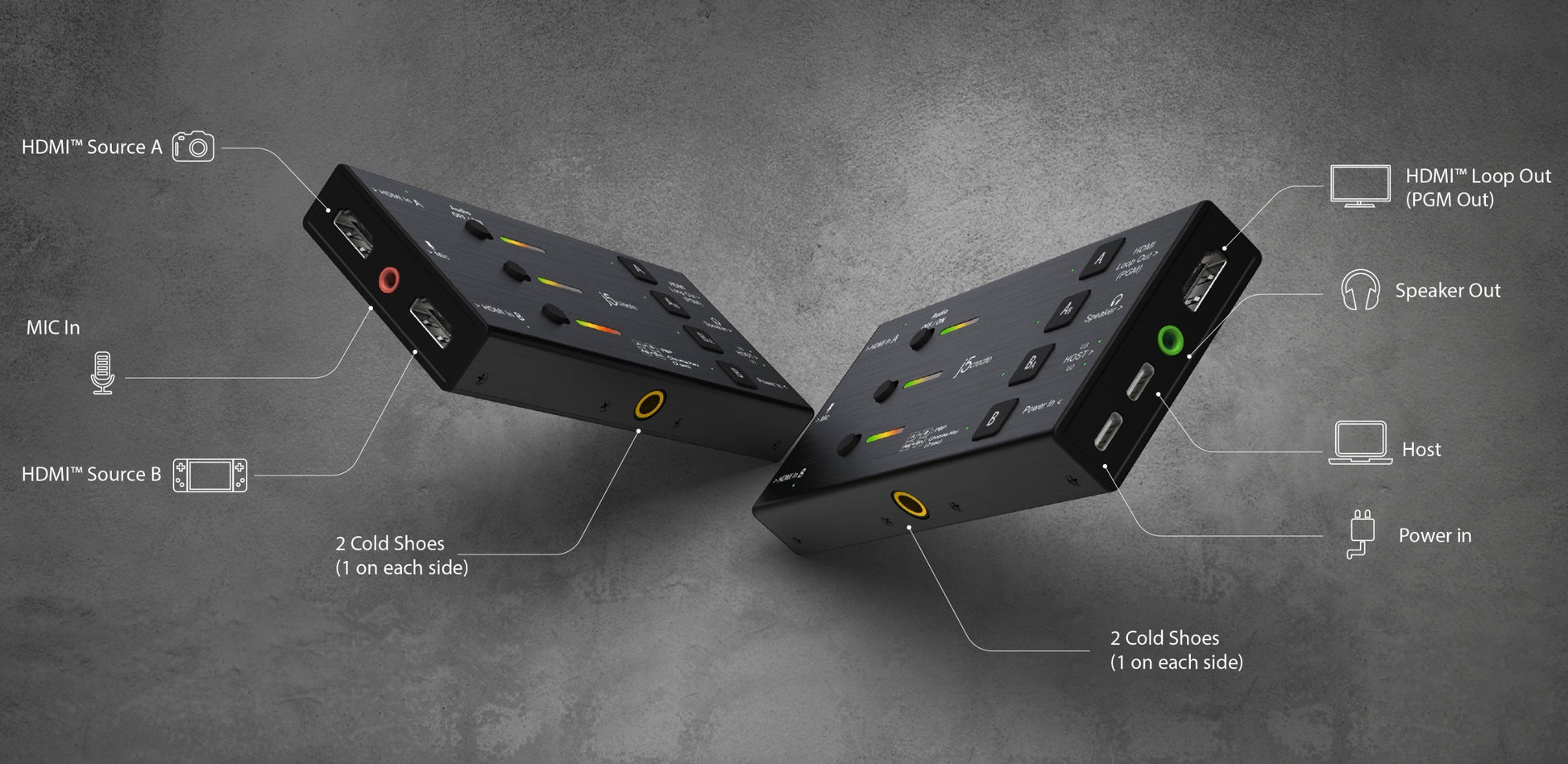

• Ports: 1 × USB-C™ 3.0 (host), 1 × USB-C™ 3.0 (power), 2 × HDMI™ input, 1 × HDMI™ output, 1 × Mic in, 1 × Speaker out, 2 × Cold shoes
• Display Input Supported Resolutions (Progressive): 1920 × 1080p @ 24/25/30/50/60, 1680 × 1050p @ 60, 1600 × 1200p/900p @ 60, 1440 × 900p @ 60, 1400 × 1050p @ 60, 1366 × 768p @ 60, 1360 × 768p @ 60, 1280 × 1024p/800p/720p @ 60, 1024 × 768p @ 60, 800 × 600p @ 60, 720 × 576p/480p @ 60, 640 × 480p @ 60
• Display Input Supported Resolutions (Interlace): 1920 × 1080i @ 50/60, 720 × 576i @ 50, 720 × 480i @ 60
• Display Output Supported Resolutions: 1920 × 1080p @ 60, 1280 × 720p @ 60, 720 × 576p @ 50, 720 × 480p @ 60, 640 × 480p @ 60
• Maximum Display Refresh Rate: 60 Hz
• Audio Channel: 2.1 via HDMI™
• Audio Frequency: 48 kHz
• Mic: Stereo microphone supported, 24-bit sigma-delta ADC
• Headset: 40 mW output power into 16Ω at 3.3V, THD -75 dB at 20 mW
• Compression: USB™ 2.0: MJPEG, USB™ 3.0: YUV 4:2:2
• Encode Format: USB™ 2.0: MJPEG, USB™ 3.0: YUV 4:2:2
• HDR Supported: No
• Power Delivery: Up to 60W via USB-C™
• Power Consumption: ≦ 1000A
• Input Current: Up to 3A
• Input Voltage: Up to 20V
• Output Current: Up to 3A
• Output Voltage: Up to 20V
• Color: Black
• Enclosure Type: Aluminum
• Cable Length: USB-C™ to USB-C™: 23.6 inch (60 cm), USB-C™ to USB™ Type-A: 23.6 inch (60 cm)
• Product Height: 0.7 inch (18.4 mm)
• Product Width: 5.3 inch (134.6 mm)
• Product Depth: 2.5 inch (63.7 mm)
• Product Weight: 6 oz (172 g)
• Storage Temperature: 14 to 149°F (-10 to 65°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 32 to 118°F (0 to 45°C)
• Operating Humidity: < 85% non-condensing

WHAT'S IN THE BOX:

• JVA06 Dual HDMI™ Video Capture x1
• Quick Installation Guide x1
• USB-C™ 2.0 to USB-C™ cable x1
• USB-C™ 3.0 to USB™ Type-A cable x1
• 39.4 in./100 cm HDMI™ cable x1

WARRANTY:

• 24 Months
