J5create Ergonomic Dual-Monitor Mount with Docking Station - JTSA302

J5create Ergonomic Dual-Monitor Mount with Docking Station - JTSA302

Regular price R 5,469.00 ZAR
Regular price Sale price R 5,469.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

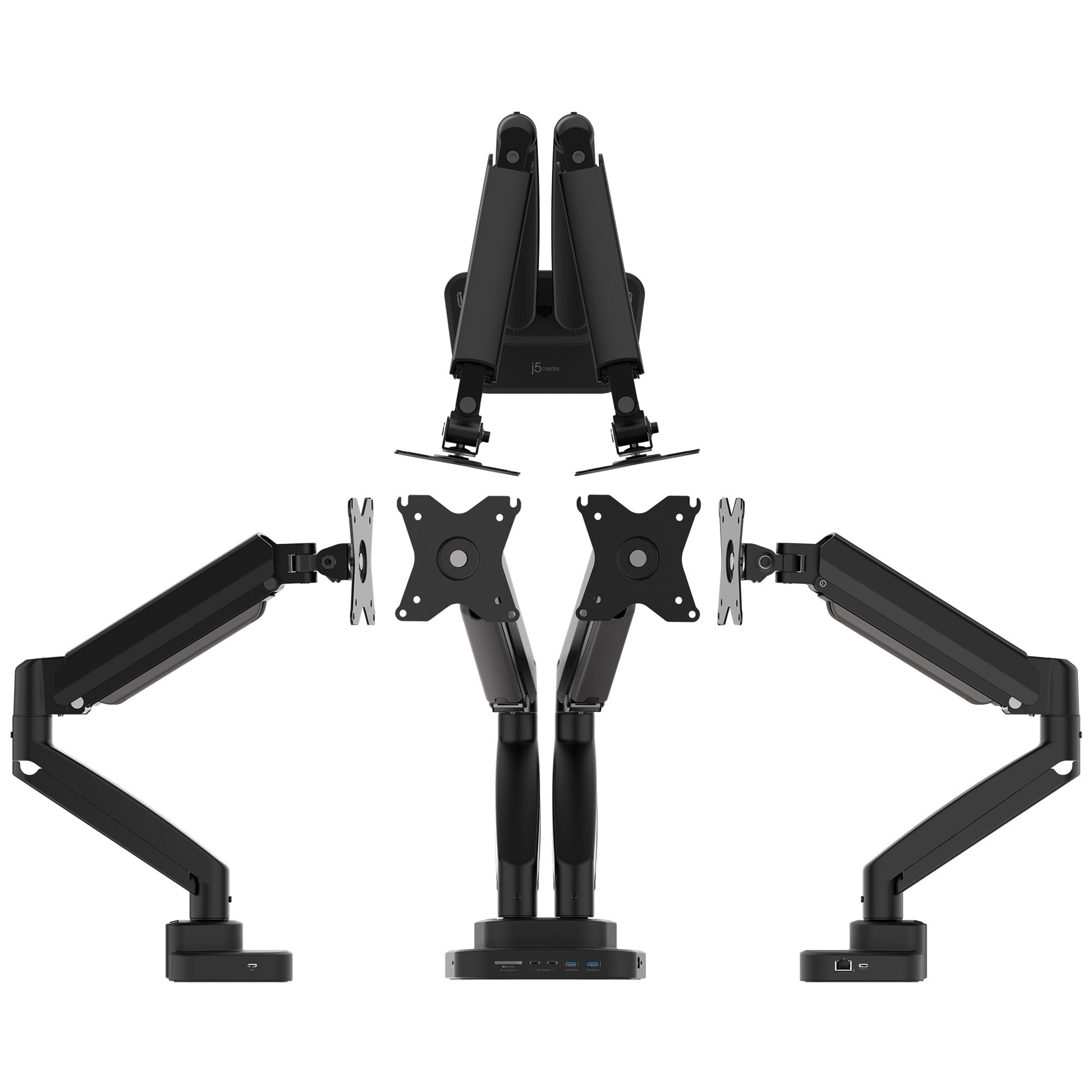

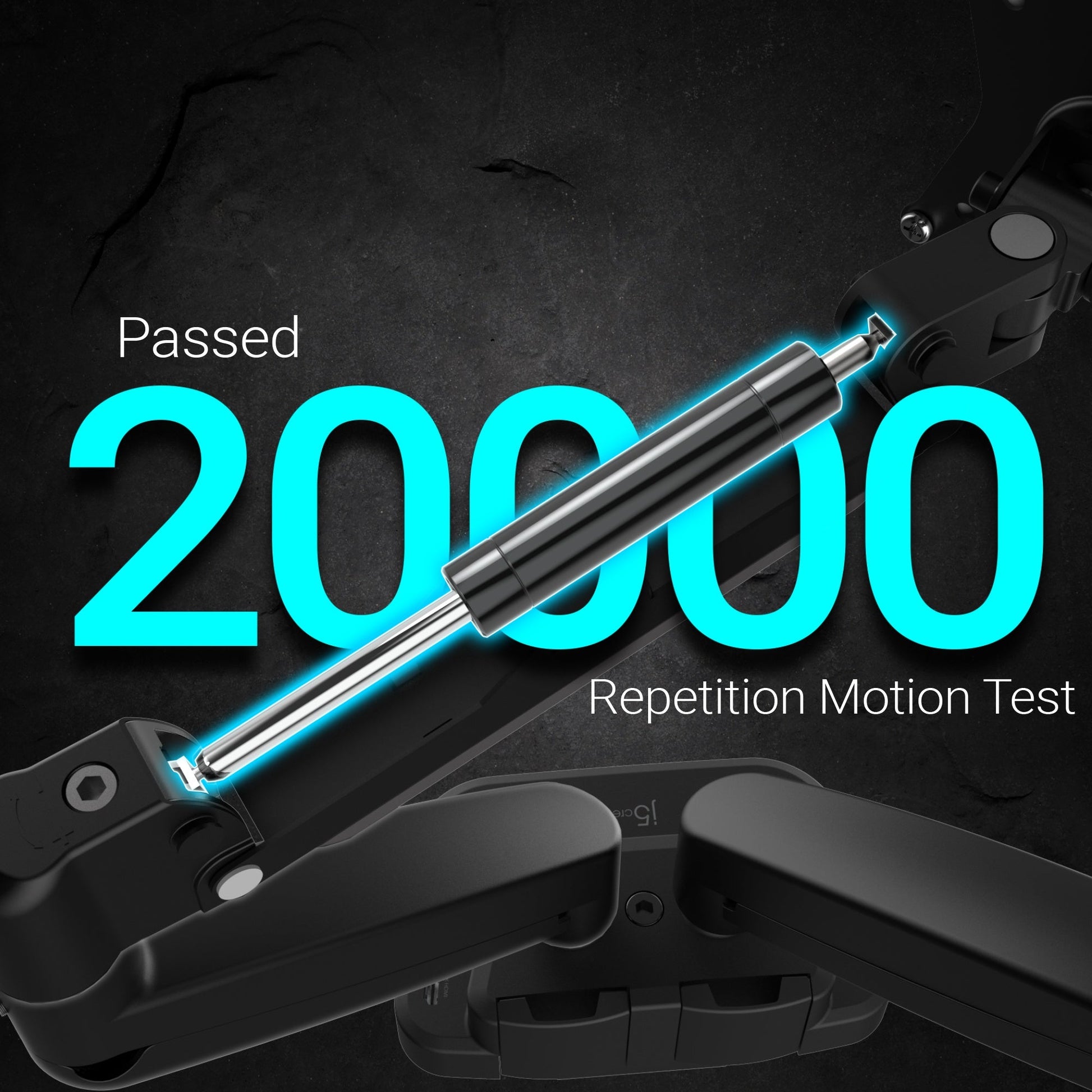

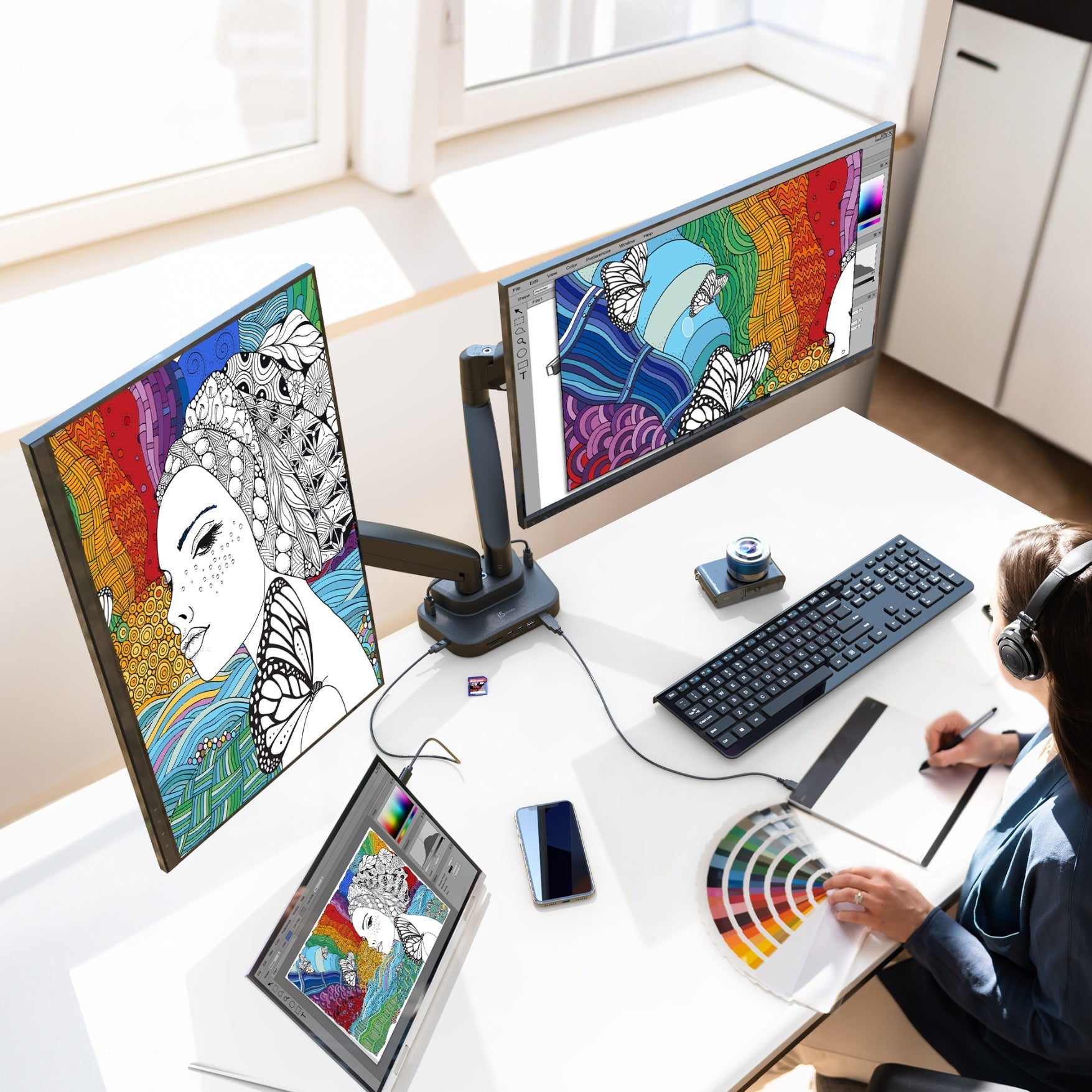

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

FEATURES:

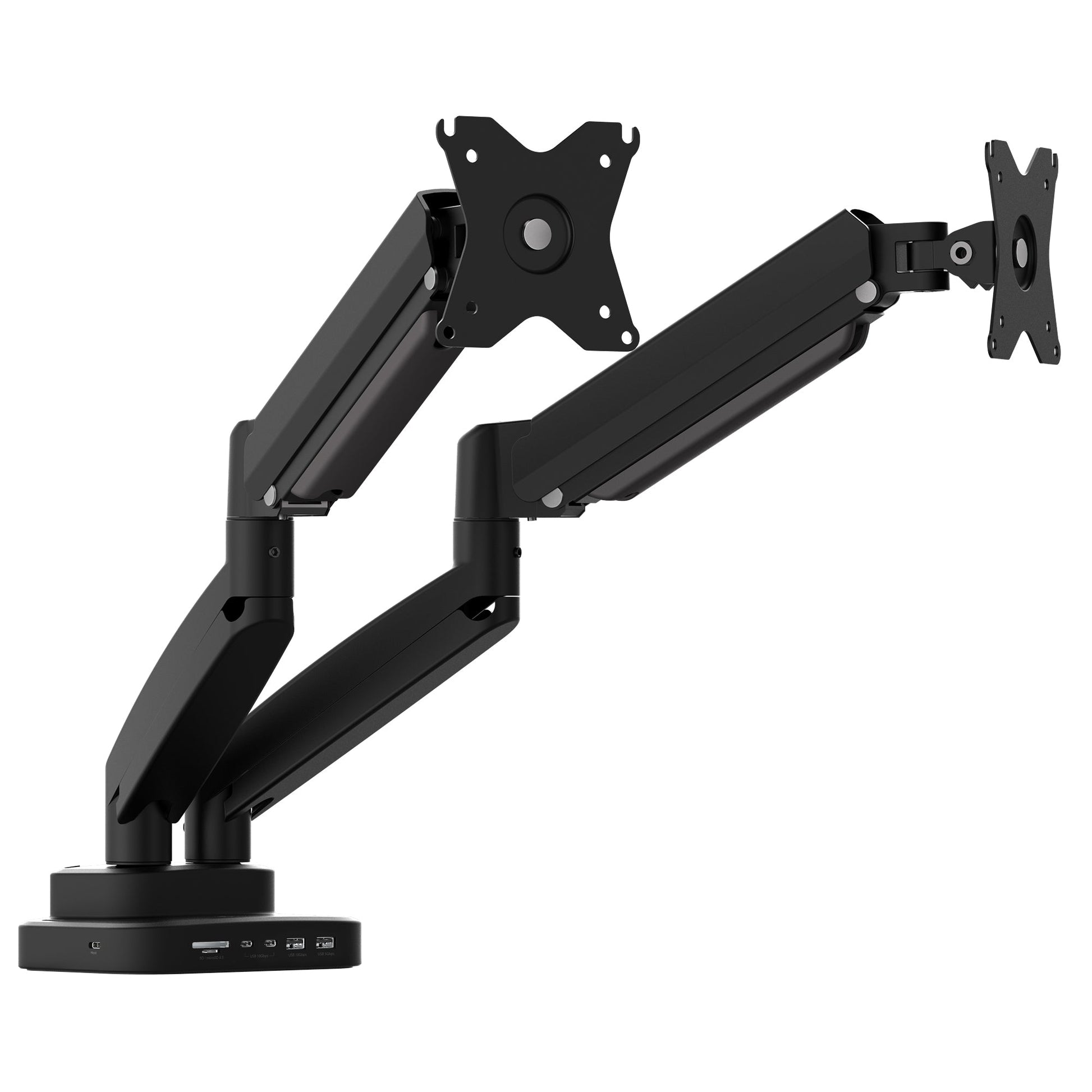

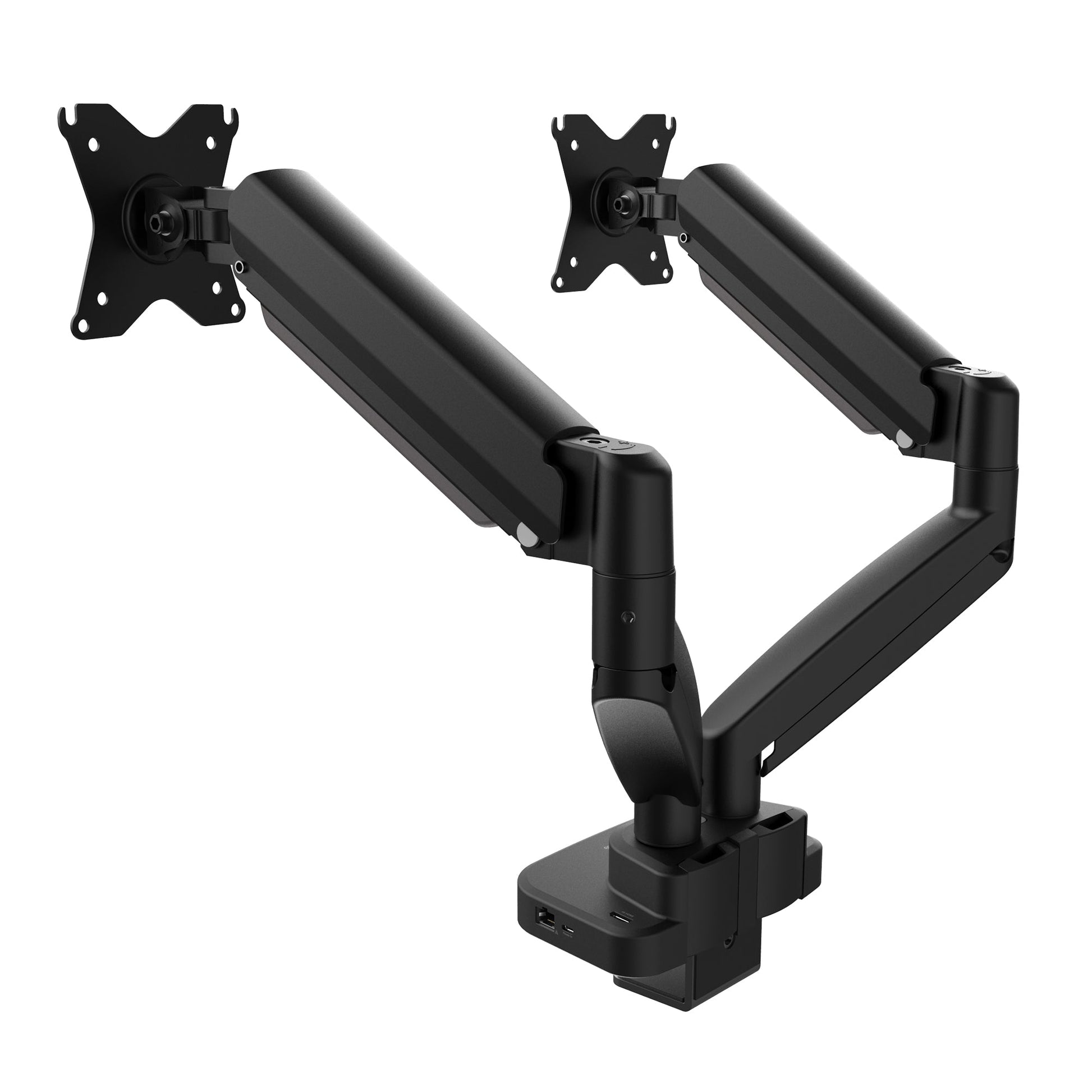

  • Fully adjustable gas spring dual monitor mount with 10-in-1 dock

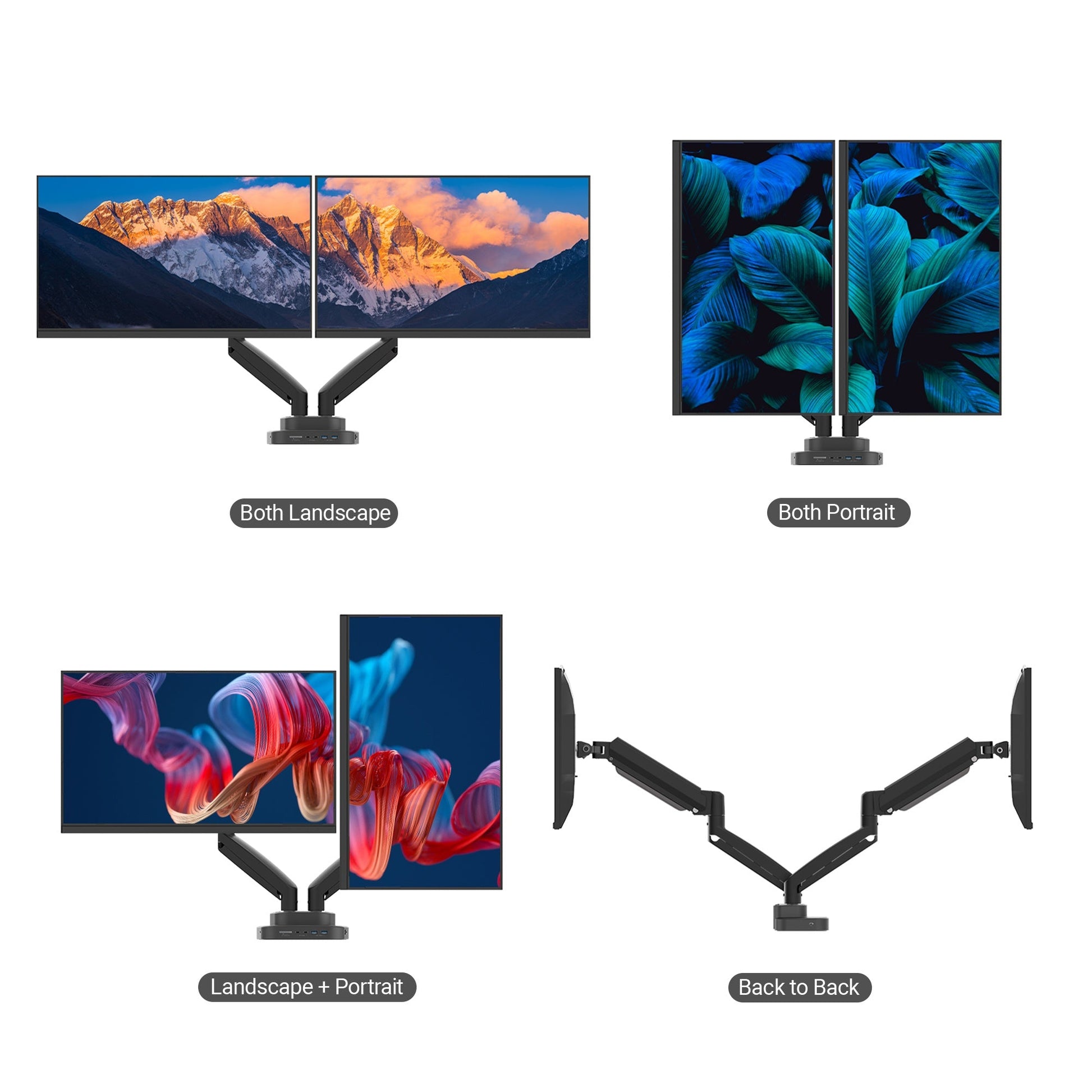

  • Easily adjusts monitors to any height and allows the monitors to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitors at optimal angles

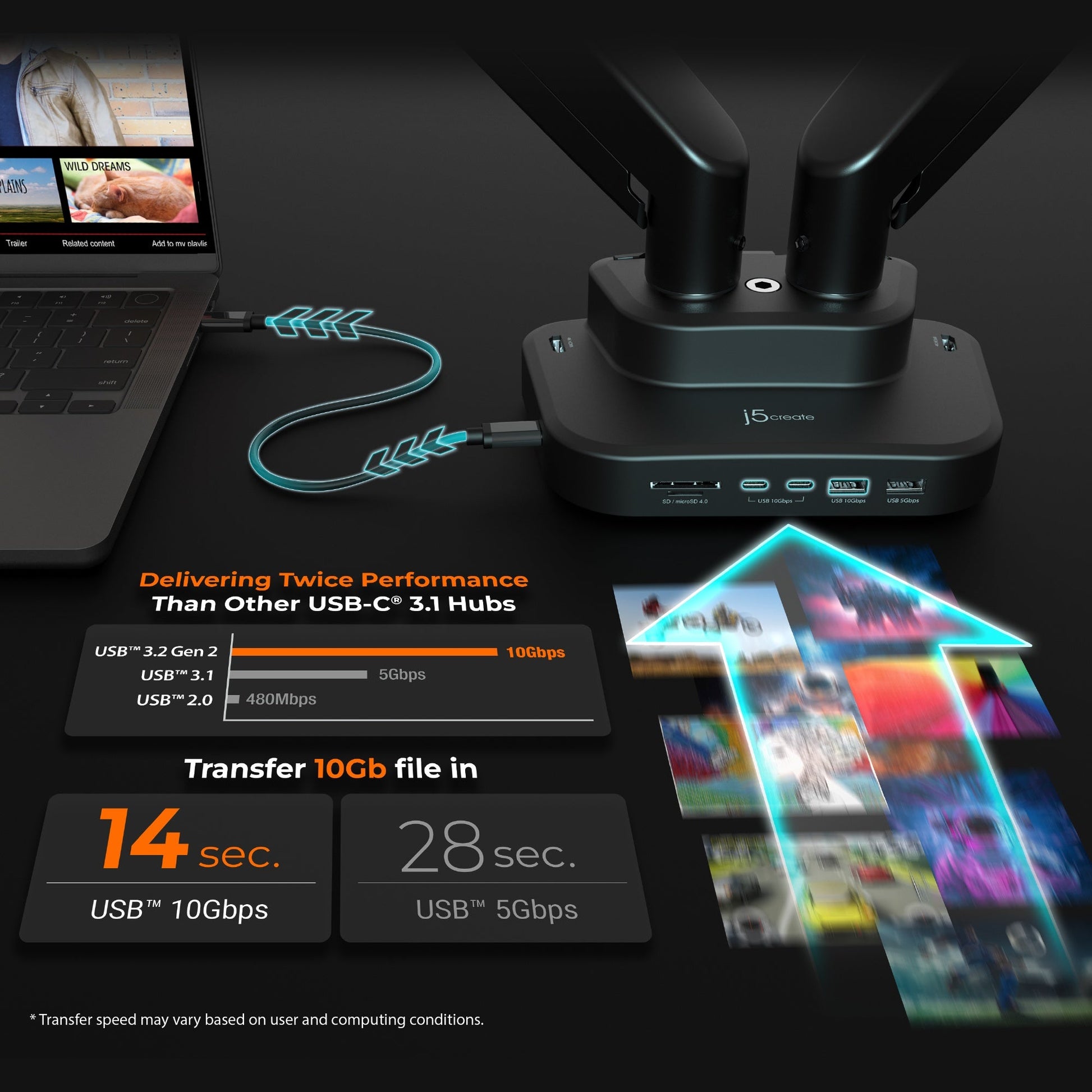

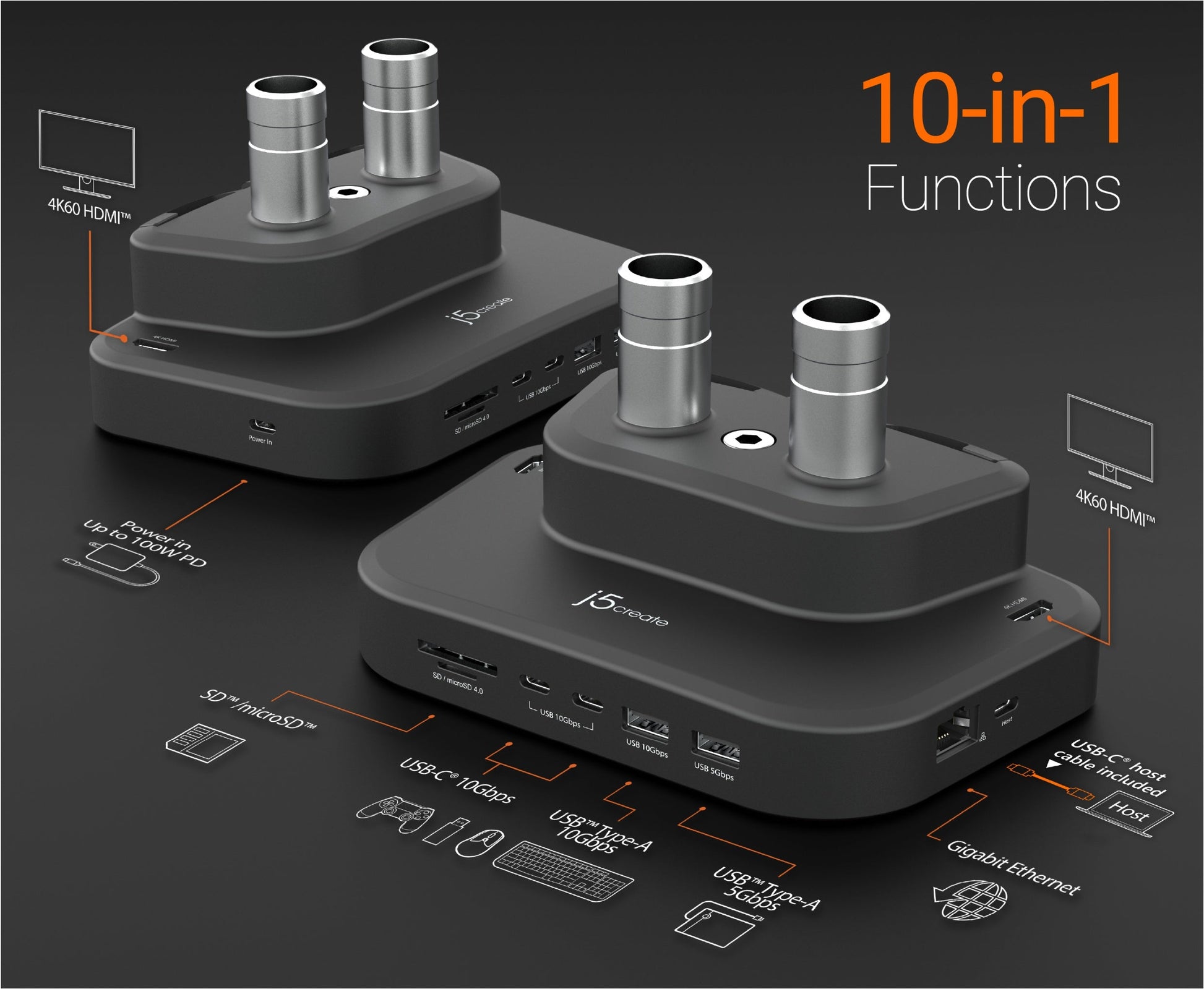

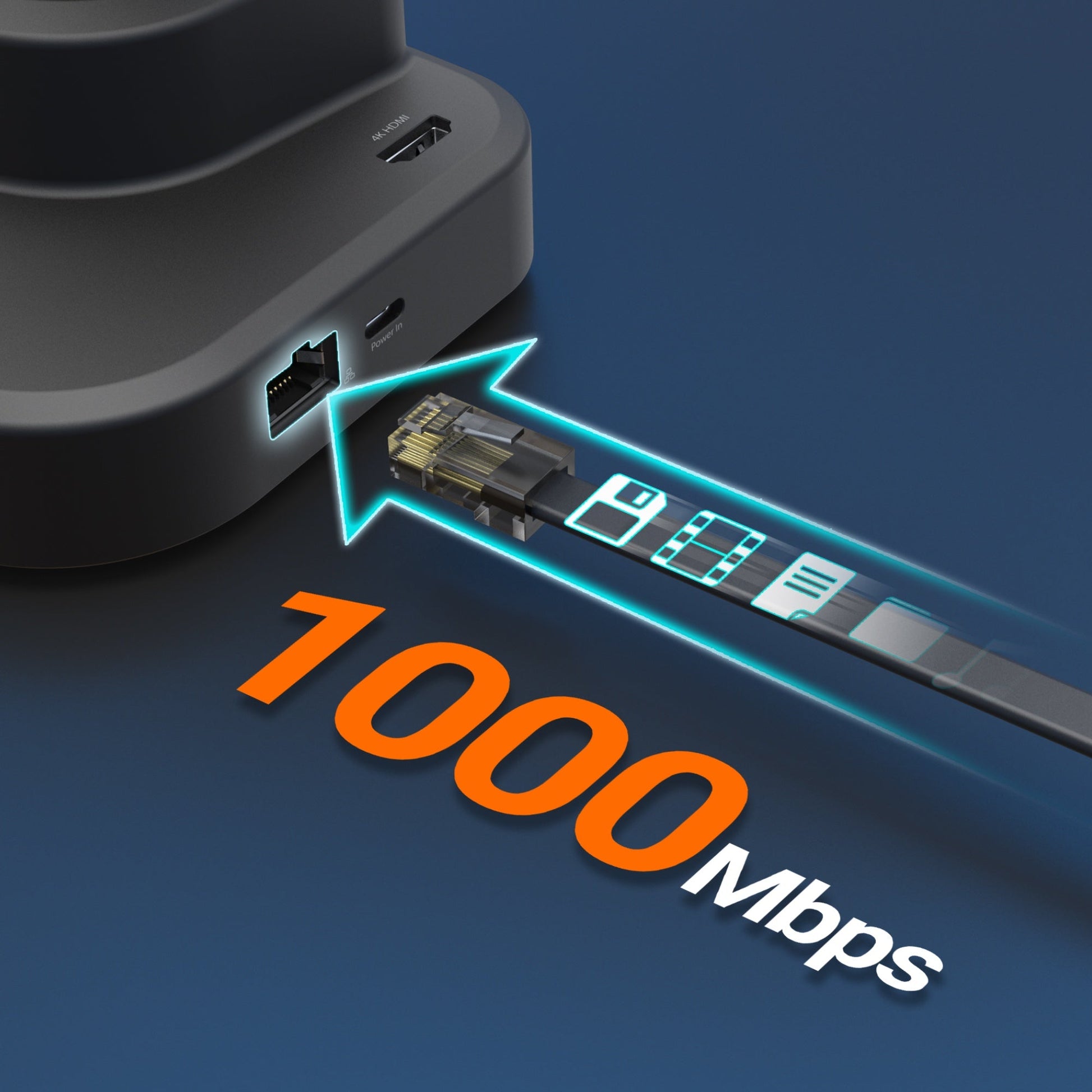

  • Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™ , Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps, 2 x USB-C® 10Gbps, SD™ /microSD™ 4.0, and up to 100W PD pass through charging

System Requirements:

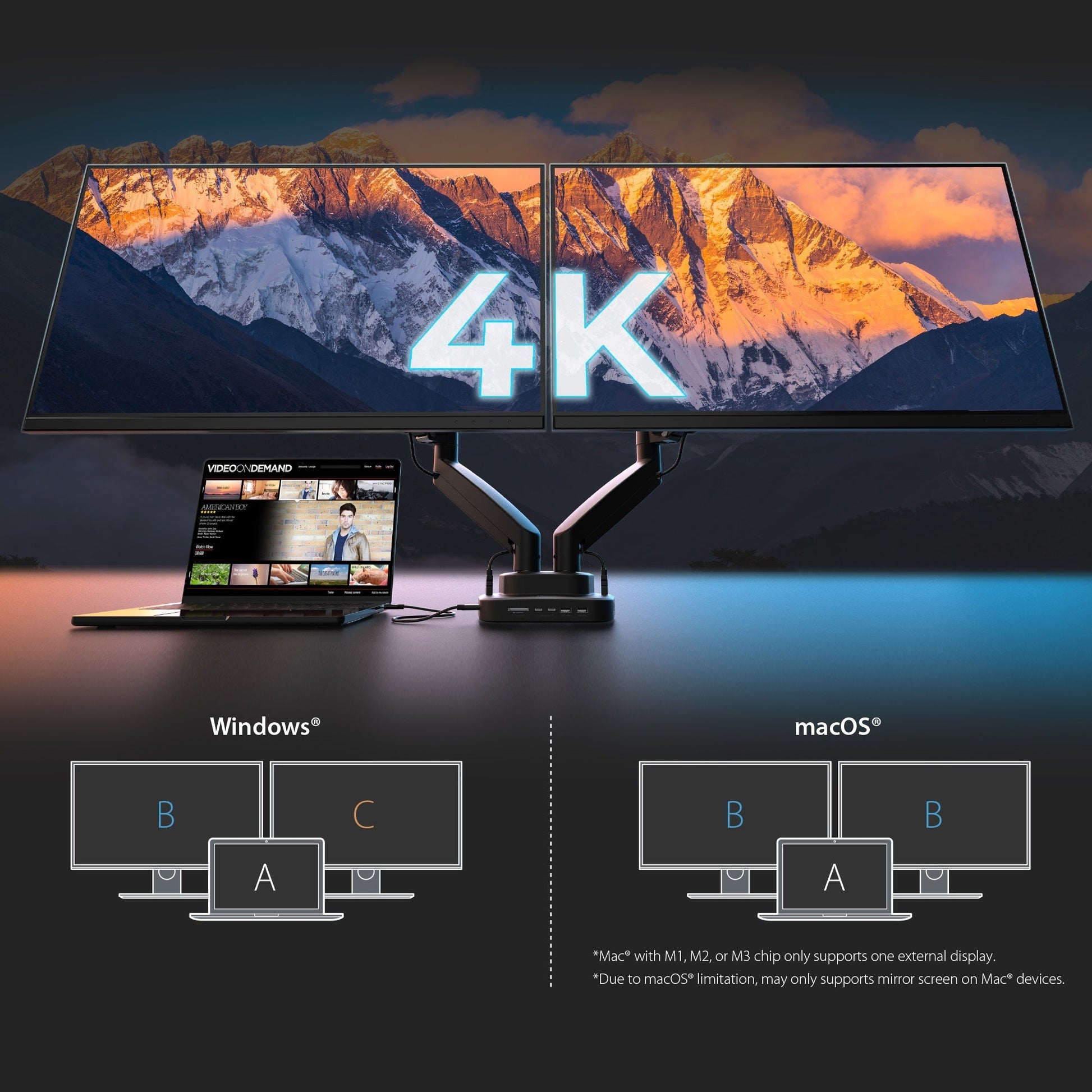

  • The host device must support MST (Multi-Stream Transport) and DisplayPort™ 1.4 to achieve dual 4K monitor configuration
  • Supports 17" to 32" monitors weighing up to 8 kg/17.6 lbs.
  • Windows® and macOS® compatible

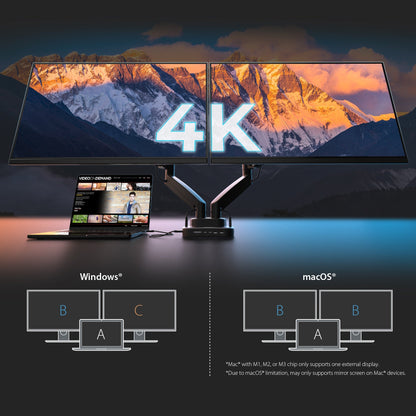

    *macOS® does not support MST, two monitors will only mirror each other.

SPECIFICATIONS:

  • Additional storage: No

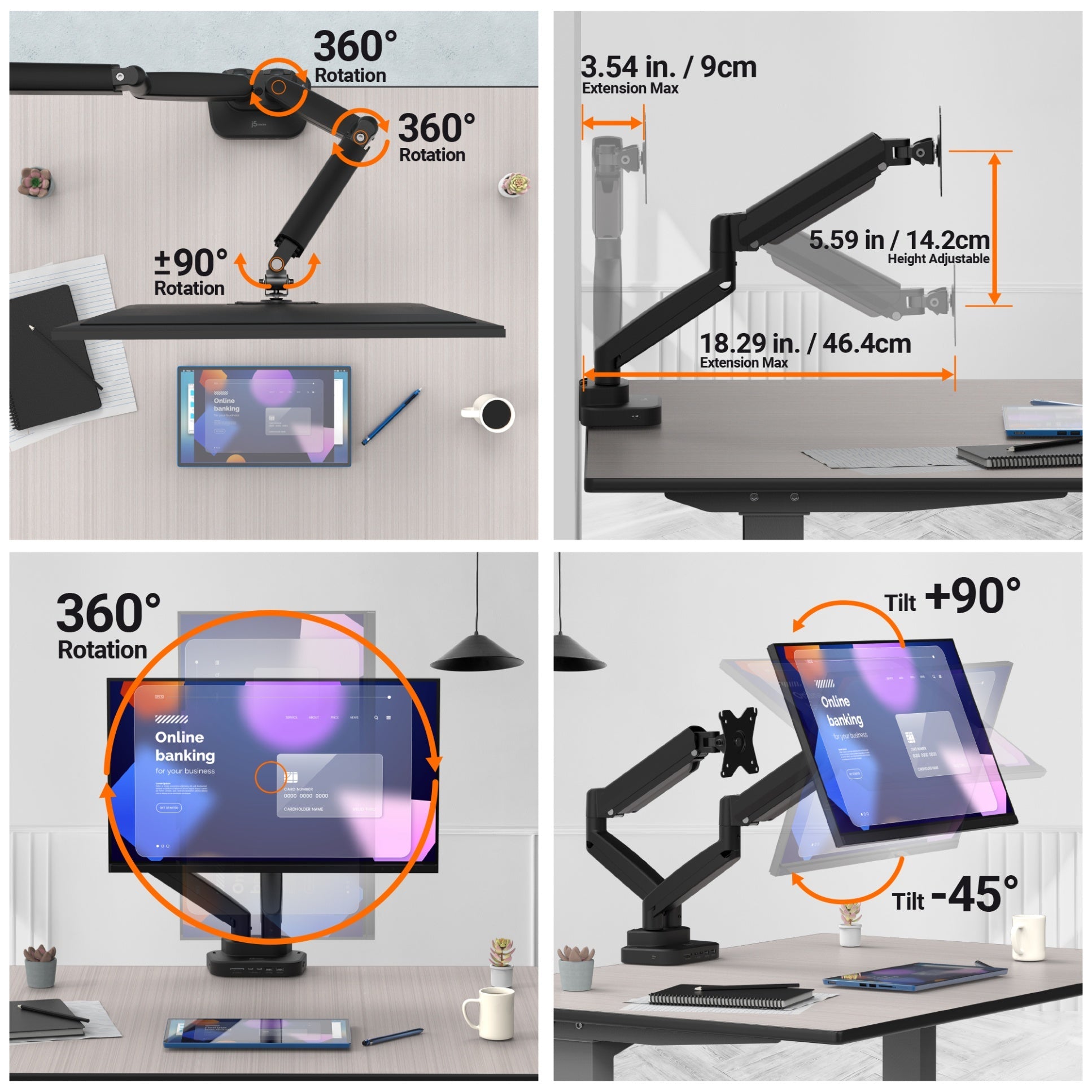

  • Adjustable angle: Screen Tilt: -45° to +90°; Arm Swivel: -180° to +180°; Screen Swivel: -90° to +90°; Screen Rotation: 360°
  • Assembly required: Yes
  • Audio supported: Yes

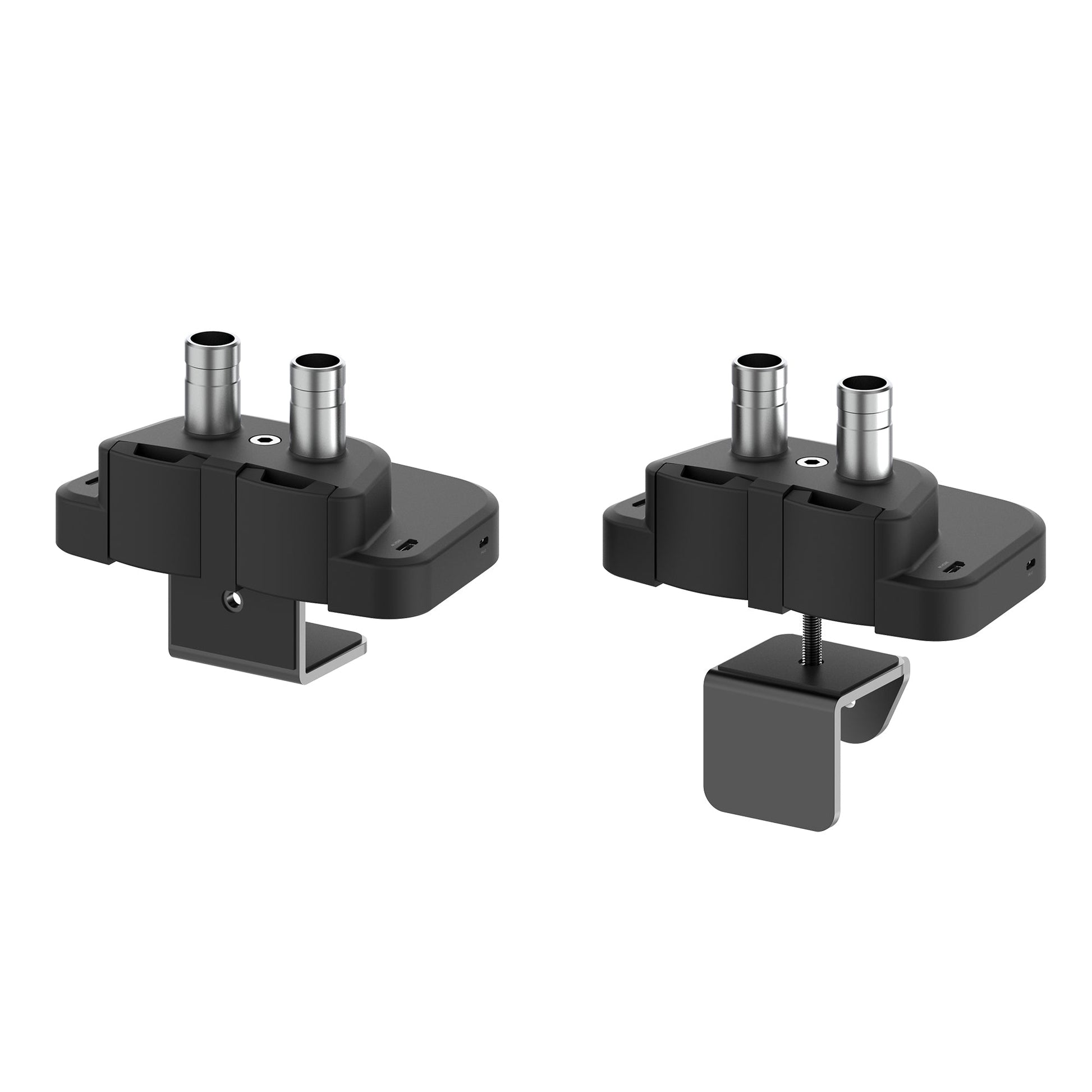

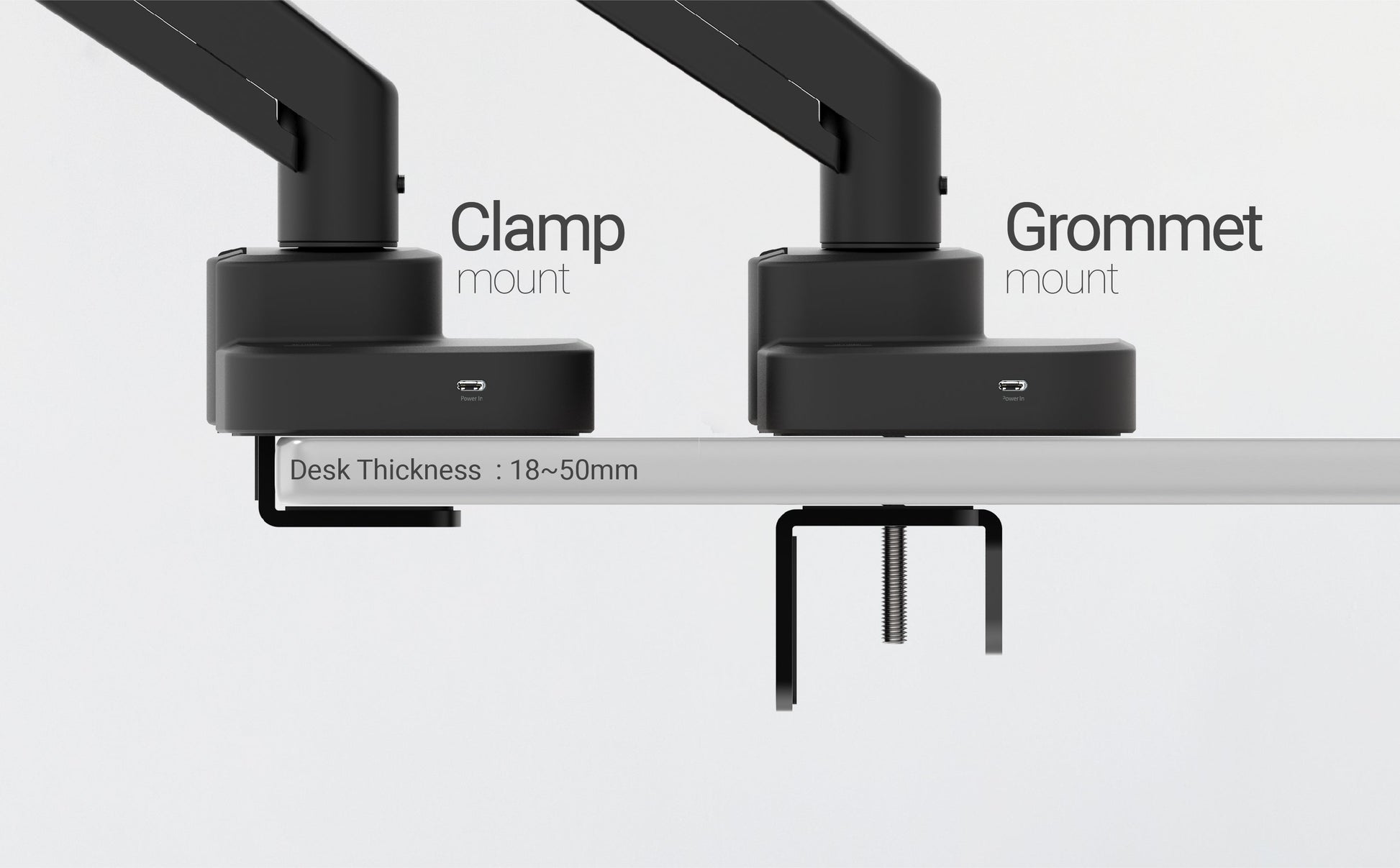

  • C-Clamp base: Yes (10–50 mm)
  • Docking station included: Yes
  • Grommet mounting base: Yes (10–50 mm)
  • Host connector: 1 - USB-C® Female
  • Maximum weight capacity: 17.6 lbs (8 kg)
  • Network interface: Yes

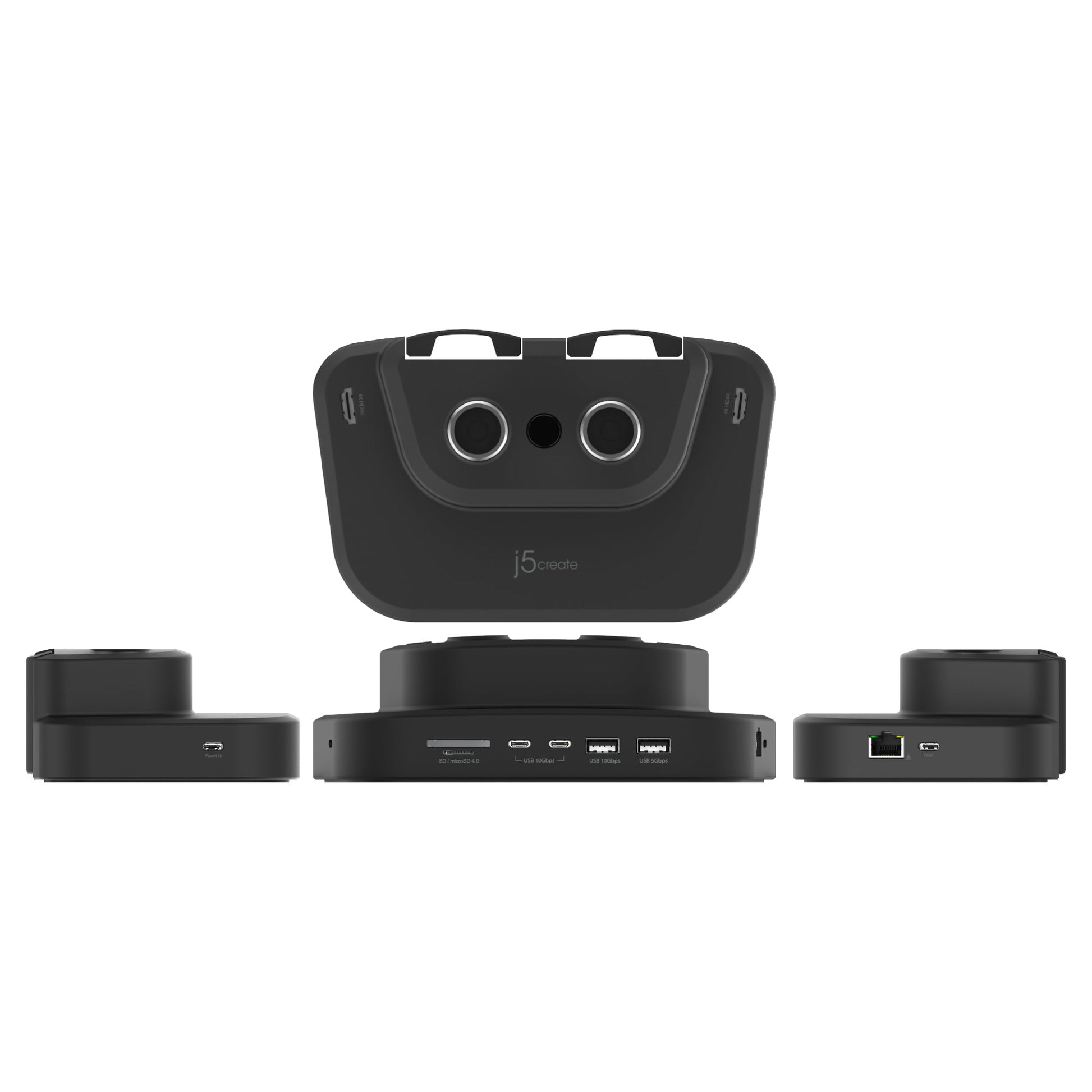

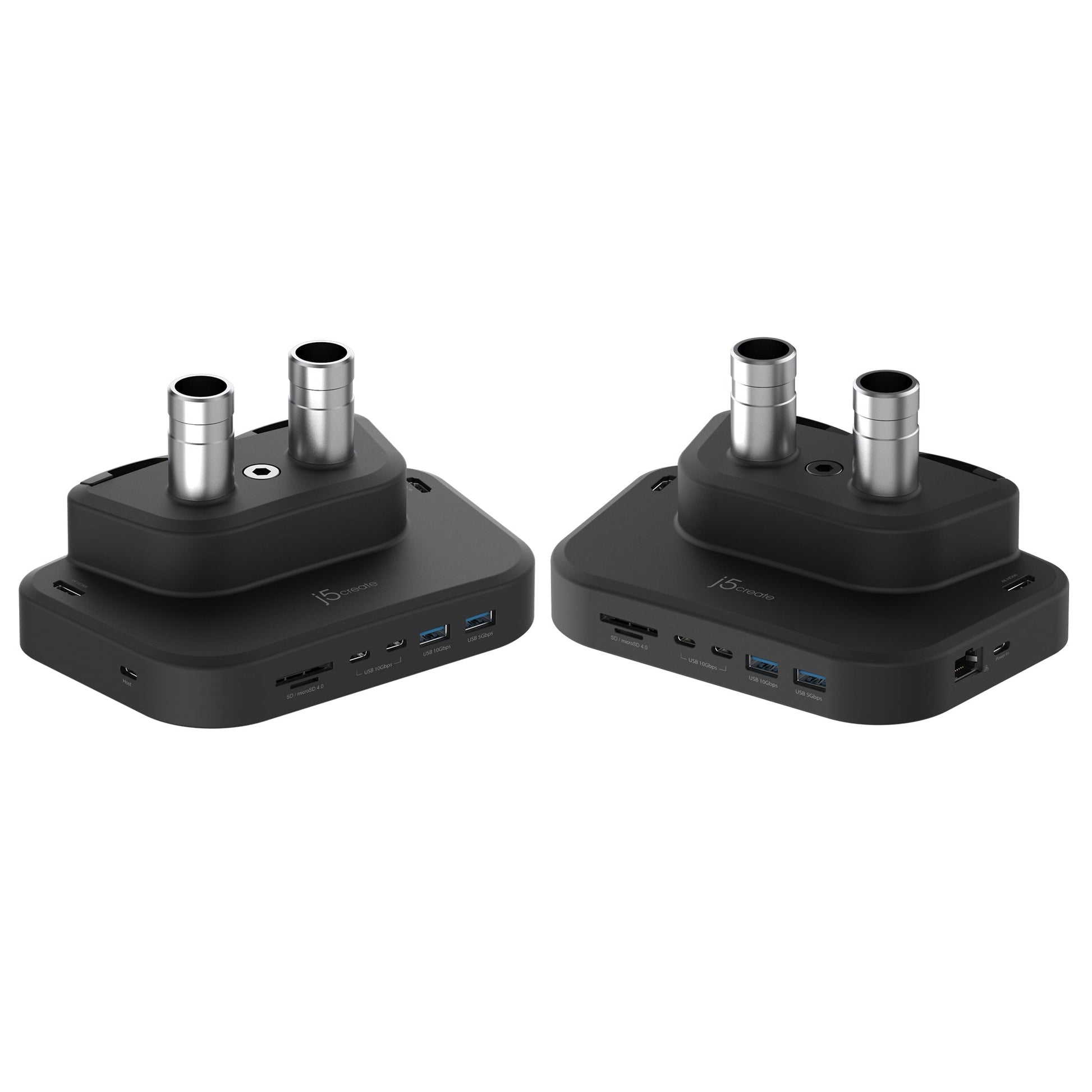

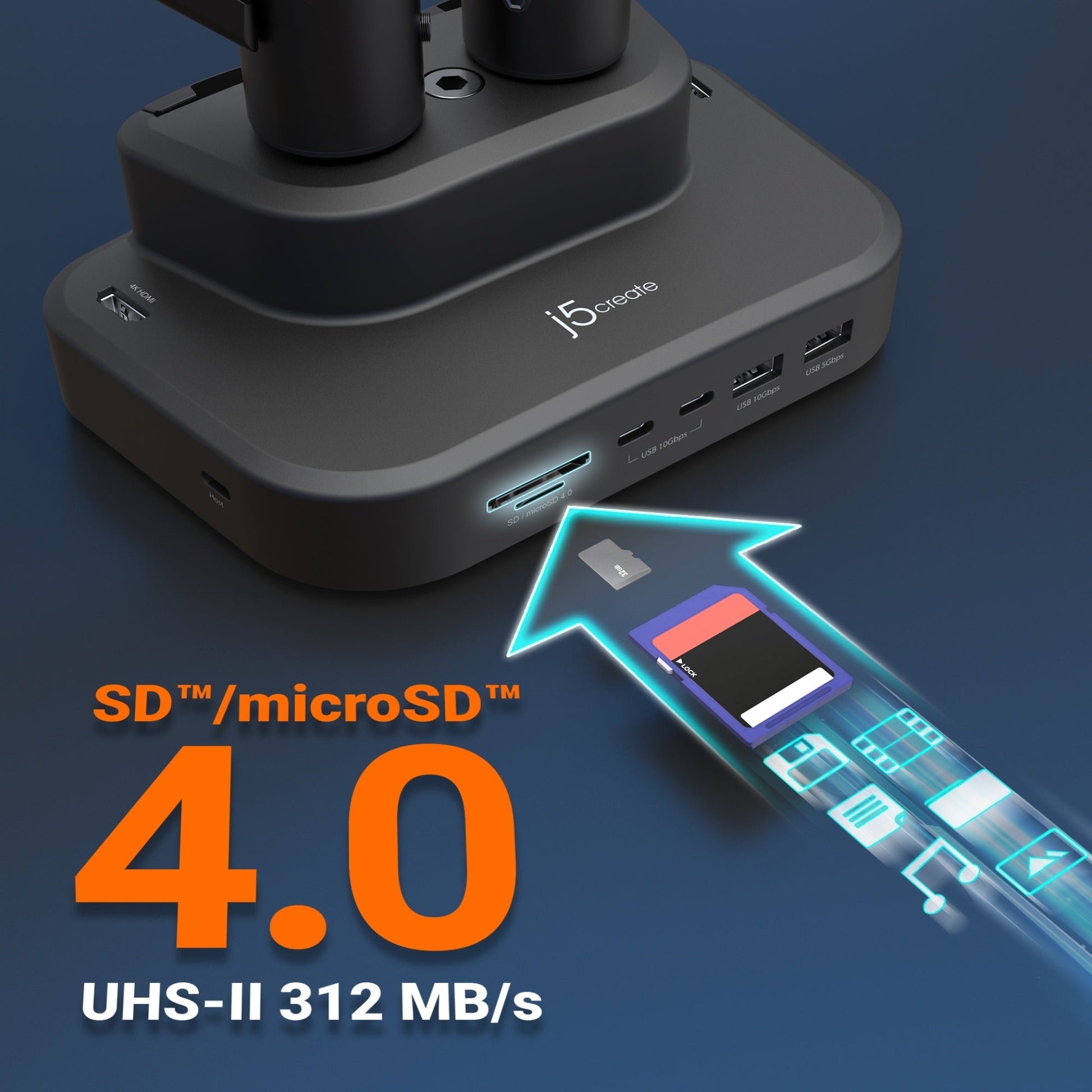

  • Ports: 2 - 4K60 HDMI™ (MST Dual 4K60); 2 - USB-C® 10 Gbps; 1 - USB Type-A 5 Gbps; 1 - USB Type-A 10 Gbps; 1 - 100W PD pass-through charging; 1 - SD™ / microSD™ 4.0; 1 - Gigabit Ethernet
  • Power source: Bus-powered or self-powered
  • VESA pattern: 75x75 mm / 100x100 mm
  • Video output: 2 - HDMI™ Female
  • Audio channel: 2.1 via HDMI™
  • Displays supported: 2
  • Max display refresh rate: 4K @ 60 Hz
  • Max display resolution: 3840 x 2160
  • Wide screen supported: Yes
  • Input current: Up to 5A
  • Input voltage: Up to 20V
  • Output current: Up to 4.25A
  • Output voltage: Up to 20V
  • Power consumption: ≤ 900 mA

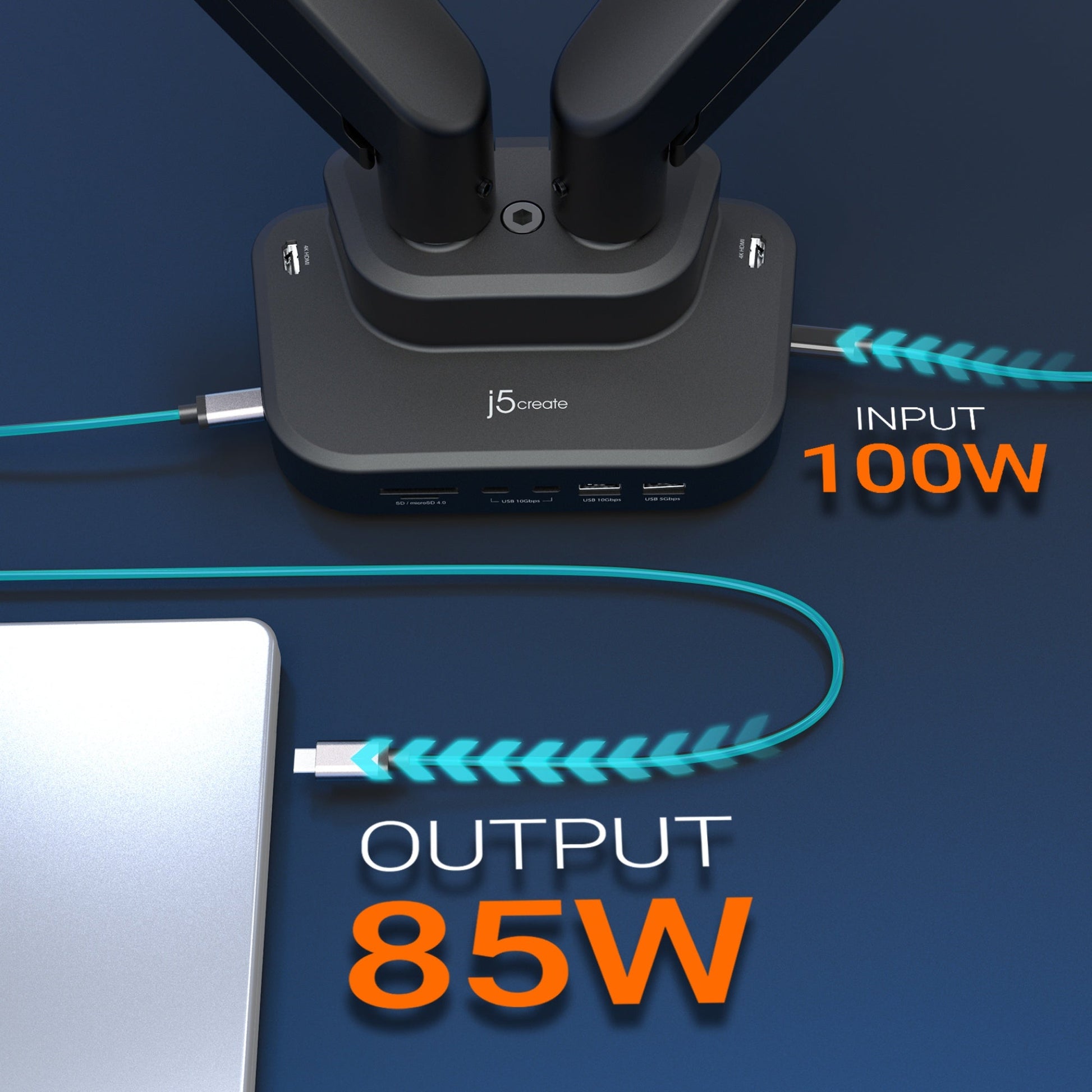

  • Power delivery: Up to 100W
  • Color: Black
  • Operating humidity: < 85% non-condensing
  • Operating temperature: 30 to 116°F (0 to 30°C)
  • Product depth: 465 mm / 18.3 in
  • Product height: 320 mm / 12.6 in
  • Product width: 180 mm / 7.08 in
  • Product weight: ≈ 8.82 lbs (4 kg)
  • Stand material: Aluminum / Steel / Plastic
  • Storage humidity: < 85% non-condensing
  • Storage temperature: 0 to 155°F (-10 to 65°C)

WHAT'S IN THE BOX:

  • JTSA302 Ergonomic Dual-Monitor Mount with Docking Station x1
  • USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft) x1
  • Installation tools & accessories x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
