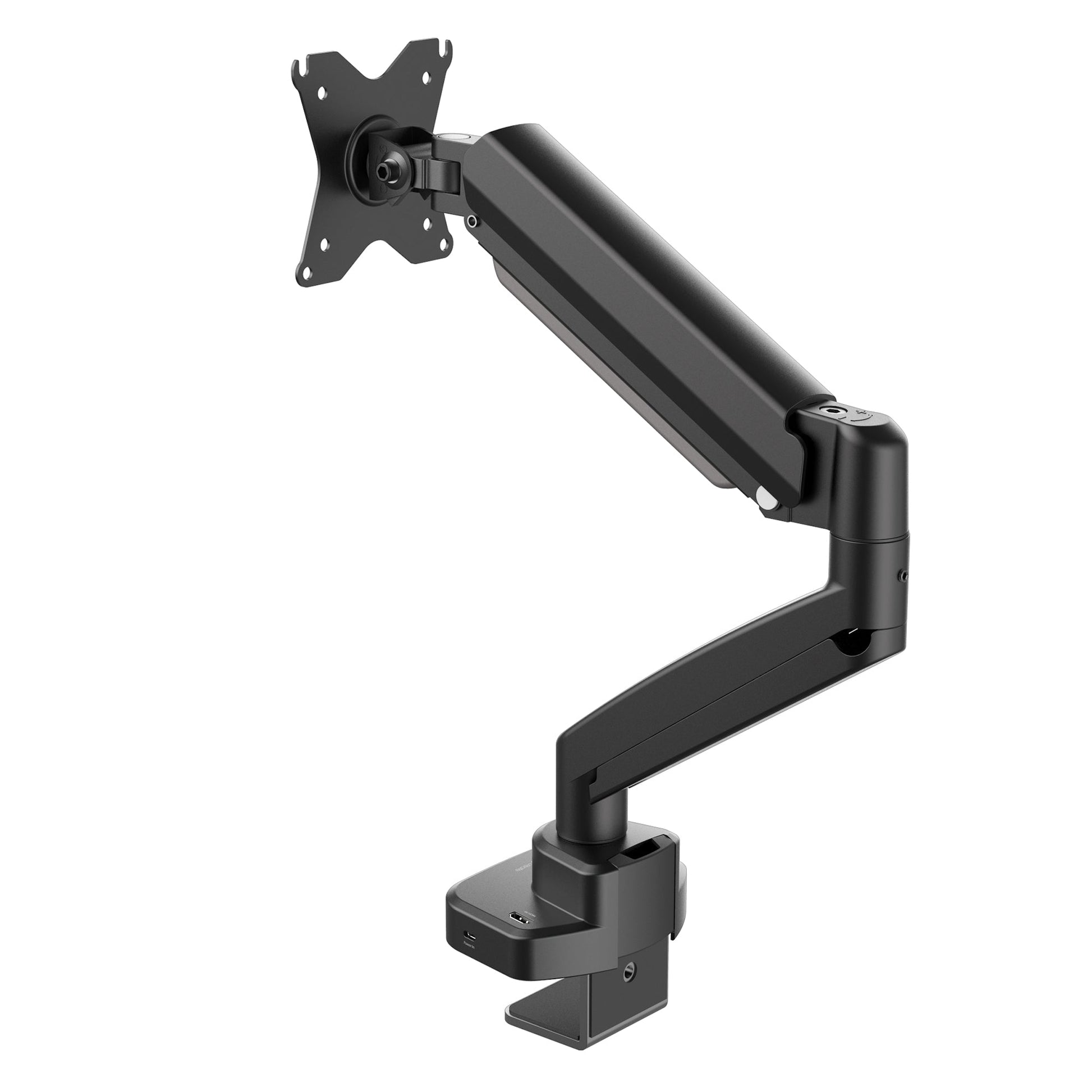

The JTSA301 is a gas spring monitor mount. Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging. The arm can hold max a 32” screen weighting up to 8kg/17.6 lbps. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
FEATURES:
Fully adjustable gas spring monitor mount with multi-function dock

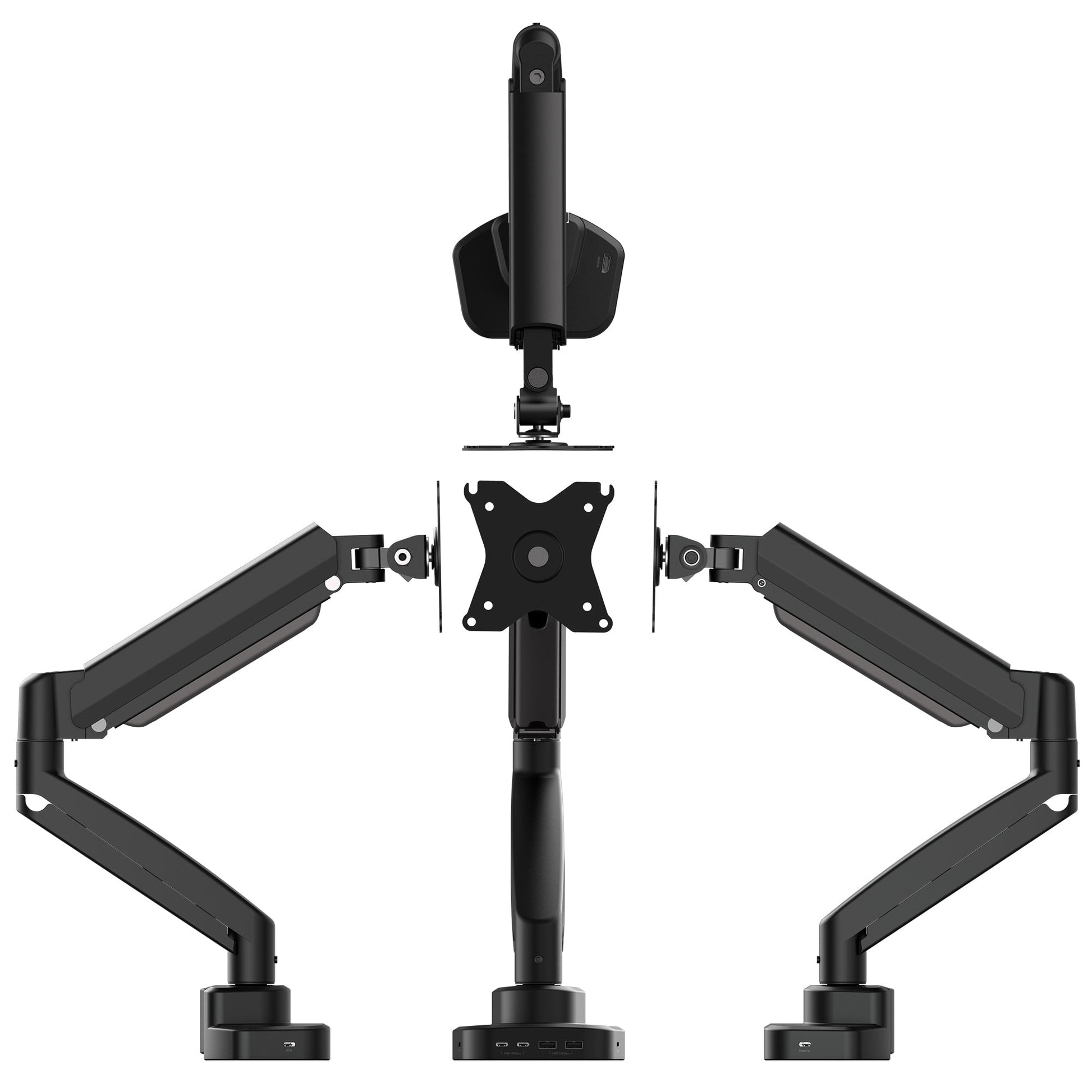

Easily adjusts monitor to any height and allows the screen to swivel 180°, tilt -45° to +90° and rotate 360° Conveniently set your monitor at an optimal angle

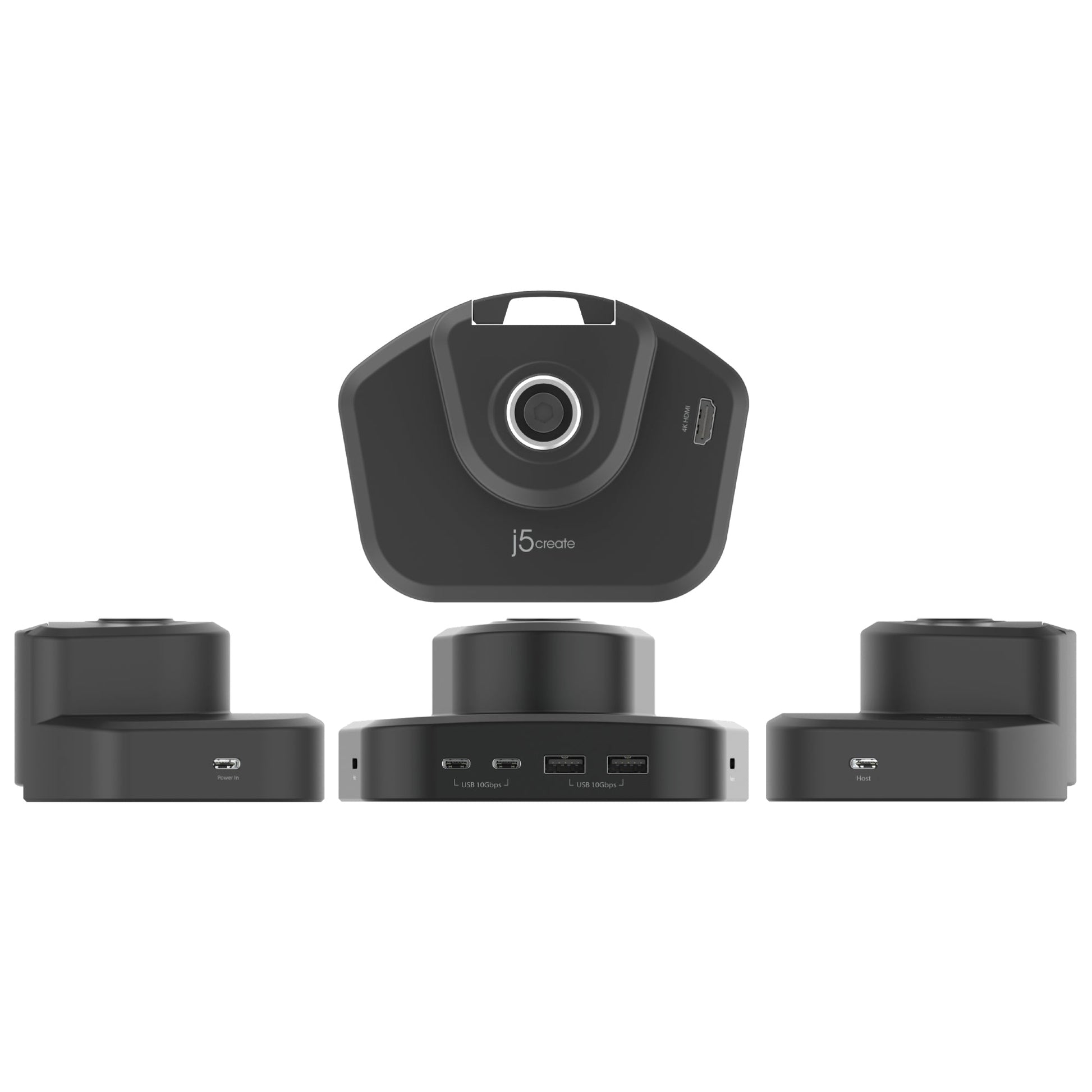

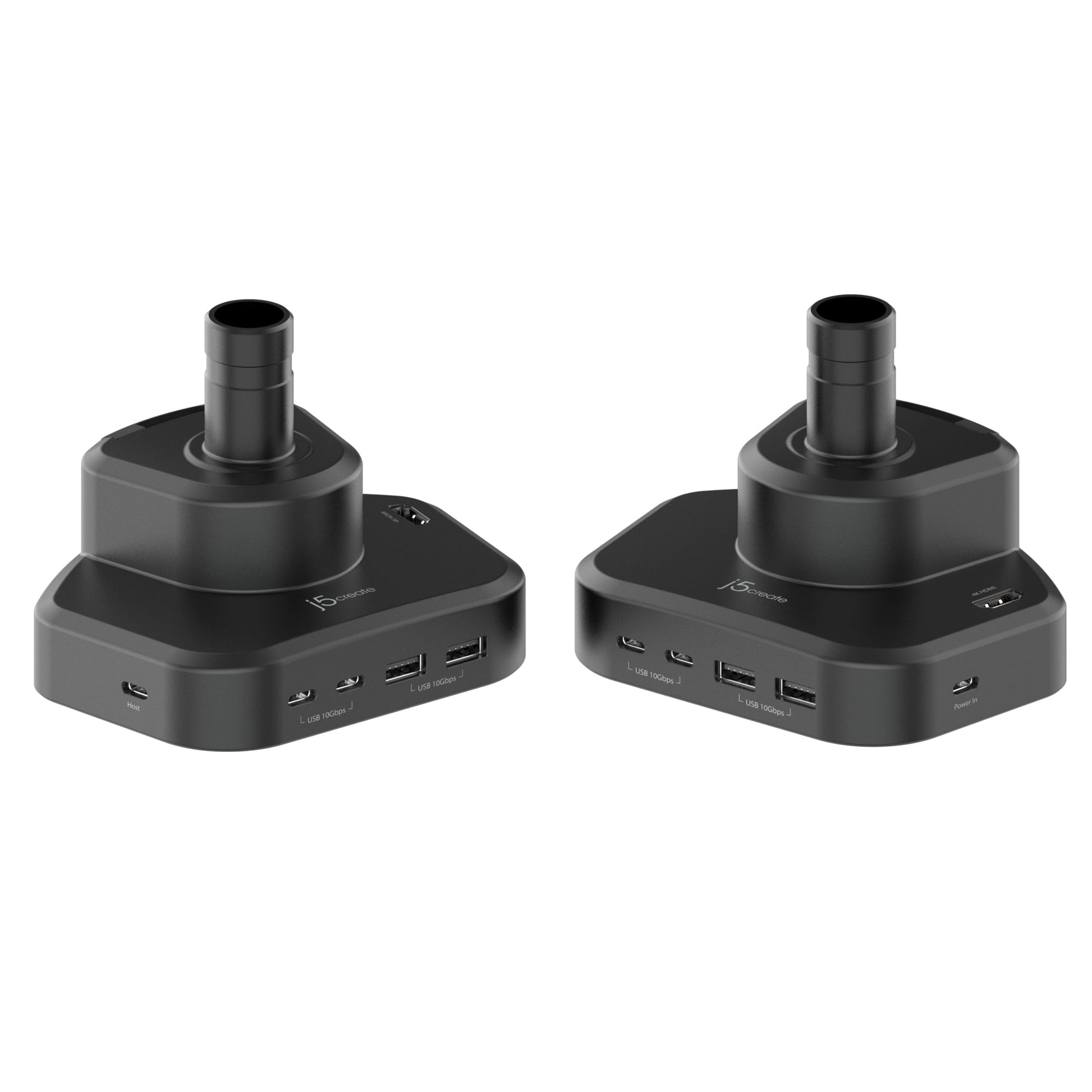

Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging
System Requirements:
DisplayPort™ 1.4 required on graphics card or video source to support 4K@60Hz
Supports 17" to 32" monitors weighing up to 8 kg/17.6 lbs
Windows® and macOS® compatible
SPECIFICATIONS:
Additional Storage: No
Assembly Required: Yes
Audio Supported: Yes
Docking Station Included: Yes
Screen Tilt: -45° to +90°
Arm Swivel: -180° to +180°
Screen Swivel: -90° to +90°
Screen Rotation: 360°

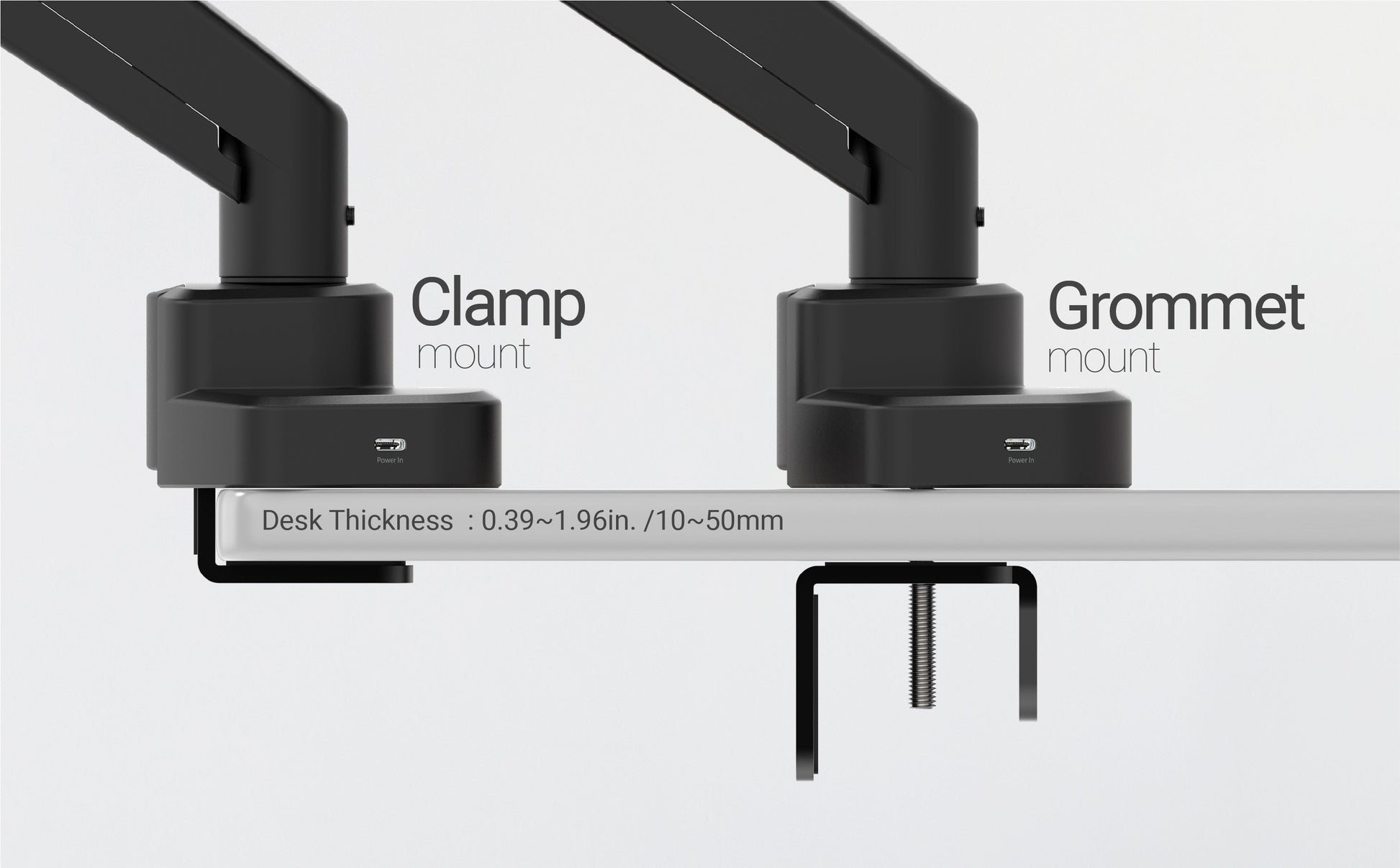

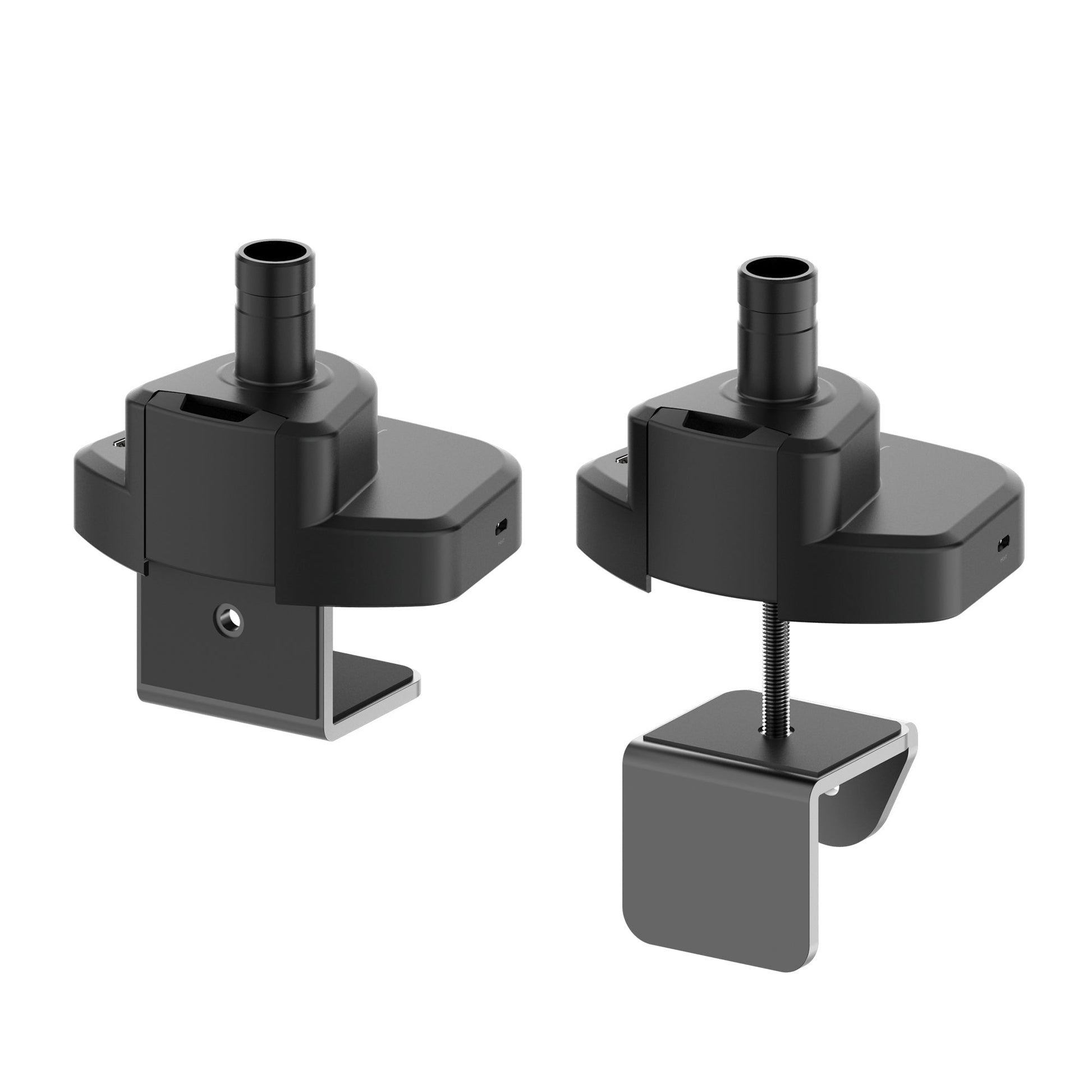

C-Clamp Base: Yes (10–50 mm)
Grommet Mounting Base: Yes (10–50 mm)
VESA® Pattern: 75 × 75 mm / 100 × 100 mm
Host Connector: USB-C® (female) × 1
Network Interface: No
Video Output: HDMI™ (female) × 1

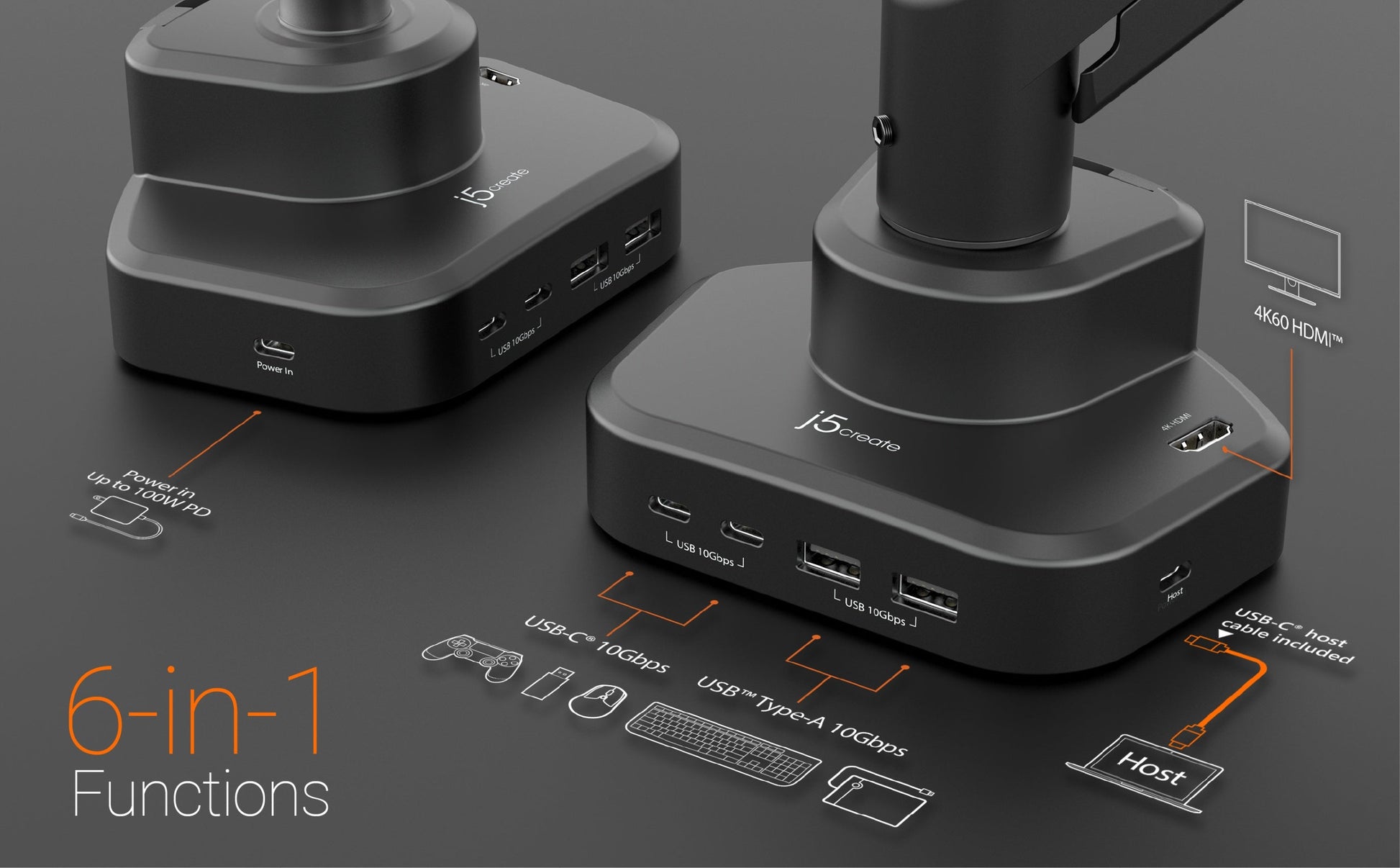

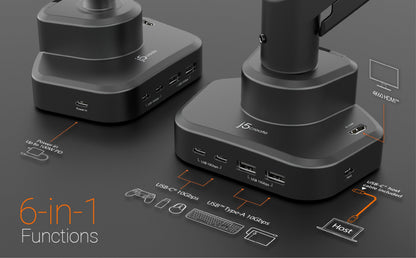

Ports:
HDMI™ 4K @ 60 Hz × 1
USB-C® (10 Gbps, data transfer) × 2
USB™ Type-A (10 Gbps) × 2
USB-C® Power Delivery pass-through (up to 100W) × 1
Displays Supported: 1
Max Display Resolution: 3840 × 2160 (4K)
Max Refresh Rate: 4K @ 60 Hz
Wide Screen Support: Yes
Audio Channel: 2.1 via HDMI™
Power Source: Bus-powered or self-powered
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 100W
Color: Black
Stand Material: Aluminum / Steel / Plastic
Dimensions:
Depth: 465 mm / 18.3 in
Height: 320 mm / 12.6 in
Width: 130 mm / 5.11 in
Weight: ≈ 4.2 lbs (1.9 kg)
Operating Temperature: 30 to 116°F (0 to 30°C)
Operating Humidity: < 85% (non-condensing)
Storage Temperature: 0 to 155°F (-10 to 65°C)
Storage Humidity: < 85% (non-condensing)
WHAT'S IN THE BOX:
JTSA301 Ergonomic Monitor Mount with Dock x1
USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft) x1
