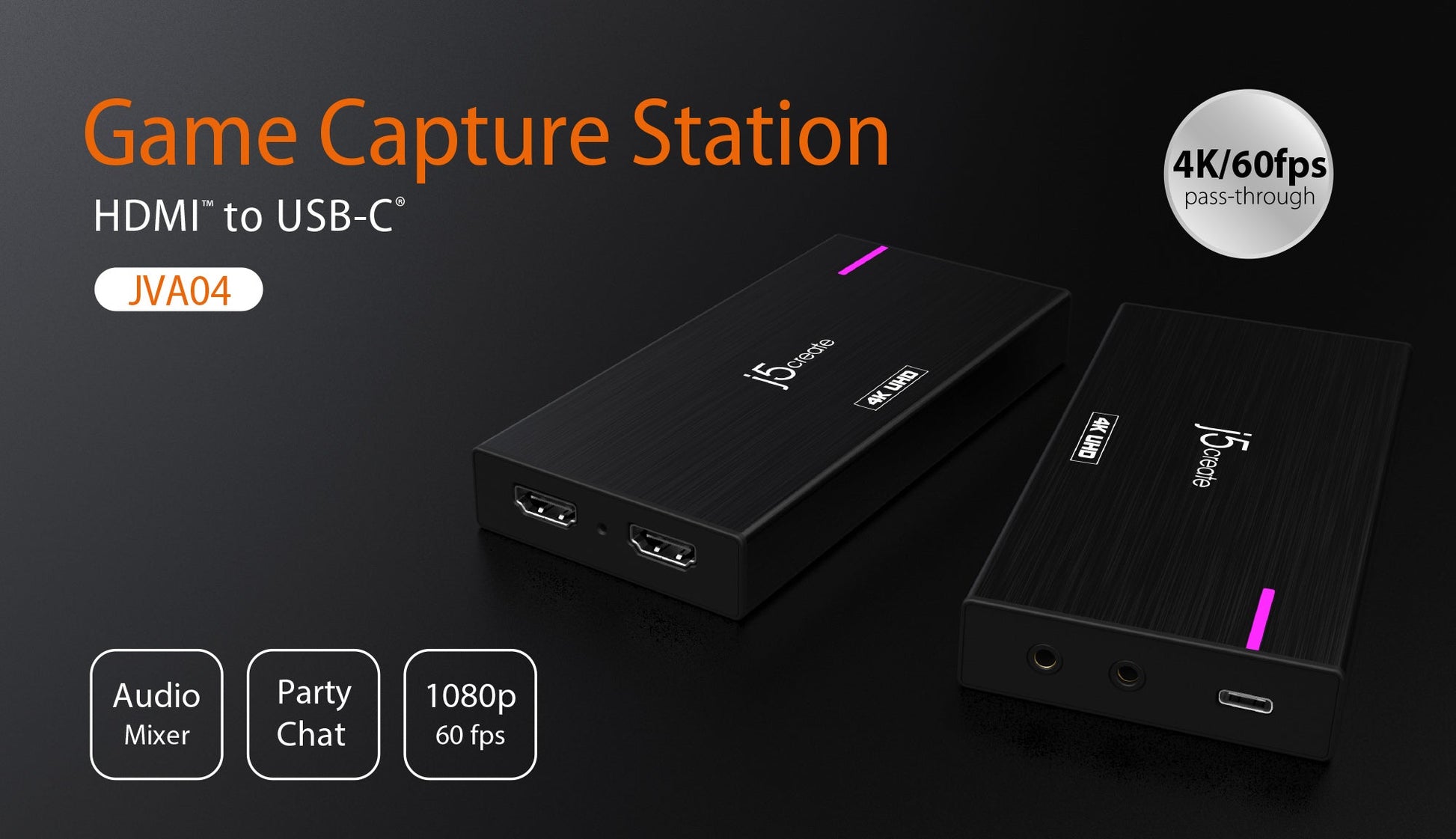

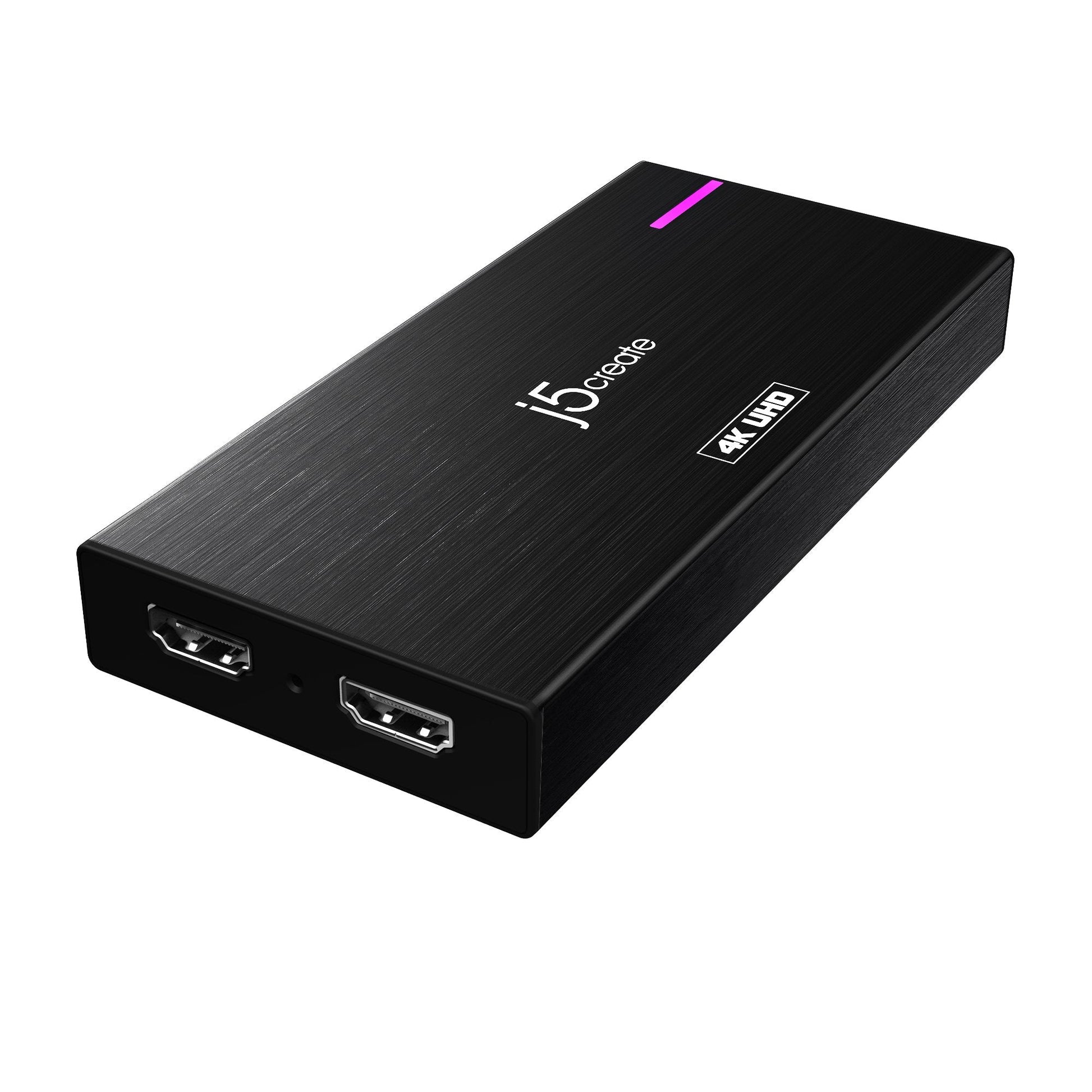

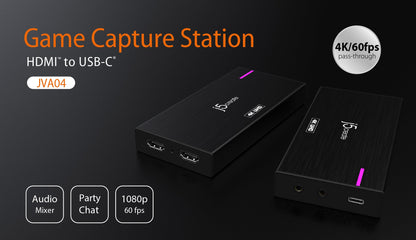

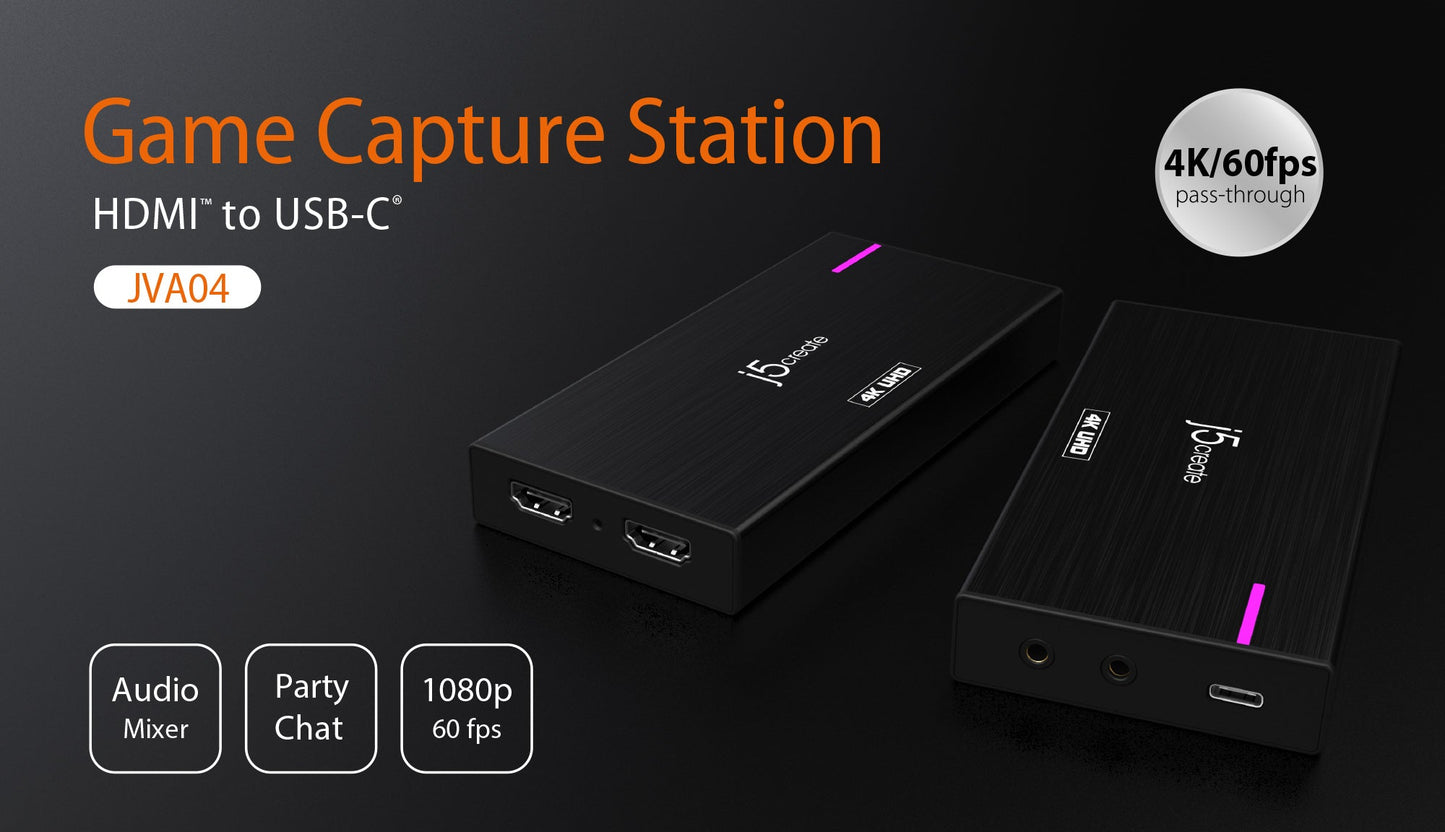

J5create HDMI to USB Type-C Game Capture Station - JVA04

Our Game Capture Station, the JVA04, supports 1080p @ 60 fps Full HD video capturing with 4K @ 60 fps input and pass-through. Easily run on your Windows^® or macOS^® laptop/desktop with no driver needed.

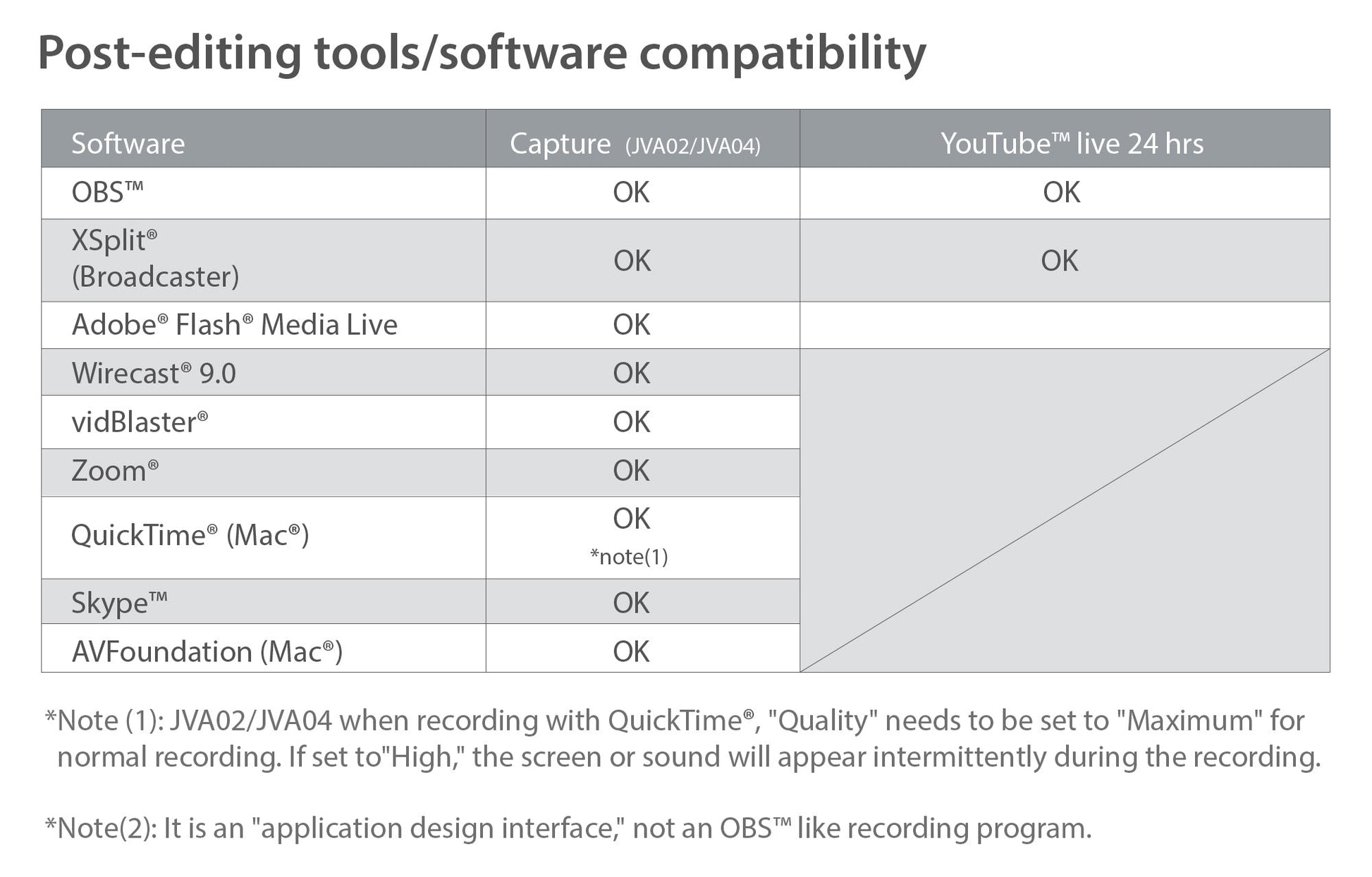

Supports live commentary streaming, party chat voice mix and mic in for newer consoles. It is compatible with other video editing software, perfect for assisting quick, live video editing.

FEATURES:

• 4K pass-through support (4K @ 60 fps)
• Capture resolution up to 1080p @ 60 fps

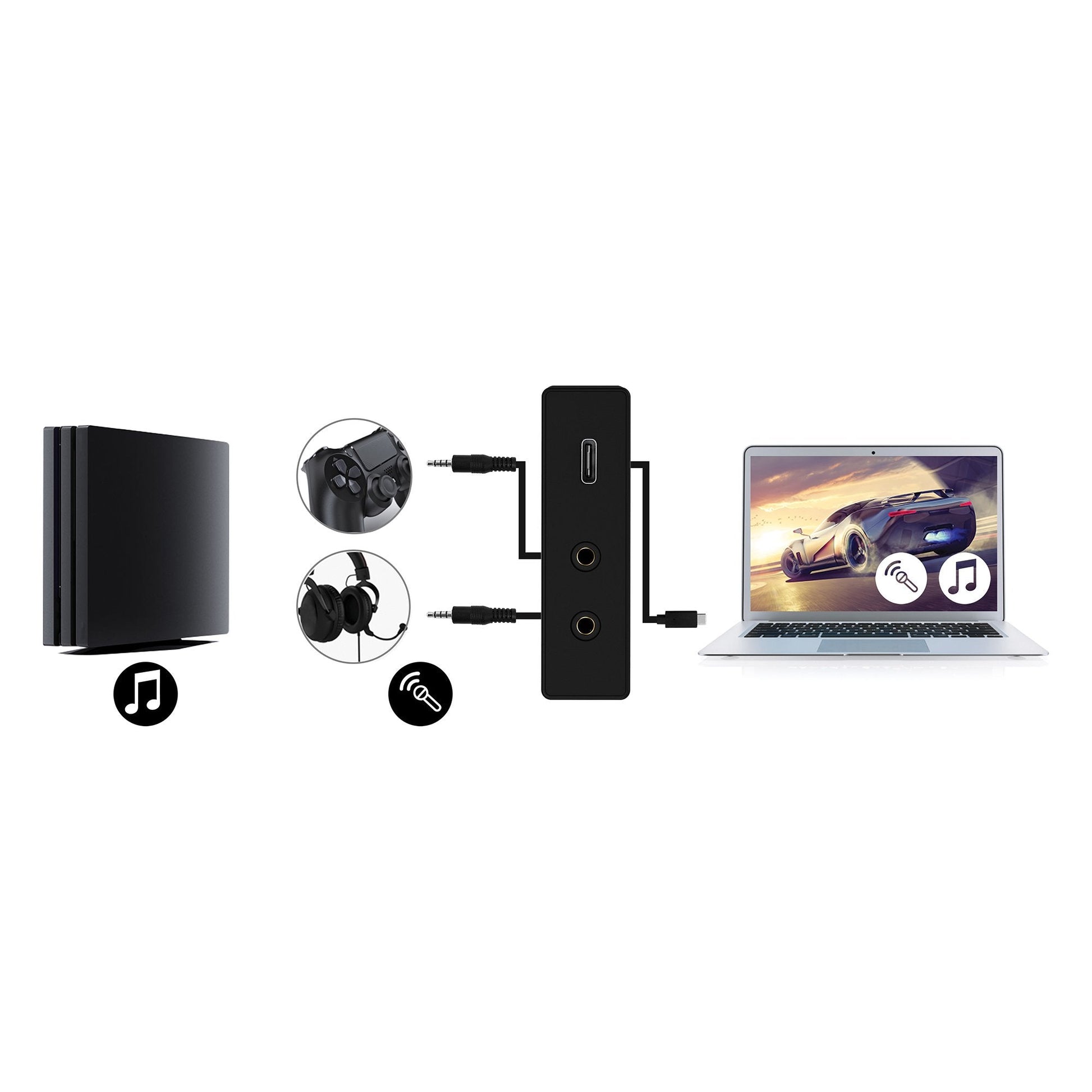

• Audio recording mixed – 3.5 mm Aux and Mic in

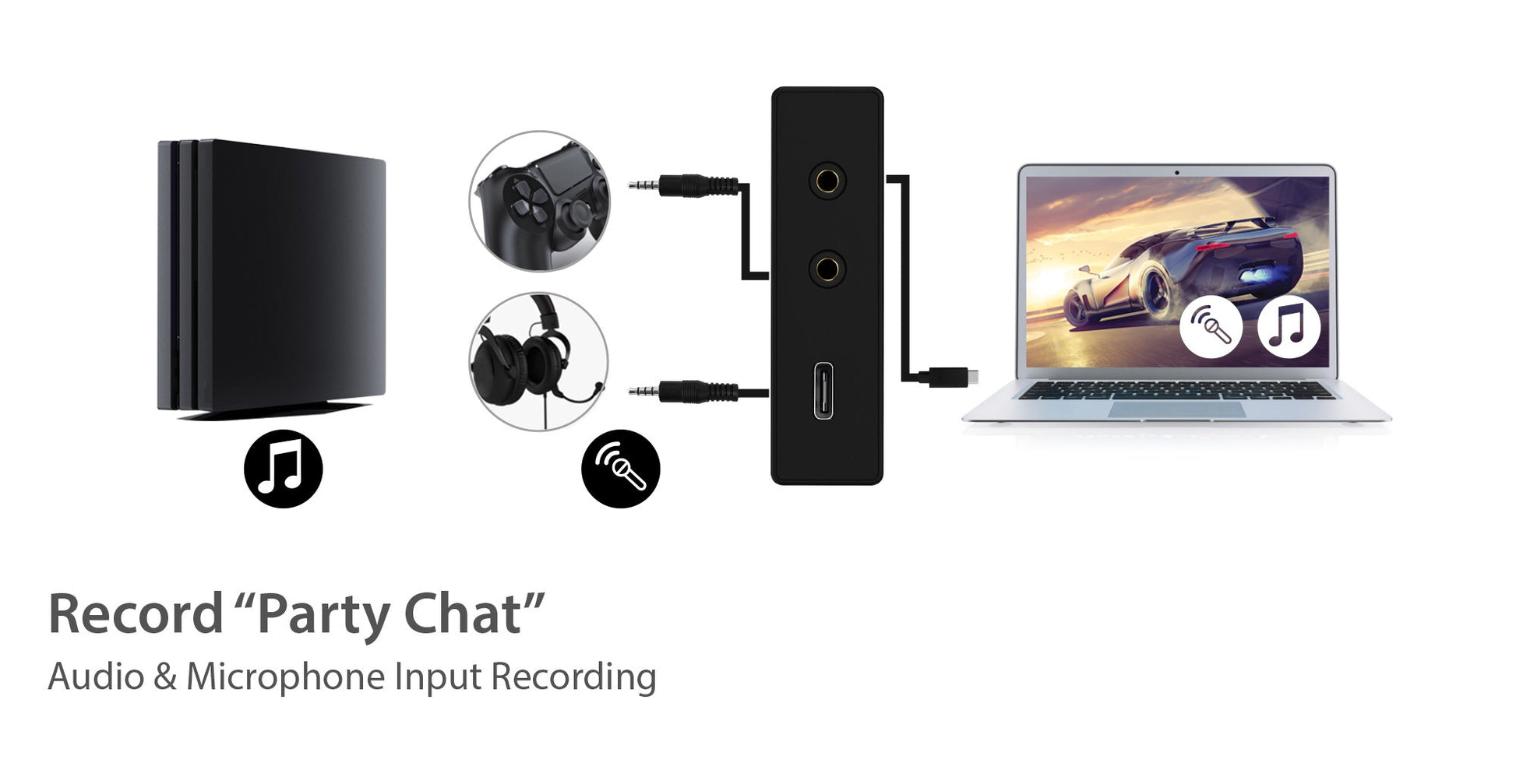

• Supports party chat voice for newer consoles
• Driver free on Windows^® and macOS^®
• Low power consumption with high performance
• Free j5create capture software allows you to capture and stream games on your PC or notebook

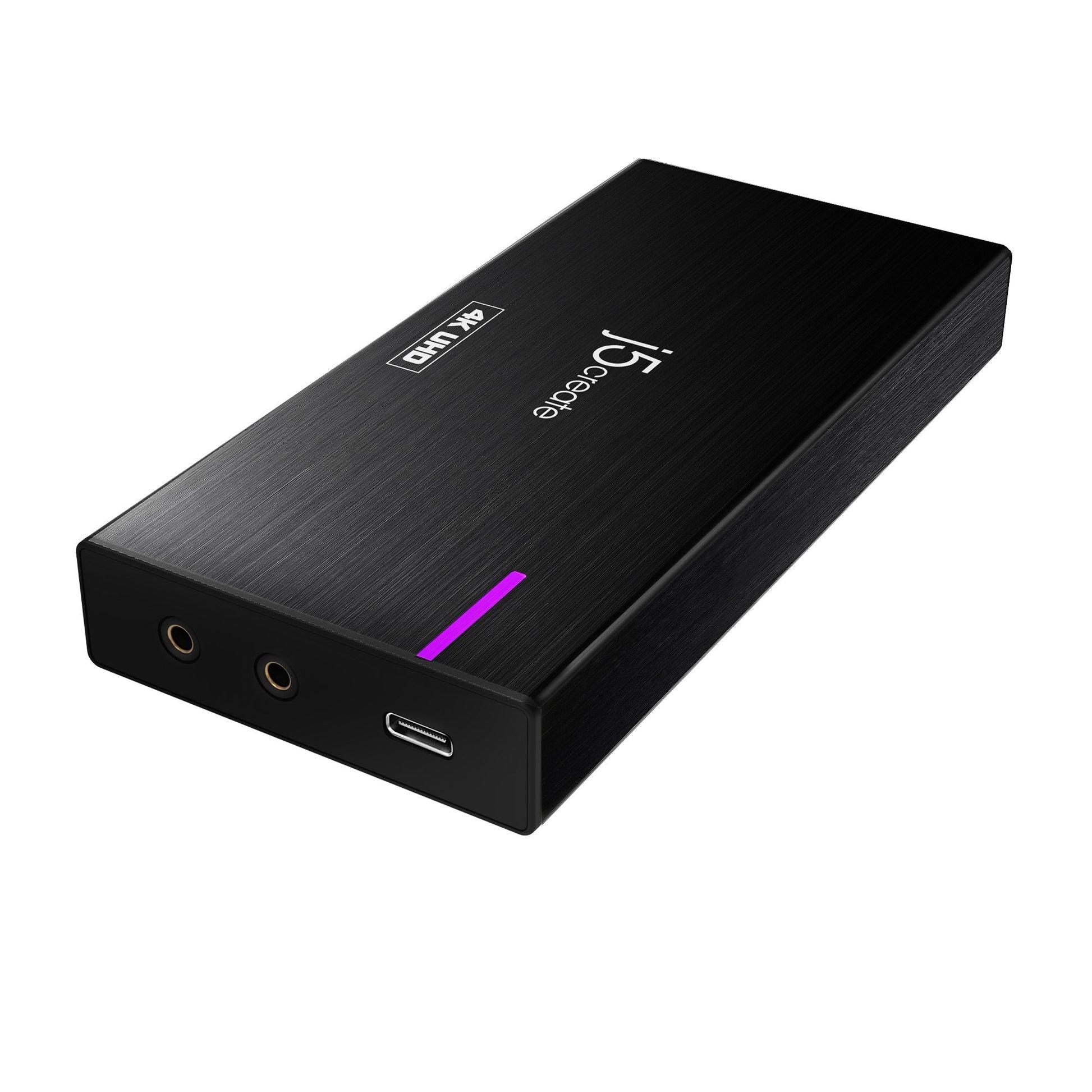

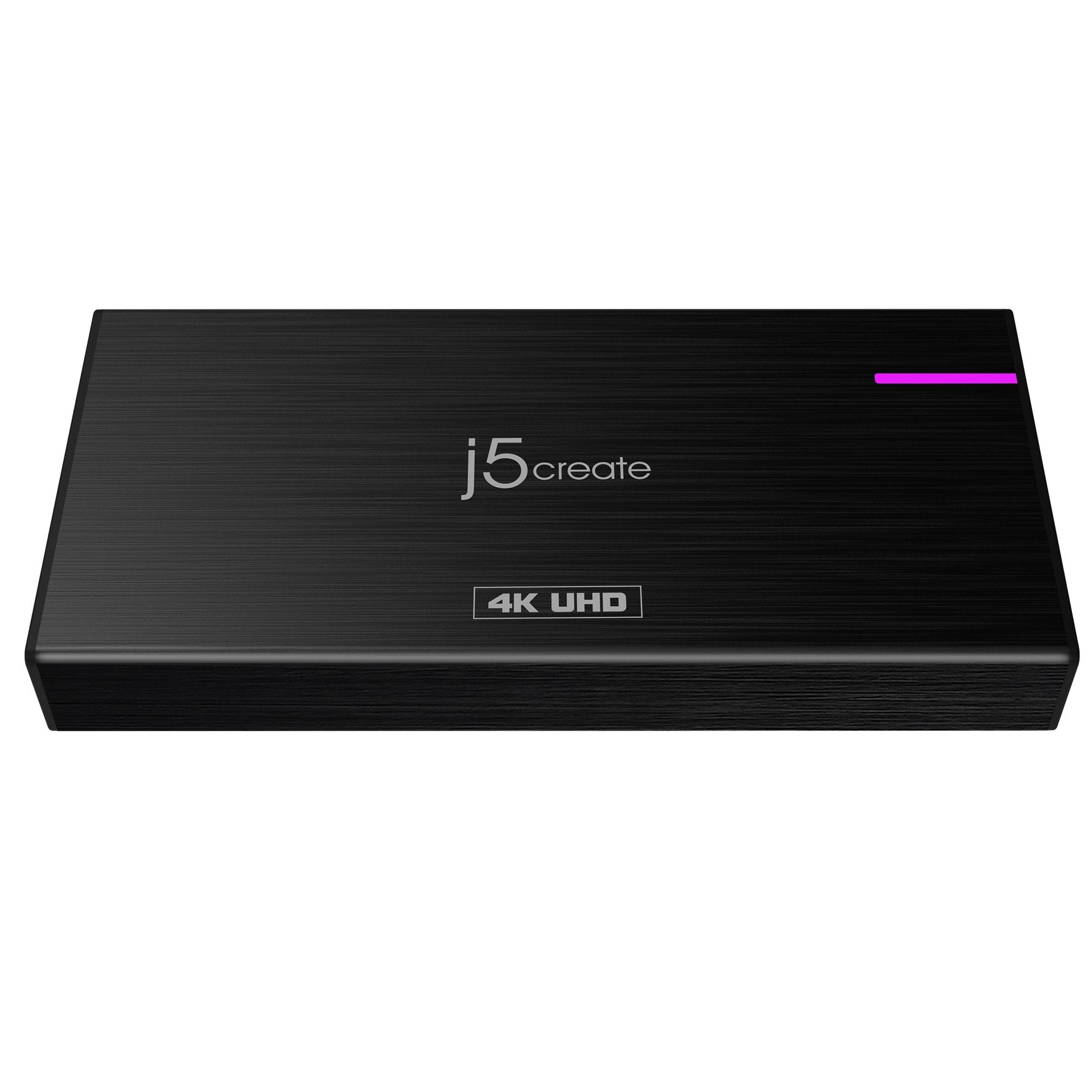

• Aluminum design and LED light

SPECIFICATIONS:

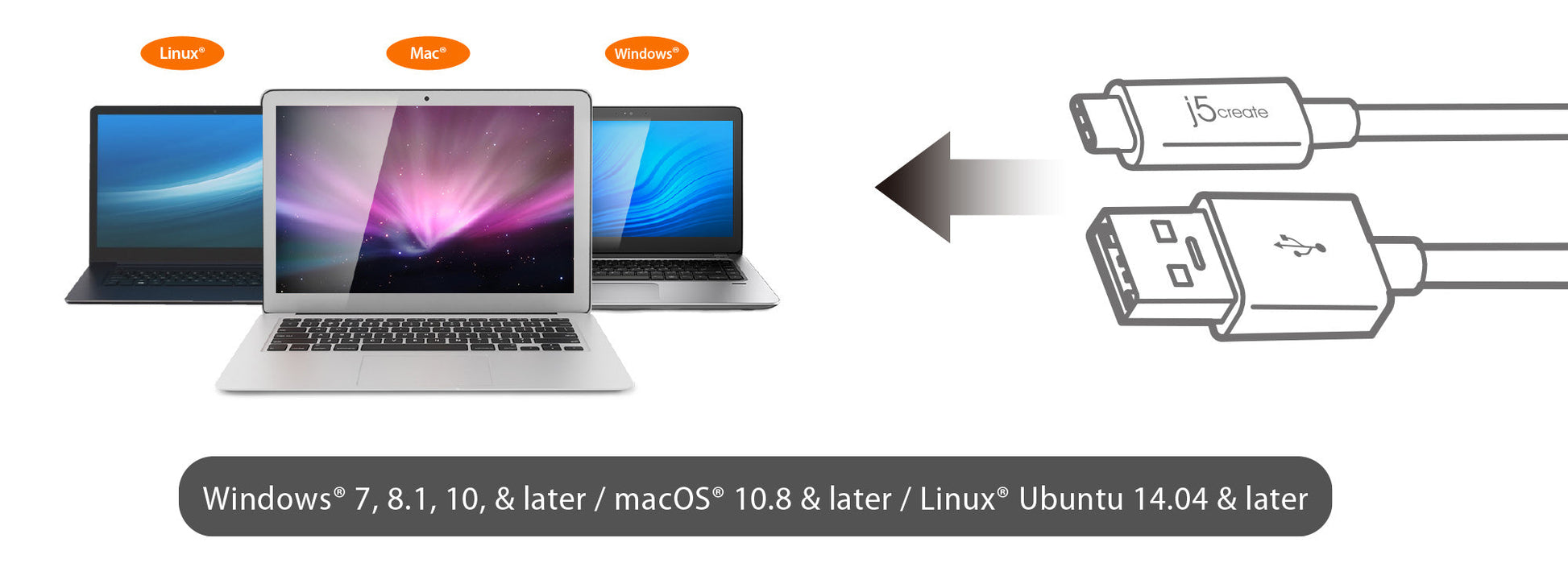

• OS: Windows® 7/8.1/10, macOS® 10.8 or later, Linux® (Driver installation required on Windows® 7)
• Video Input: HDMI™ (up to 4K @ 60 fps)
• Video Bypass: HDMI™ (up to 4K @ 60 fps)
• Video Capture Resolution:
  480i @ 60 fps; 576i @ 50 fps; 480p @ 60 fps; 576p @ 50 fps; 720p @ 50 fps; 720p @ 60 fps; 1080i @ 50 fps; 1080i @ 60 fps; 1080p @ 25 fps; 1080p @ 30 fps; 1080p @ 50 fps; 1080p @ 60 fps
• USB™ Interface: USB Type-C™ 3.1 Gen1
• Device: UAC, UVC
• Video Loop Resolution:
  480i @ 60 fps; 576i @ 50 fps; 480p @ 60 fps; 576p @ 50 fps; 720p @ 50 fps; 720p @ 60 fps; 1080i @ 50 fps; 1080i @ 60 fps; 1080p @ 24/25/30/50/60 fps; 4Kp @ 60 fps (*Does not support HDR, 1440p, ultra-wide monitor)

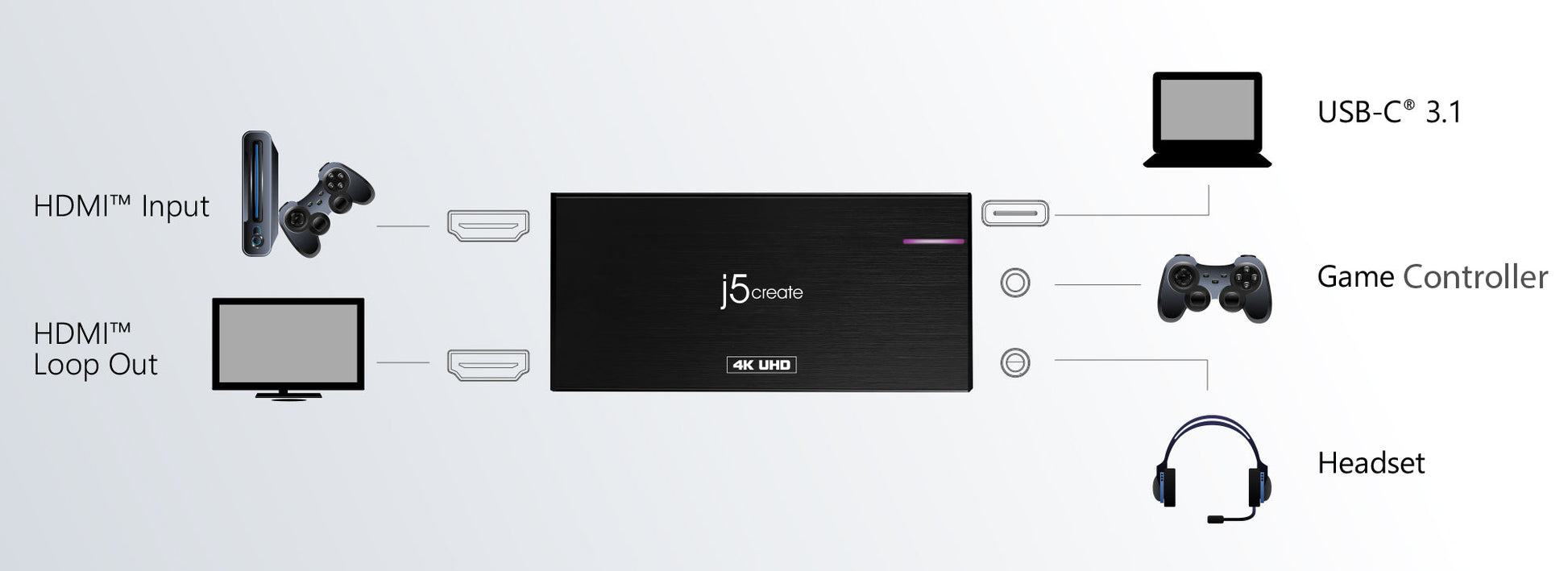

• Audio In/Out:

1. Headset: 4-pole 3.5 mm phone jack (Mic in/Audio out), stereo microphone supported
2. Game controller: 4-pole 3.5 mm phone jack (Mic out/Audio in)

• Audio Frequency: 48 KHz
• Compression: USB™ 3.0 MJPG/YUV 4:2:2 (uncompressed); USB™ 2.0 MJPG (up to 1080p @ 60 fps)
• Encode Format: MP4, H.264 / AVC + AAC
• LED Light: Power on Purple; USB™ 3.0 Blue (Uncompressed); USB™ 3.0 Purple (MJPG); USB™ 2.0 Orange
• Power Consumption: USB™ 3.0 Normal 850 mA, Max 1050 mA; USB™ 2.0 Normal 800 mA, Max 1000 mA
• Case Material: Aluminum

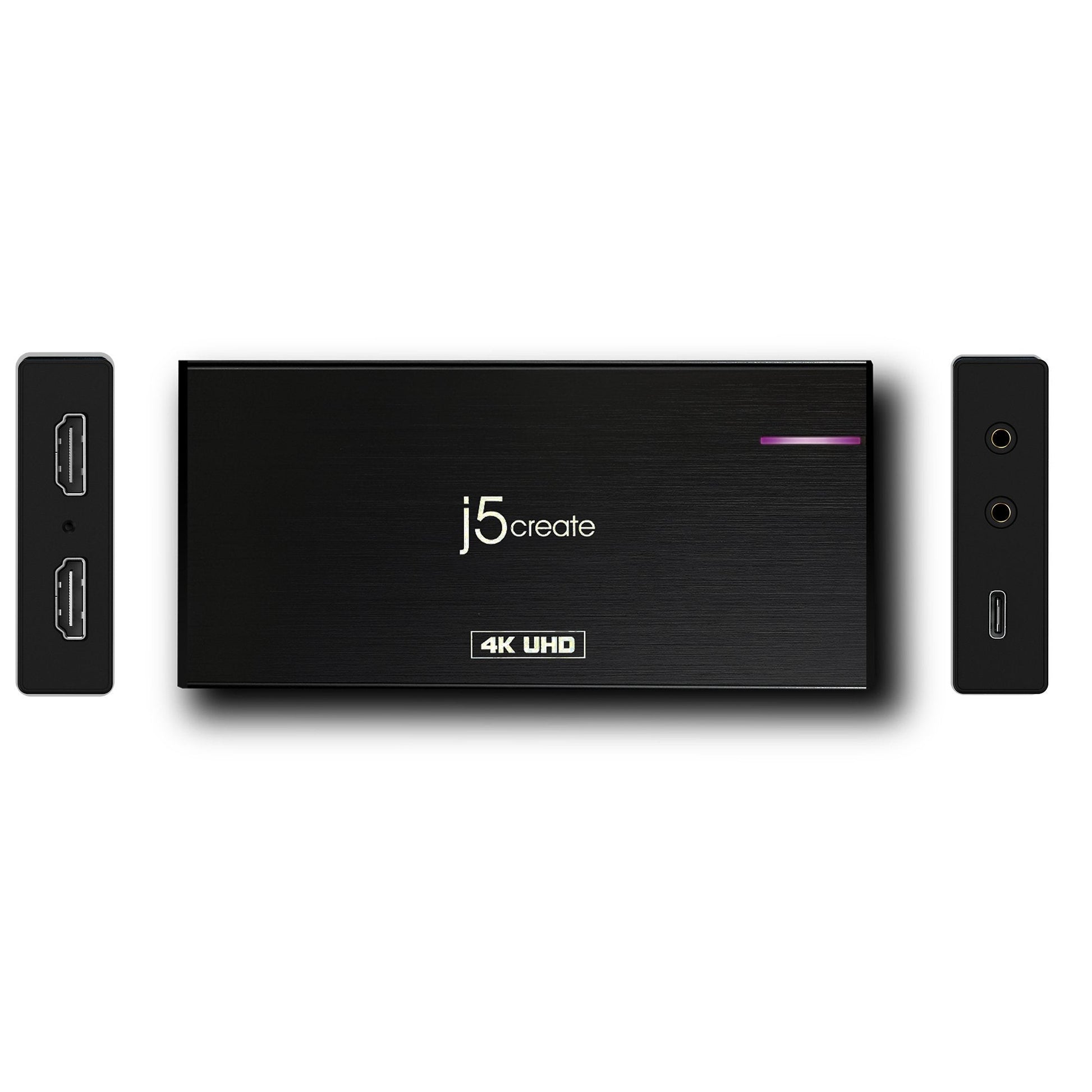

• Dimensions: Main body 133.8 (W) x 64.5 (H) x 17.5 (D) mm
• Weight: Approximately 142.5g
• Storage Temperature: -10 – 65°C
• Storage Humidity: <85% non-condensing
• Operation Temperature: 0 – 40°C
• Operation Humidity: <80% non-condensing

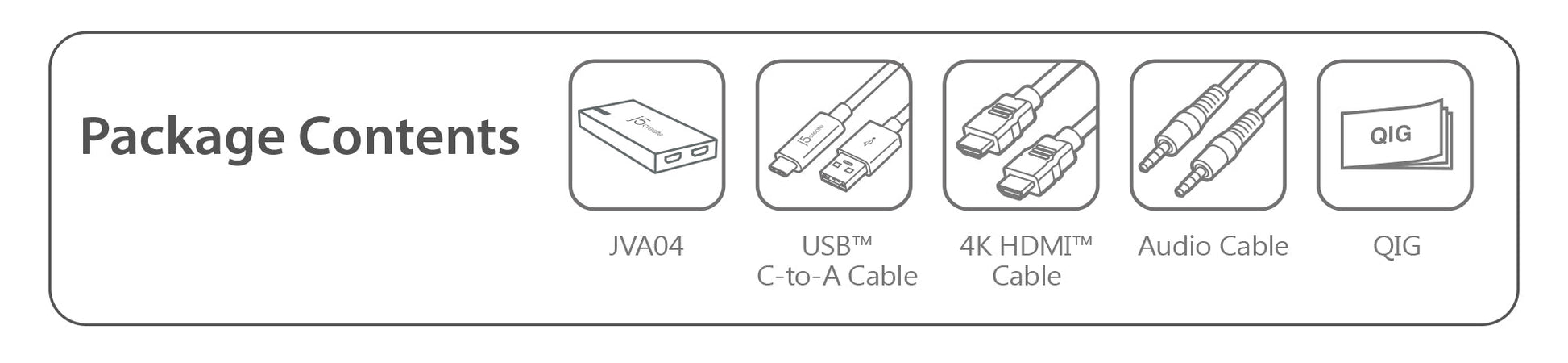

WHAT'S IN THE BOX:

• JVA04 HDMI^™ to USB Type-C^™ Game Capture Station x1
• USB Type-C^™ to Type A 3.0 cable 3.3 ft/1m x1
• Audio cable 4.9 ft/1.5m x1
• HDMI^™ 2.0 cable 3.3 ft/1m x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
