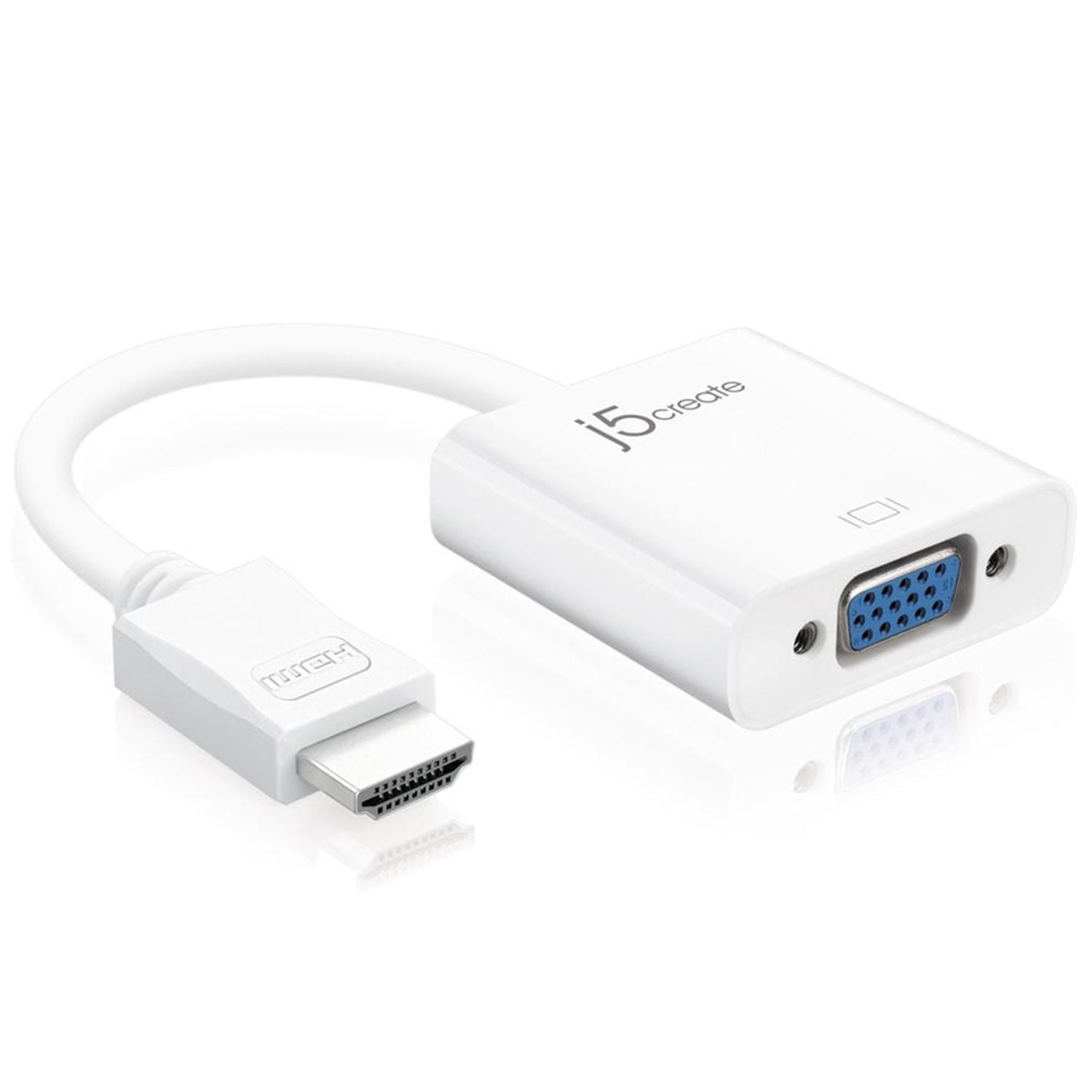

J5create HDMI to VGA Adapter - JDA213

The JDA213 HDMI^™ to VGA adapter allows you to connect the HDMI^™ output from your laptop, Ultrabook^™, desktop, tablet, Blu-ray^™, DVD player, digital set-top box, digital camera, video camera, or gaming console equipment to the VGA input of a monitor or projector by converting the HDMI^™ video signal from the output device into a VGA output and separate 2-channel analog audio. The adapter supports resolutions including high definition 1080p, up to 1920x1200, which eliminates the expense of upgrading a VGA display for the sake of compatibility. The adapter can also increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace. This adapter has a high quality, compact design for long-term durability and a minimal footprint.

Once you’ve experienced multiple monitors, you’ll never want to go back to a single monitor again.

FEATURES:

• Easy-to-use cable
• No software required
• No power adapter required
• Easily make your new HDMI^™ equipment compatible with a VGA display
• Supports PC resolutions up to 1920x1200 @ 60 Hz (WUXGA) and HDTV resolutions up to 1080p @ 60 Hz
• 2-channel analog audio output
• Reserved Micro USB^™ Type-B power input port, giving the JDA213 the ability to be powered separately if there is no HDMI^™ output device.
• HDMI^™ receiver compliant with HDMI^™ 1.4 specification
• VGA output is compliant with VESA VSIS v1r2 specification

System Requirements:

Device:
HDMI^™ devices including, but not limited to:
• Desktop, laptop, Ultrabook^™ (PC and Mac^®)
• DVD players and Blu-ray^™ players
• Smart TV box
• Digital camera
• Gaming consoles (PS3^™ and Xbox^™)VGA display devices including, but not limited to:
• Projector
• Display monitor
• TVAudio devices including, but not limited to:
• Amplifier speaker
• Home theater

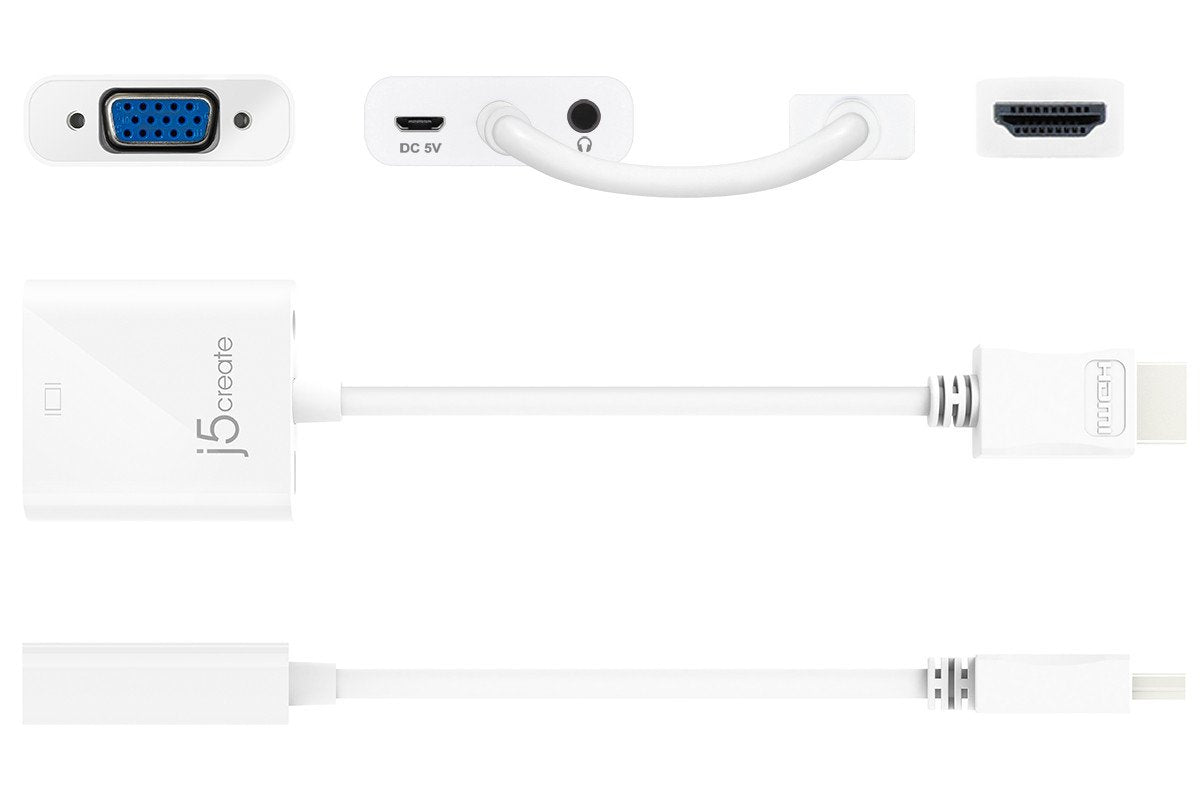

SPECIFICATIONS:

• VGA Output: VGA (15 pin; High Density D-Sub) Female
• Audio Output: 3.5 mm Mini-Jack Female
• HDMI™ Input: HDMI™ (19 pin) Male
• Power: USB™ Micro-B (5 pin) Female 5V
• Converter Type: Format Converter
• Audio: Yes
• Maximum Analog Resolutions: 1920 x 1200
• Wide Screen Supported: Yes
• Audio Specifications: 2-Channel Stereo
• Housing Material: Plastic
• Dimensions: Main body: 1.6 (W) x 1.8 (H) x 0.6 (D) in. / 40 (W) x 45 (H) x 14 (D) mm; cable length: 4 in. / 100 mm
• Weight: Approximately 54 g

WHAT'S IN THE BOX:

• JDA213 HDMI^™ to VGA adapter x1

WARRANTY:

• 24 Months
