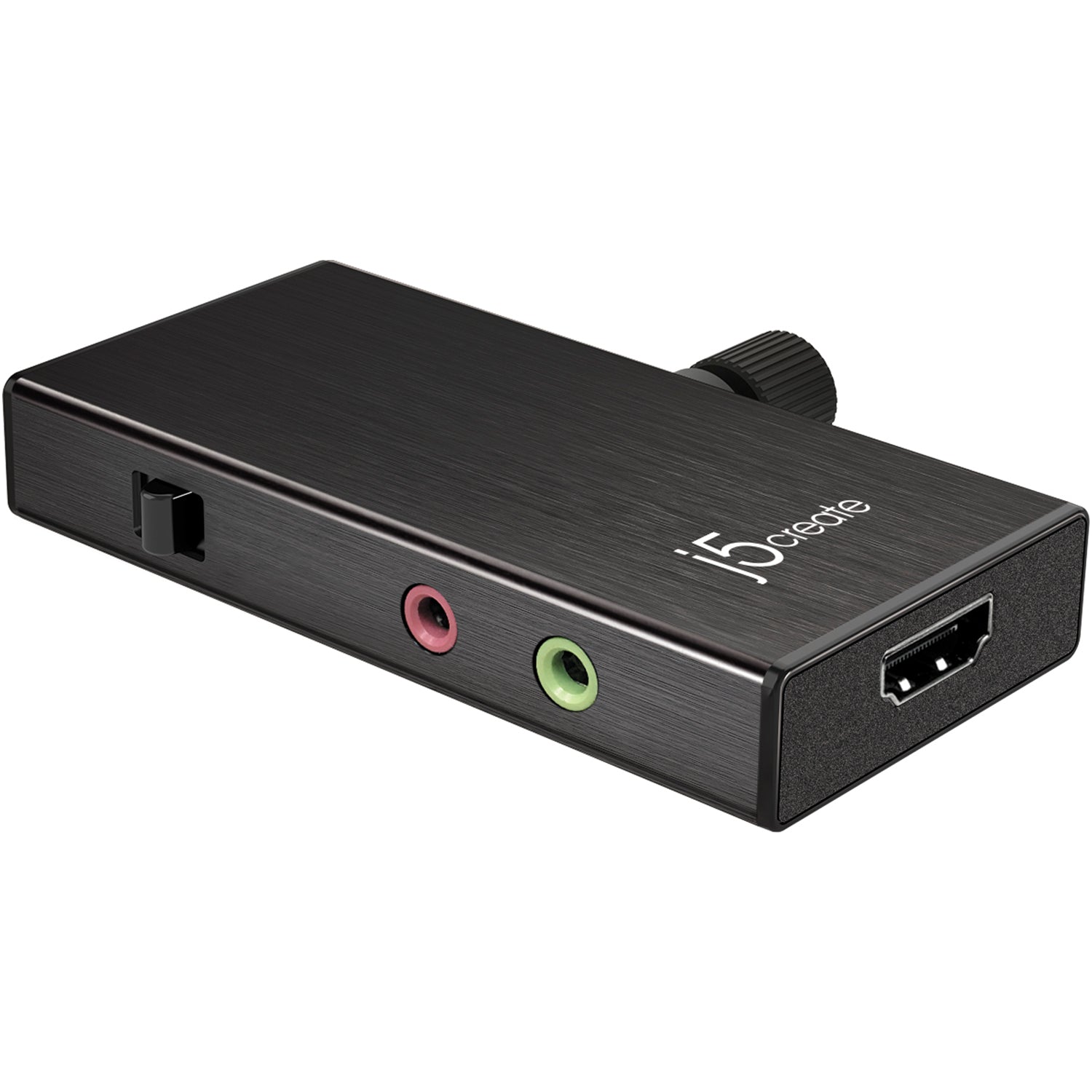

J5create Live Capture Adapter HDMI to USB-C with Power Delivery - JVA02

Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI^™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB^™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.

FEATURES:

• Uncompressed mode gives excellent video quality and reduces CPU loading
• Power Delivery 3.0 allows you to live stream without interruption
• Professional listening and microphone mixer function
• Low power consumption with high performance

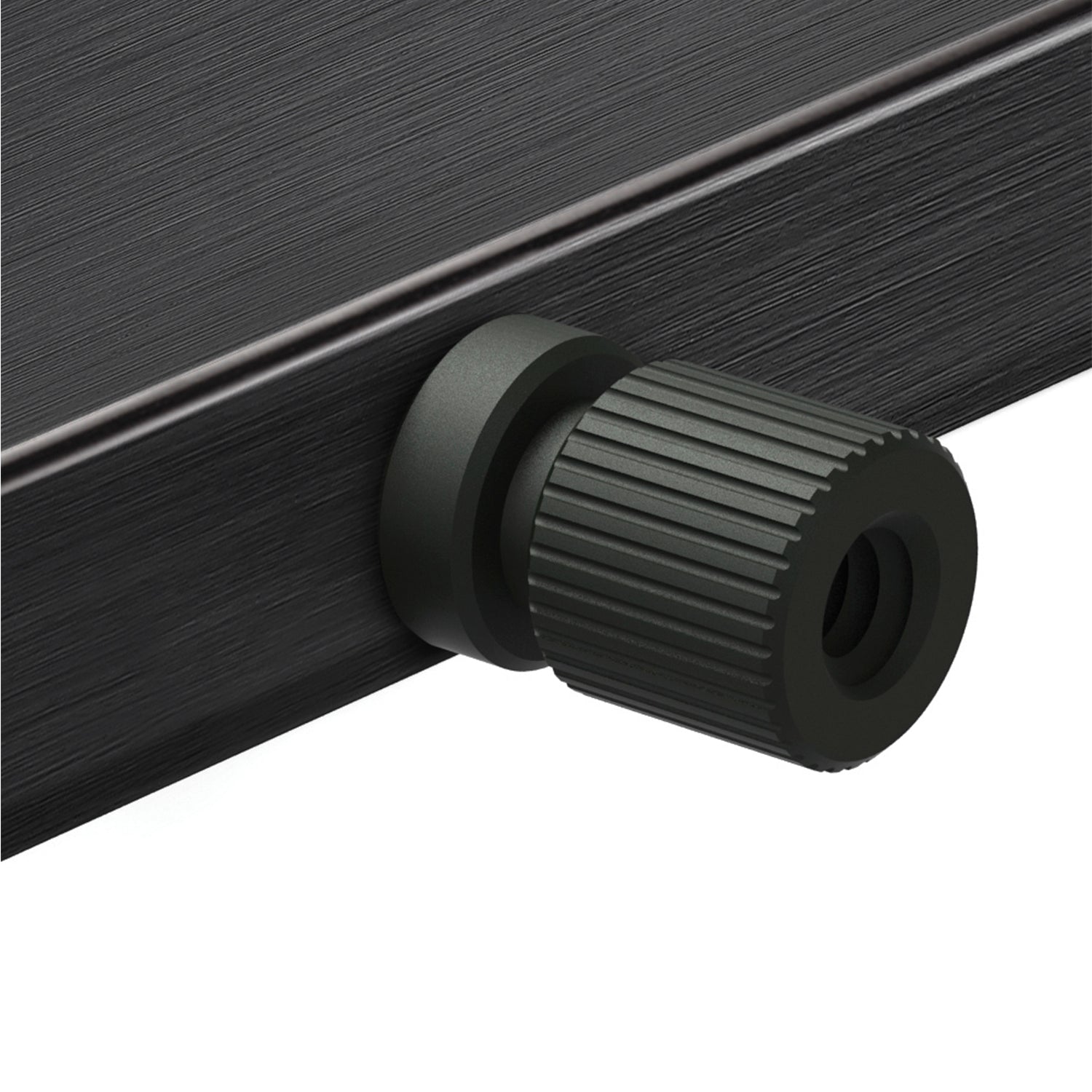

• Includes camera screws to attach to cold shoe adapter
• Full HD video and audio high-performance record/playback through USB-C^™ 3.1
• Capture resolution up to 1080p @ 60 fps

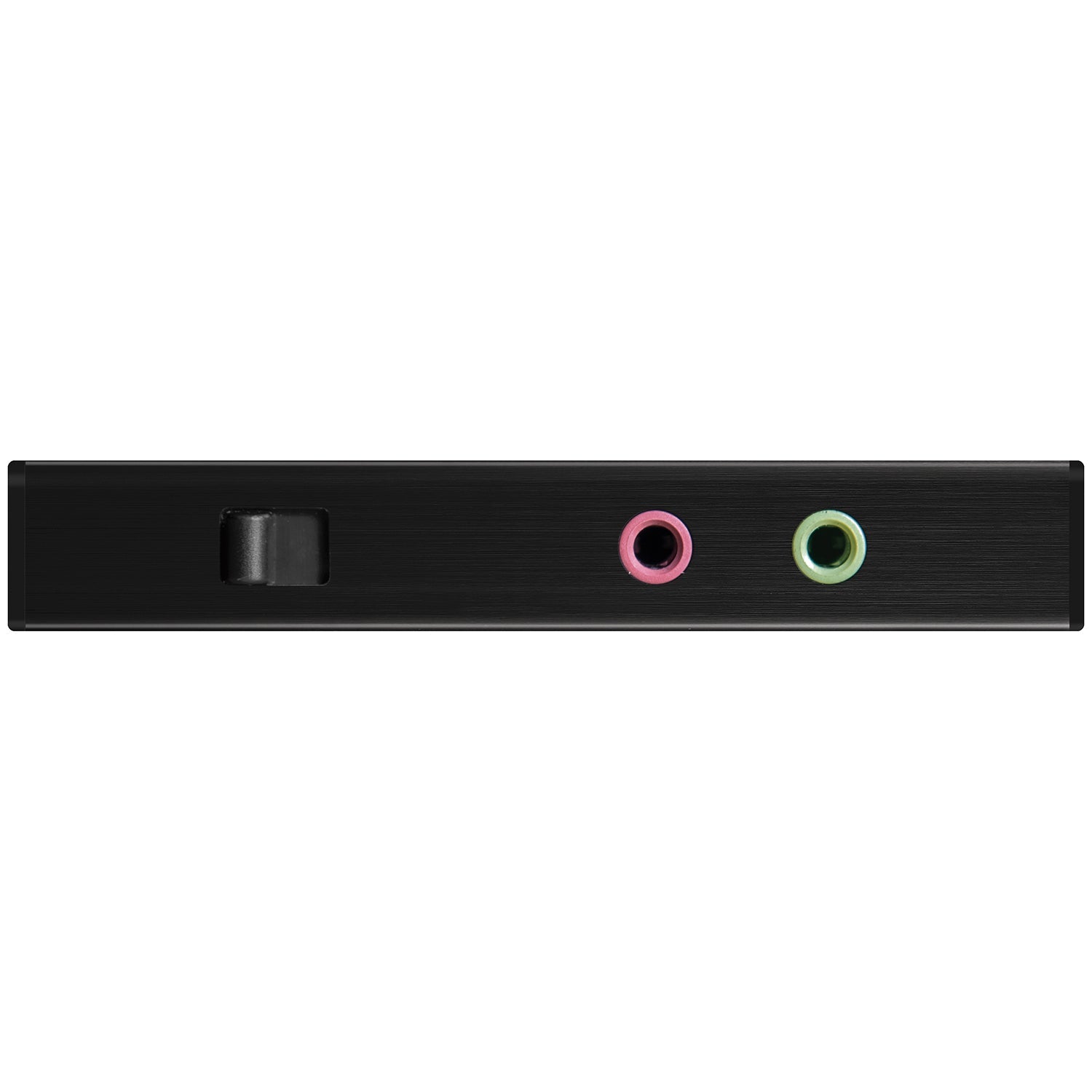

• Microphone input & Audio output
• 3 audio modes: Mic/ HDMI™/ Mix
• Aluminum design

SPECIFICATIONS:

• OS: Driver Free — Windows® 8.1/10, macOS®, Linux®; Driver — Windows® 7
• Resolution:
  640 x 480 @ 60/72/75 fps; 720 x 480 @ 60 fps; 720 x 576 @ 50 fps; 800 x 600 @ 60/72/75 fps; 848 x 480 @ 60 fps; 1024 x 768 @ 60/70/75 fps; 1152 x 864 @ 75 fps; 1280 x 720 @ 50/60 fps; 1280 x 768 @ 60/75 fps; 1280 x 800 @ 60/75 fps; 1280 x 960 @ 60 fps; 1280 x 1024 @ 60/75 fps; 1360 x 768 @ 60 fps; 1366 x 768 @ 60 fps; 1440 x 480 @ 60 fps; 1440 x 900 @ 60/75 fps; 1600 x 900 @ 60 fps; 1600 x 1200 @ 60 fps; 1680 x 1050 @ 60 fps; 1920 x 1080 @ 24/25/30/50/60 fps
• Audio Frequency: 48 kHz
• Power Delivery: PD3.0, 60W
• USB™ Interface: USB Type-C™ 3.1 Gen1
• Device: UAC, UVC
• Mode: Isochronous
• MIC: Stereo microphone supported; 24-bit sigma-delta ADC
• Headset: 40 mW output power into 16Ω at 3.3V; THD -75 dB at 20 mW; SNR 90 dB with 16Ω load
• Compression: USB™ 2.0 MJPG; USB™ 3.0 MJPG / YUV 4:2:2
• Power Consumption: USB™ 2.0 — 220 mA (5V); USB™ 3.0 — 280 mA (5V)
• Case Material: Aluminum

WHAT’S IN THE BOX:

• JVA02 Live Capture UVC HDMI^™ to USB^™ Video Capture x1
• Cold shoe x2
• USB-C^™ 2.0 to USB-C^™ cable x1
• USB-C^™ 3.0 to USB^™ Type-A cable x1
• User Manual x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
