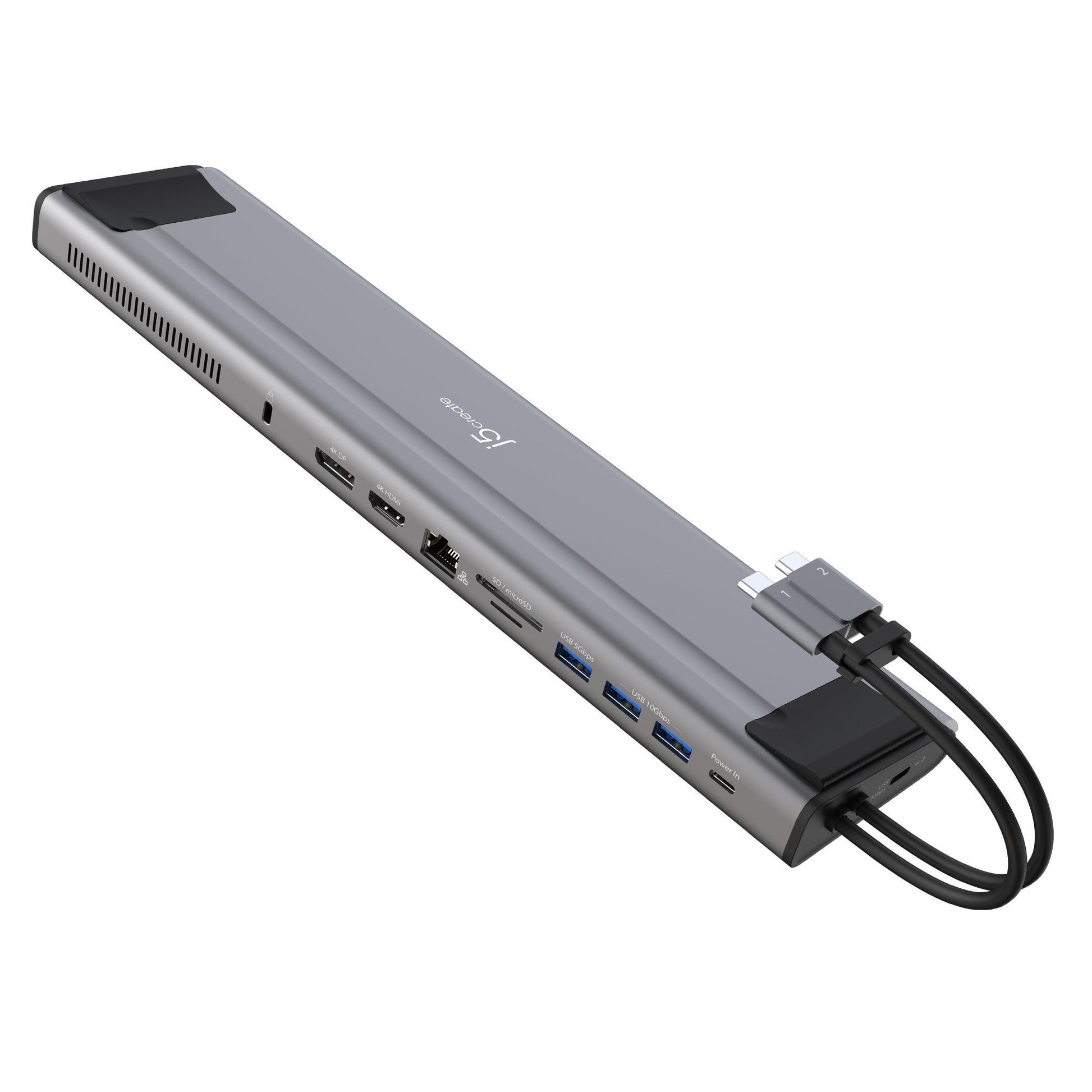

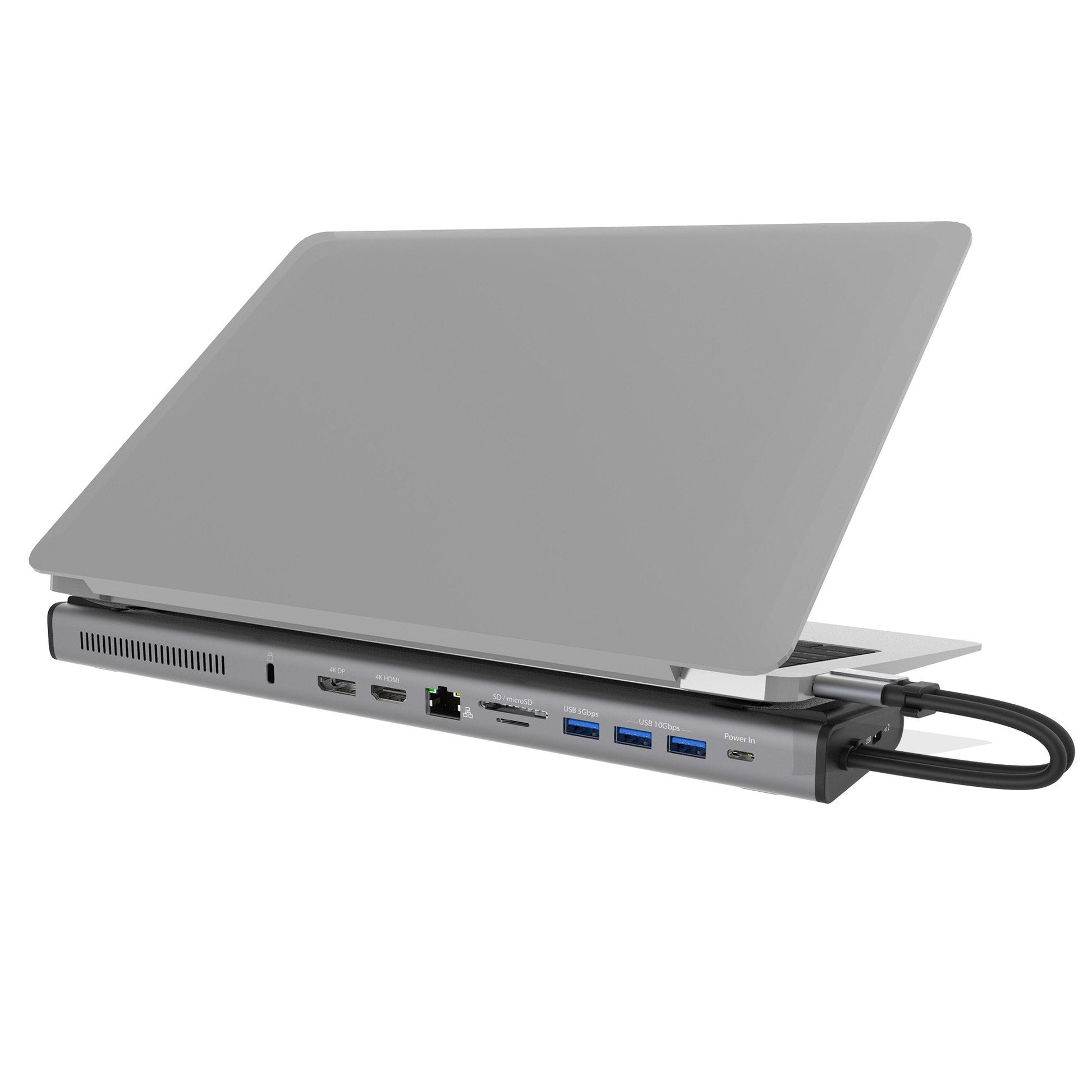

J5create M.2 NVMe USB-C Gen 2 Docking Station - JCD552

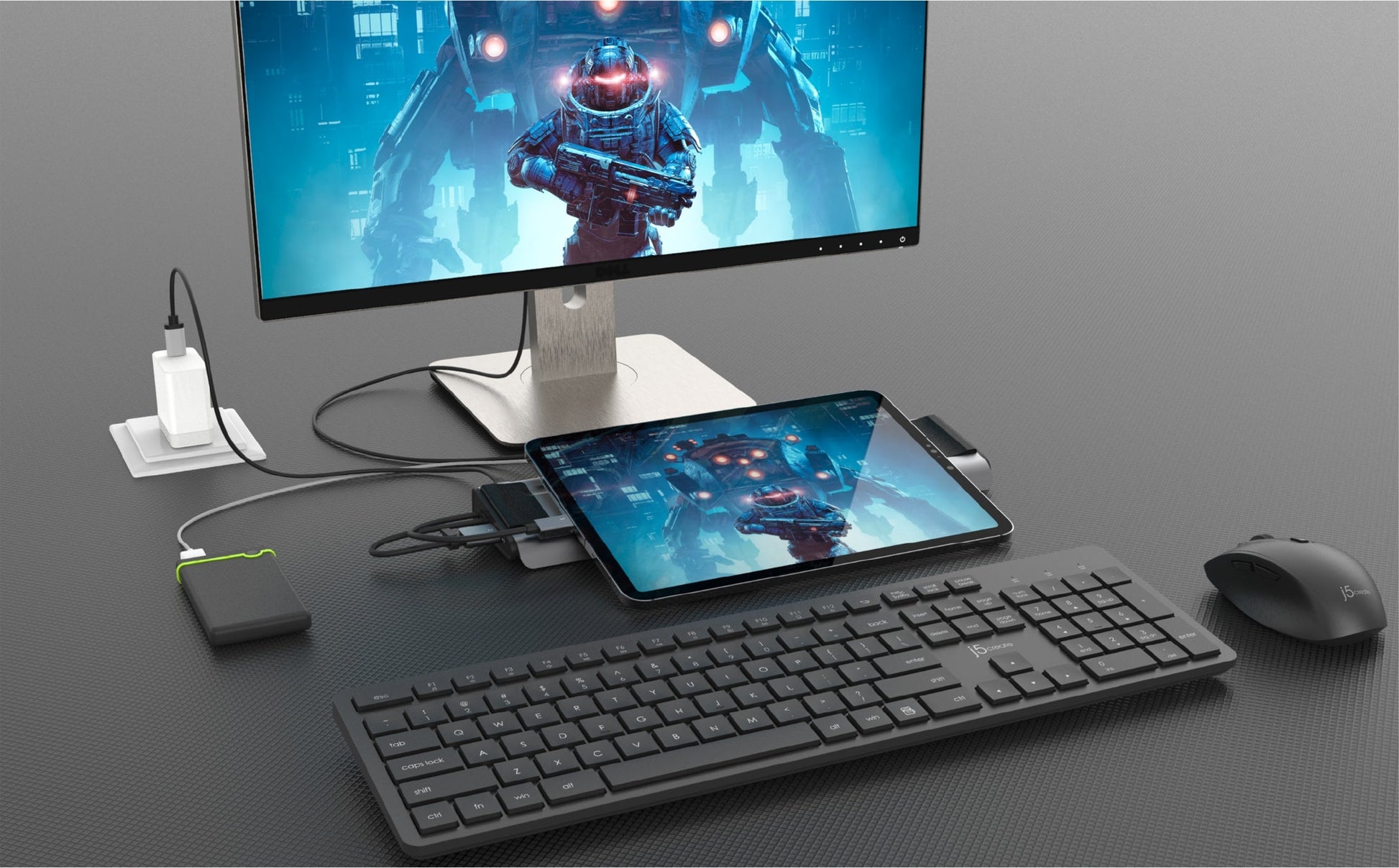

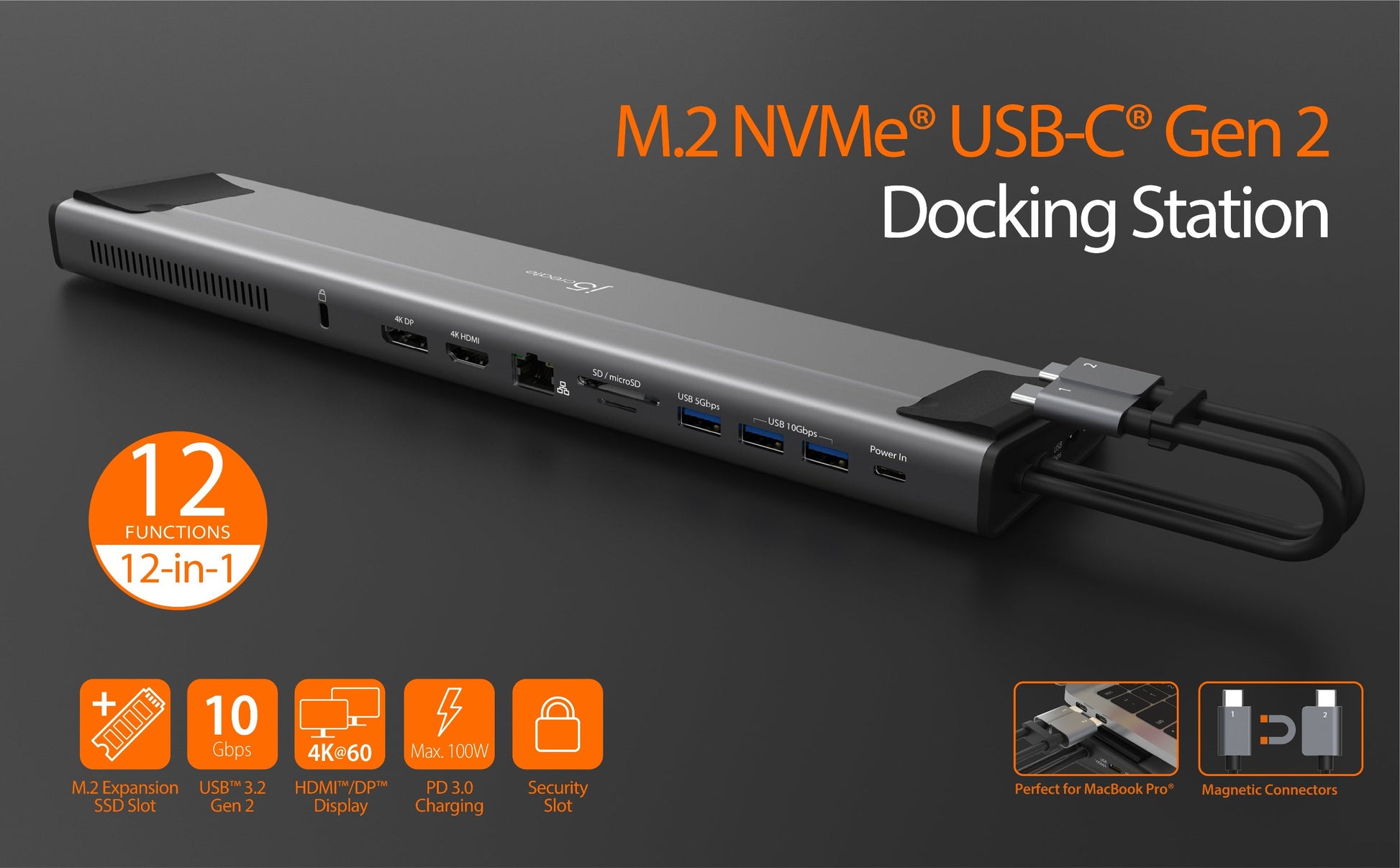

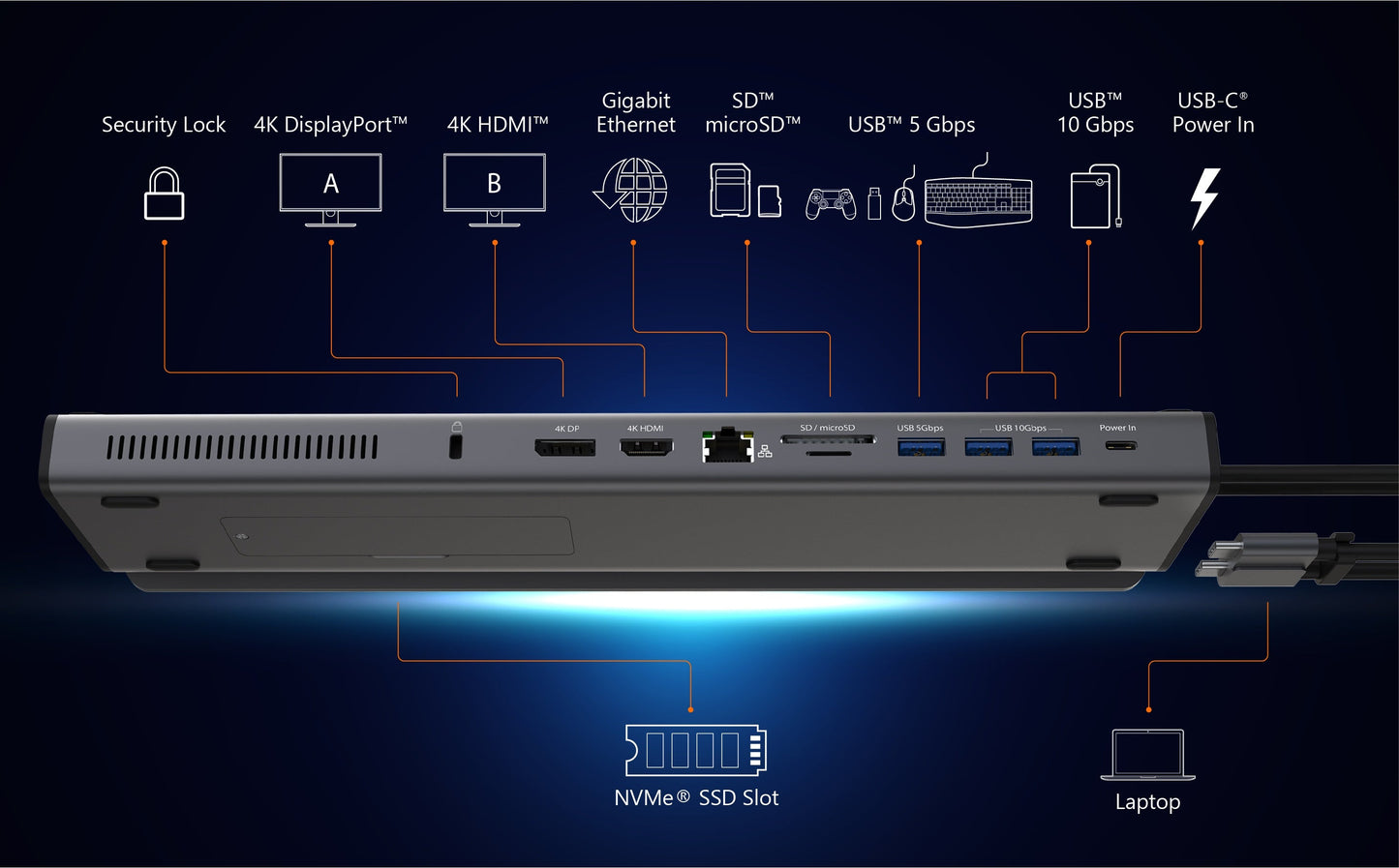

Increase your productivity with the M.2 NVMe® USB-C® Gen 2 Docking Station, transforming your Thunderbolt™ 3 or USB-C® compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe®/SATA PCIe® SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C® and two USB™ Type-A), a Gigabit Ethernet port, SD™ & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.

This USB-C® Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe® M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals using a Mac®.

FEATURES:

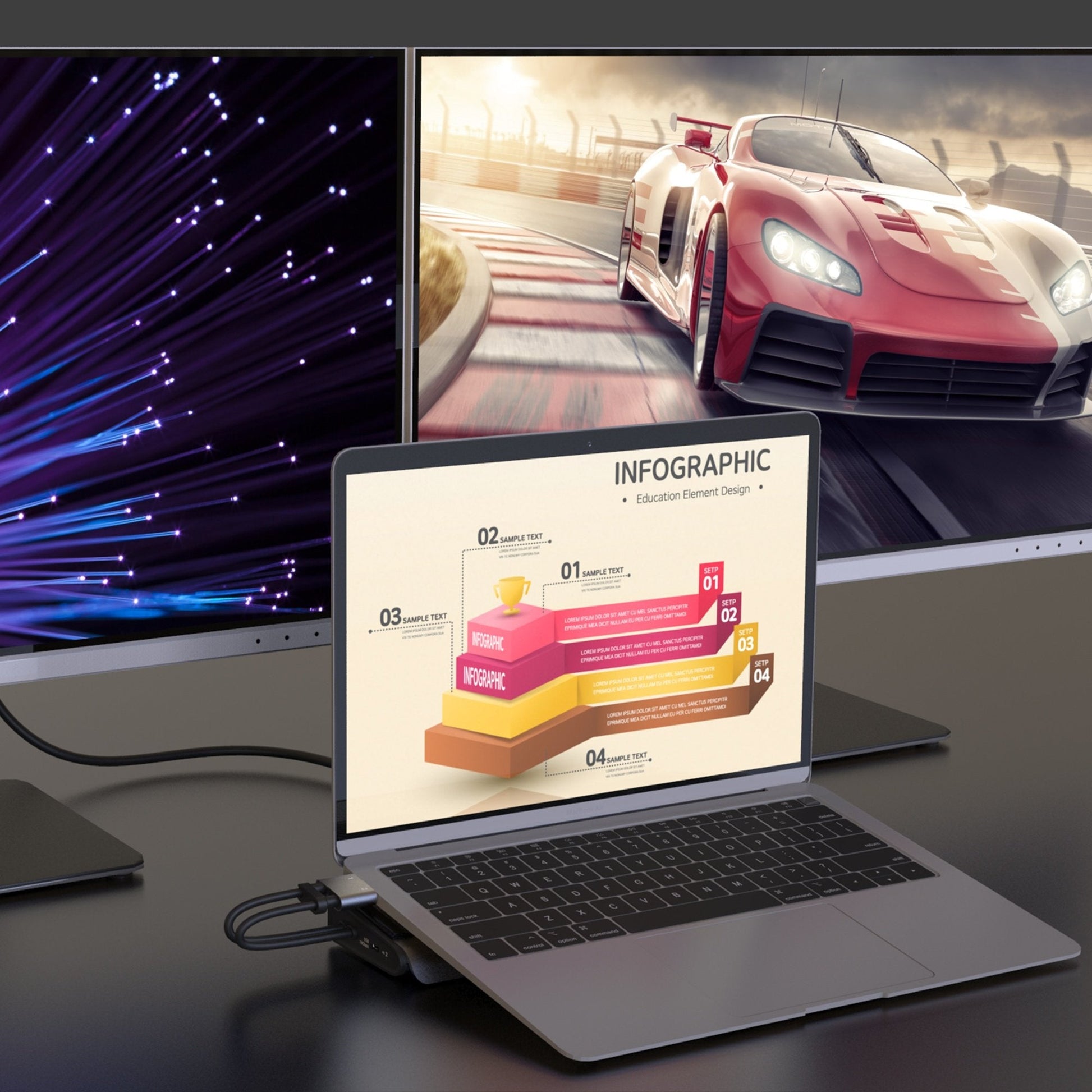

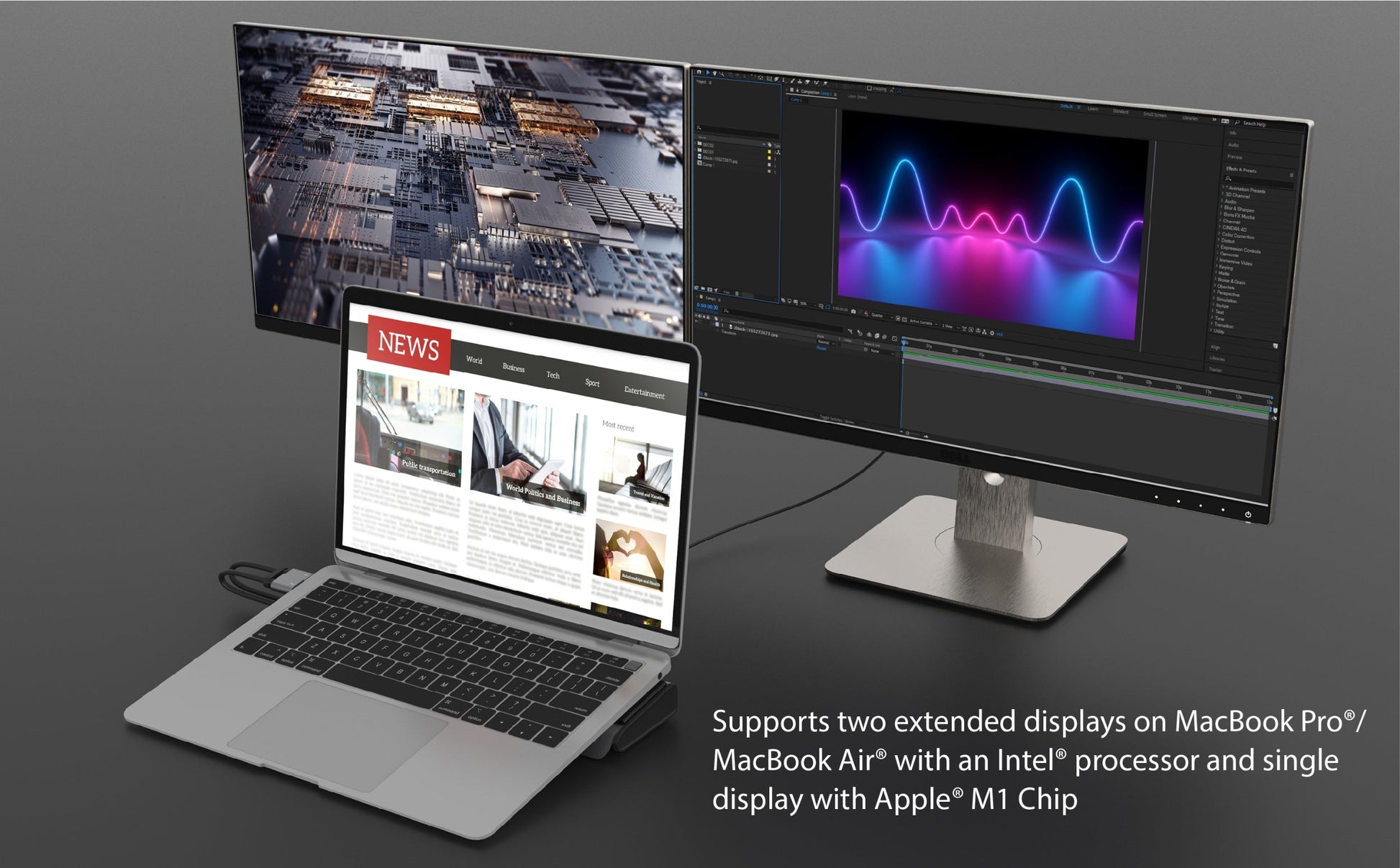

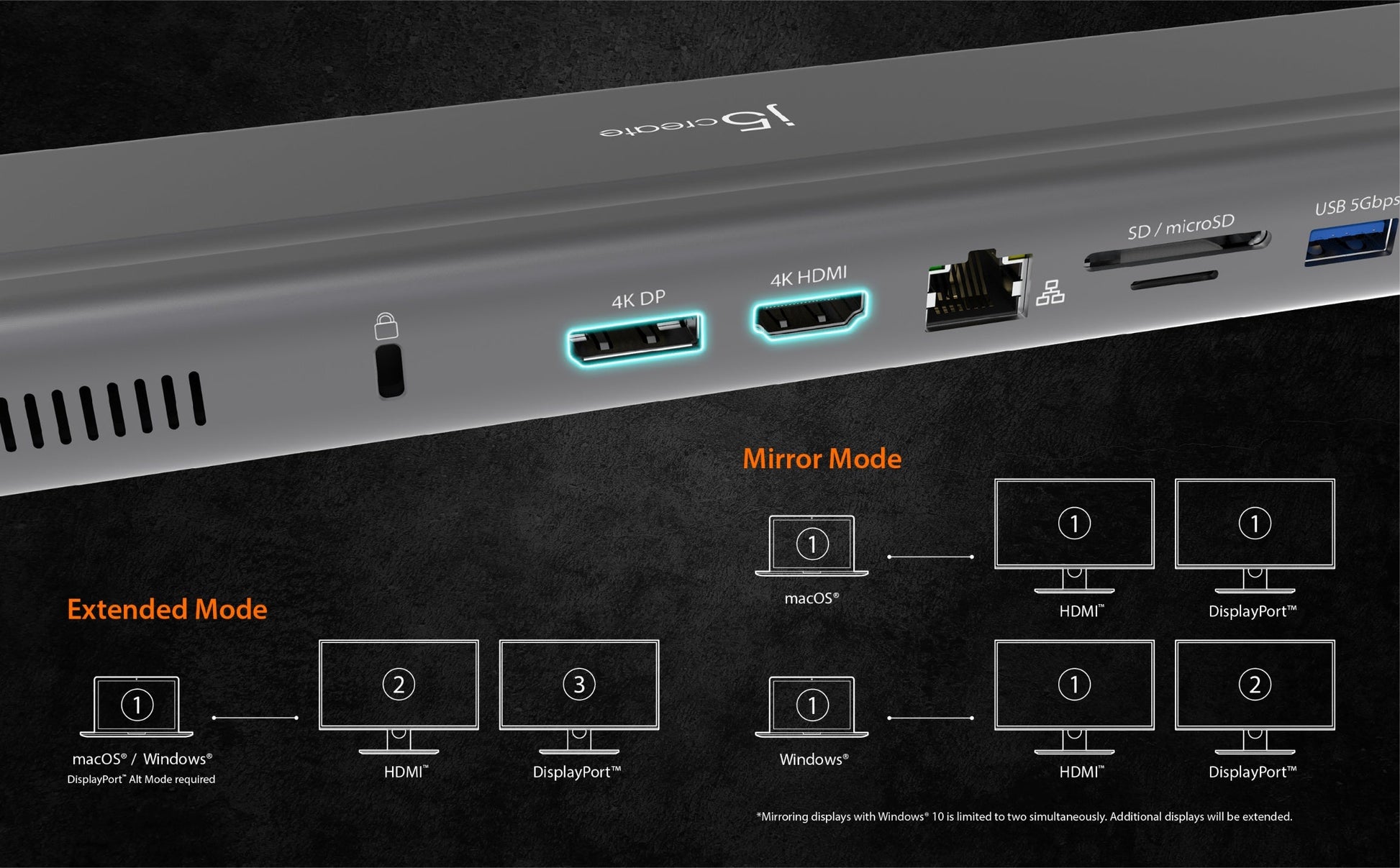

• DUAL 4K 60 HZ DISPLAYS*
  Supports extended dual 4K displays (HDMI™ & DisplayPort™) on Intel® MacBook Pro® and MacBook Air®
  Supports single display via HDMI™ on other USB-C® compatible laptops connected via one USB-C® port
• HIGH-PERFORMANCE STORAGE

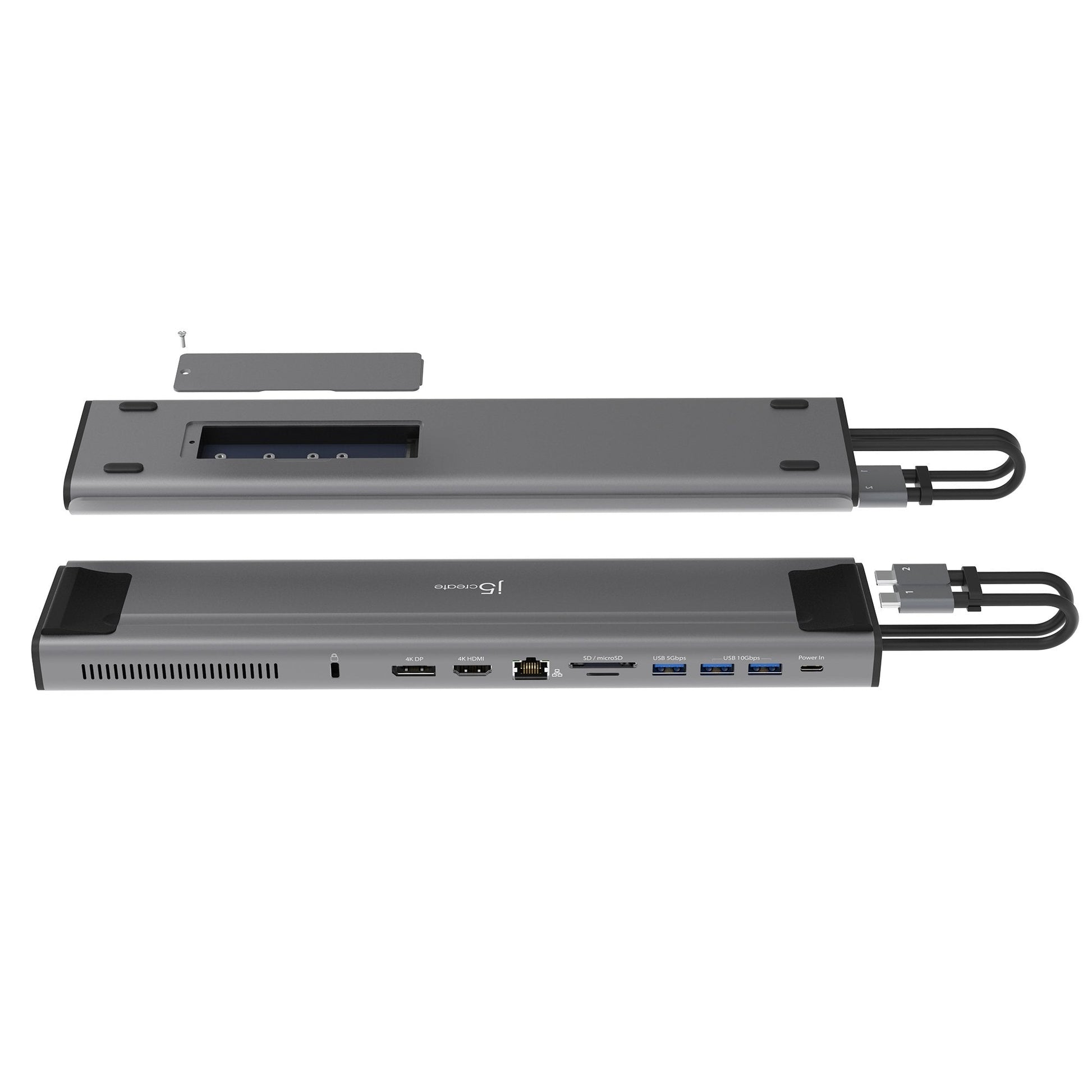

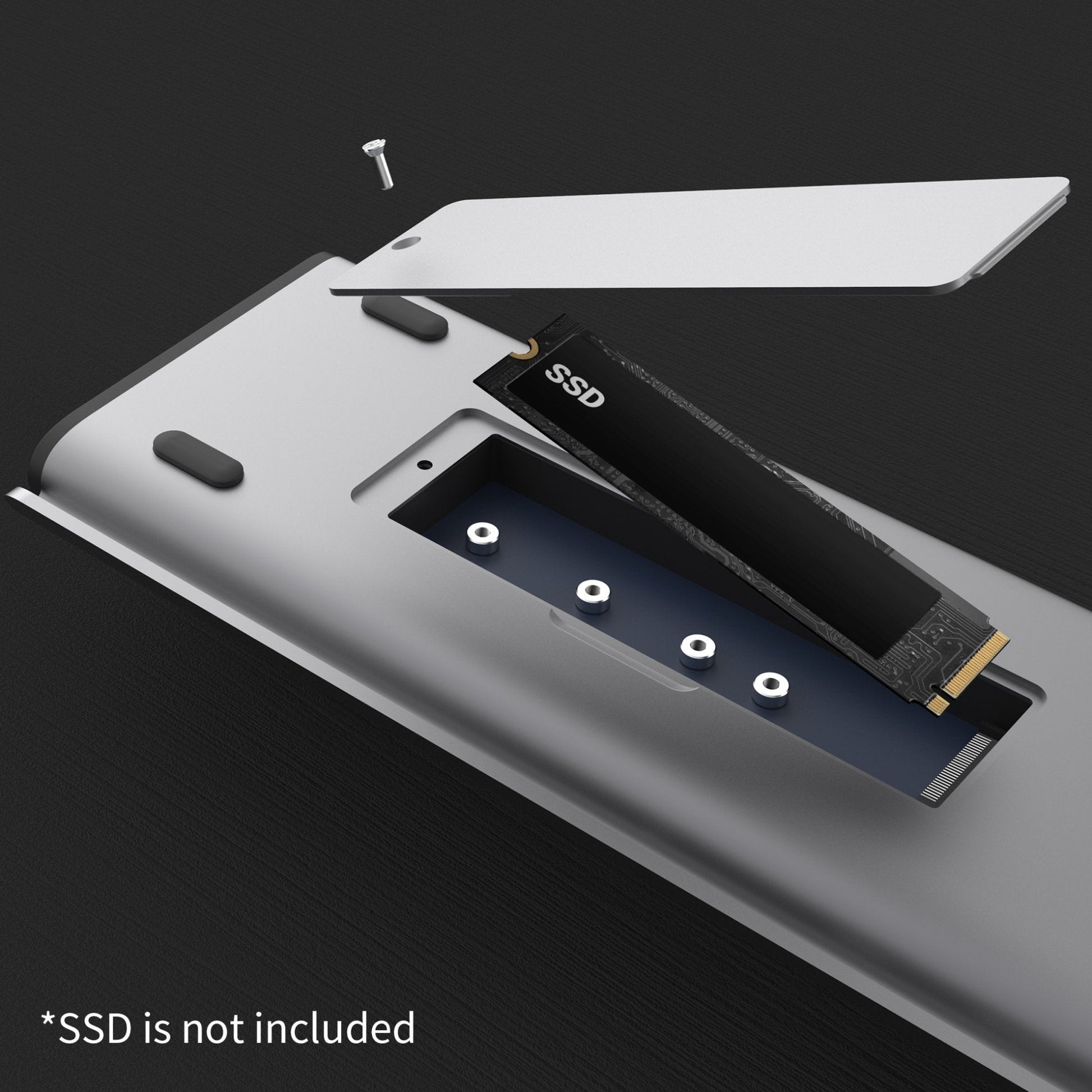

  Built-in M.2 NVMe®/SATA PCIe® SSD Slot (Supports M.2 NVMe® or SATA M key 2230/2242/2260/2280) to expand storage space, convenient SD™ & microSD™ access, and one USB-C® 10 Gbps port to connect an external hard drive
• HIGH-SPEED PERFORMANCE
  Provides three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) to connect peripherals
• 100W POWER DELIVERY PASS-THROUGH
  Charge your laptop and power connected peripherals when used with a USB-C® power adapter
• DETACHABLE MAGNETIC CONNECTORS
  The flexible design gives you the ability to connect to a variety of compatible devices
• ANTI-THEFT PROTECTION
  Security slot to prevent equipment theft in a wide range of business or institutional environments

System Requirements:

• DisplayPort™ v1.4 required on graphics card, cable, and video source to support 4K @ 60 Hz resolution
• Available USB-C® port(s) that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  *Please refer to the manufacturer of your computer for more information about your device

Special Notes:

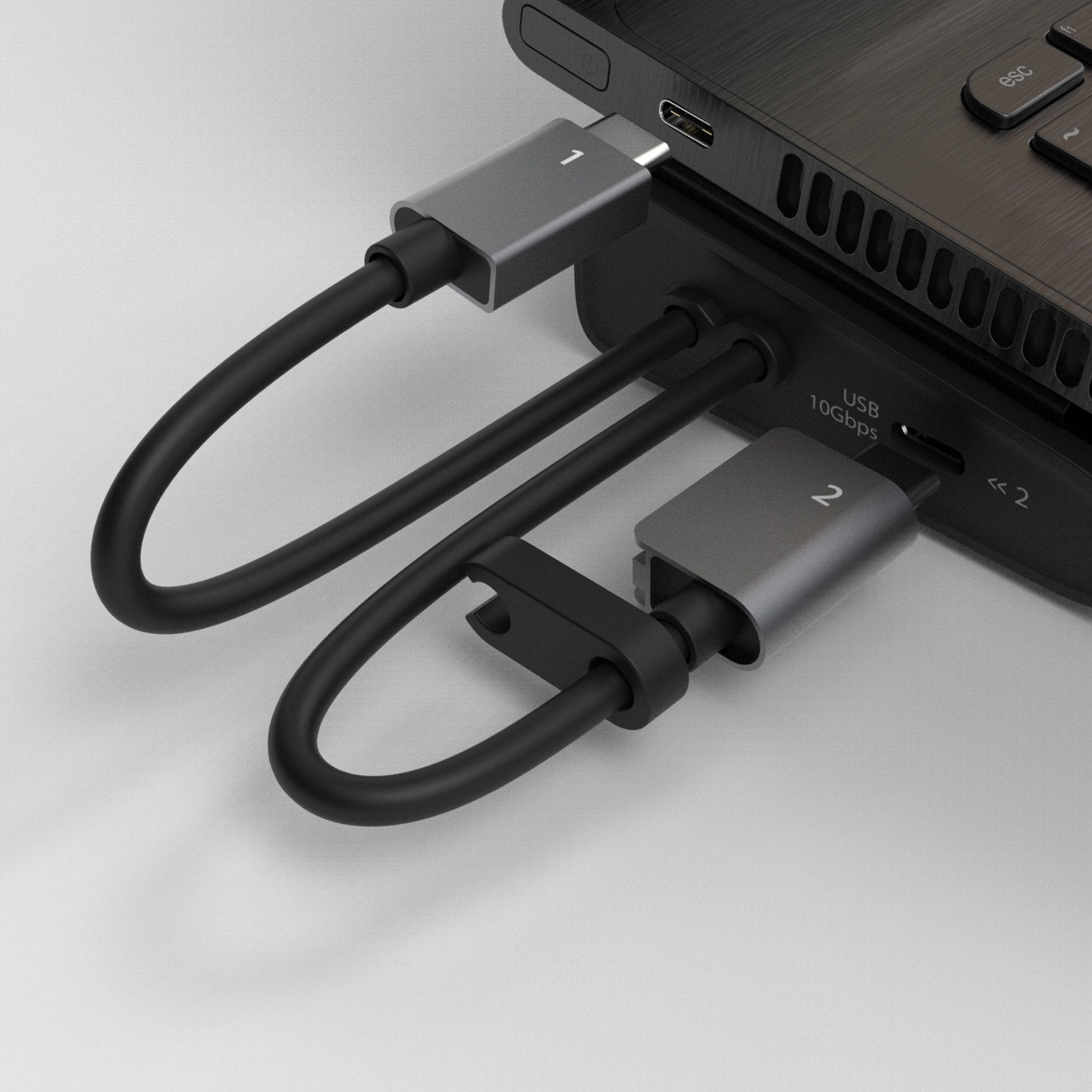

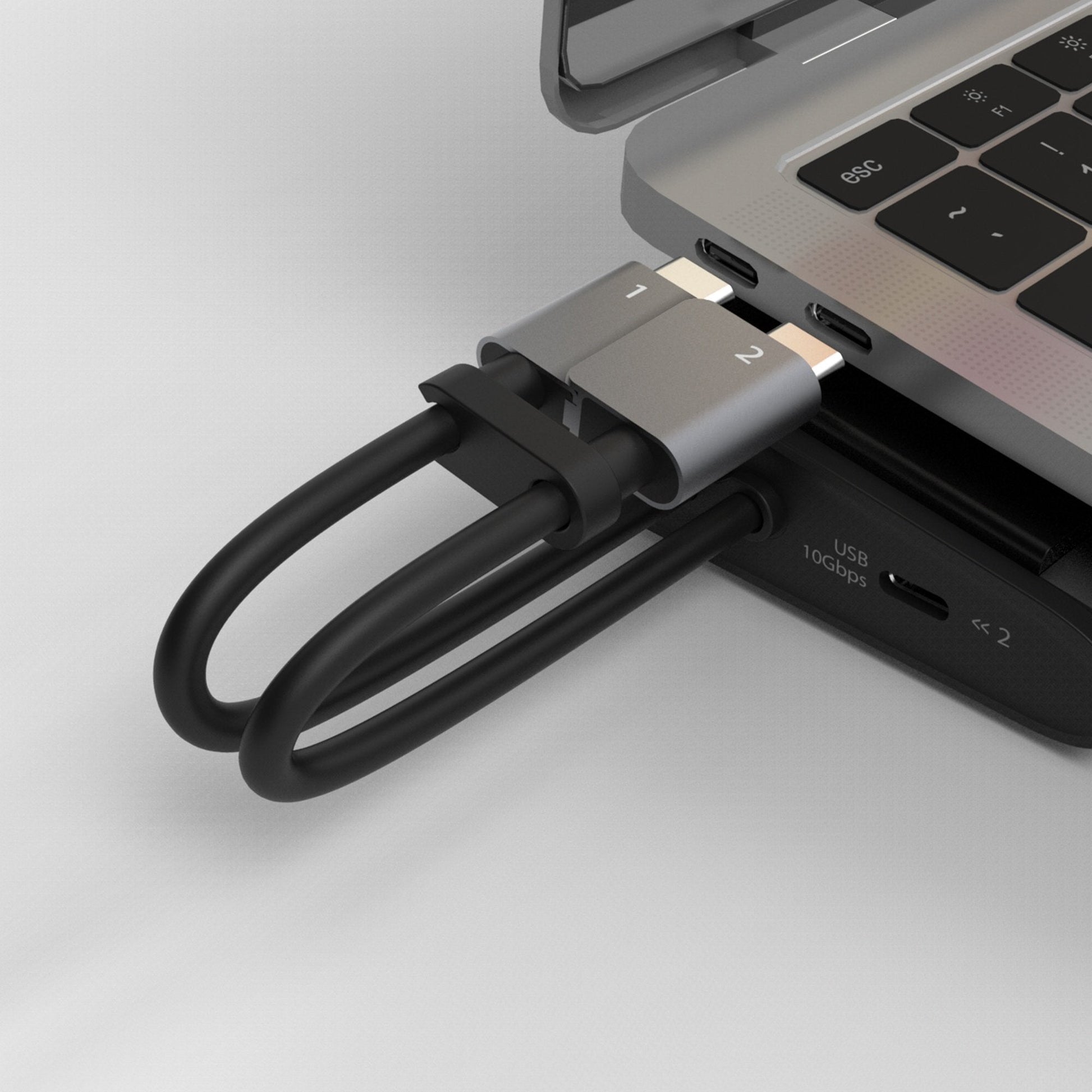

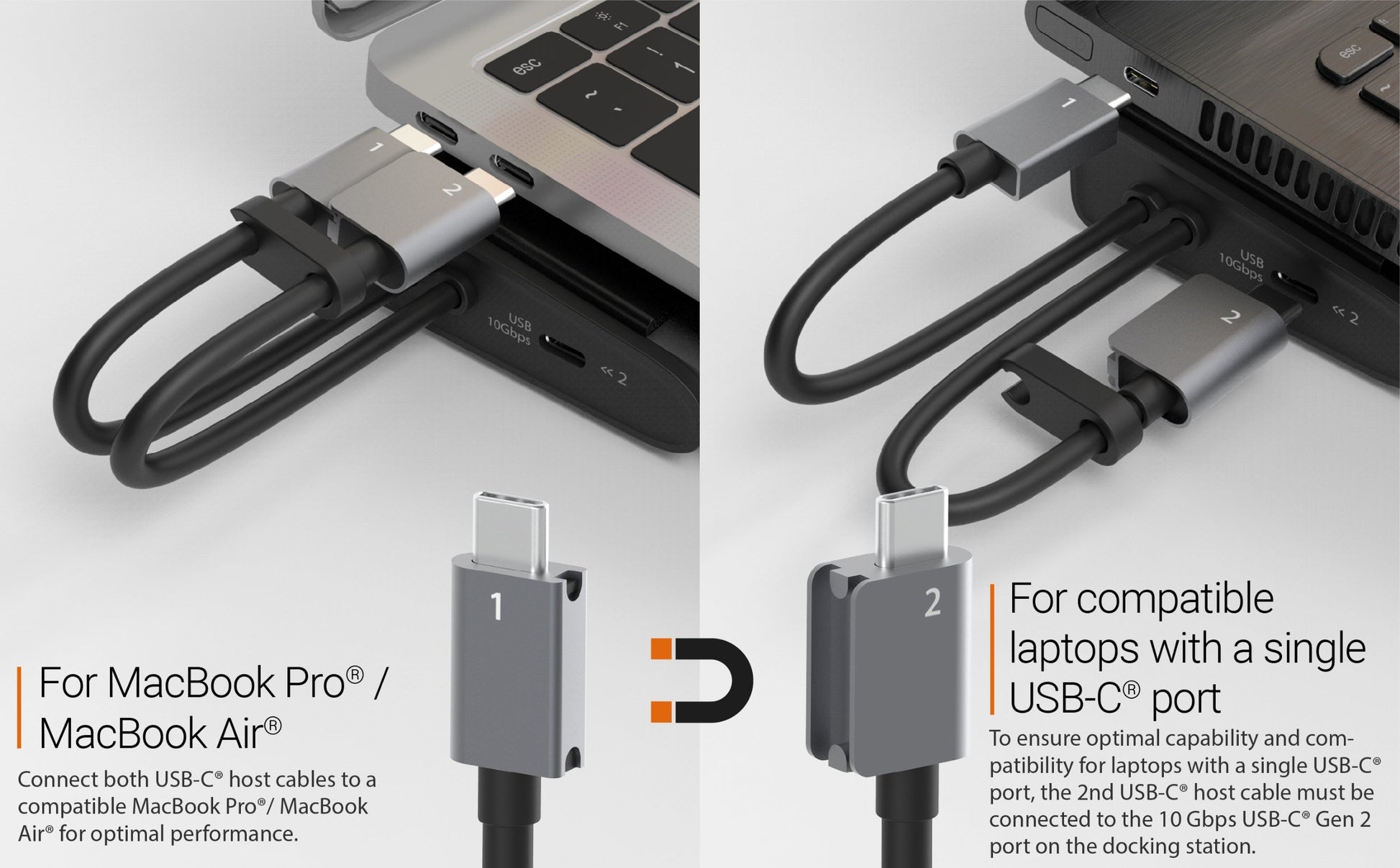

• To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10 Gbps USB-C® Gen 2 port on the docking station.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 3.0 (5 Gbps)/USB™ 2.0 port or if using a USB™ 3.0 (5 Gbps)/USB™ 2.0, performance may be limited.
• The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• M1 MacBook Pro® and MacBook Air® only supports up to 1 external display. This single display limitation does not affect Intel® Mac®
• Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time. If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance

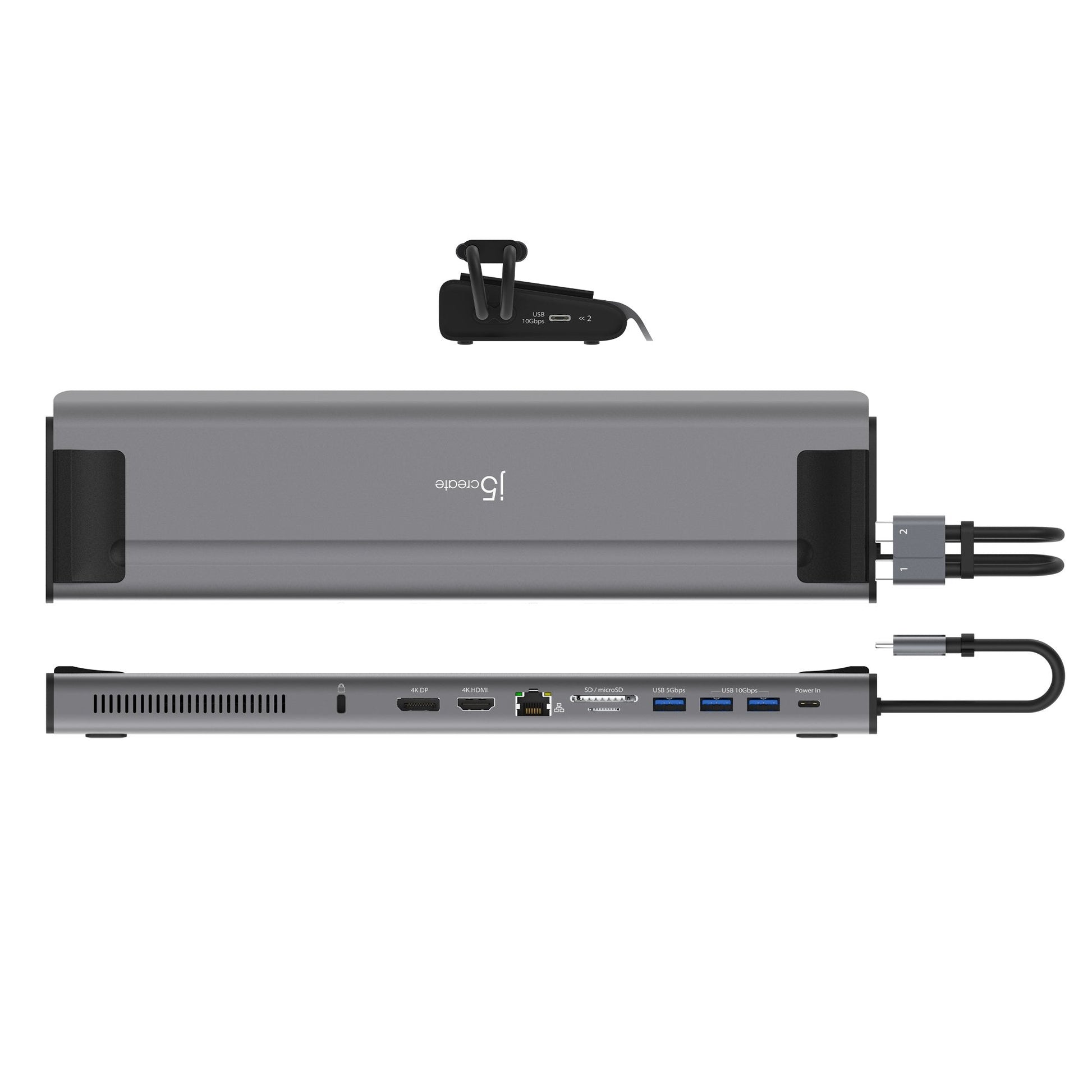

SPECIFICATIONS:

• Host Connector: USB-C® male ×2
• Video Output:
  • HDMI™ female ×1
  • DisplayPort™ female ×1
• Power Source: Bus-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes

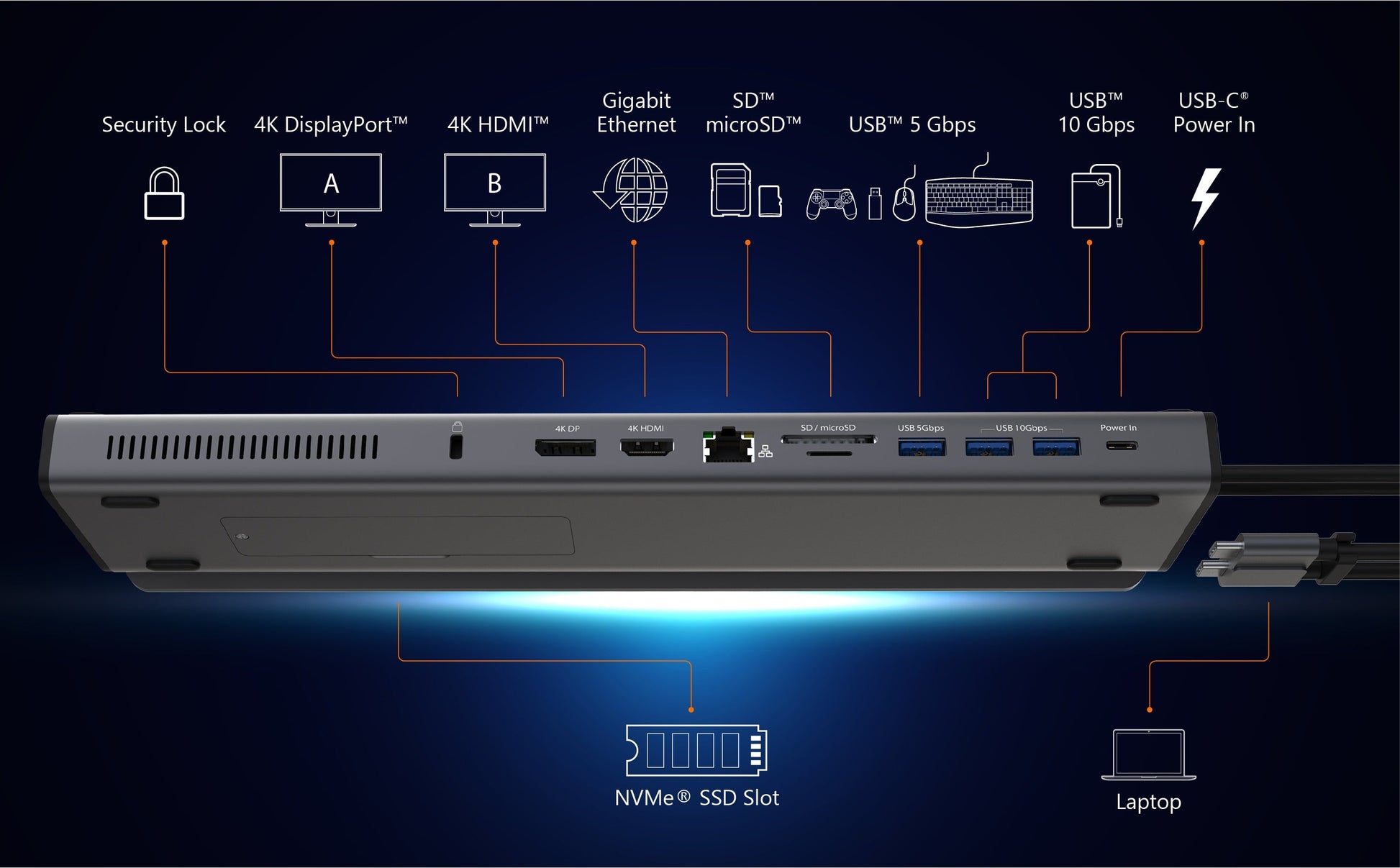

• Ports:
  • M.2 NVMe® / SATA slot ×1 (sizes: 2230, 2242, 2260, 2280)
  • USB-C® 3.2 Gen 2 ×1
  • USB-C® Power Delivery 3.0 ×1
  • USB™ Type-A 3.2 Gen 2 ×2
  • USB™ Type-A 3.2 Gen 1 ×1
  • HDMI™ (4K) ×1
  • DisplayPort™ (4K) ×1
  • SD™ & microSD™ 3.0 card reader/writer ×1
  • RJ45 Gigabit Ethernet ×1
  • Security lock slot ×1
• Maximum Display:
  • Resolution: 3840 × 2160 (4K)
  • Refresh Rate: 60 Hz
• Maximum Data Transfer Rate:
  • 10 Gbps

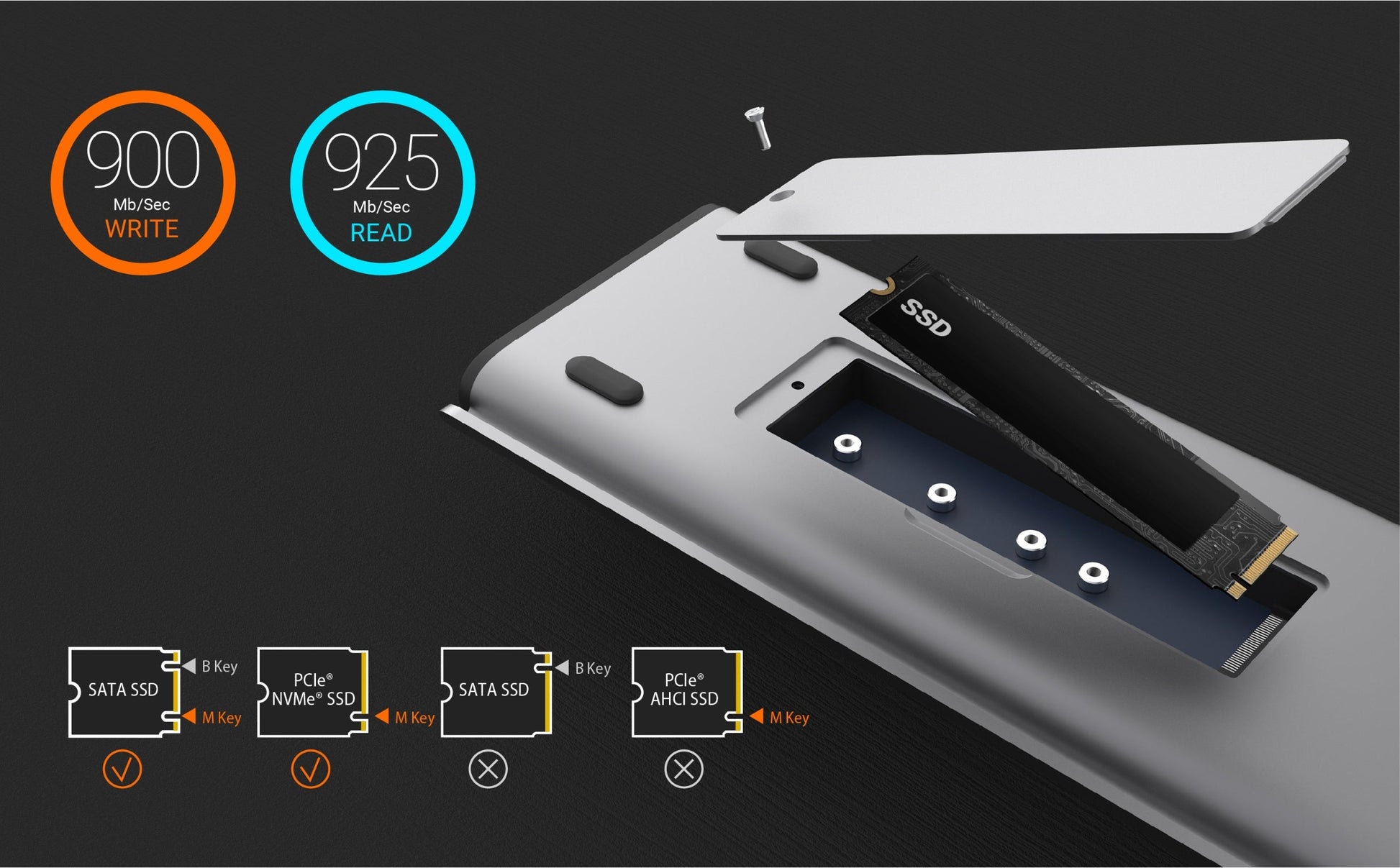

  • M.2 slot:
    • Write: 900 MB/s
    • Read: 925 MB/s
• Displays Supported: Up to 2
• Network Compatibility: 10 / 100 / 1000 Mbps
• Audio: 2.1 channel via HDMI™ / 3.5 mm AUX
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 600 mA
• Input:
  • Voltage: 20V
  • Current: 5A
• Output:
  • Voltage: 20V
  • Current: 5A
• Grey & Black
• Enclosure: Aluminum
• Cable Length: 0.6 in (15 cm)

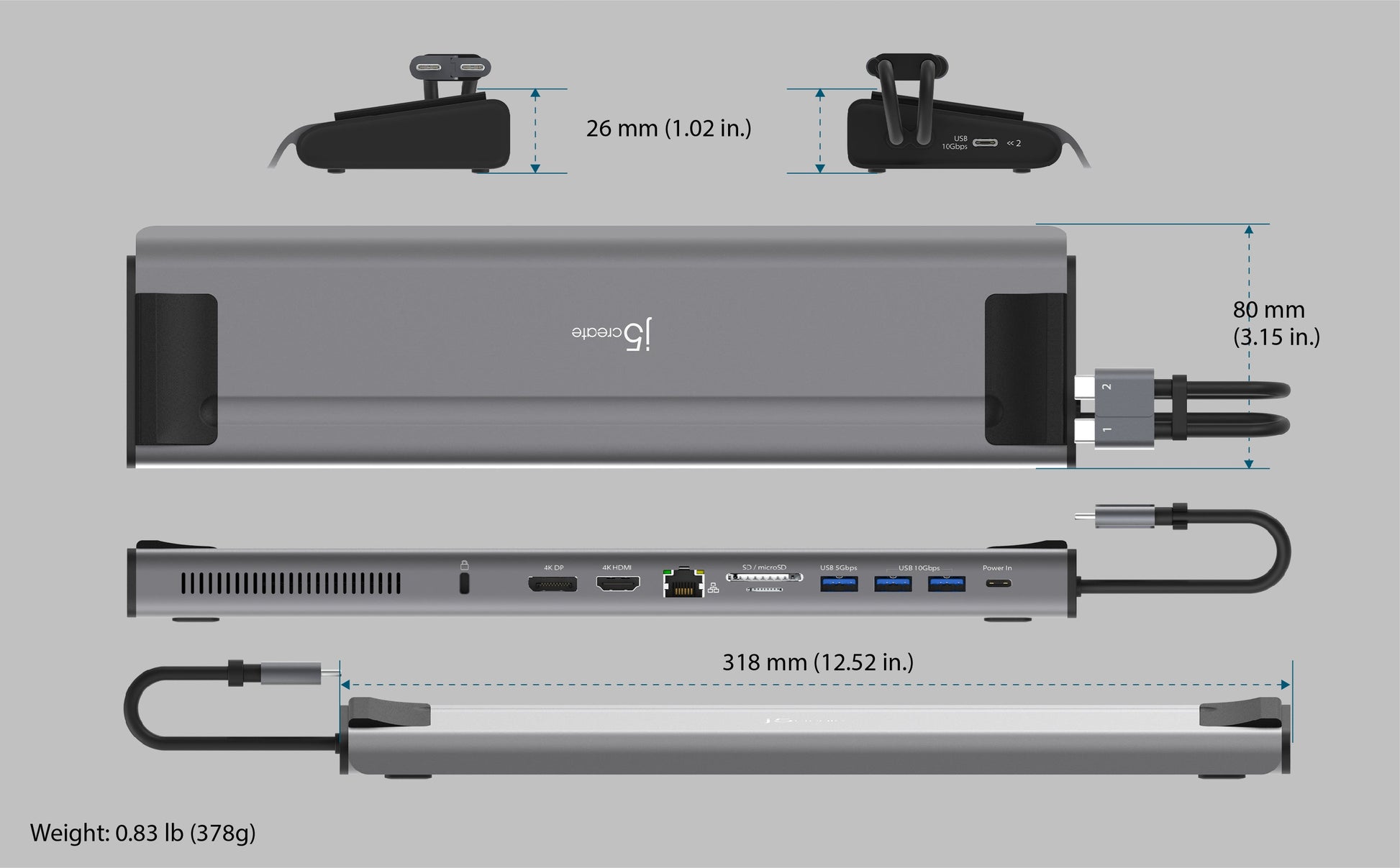

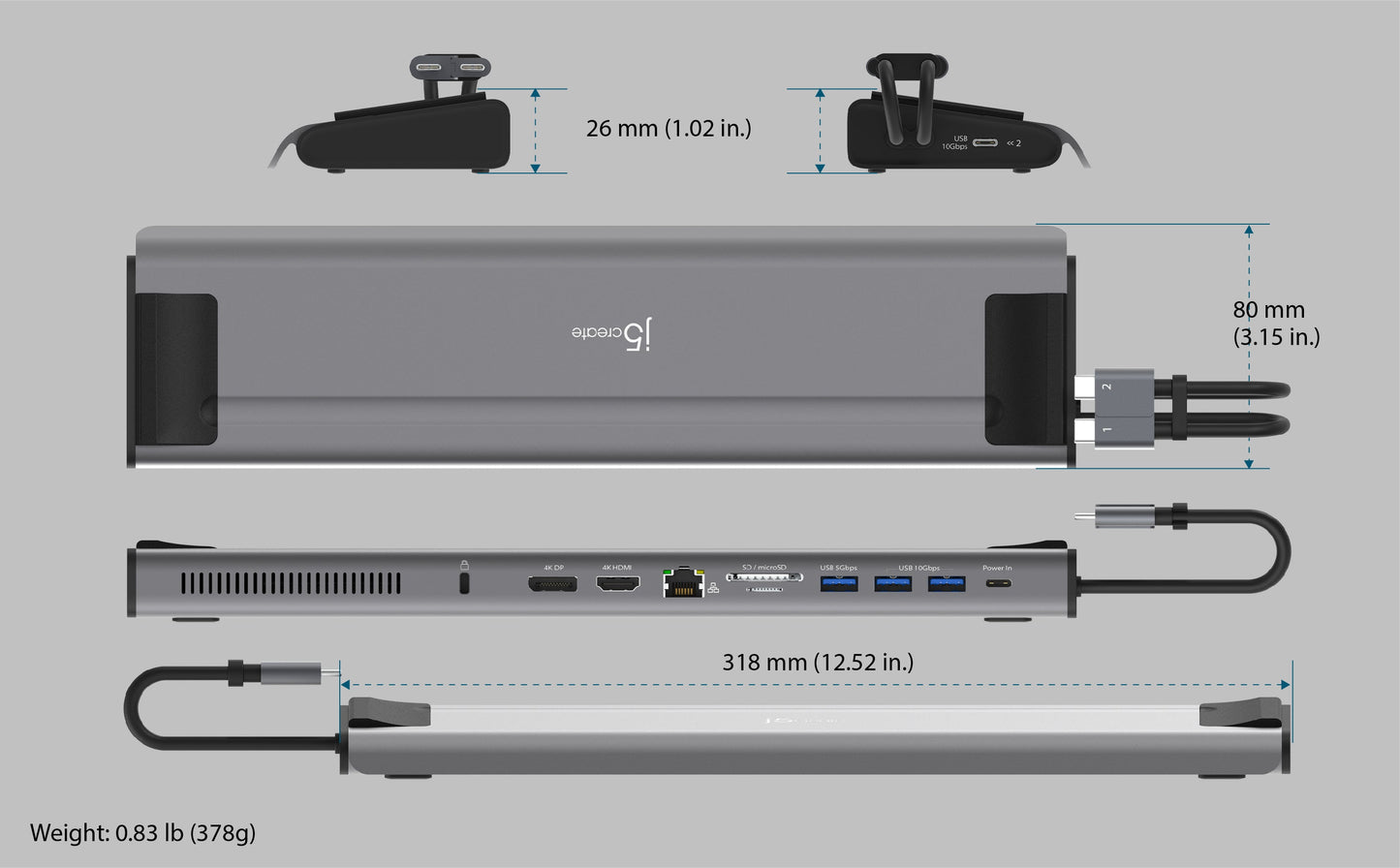

• Dimensions:
  • Height: 1.02 in (26 mm)
  • Width: 3.14 in (80 mm)
  • Depth: 12.5 in (318 mm)
• Weight: 0.83 lbs (378 g)
• Storage:
  • Temperature: 14 to 149°F (-10 to 65°C)
  • Humidity: < 85% (non-condensing)
• Operating:
  • Temperature: 32 to 118°F (0 to 48°C)
  • Humidity: < 85% (non-condensing)

WHAT'S IN THE BOX:

• JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
