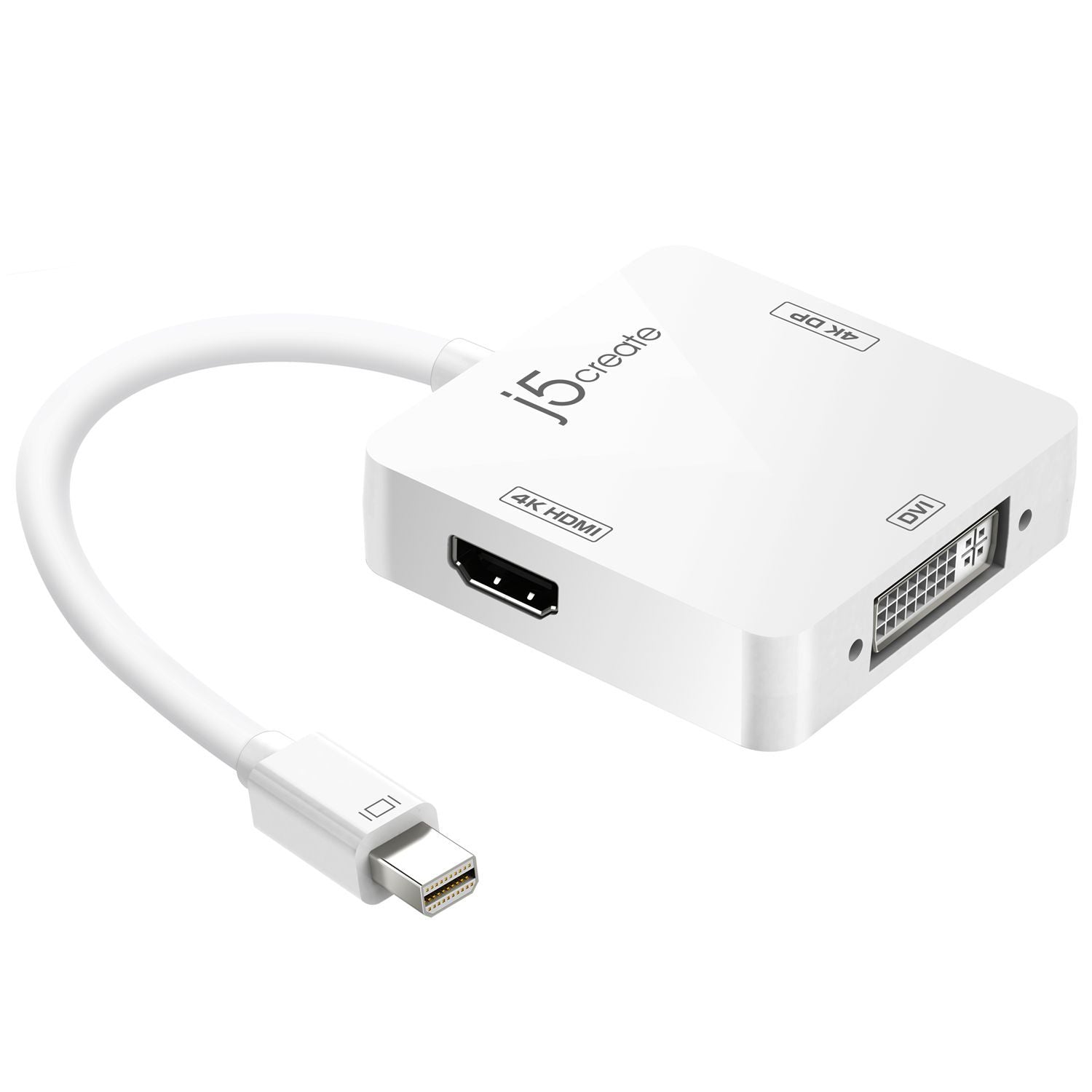

J5create mini DisplayPort to 4K DisplayPort/4K HDMI/DVI Adapter - JDA173

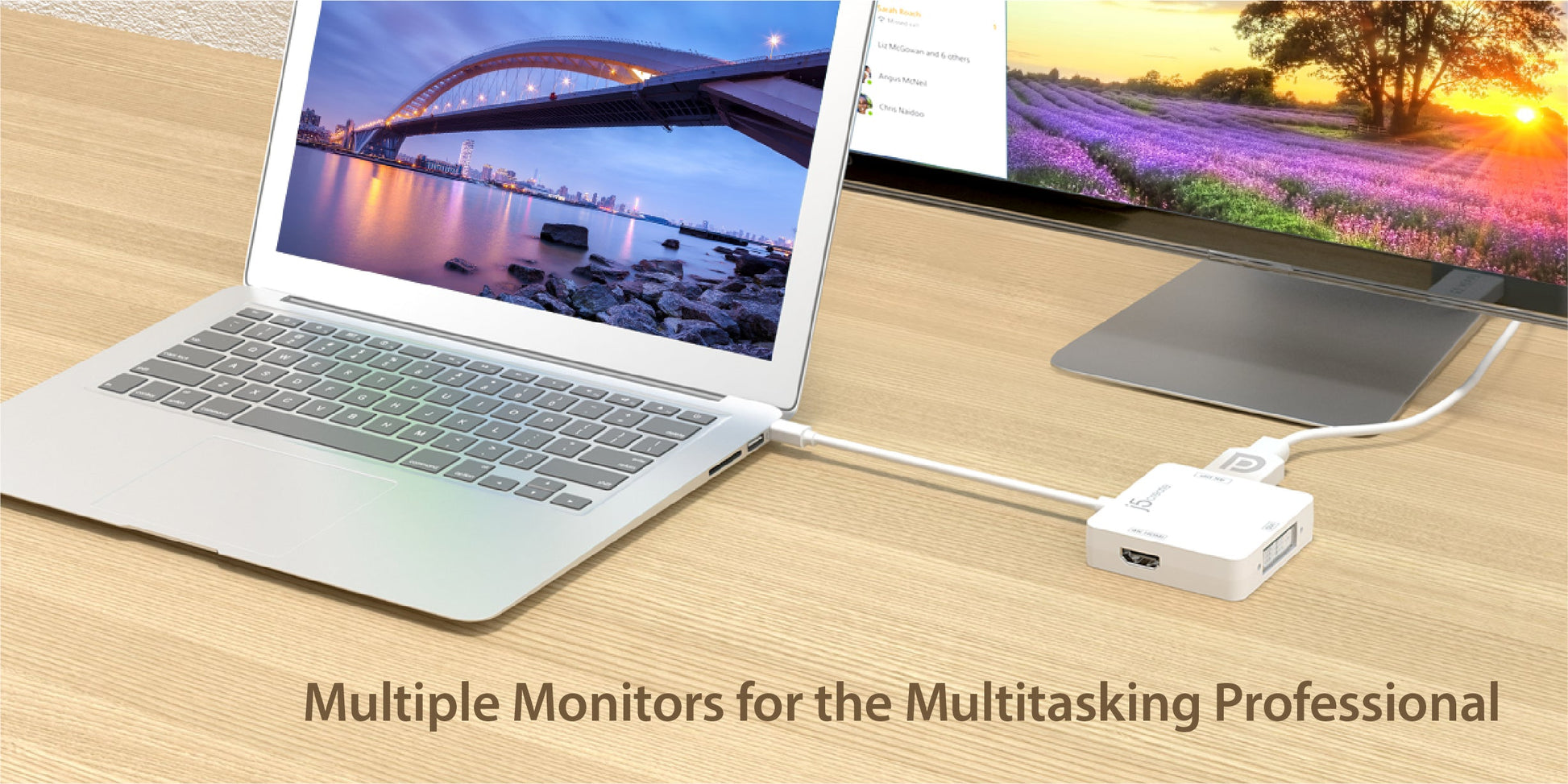

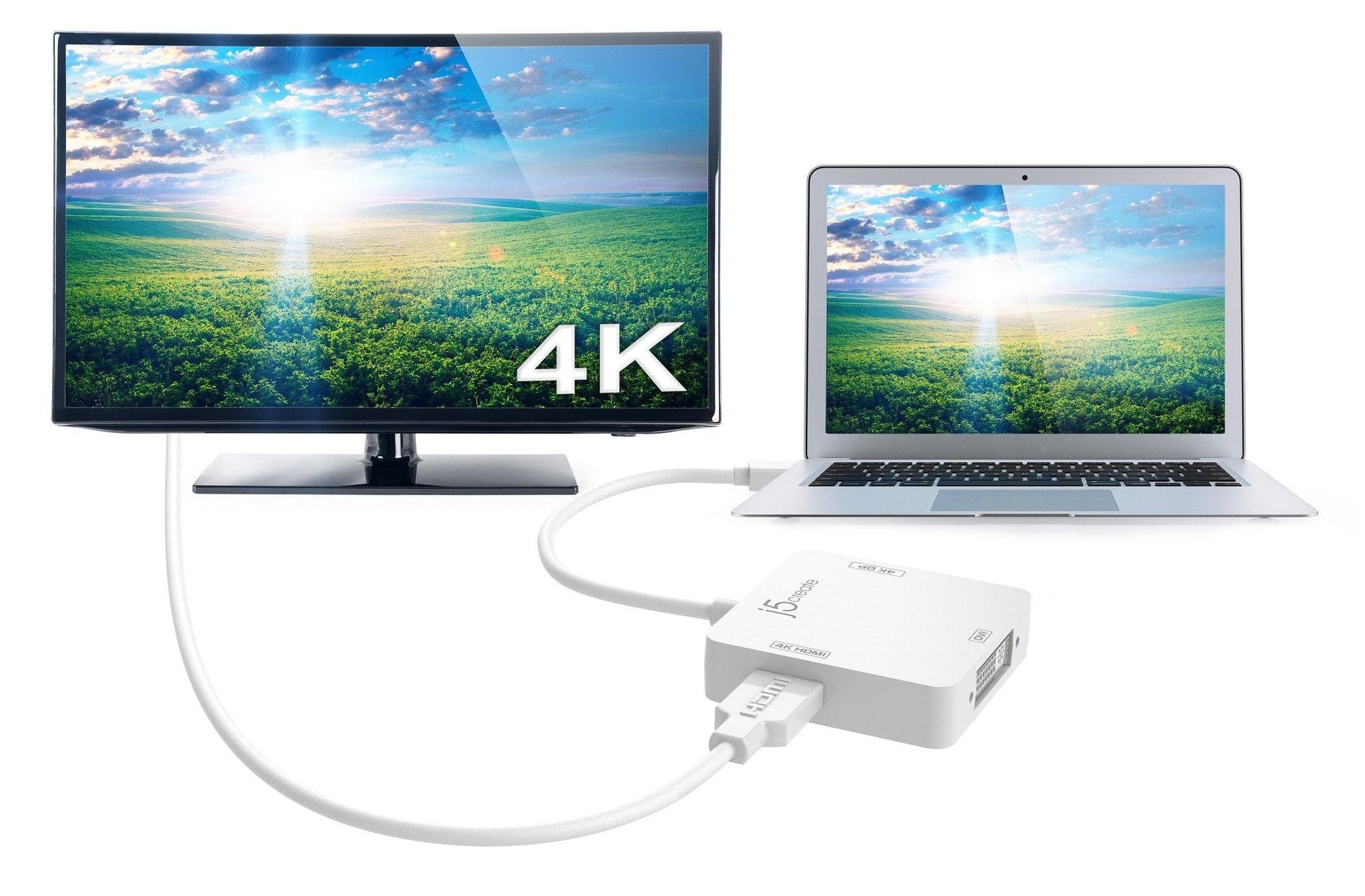

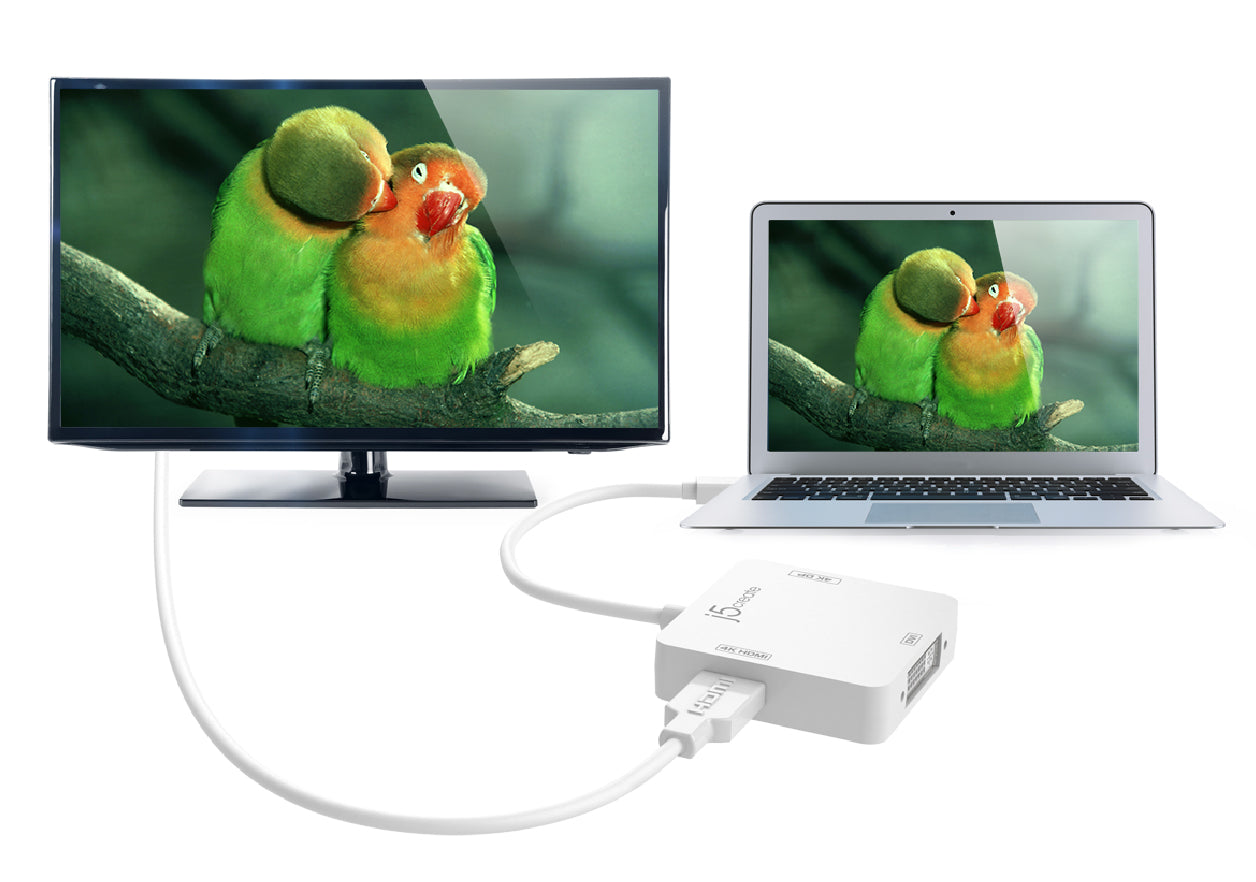

The JDA173 mini DisplayPort^™ to 4K DisplayPort^™/4K HDMI^™/DVI Adapter allows you to quickly and easily connect your Mac^® or PC to an external monitor, HDTV, projector or other display device using DisplayPort^™, HDMI^™ or DVI. 3 different output signals in a single adapter provides maximum flexibility for connecting almost any display.

FEATURES:

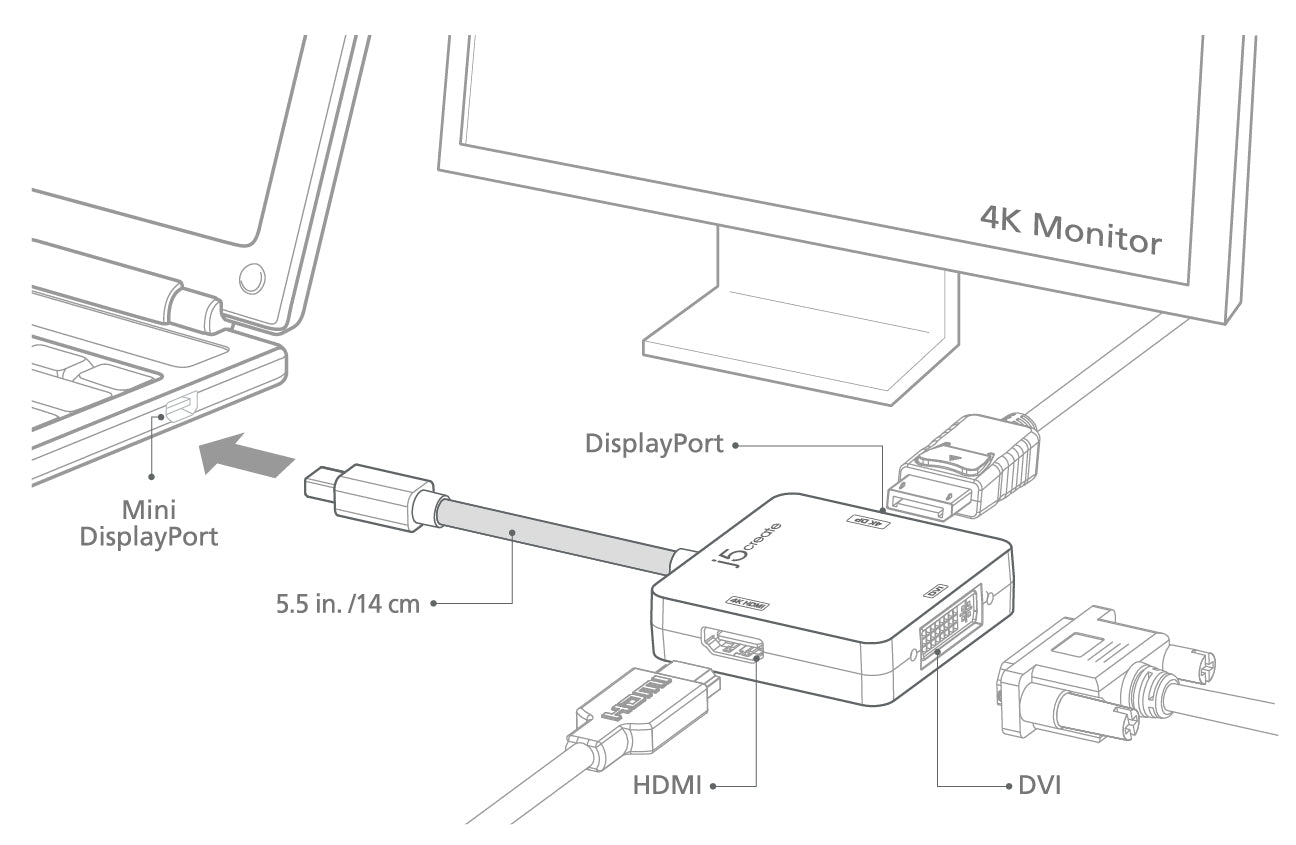

• Connect the display to one of the DisplayPort^™/HDMI^™/DVI output ports
• Supports resolutions up to DisplayPort^™ 4K @ 60 Hz; HDMI^™ 4K @ 30 Hz; DVI 1920 x 1080 @ 60 Hz
• DP++^™ Dual Mode DisplayPort^™ Adapter
• Supports Audio using DisplayPort^™/HDMI^™

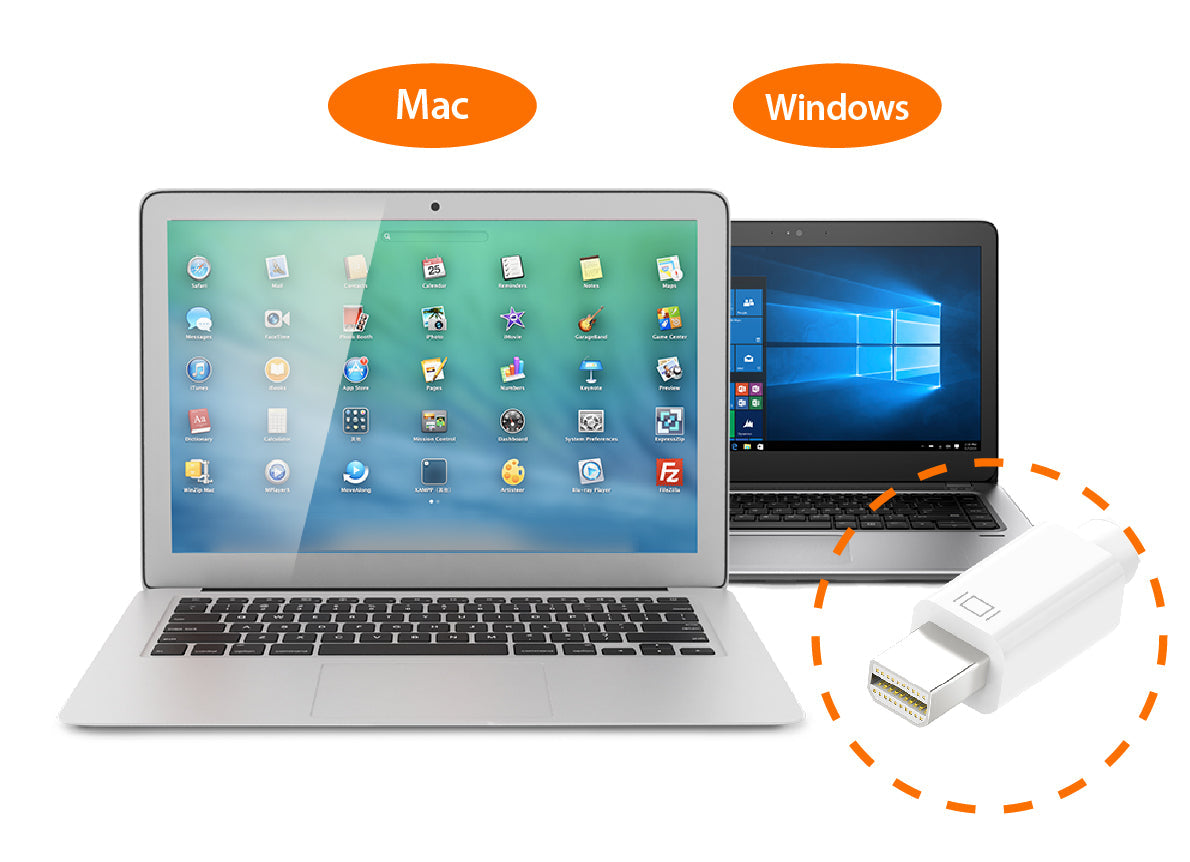

• Perfect for Mac^® and Surface^™
• Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort^™ signal

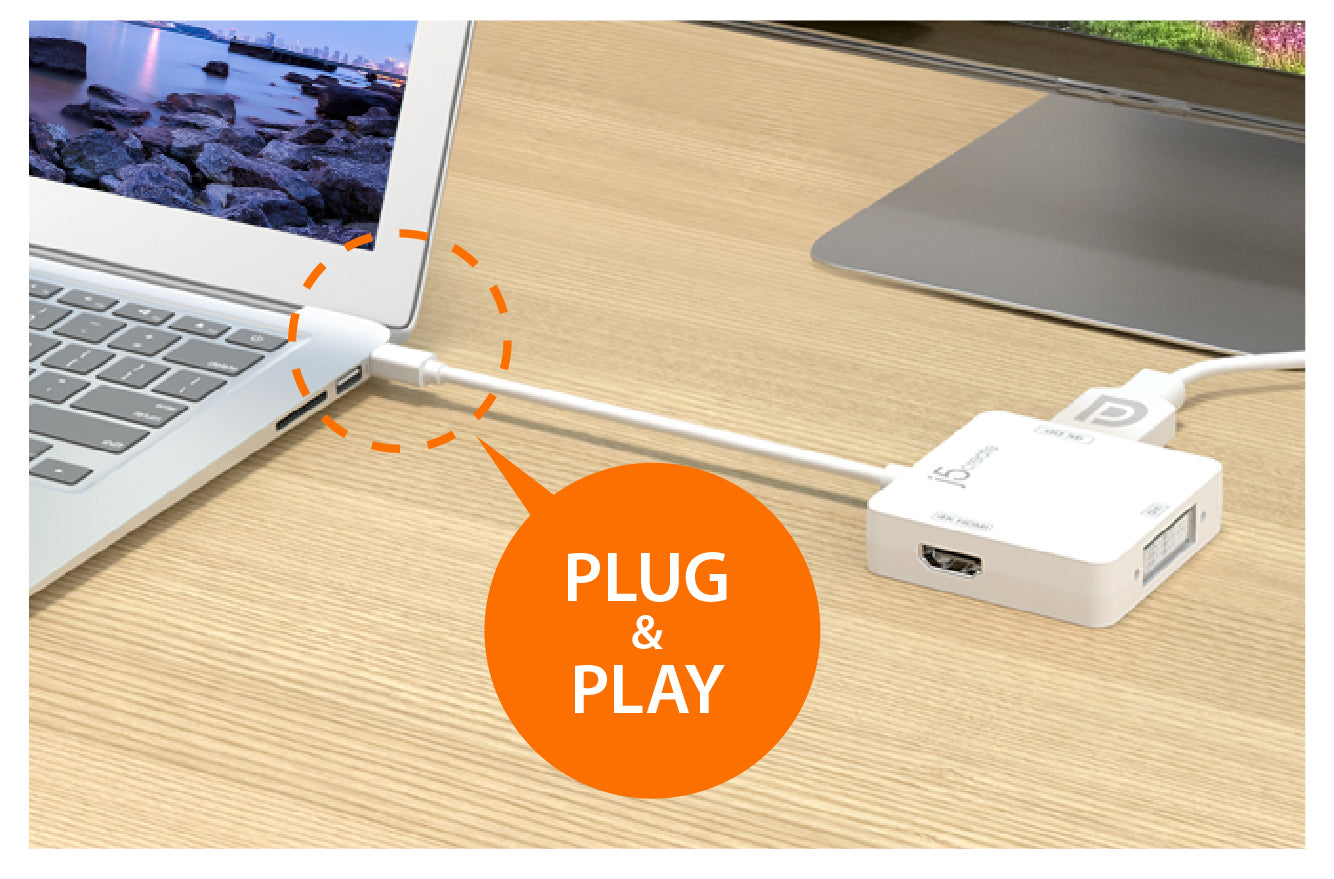

• No software/drivers required

System Requirements:

• DisplayPort^™ v1.2 required on graphics card or video source to support 4K x 2K @ 60 Hz resolution
• DP++^™ port (Dual Mode DisplayPort^™) required on video card or video source (DVI and HDMI^™ pass-through must be supported)

SPECIFICATIONS:

• Connector Type: Passive
• Host Interface: DisplayPort™ Male Connector

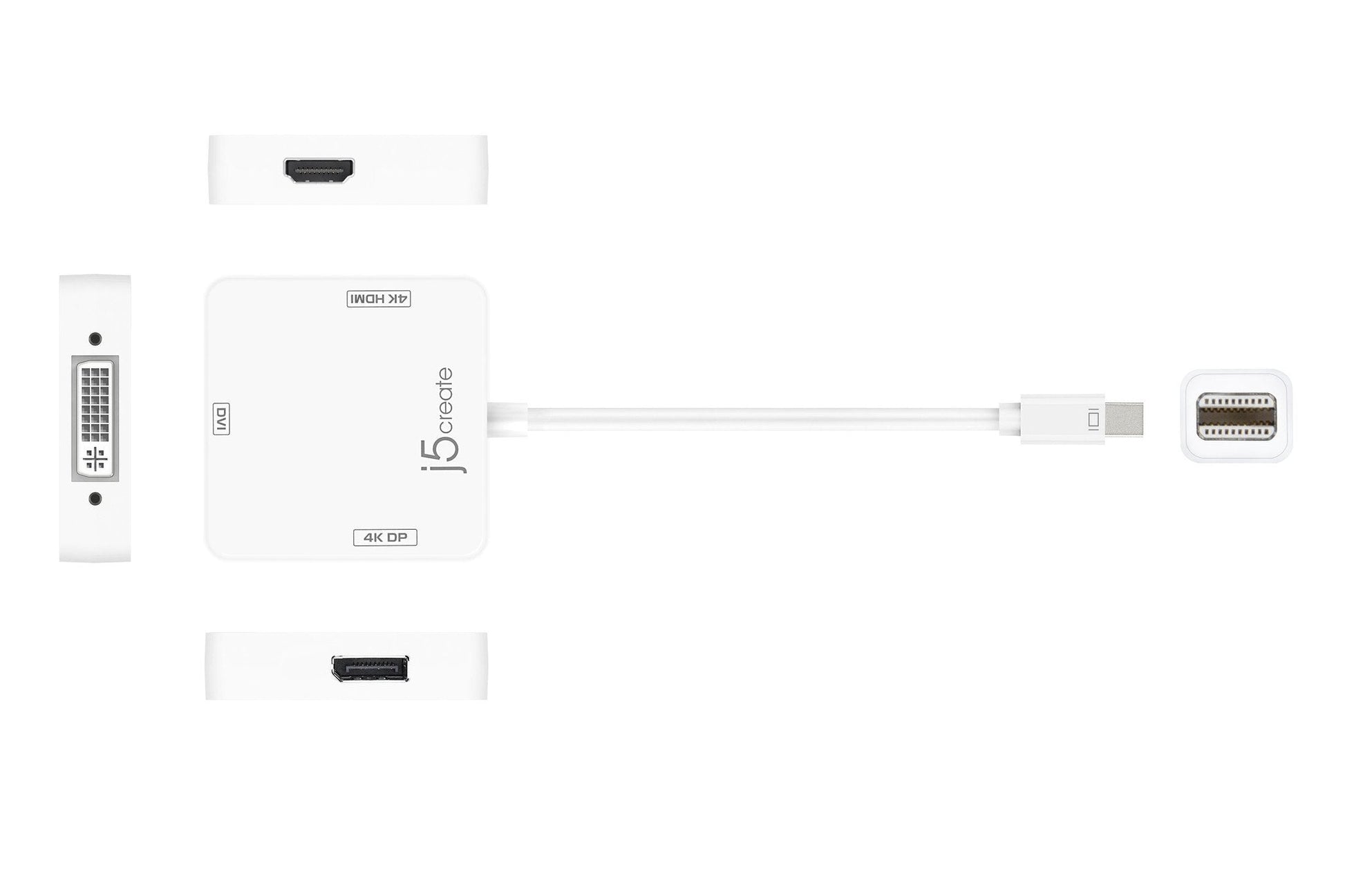

• Video Interface: DP™ (20 pin) Female Connector; HDMI™ (19 pin) Female Connector; DVI–D (25 pin) Female Connector
• Housing Material: Plastic
• Dimensions: Main body: 60 (W) x 60 (H) x 15 (D) mm; cable length: 100 mm
• Weight: Approximately 45 g
• Storage Temperature: -10 to 65°C
• Storage Humidity: 85% non-condensing
• Operation Temperature: 0 to 40°C
• Operation Humidity: 85% non-condensing

WHAT'S IN THE BOX:

• JDA173 mini DisplayPort^™ to 4K DisplayPort^™/4K HDMI^™/DVI Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
