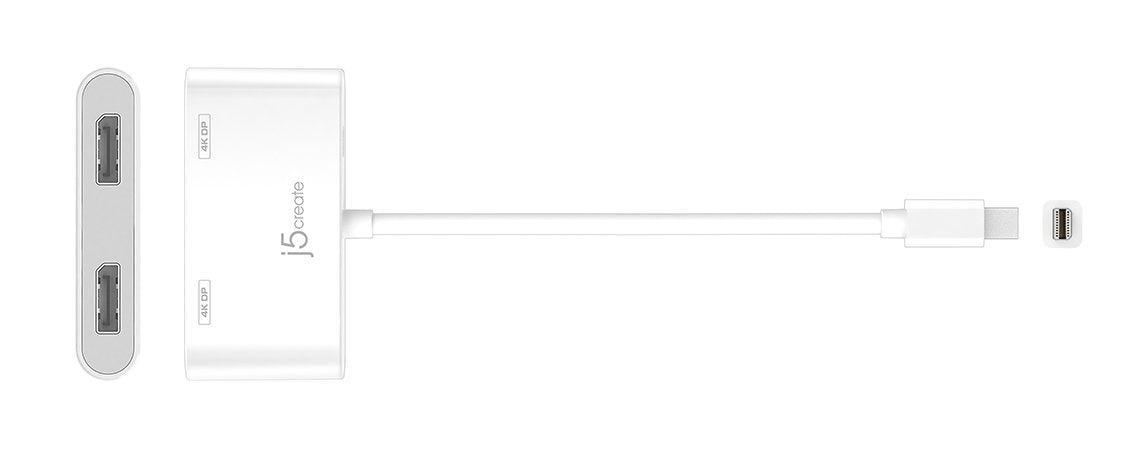

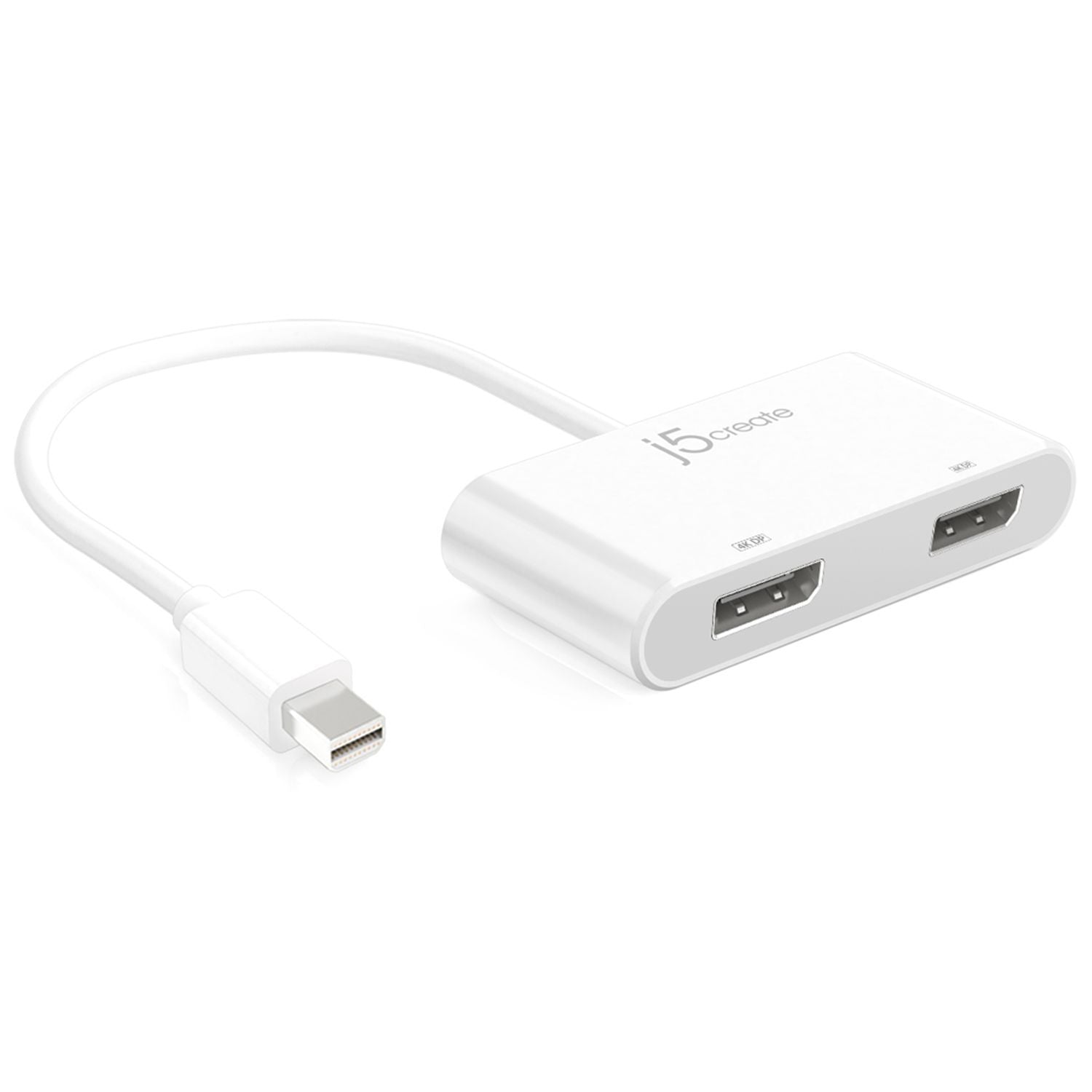

J5create Mini DisplayPort to Dual DisplayPort Adapter - JDA146

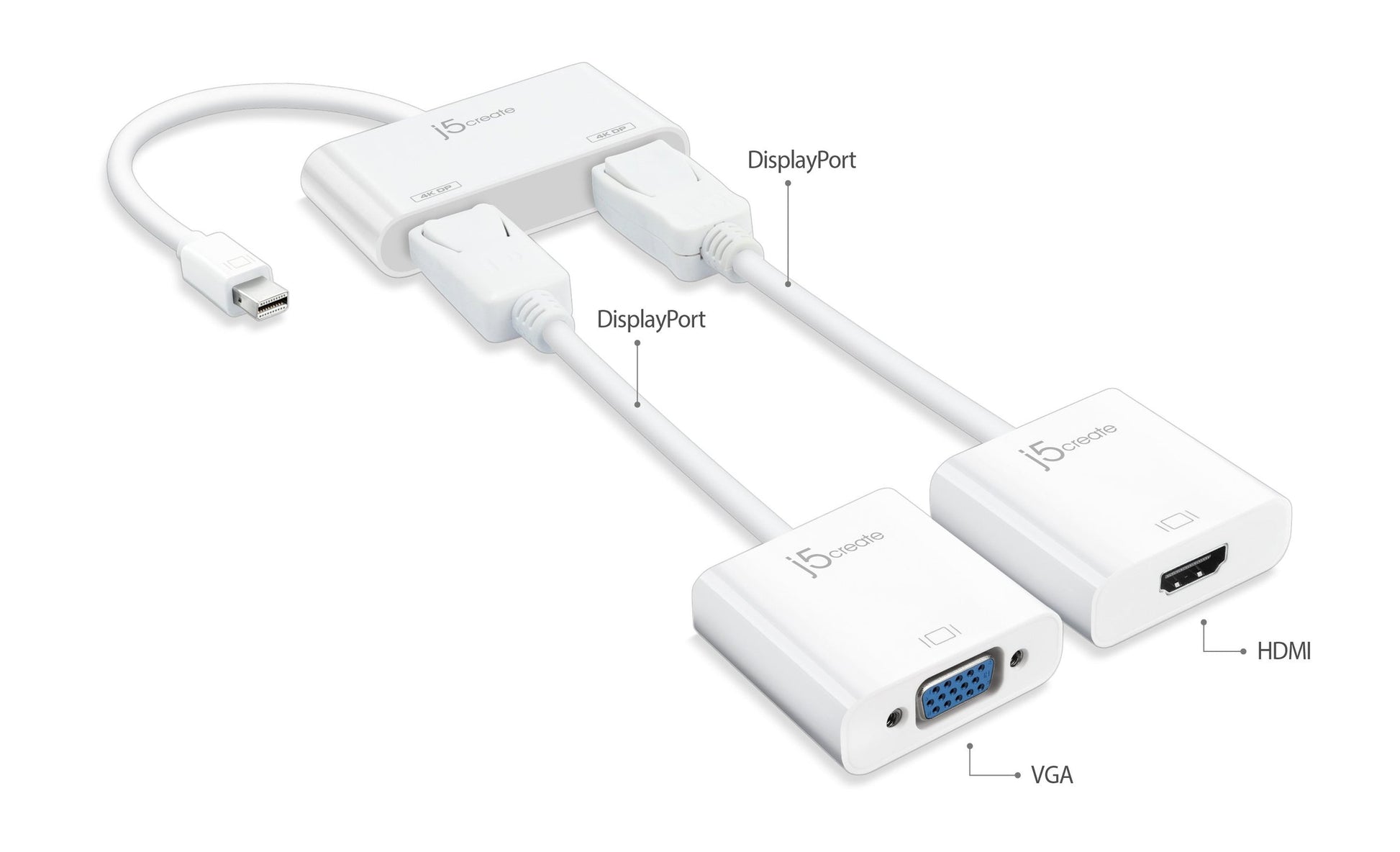

The JDA146 mini DisplayPort™ to Dual DisplayPort™ Adapter allows you to connect up to two DisplayPort™ monitors from a single Mini DisplayPort™ output. The JDA146 utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at up to 4k @ 30Hz each with DP 1.2.

FEATURES:

• Supports resolutions up to 4k @ 30Hz
• Extends single mDP to dual display
• Enables 2 monitors to work simultaneously with extended mode, expansion mode or mirror mode
• No drivers needed, simply plug & play
• Perfect for Microsoft Surface Pro and Lenovo ThinkPad

System Requirements:

• The graphics card for DisplayPort 1.2 with MST+HBR2
• Available DisplayPort alt mode over USB type-C port
• Mac OS X does not support MST + HBR2
• Requires an external USB Power source (USB cable included)
• Extended dual HDMI supported by Windows only (Microsoft Surface Pro2, Pro3, Pro4, Book supports MST+HBR2)
•  The graphics card requires a minimum of DisplayPort 1.2 with MST+HBR2 for dual independent display output (Microsoft Surface Pro2, Pro3, Pro4 and Book support MST+HBR2.

SPECIFICATIONS:
