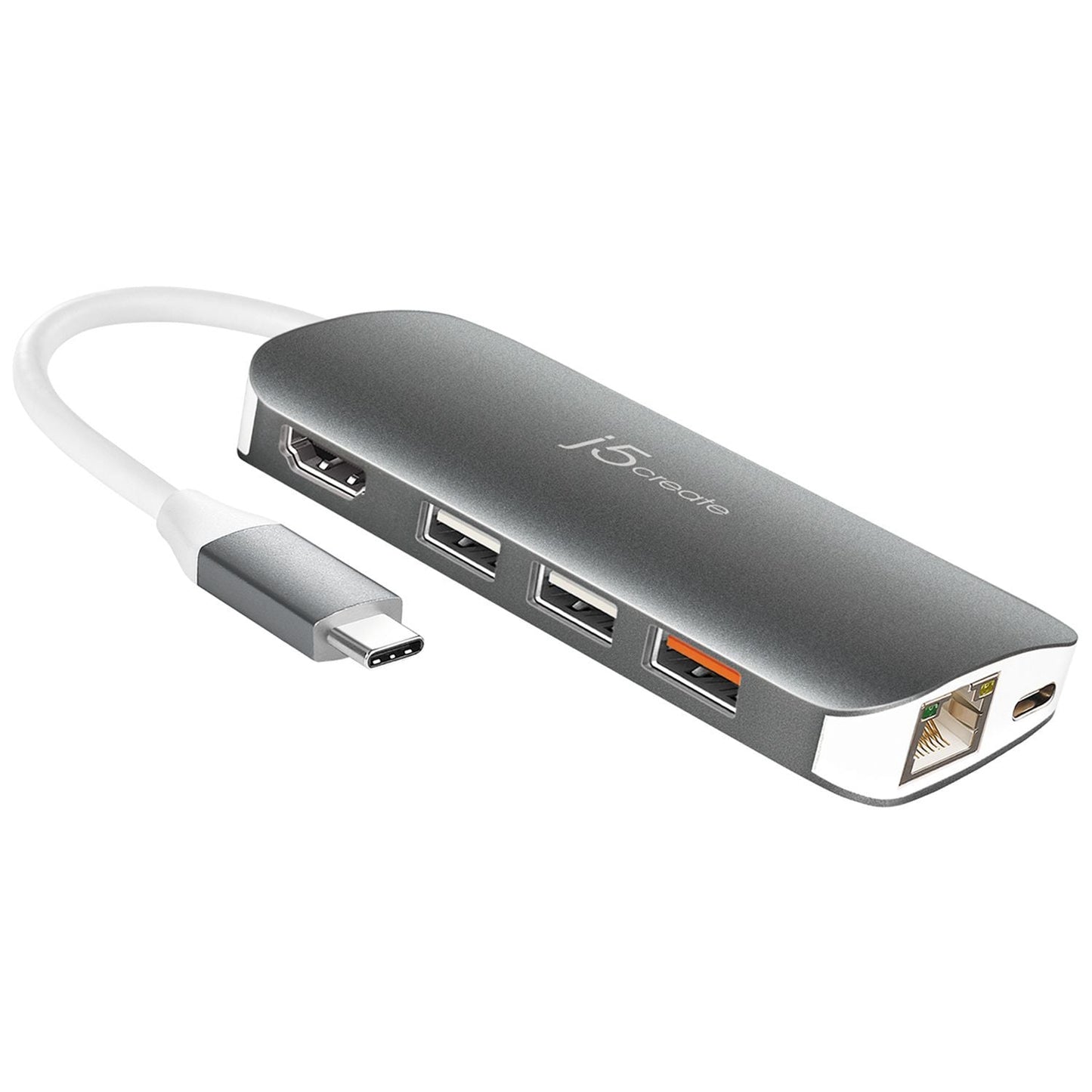

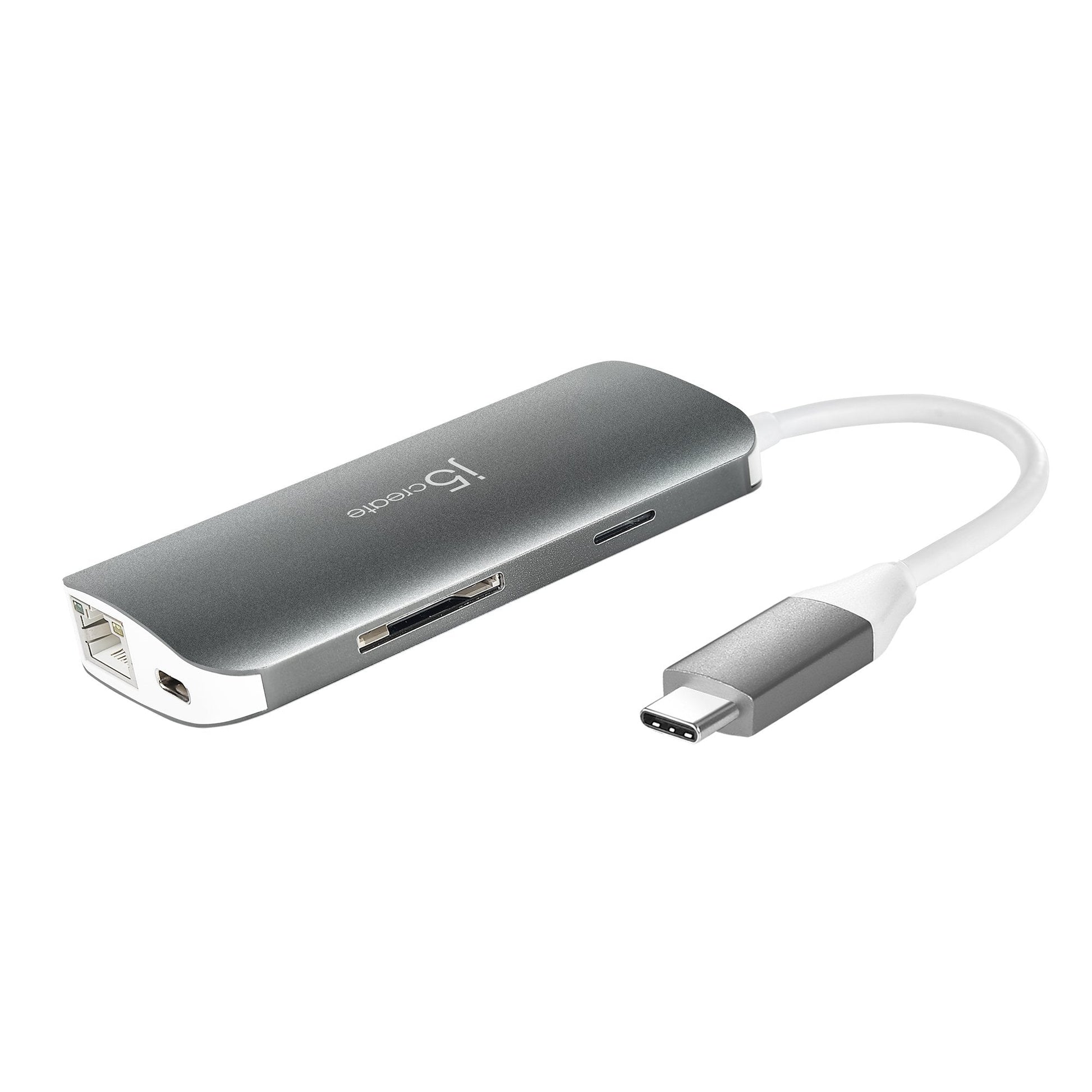

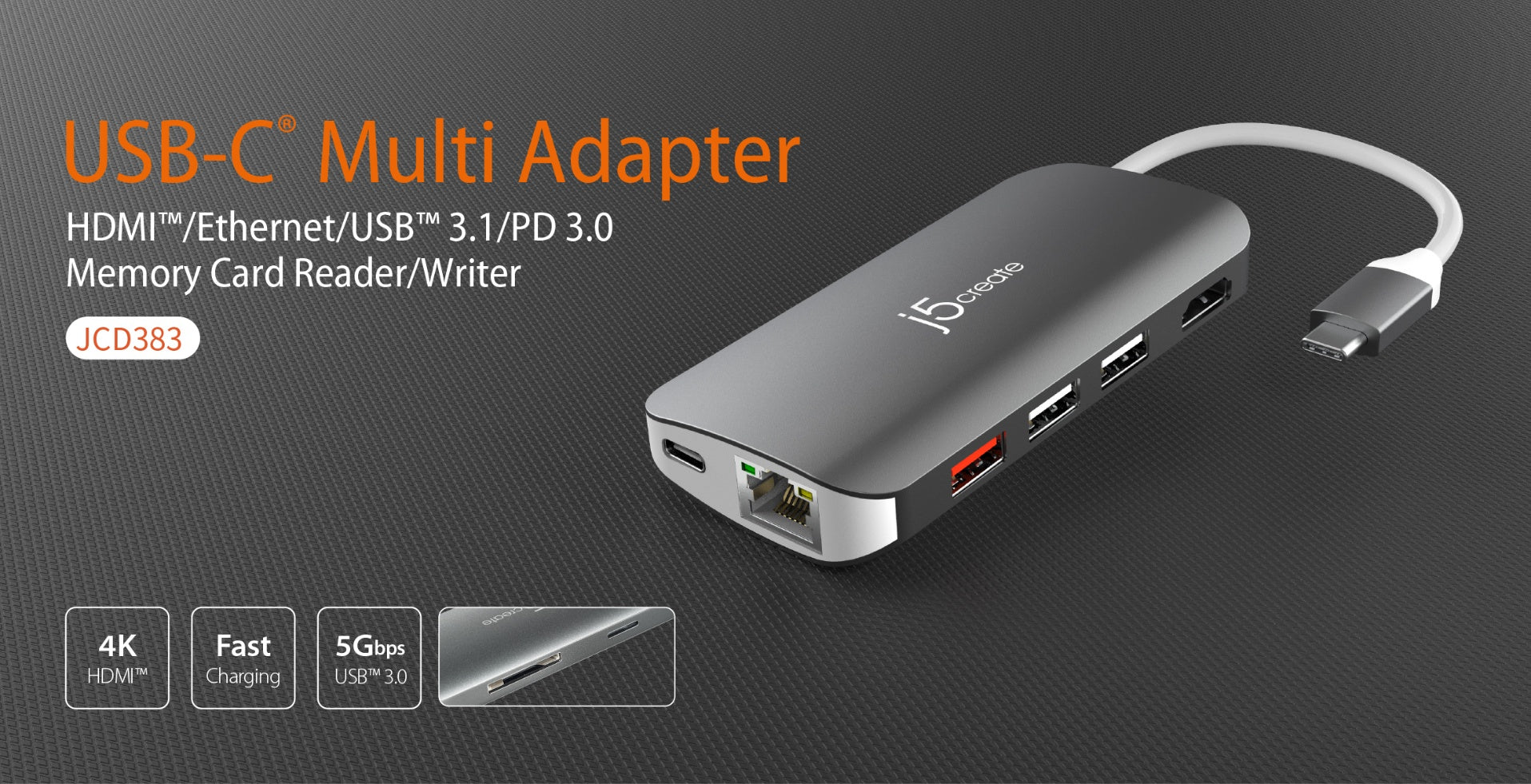

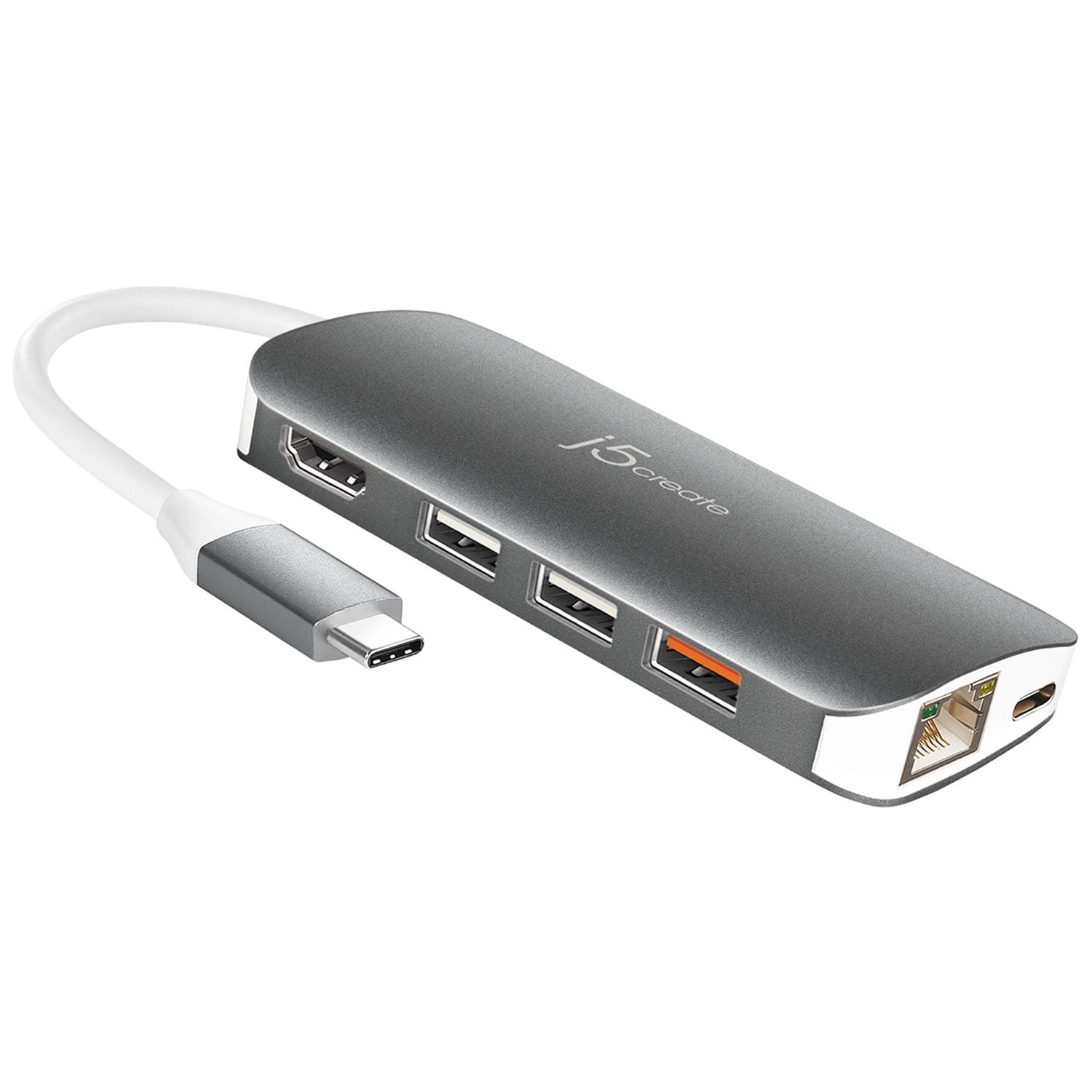

J5create Multi Adapter (9 Functions in 1) - JCD383

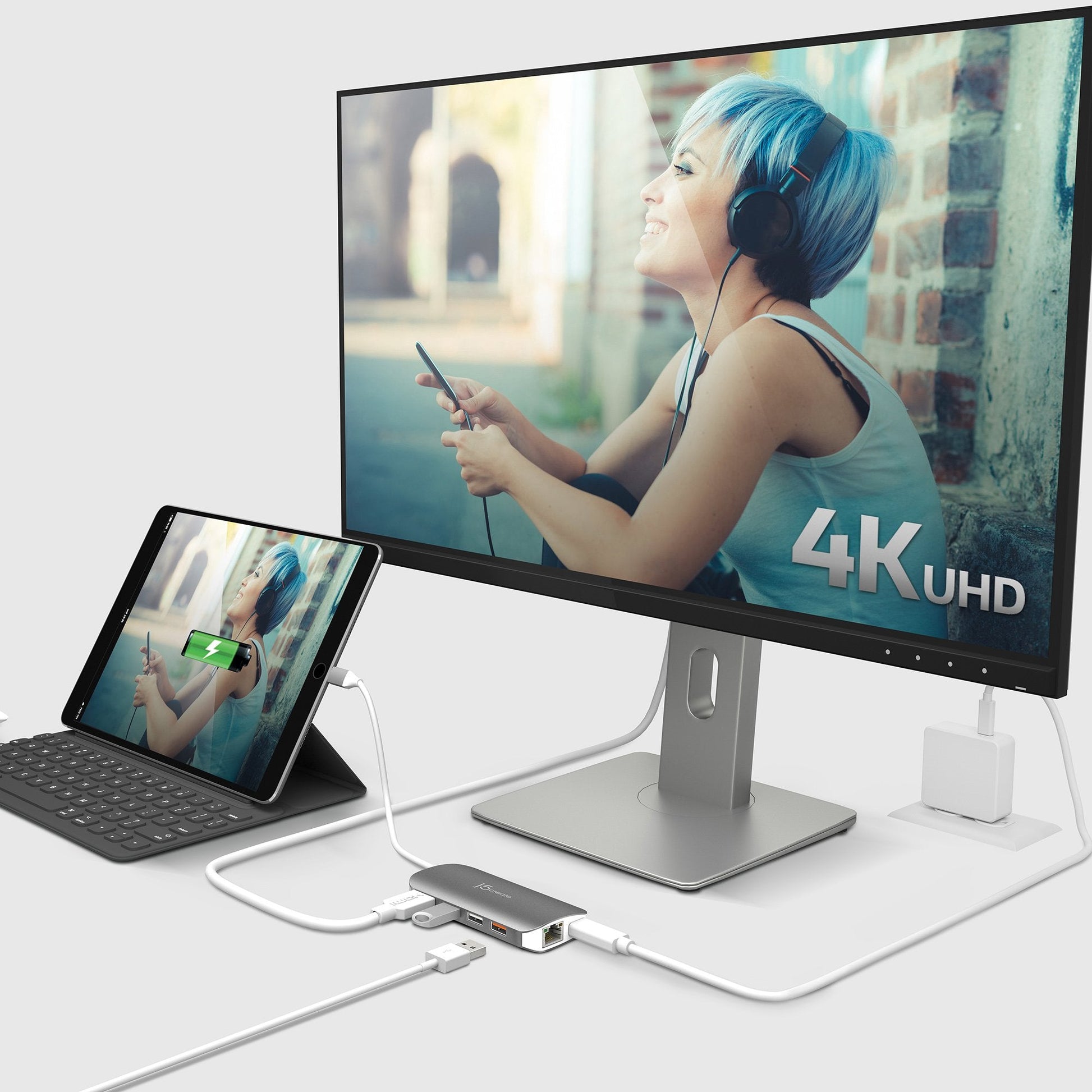

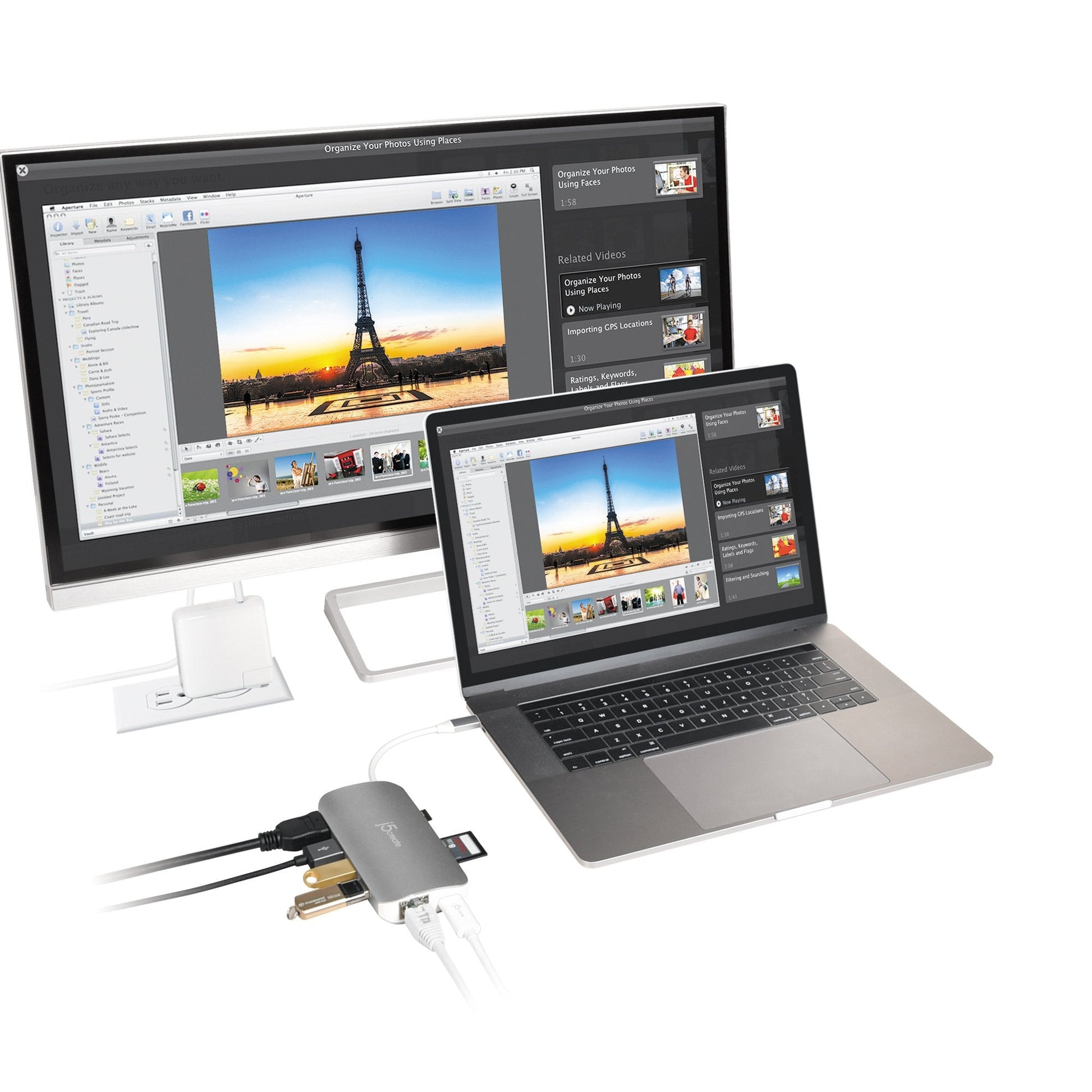

This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C™ multi-adapter gives you 2 USB™ Type-A ports for additional peripherals and 1 USB™ Type-A port with BC 1.2 to fast-charge your mobile device.

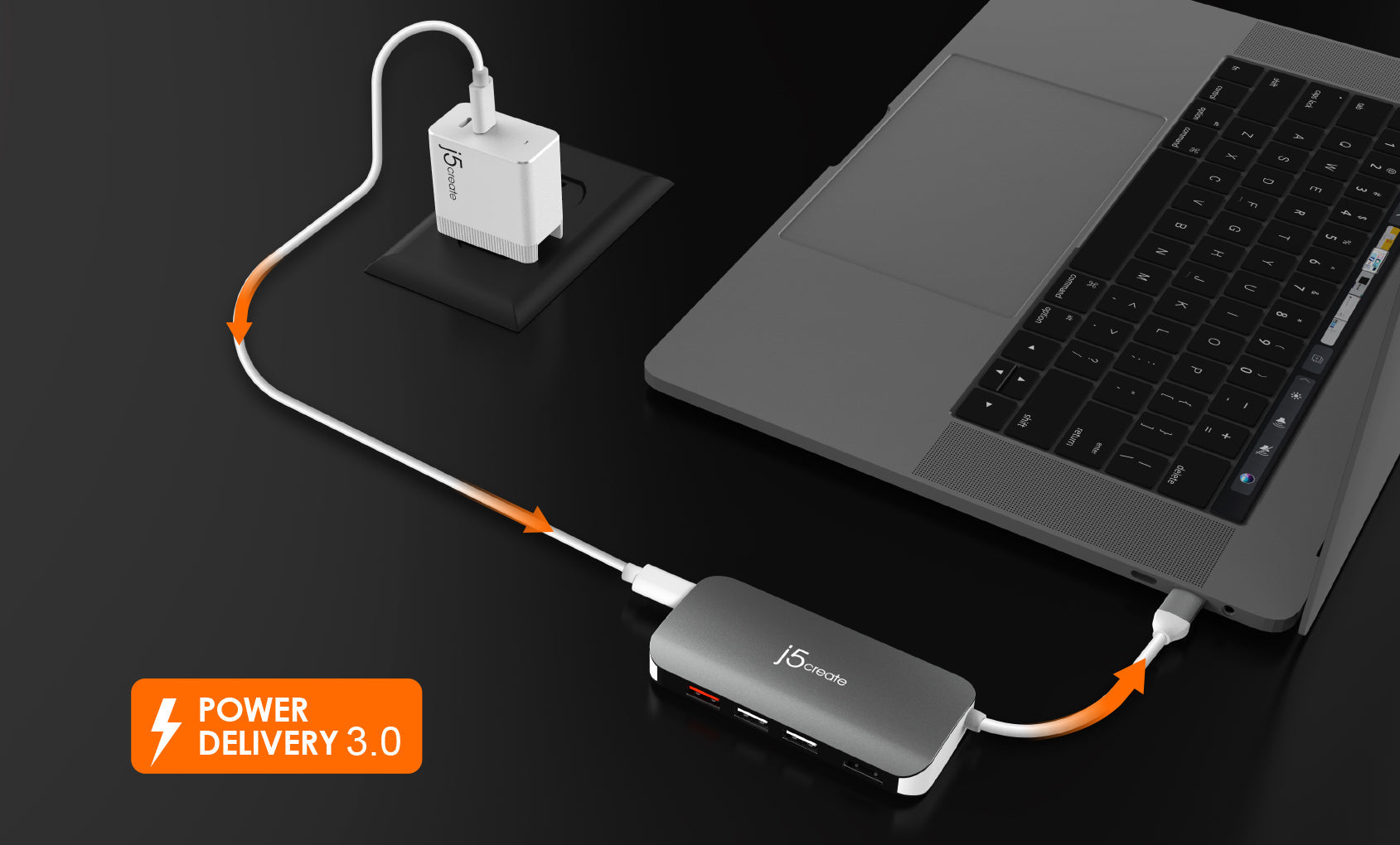

With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD™ & microSD™ memory cards.

The JCD383 is perfect for small workspaces, home offices and for on-the-go!

FEATURES:

• 8 ports with 9 functions
• USB-C™ power delivery 3.0 provides charging power to the connected devices as well as data transfer
• Easily add a 4K HDMI™ video output
• Reliable network connectivity via the Gigabit Ethernet port
• 2 - USB™ Type-A with BC 1.2 to fast-charge your mobile devices

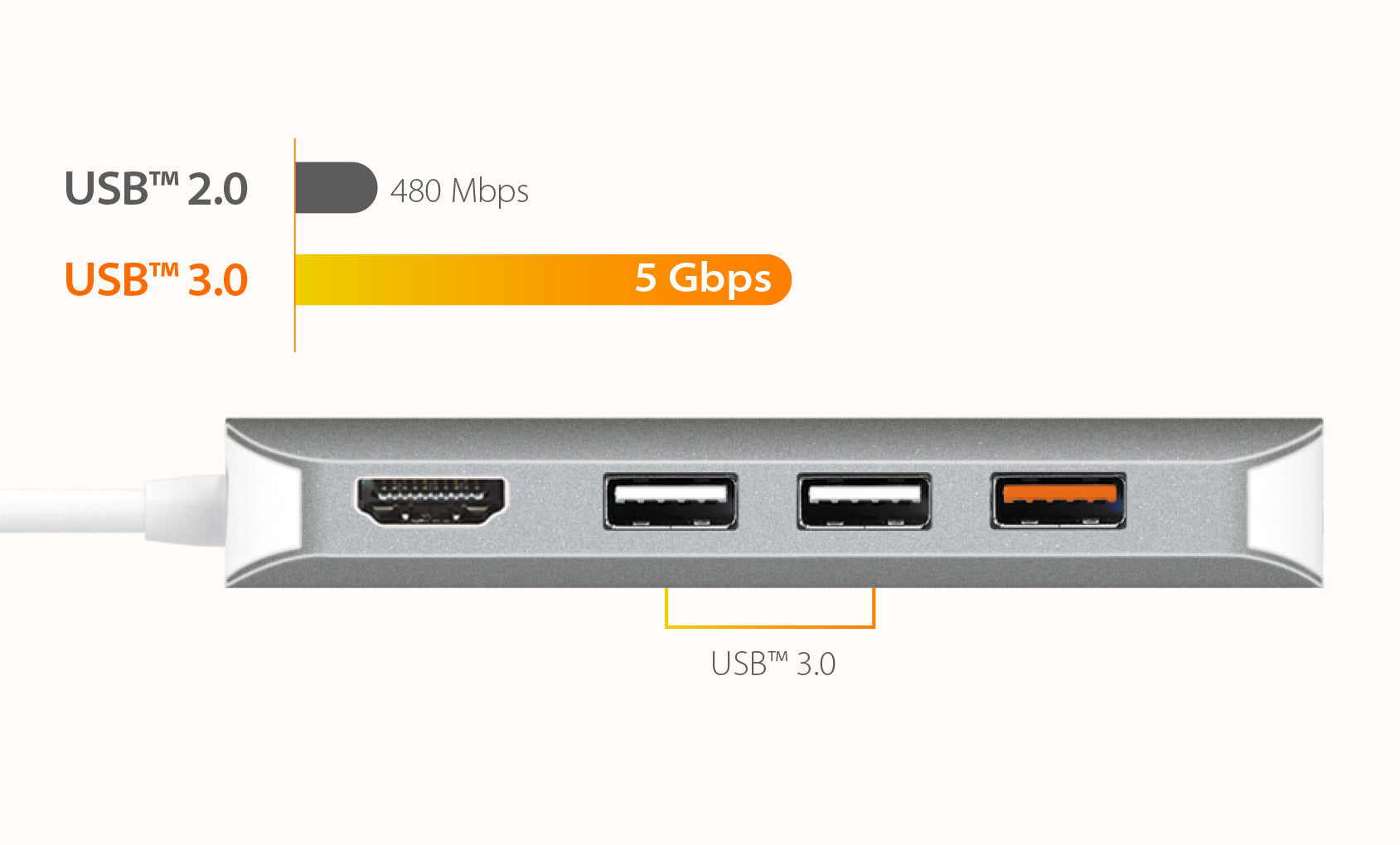

• USB™ 3.1 Gen 1 provides up to 5 Gbps transfer speed, which is 10x faster than USB™ 2.0

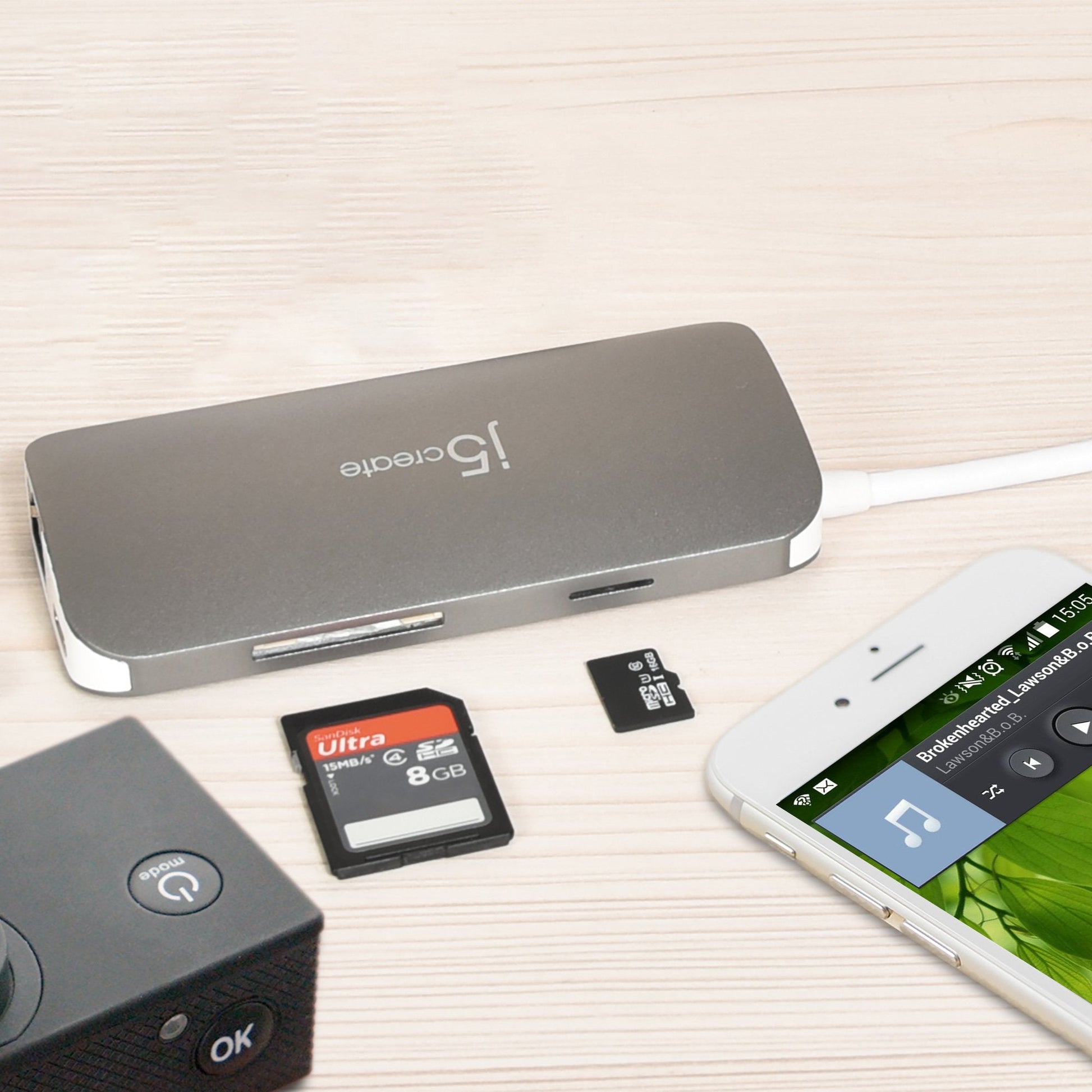

• Direct access to SD™ & microSD™ memory cards for data storage and transfer

System Requirements:

•  Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0.
  Please refer to the manufacturer of your hardware for more information on your device

Special Notes:

• The adapter can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution

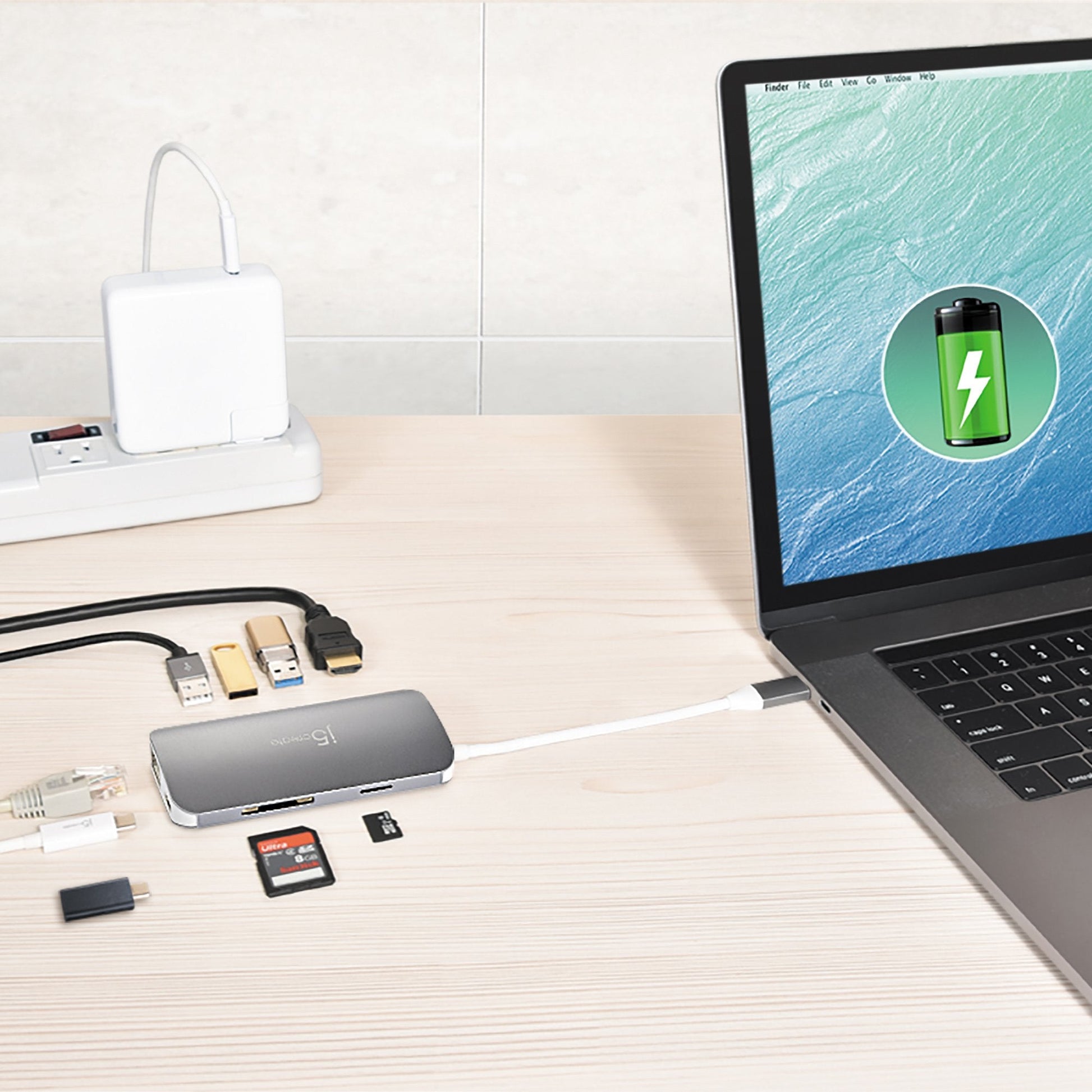

• If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the power delivery port to ensure maximum performance. When using your USB-C™ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
• To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0
• The device may become warm to moderately hot while transferring bulk data or while a USB-C™ power supply is plugged in

SPECIFICATIONS:

• Host Connector: 1 × USB-C™ Male
• Video Output: 1 × HDMI™ Female
• Power Source: Bus-powered or self-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes

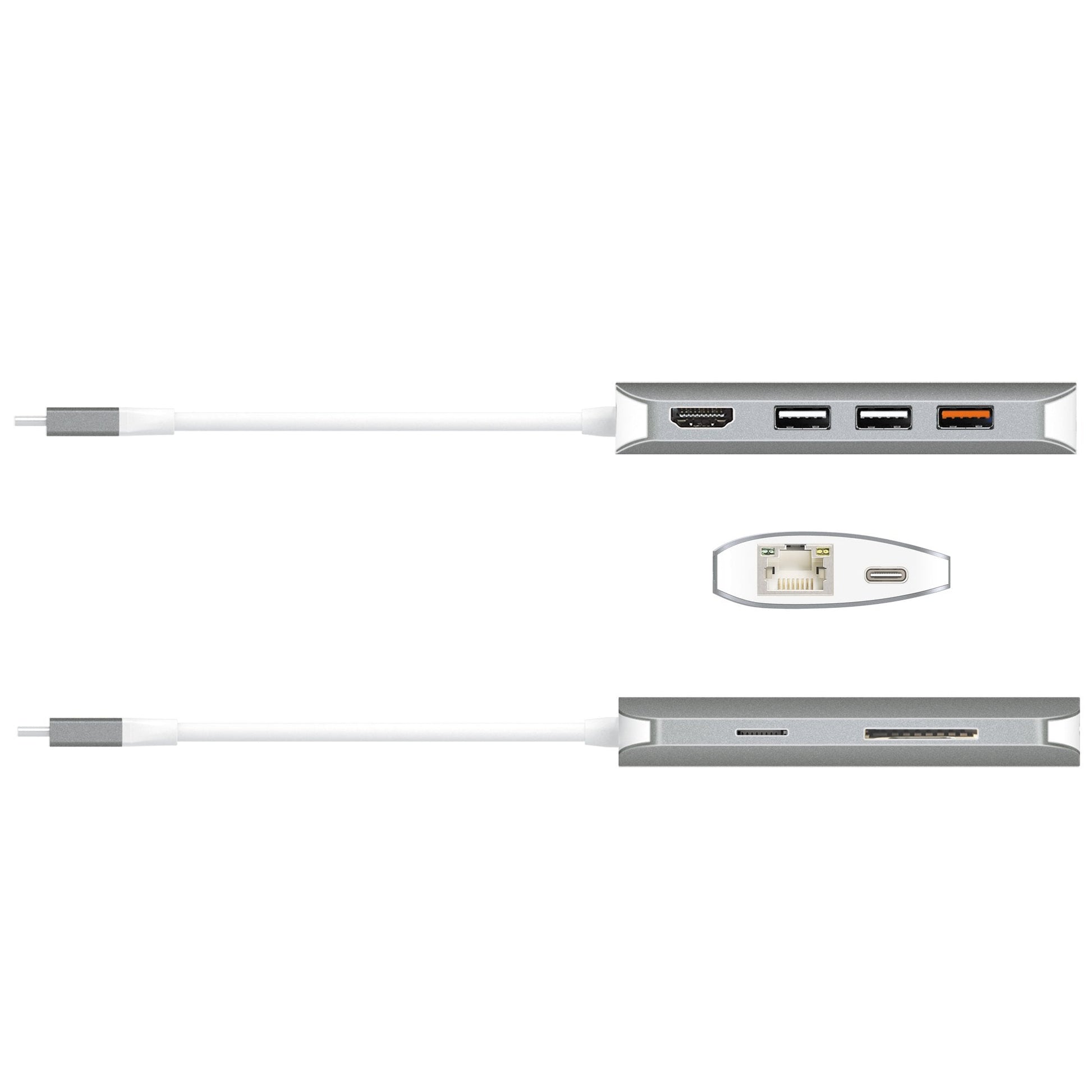

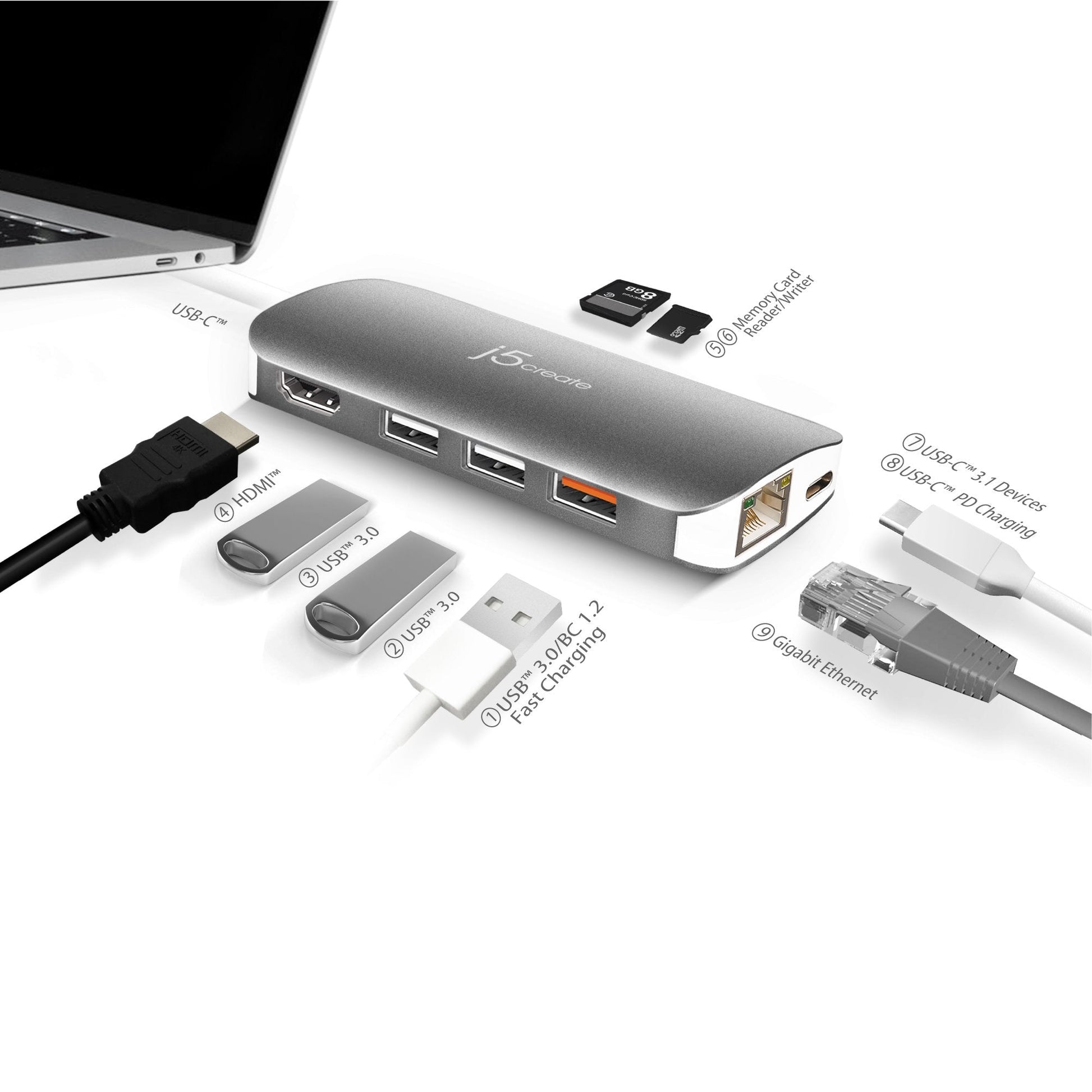

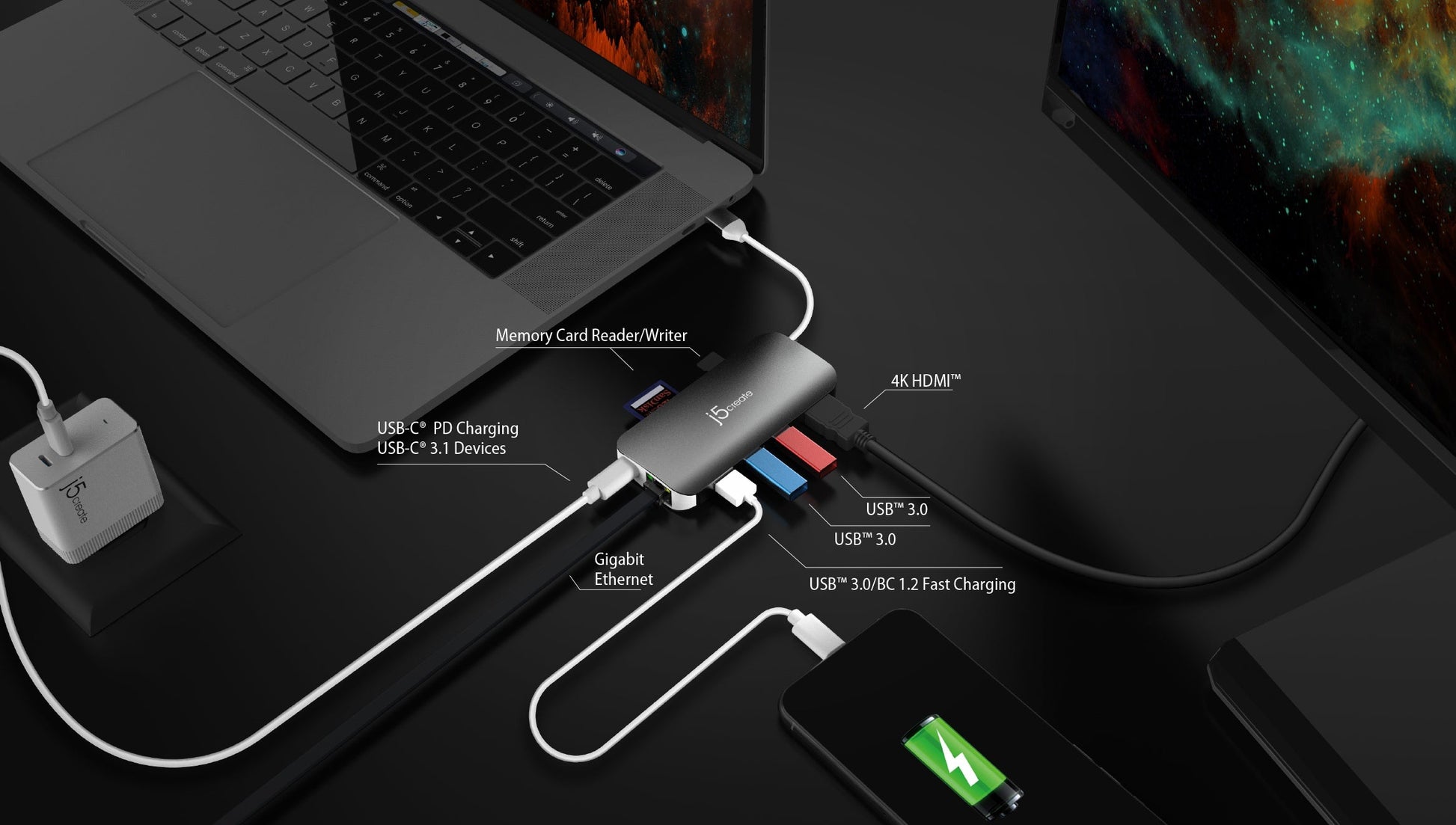

• Ports:
  • 1 × USB-C™ 3.0 (upstream & downstream charging, Power Delivery 3.0, data transfer)
  • 2 × USB™ Type-A 3.1 Gen 1
  • 1 × USB™ Type-A 3.1 Gen 1 with BC 1.2
  • 1 × SD™ & microSD™ card reader
  • 1 × 4K HDMI™
  • 1 × RJ45 Gigabit Ethernet
• Maximum Display Resolution: 3840 × 2160
• Maximum Display Refresh Rate: 30 Hz
• Maximum Data Transfer Rate: 5 Gbps
• Displays Supported: 1
• Compatible Networks: 10/100/1000 Base-T (auto-negotiating)
• Audio Channel: 2.1 via HDMI™
• Power Delivery: 100W
• Power Consumption: ≤ 500 mA
• Input Voltage: Up to 20V
• Input Current: Up to 5A
• Output Voltage: Up to 20V
• Output Current: Up to 4.25A
• Color: Silver
• Enclosure Type: Aluminum
• Cable Length: 5.4 in. (137 mm)
• Height: 4.13 in. (105 mm)
• Width: 1.97 in. (50 mm)
• Depth: 0.65 in. (16.5 mm)
• 2.75 oz (78 g)
• Operating Temperature: 32 to 118°F (0 to 48°C)
• Storage Temperature: 14 to 149°F (-10 to 65°C)
• Operating Humidity: < 85% non-condensing
• Storage Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD383 USB-C™ 9-in-1 Multi Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
