J5create ScreenCast 4K Max Wireless Display Adapter - JVAW76MAX
J5create ScreenCast 4K Max Wireless Display Adapter - JVAW76MAX
Ready to ship in 2-4 days
Couldn't load pickup availability
Share

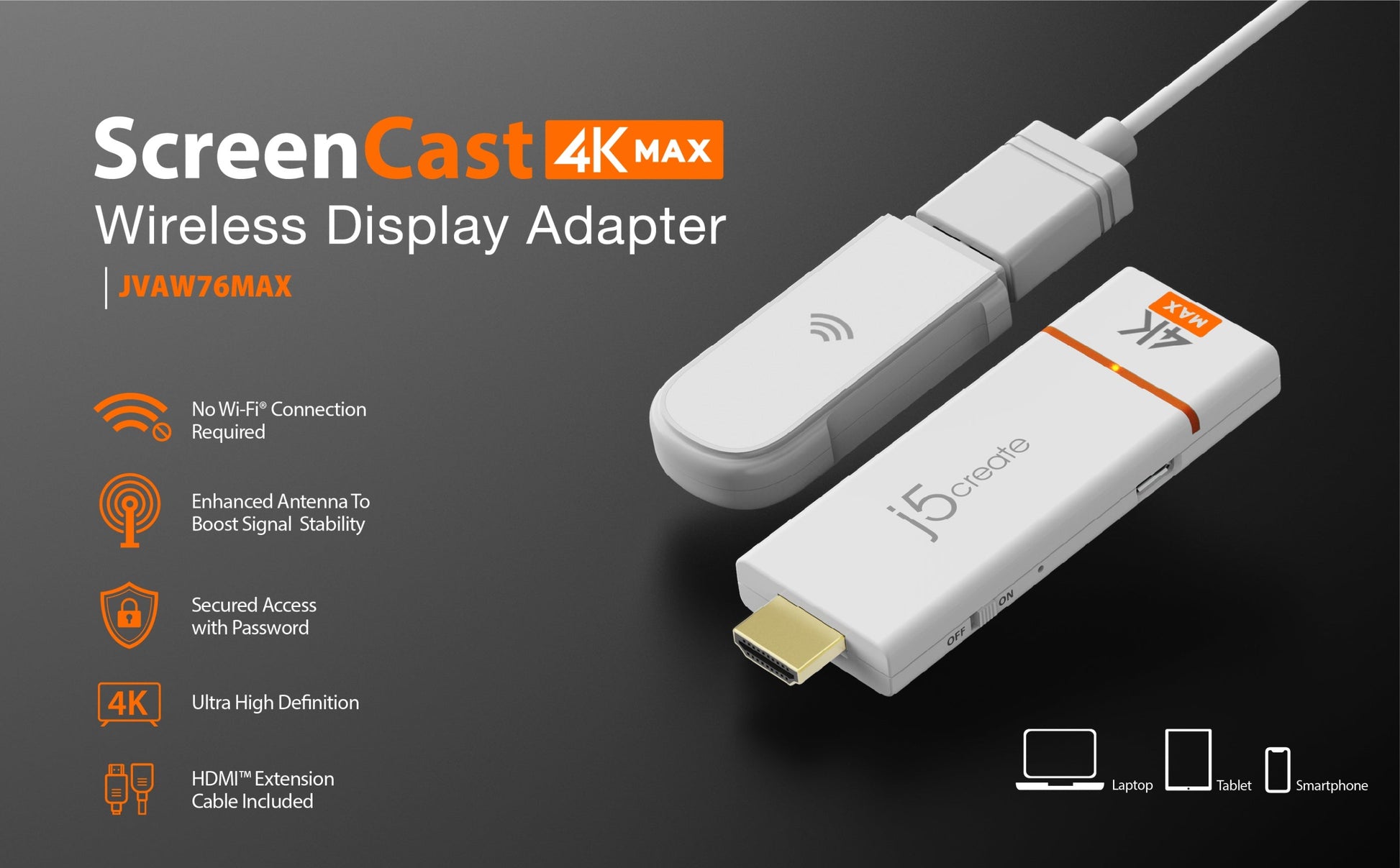

Wirelessly display content from a phone, tablet, or laptop onto a bigger screen with the ScreenCast 4K Max Wireless Display Adapter. Cast to TVs, projectors, and monitors. With its support of multiple wireless display standards (Miracast™, AirPlay®, and Chromecast™), this wireless display adapter is compatible with mobile devices you already own, including Windows®, macOS®, iOS®, Android™ and other cast compatible laptops, tablets, and mobile phones. In addition to its compact design, the ScreenCast 4K Max Wireless Display Adapter features an external antenna for enhanced signal coverage, making it perfect for home use and travel.
The JVAW76MAX adds more features for business or education scenarios, such as Point-to-Point mode (use your Windows® device, Mac®, iPad®, or iPhone® without setting up a Wi-Fi® connection). A customizable background image gives you the ability to better express your corporate identity. Includes a Miracast™ pin code feature for additional security.
FEATURES:
- Wirelessly share content from your mobile device to your HDTV

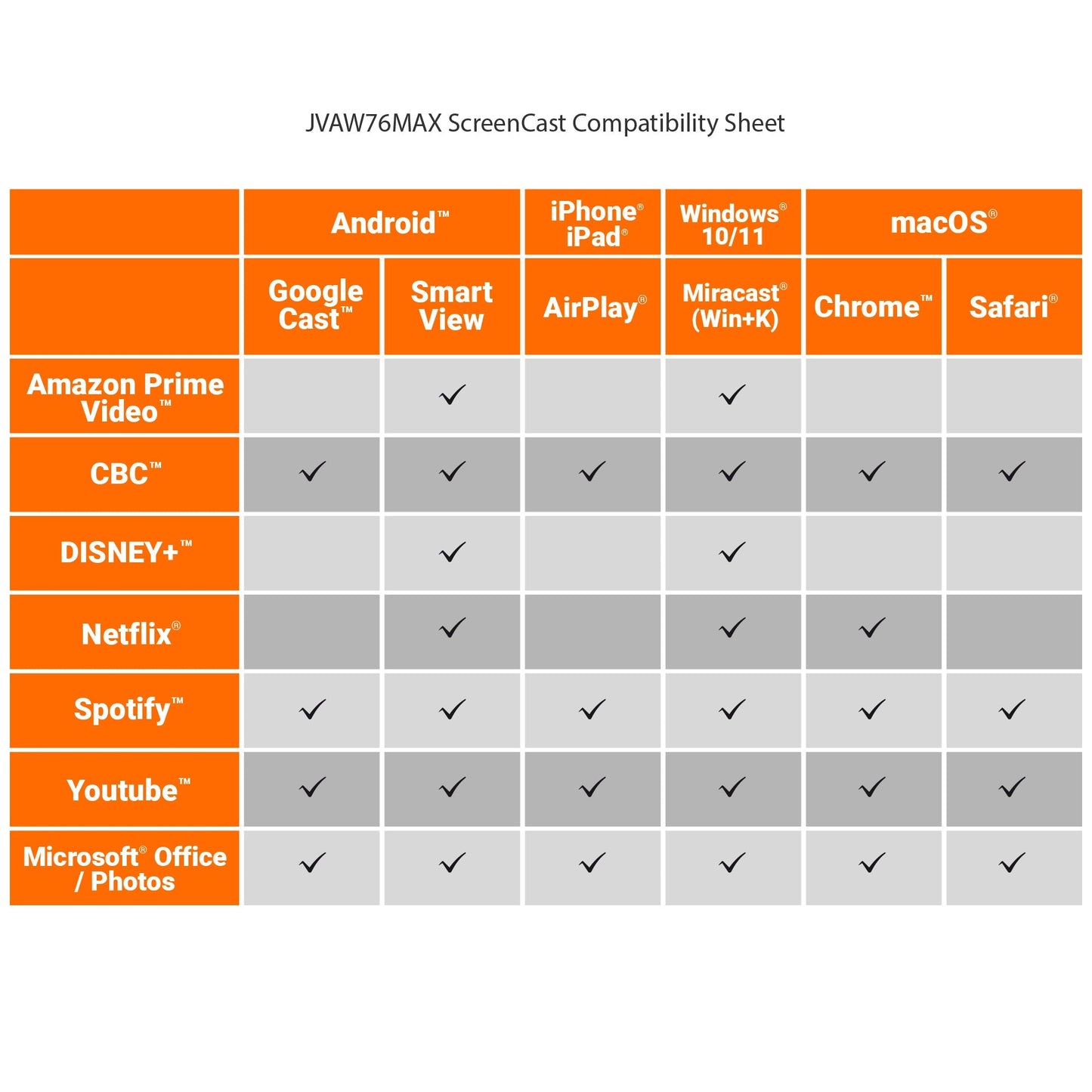

- Native support for AirPlay®, Miracast®, & Chromecast™ (Google Cast™)
- Supports up to 4K UHD video
- Native support for Point-to-Point Mode for AirPlay® and Miracast® without setting up a Wi-Fi® connection.
- Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection
- Wireless transmission distance up to 50 ft. (15m)
- Quick and easy setup - No apps or Wi-Fi® needed for Airplay® and Miracast™ devices
- Includes an HDMI™ extension cable for added convenience
- PIN Code Function for Miracast®
- Features an Admin Gateway Password for enhanced management security
- Customizable background image

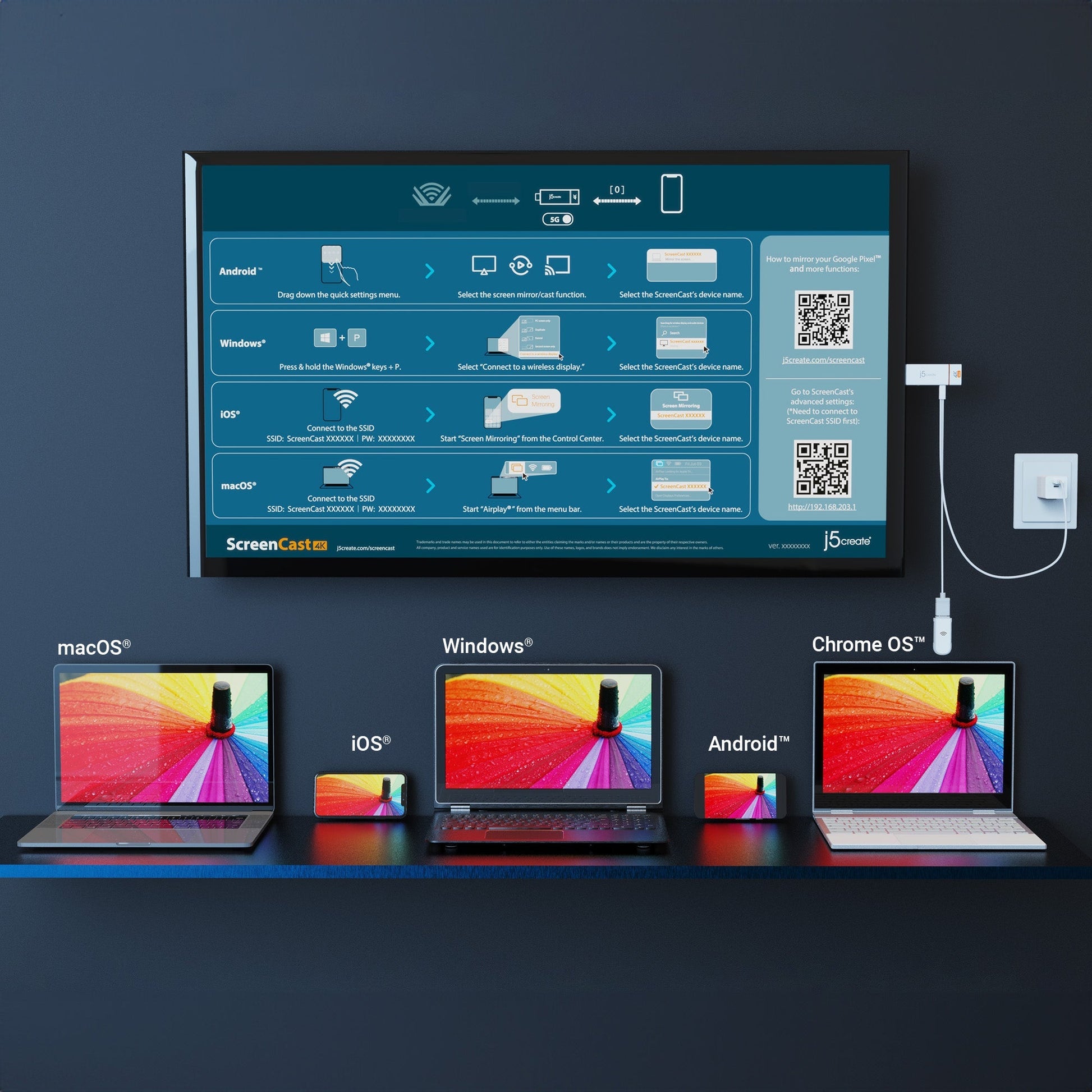

- Cast with compatible laptops, tablets, and mobile phones
System Requirements:
- Windows® 10 / 8.1
Android™ 8.0 or later
macOS® 10.15 or later with AirPlay® Support
iOS® 10.0 or later
iPadOS® 13 or later
Chrome OS™
Special Notes:
- Intended to be used with an external display
- Some devices such as Chromebook™ laptops and Google™ Pixel™ phones may require Wi-Fi® to cast.
- Your device must support Airplay® or Miracast™ to cast without Wi-Fi®.
SPECIFICATIONS:
- Host connector: HDMI™ male
- Infrared: N/A
- LED indicators: N/A
- Ports: N/A
- Power source: USB™ micro-B to USB™ Type-A male
- Warranty: 1 year limited
- Audio channel: 2.1 via HDMI™
- ESD protection: N/A
- HDCP compliance: N/A
- HDMI™ compliance: HDMI™ v1.4
- Infrared return frequency: N/A
- OVP protection: N/A
- RF output power: N/A
- Security (encryption): WPA2
- Supported output resolutions: 3840 × 2160, 1920 × 1080, 1280 × 720
- Cable length: 39 in (100 cm)
- Color: White
- Connector type: Plastic
- Operating humidity: < 85% non-condensing
- Operating temperature: +14 to +104 °F (-10 to +40 °C)
- Storage humidity: < 85% non-condensing
- Storage temperature: -4 to +122 °F (-20 to +50 °C)
- Product dimensions: 0.43 in (11 mm) depth, 3.74 in (95 mm) height, 1.25 in (32 mm) width
- Product weight: 2.8 oz (79.5 g)
- Wireless antenna type: external antenna
- Channel width: 20 MHz, 40 MHz
- Frequency: 2.4 GHz, 5 GHz
- Wireless range: up to 15 meters
- Standard: IEEE 802.11ac

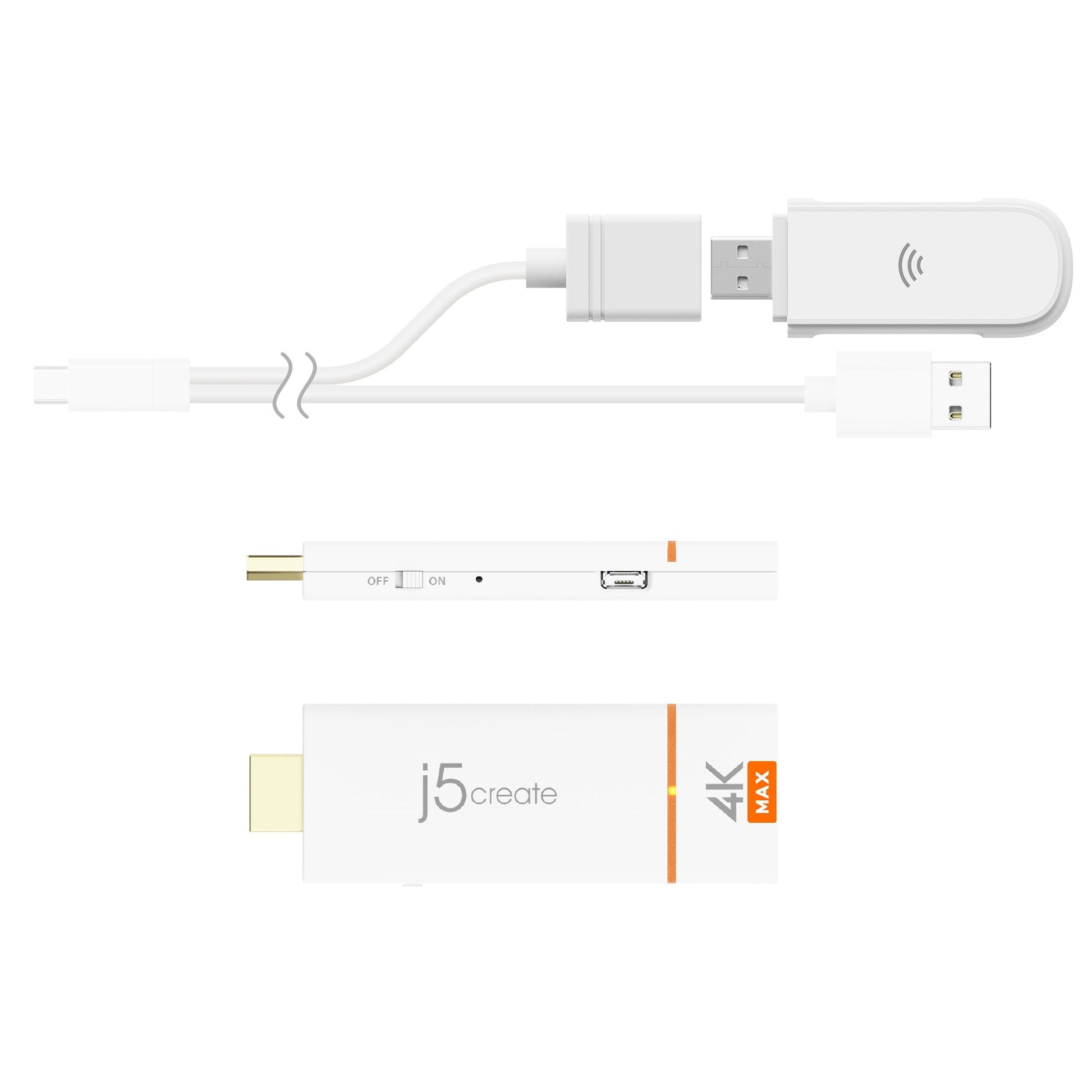

WHAT'S IN THE BOX:

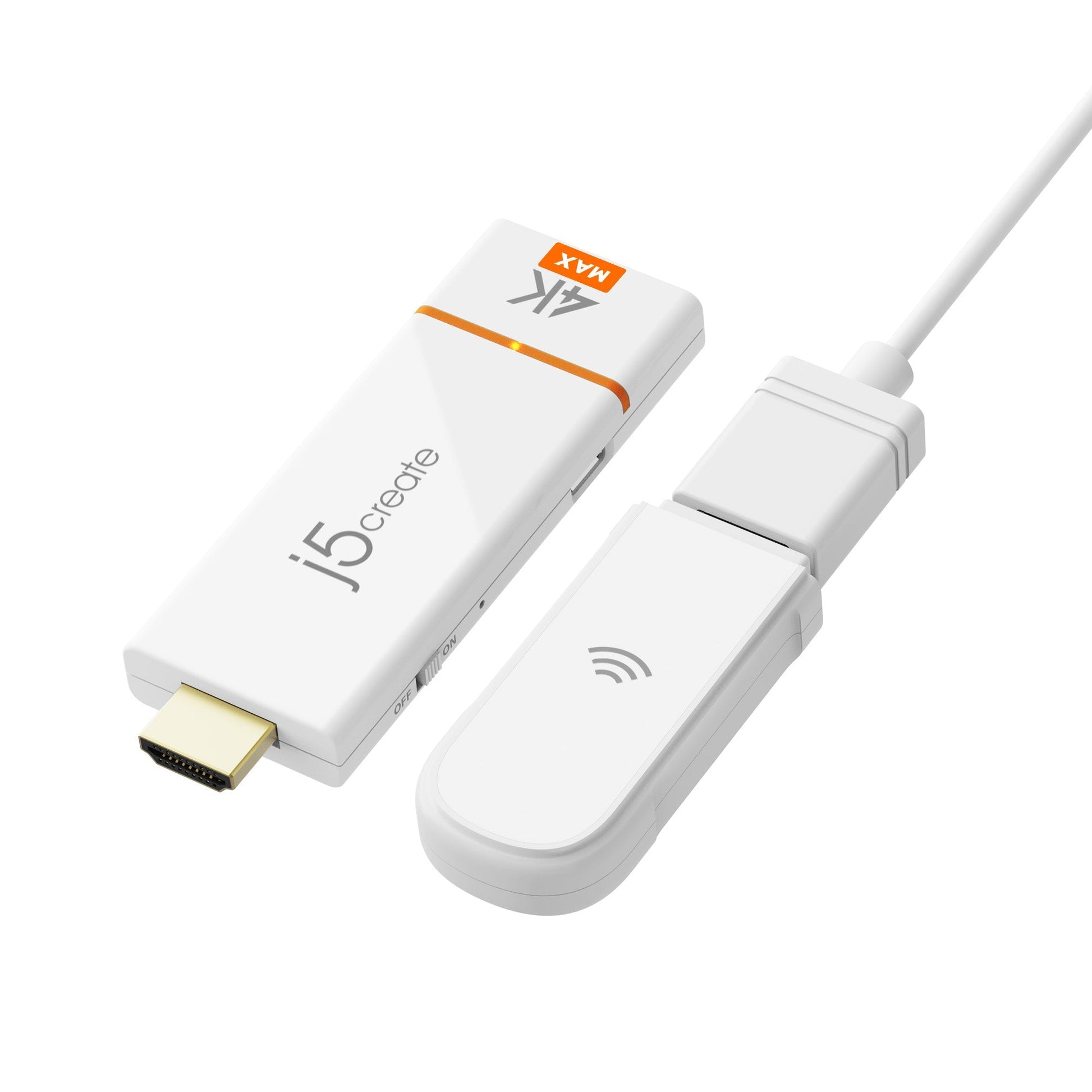

- JVAW76MAX ScreenCast 4K Max Wireless Display Adapter x1
- External antenna with USB™ Type-A power cable (39") x1
- HDMI™ extension cable (5.11") x1
- Quick Installation Guide (QIG) x1
WARRANTY:
- 12 Months
