J5create ScreenCast 4K Wireless Display HDMI Extender - JVAW75

The JVAW75 4K Wireless Display HDMI™ Extender comes with both a transmitter and receiver kit. With a receiver distance of up to 98.4 feet (30m) and minimal latency, it can deliver a 4K video and audio signal to an HDMI™ capable TV set, projector, or monitor.

Other HDMI™ sources, such as DVD players, Blu-ray™ players, PCs, notebooks and game consoles (ex. Sony® PlayStation™ 4 / 5, Nintendo Switch™) can be extended. The JVAW75 supports resolutions up to 4K and stereo digital audio through HDMI™ and is completely HDCP compliant so o you can watch your favorite streaming services.

FEATURES:

• Cast 4K content wirelessly from your mobile device to a larger TV or display
• Built-in antenna supports a wireless range up to 98.4 ft (30m)
• High-speed audio and video transmission with low latency (less than 0.13s/130 ms)
• With support of DRM technology and HDCP 1.4 compliance, you can watch your favorite shows/movies on your favorite streaming apps, such as Netflix®, Amazon® Prime Video™, Hulu™, DISNEY+™, and other streaming services
• Supports 4K@30 and 1080@60 video
• Built-in dual band (2.4 GHz and 5 GHz) offers a steady connection and smooth streaming experience
• Compact design is great for home, office, school, or on-the-go
• Compatible with a variety of wireless technologies, including Miracast™, AirPlay®, and Google™ Chromecast™

System Requirements:

• Available HDMI™ output device

SPECIFICATIONS:

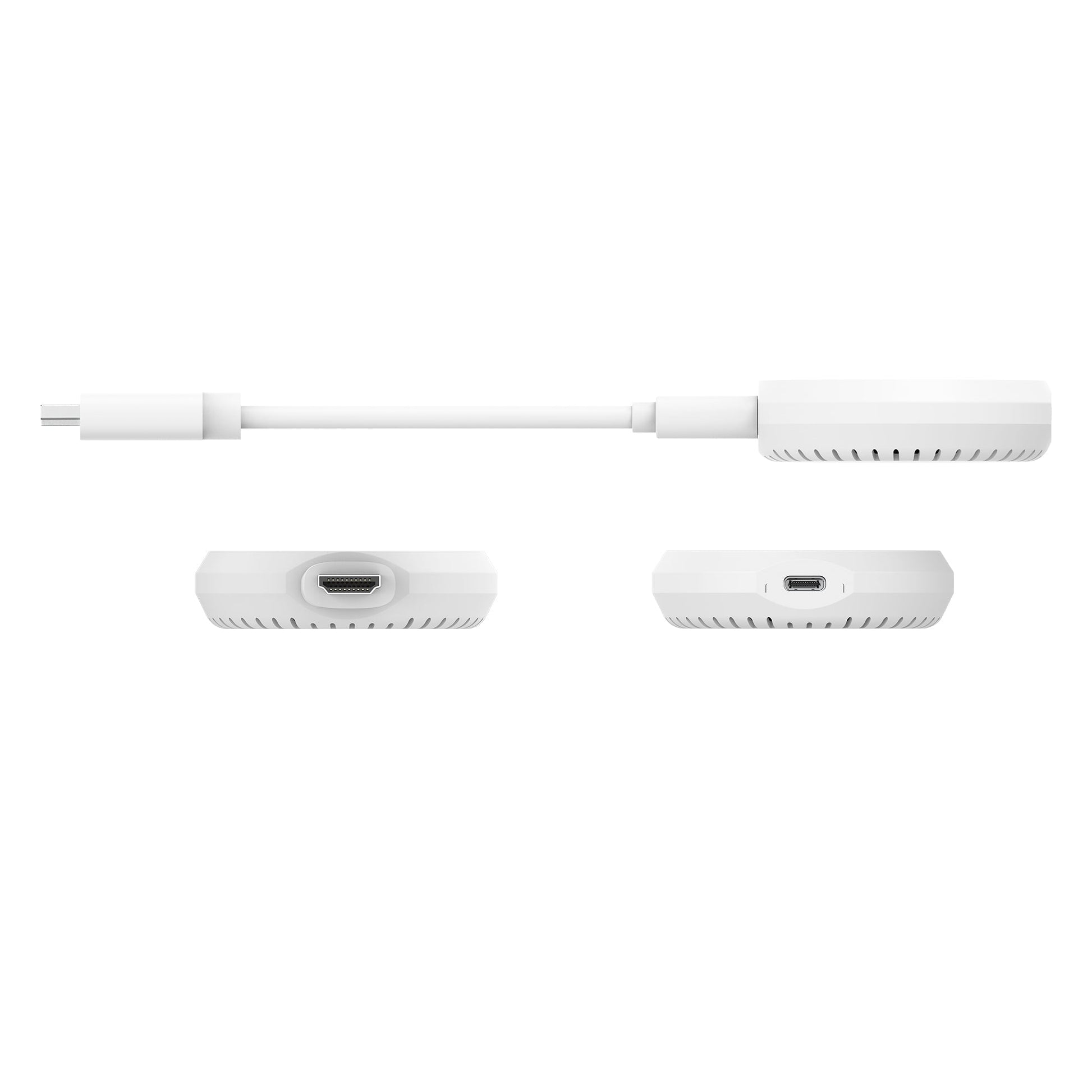

• Host Connector: HDMI™ male
• Power Source: USB-C® Female

• LED Indicators:

  • HDMI™ Transmitter (TX): Solid White – Device is connected to RX successfully and operating properly; Blinking (Slow) – Ready and attempting to connect while RX is being set up; Blinking (Fast) – Processing pairing with RX; Light off – Malfunction or no power input
  • HDMI™ Receiver (RX): Solid White – Device is powered on and operating properly
• Ports: N/A
• Infared: N/A
• HDMI™ Compliance: HDMI™ v1.4
• HDCP Compliance: HDCP 1.4
• Audio Channel: 2.1 via HDMI™
• Display Output Supported Resolutions: 3840 x 2160 @ 30 Hz; 1920 × 1080 @ 60 Hz; 1280 × 720 @ 60 Hz
• RF Output Power: N/A
• Security (Encryption): WPA2
• Infared Return Frequency: N/A
• ESD Protection: N/A
• OVP Protection: N/A
• Standard: IEEE 802.11ac
• Frequency: 2.4 GHz, 5 GHz
• Range: Up to 10–30 meters (up to 98 ft / 30 m; reduced to 32 ft / 10 m through walls)
• Channel Width: 20 MHz, 40 MHz
• Antenna Type: Internal antenna
• Color: White/Grey
• Enclosure Type: Plastic
• Cable Length: HDMI™ Transmitter (TX): 6 in. (152.3 mm); HDMI™ Receiver (RX): 6 in. (152.3 mm)
• Product Height: HDMI™ Transmitter (TX): 2.42 in. (61.47 mm); HDMI™ Receiver (RX): 2.42 in. (61.47 mm)
• Product Width: HDMI™ Transmitter (TX): 2.6 in. (66 mm); HDMI™ Receiver (RX): 2.6 in. (66 mm)
• Product Depth: HDMI™ Transmitter (TX): 0.67 in. (17 mm); HDMI™ Receiver (RX): 0.67 in. (17 mm)
• Product Weight: HDMI™ Transmitter (TX): 2.22 oz (63 g); HDMI™ Receiver (RX): 2.22 oz (63 g)
• Operating Temperature: +14 to +104°F (-10 to +40°C)
• Operating Humidity: < 85% non-condensing
• Storage Temperature: -4 to +122°F (-20 to +50°C)
• Storage Humidity: < 85% non-condensing

WHAT'S IN THE BOX:

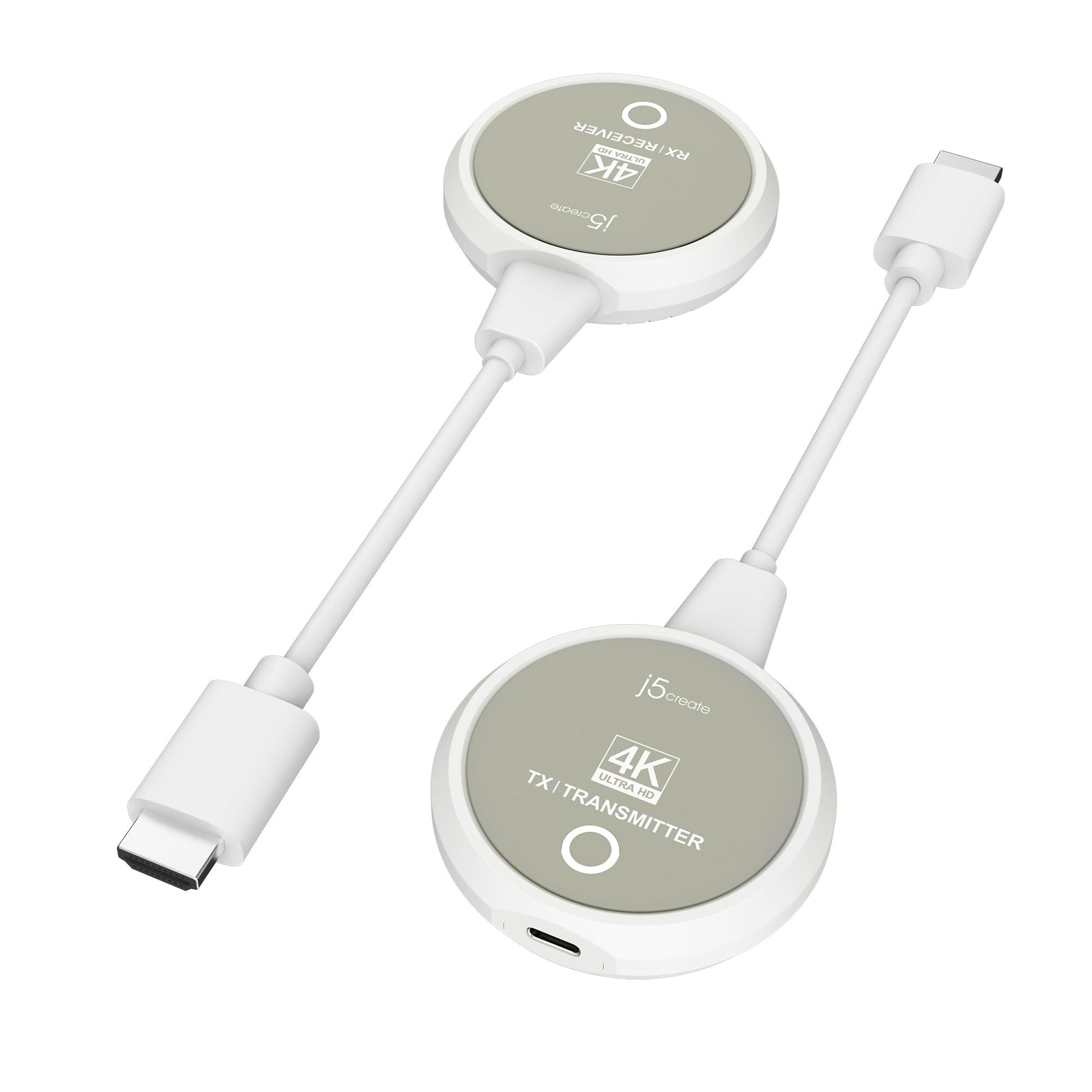

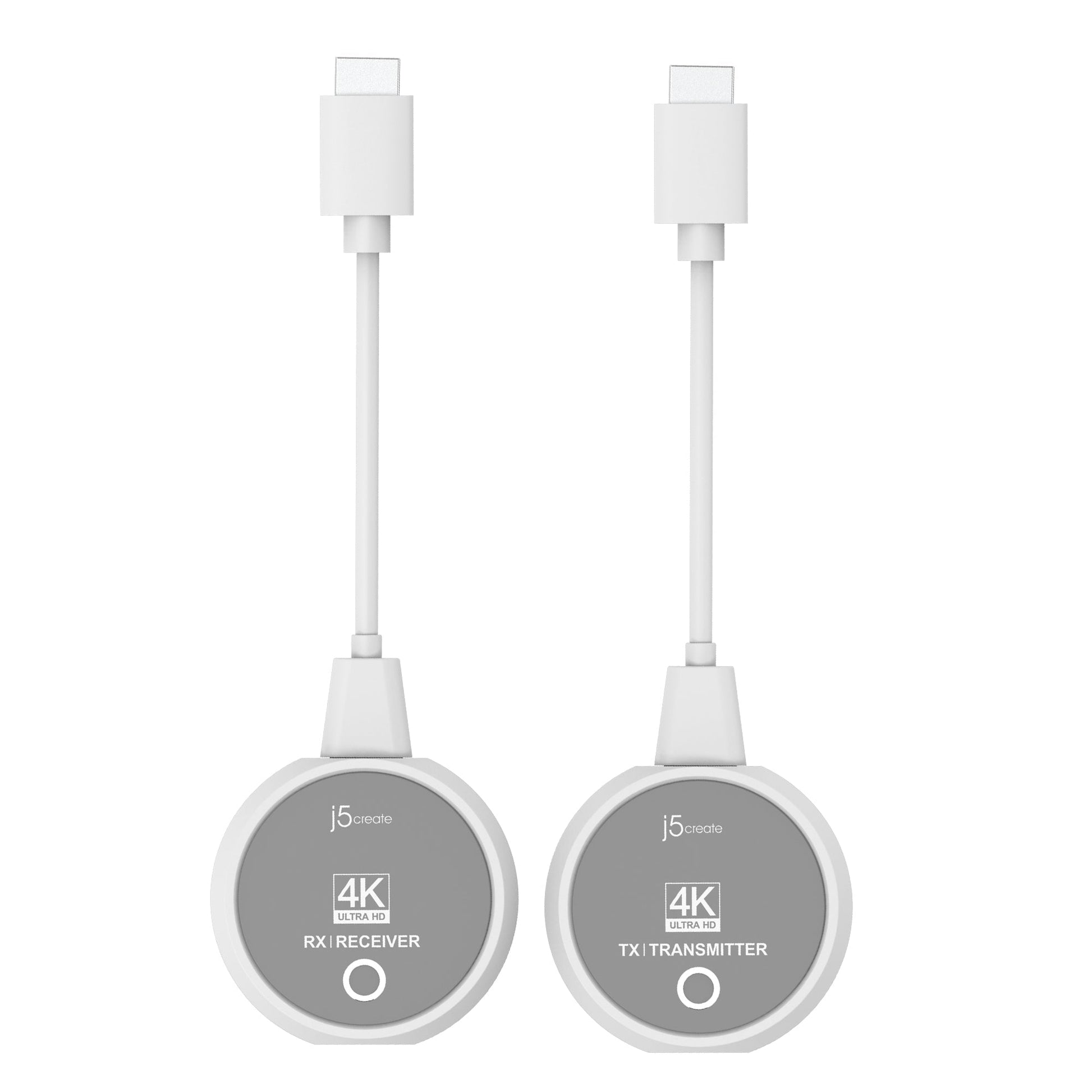

• JVAW75 4K Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver) x1
• USB-C® to USB™ Type-A power cable (Cable Length: 100 cm, Color: White) x2
• HDMI™ extension cable (Cable Length: 60 cm, Color: White) x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 12 Months
