J5create ScreenCast USB-C Wireless Display HDMI Extender - JVAW62

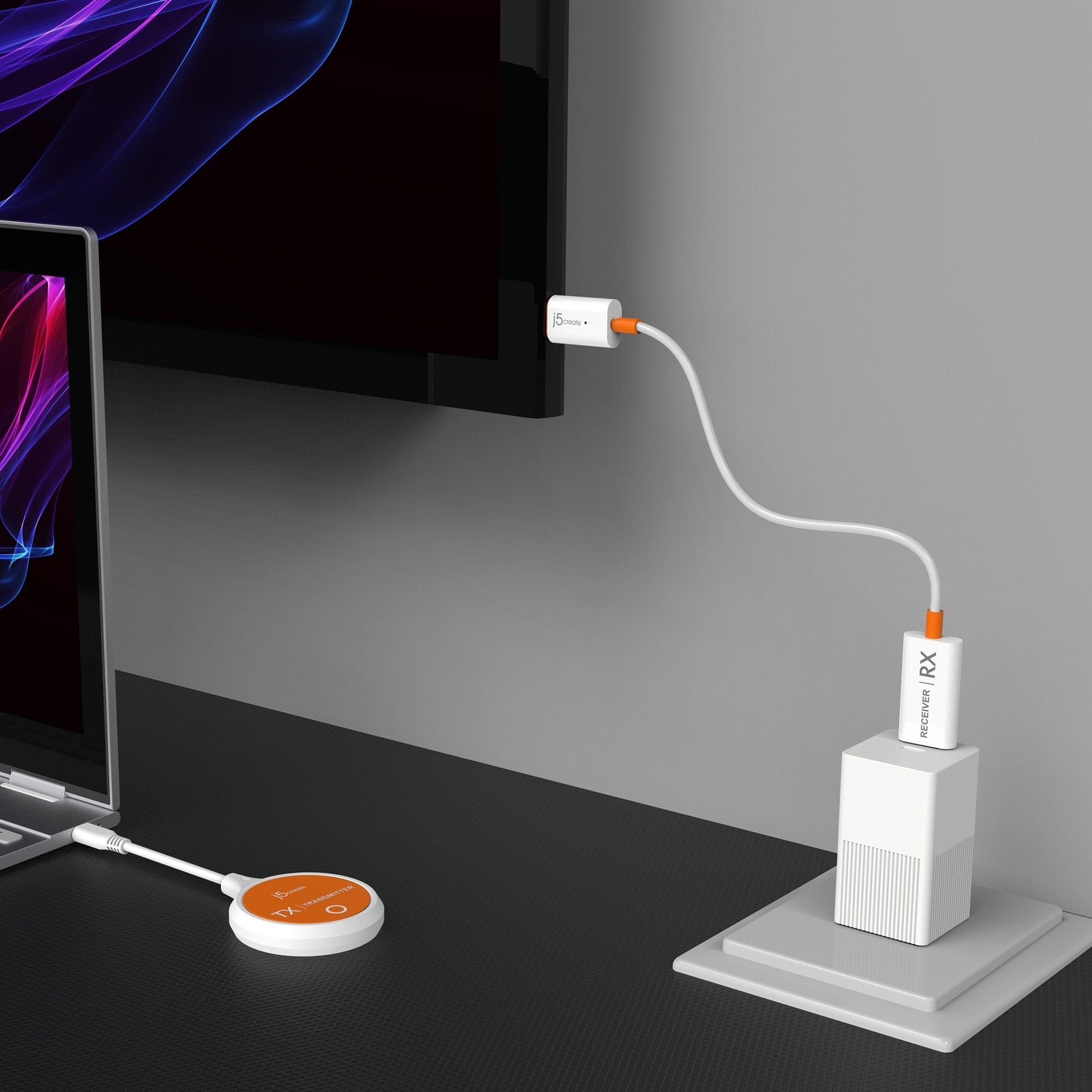

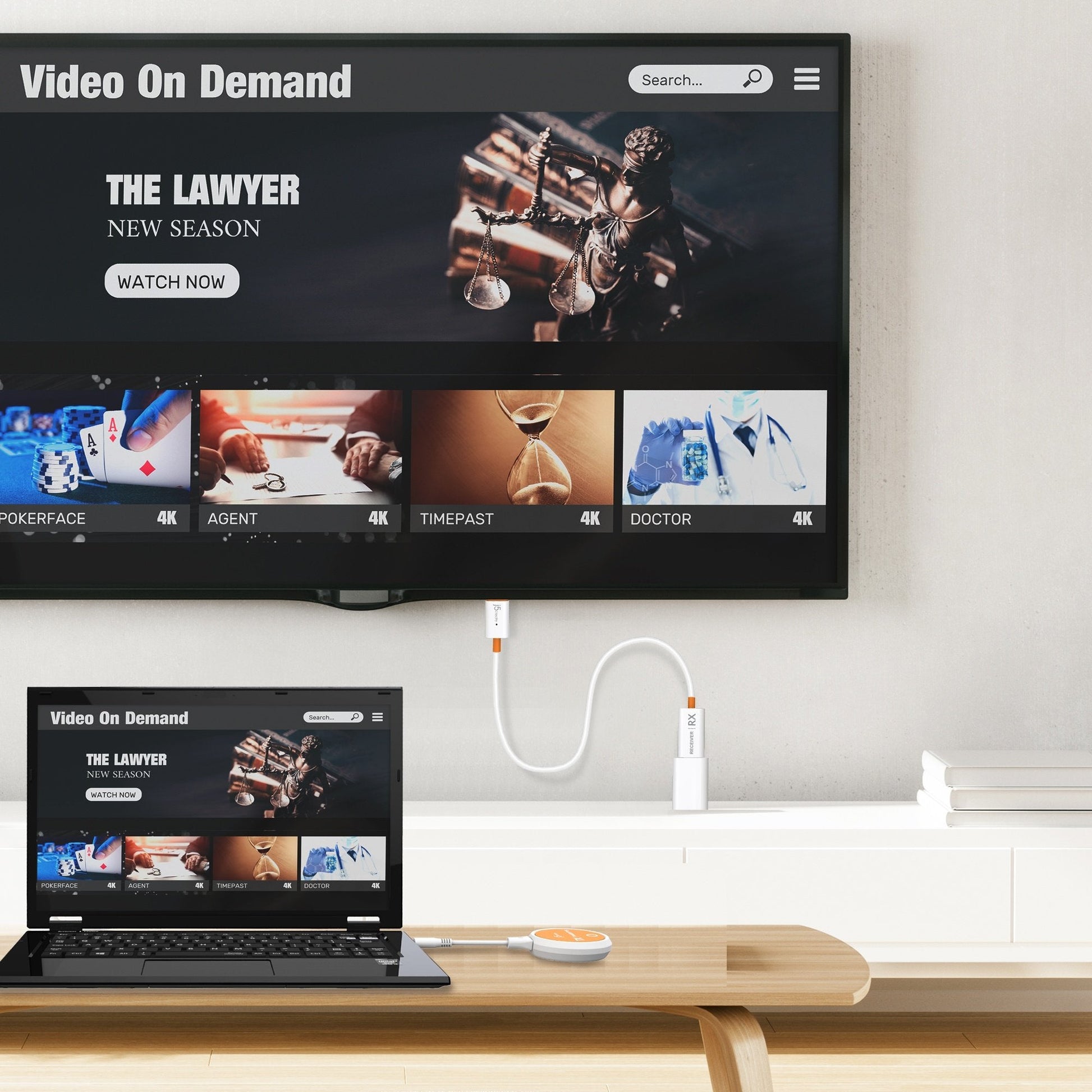

Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.

FEATURES:

• Wirelessly cast full HD content from your mobile device to a larger TV or display
• With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon Prime Video™, Hulu™, DISNEY+™, and more
• Supports 1080p HD video
• Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience
• Includes an USB™ Type-A extension cable for added convenience
• Compact design is ideal for home, office, school, or on-the-go
• Supports multiple wireless standards including Miracast™, AirPlay®, and Google™ Chromecast™

System Requirements:

• Available USB-C® port that supports DisplayPort™ Alt Mode

SPECIFICATIONS:

• Host connector: USB-C® with DisplayPort™ Alt-mode
• Power source: USB™ Type-A male
• LED indicator: N/A
• Ports: N/A
• IR: N/A
• HDMI™ compliance: HDMI™ v1.3
• HDCP compliance: HDCP 1.4
• Audio channel: 2.1 via HDMI™
• Supported output resolutions: 1920 × 1080, 1280 × 720
• RF output power: N/A
• Security (encryption): WPA2
• IR return frequency: N/A
• ESD protection: N/A
• OVP protection: N/A
• Wireless standard: IEEE 802.11ac
• Frequency: 2.4 GHz, 5 GHz
• Range: up to 10–15 meters
• Channel width: 20 MHz, 40 MHz
• Antenna type: internal antenna
• Color: White
• Enclosure type: Plastic
• Cable length:

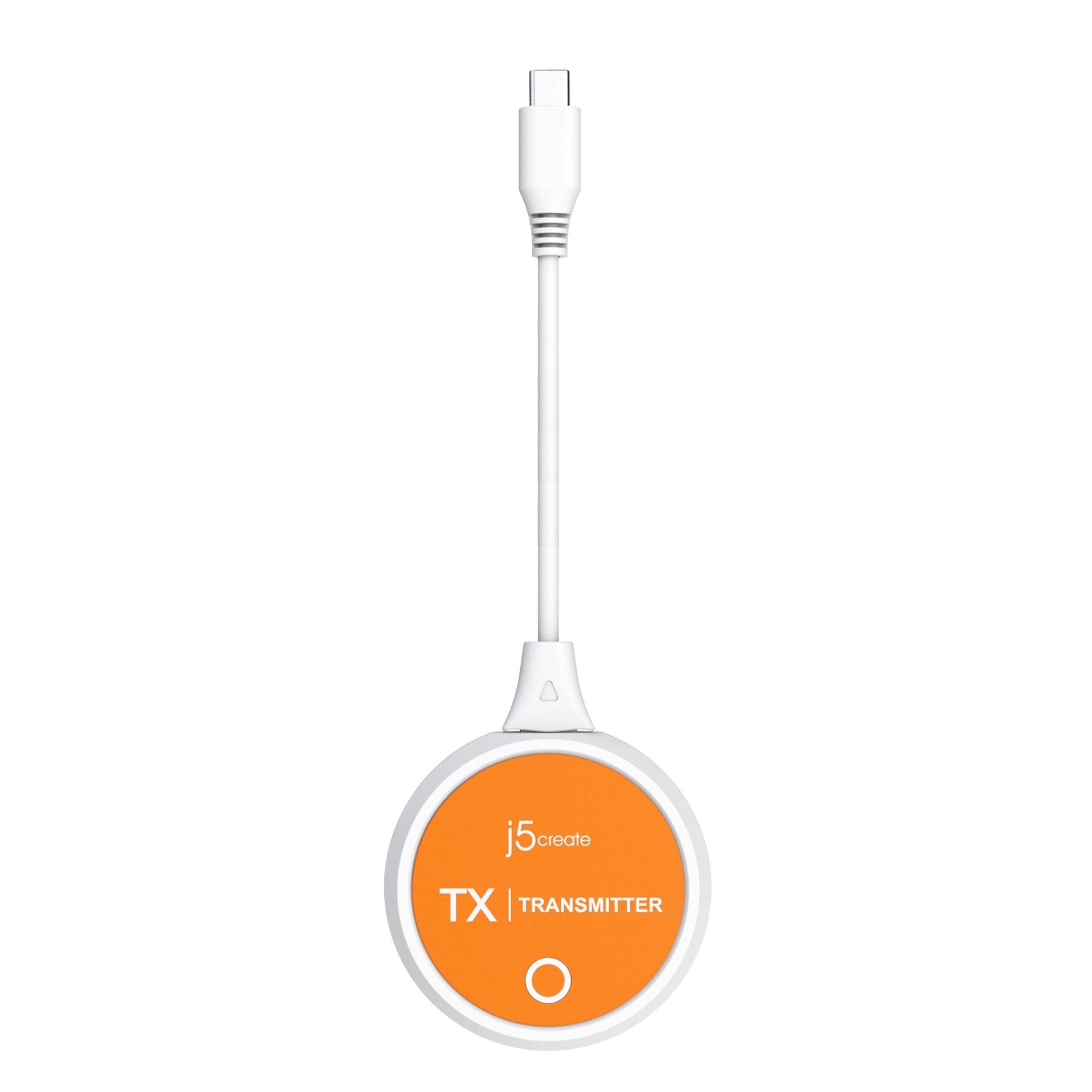

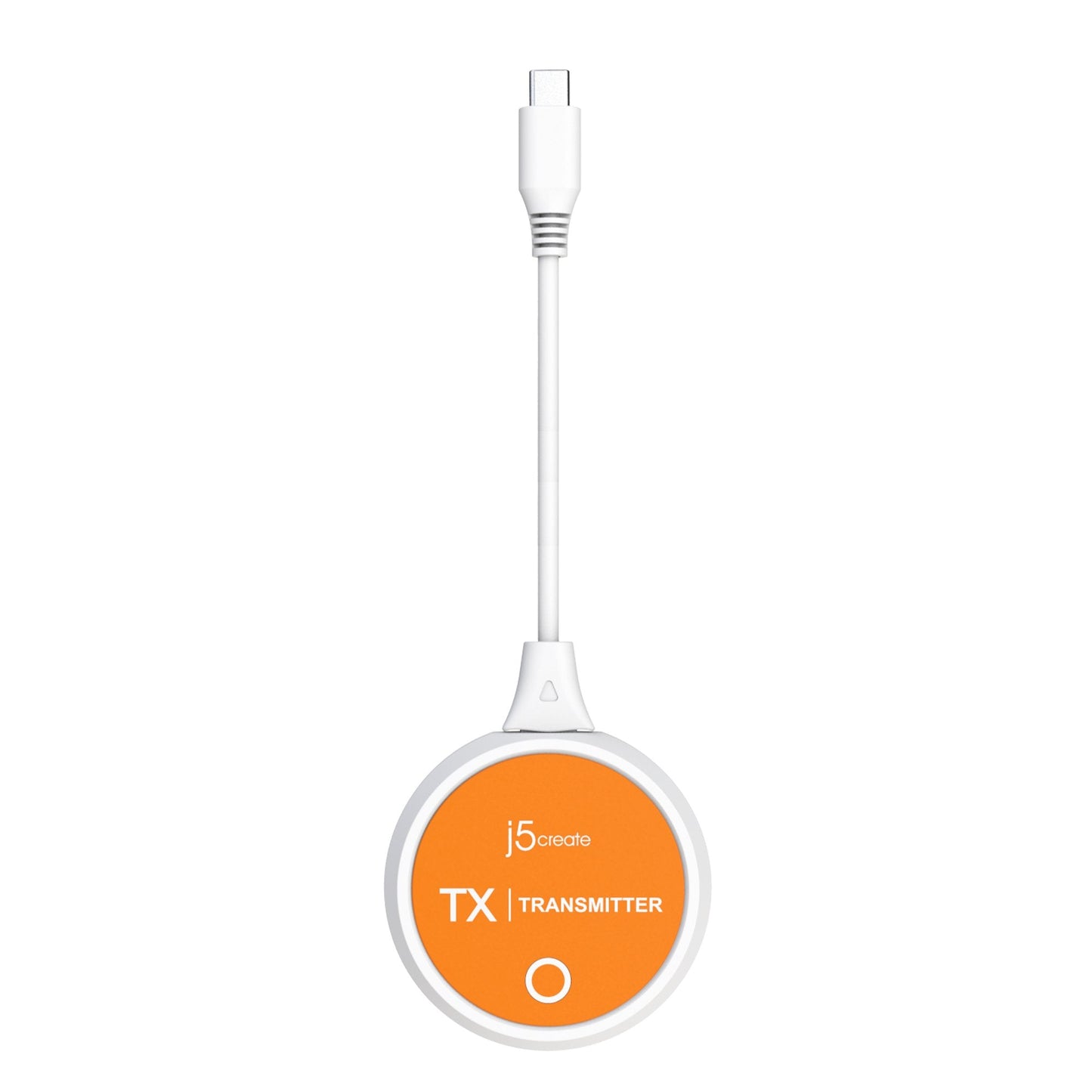

  • USB-C® transmitter (TX): 3.34 in (85 mm)
  • HDMI™ receiver (RX): 23.6 in (600 mm)

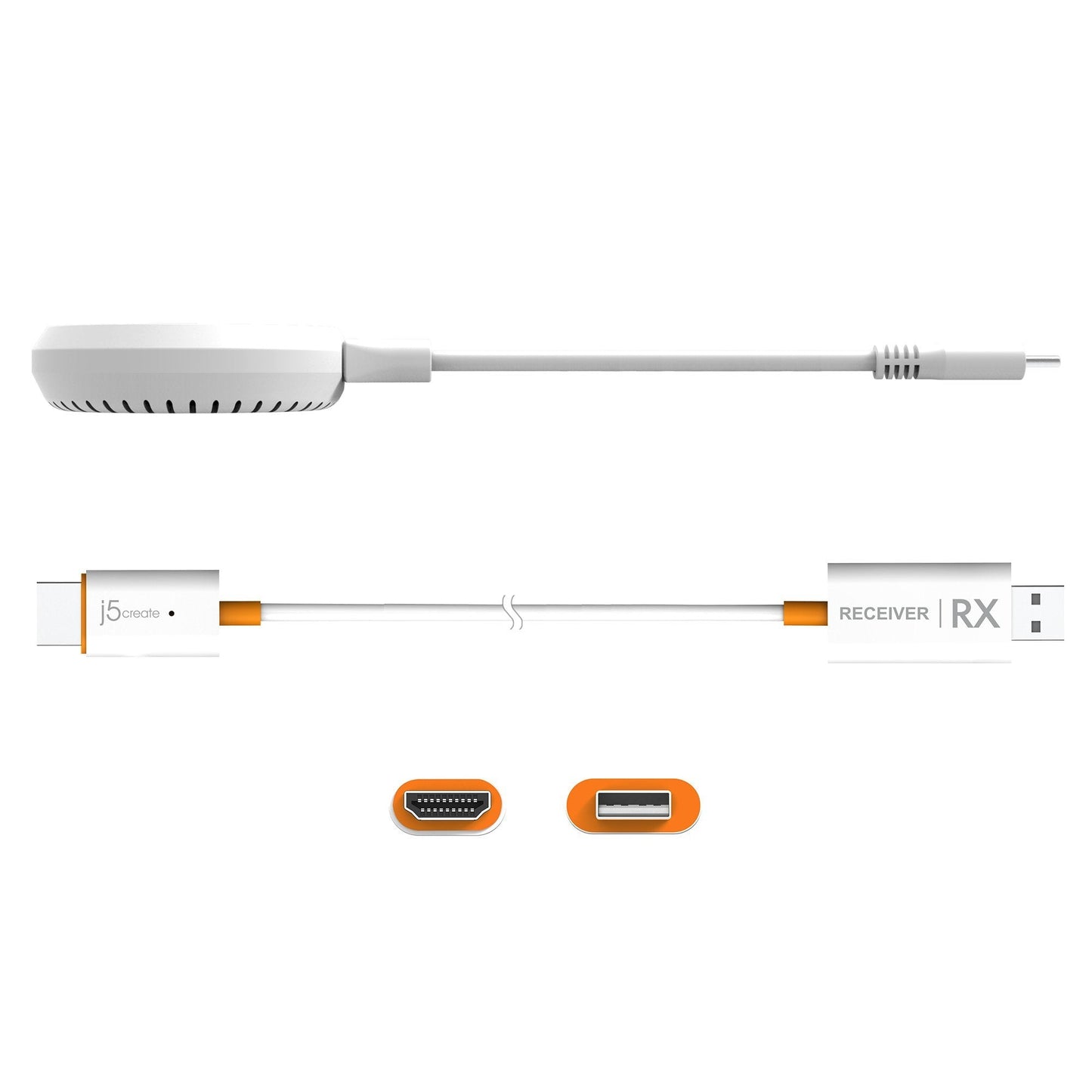

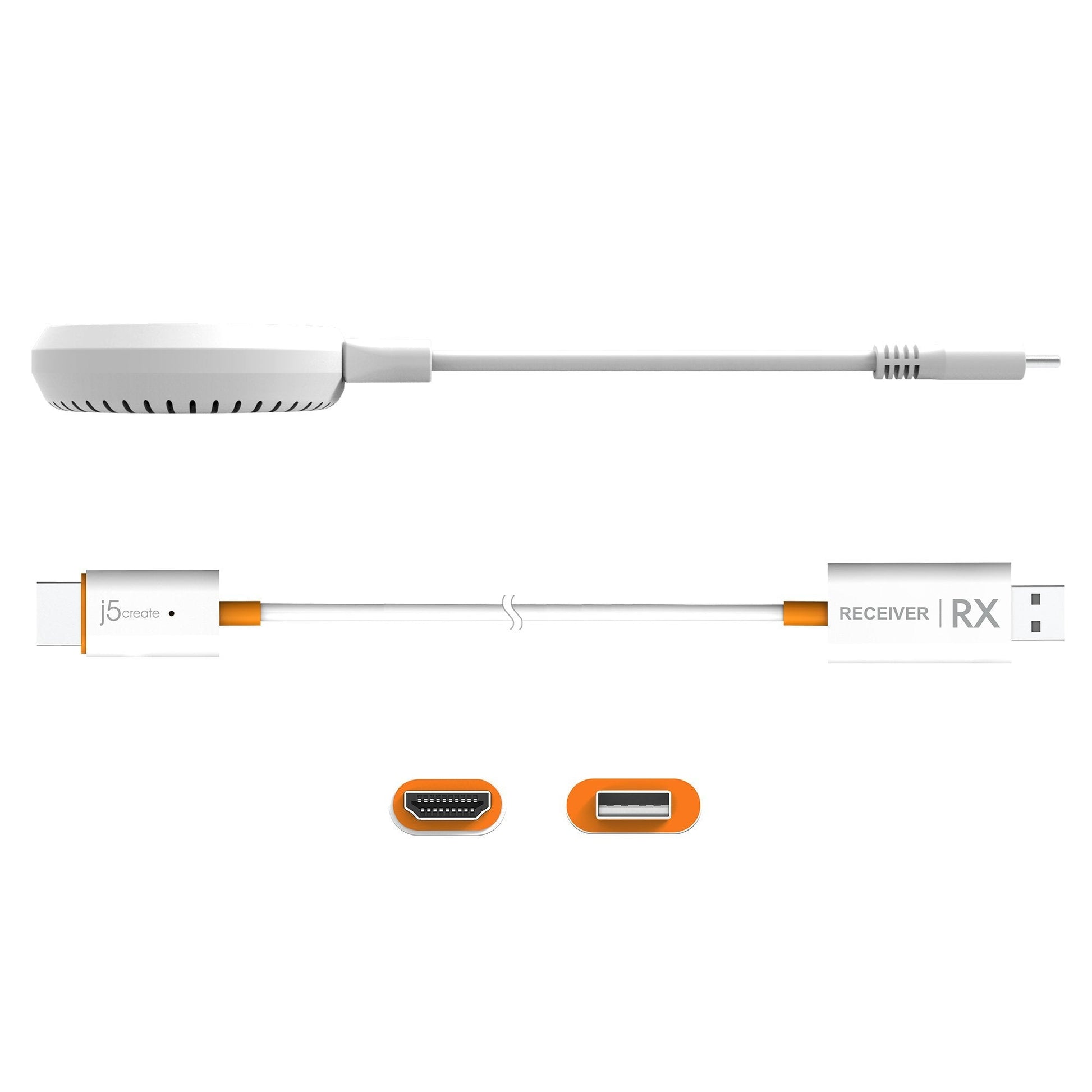

• Product dimensions:
  • USB-C® transmitter (TX): 2.56 in (65 mm) height, 2.56 in (65 mm) width, 0.66 in (17 mm) depth
  • HDMI™ receiver (RX): 2.2 in (57 mm) height, 0.95 in (24 mm) width, 0.41 in (10.5 mm) depth
• Product weight:
  • USB-C® transmitter (TX): 1.9 oz (54 g)
  • HDMI™ receiver (RX): 1.11 oz (31.5 g)
• Operating temperature: +14 to +104 °F (-10 to +40 °C)
• Operating humidity: < 85% non-condensing
• Storage temperature: -4 to +122 °F (-20 to +50 °C)
• Storage humidity: < 85% non-condensing

WHAT'S IN THE BOX:

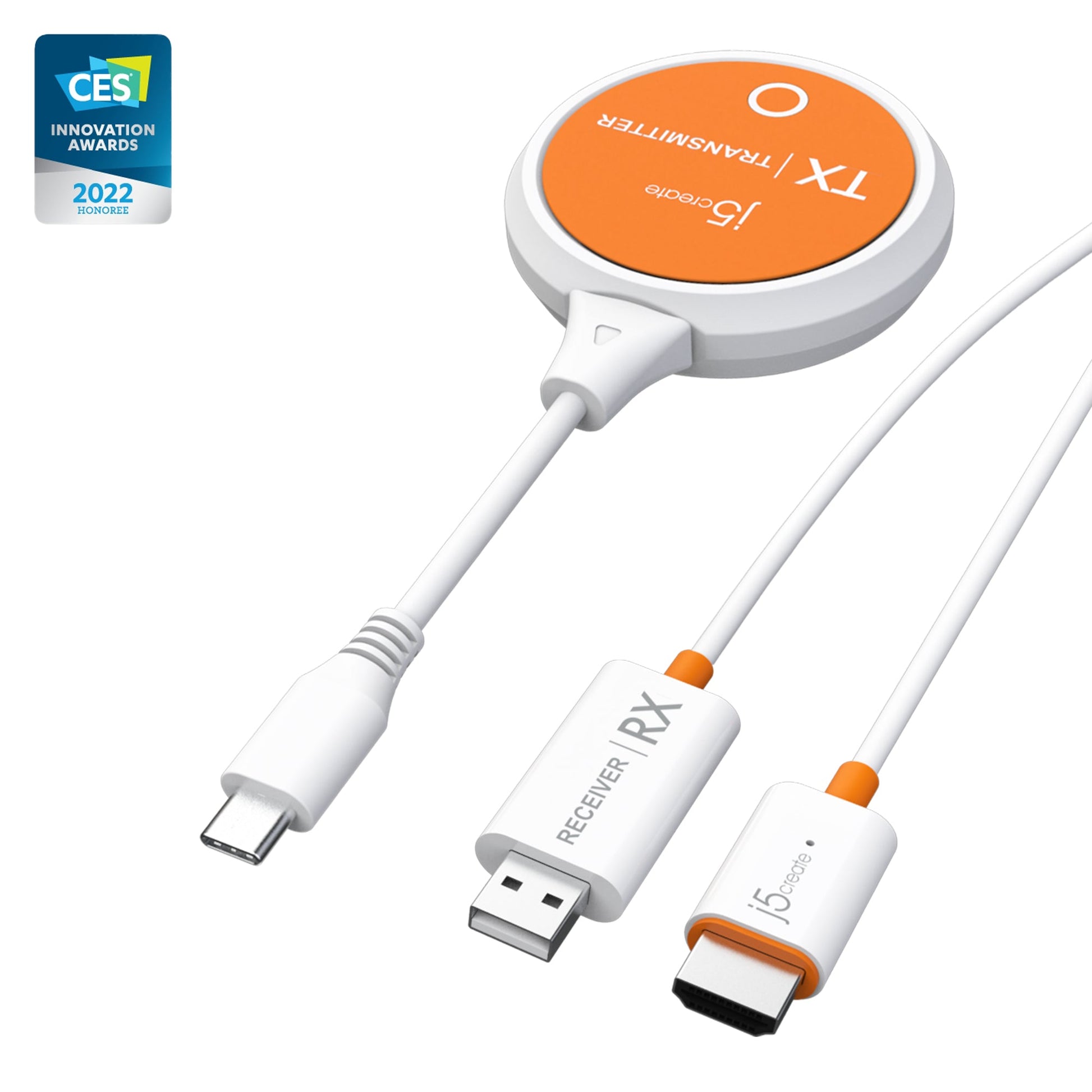

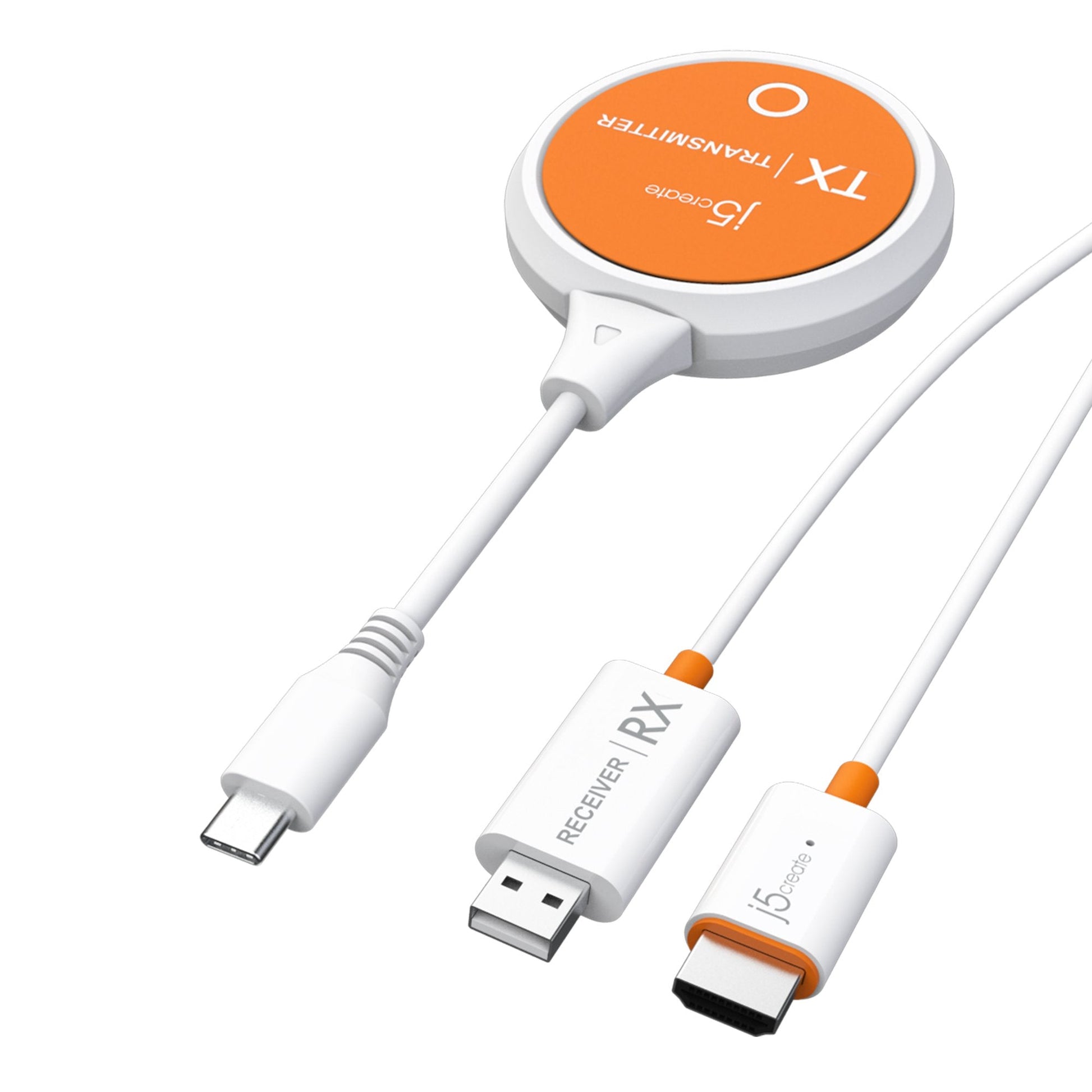

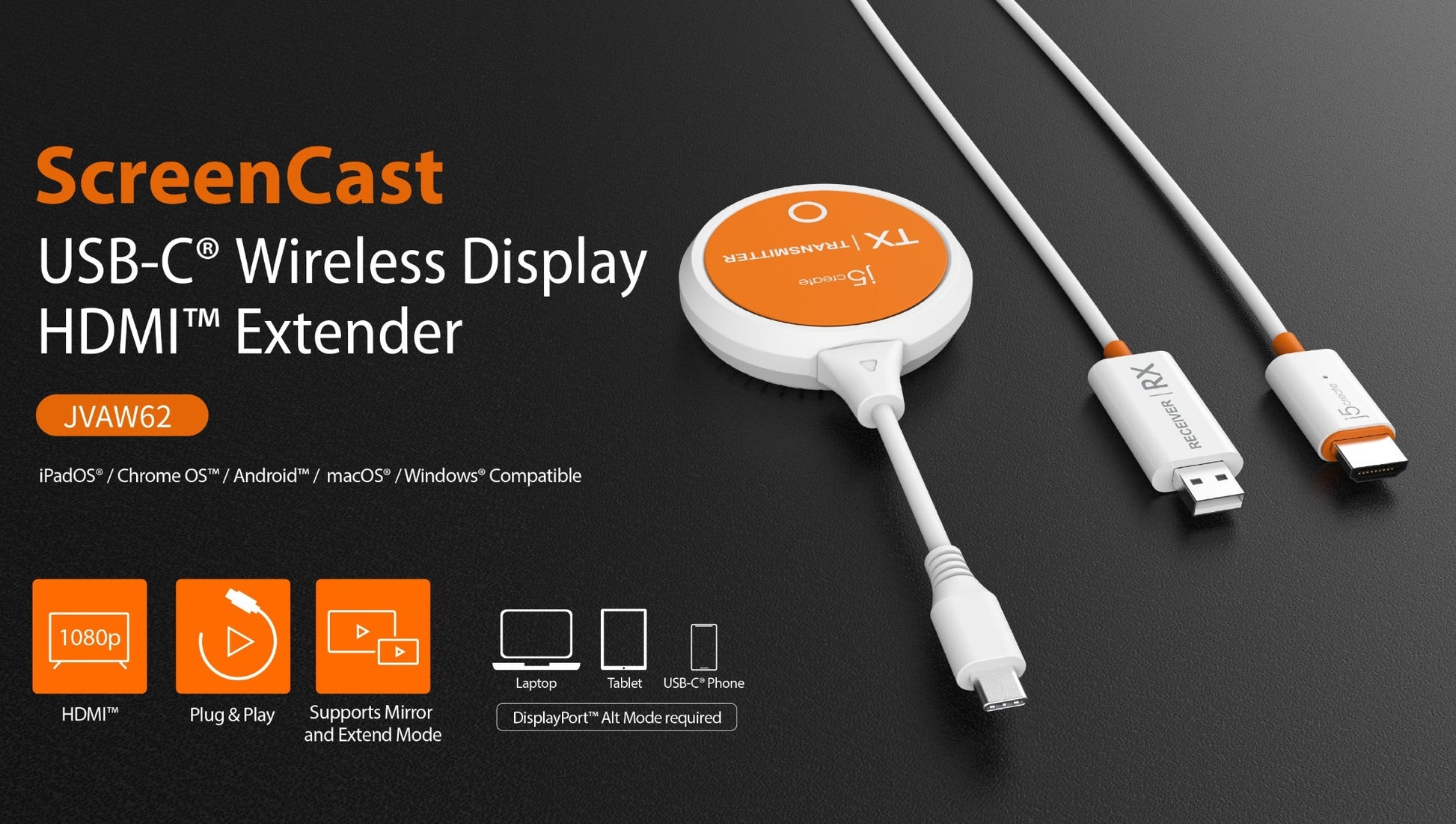

• JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver) x1
• USB™ Type-A extension cable (23.6”) x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 12 Months
