J5create Type-C Dock Dual 4K HDMI - JCD3196

J5create Type-C Dock Dual 4K HDMI - JCD3196

R 1,949.00 ZAR
R 1,949.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

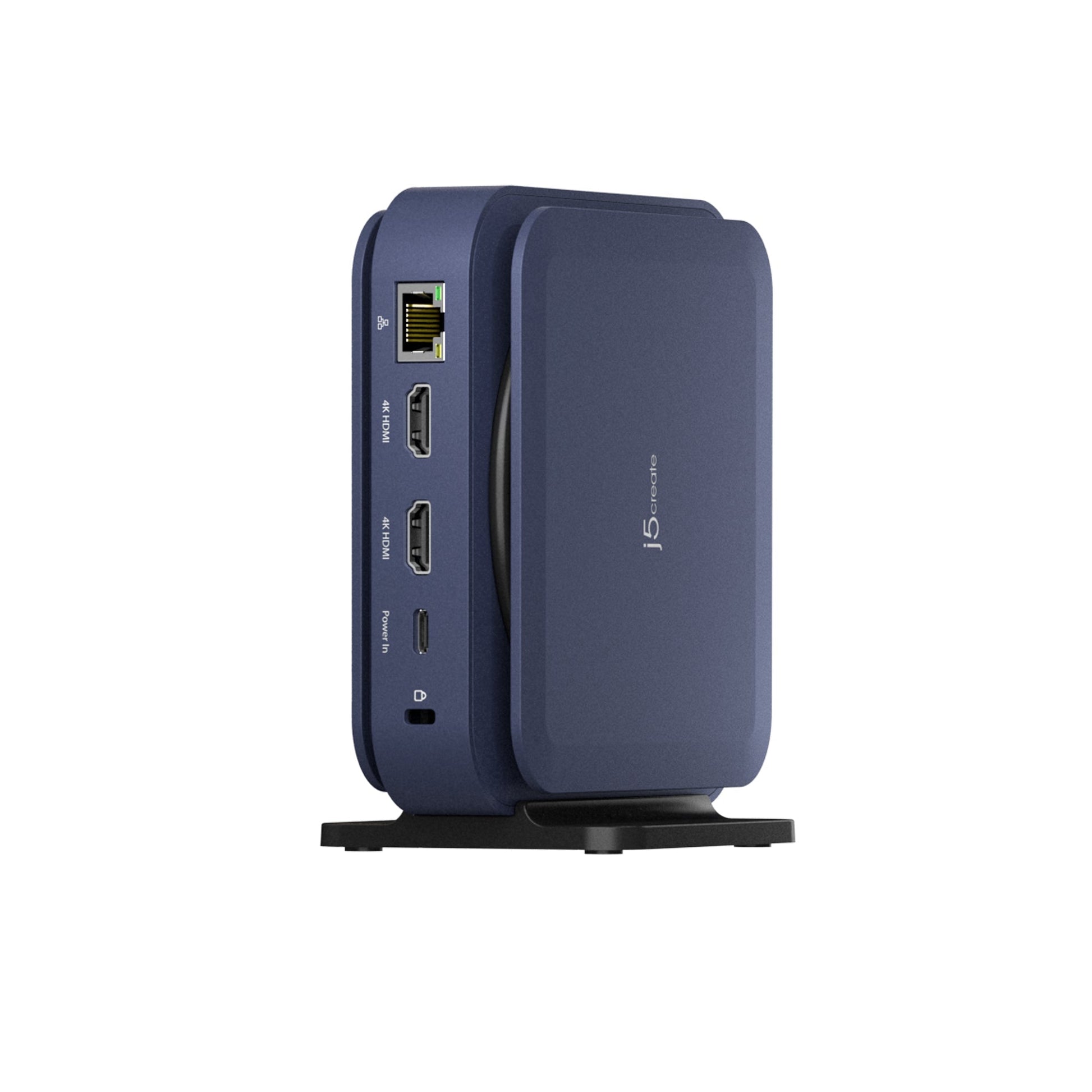

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.

With USB™ Power Delivery 3.1 it'll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location.

Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

FEATURES:

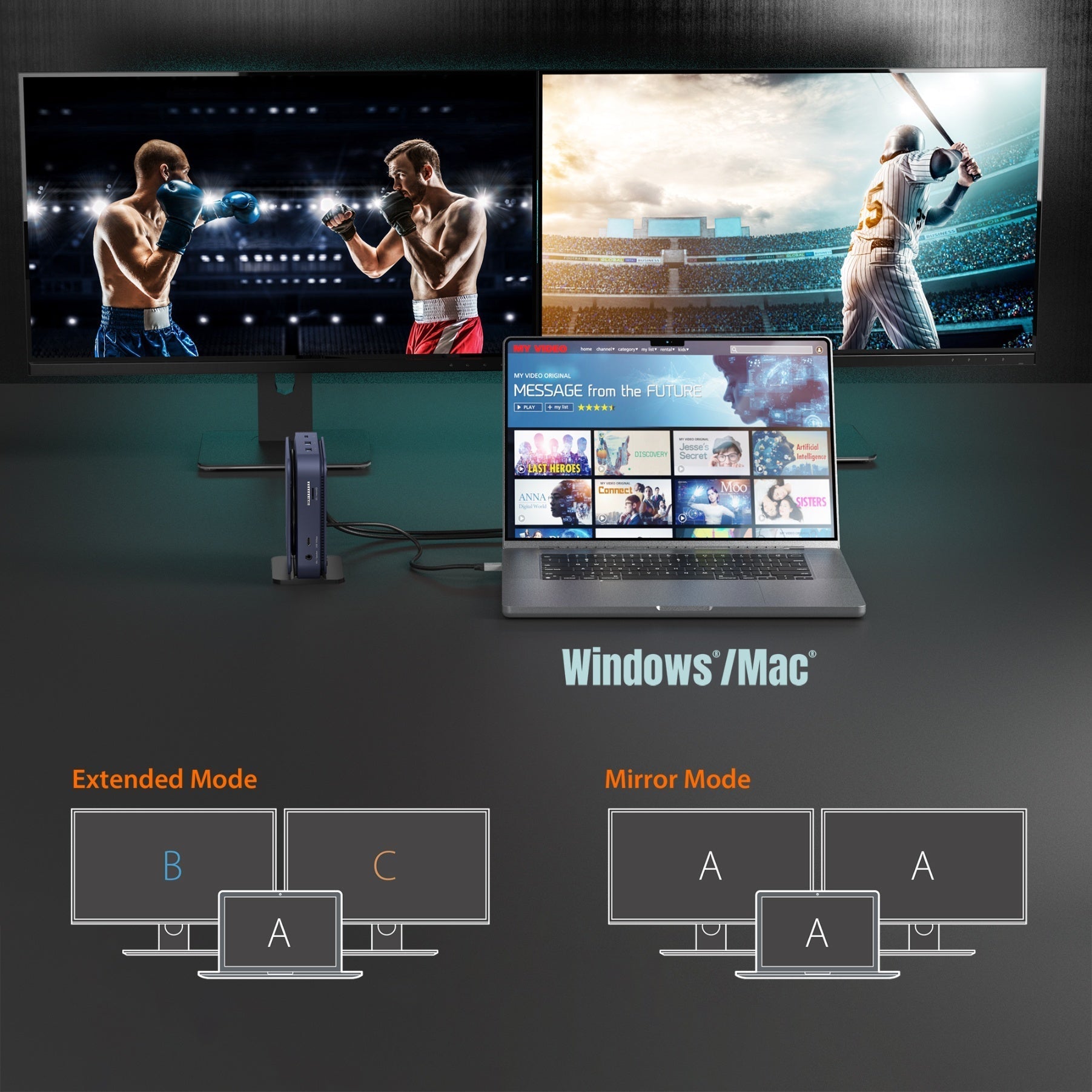

  • Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
  • Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host.

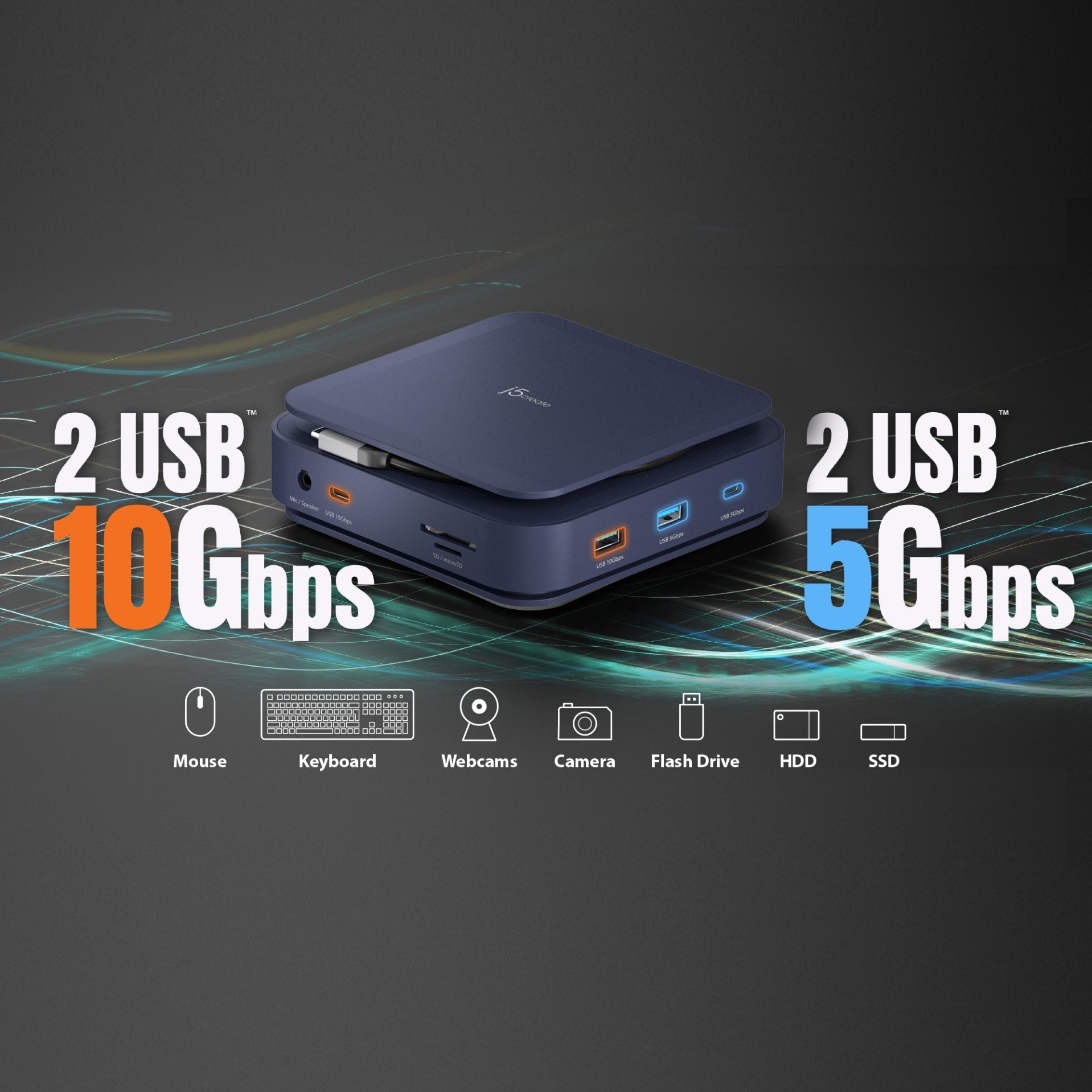

  • Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
  • Reliable network connectivity via the Gigabit Ethernet
  • Includes SD™/microSD™ card reader
  • Cable storage compartment
  • Security lock

System Requirements:

  • Windows® 11 / 10
    macOS® 10.14 or later
  • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 or 3.1<br> Please refer to the manufacturer of your computer for more information about your device
  • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz

Special Notes:

  • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in
  • In order for the computer to charge you much connect a USB-C® power adapter and the computer must support Power Delivery
  • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files
  • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

SPECIFICATIONS:

  • Audio Supported: Yes
  • Host Connector: 1 × USB-C® Male (PD 3.1, 130 W, 28 V / 4.65 A)
  • Network Interface: Yes

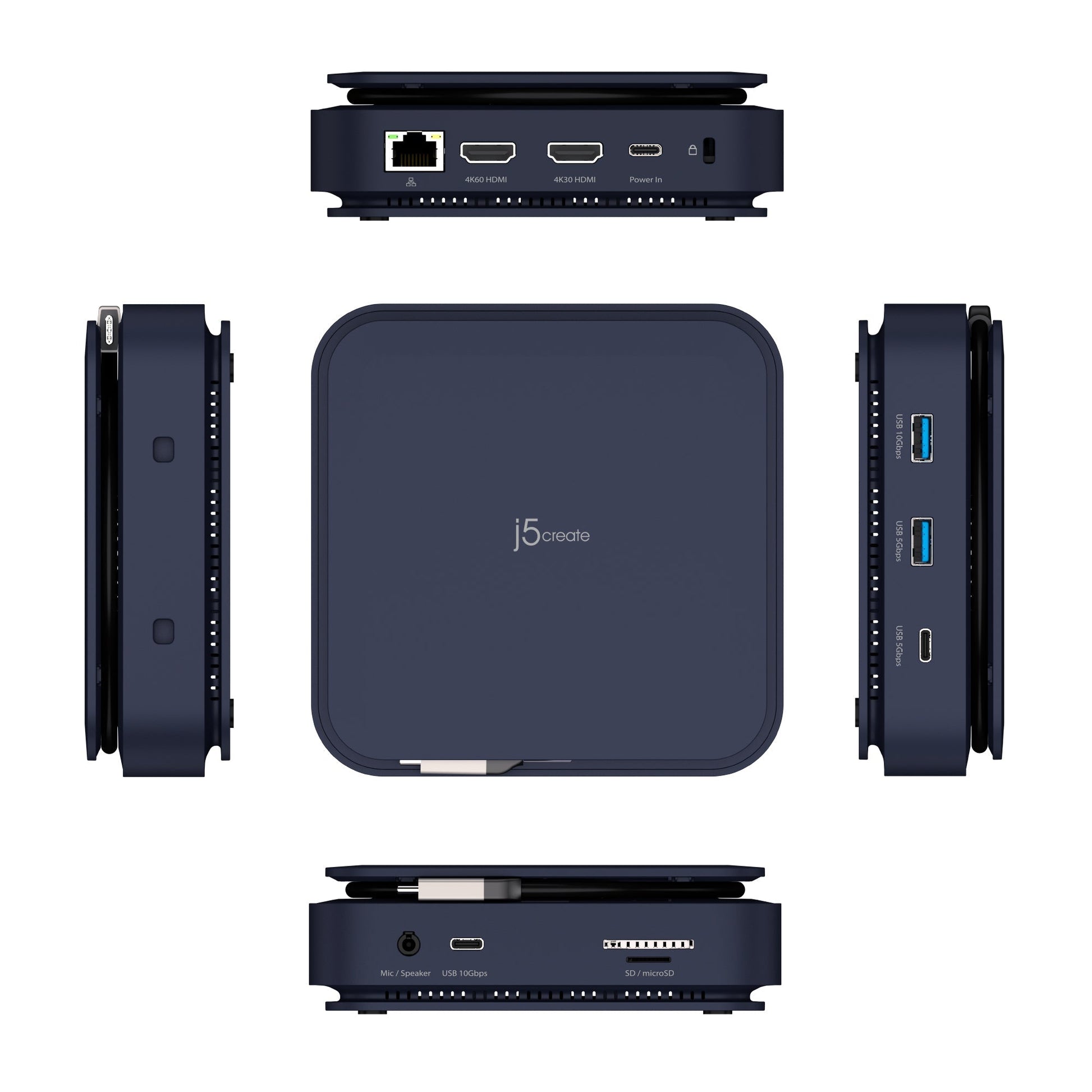

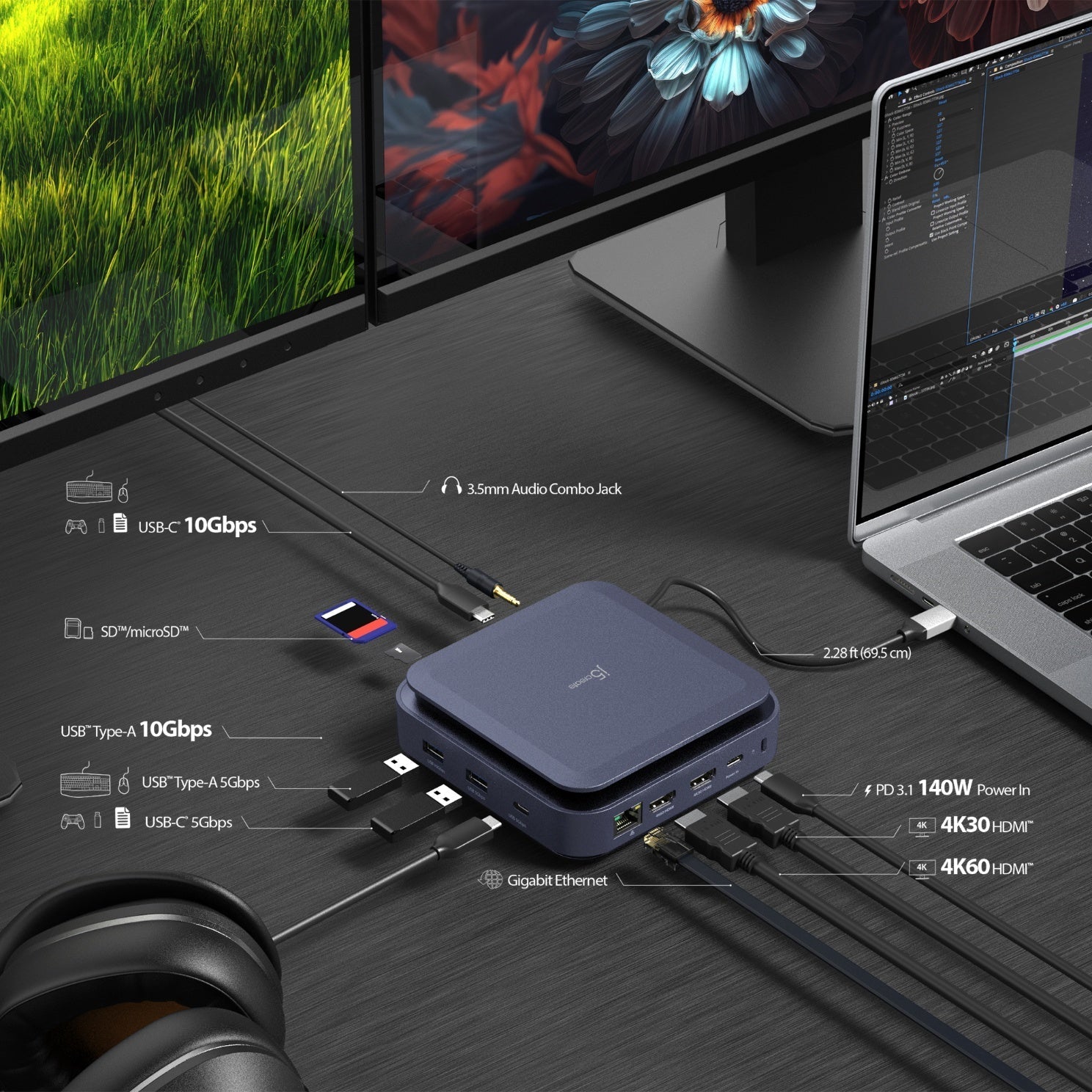

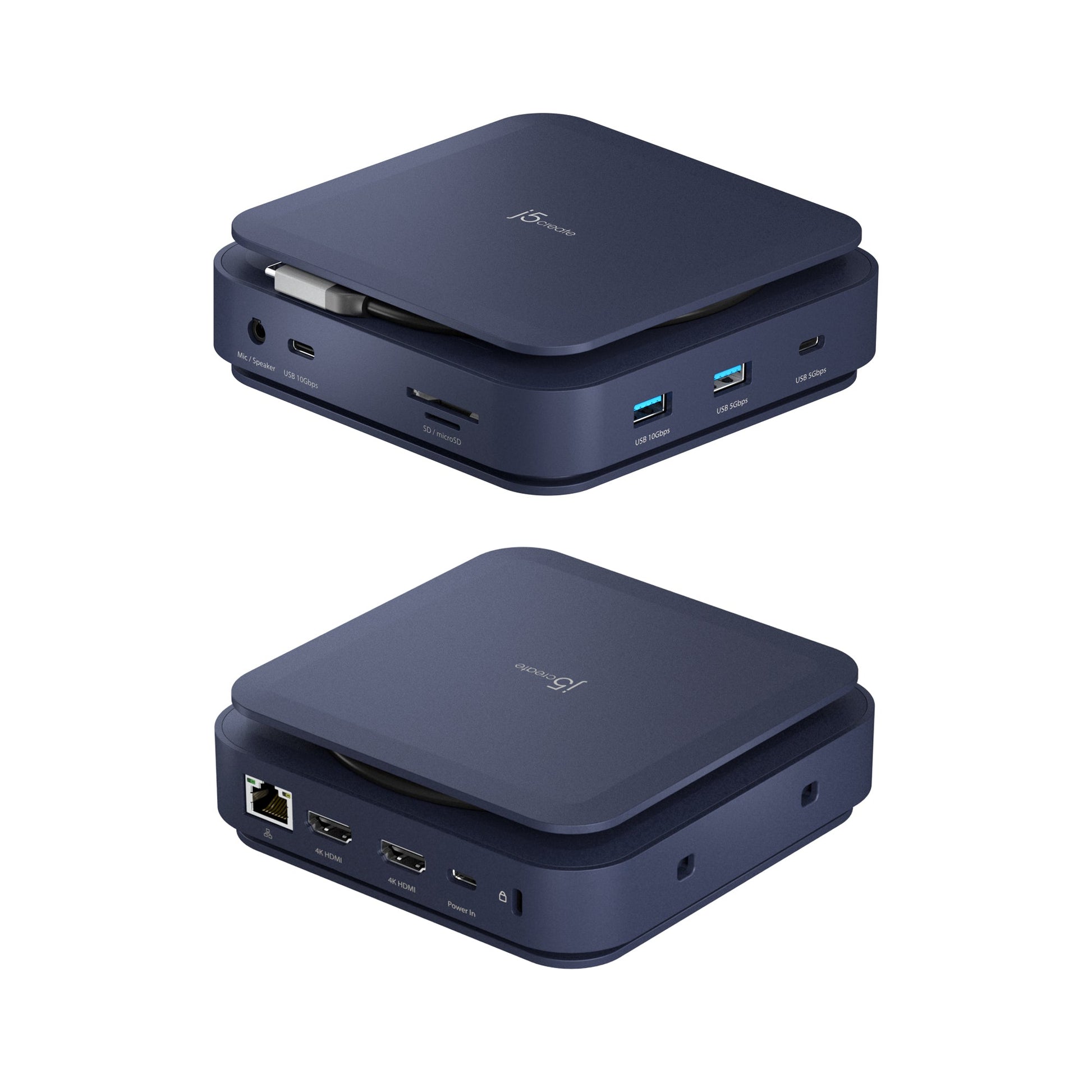

  • Ports:
    • 1 × USB-C® PD-in (PD 3.1, up to 140 W, 28 V / 5 A)
    • 2 × USB-C® (5 Gbps & 10 Gbps)
    • 2 × USB™ Type-A (5 Gbps & 10 Gbps)
    • 1 × 3.5 mm Combo Audio Jack
    • 1 × HDMI™ (USB™ display, max 4K @ 30 Hz)
    • 1 × HDMI™ (DP™ Alt Mode, max 4K @ 60 Hz)
    • 1 × RJ45 Gigabit Ethernet
    • 1 × SD™ / microSD™ 3.0
  • Power Source: Bus-powered or self-powered
  • Video Output: 2 × HDMI™ Female
  • Audio Channel: 2.1 via HDMI™
  • Compatible Networks: 10 / 100 / 1000 Mbps
  • Displays Supported: 2
  • Max Data Transfer Rate: 10 Gbps
  • Max Display Refresh Rate: 60 Hz
  • Max Display Resolution: 3840 × 2160
  • Input Current: Up to 5 A
  • Input Voltage: Up to 28 V
  • Output Current: Up to 4.65 A
  • Output Voltage: Up to 28 V
  • Power Consumption: ≤ 900 mA
  • Power Delivery: Up to 140 W via USB-C®
  • Cable Length: 2.28 ft (69.5 cm)
  • Color: Dark Blue
  • Enclosure Type: Plastic
  • Operating Conditions:
    • Temperature: 30 to 116°F (-1 to 41°C)
    • Humidity: < 85% non-condensing
  • Body:
    • Width: 5.12 in. (130 mm)
    • Depth: 5.12 in. (130 mm)
    • Height: 1.71 in. (43.5 mm)
  • Holder:
    • Width: 5.12 in. (130 mm)
    • Depth: 3.15 in. (80 mm)
    • Height: 1.3 in. (33 mm)
  • Product Weight:
    • Body: 14.7 oz (416 g)
    • Holder: 0.8 oz (22 g)
  • Storage Conditions:
    • Temperature: 0 to 155°F (-17 to 68°C)
    • Humidity: < 85% non-condensing

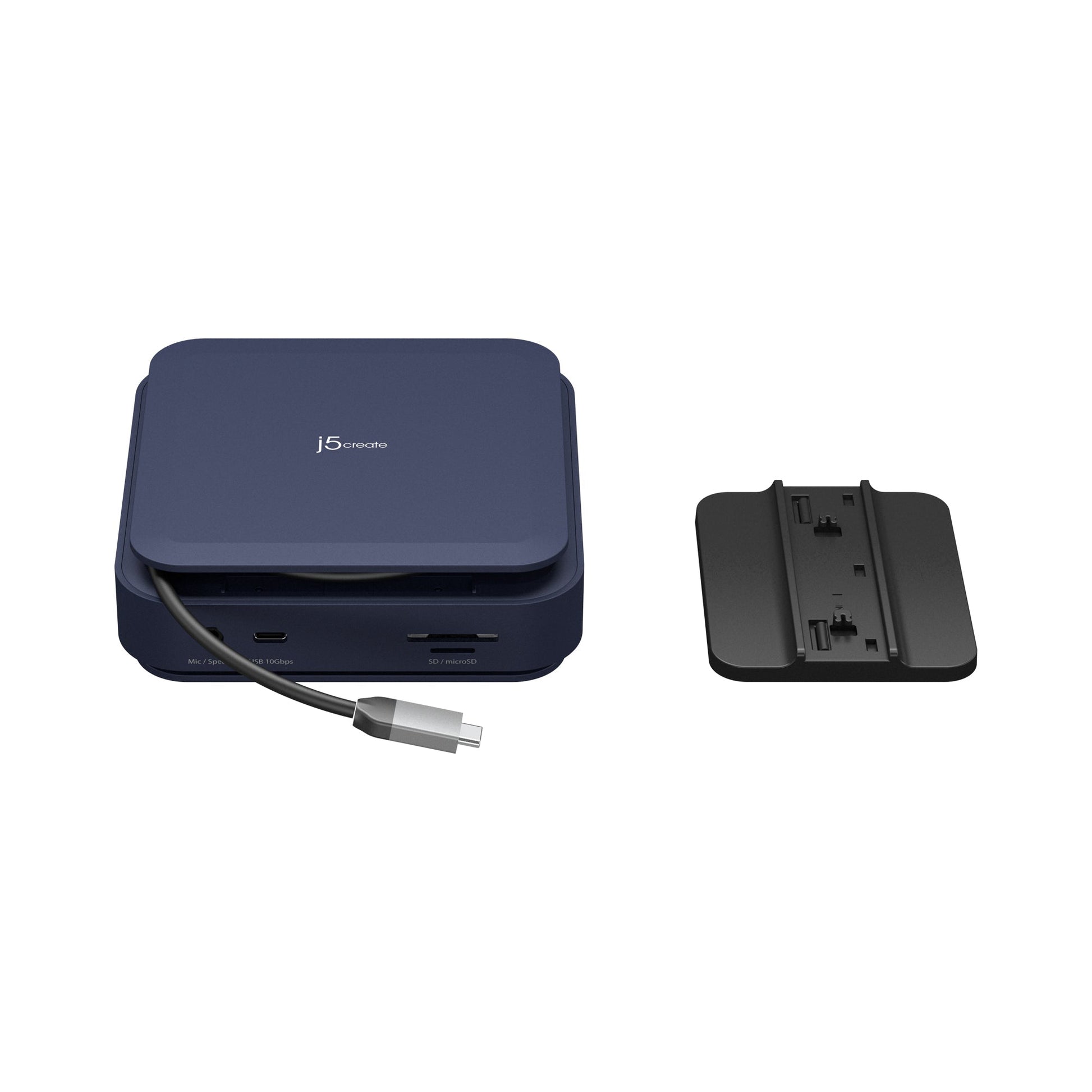

WHAT'S IN THE BOX:

  • JCD3196 Type-C Dock Dual 4K HDMI™ x1
  • Dock Holder x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
