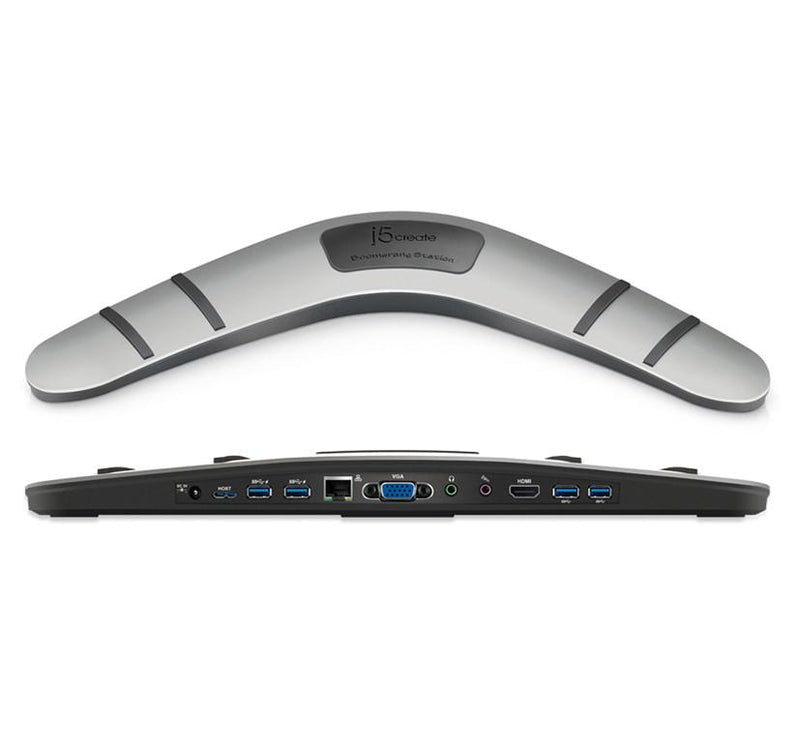

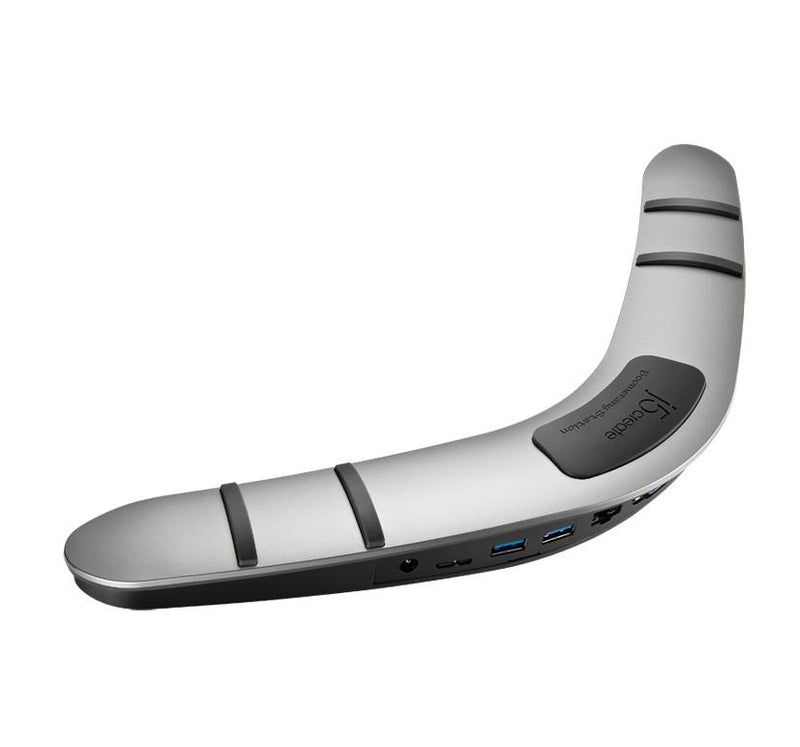

J5create USB 3.0 Boomerang Docking Station - JUD480

The j5create JUD480 USB 3.0 Boomerang Station enables you to add a 2nd monitor instantly via HDMI or VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone, etc. to your laptop with a single USB 3.0 cable. It is the perfect solution for expanding your Ultrabook or MacBook into a full sized workstation.

FEATURES:

• Full 1080p Resolution
• VGA connection
• Use up to 6 adapters with Windows
• Use up to 4 adapters with Mac
• Solid aluminum construction
• Simple, easy to use and install

System Requirements:

• Microsoft Windows 8.1/ 8/ 7/ XP (32-bit or 64-bit)
• macOS 10.9 or later
• CPU: Intel i3 Dual Core 1.5 GHz / Intel Atom "Bay Trail" Quad Core 1.33 GHz
• RAM: 2 GB or higher
• Available USB port (USB 3.0 is recommended)

SPECIFICATIONS:

• Host Interface: USB 3.0 Micro-B Female connector
• Cable: USB 3.0 Micro-B to Type-A
• Video Interface:
  • VGA DB-15 pin Female connector
  • HDMI Female connector (with audio)

• RJ-45 Female connector (Gigabit Ethernet)
• USB Ports:
  • 4 × USB 3.0 Female
  • 2 × USB 3.0 Battery Charging v1.2 ports (up to 2A fast charging for devices like tablets and smartphones)

• Microphone: 3.5 mm stereo audio in
• Speaker: 3.5 mm stereo audio out
• Power:
  • Power Adapter Input: AC 100–240V, 50–60 Hz
  • Power Adapter Output: DC 5V / 3A (US/JP/TW) or 5V / 4A (EU/UK/AU/CN)
  • Power Mode: Self-powered

• Video playback: 1080p
• Resolution: 2048 × 1152 @ 32-bit
• Modes: Primary, Extended, Mirror
• Rotation: 0°, 90°, 180°, 270°

• Transfer rate: 1000 Mbps (half/full duplex)
• Standards: IEEE 802.3az, 802.3, 802.3u, 802.3ab, 802.3x

• Wake-on-LAN, suspend mode, remote wake-up (link change, Magic Packet, Microsoft wake-up frame)
• IEEE 802.1Q VLAN tagging and VLAN ID filtering
• Jumbo frame support
• Checksum offload (IPv4, IPv6, TCP, UDP)
• TCP large send offload

• Dimensions (main body): 350 (W) × 30 (H) × 121 (D) mm
• Cable Length: 60 cm
• Weight: Approximately 174 g
• Housing Material: ABS plastic

WHAT’S IN THE BOX:

• JUD480 USB 3.0 Boomerang Docking Station x1
• USB 3.0 cable x1
• Power Adapter (5V/3A) x1

WARRANTY:

• 24 Months
