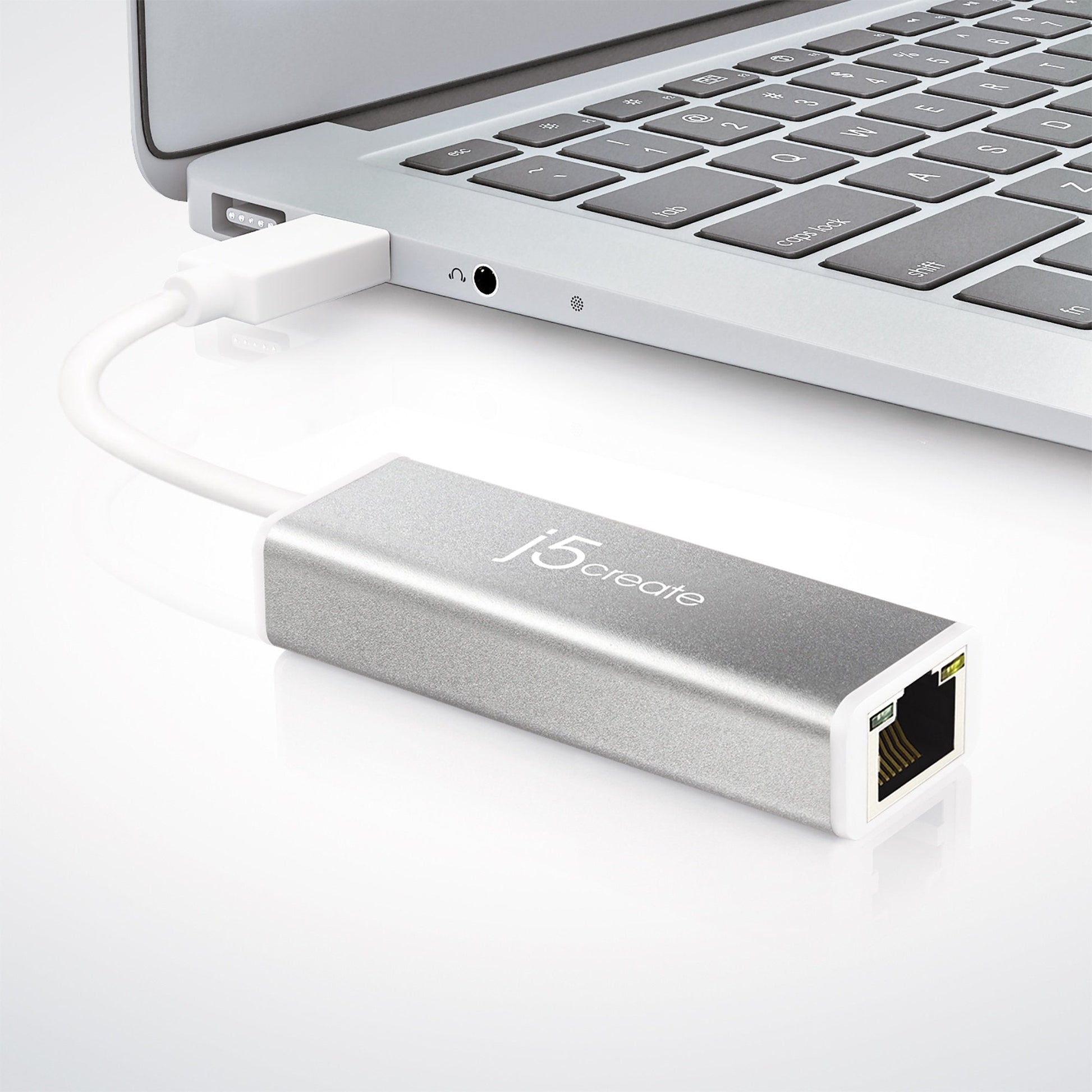

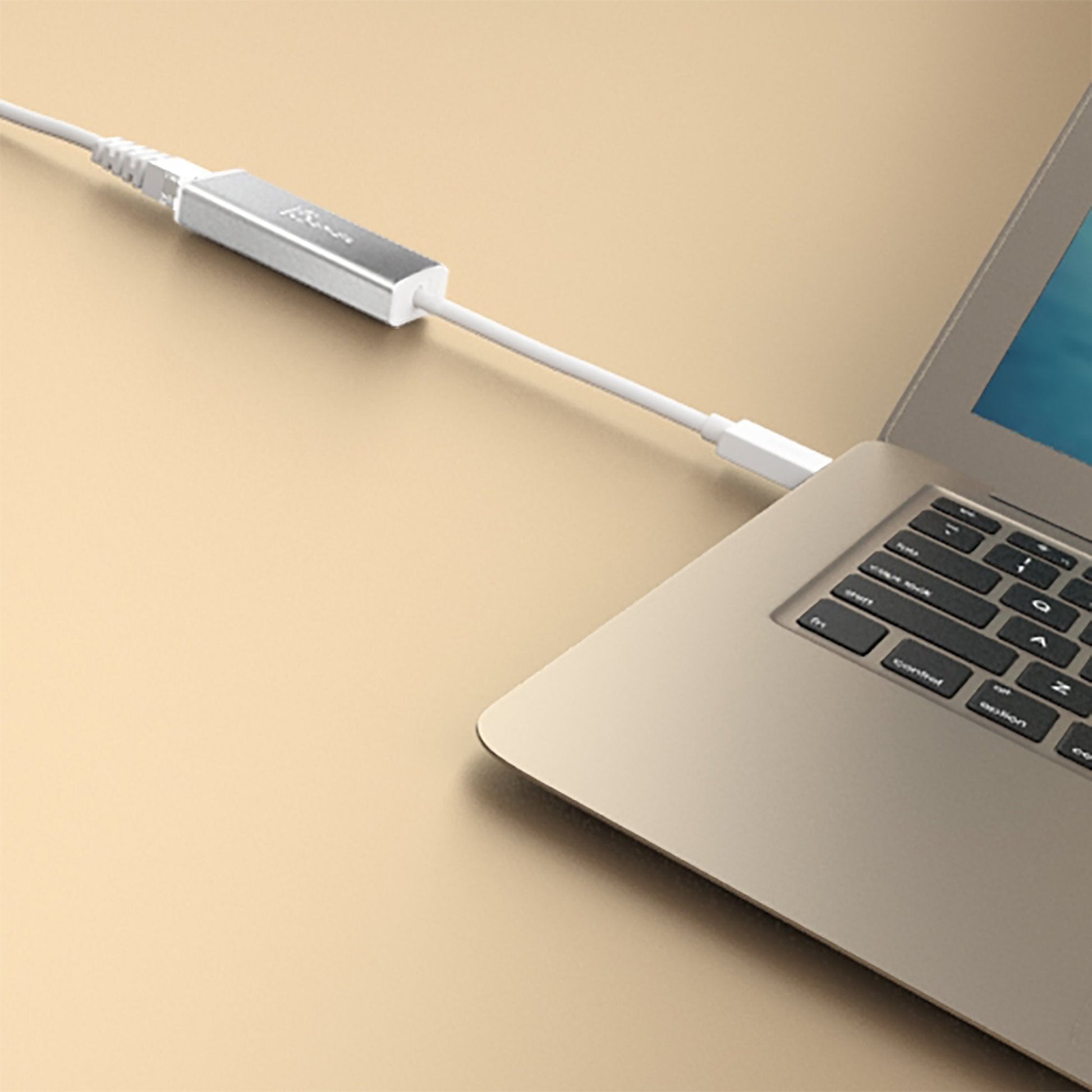

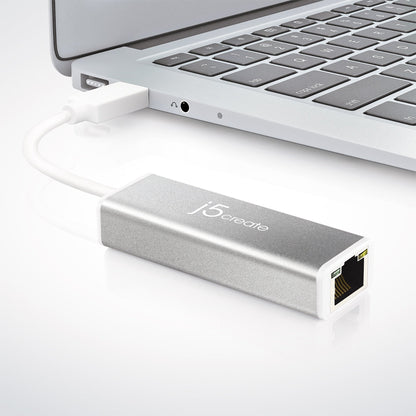

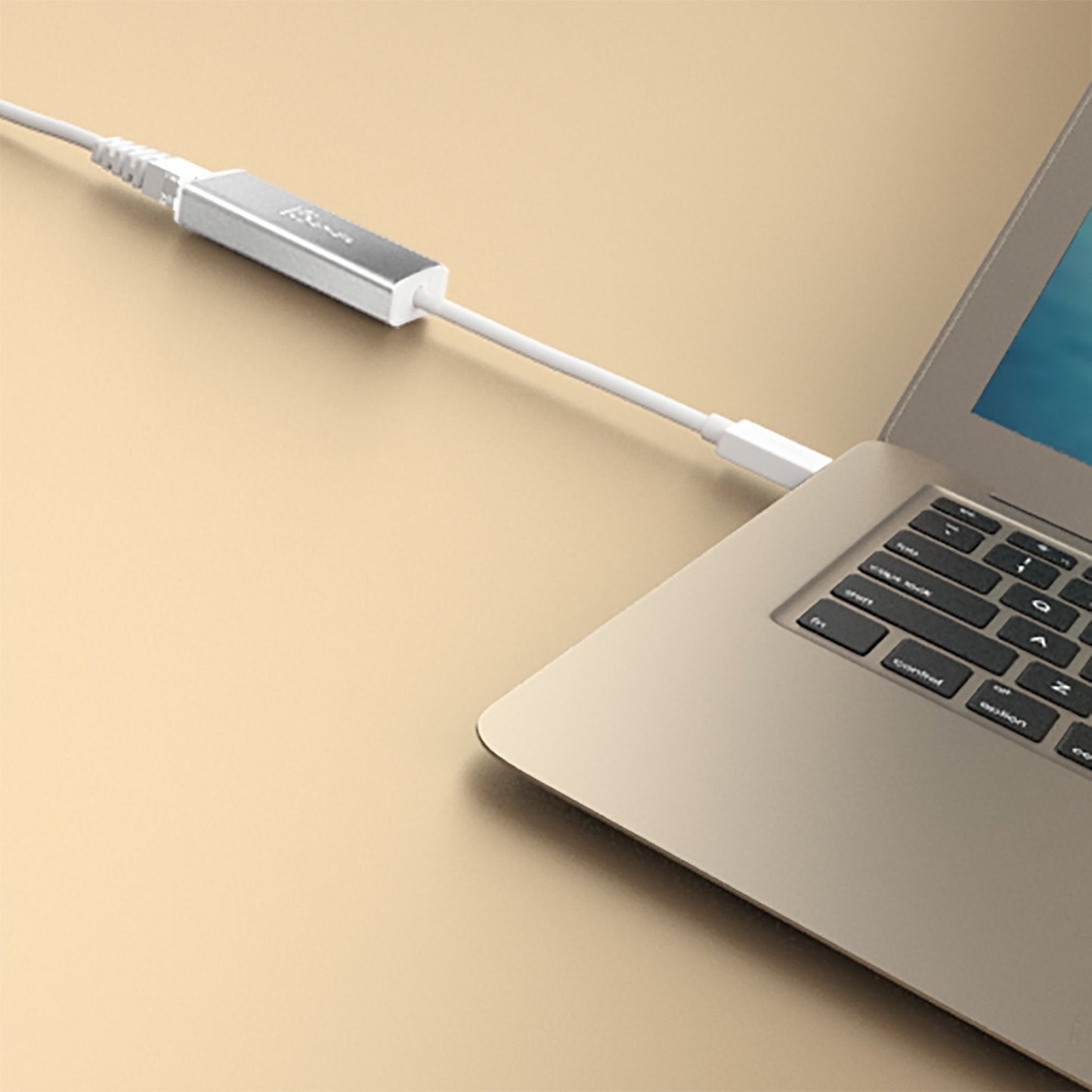

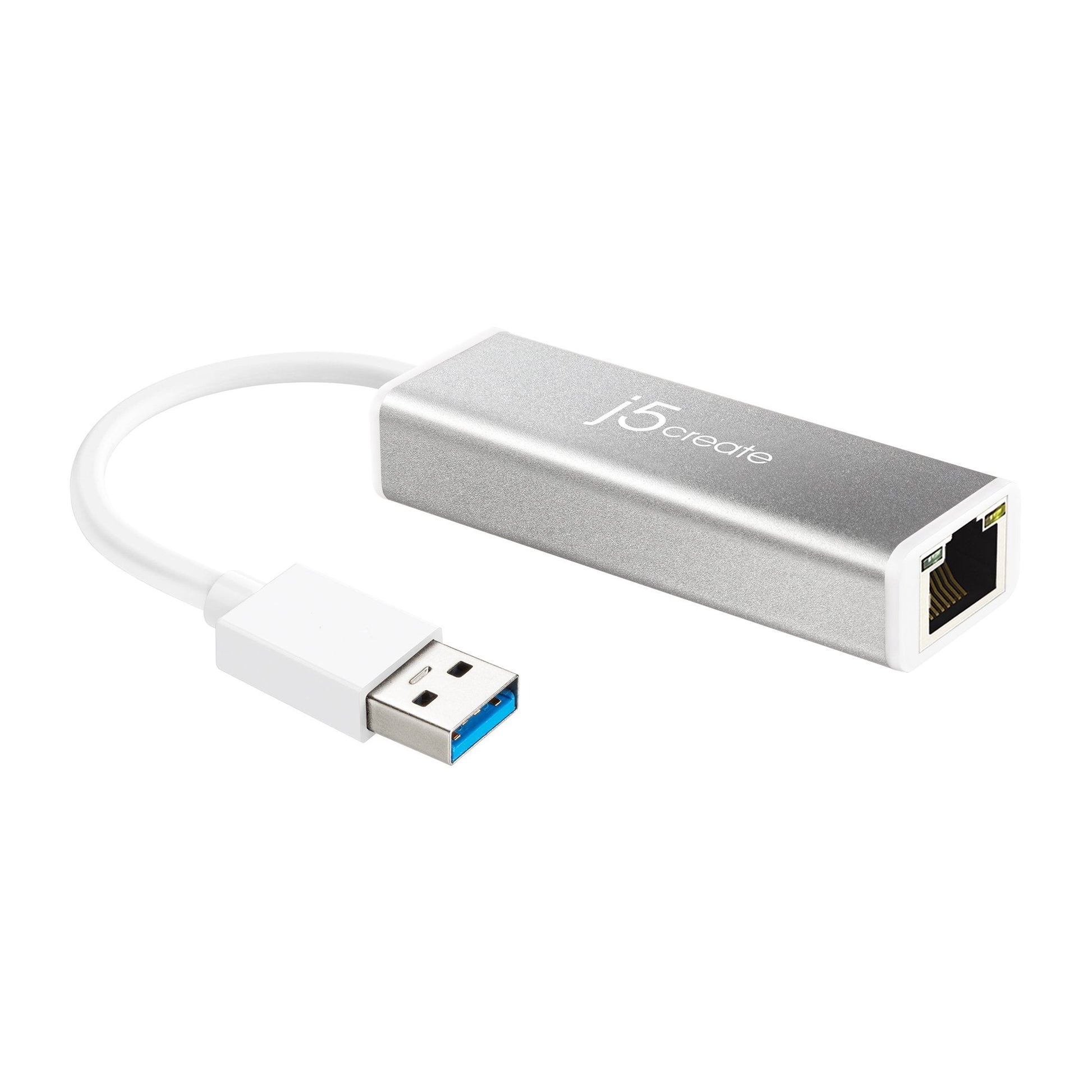

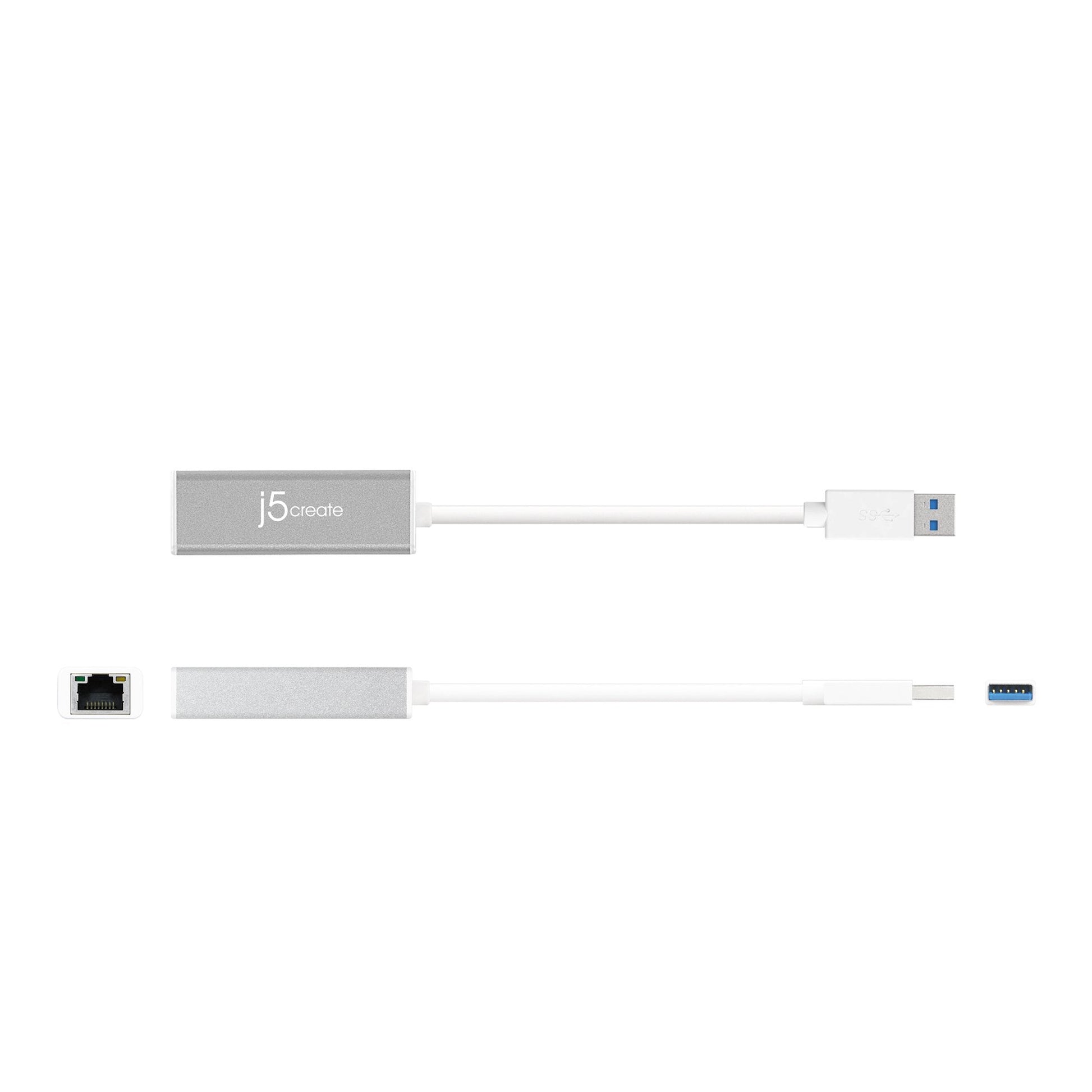

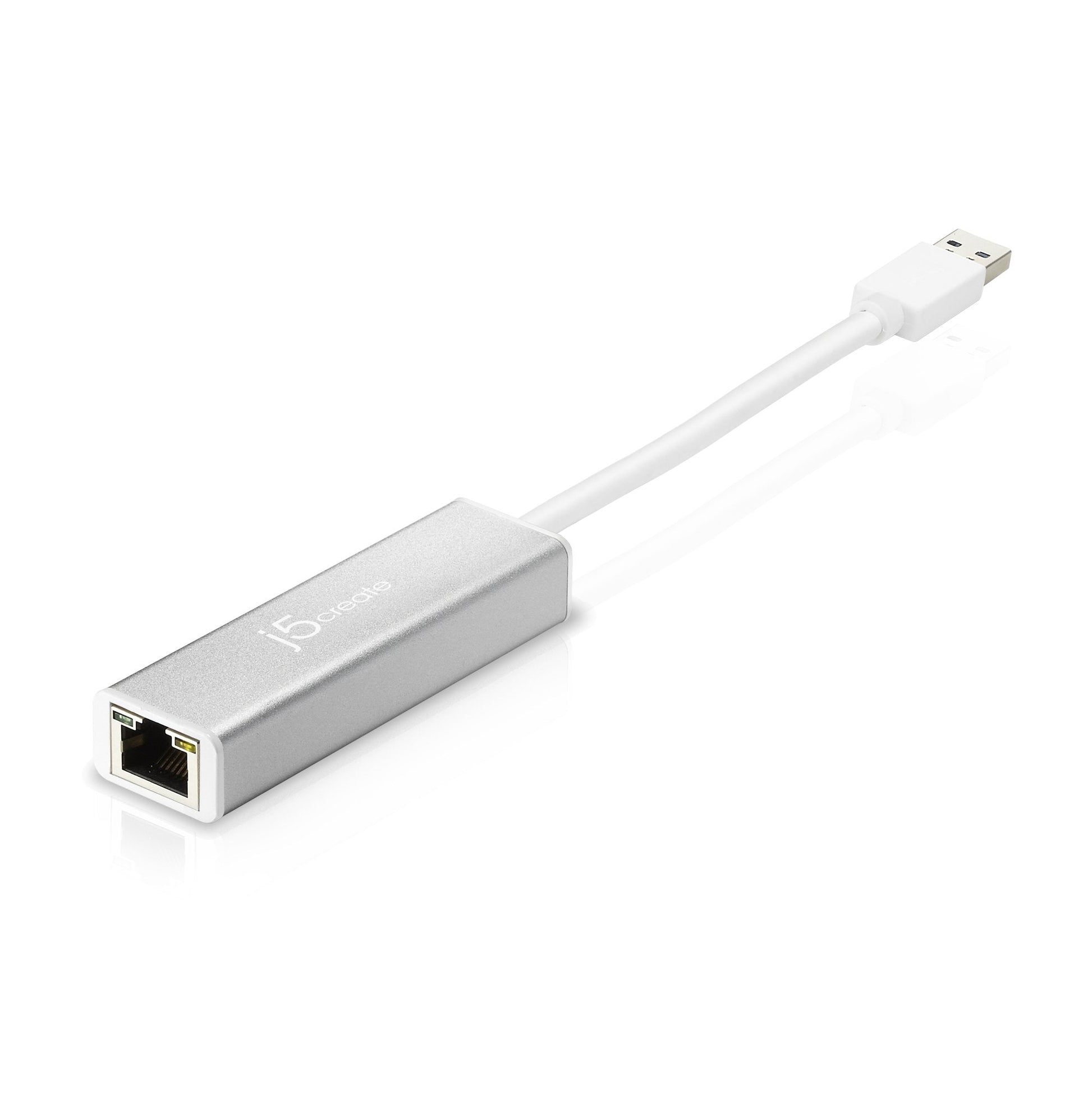

J5create USB 3.0 Gigabit Ethernet Adapter - JUE130

The USB™ 3.0 Gigabit Ethernet Adapter gives you the ability to add a Gigabit Ethernet port to your laptop or MacBook® though a single USB™ 3.0 Type-A port, supporting 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3/az/u/ab/x standards.

This ethernet adapter provides full gigabit bandwidth and offers backward compatibility with USB™ 2.0. It also supports features such as IPv4/IPv6/TCP/UDP packet Checksum Offload Engine (COE) and TCP Large Send Offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation, VLAN tagging and 2 VLAN ID filtering are also supported, making this an ideal replacement LAN adapter or laptop accessory in areas without Wi-Fi® or if you just want to increase your Internet speed.

FEATURES:

• Instant connection to a wired network over USB™
• USB™ 3.0 provides up to 5 Gbps transfer rate, which is 10x faster than USB™ 2.0
• Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices
• LED activity indicator

System Requirements:

• Microsoft® Windows® 7 or later

• macOS® 10.8 or later (Driver required)

• Linux® Kernel up to 5.x

• Chrome OS™

• Available USB™ Type-A port (USB™ 3.0 is recommended)

SPECIFICATIONS:

• Host Connector: USB™ 3.0 Male
• Network Interface: RJ45 Female (Gigabit Ethernet)
• Industry Standards:
• IEEE 802.3az/802.3/802.3u/802.3ab/802.3x
• Power Source: Bus-powered

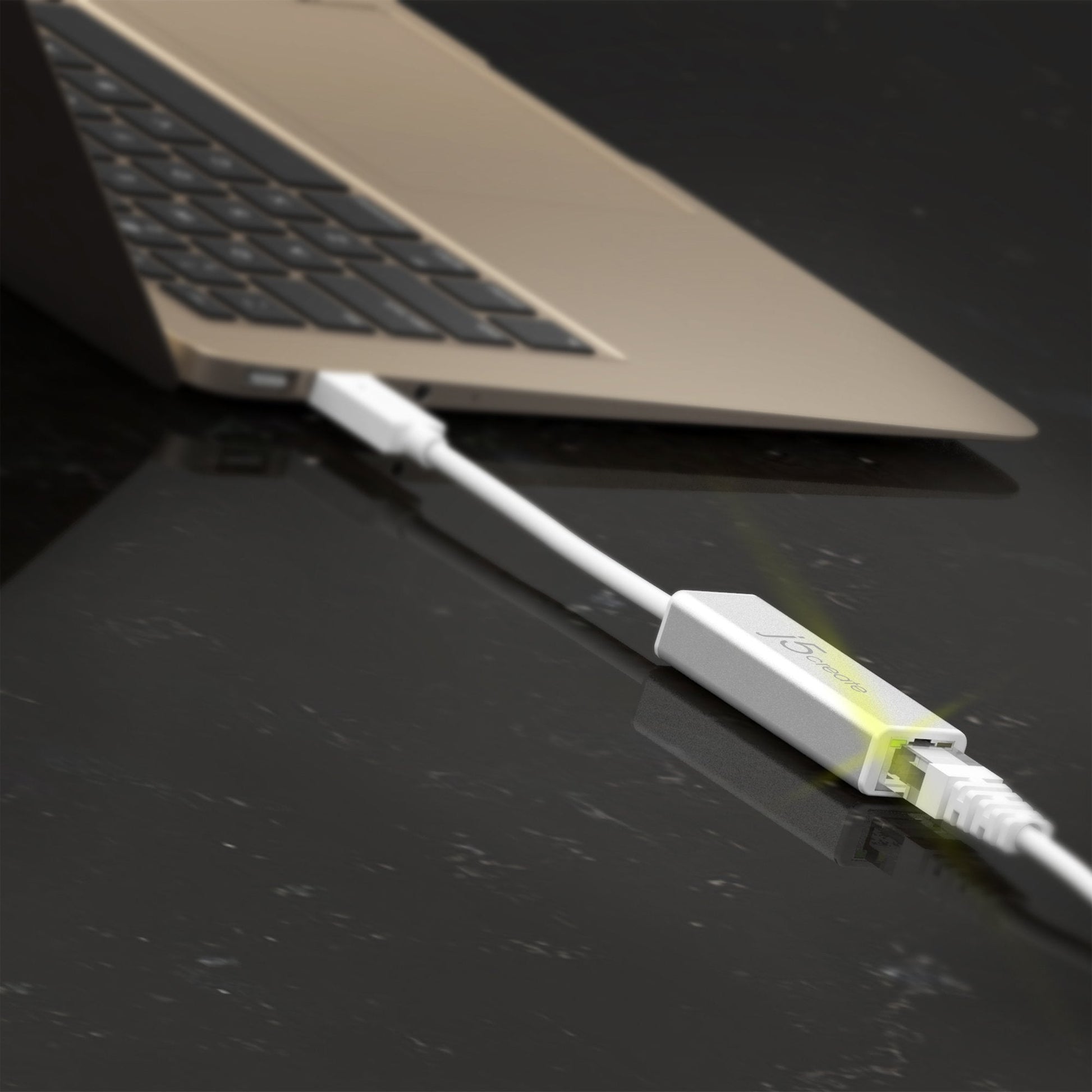

• LED Indicators:
  • Green: Link
  • Amber: Activity
• Type and Rate: Up to 5 Gbps via USB™ 3.0
• Compatible Networks: 10/100/1000 Base-T (auto-negotiating)
• Full Duplex Support: Yes
• Maximum Data Transfer Rate: 1000 Mbps
• Maximum Distance: 330 ft (100 m)
• Surge Protection: Yes
• Color: Silver
• Enclosure Type: Aluminum
• Cable Length: 5.71 in. (145 mm)
• Product Dimensions:
  • Height: 0.91 in. (23 mm)
  • Width: 2.68 in. (68 mm)
  • Depth: 0.57 in. (14.5 mm)
• Product Weight: 1.41 oz (40 g)
• Storage Temperature: -40 to 180°F (-40 to 82°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 32 to 138°F (0 to 59°C)
• Operating Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JUE130 USB™ 3.0 Gigabit Ethernet Adapter x1
• Quick Installation Guide x1
• Driver Installation CD x1

WARRANTY:

• 24 Months
