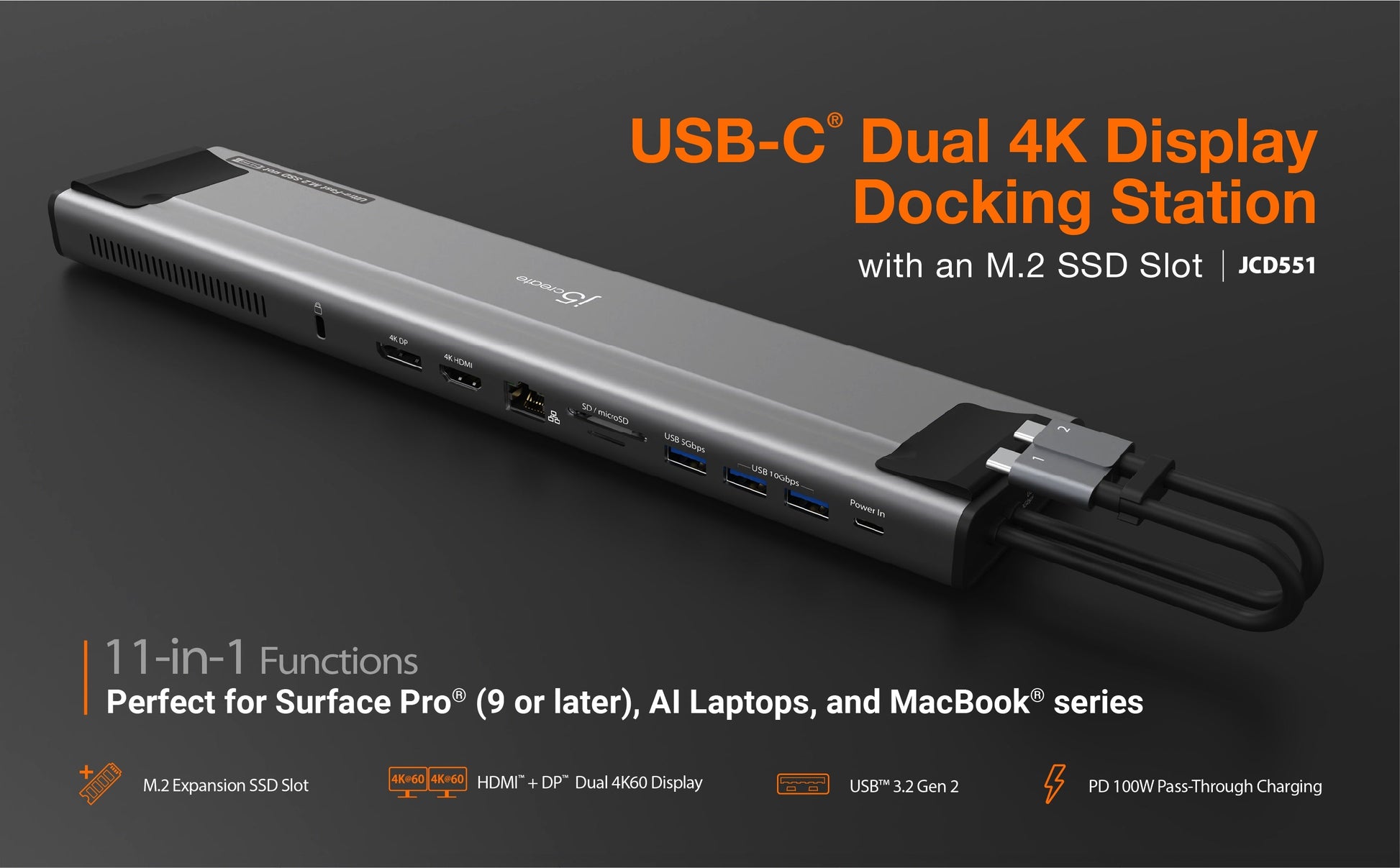

J5create USB-C Dual 4K Display Docking Station with an M.2 SSD Slot - JCD551

Increase your productivity with the USB-C® Dual 4K Display Docking Station with an M.2 SSD Slot by transforming your Thunderbolt™ 4, Thunderbolt™ 3, or USB-C® compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe®/SATA PCIe® SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C® and two USB™ Type-A), a Gigabit Ethernet port, SD™ & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.

This USB-C® Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe® M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals.

FEATURES:

• Perfect for Microsoft Copilot™ Surface® laptops.
• Optimized for Microsoft Copilot™ and content creation

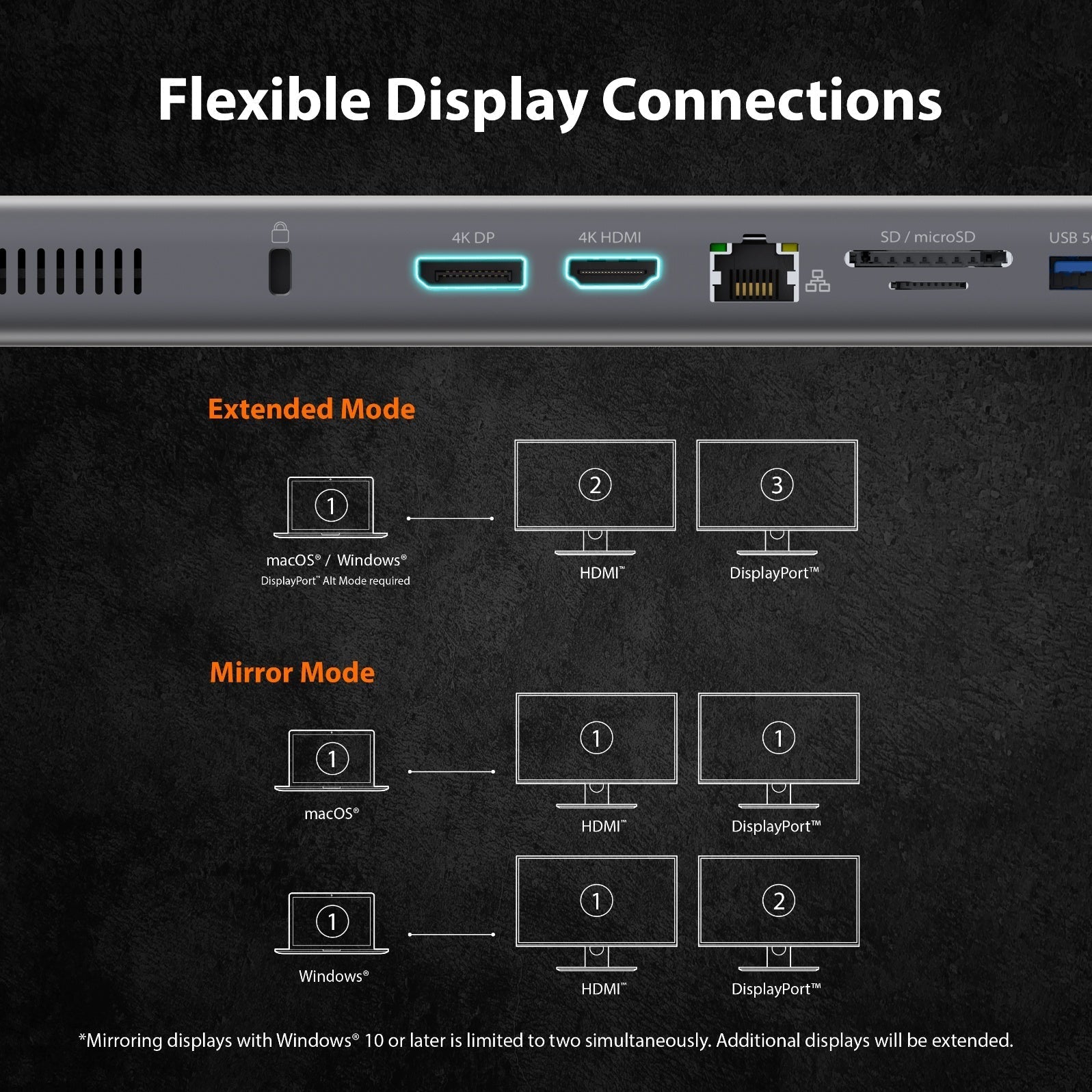

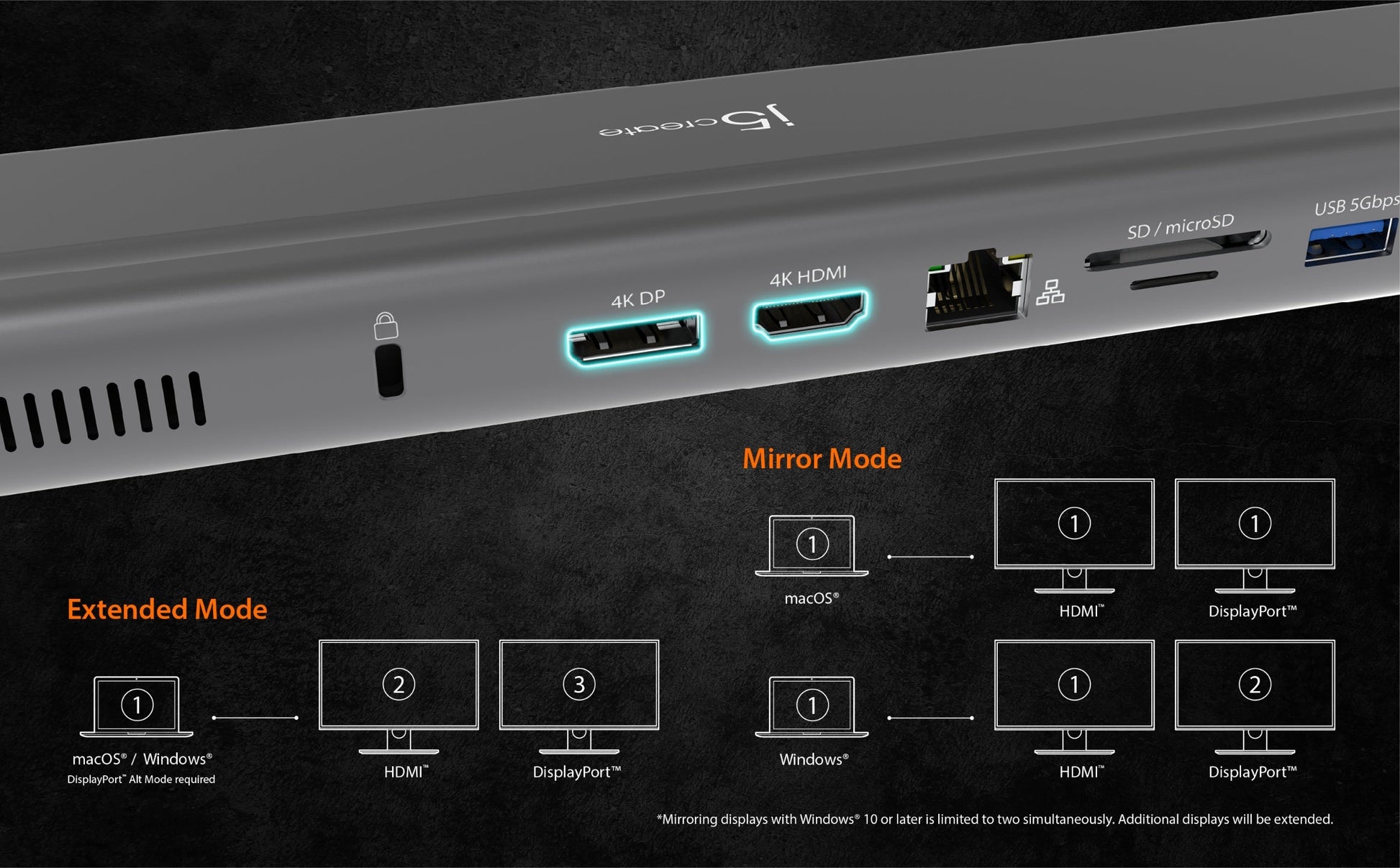

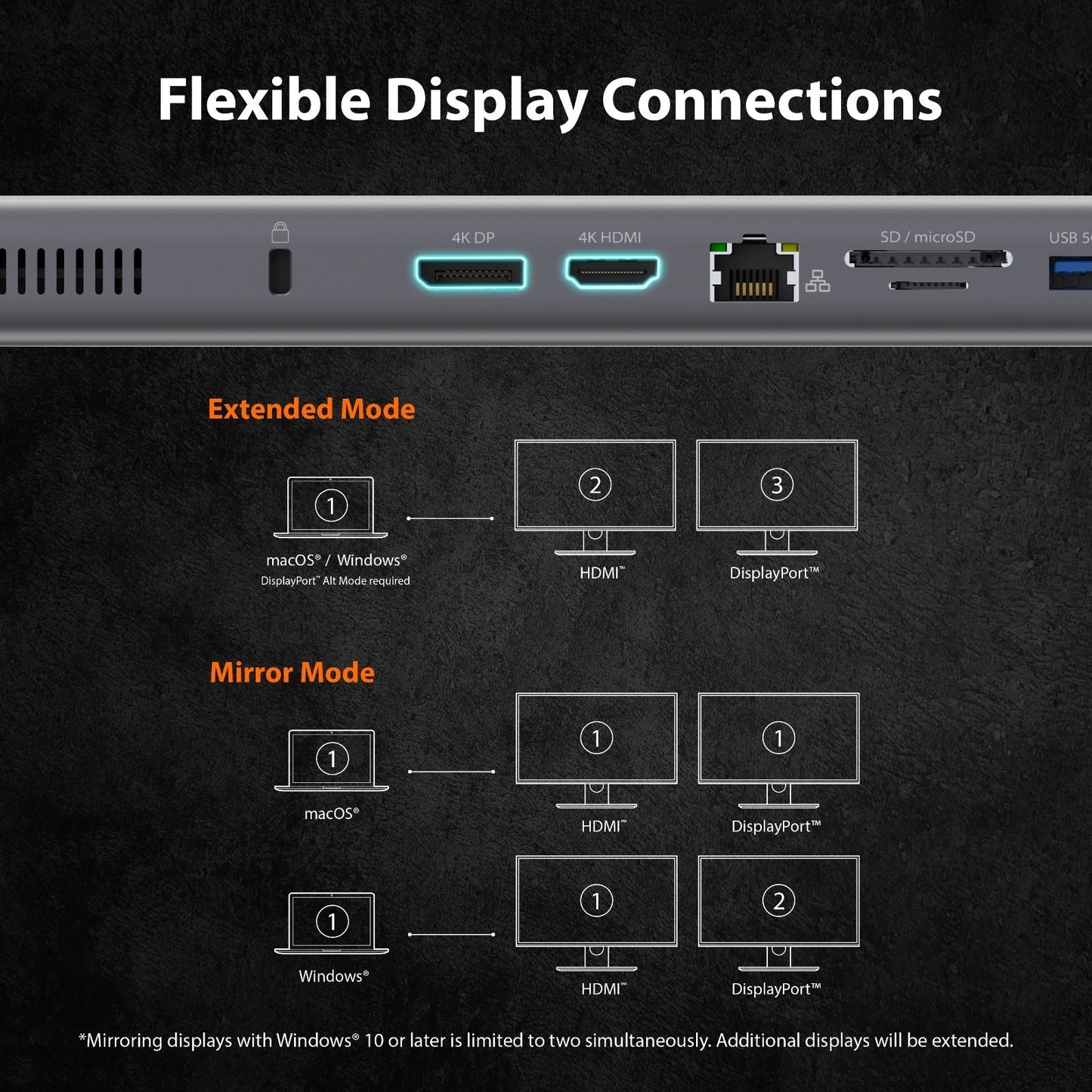

• Supports extended dual 4K displays (HDMI™ & DisplayPort™) with Macbook® laptops that have the M1 Pro/Max chip or newer, and Intel® MacBook® computers.
• Supports a single display via HDMI™ on other USB-C® compatible laptops connected via one USB-C® port

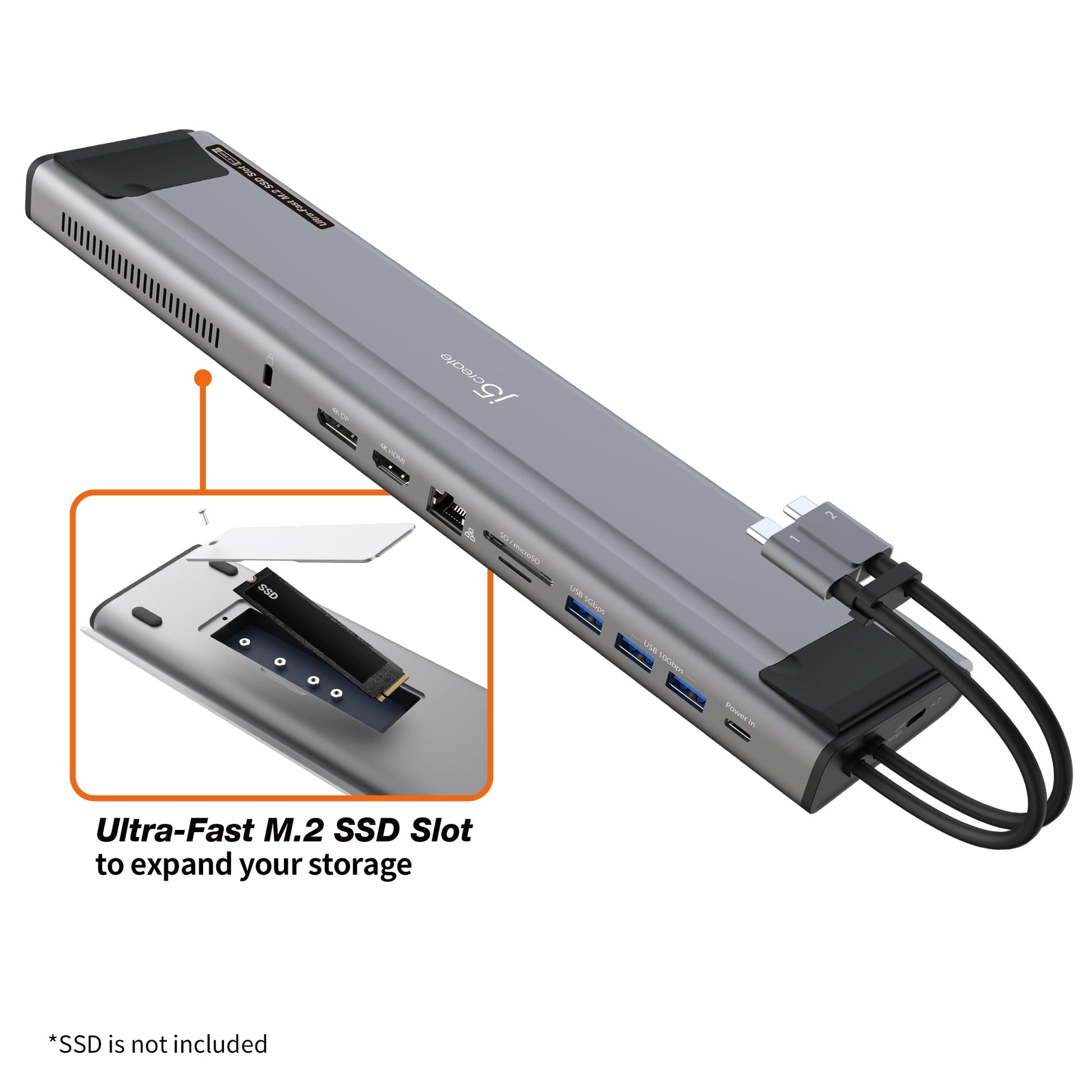

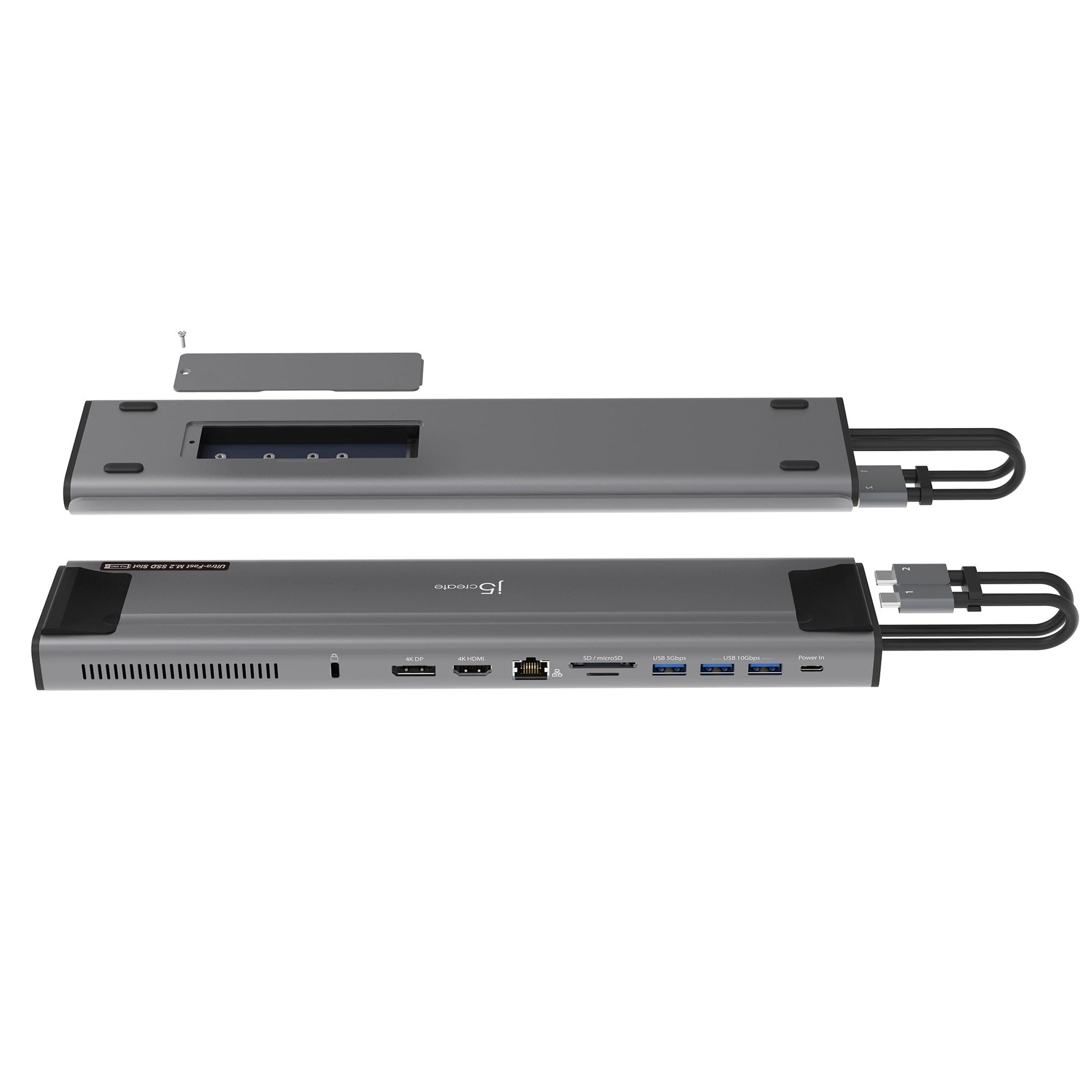

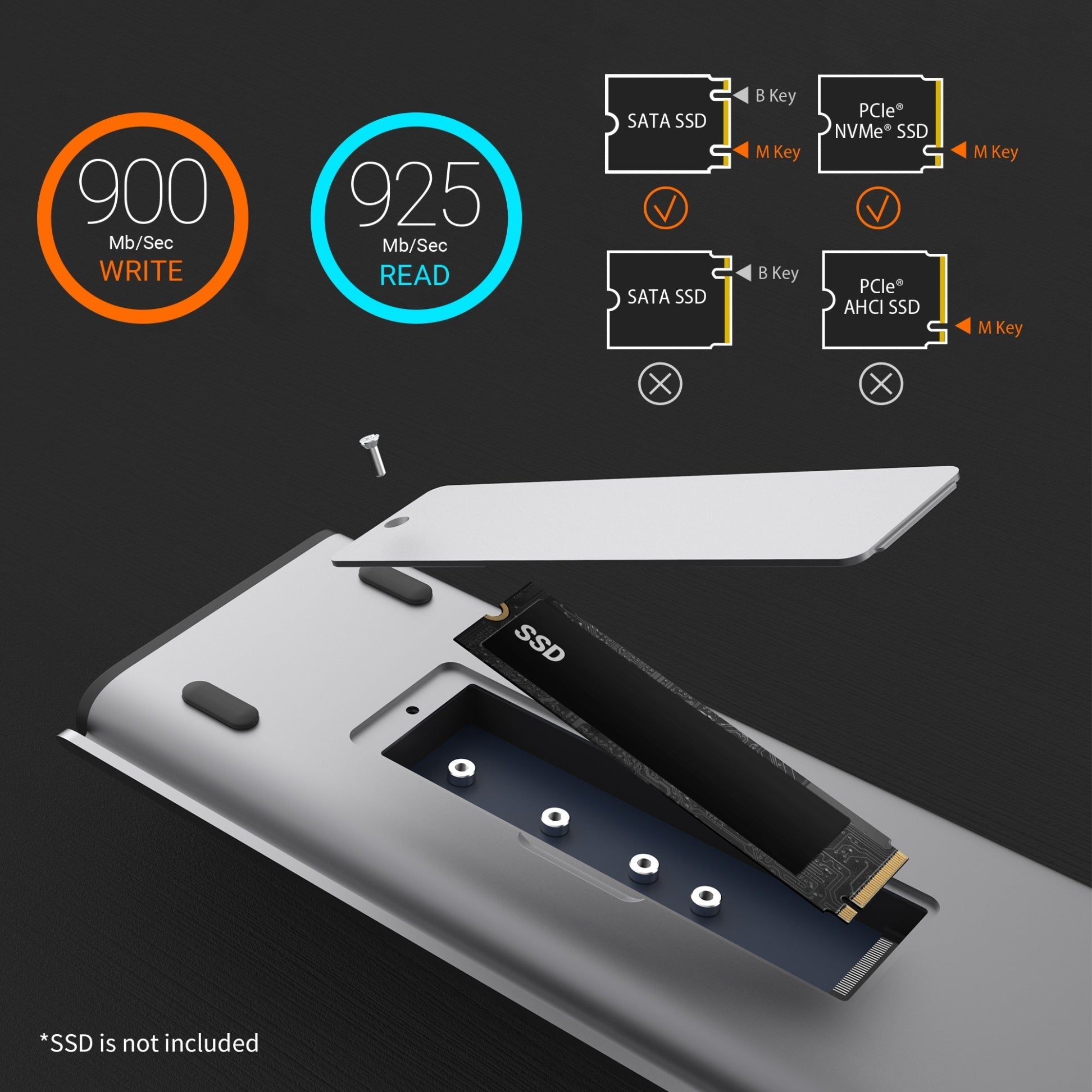

• Built-in M.2 NVMe®/SATA PCIe® SSD Slot (Supports M.2 NVMe® or SATA M+B key 2230/2242/2260/2280) to expand storage space, convenient SD™ & microSD™ access, and one USB-C® 10Gbps port to connect an external hard drive

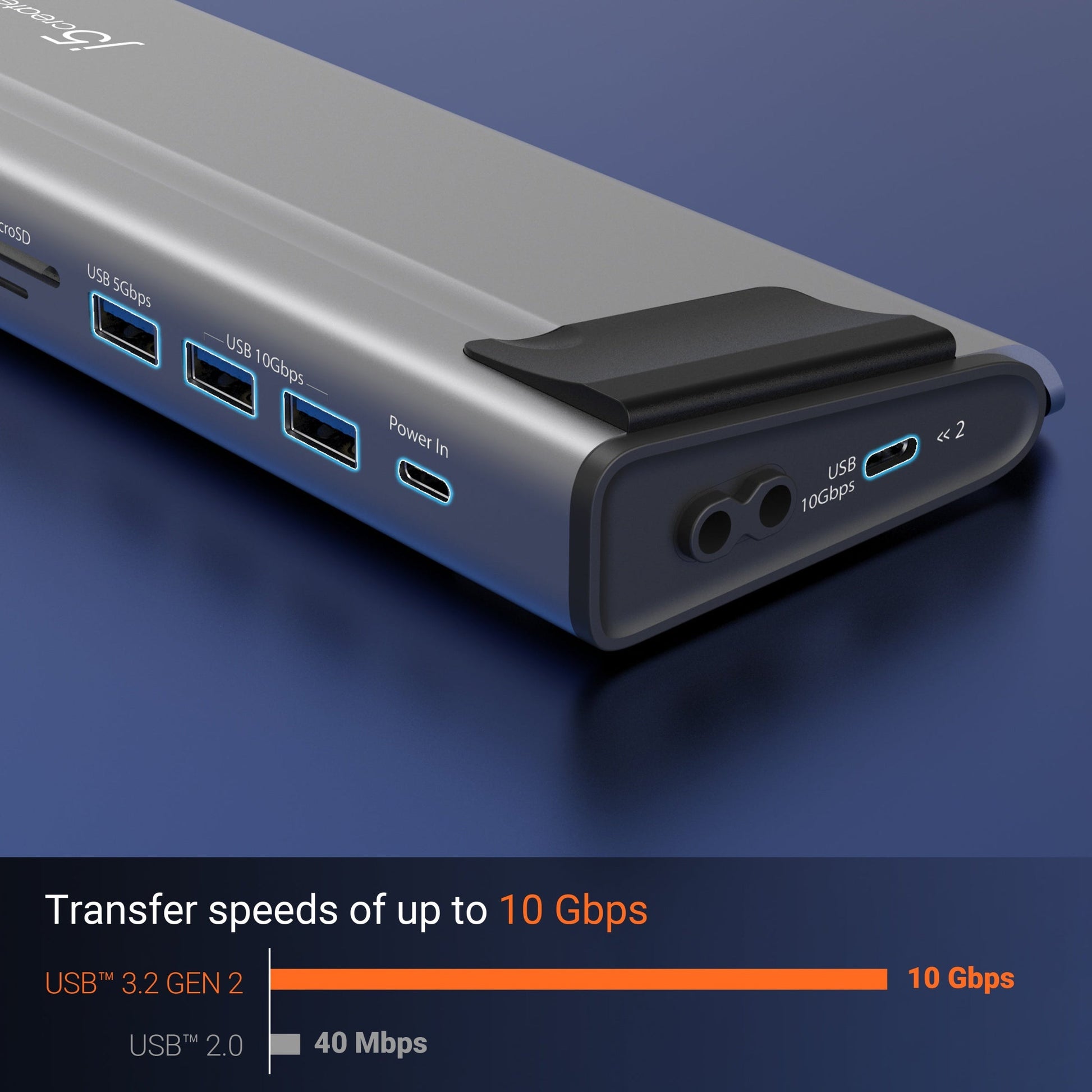

• Provides three SuperSpeed USB™ 10Gbps ports (1 USB-C® and 2 USB™ Type-A) to connect peripherals

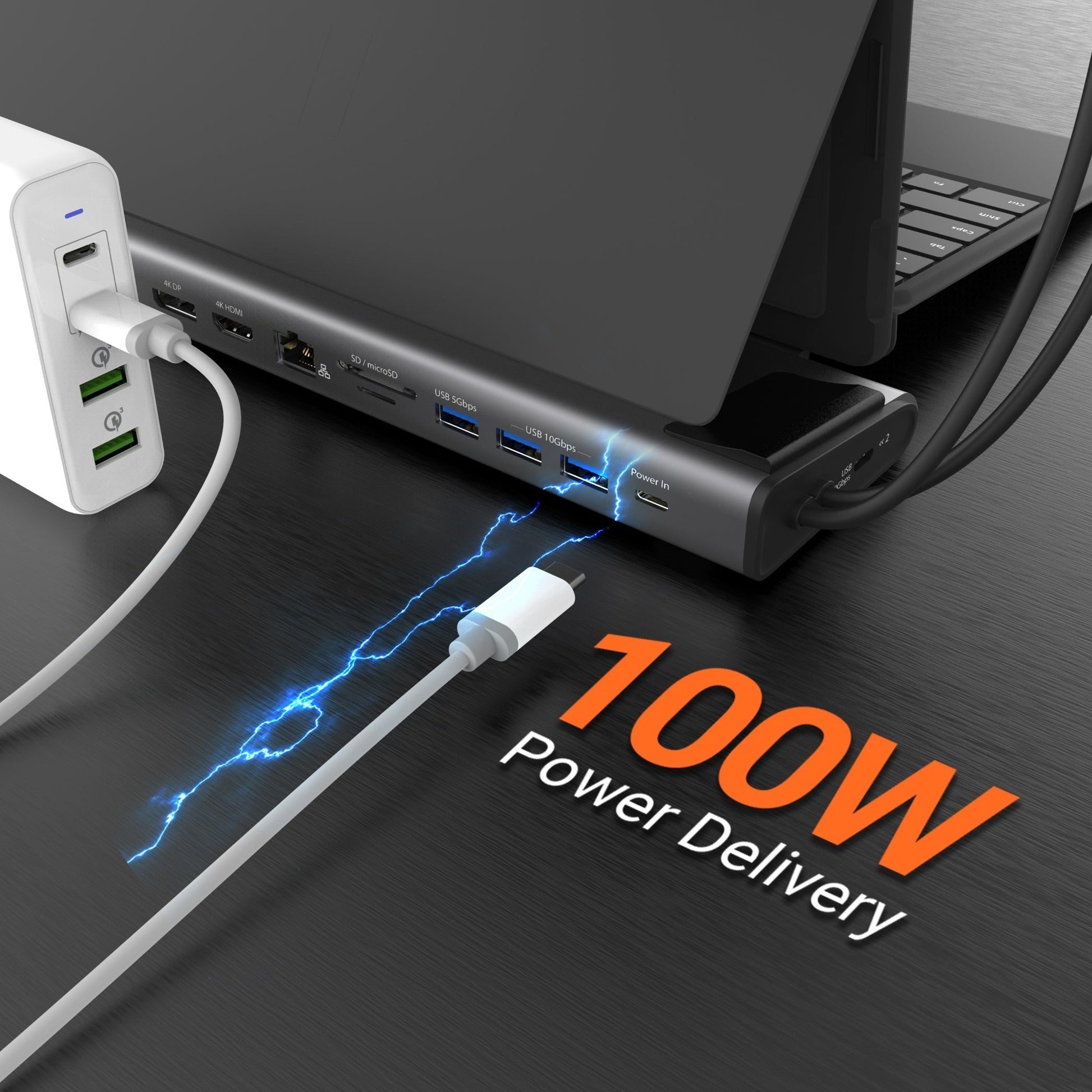

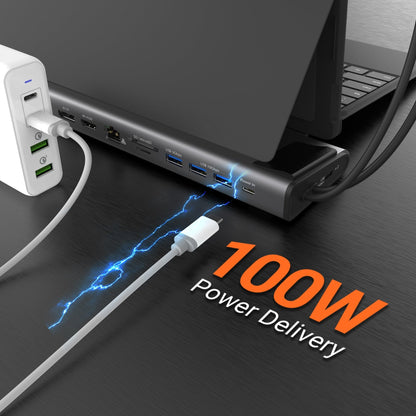

• Charge your laptop up to 100W and power connected peripherals when used with a USB-C® power adapter

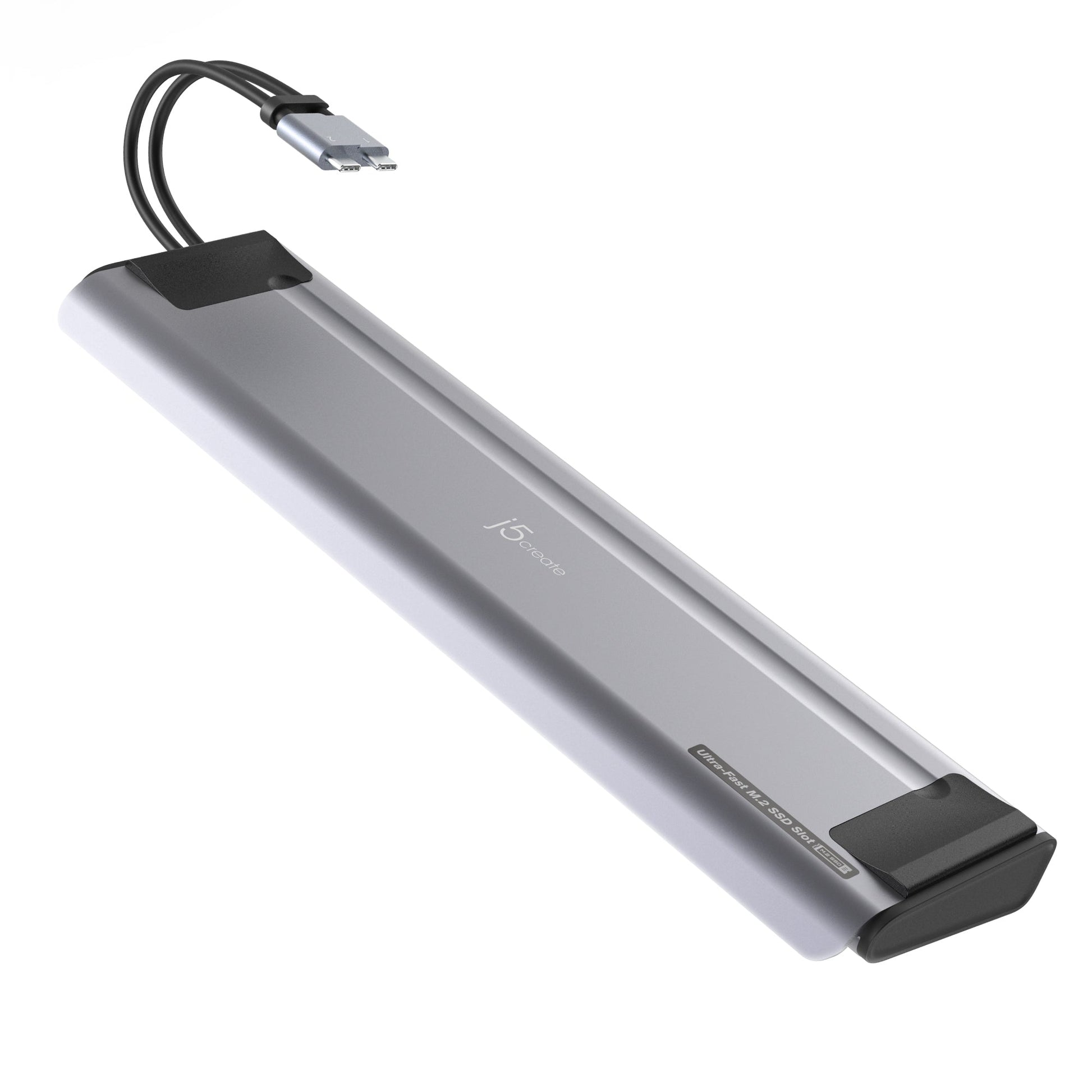

• The detachable magnetic connector’s flexible design gives you the ability to connect to a variety of compatible devices
• Security slot to prevent equipment theft

System Requirements:

• Available USB-C® port(s) that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  *Please refer to the manufacturer of your computer for more information about your device

Special Notes:

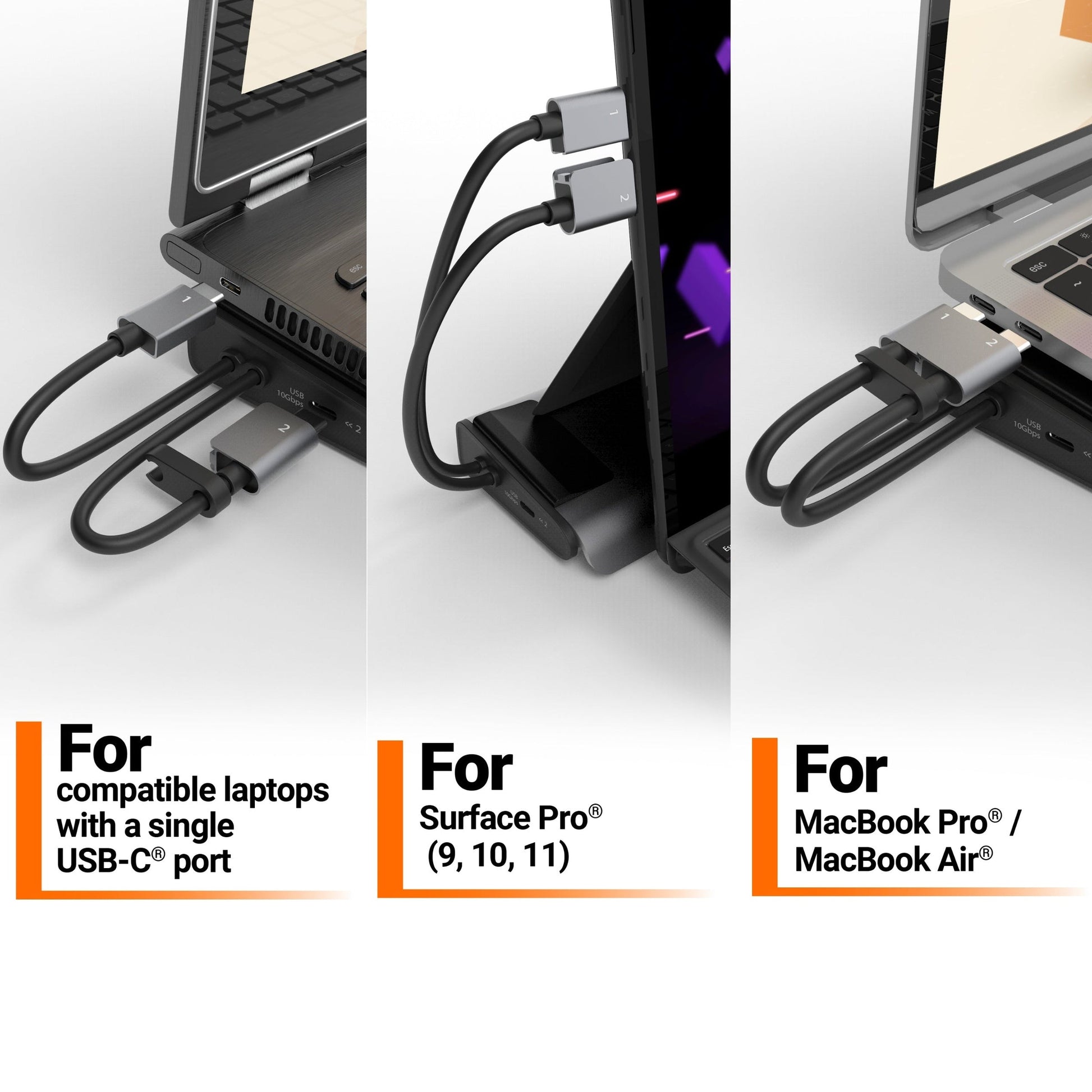

• To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10Gbps USB-C® Gen 2 port on the docking station.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 3.0 (5Gbps)/USB™ 2.0 port or if using a USB™ 3.0 (5Gbps)/USB™ 2.0, performance may be limited.
• The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• M1 or newer MacBook Pro® and MacBook Air® only support up to 1 external display. This single display limitation does not affect Intel® MacBook® computers or MacBook® computers with an M1 Pro/Max chip or newer.
• Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time. If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance

SPECIFICATIONS:

• Audio Supported: Yes
• Host Connector: USB-C® male ×2
• Network Interface: RJ45 (Gigabit Ethernet)

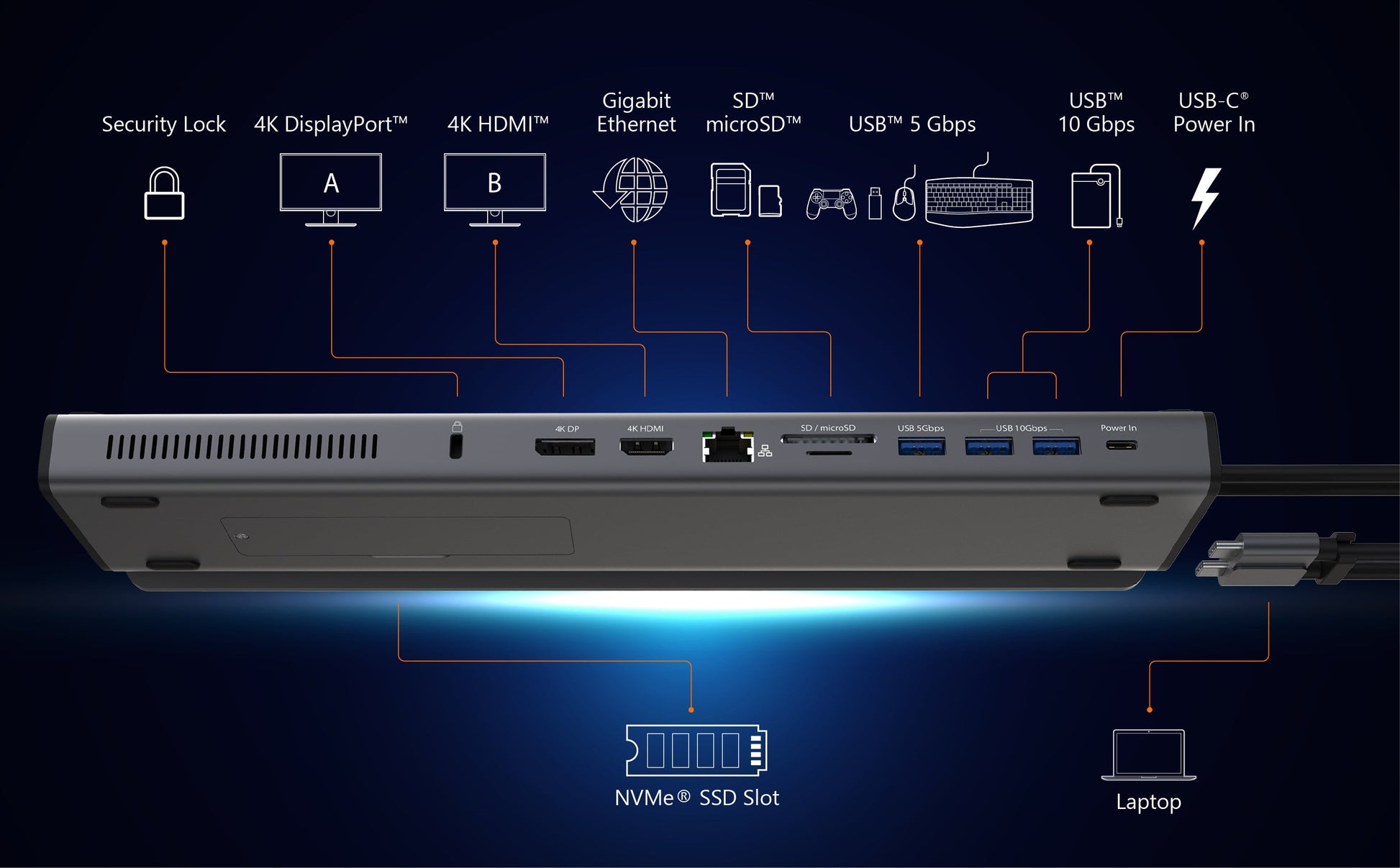

• Ports:
  • M.2 NVMe®/SATA slot ×1
  • USB-C® 3.2 Gen 2 ×1
  • USB-C® Power Delivery 3.0 ×1
  • USB™ Type-A 3.2 Gen 2 ×2
  • USB™ Type-A 3.2 Gen 1 ×1
  • HDMI™ (4K) ×1
  • DisplayPort™ (4K) ×1
  • SD™ & microSD™ 3.0 card reader/writer ×1
  • RJ45 Gigabit Ethernet ×1
  • Security lock slot ×1
• Power Source: Bus-powered
• Video Output:
  • HDMI™ female ×1
  • DisplayPort™ female ×1
• Audio: 2.1 channel via HDMI™ / DisplayPort™
• Network Compatibility: 10 / 100 / 1000 Mbps
• Displays Supported: Up to 2
• Max Data Transfer Rate:
  • 10 Gbps
  • M.2 slot:
    • Write: 900 MB/s
    • Read: 925 MB/s
• Max Display: Resolution: 3840 × 2160 (4K)
• Refresh Rate: 60 Hz
• Input:
  • Voltage: 20V
  • Current: 5A
• Output:
  • Voltage: 20V
  • Current: 5A
• Power Consumption: ≤ 600 mA
• Power Delivery: Up to 100W via USB-C®
• Cable Length: 0.6 in (15 cm)
• Color: Grey & Black
• Enclosure: Aluminum

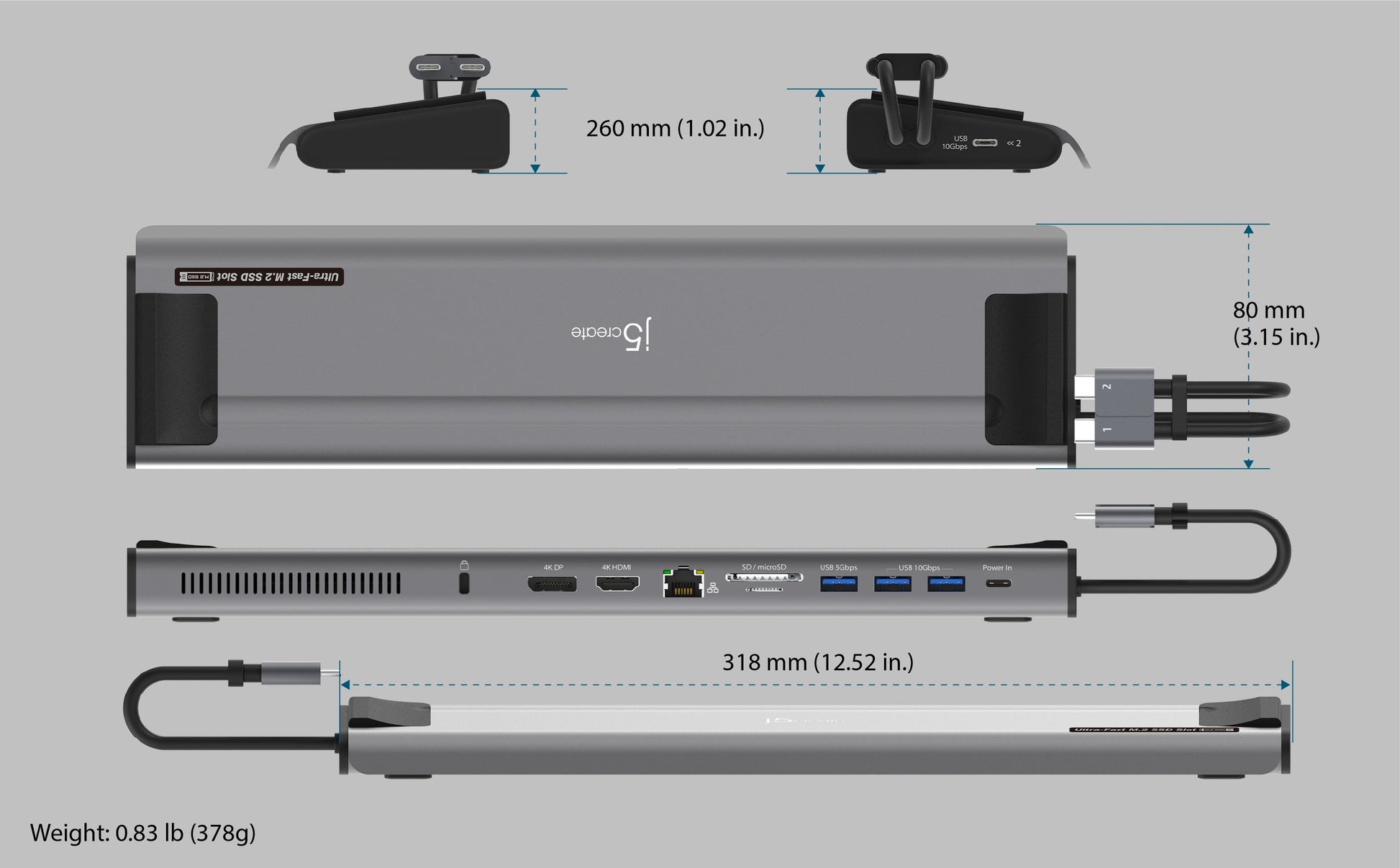

• Dimensions:
  • Depth: 12.5 in (318 mm)
  • Width: 3.14 in (80 mm)
  • Height: 1.02 in (26 mm)
• Weight: 0.83 lbs (378 g)
• Operating Conditions:
  • Temperature: 32 to 118°F (0 to 48°C)
  • Humidity: < 85% (non-condensing)
• Storage Conditions:
  • Temperature: 14 to 149°F (-10 to 65°C)
  • Humidity: < 85% (non-condensing)

WHAT'S IN THE BOX:

• JCD551 USB-C® Dual 4K Display Docking Station with an M.2 SSD Slot x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
