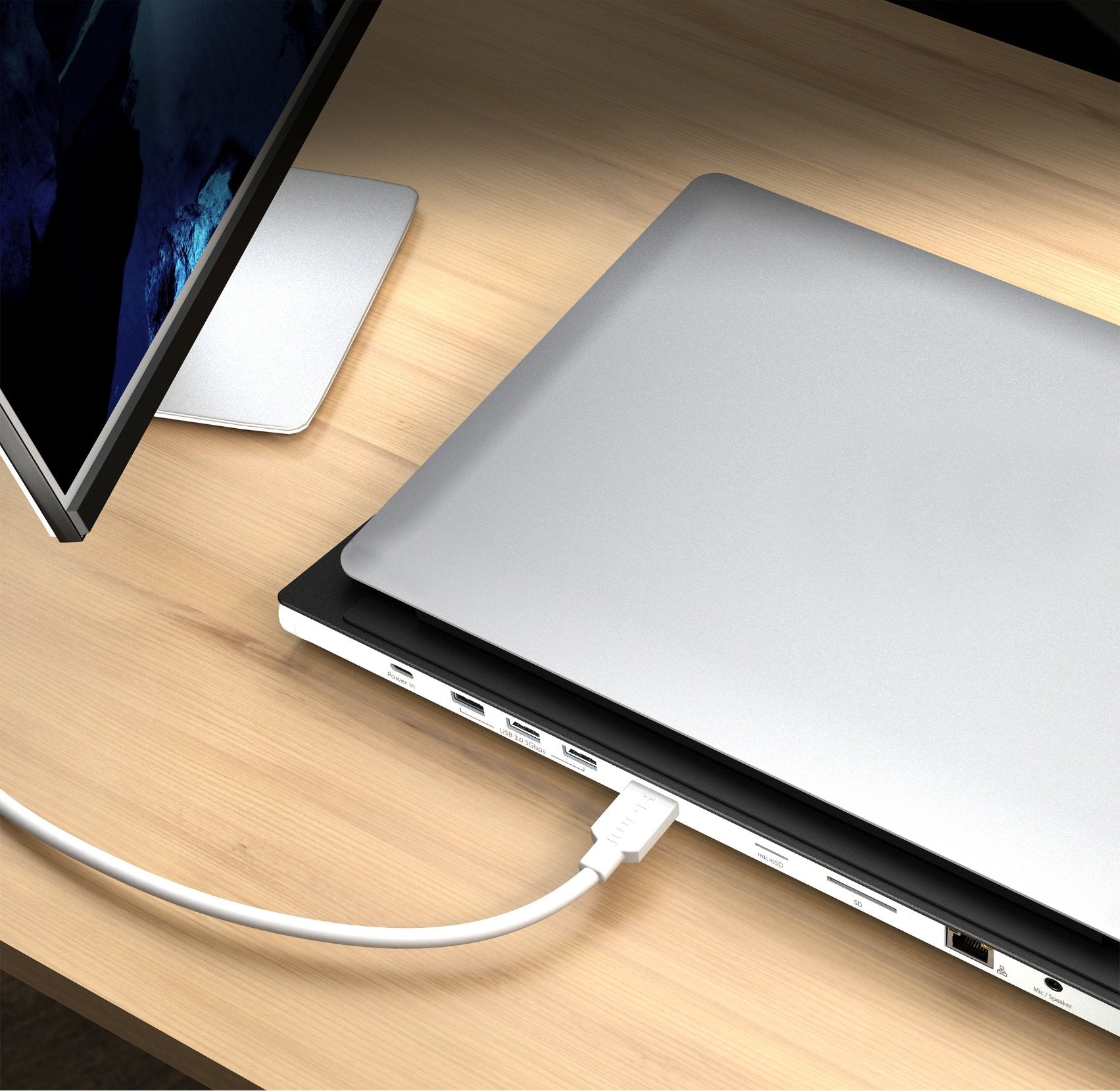

This 4K display docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C® laptops requiring additional ports. Featuring a 4K HDMI™ output and a USB-C® Power Delivery port that supports up to 100W pass-through, this USB-C® docking station provides all the connectivity you need for enhanced productivity, including a Gigabit Ethernet port, memory card reader/writer, combo audio jack, and three SuperSpeed USB™ 5Gbps ports to connect your peripherals.

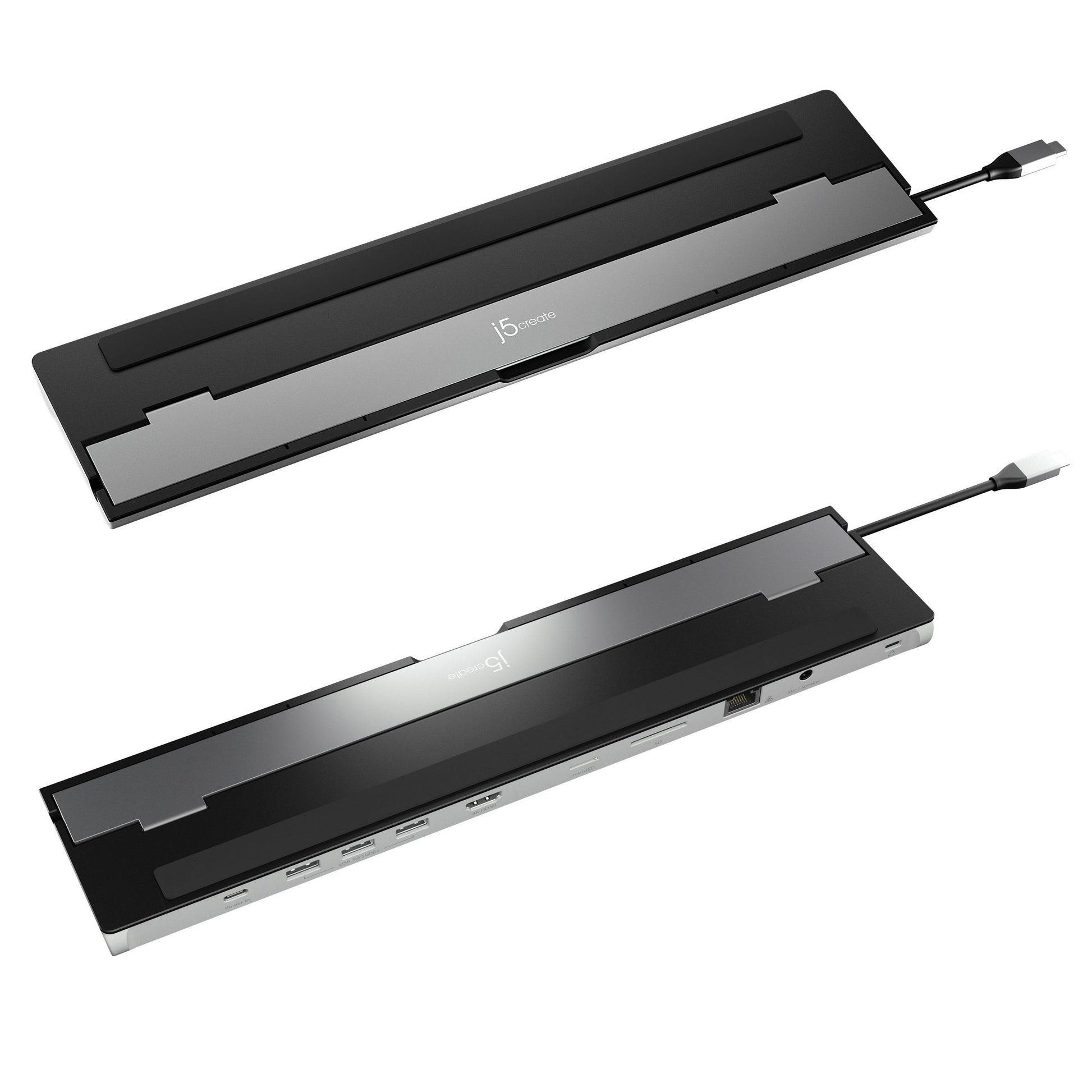

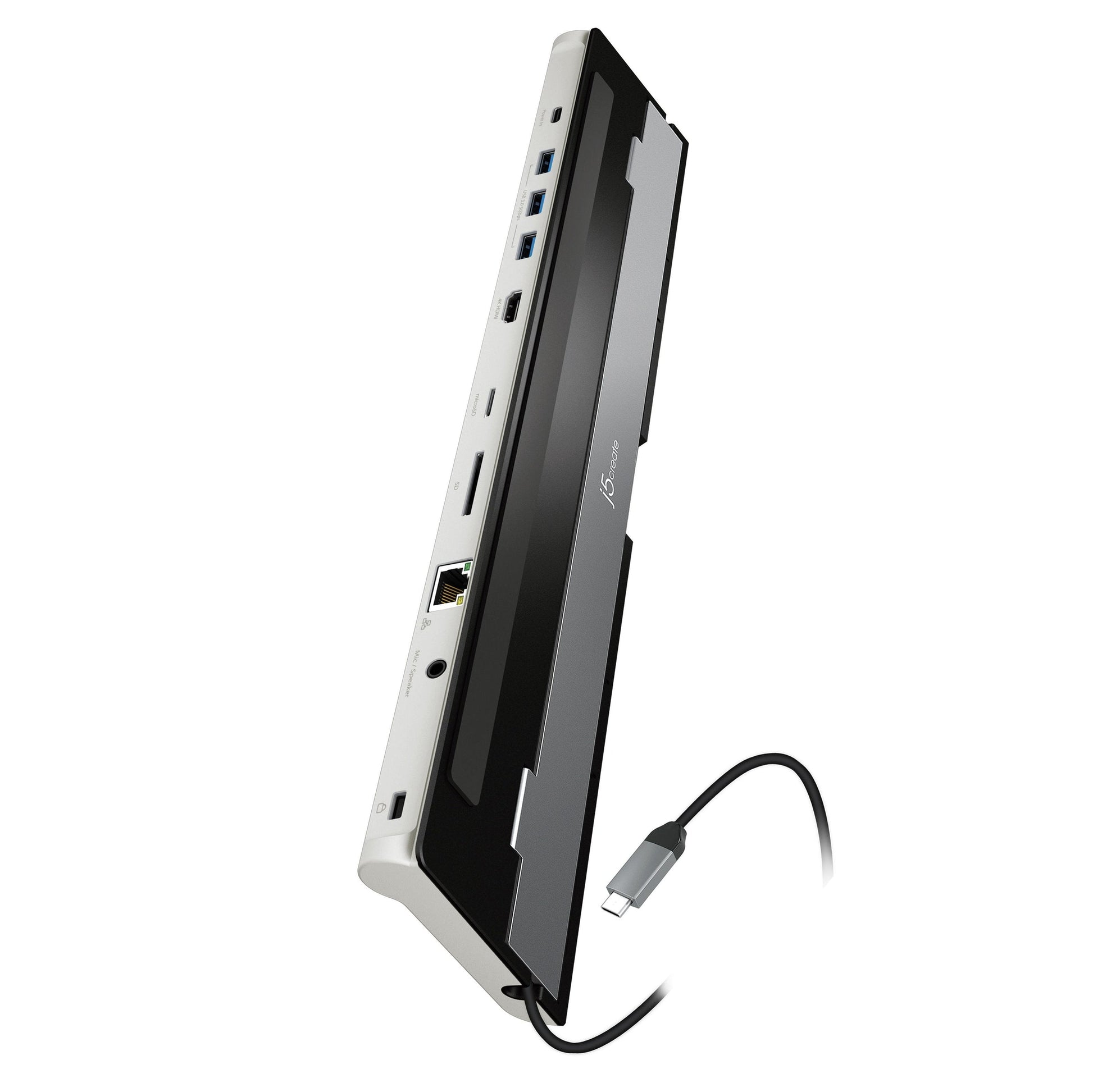

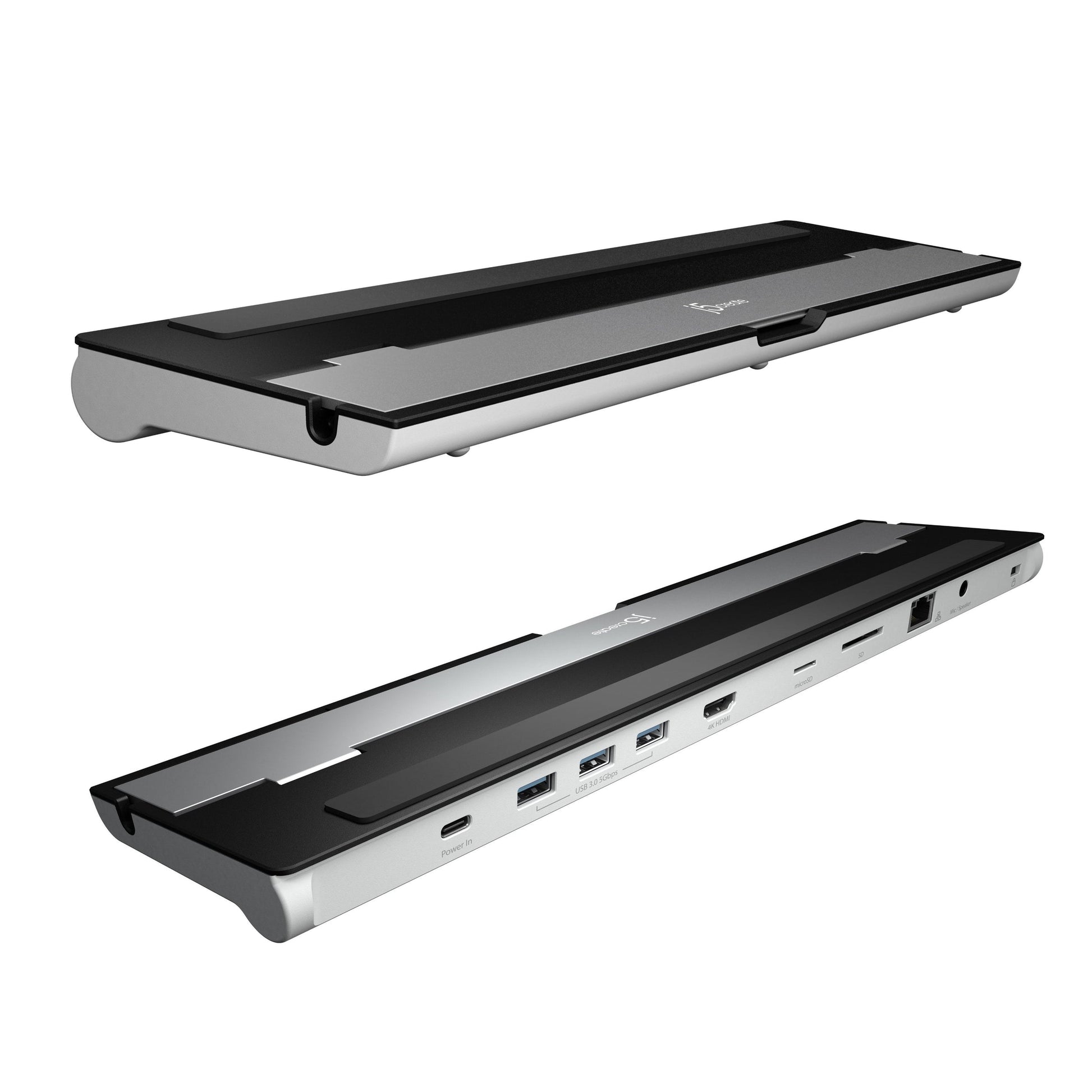

All 9 ports are combined into one slim docking station with double-sided cable storage compartment, ensuring an easy connection regardless of your USB-C® port’s location and supporting all your peripheral needs.
FEATURES:

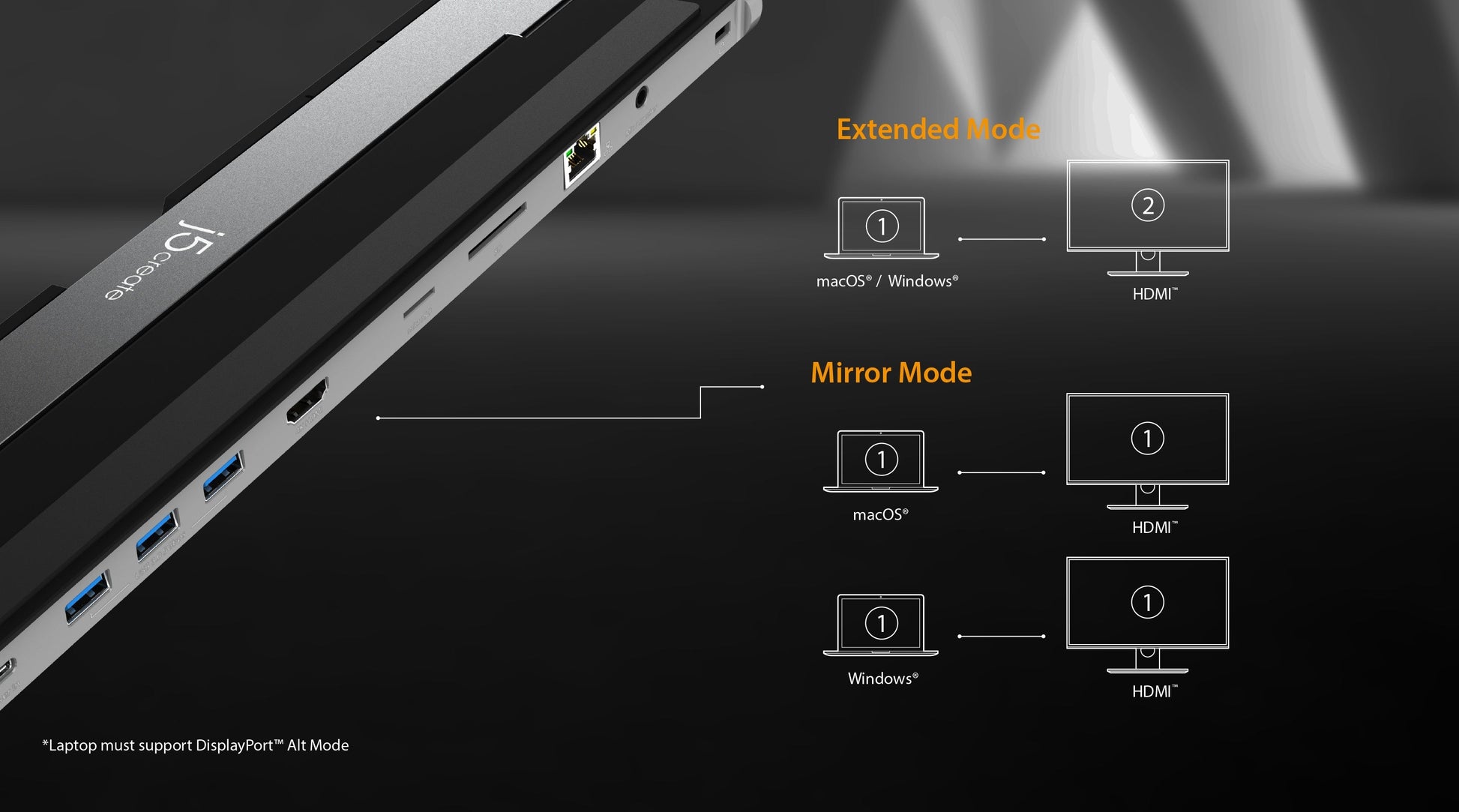

Easily connect to a 4K HDMI™ display with DisplayPort™ Alt Mode support over USB-C®
Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter (not included)
Connect and charge your USB™ devices with 3 x USB™ ports
Reliable network connectivity via the Gigabit Ethernet port
Direct access to SD™ & microSD™ memory cards for data storage and transfer
3.5mm audio jack to connect microphone/headphones
Security lock slot for anti-theft protection

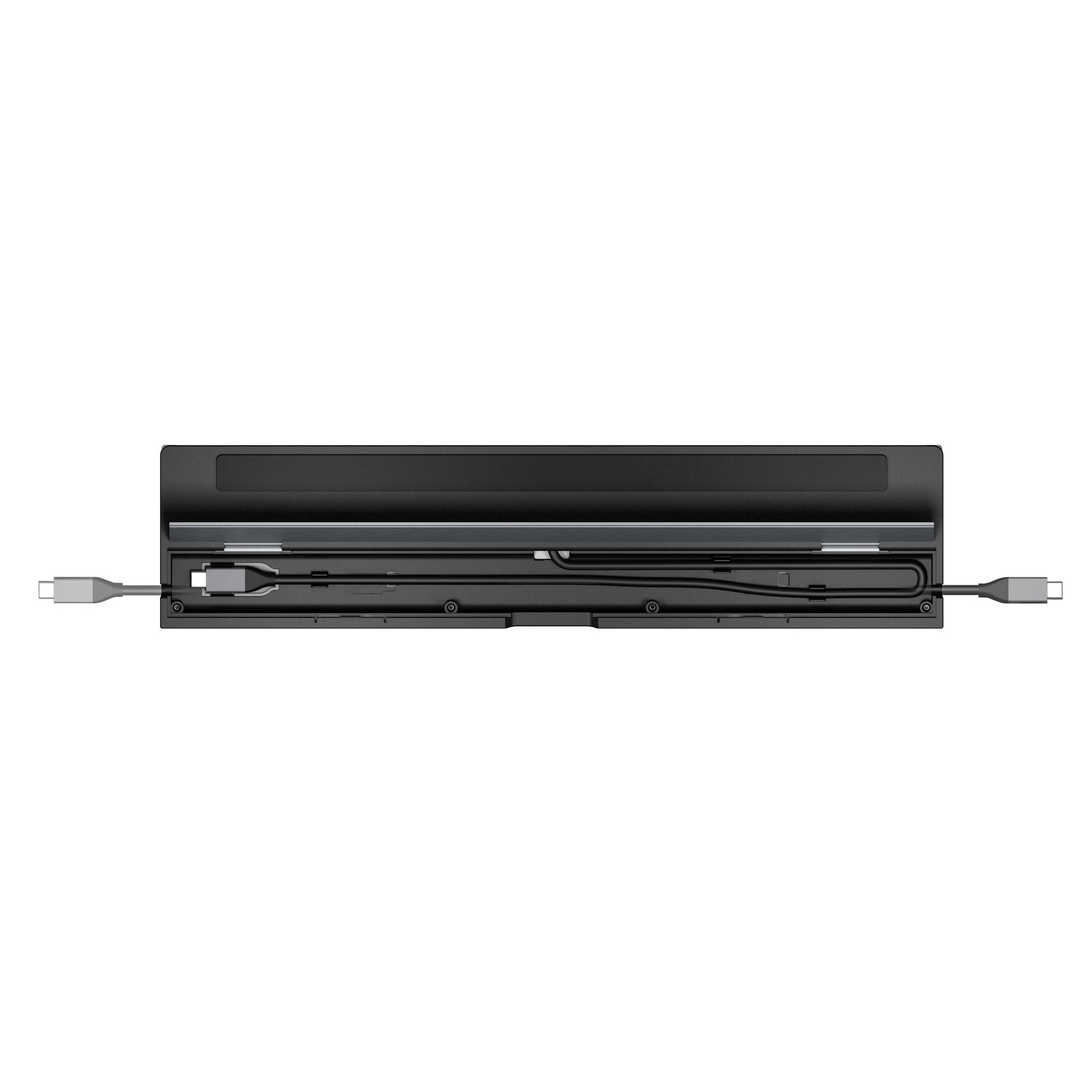

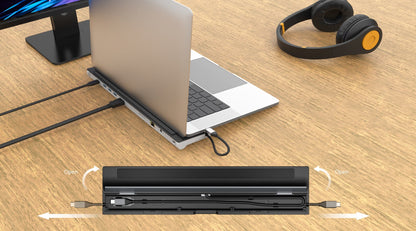

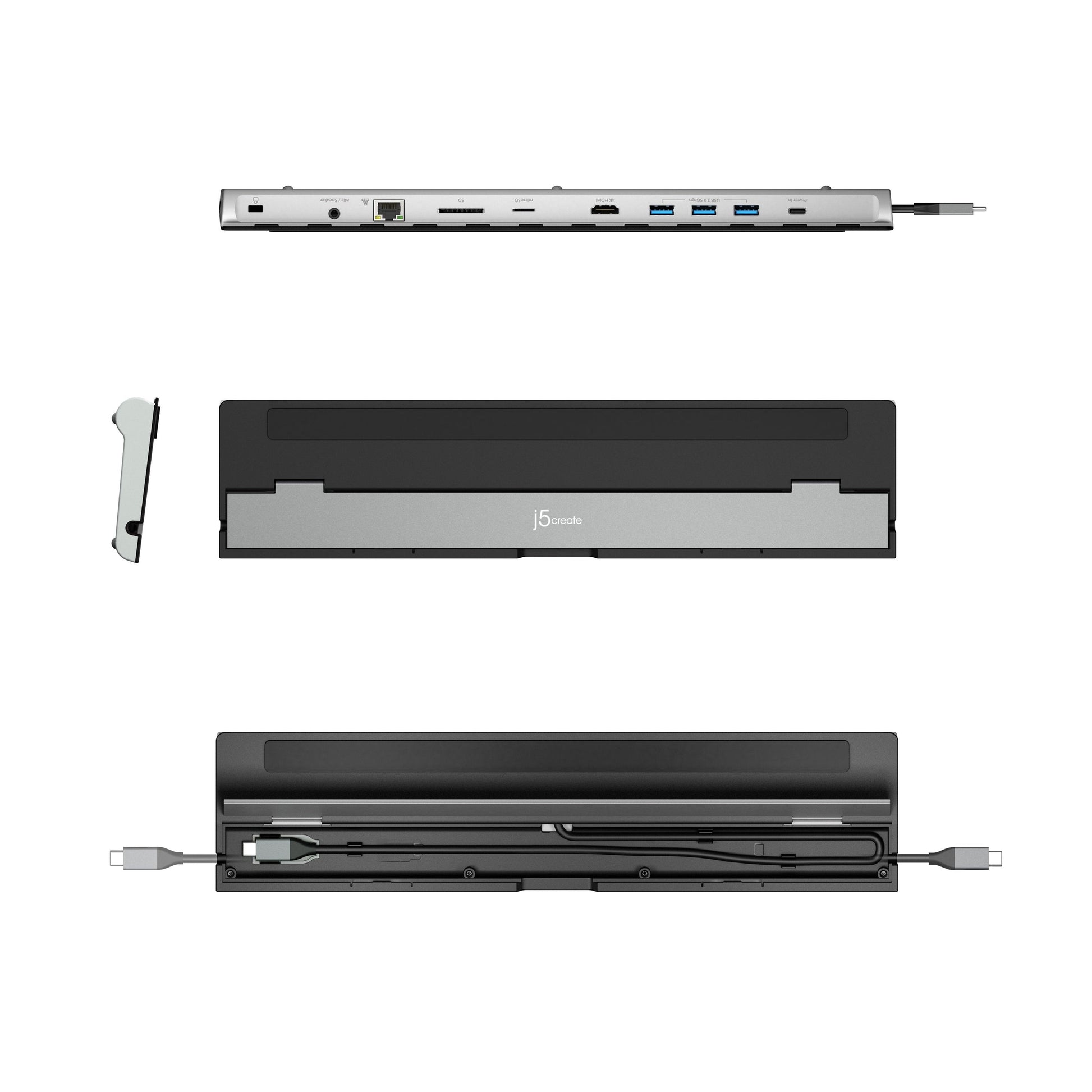

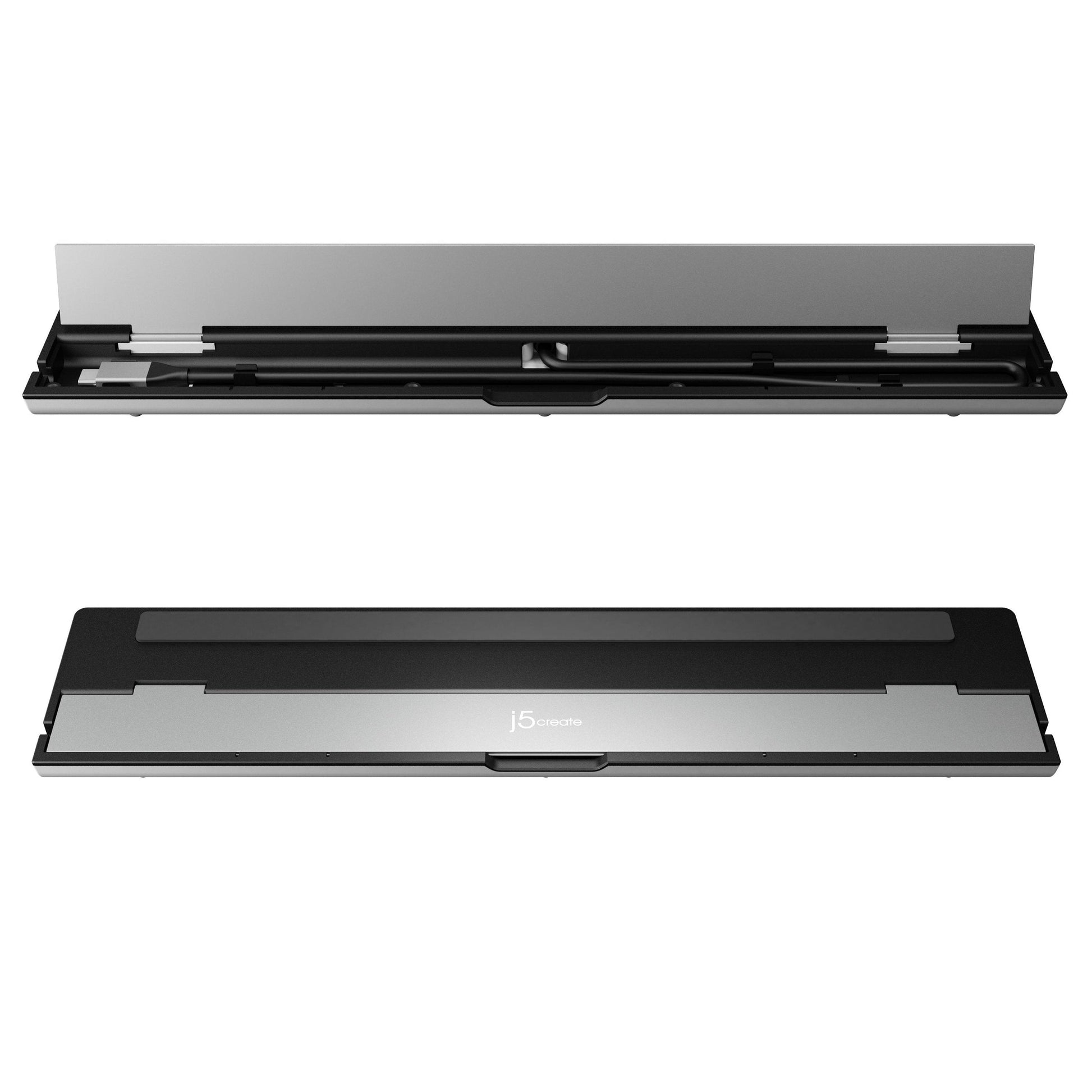

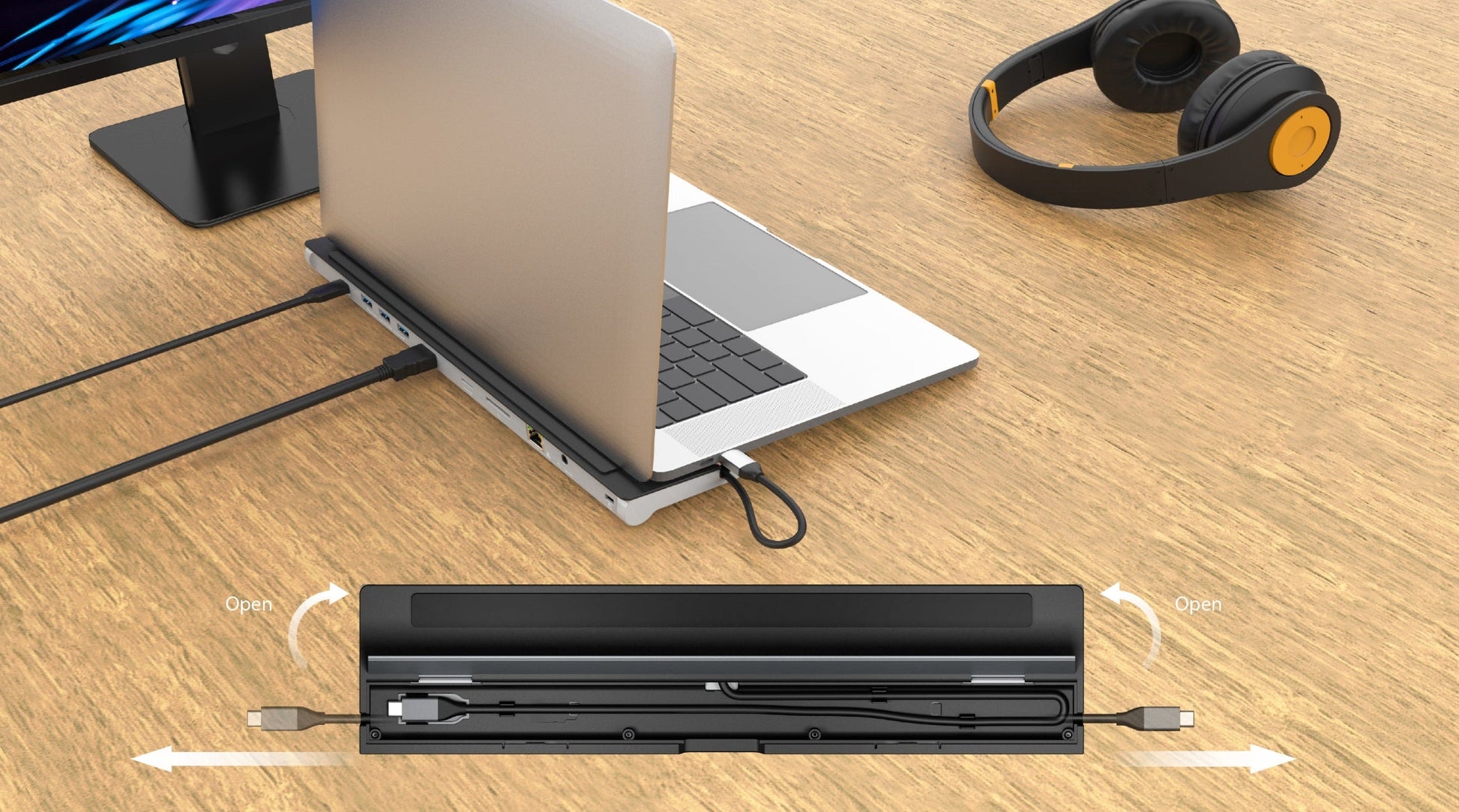

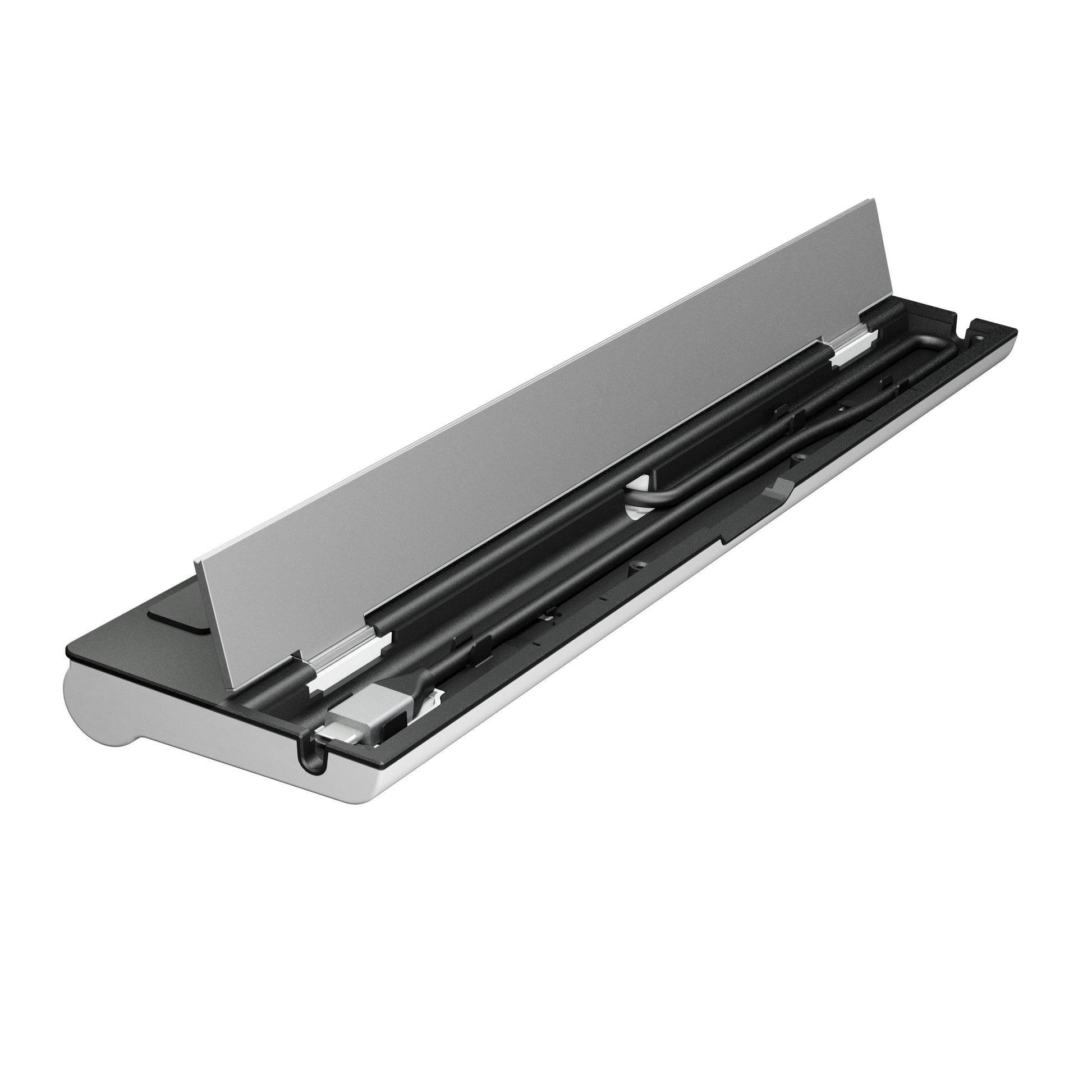

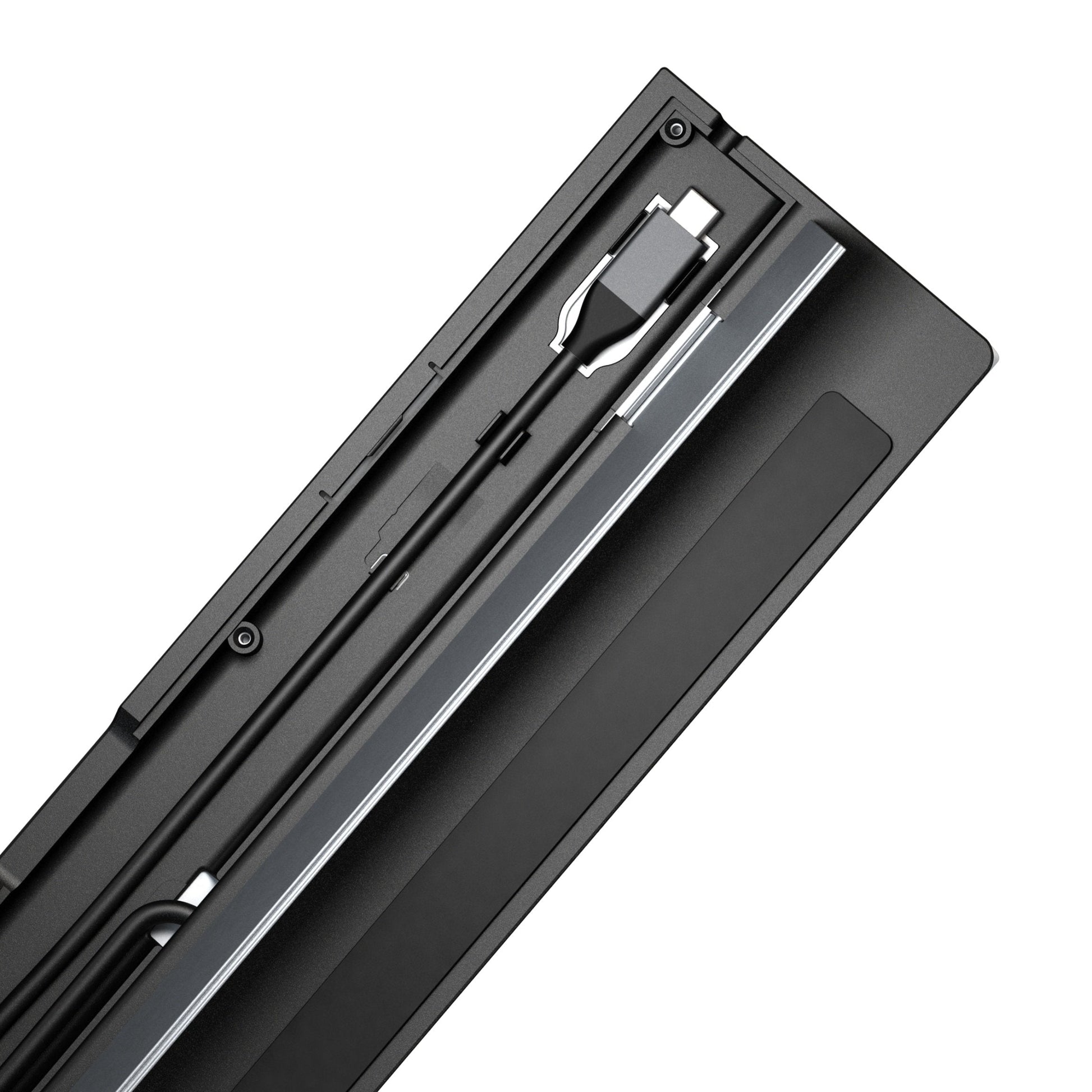

Convenience setup with double-sided cable storage compartment

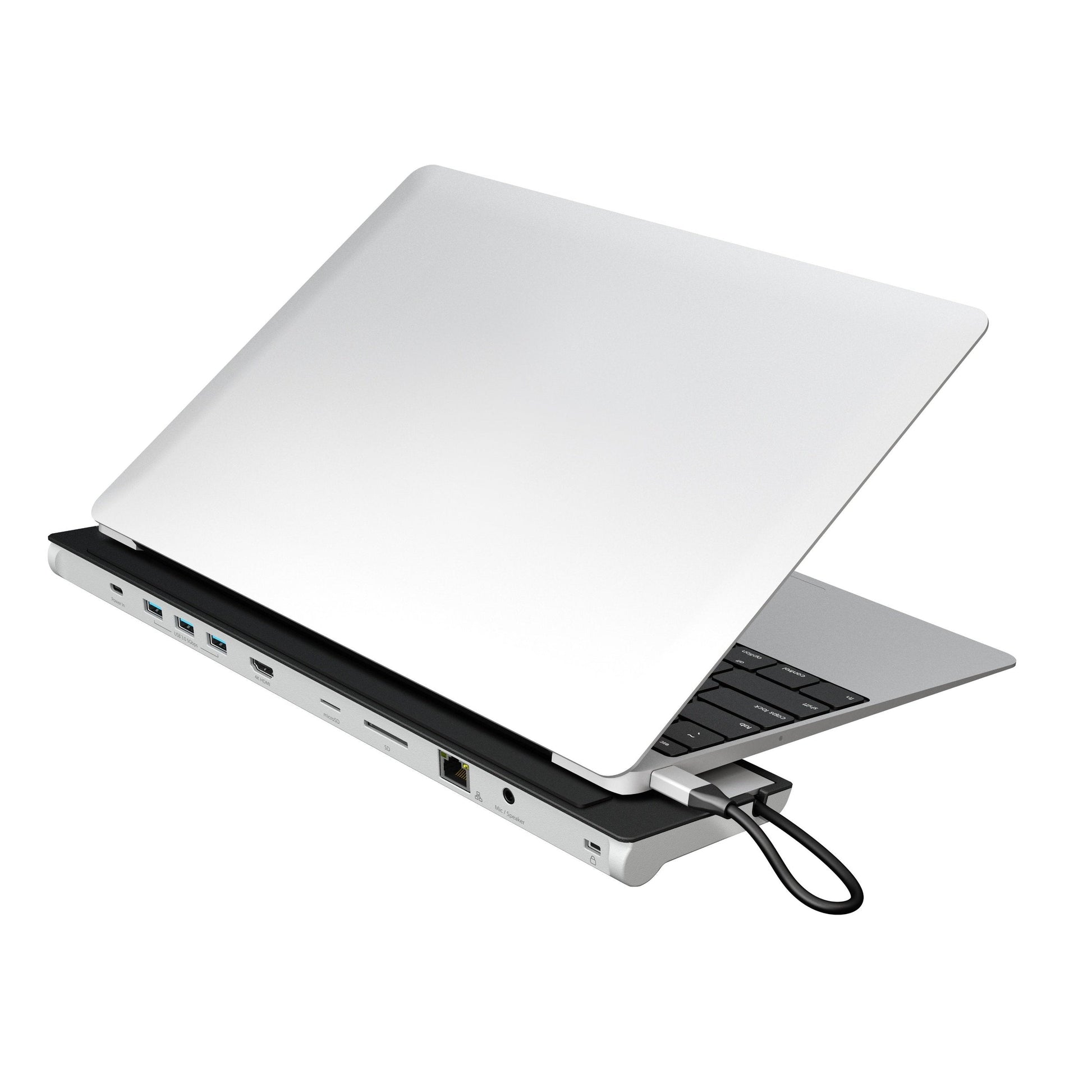

Elevated design to assist with heat elimination
System Requirements:
Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device
Microsoft® Windows® 10 macOS® 10.11 or later
Special Notes:
A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
SPECIFICATIONS:

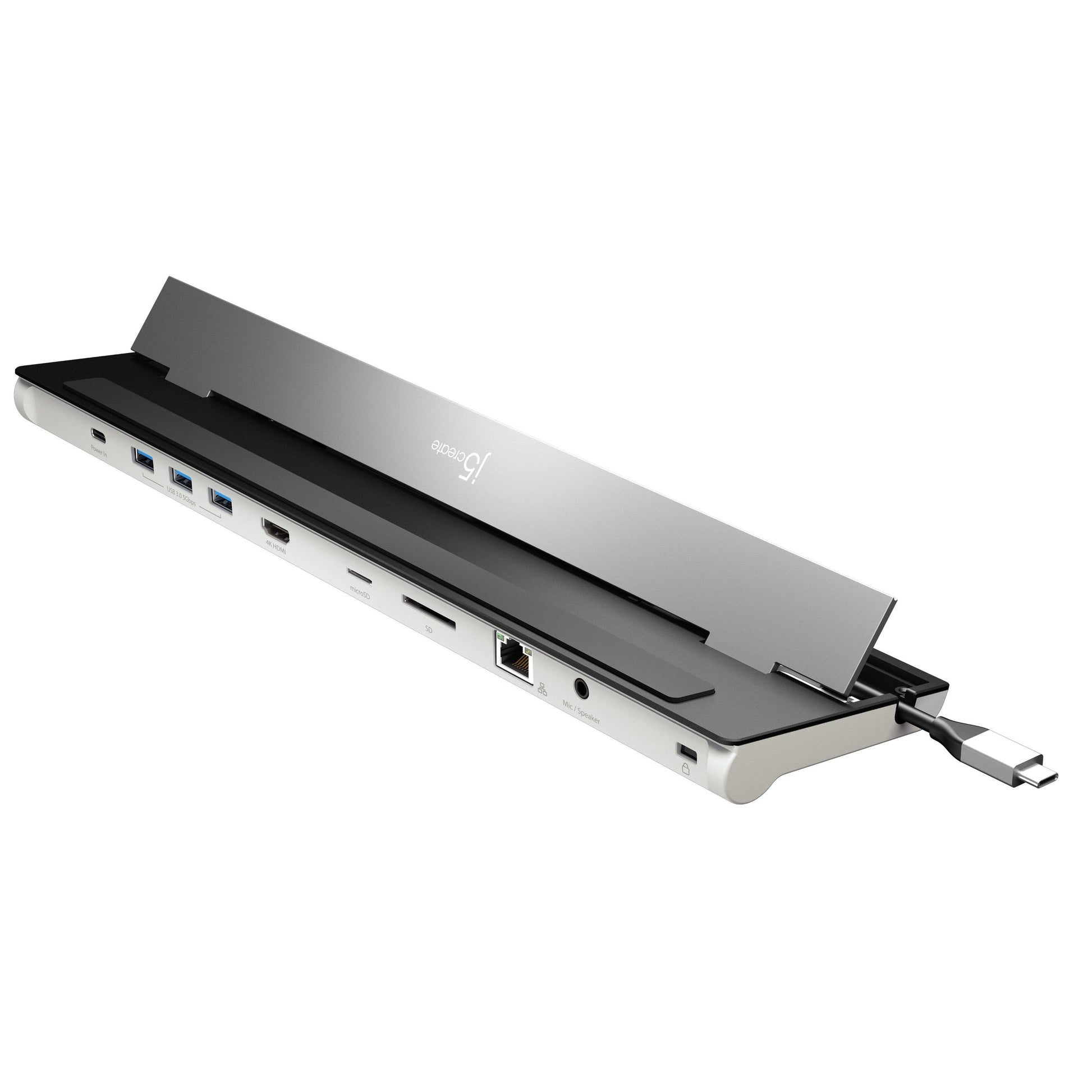

Host Connector: USB-C® Male
Video Output: 1 × HDMI™ Female
Power Source: Bus-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes

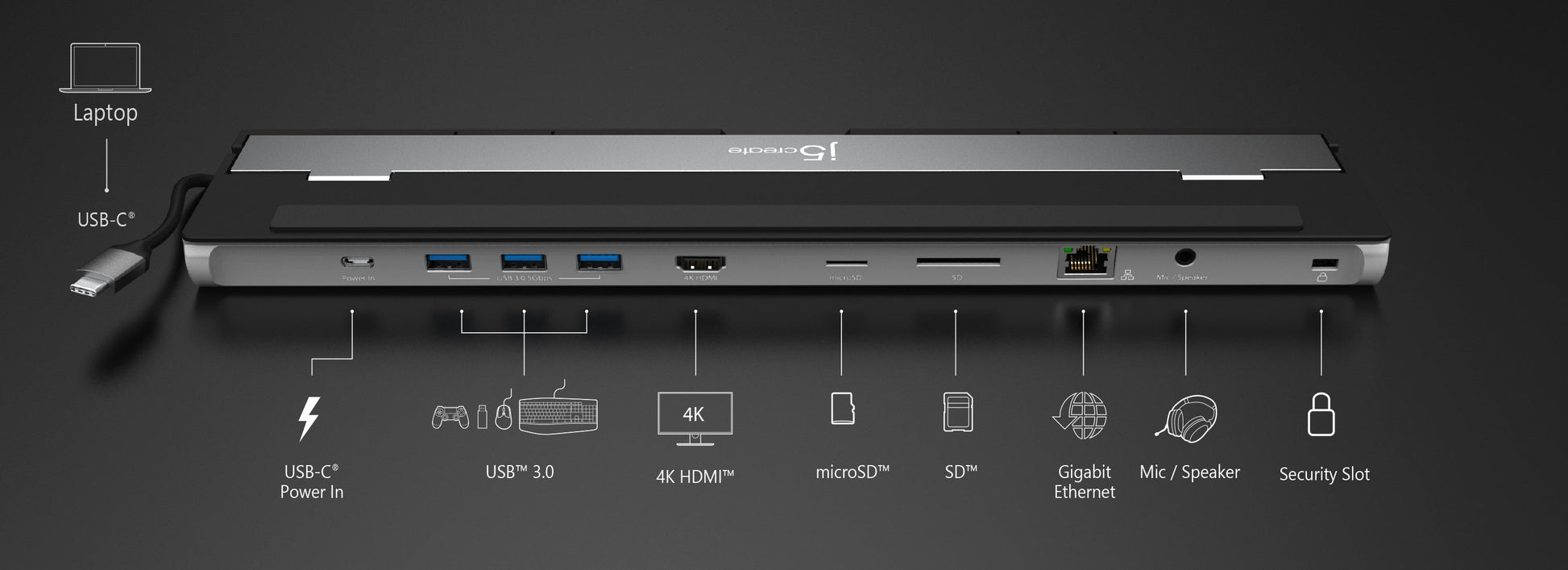

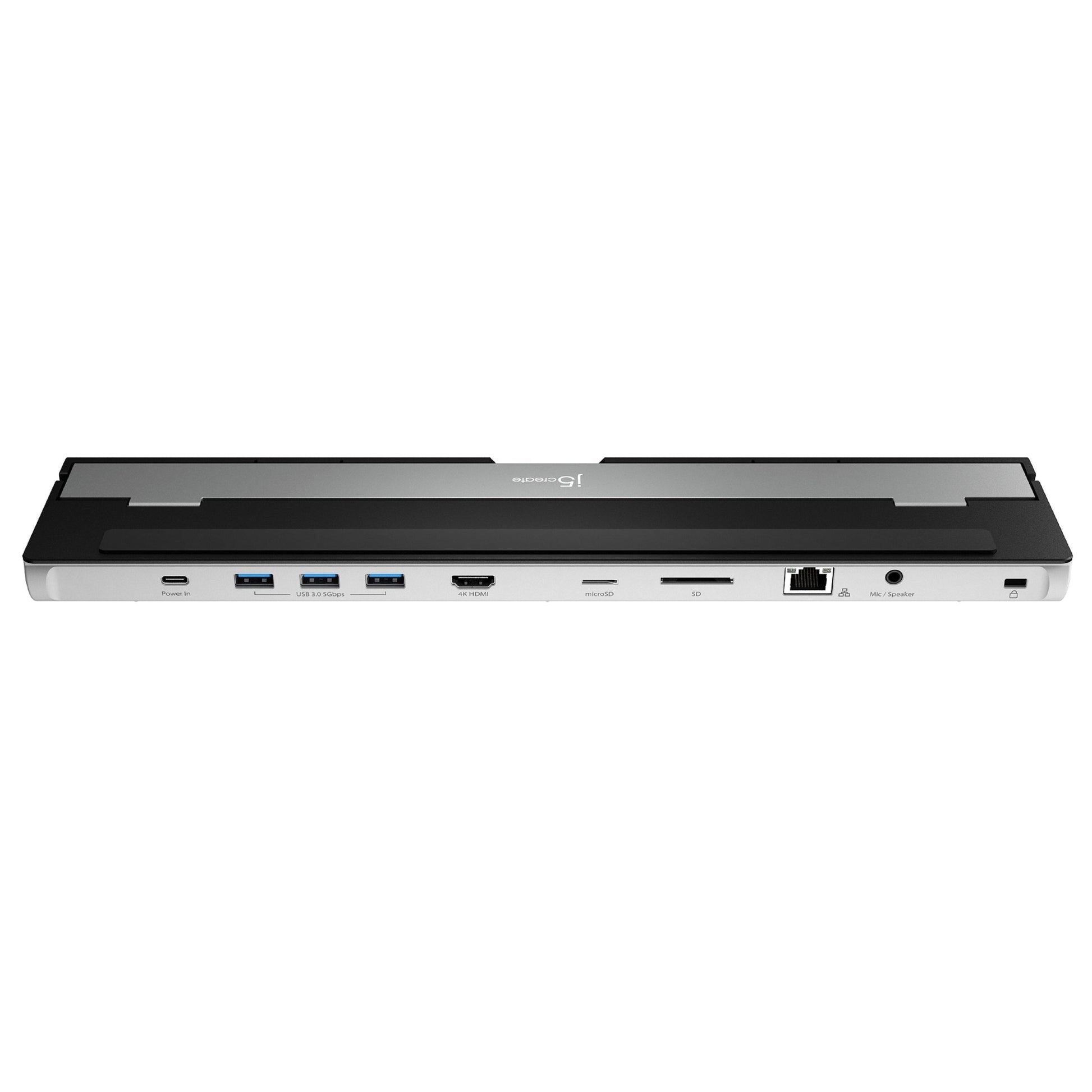

Ports:
1 × USB-C® Power Delivery 3.0
3 × USB™ 3.0 Type-A
1 × 4K HDMI™
1 × SD™ & microSD™ memory card reader/writer
1 × RJ45 Gigabit Ethernet
1 × 3.5 mm combo audio jack
Maximum Display Resolution: 3840 × 2160
Maximum Display Refresh Rate: 30 Hz
Maximum Data Transfer Rate: 5 Gbps
Displays Supported: 1
Compatible Networks: 10 / 100 / 1000 Mbps
Audio Channel: 2.1 via HDMI™ / 3.5 mm AUX
Power Delivery: Up to 100W via USB-C®
Power Consumption: ≤ 900 mA
Input Current: 5A
Input Voltage: 20V
Output Current: 5A
Output Voltage: 20V
Color: Grey & Black
Enclosure Type: Aluminum

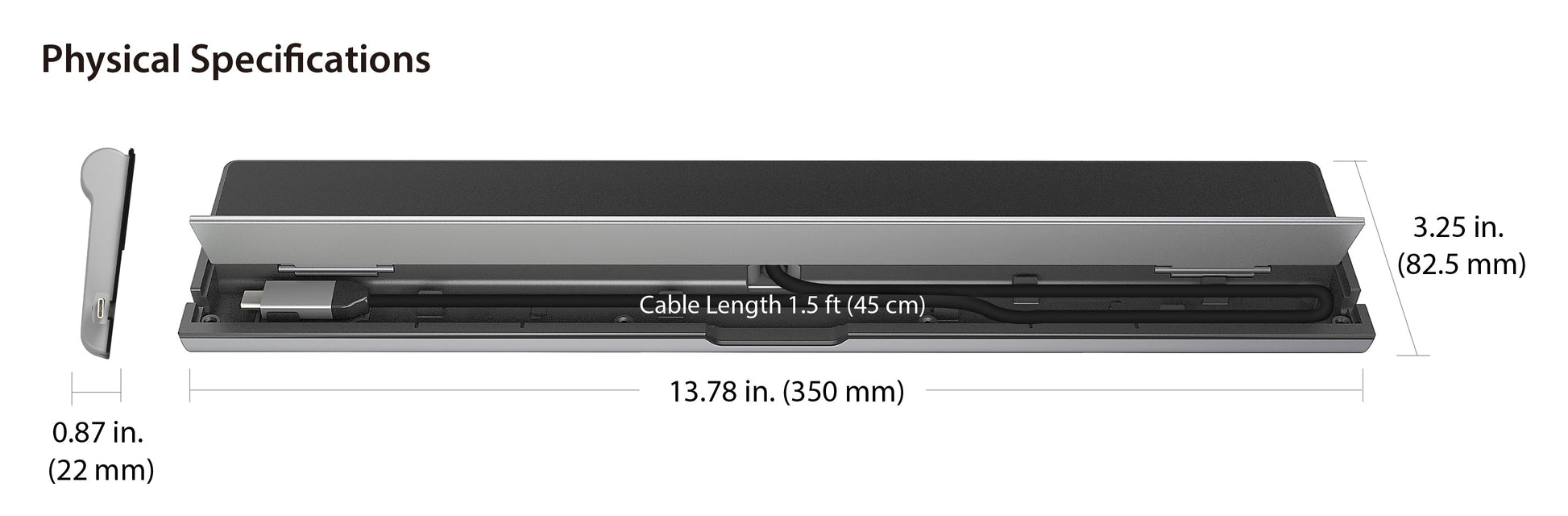

Cable Length: 1.48 ft (45 cm)
Product Height: 0.87 in. (21.98 mm)
Product Width: 3.25 in. (82.46 mm)
Product Depth: 13.79 in. (350.18 mm)
Product Weight: 10.58 oz (300 g)
Storage Temperature: 14 to 149°F (-10 to 65°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Operating Humidity: < 85% non-condensing
WHAT'S IN THE BOX:
JCD533 USB-C® 4K HDMI™ Docking Station with Power Delivery x1
