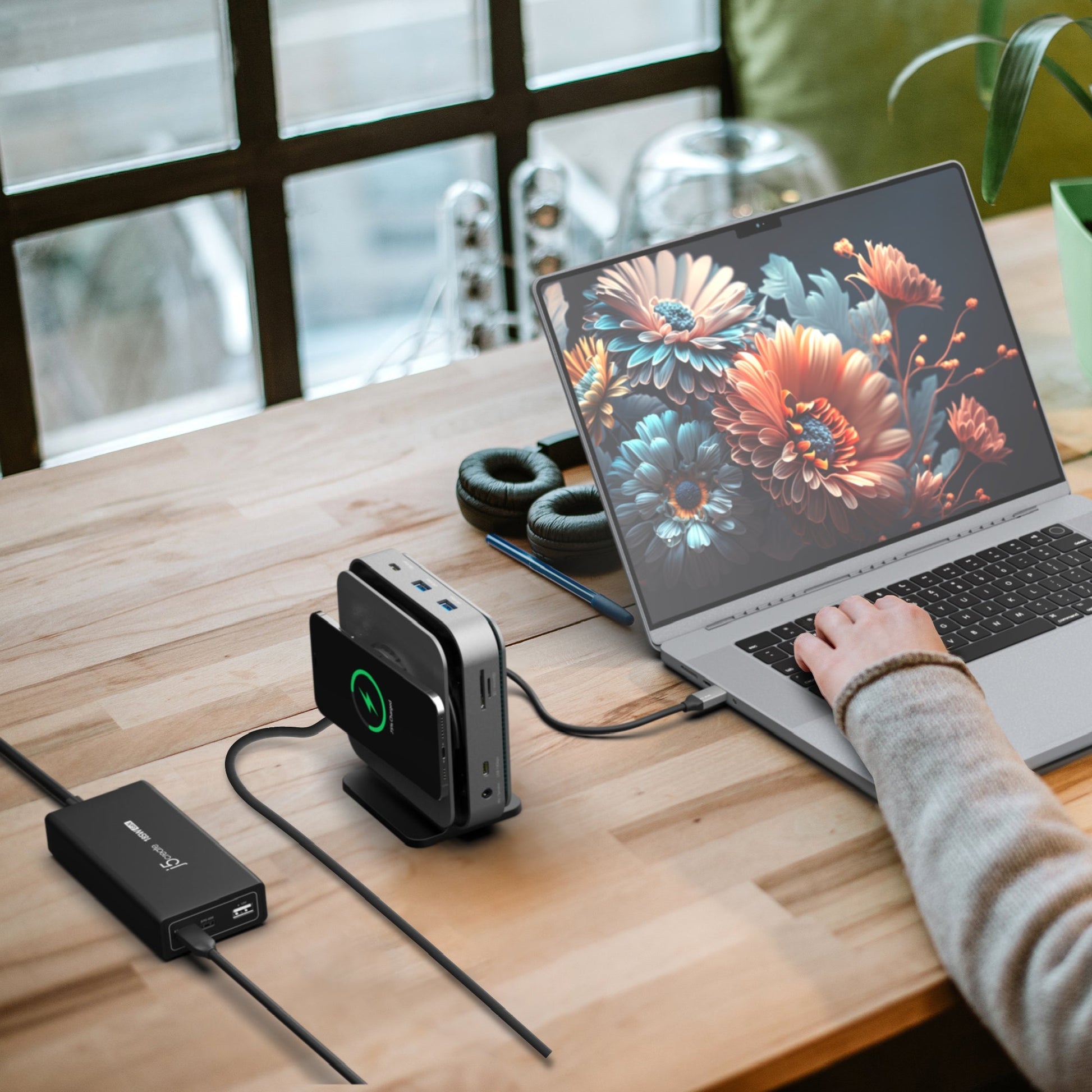

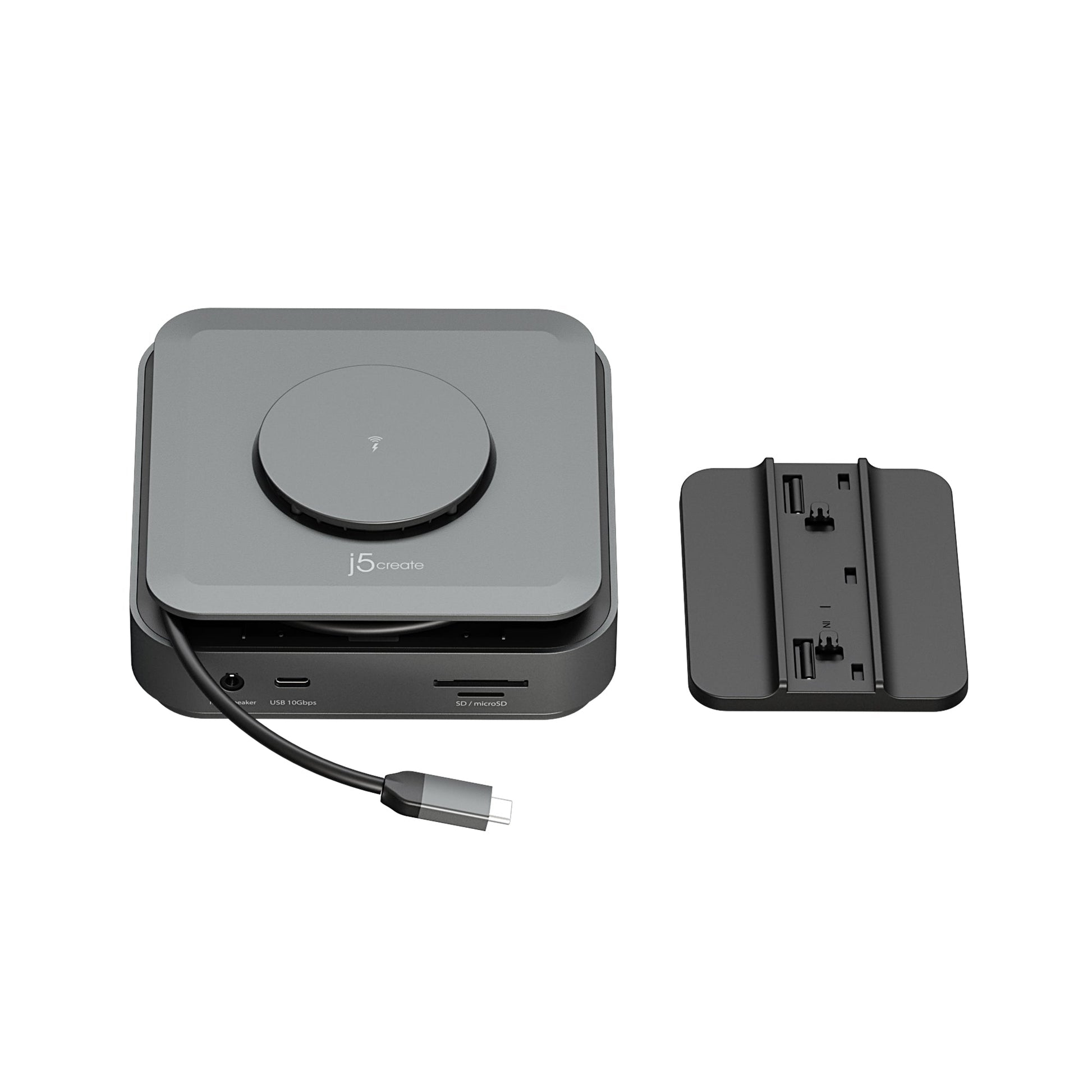

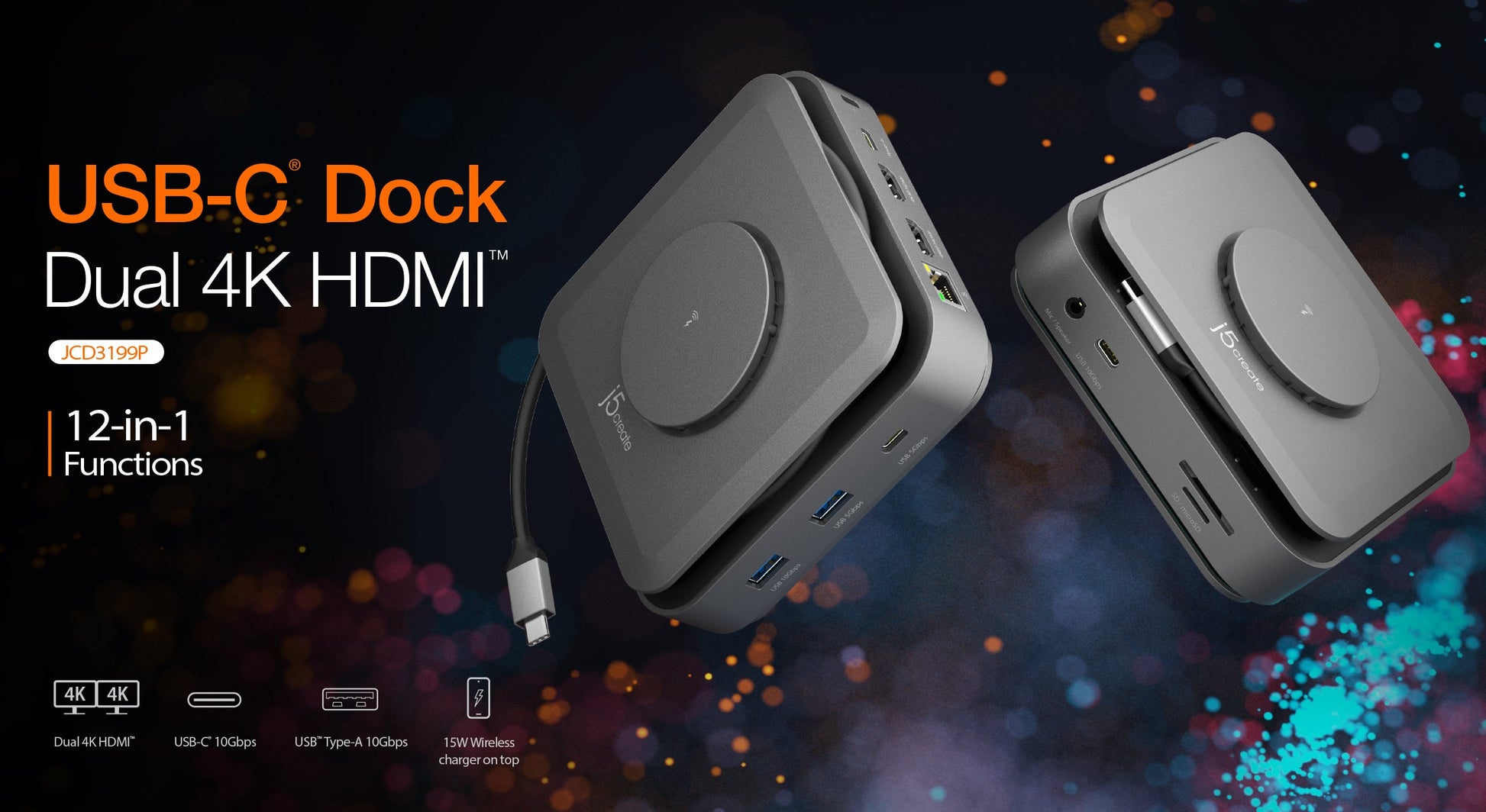

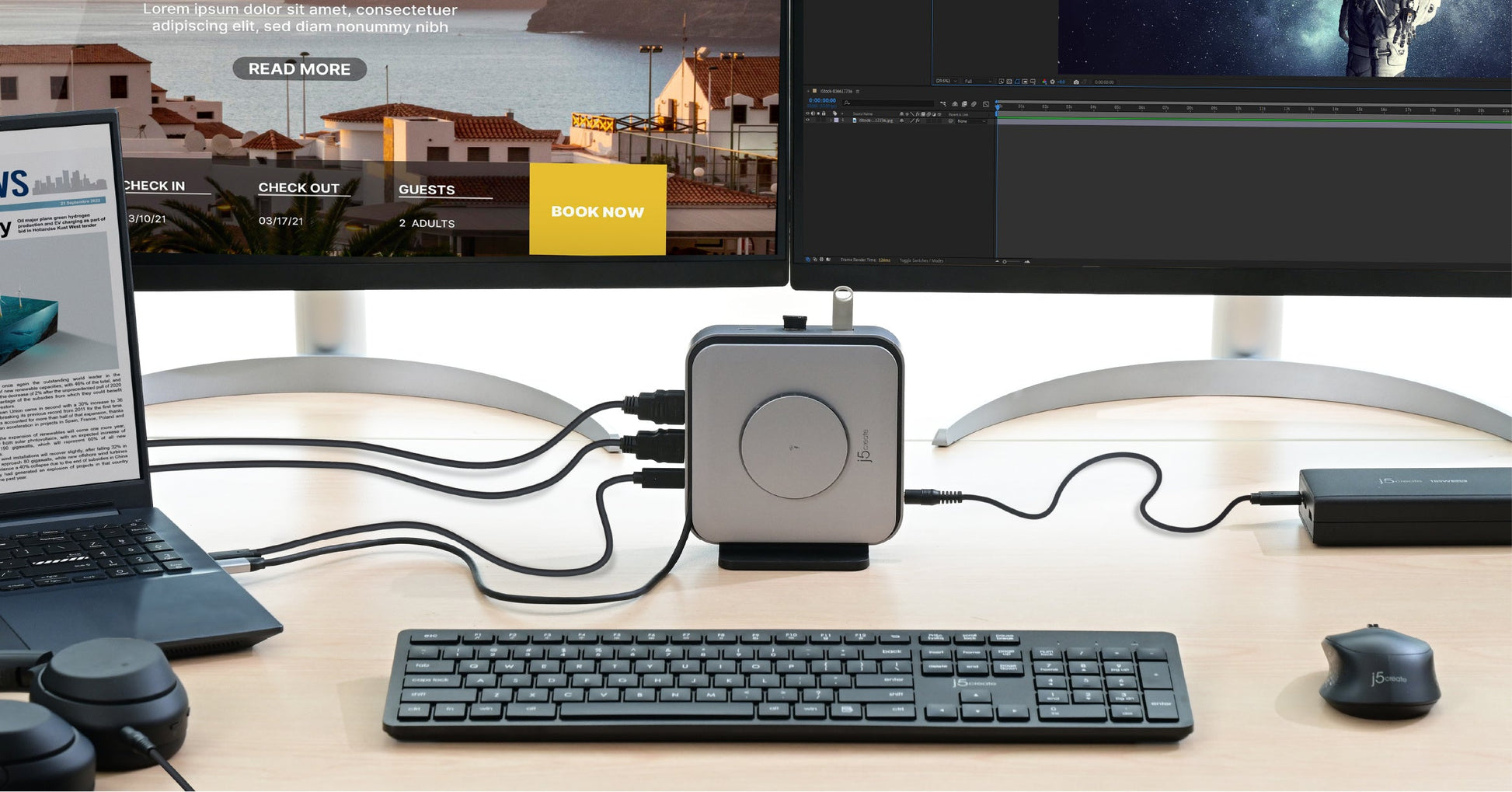

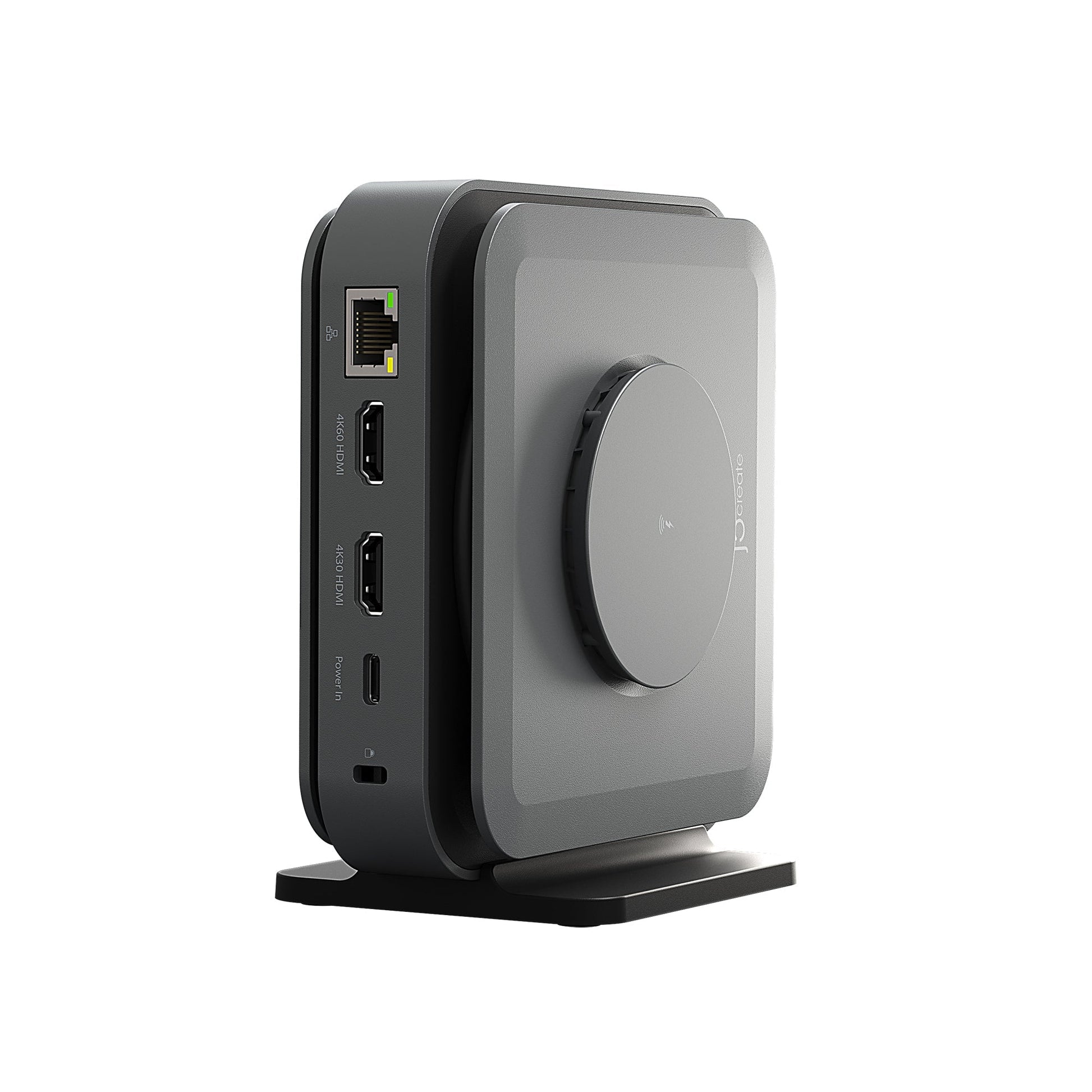

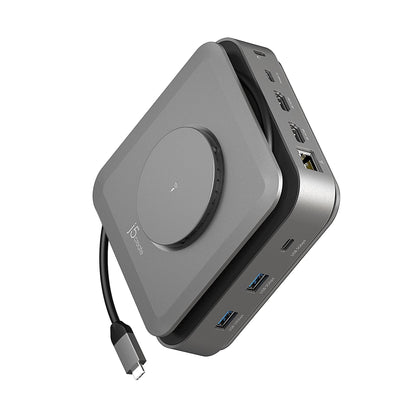

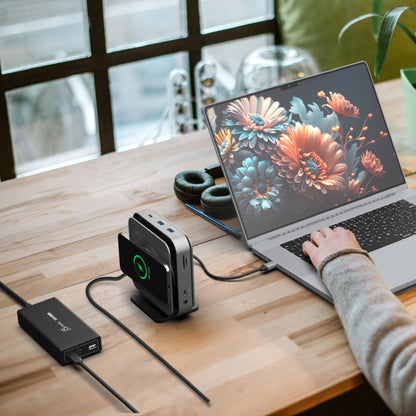

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.

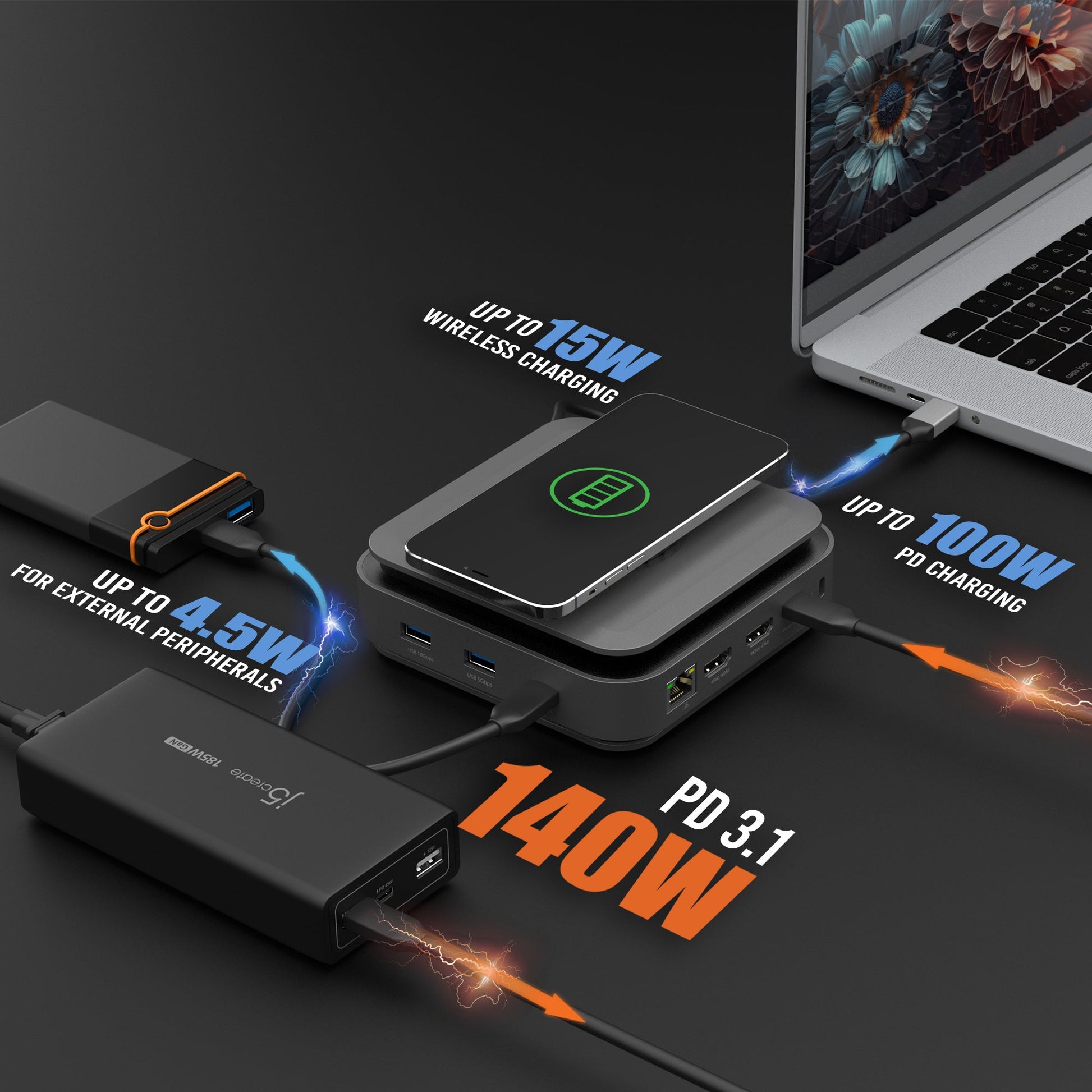

With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location.
Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
FEATURES:

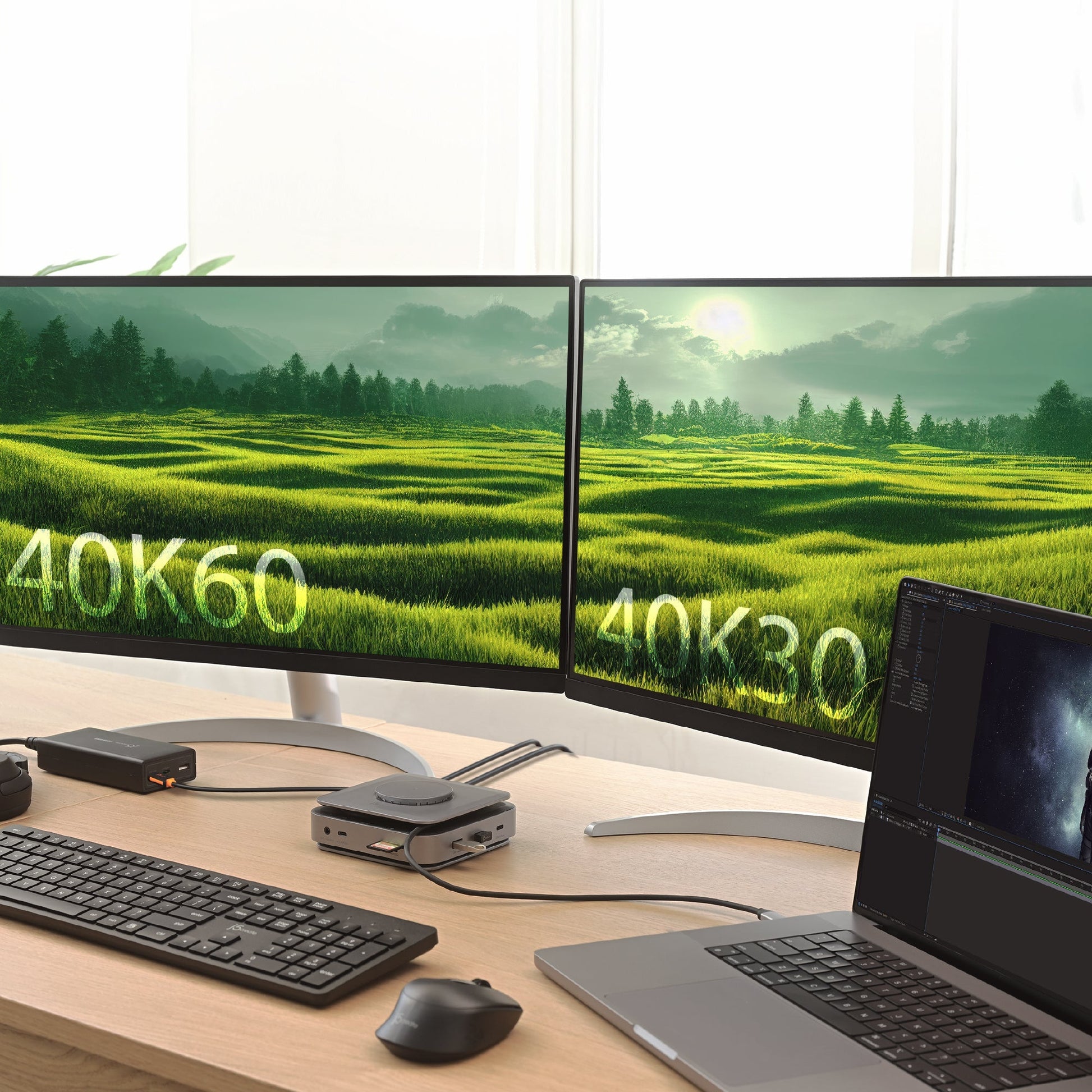

Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
Supports Power Delivery 3.1 140W power in

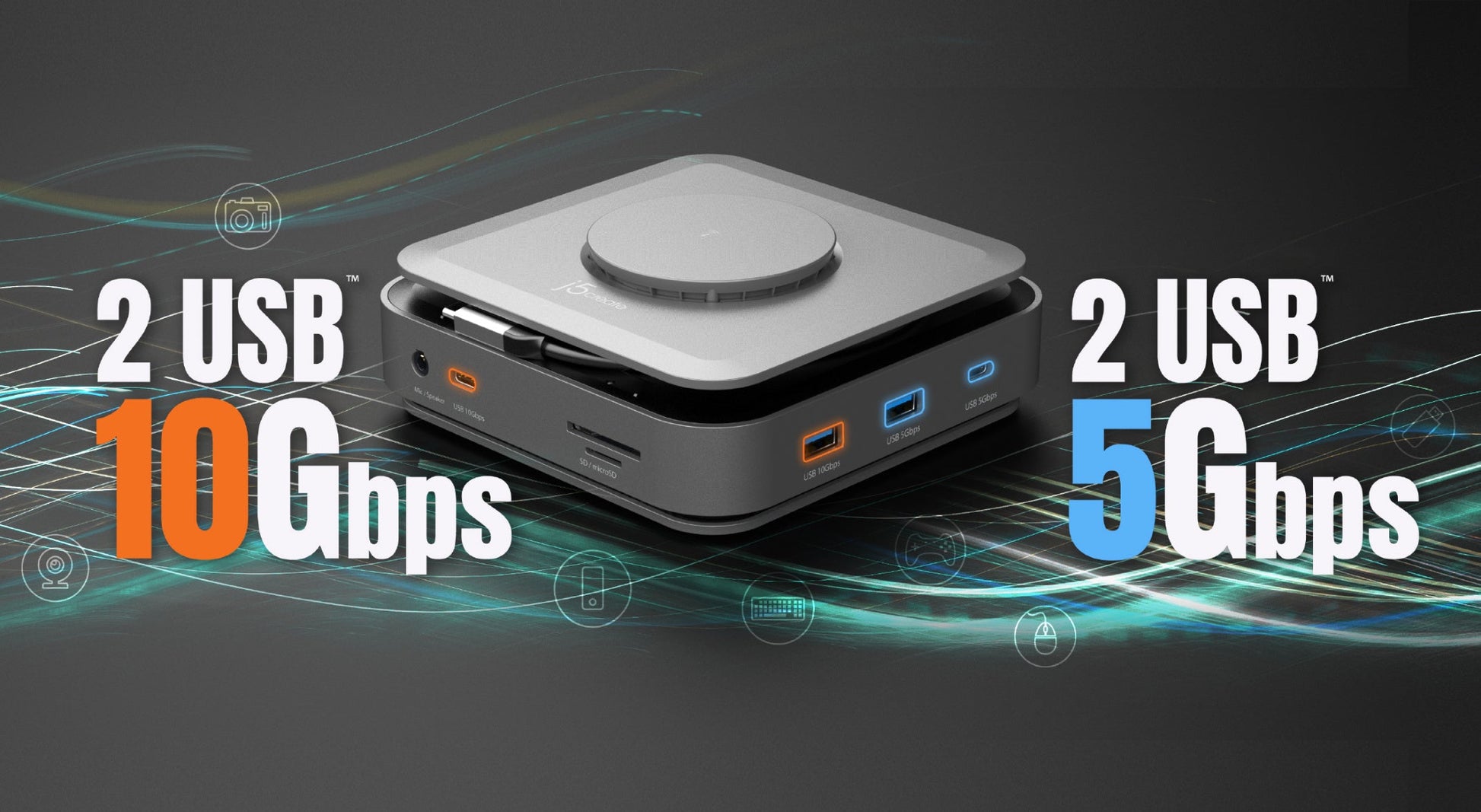

Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals

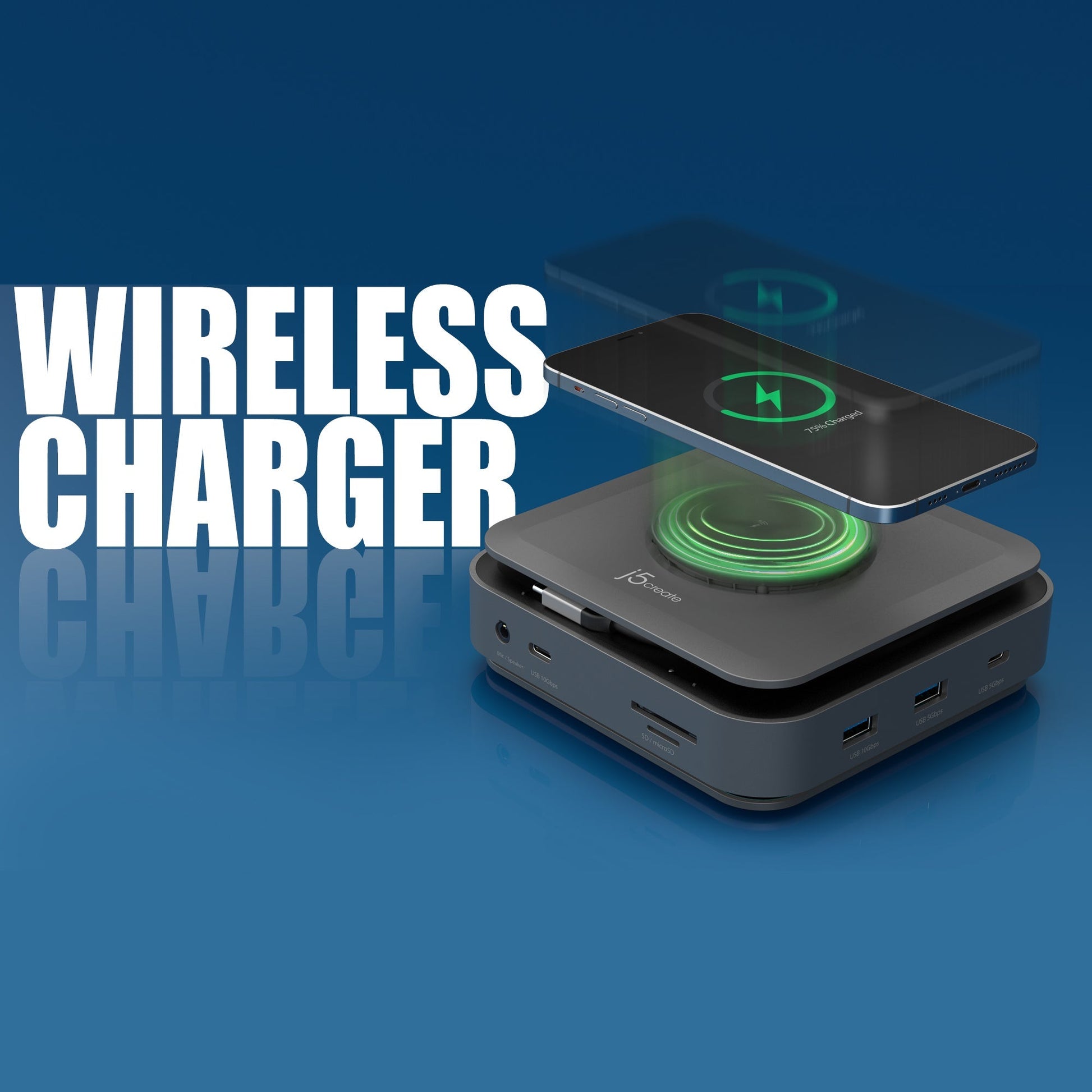

Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone® MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless charging will only work when a USB-C® 60W or above power adapter is connected to the dock.

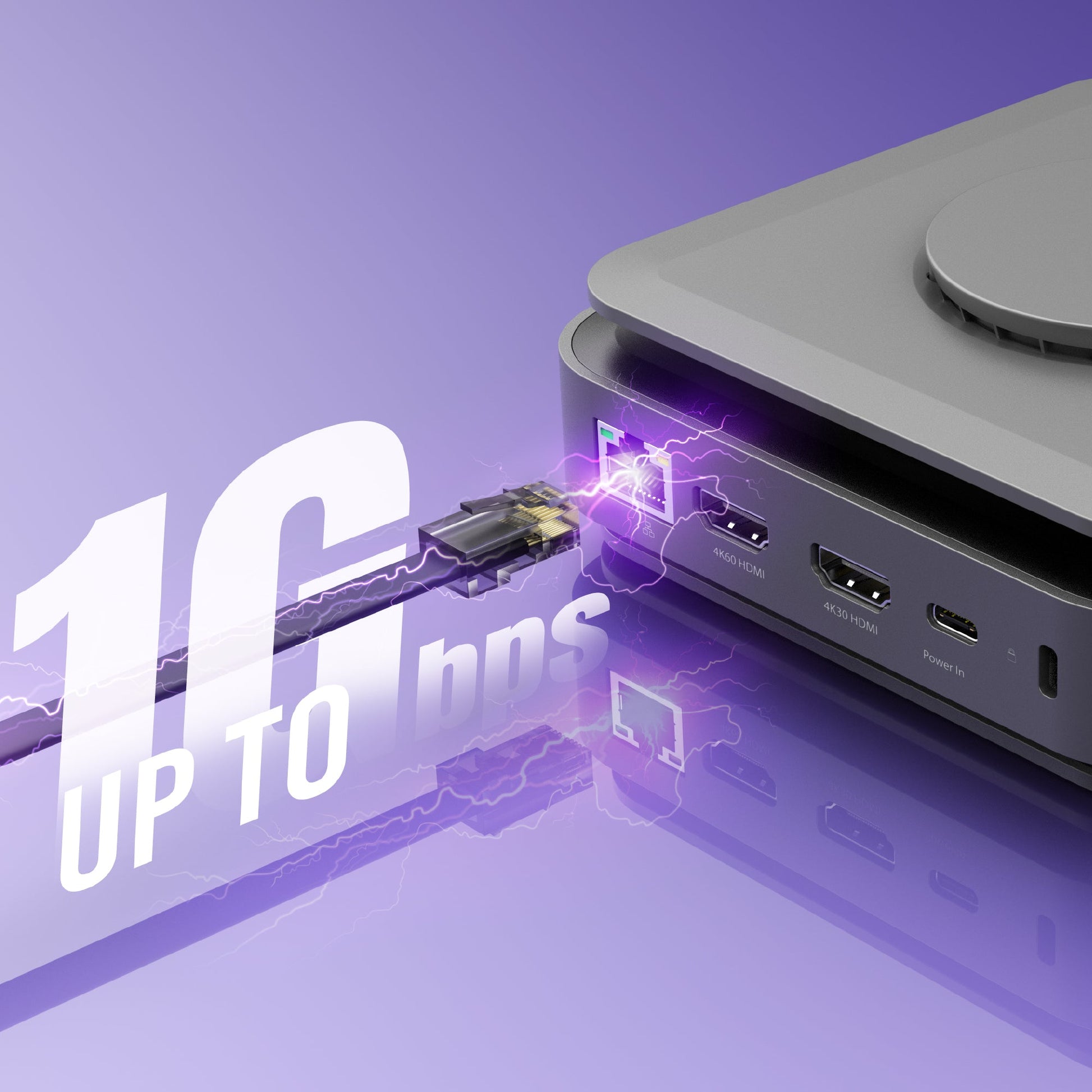

Reliable network connectivity via the Gigabit Ethernet

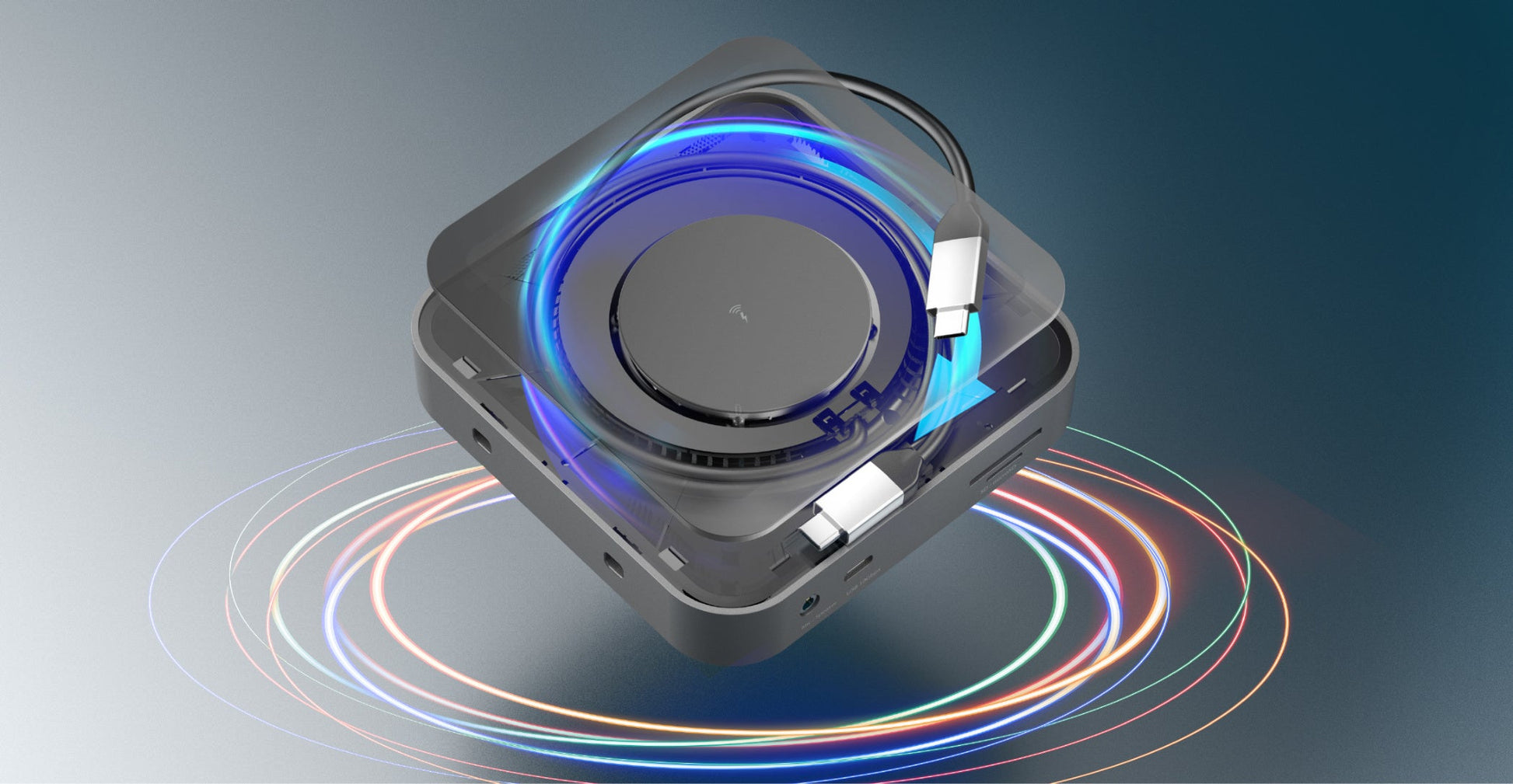

Cable storage compartment
Security lock
System Requirements:

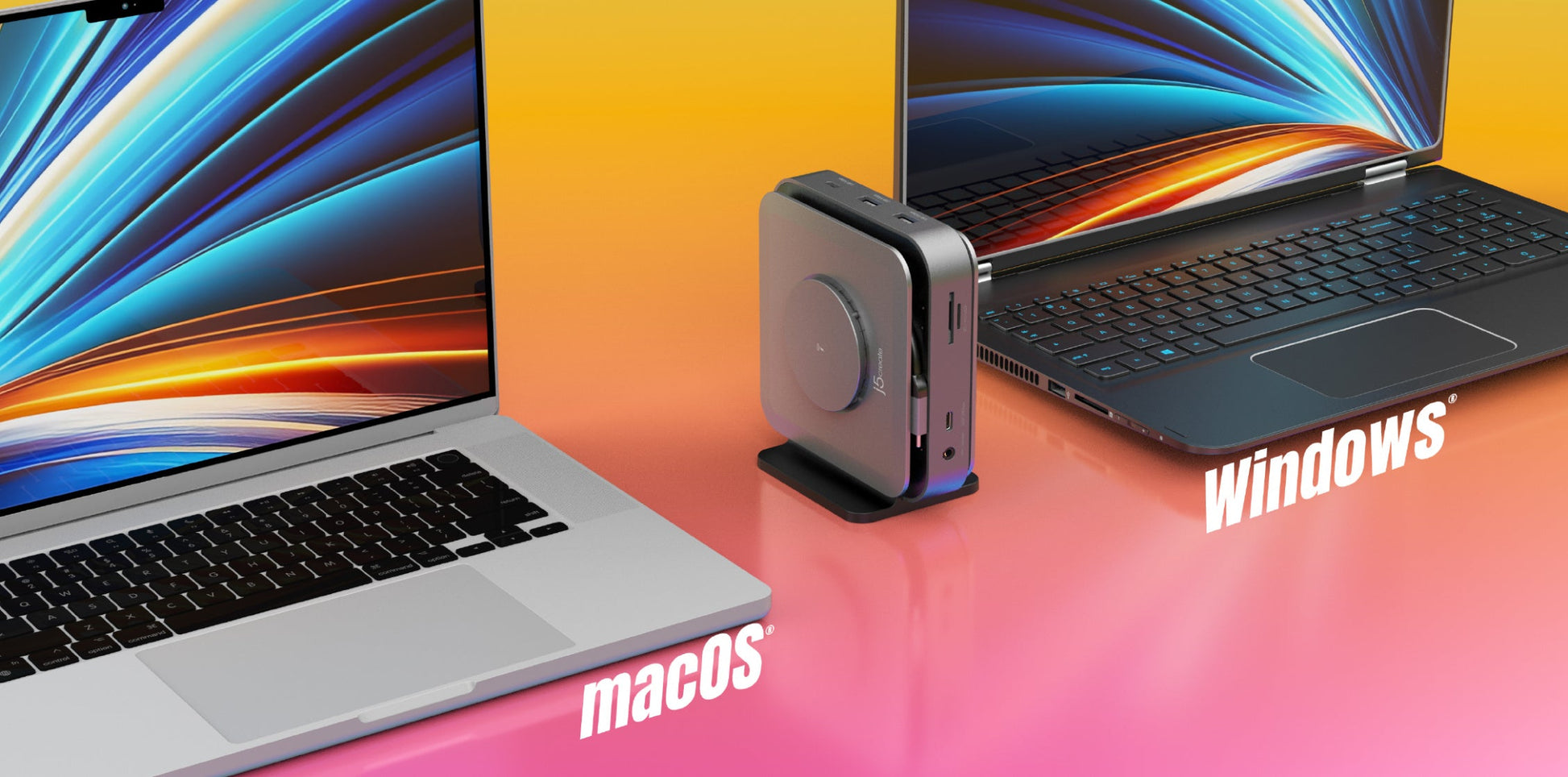

Windows® 11 / 10 macOS® 10.14 or later
Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 or 3.1 Please refer to the manufacturer of your computer for more information about your device
The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz
Special Notes:
Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in
In order for the computer to charge you much connect a USB-C® power adapter and the computer must support Power Delivery
If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
SPECIFICATIONS:
Audio supported: Yes
Host connector: 1 × USB-C® male (PD 3.1, up to 100W / 20V/5A)
Network interface: Yes
Output (wireless charging): 15W for Google™ Pixel™; 7.5W for iPhone®; 5W for AirPods®

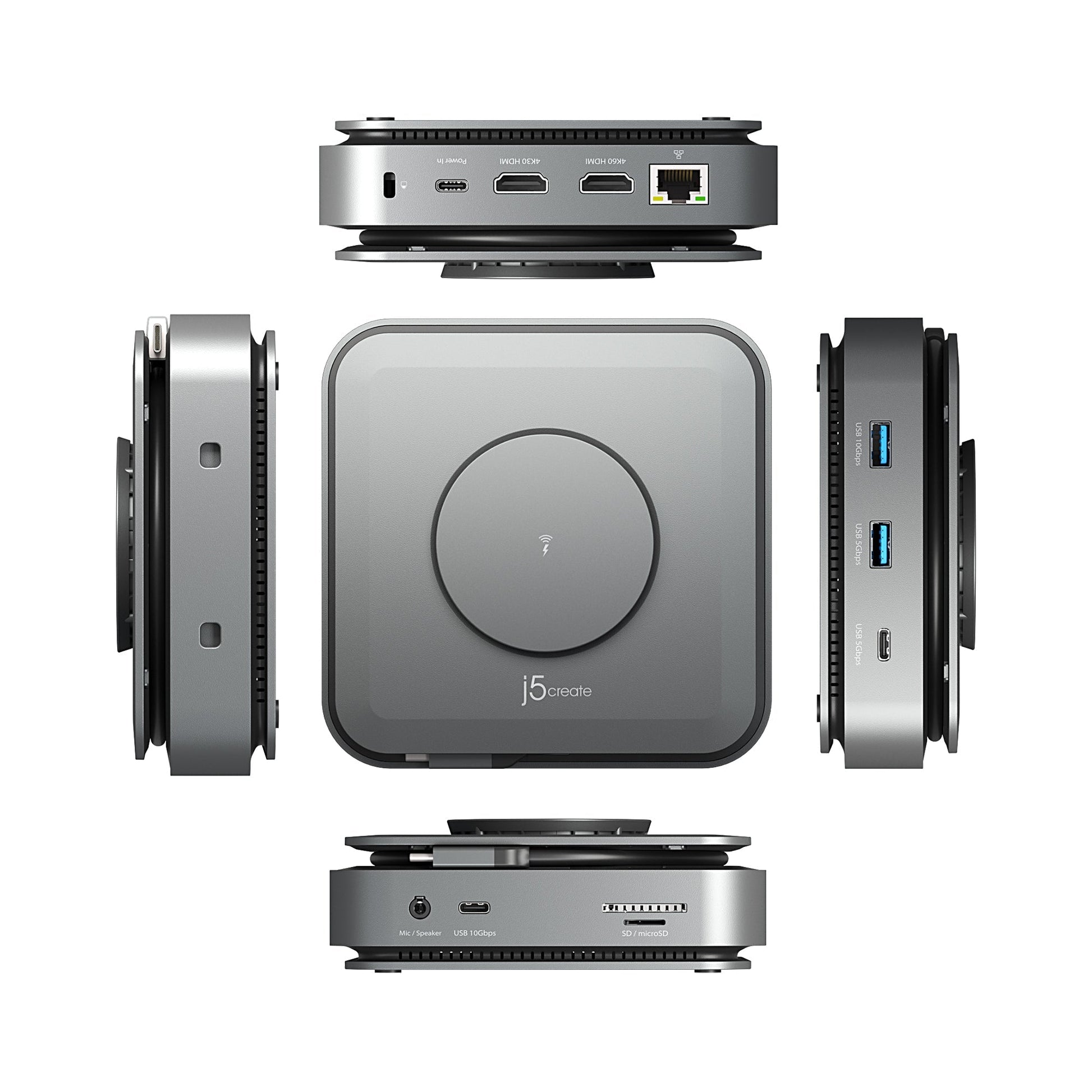

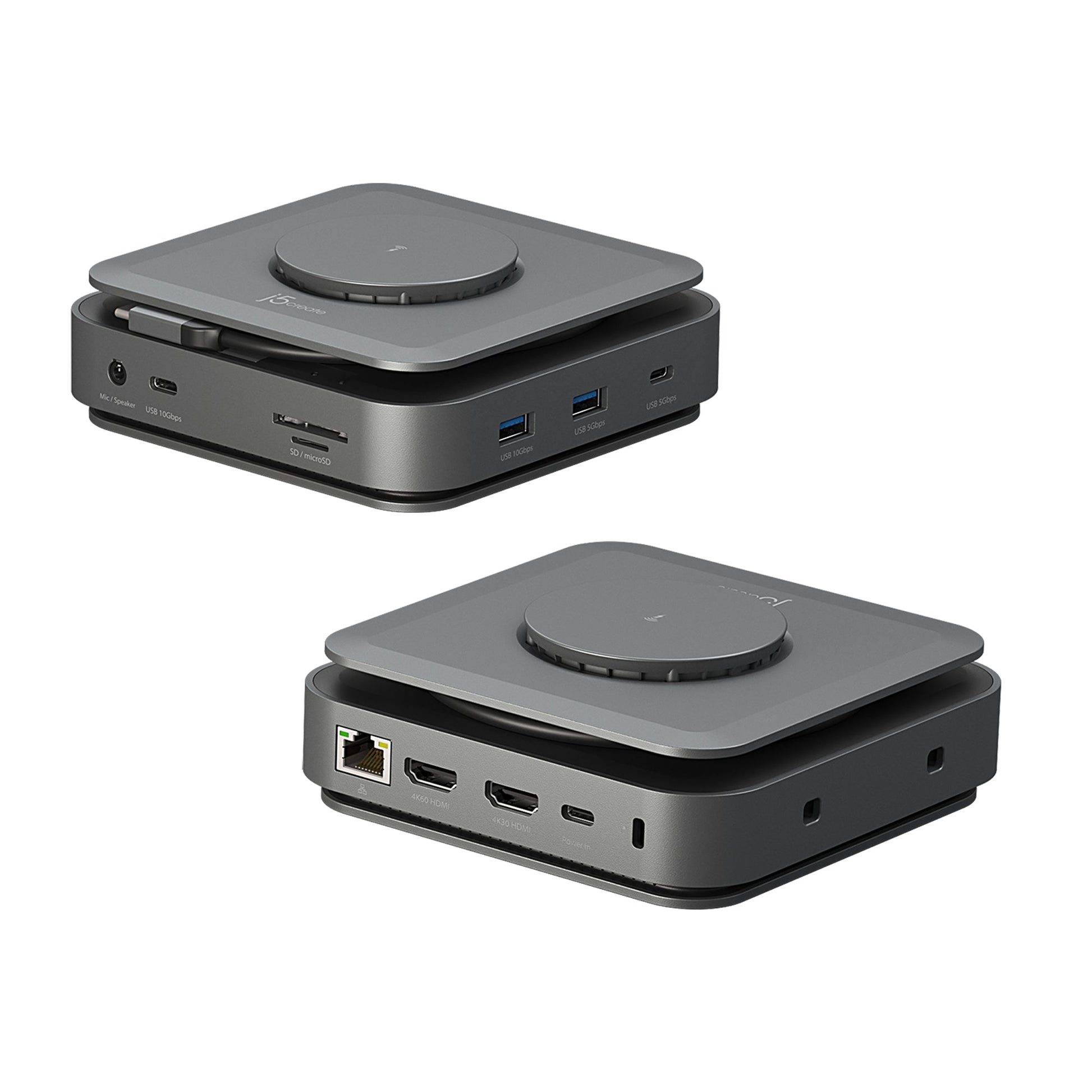

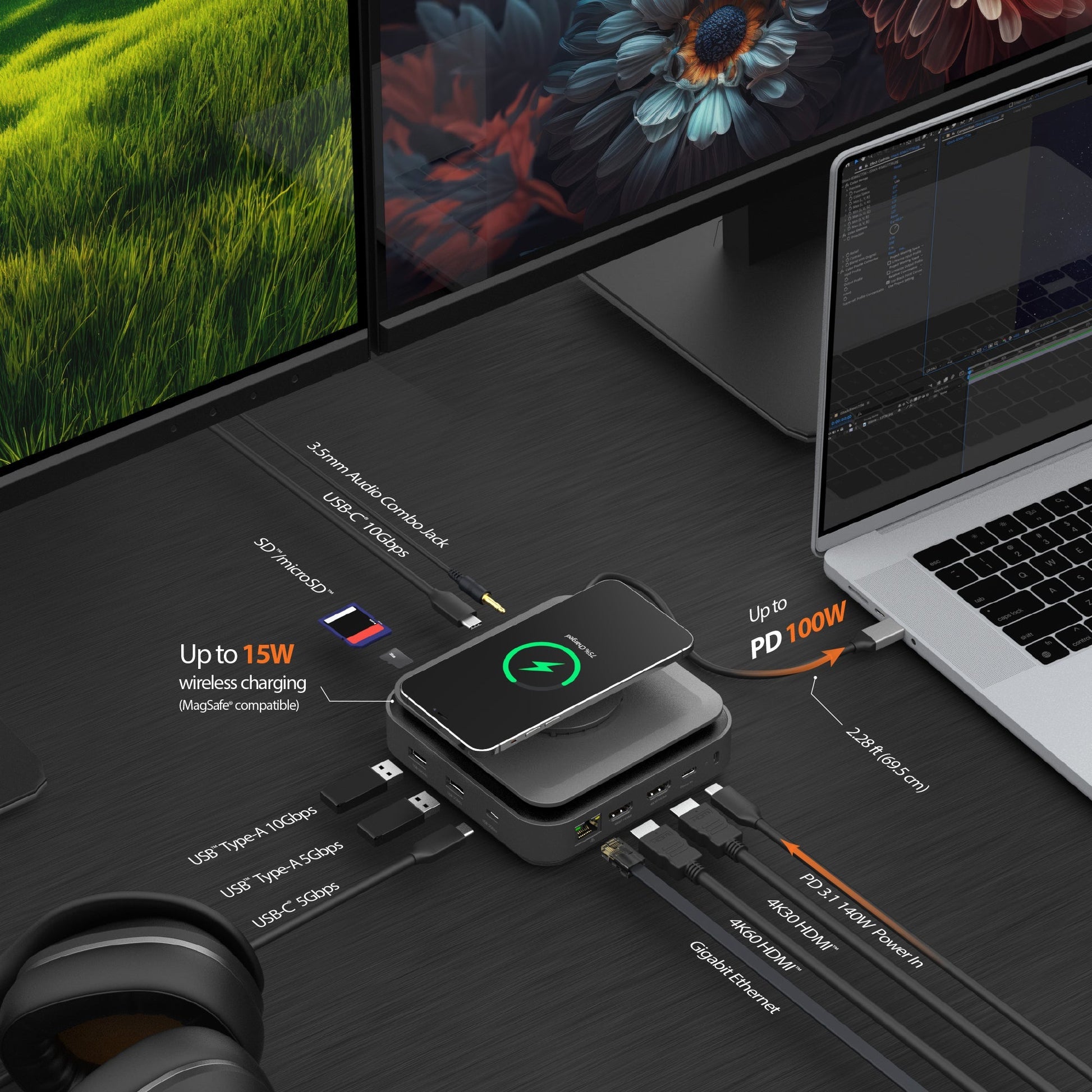

Ports: 1 × USB-C® PD-in (PD 3.1 up to 140W / 28V/5A); 2 × USB-C® (5Gbps & 10Gbps); 2 × USB™ Type-A (5Gbps & 10Gbps); 1 × combo 3.5mm audio jack; 1 × HDMI™ (USB™ display up to 4K@30Hz); 1 × HDMI™ (DP™-Alt up to 4K@60Hz); 1 × RJ45 Gigabit Ethernet; 1 × SD™/microSD™ 3.0; 1 × 15W wireless charger
Video output: 2 × HDMI™ female
Audio channel: 2.1 via HDMI™
Network speed: 10/100/1000 Mbps

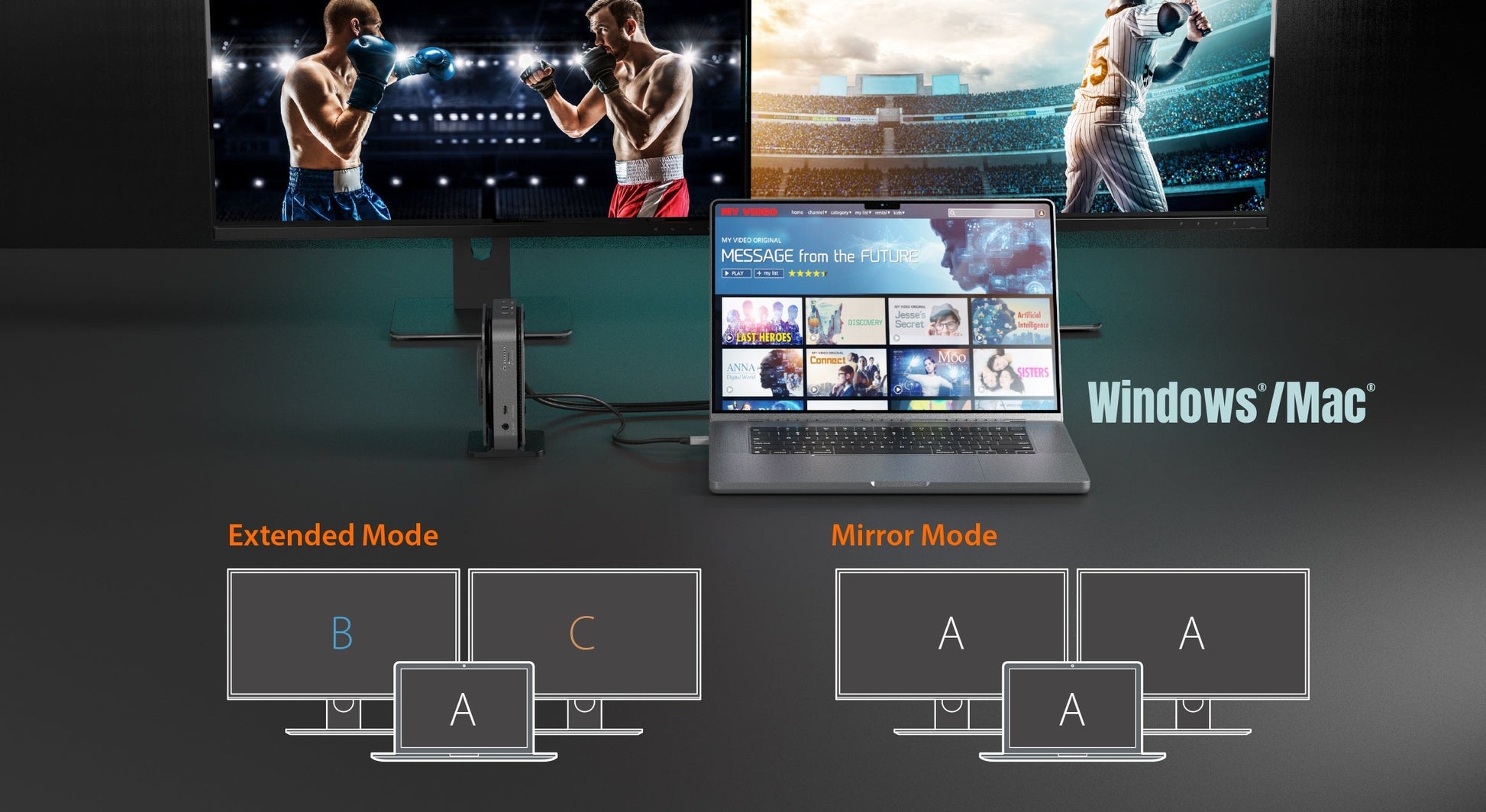

Displays supported: 2
Maximum data transfer rate: 10 Gbps
Maximum display refresh rate: 60 Hz
Maximum display resolution: 3840 × 2160
Power: input up to 28V/5A; output up to 20V/5A; power consumption ≤900 mA; USB-C® Power Delivery up to 140W
Color: Space Gray
Enclosure type: Plastic
Cable length: 2.28 ft (69.5 cm)
Product dimensions: Body 5.12 × 1.71 × 5.12 in (130 × 43.5 × 130 mm); holder 3.15 × 1.3 × 5.12 in (80 × 33 × 130 mm)
Product weight: Body 14.7 oz (416 g); holder 0.8 oz (22 g)
