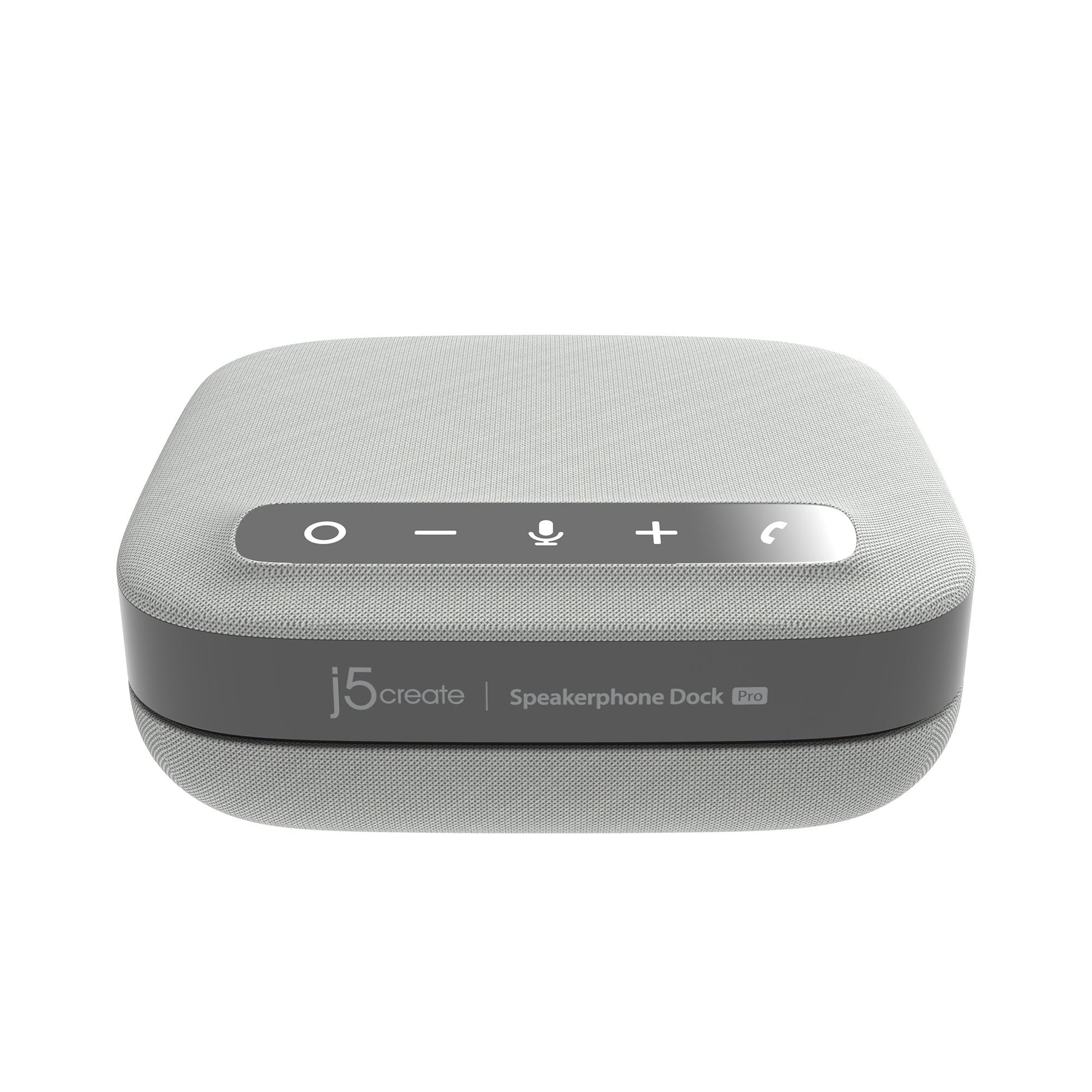

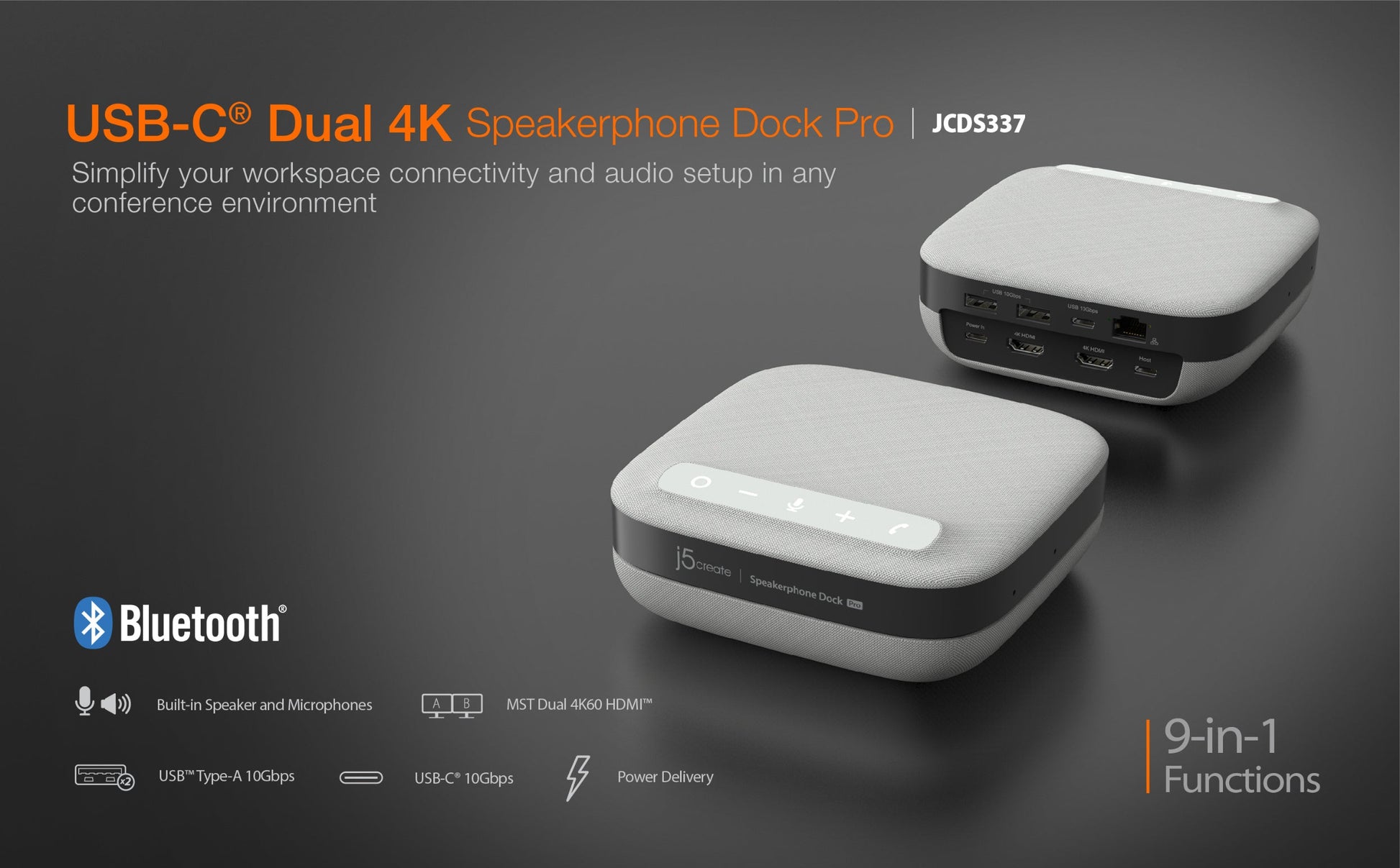

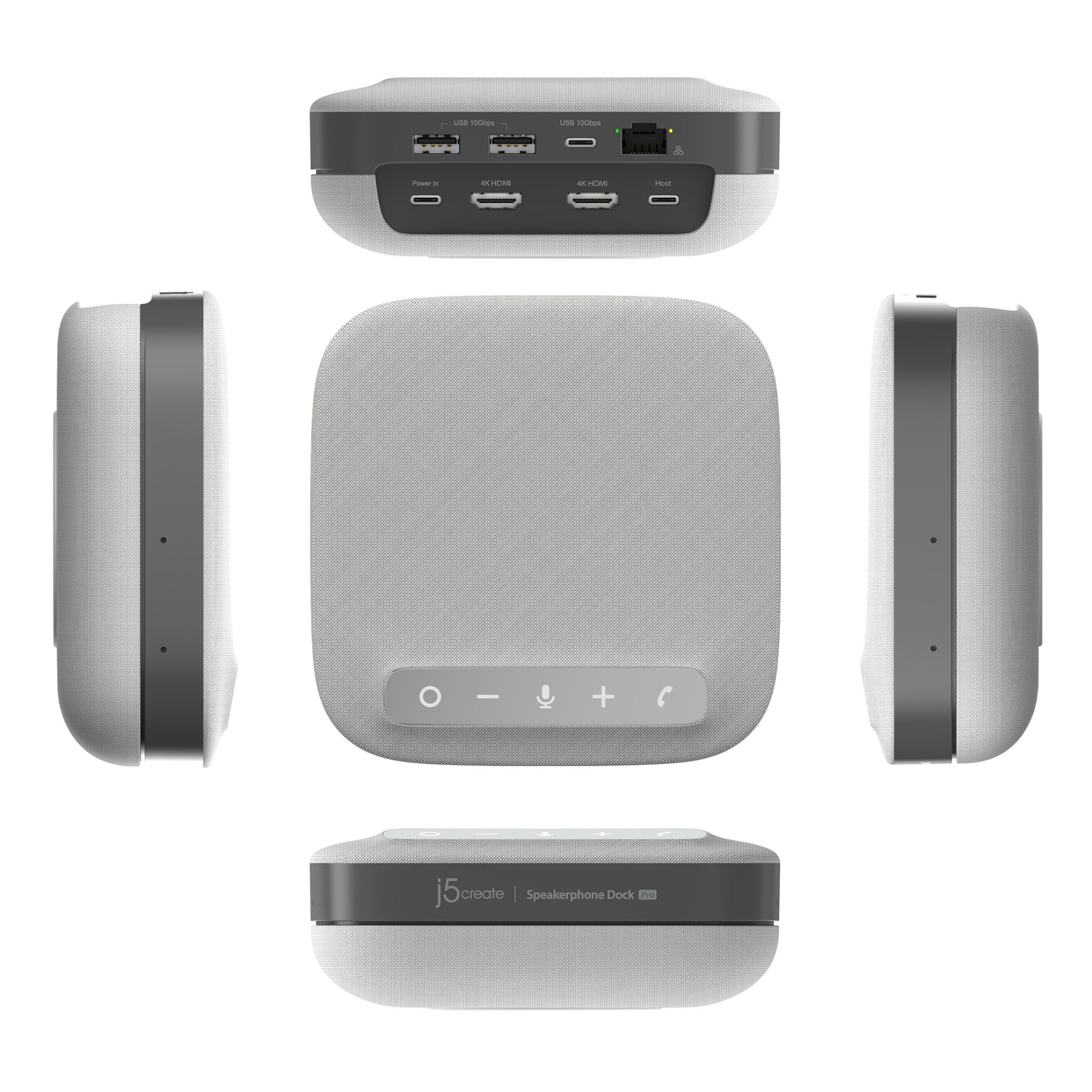

J5create USB-C Dual 4K Speakerphone Dock Pro - JCDS337

J5create USB-C Dual 4K Speakerphone Dock Pro - JCDS337

R 3,479.00 ZAR
R 3,479.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

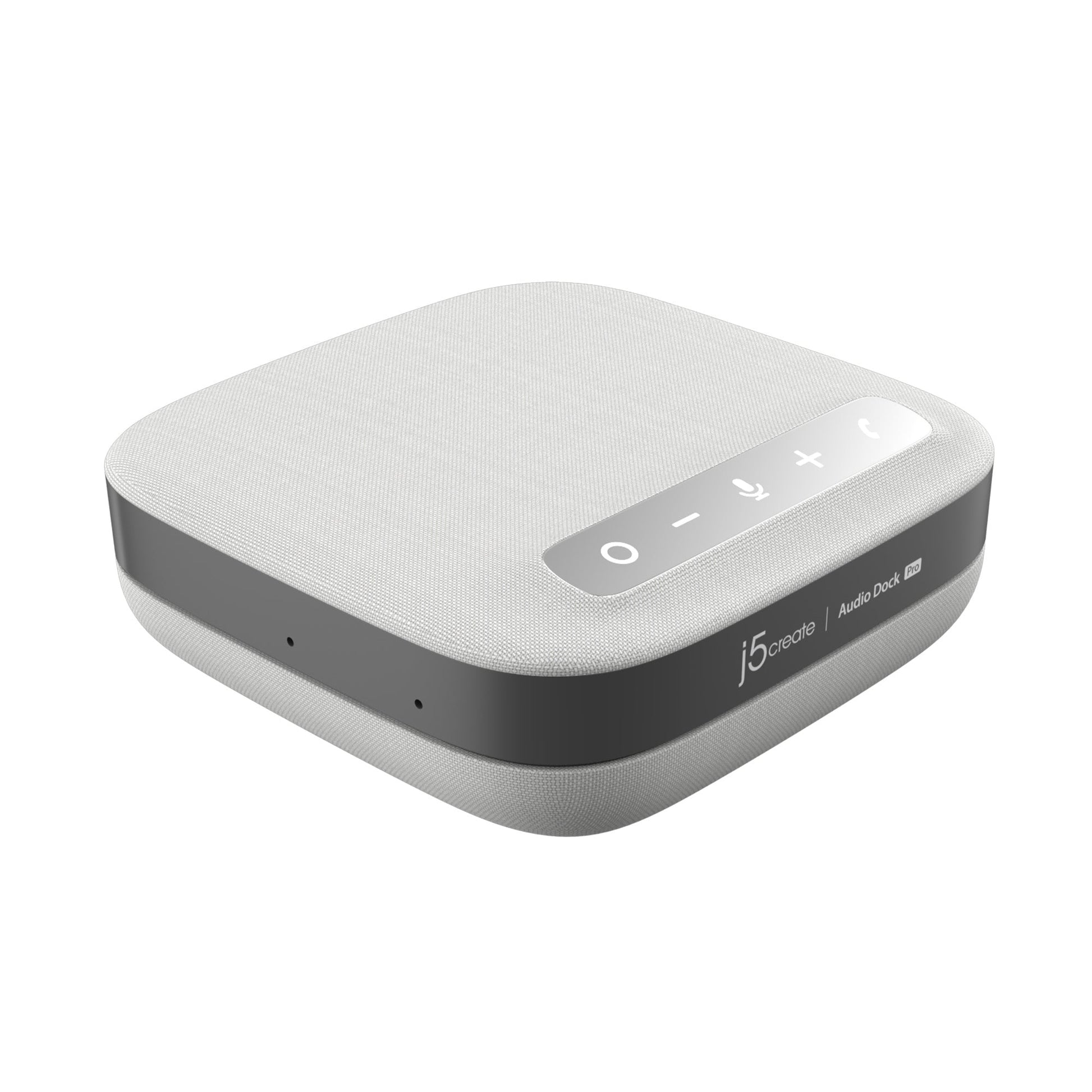

The USB-C® Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI™ outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB™ Type-A 10Gbps ports, and one USB-C® 10Gbps port for connecting a variety of USB™ devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity.

The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. It’s plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!

FEATURES:

  • Docking station with meeting controls and speakerphone
  • Built-in 4 microphones array which deliver natural vocal sound with reduced background noise

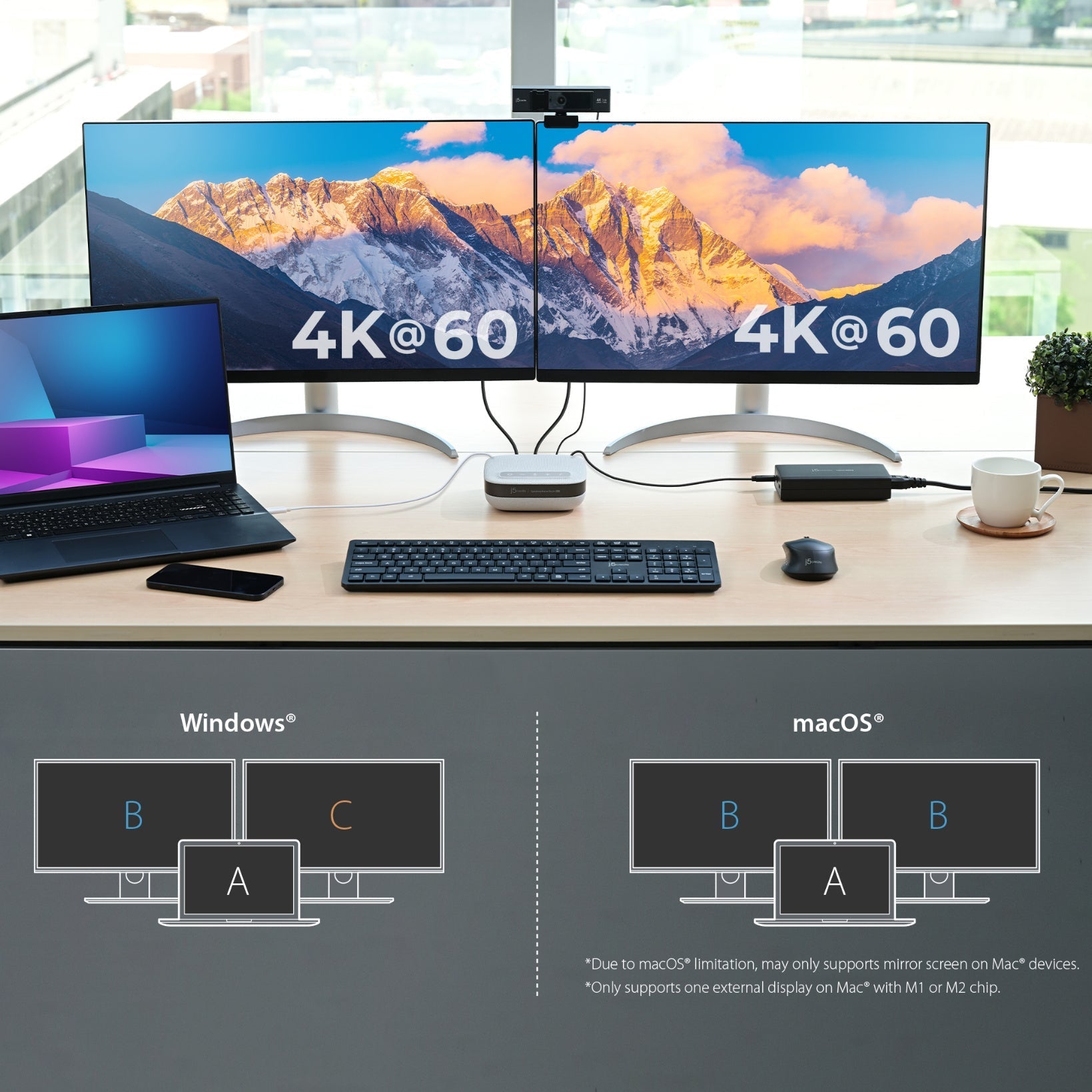

  • Support MST dual 4K display
    * macOS® doesn’t support MST, will only support mirroring two monitors on Mac® devices

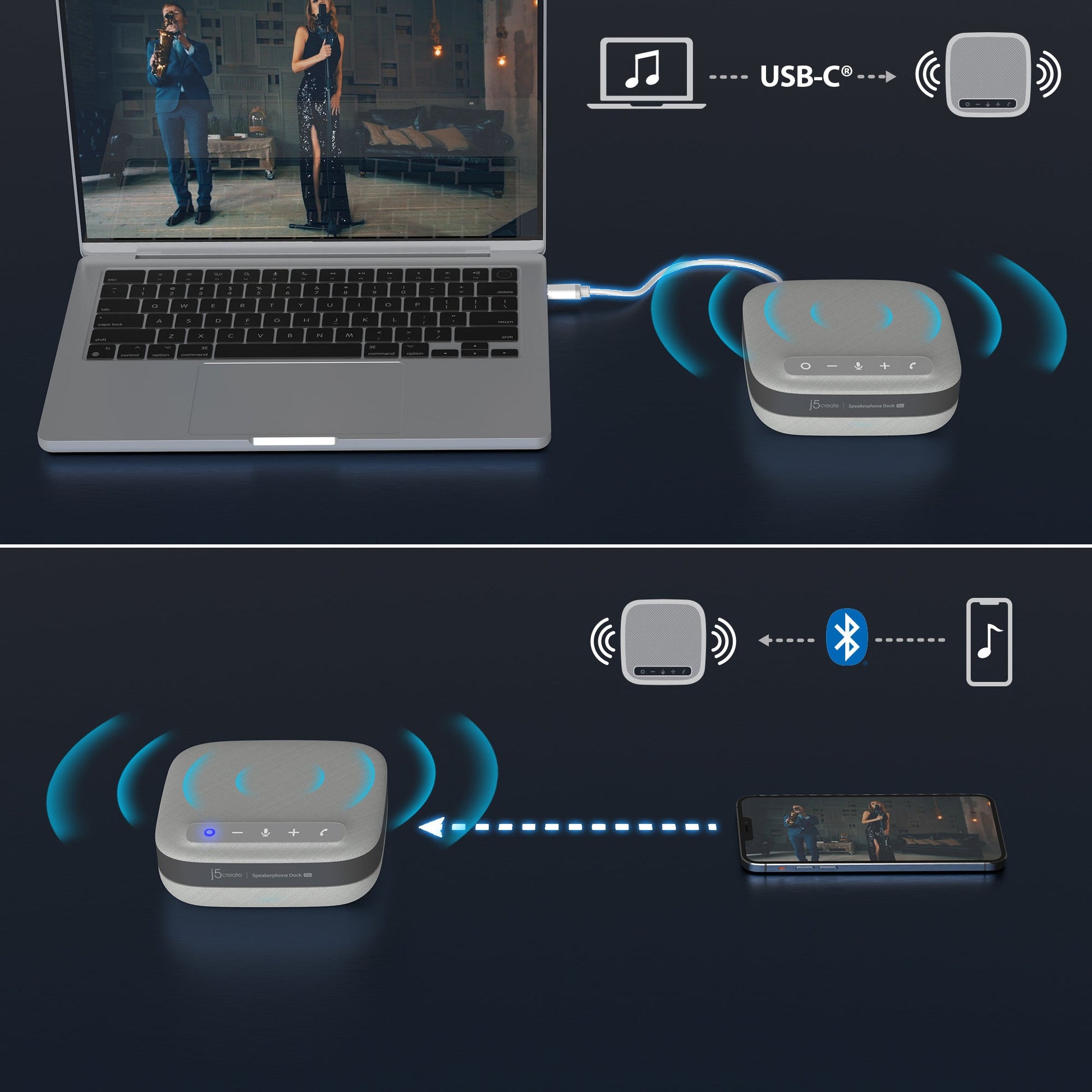

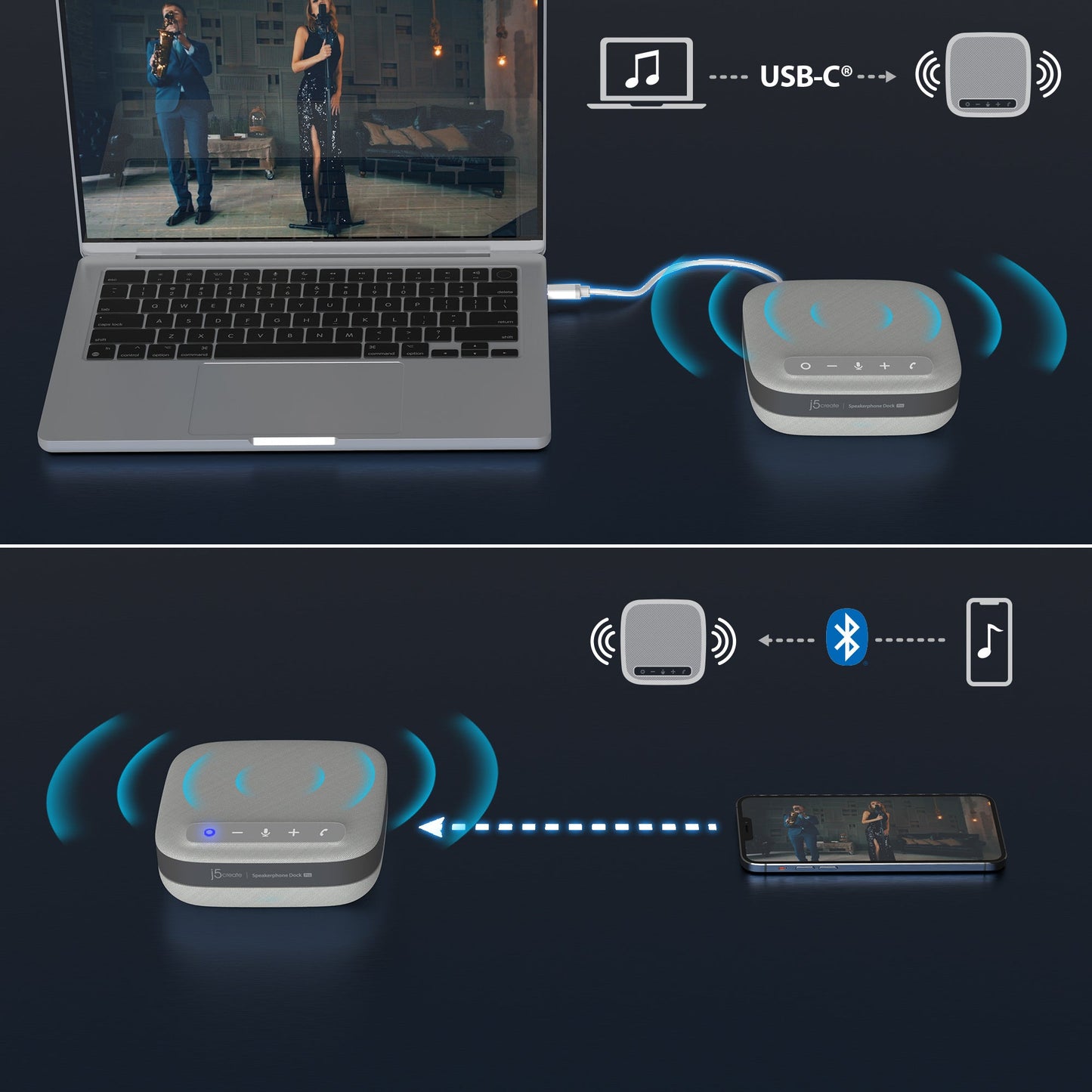

  • Bluetooth® 5.2 or USB™ plug-and-play connection
  • High-quality, crystal-clear audio
  • Digital signal processing technologies:
    - Acoustic Echo Cancellation (AEC) reduces background noise and blocks the microphone from receiving sound from your own speakers
    - Automatic Noise Reduction (ANR) reduces background noise
    - Automatic Gain Control (AGC) built into the microphone to ensure conference audio quality
  • Compatible with video conferencing apps: Amazon Chime™, BlueJeans™, Cisco®, Facebook™, Messenger, Google Meet™, GoToMeeting®, Microsoft Teams™, Skype™, Skype™ for business, Slack™, Zoom™, etc.

System Requirements:

  • Connection: Bluetooth® 5.2 & USB™, compliant with UAC1.0
  • Windows® 11/ 10, macOS®, iOS®, Android™, or other operating systems with standard UAC drivers
  • *iOS® - iPhone® can only connect by Bluetooth®, iPad® can connect by Bluetooth® and USB-C® *Android™ can connect by Bluetooth® or USB-C®

Special Notes:

  • Due to a macOS® limitation, the JCDS337 only supports mirrored dual screens with Mac® devices.

SPECIFICATIONS:

  • Host Connector: USB-C® Female
  • Video Output: 2 - 4K HDMI™ Female
  • Audio Supported: Yes
  • Power Source: Bus-powered, self-powered
  • Network Interface: RJ45 (Gigabit Ethernet)
  • Speaker - Mic: 4 x mic array; 1 x 5W speaker
  • Controls: Touch key – Volume up, volume down, microphone mute/unmute, answer call/hang up, Bluetooth®/USB™ mode switch

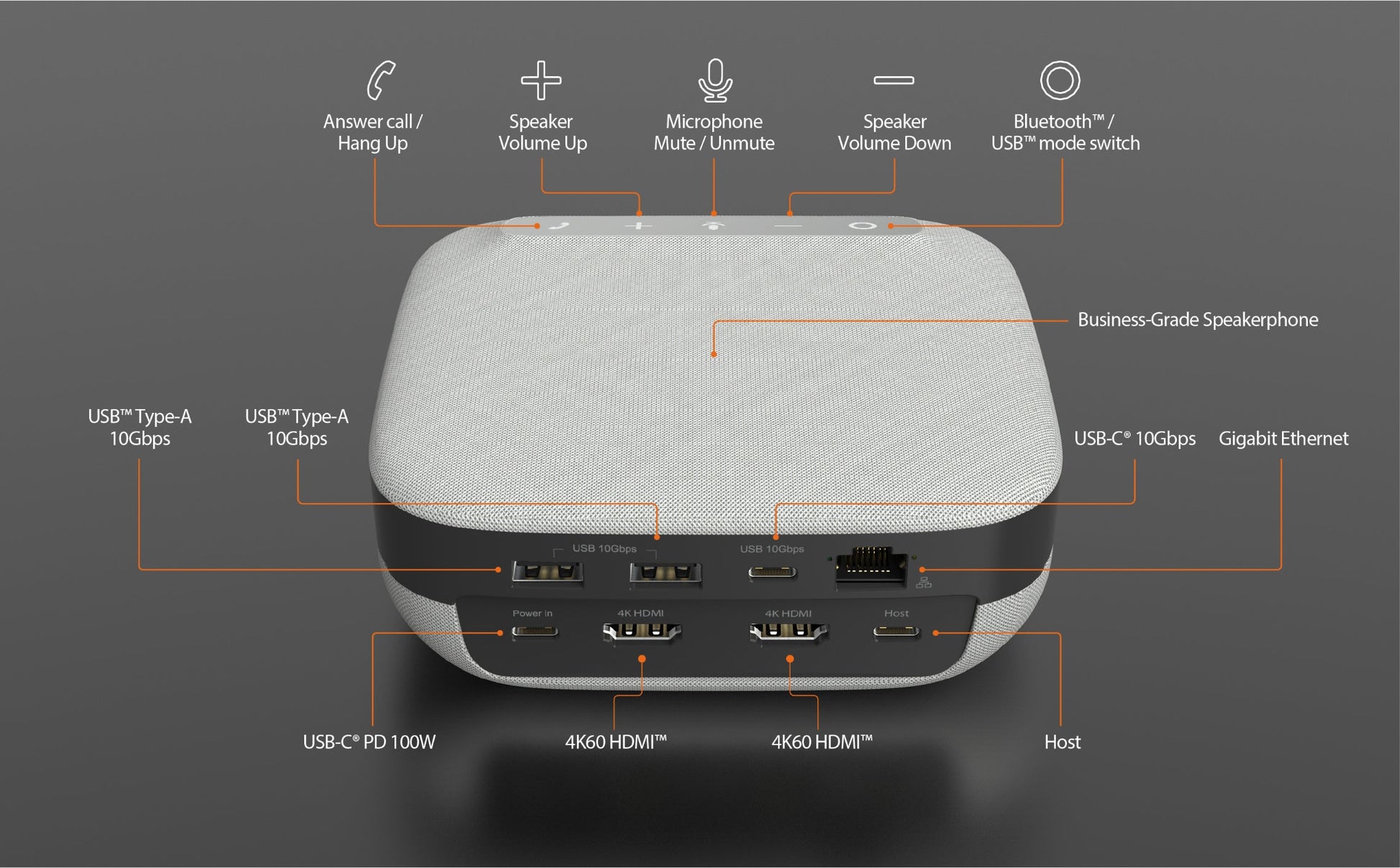

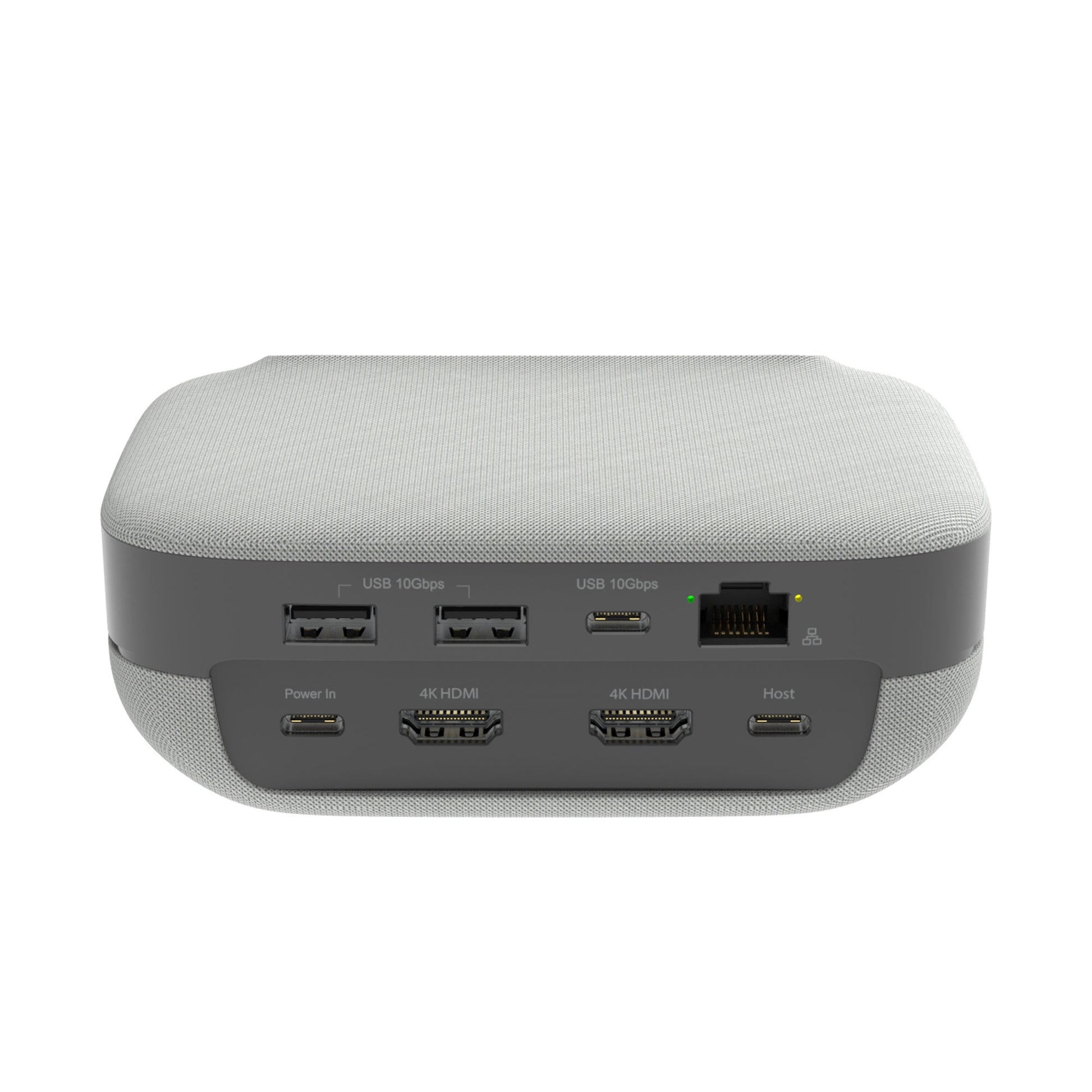

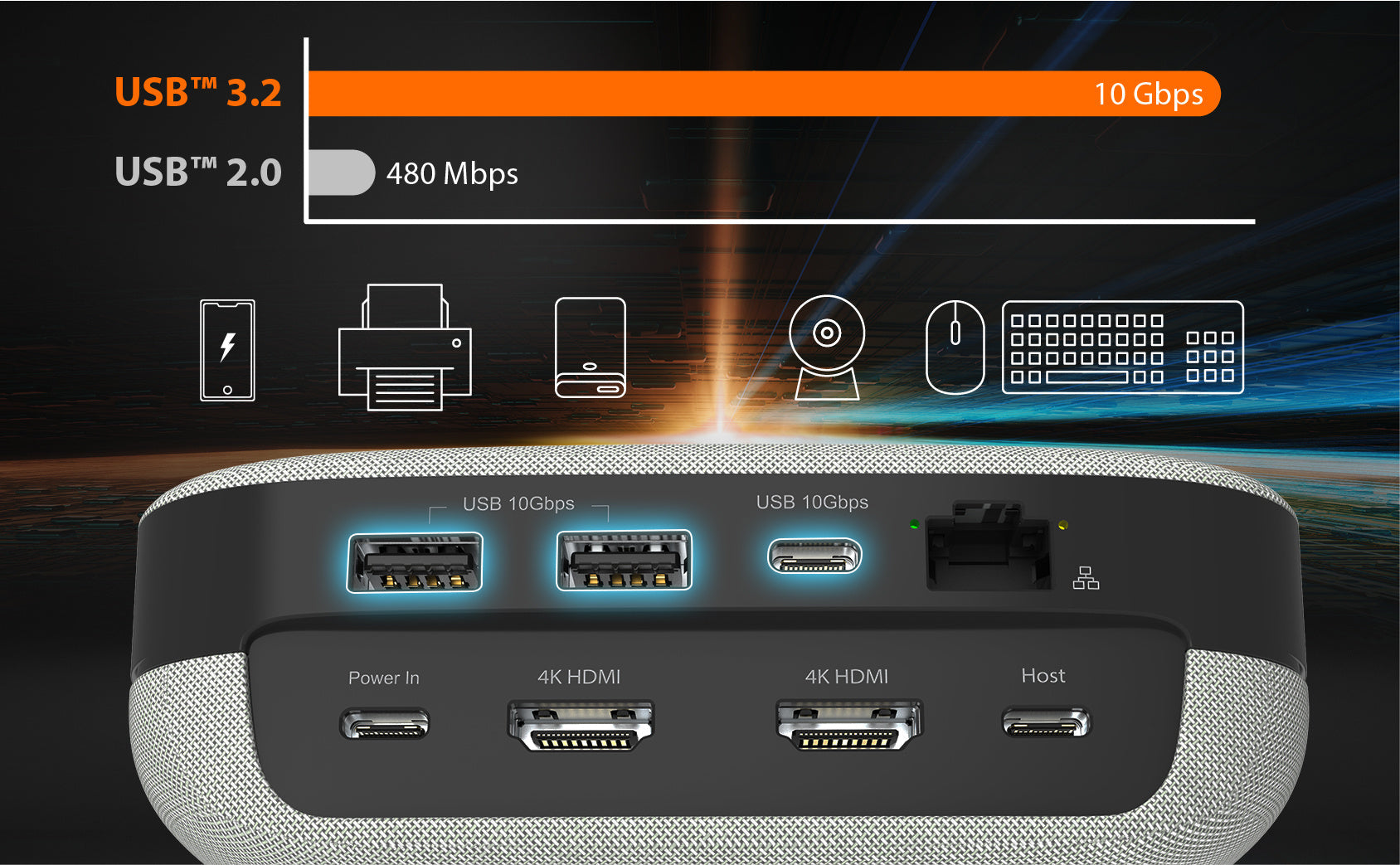

  • Ports: 2 x HDMI™ 4K@60Hz HDR; 2 x USB™ Type-A 3.2 Gen 2 (10Gbps); 1 x USB-C® 3.2 Gen 2 (10Gbps); 1 x RJ45 Gigabit Ethernet; 1 x USB-C® PD 100W
  • Maximum Display Resolution: Single display: 3840 x 2160 @ 60 Hz, 2560 x 1440 @ 144 Hz, 1920 x 1080 @ 144 Hz; Dual display: 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz
  • Maximum Data Transfer Rate: 10 Gbps
  • Compatible Networks: 10/100/1000 Base-T, auto-negotiating
  • Displays Supported: 2 (4K HDMI™) – Windows® (MST)
  • Audio Channel: 2.0 via HDMI™
  • Audio Microphone: Frequency: 100 Hz – 8 kHz; sampling rate: 16 kHz
  • Audio Speaker: Frequency: 150 Hz – 20 kHz; max output level: 80 dB SPL @ 1 meter; neodymium magnet; sampling rate: 16-bit
  • Microphone: Built-in 4-microphone array; audio pickup radius of 400 cm / 13 ft
  • Speakerphone: Built-in 5W speaker with bass diaphragm
  • Voice Processing: Acoustic Echo Cancellation (AEC); Automatic Gain Control (AGC); Automatic Noise Reduction (ANR)

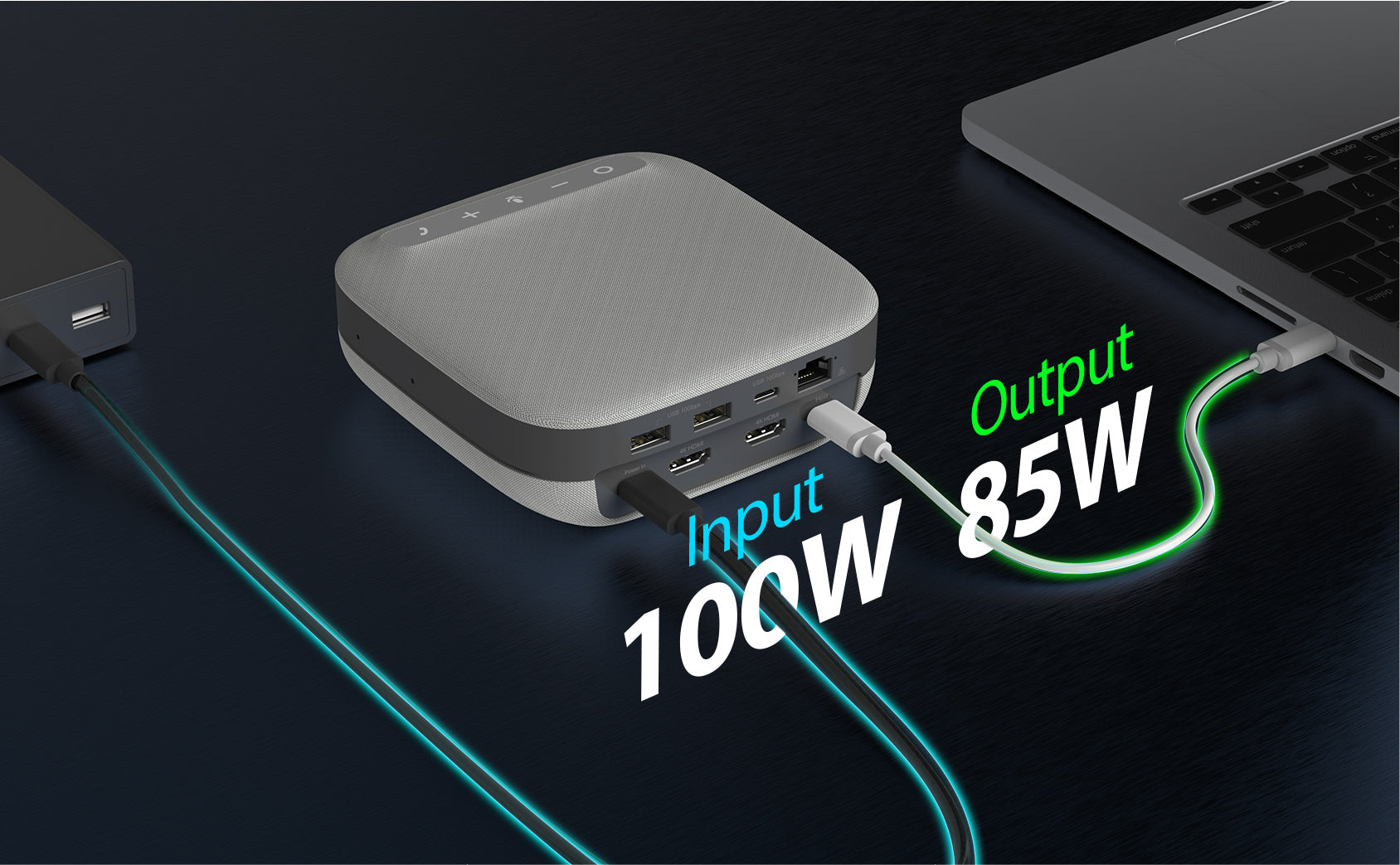

  • Power Delivery: 100W
  • Power Consumption: ≥ 300 mA
  • Input Current: 5A
  • Input Voltage: 20V
  • Output Current: 4.25A
  • Output Voltage: 20V
  • Color: Grey & White
  • Enclosure Type: PC+ABS
  • Cable Length: 39.37 in. (100 cm)
  • Product Height: 1.88 in. (47.8 mm)
  • Product Width: 5.11 in. (130 mm)
  • Product Depth: 5.11 in. (130 mm)
  • Product Weight: 0.83 lbs. (377 g)
  • Storage Temperature: 14 to 149°F (-10 to 65°C)
  • Storage Humidity: < 85% non-condensing
  • Operating Temperature: 32 to 118°F (0 to 48°C)
  • Operating Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

  • JCDS337 USB-C® Dual 4K Speakerphone Dock Pro x1
  • USB-C® cable (Length: 100 cm / 3.3 ft.) x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
