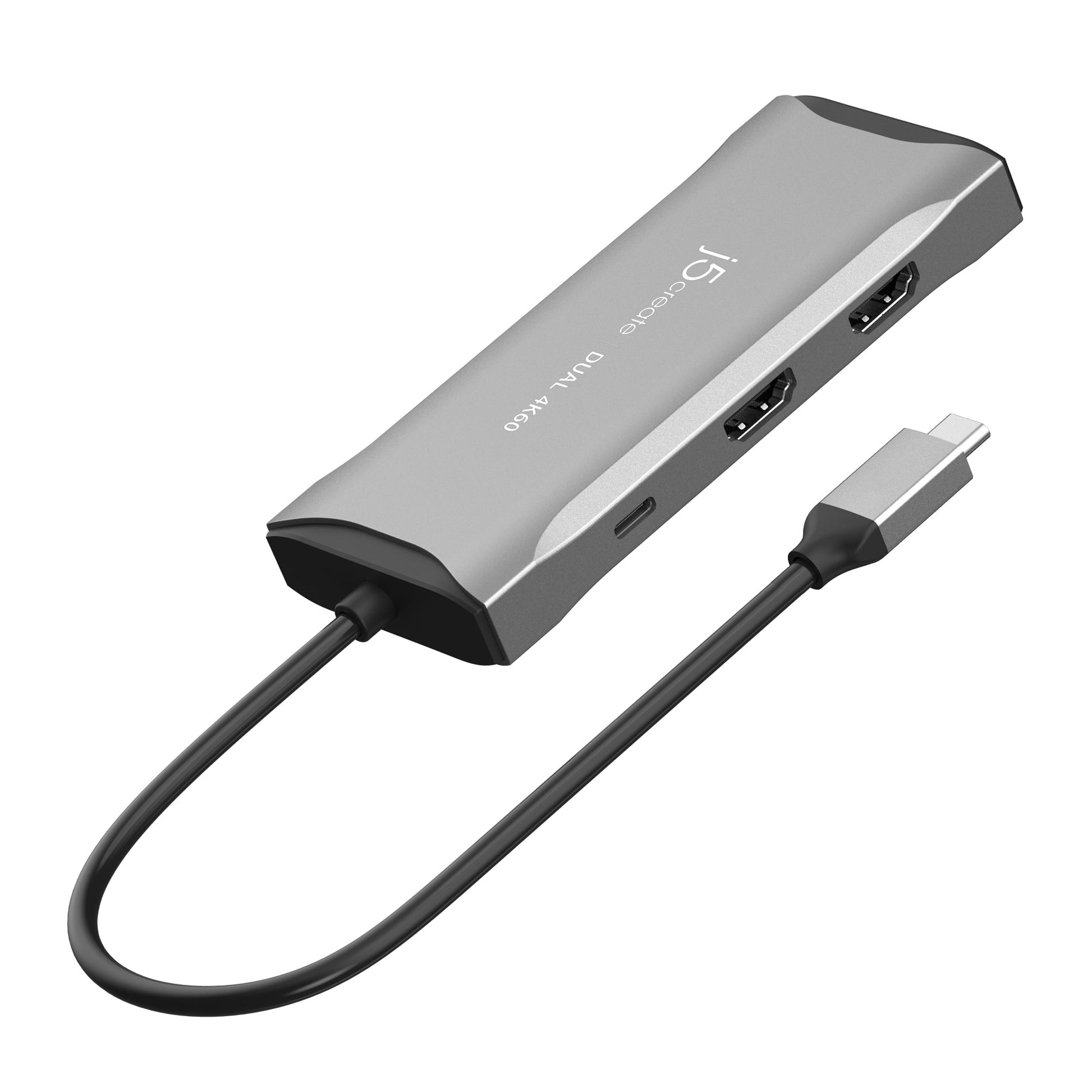

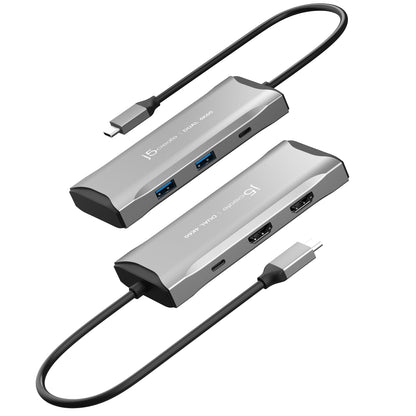

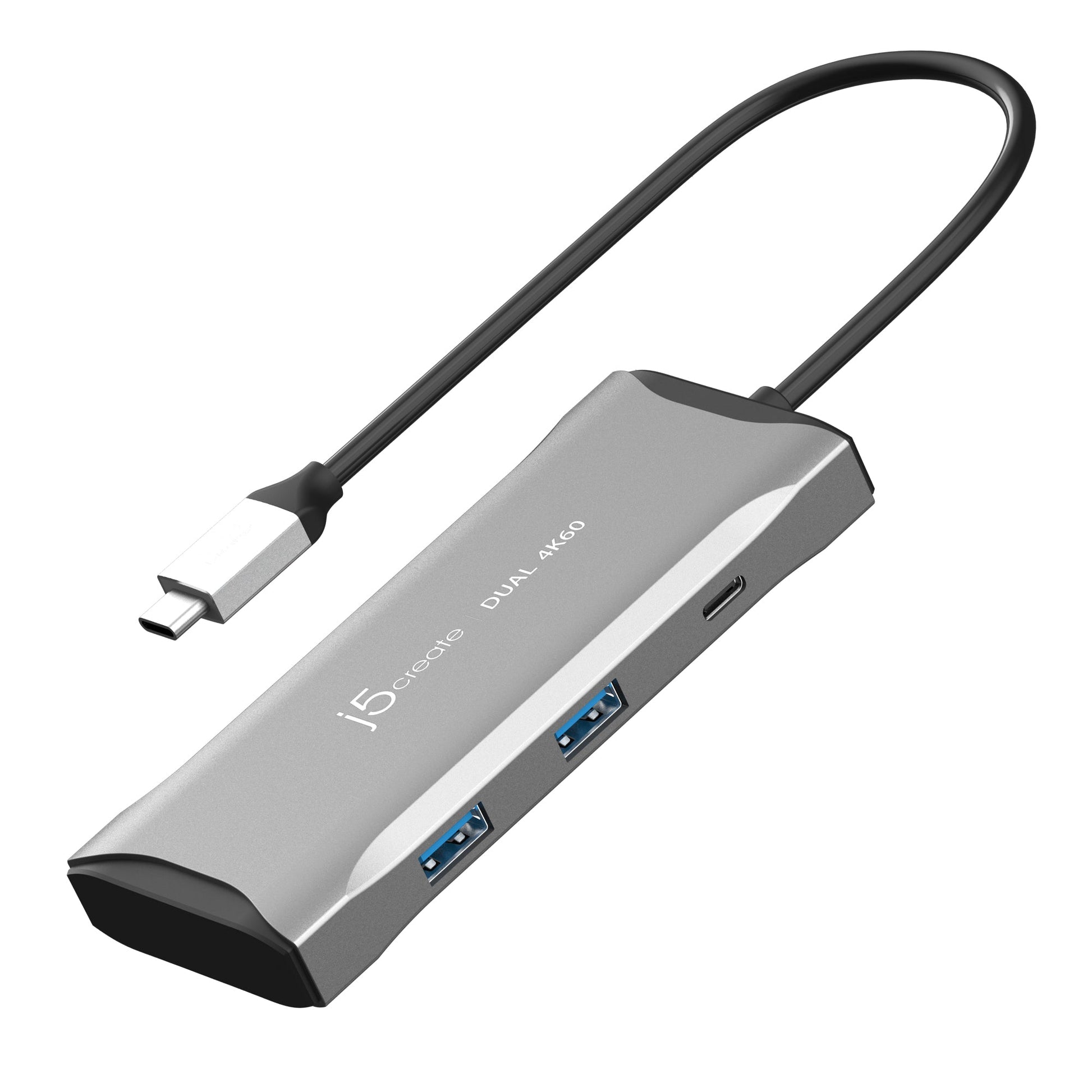

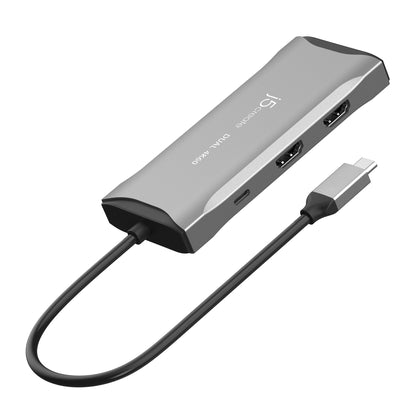

J5create USB-C Dual HDMI 4K60 Mini Dock - JCD396

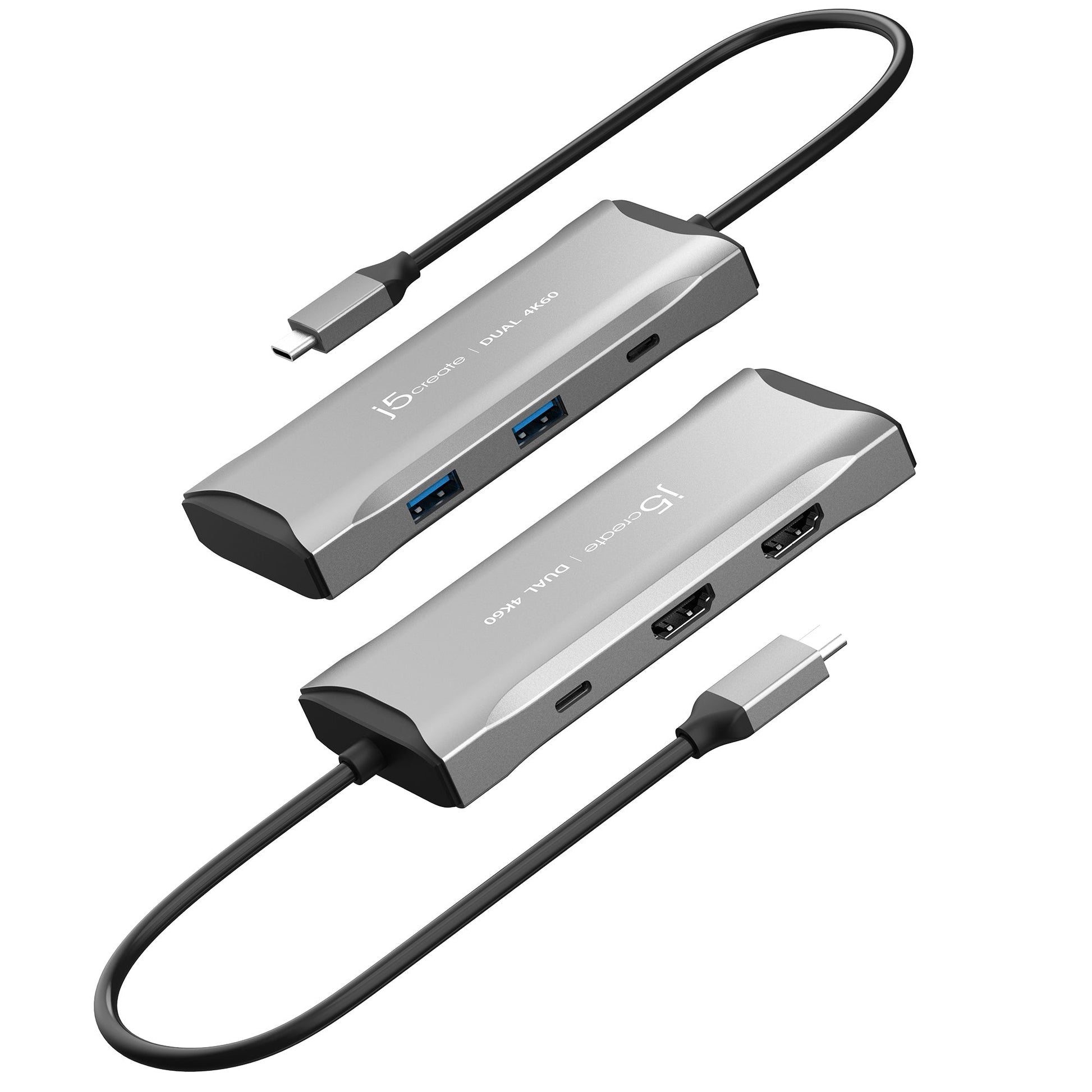

Featuring all the ports you need, the USB-C® Dual 4K60 Mini Dock. This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual 4K workstation with two HDMI™ outputs. It includes three USB™ SuperSpeed 5Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging.

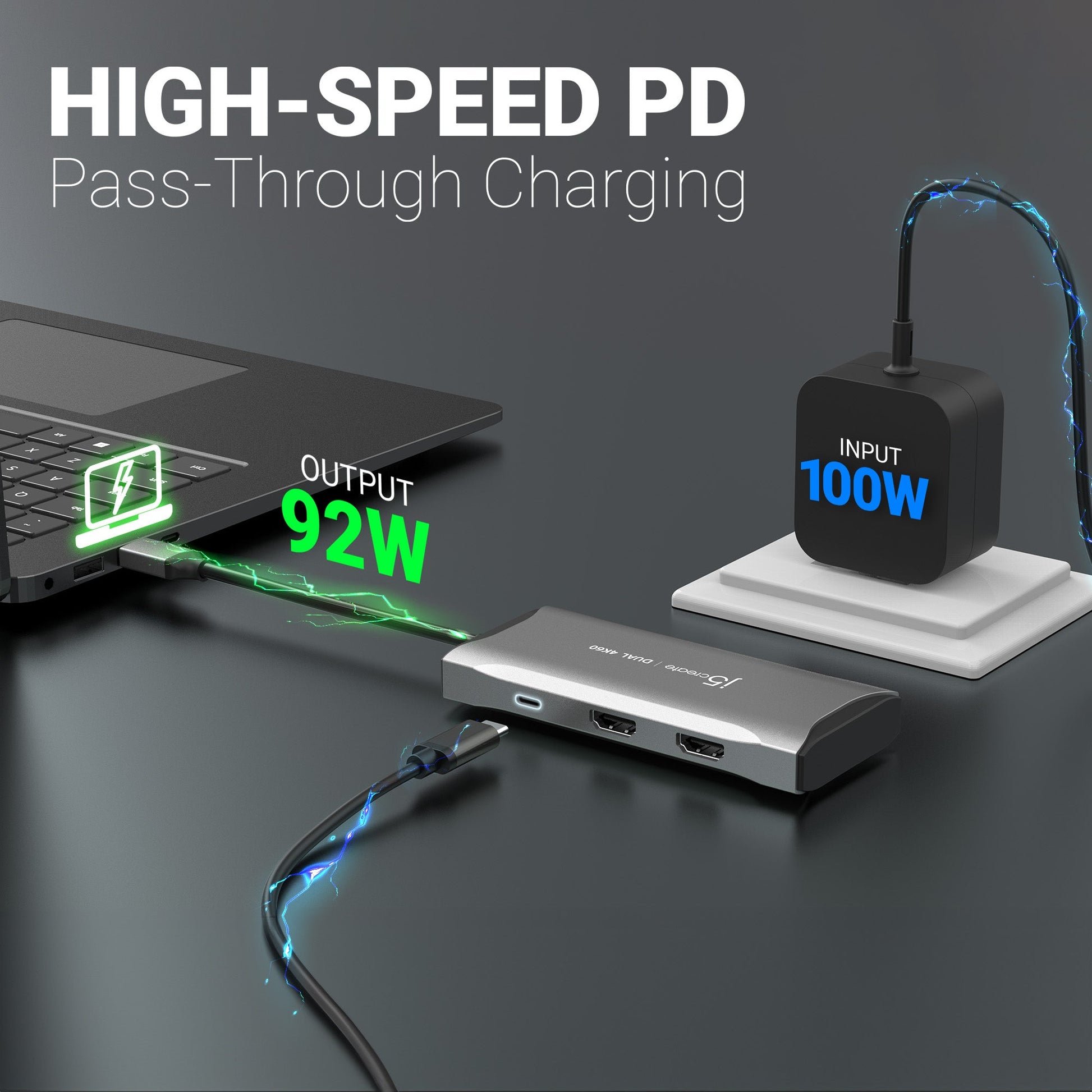

It also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

FEATURES:

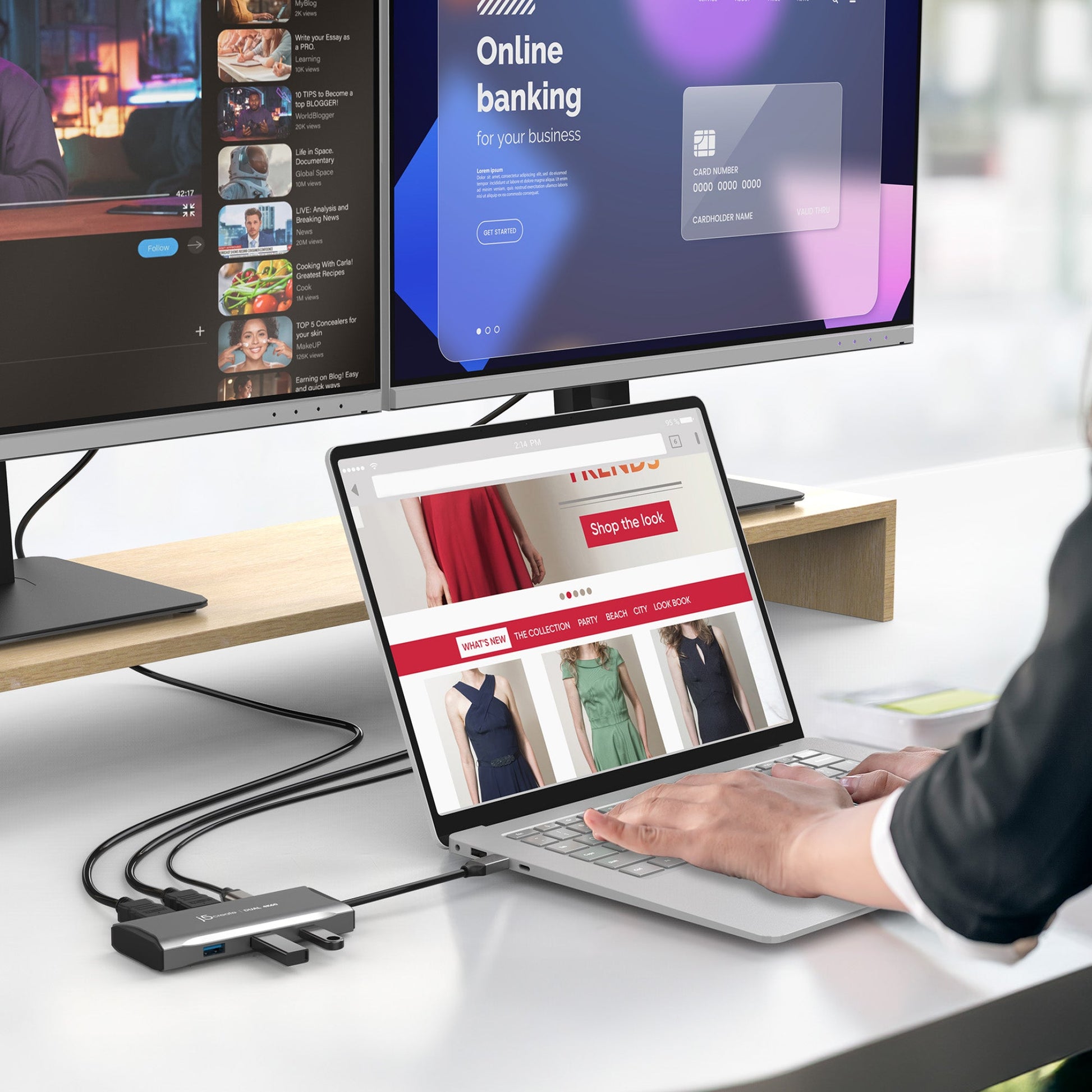

• Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz.
• Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate.
• Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.
• Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.
• Charge and power a connected laptop and peripherals with 100W Power Delivery.
• Plug-and-play, no driver installation required.

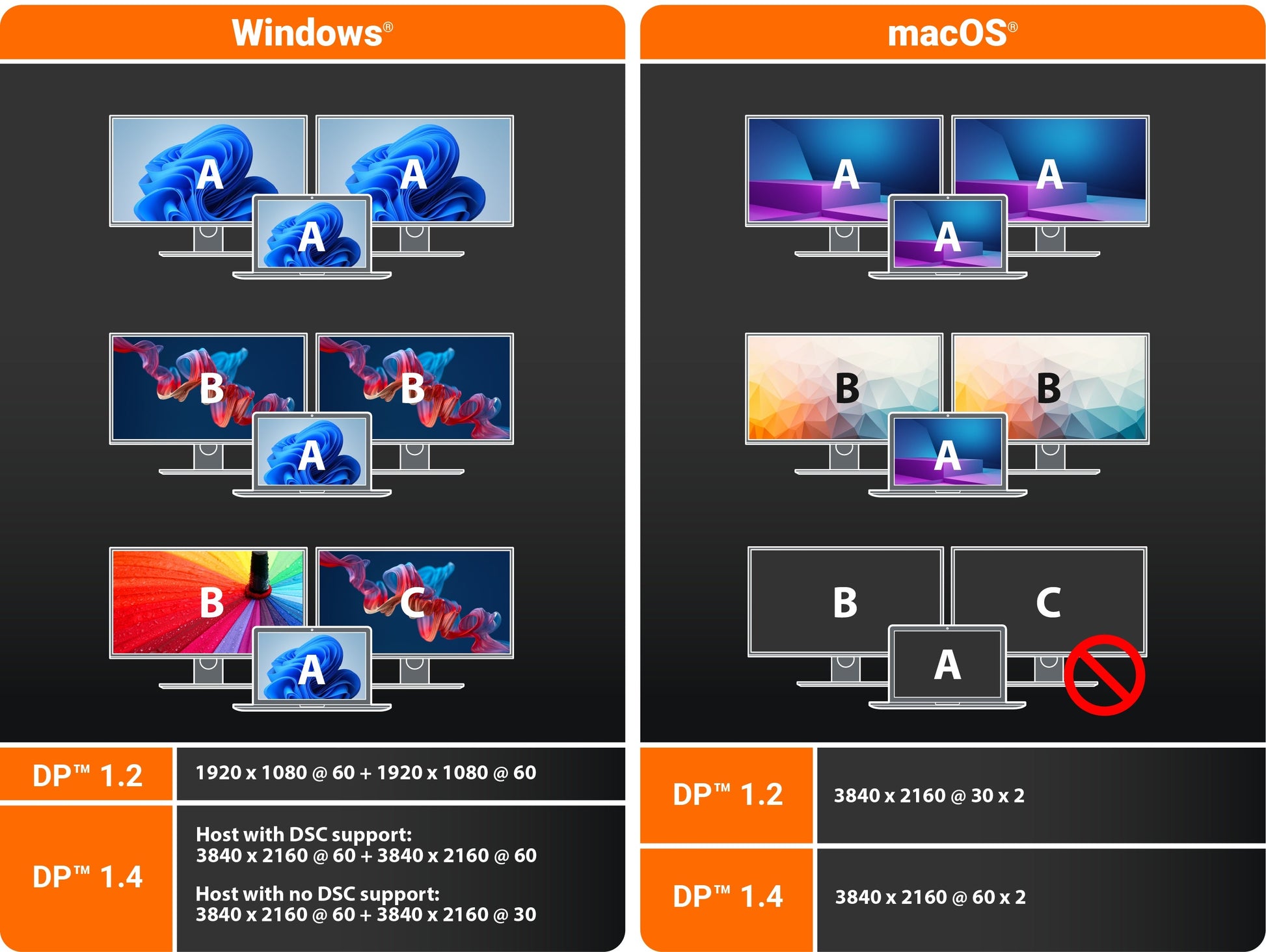

• Supports dual 4K60 HDMI™ on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*.

System Requirements:

• Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. Please refer to the manufacturer of your computer for more information about your device.
• The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:

  • Macbook Air® 13" 2019 or later
  • Macbook Pro® 15" 2017 or later
  • Macbook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • Surface™ Pro 7
  • Surface™ laptop 3

Special Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution.
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited.
• If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 at 30 Hz.
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time.

SPECIFICATIONS:

• Audio Supported: Yes
• Host Connector: 1 × USB-C® Male
• Network Interface: N/A

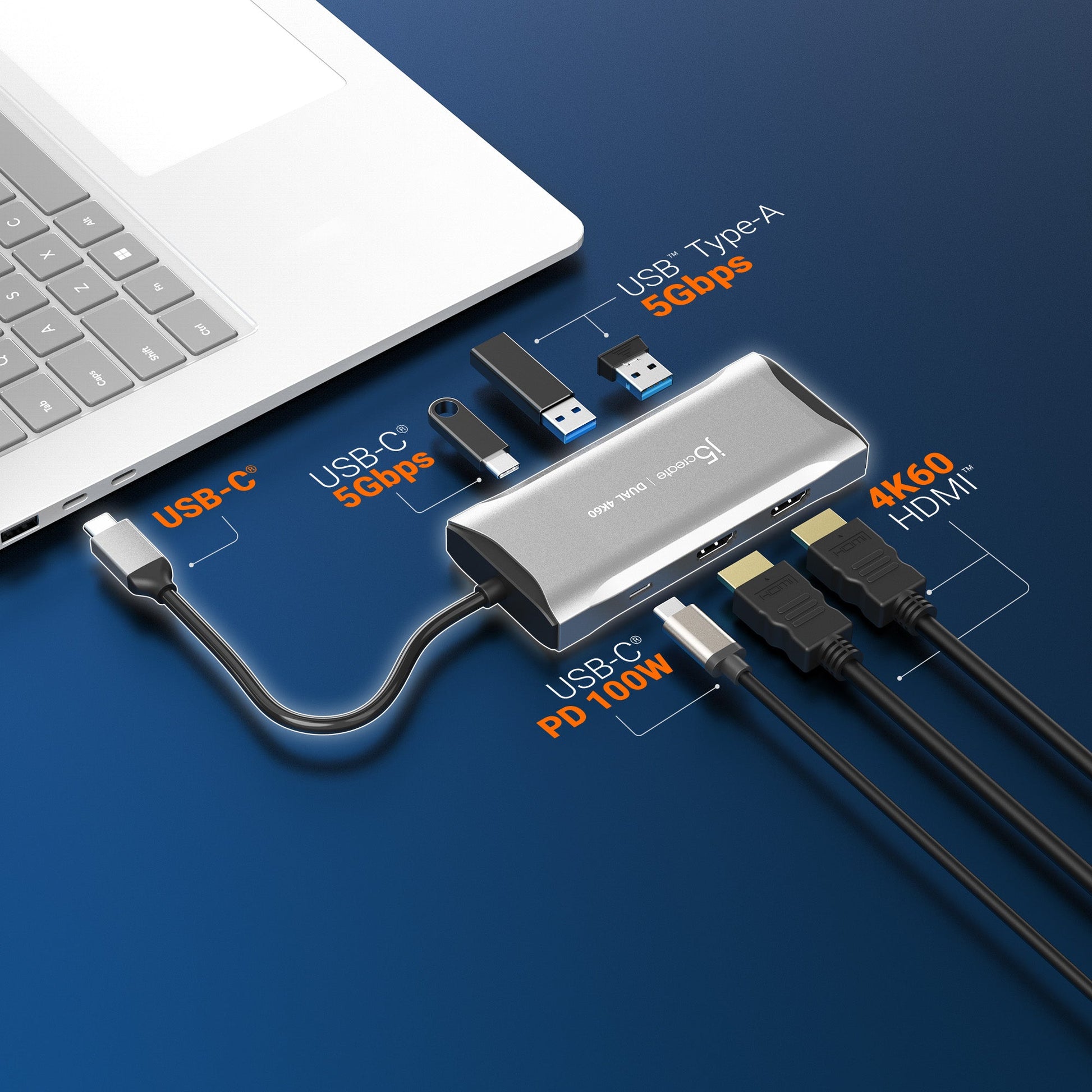

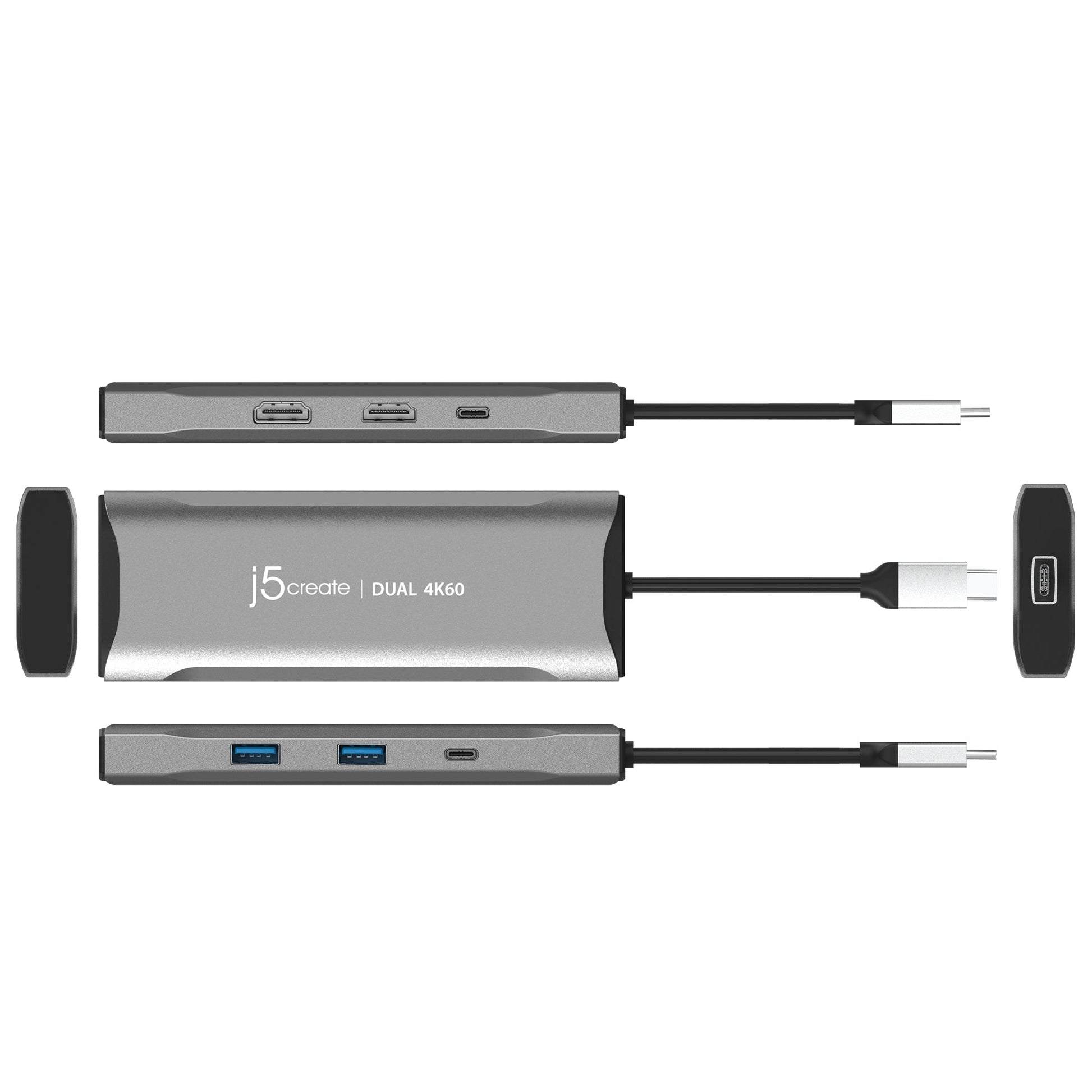

• Ports: 1 × USB-C® SuperSpeed (5 Gbps), 2 × USB™ Type-A SuperSpeed (5 Gbps), 1 × USB-C® Power Delivery 3.0, 2 × 4K HDMI™
• Power Source: Bus-powered or self-powered
• Video Output: 2 × HDMI™ Female

• Audio Channel: 2.1 via HDMI™
• Compatible Networks: N/A
• Displays Supported: 2
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: Windows® (MST): 3840 × 2160 @ 60 Hz, 2560 × 1440 @ 120 Hz, 1920 × 1080 @ 144 Hz
• Max Display Resolution: 3840 × 2160 @ 60 Hz
• Input Current: Up to 5 A
• Input Voltage: Up to 20 V
• Output Current: Up to 4.6 A
• Output Voltage: Up to 20 V
• Power Consumption: ≤ 400 mA
• Power Delivery: Up to 100 W via USB-C®
• Cable Length: 7.87 in. (200 mm)
• Color: Space Grey
• Enclosure Type: Aluminum
• Operating Conditions: Temperature 30 to 116°F (-1 to 41°C), Humidity < 85% non-condensing

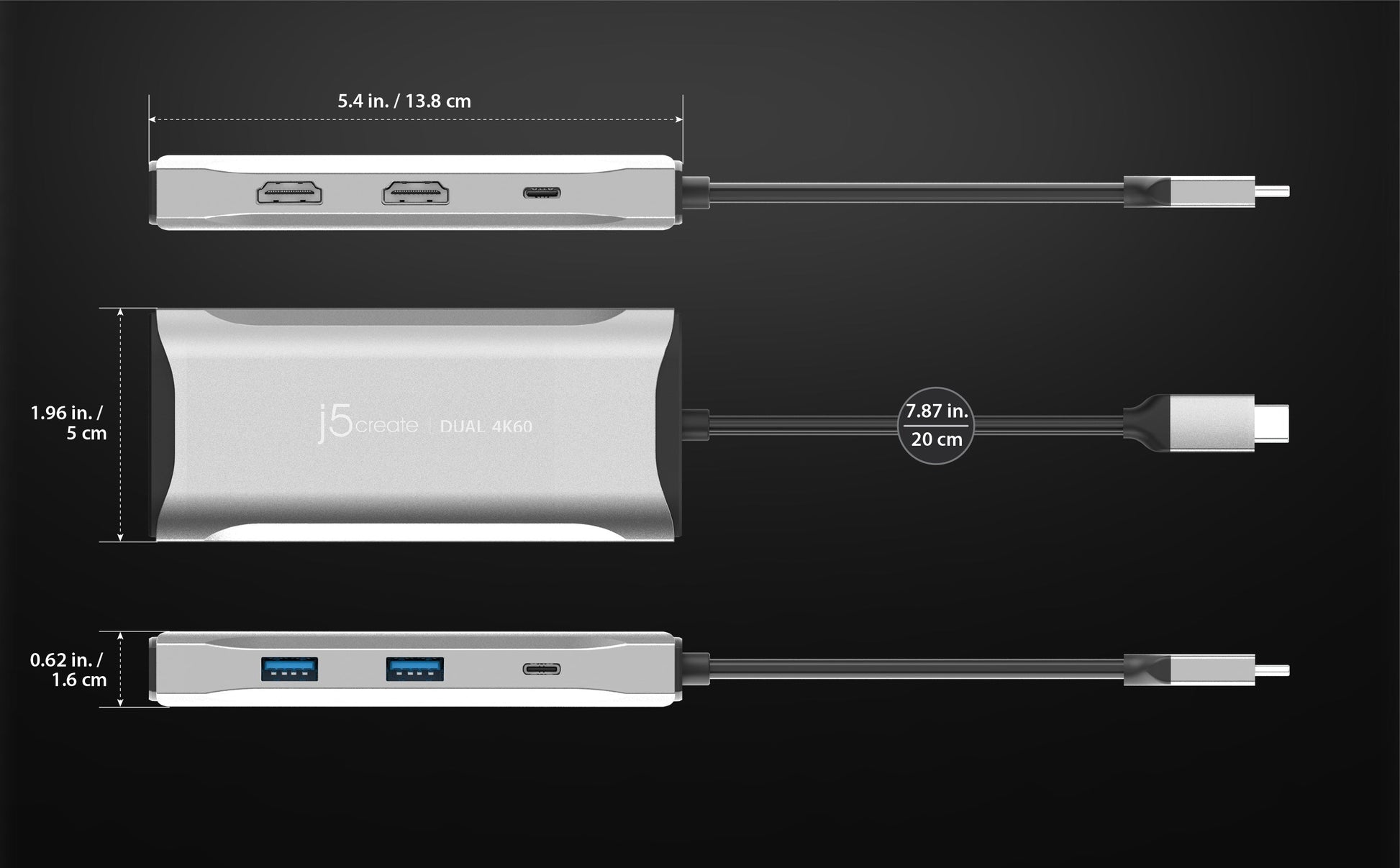

• Product Dimensions: Width 5.4 in. (138 mm), Depth 1.96 in. (50 mm), Height 0.62 in. (16 mm)
• Product Weight: 3.77 oz (107 g)
• Storage Conditions: Temperature 0 to 155°F (-17 to 68°C), Humidity < 85% non-condensing

WHAT’S IN THE BOX:

• JCD396 USB-C® HDMI™ Dual 4K60 Mini Dock x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
