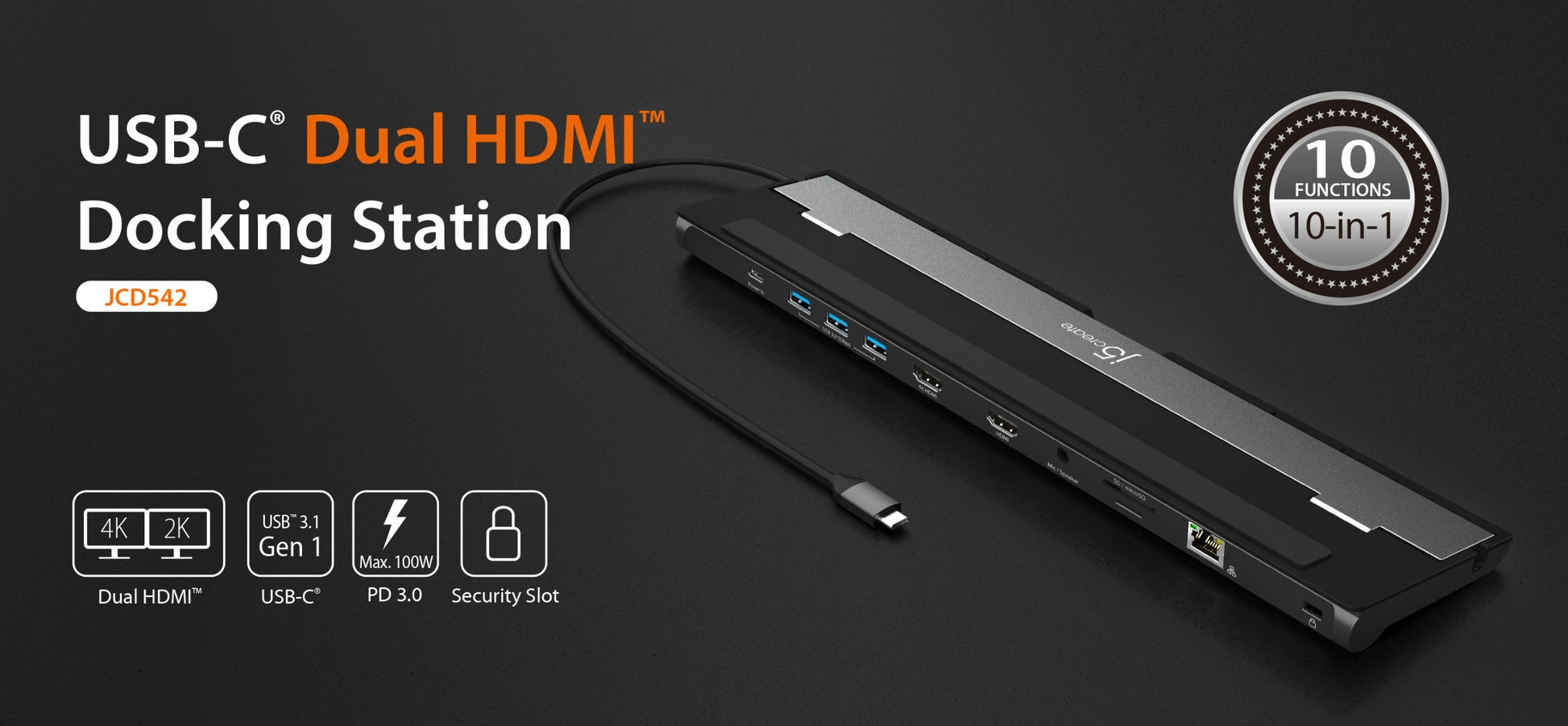

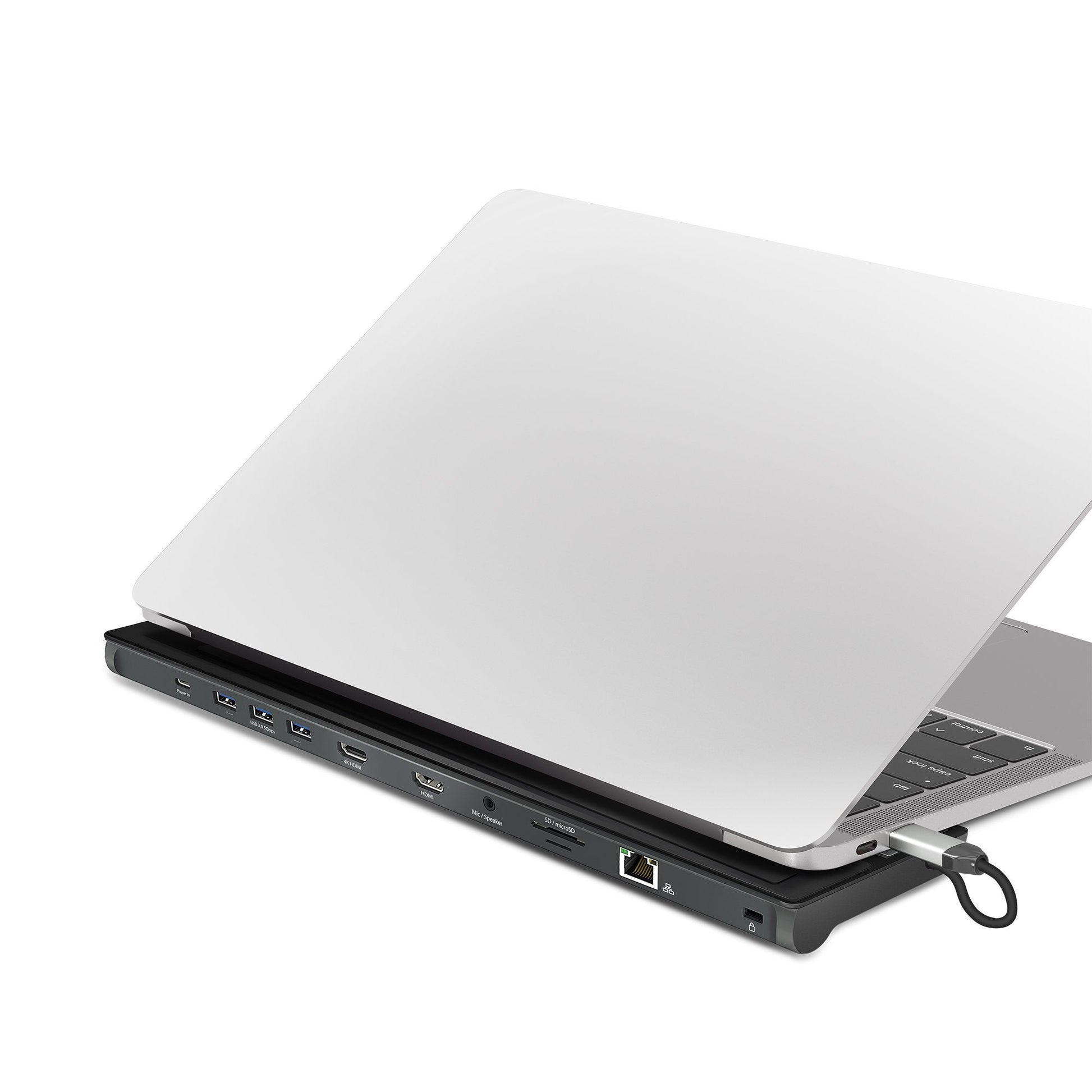

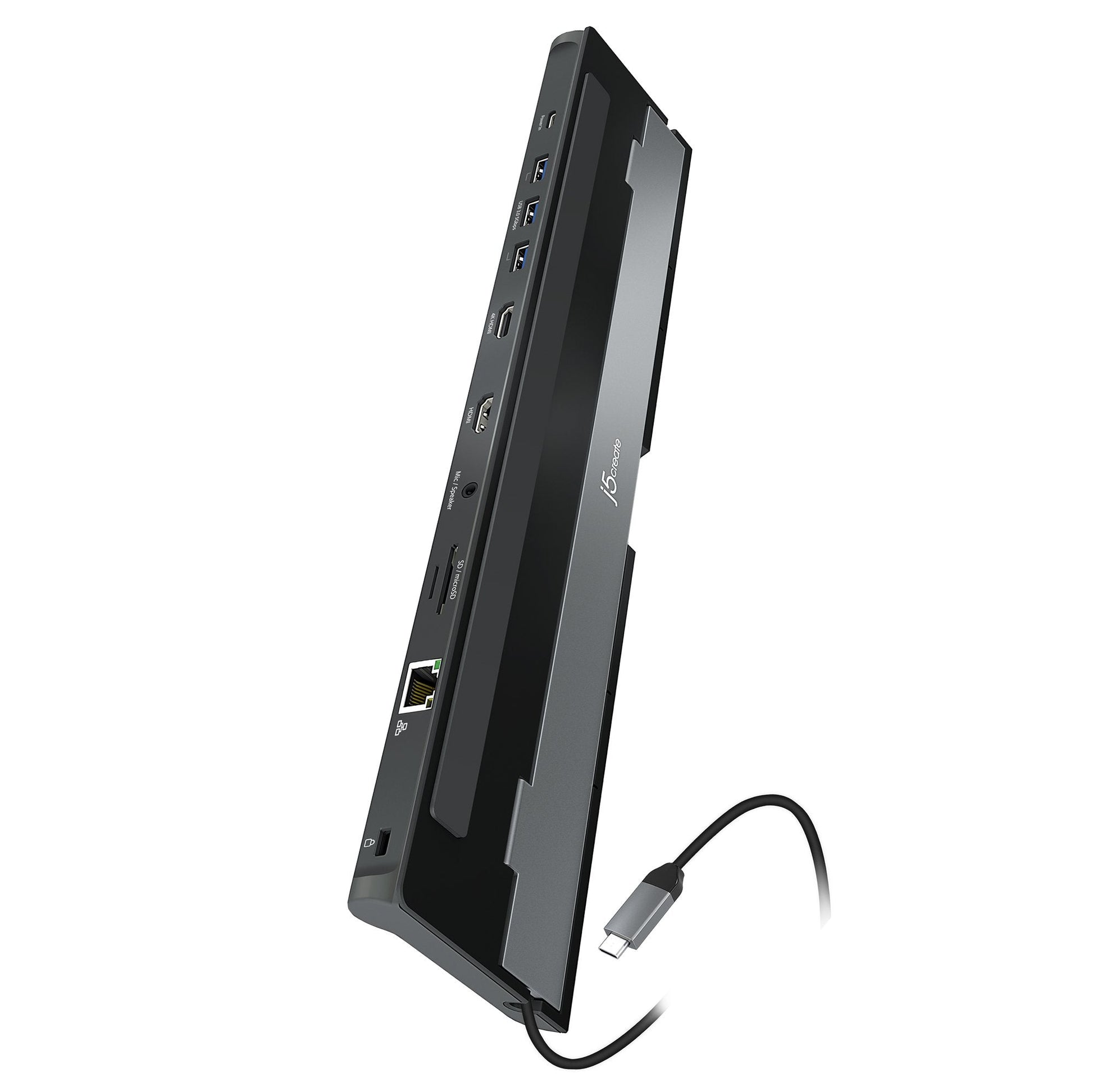

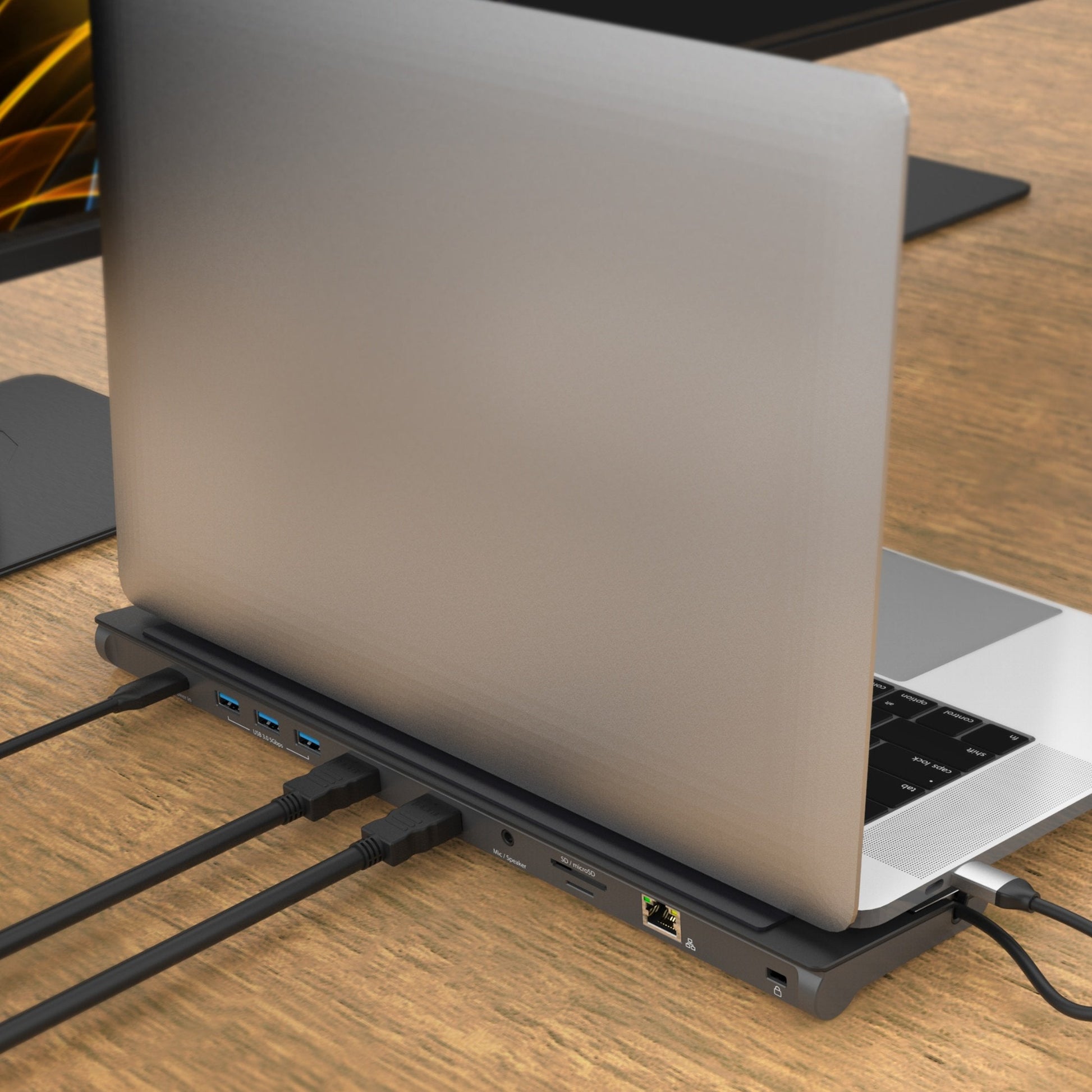

J5create USB-C Dual HDMI Docking Station - JCD542

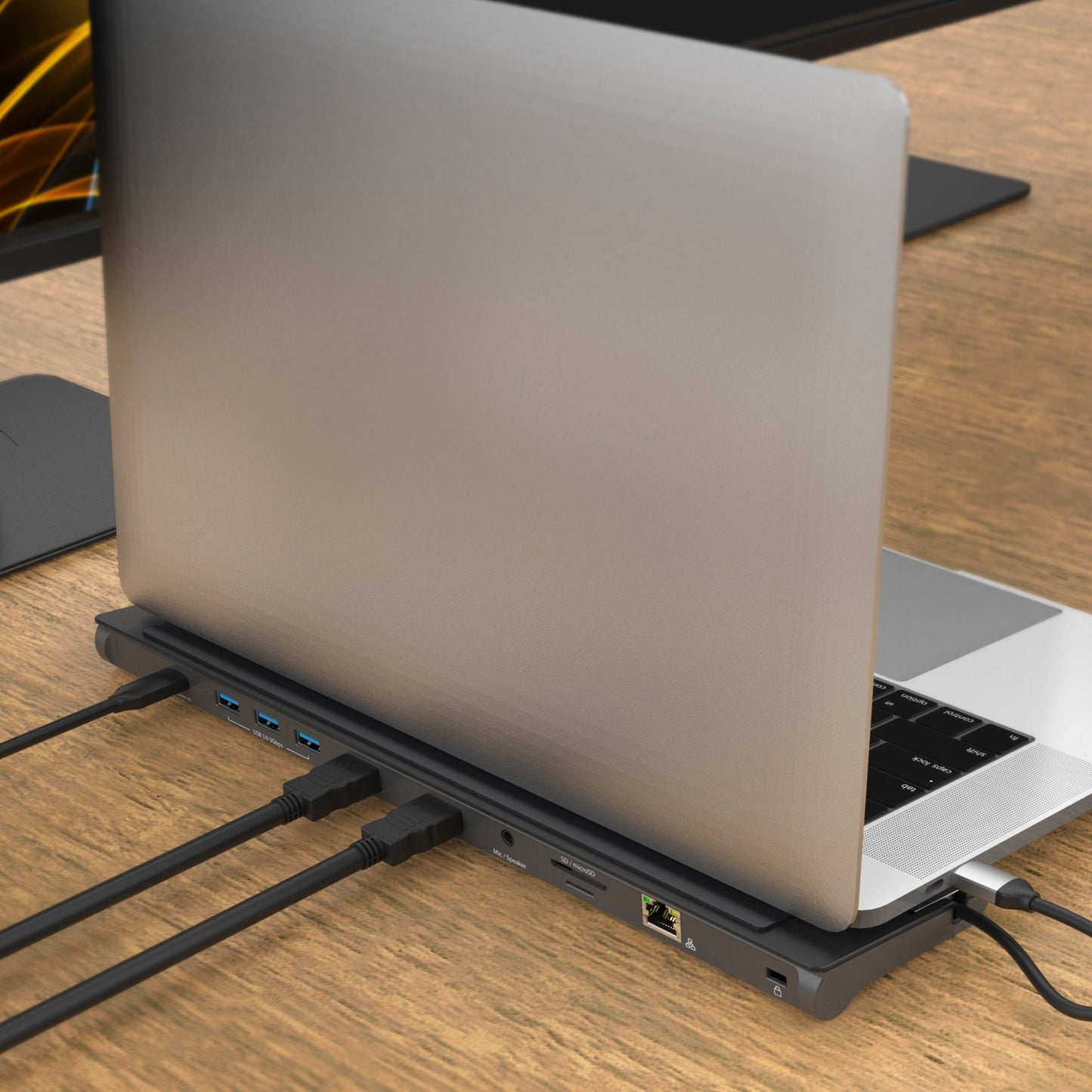

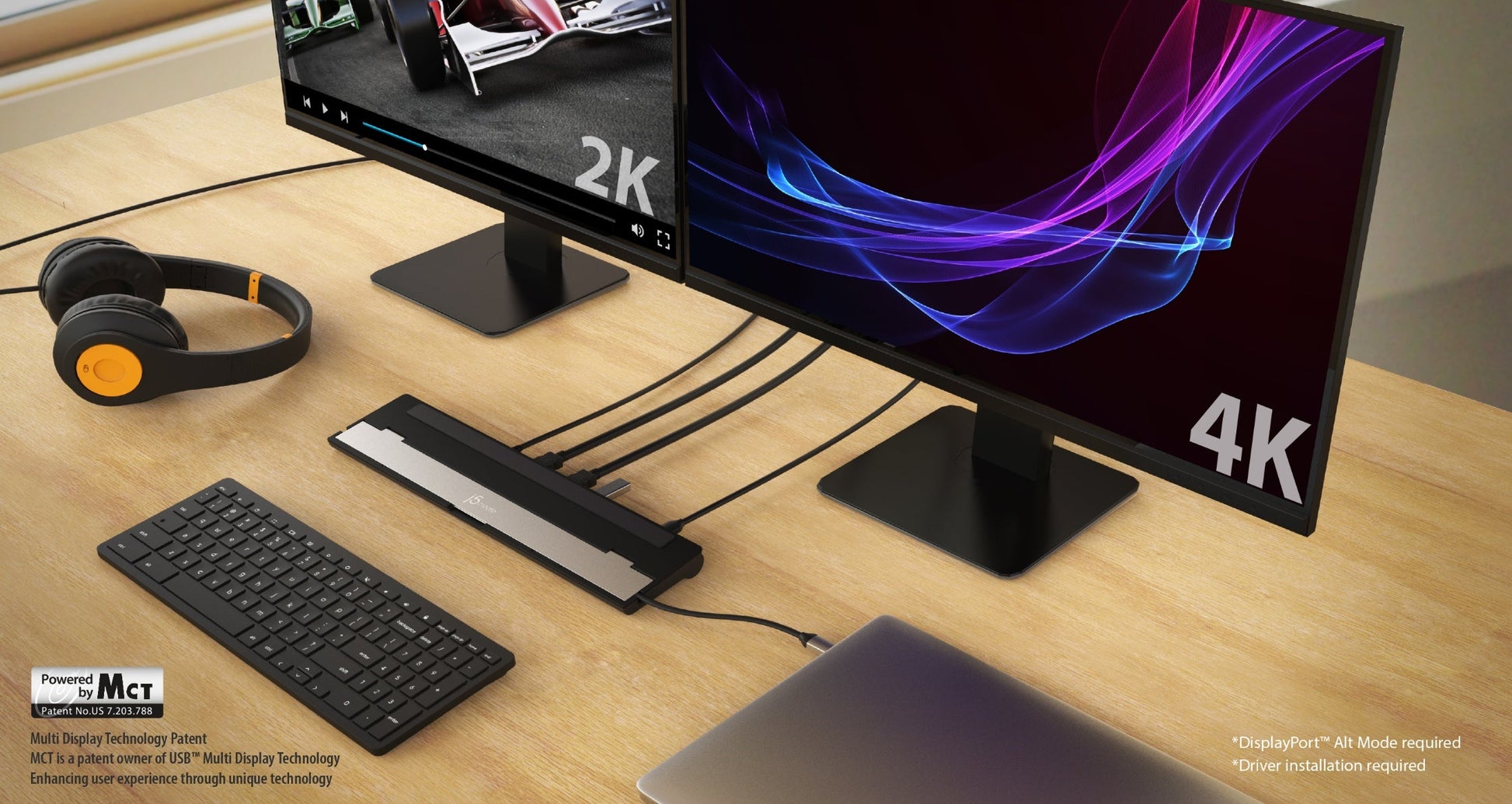

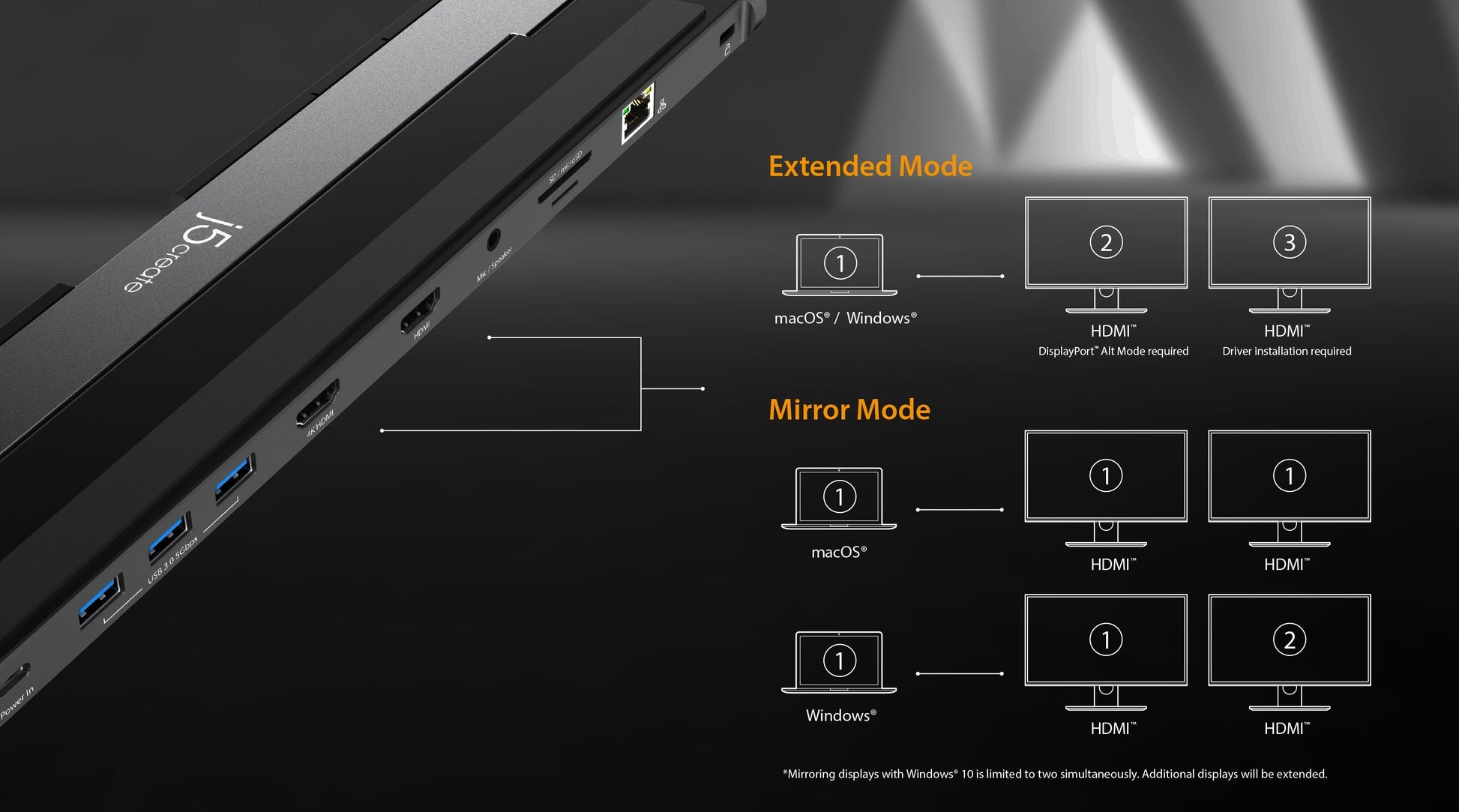

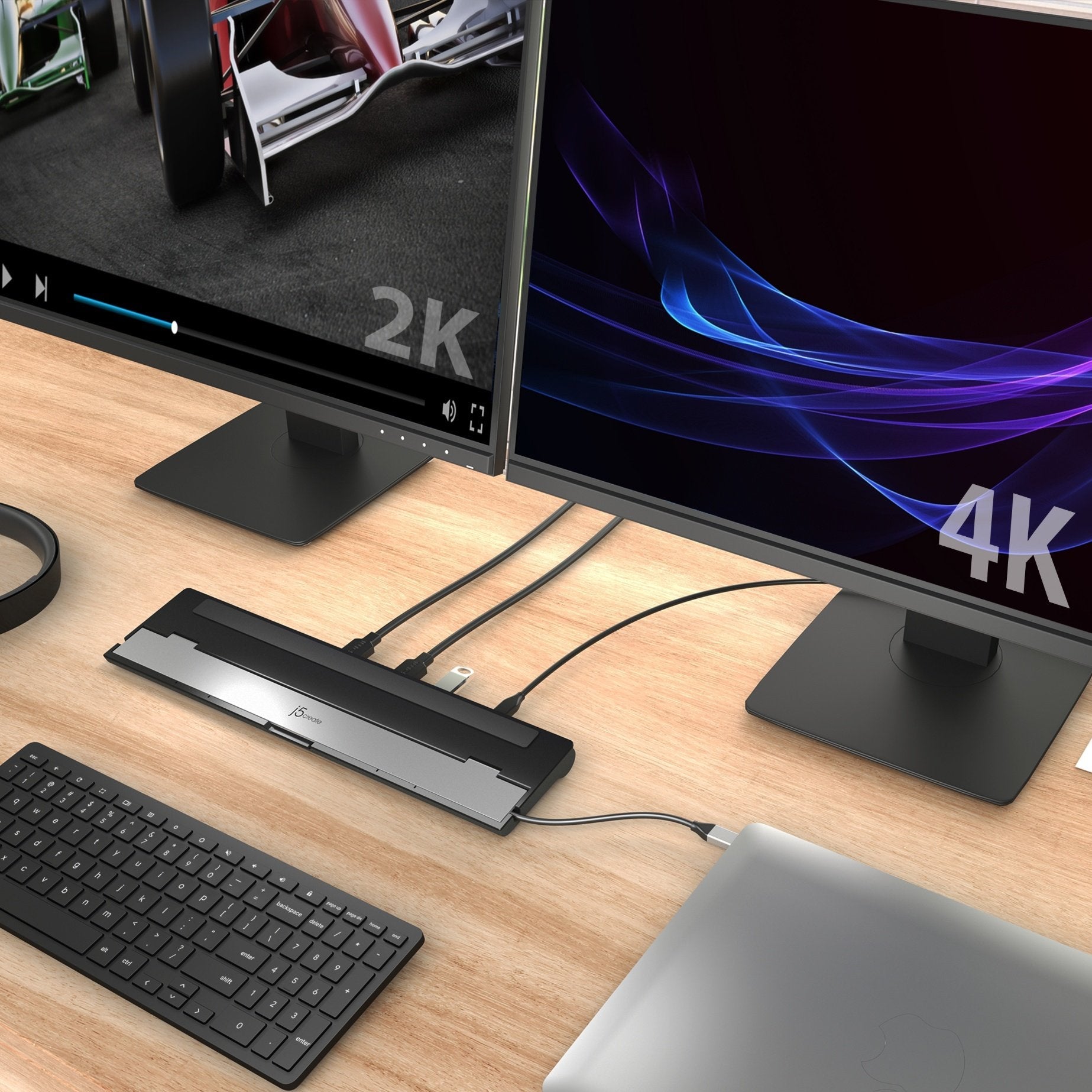

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

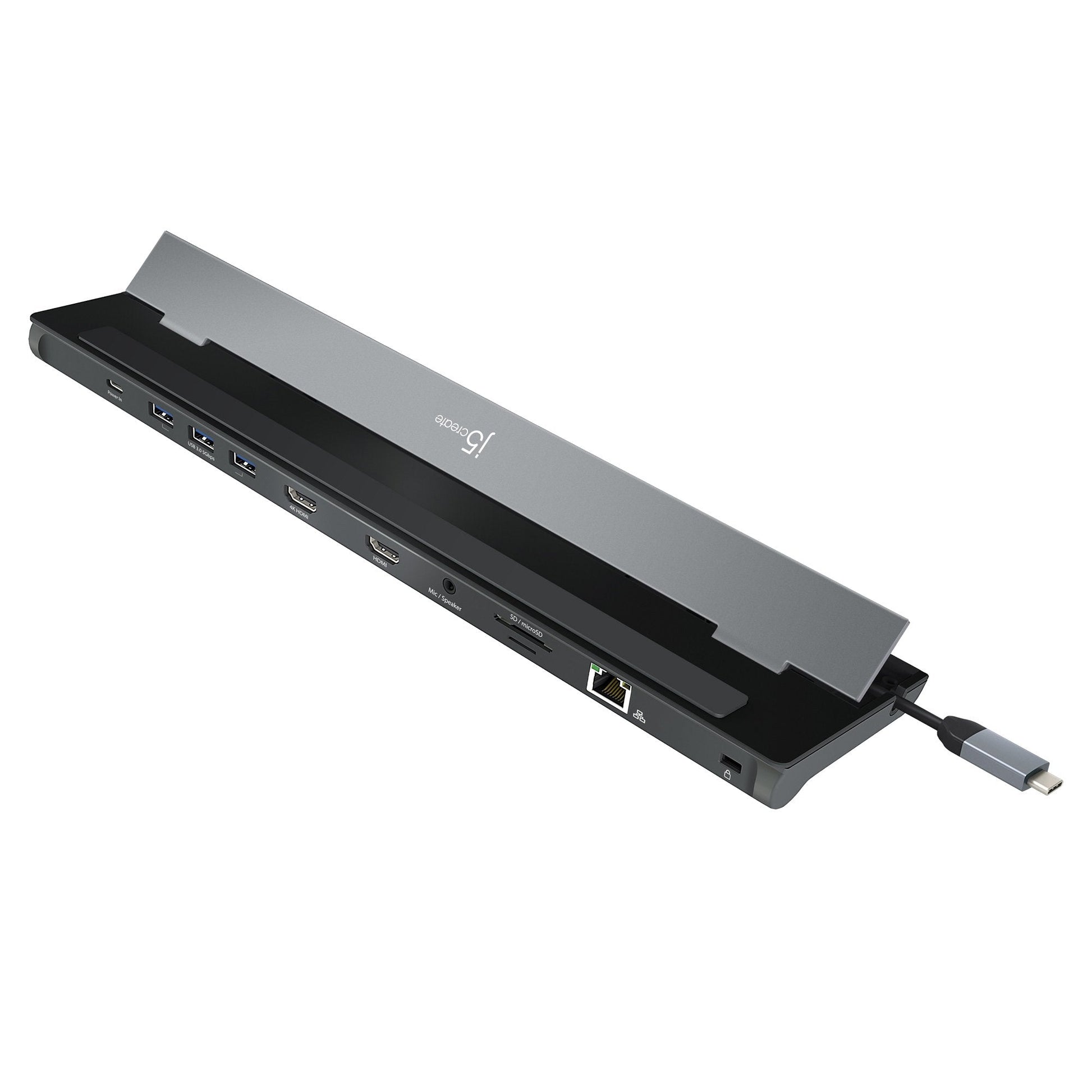

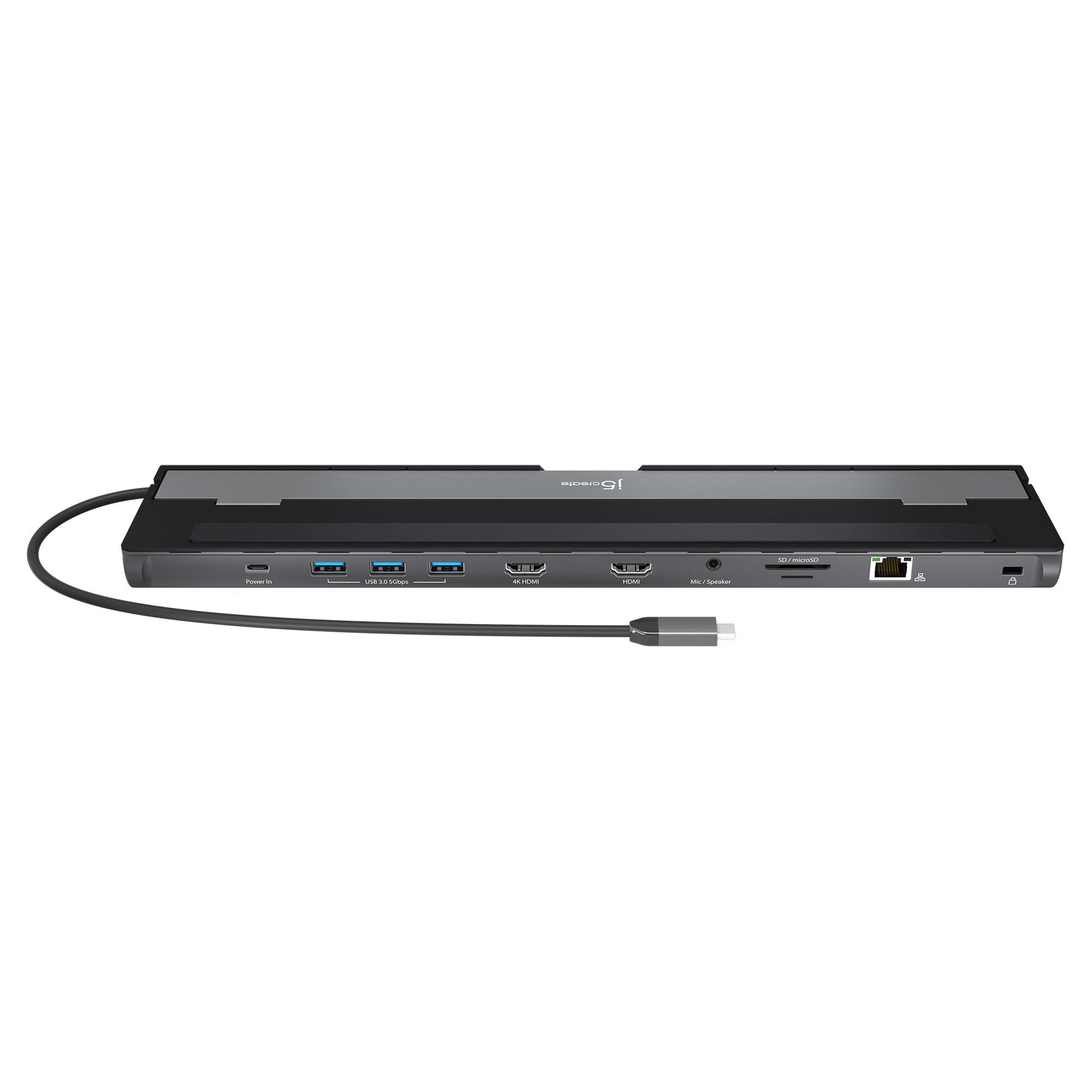

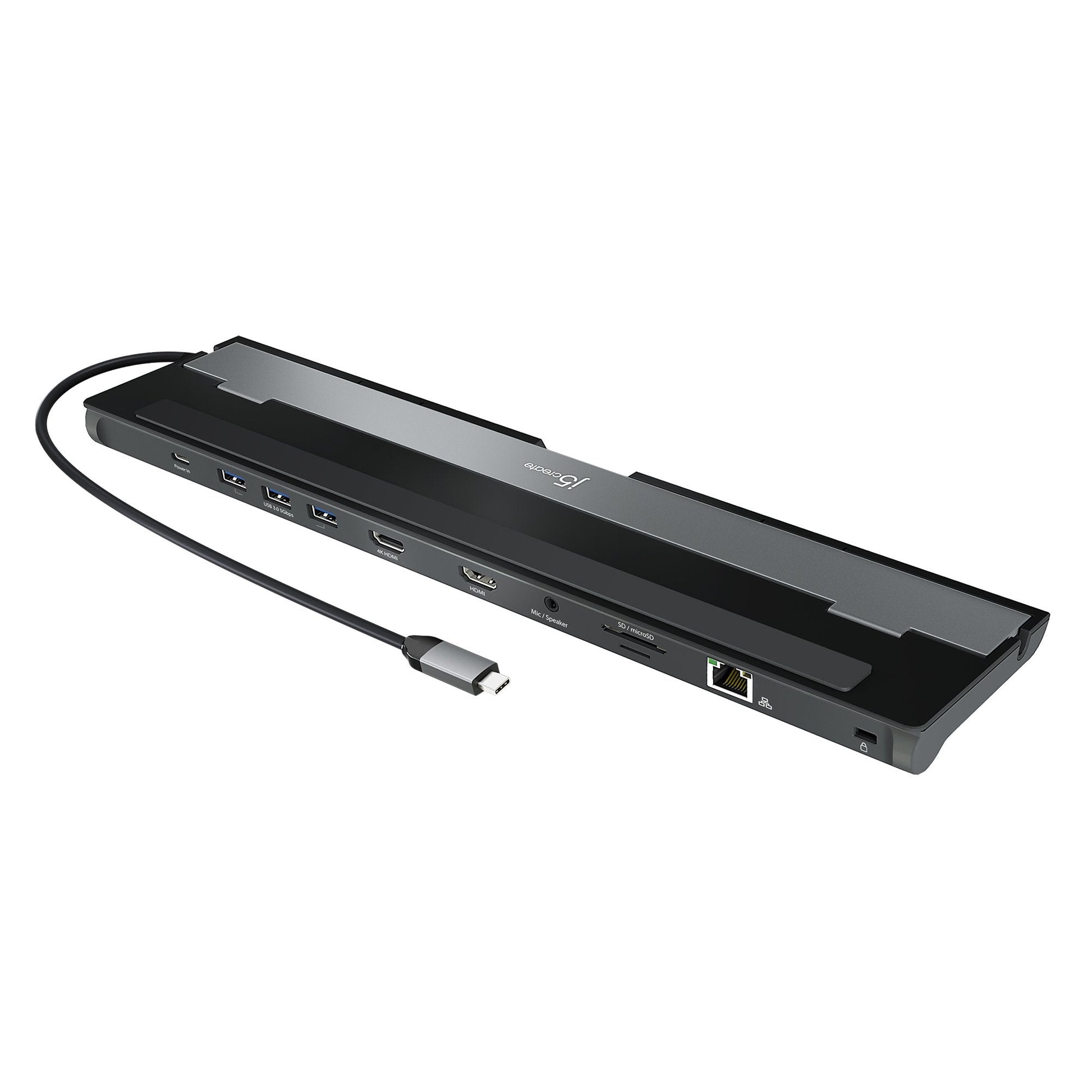

This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.

FEATURES:

• Dual displays via HDMI™ outputs
• Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter
• Connect and charge your USB™ devices with 3 x USB™ ports
• Reliable network connectivity via the Gigabit Ethernet port
• Direct access to SD™ & microSD™ memory cards for data storage and transfer
• 3.5mm audio jack to connect microphone/headphone

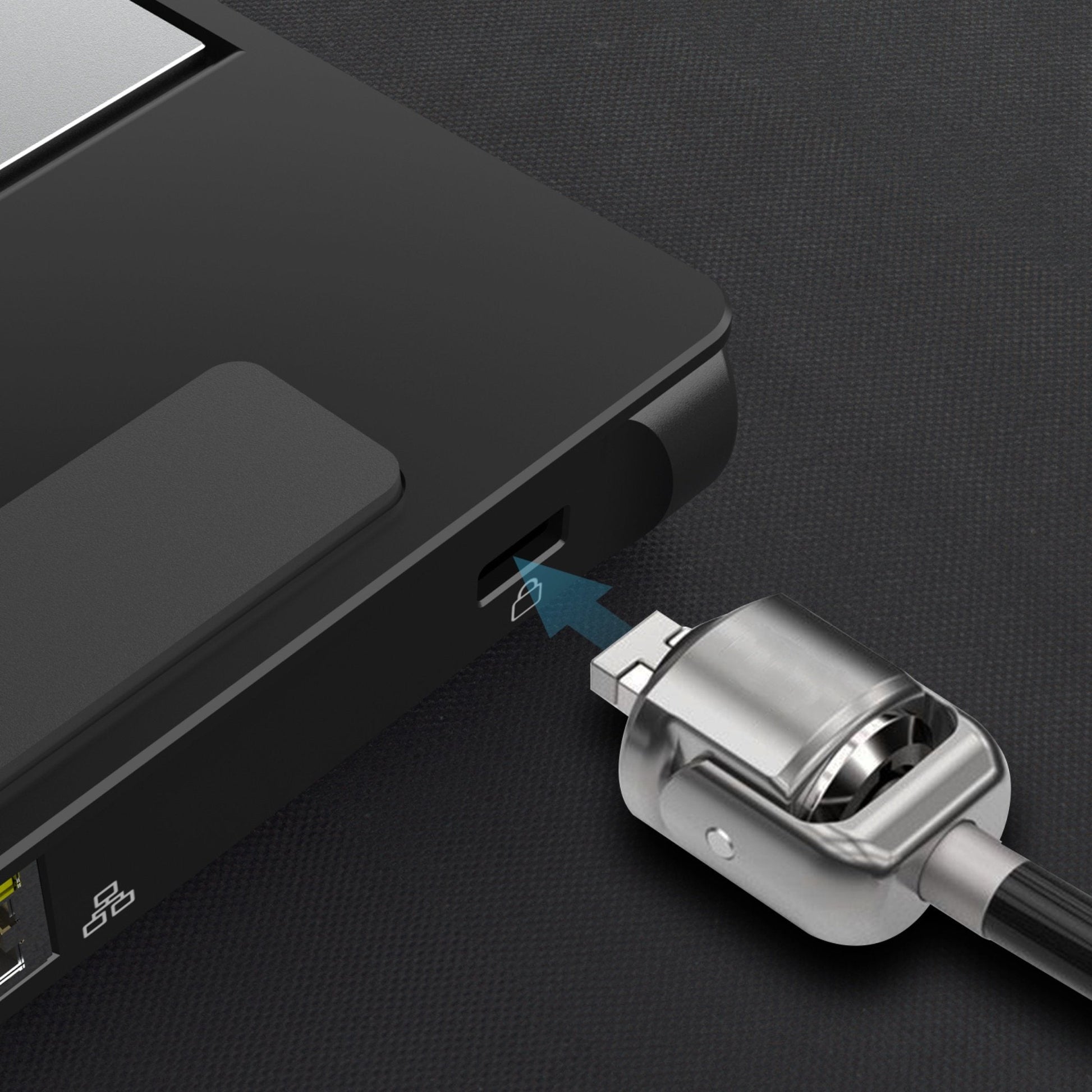

• Security lock slot for anti-theft protection

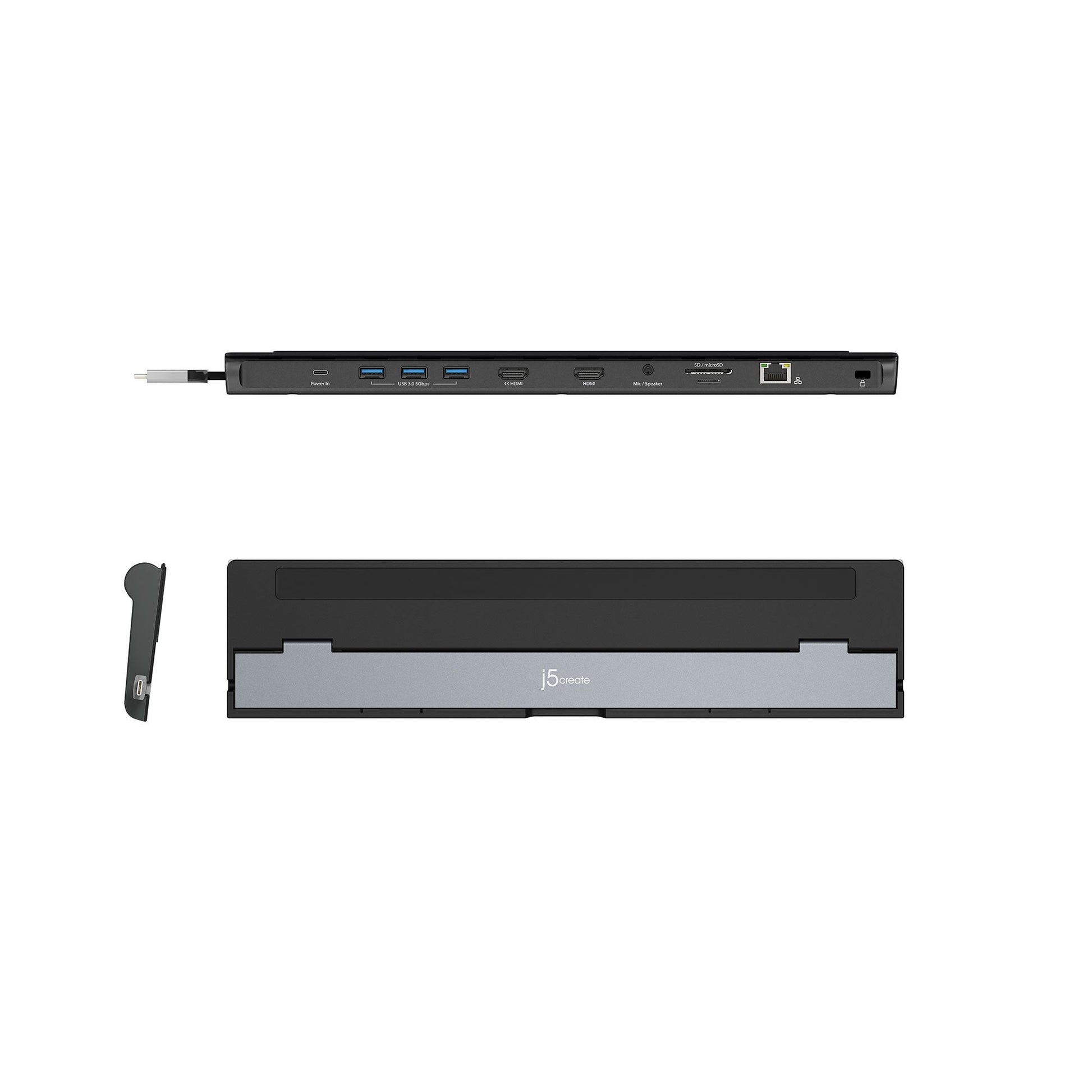

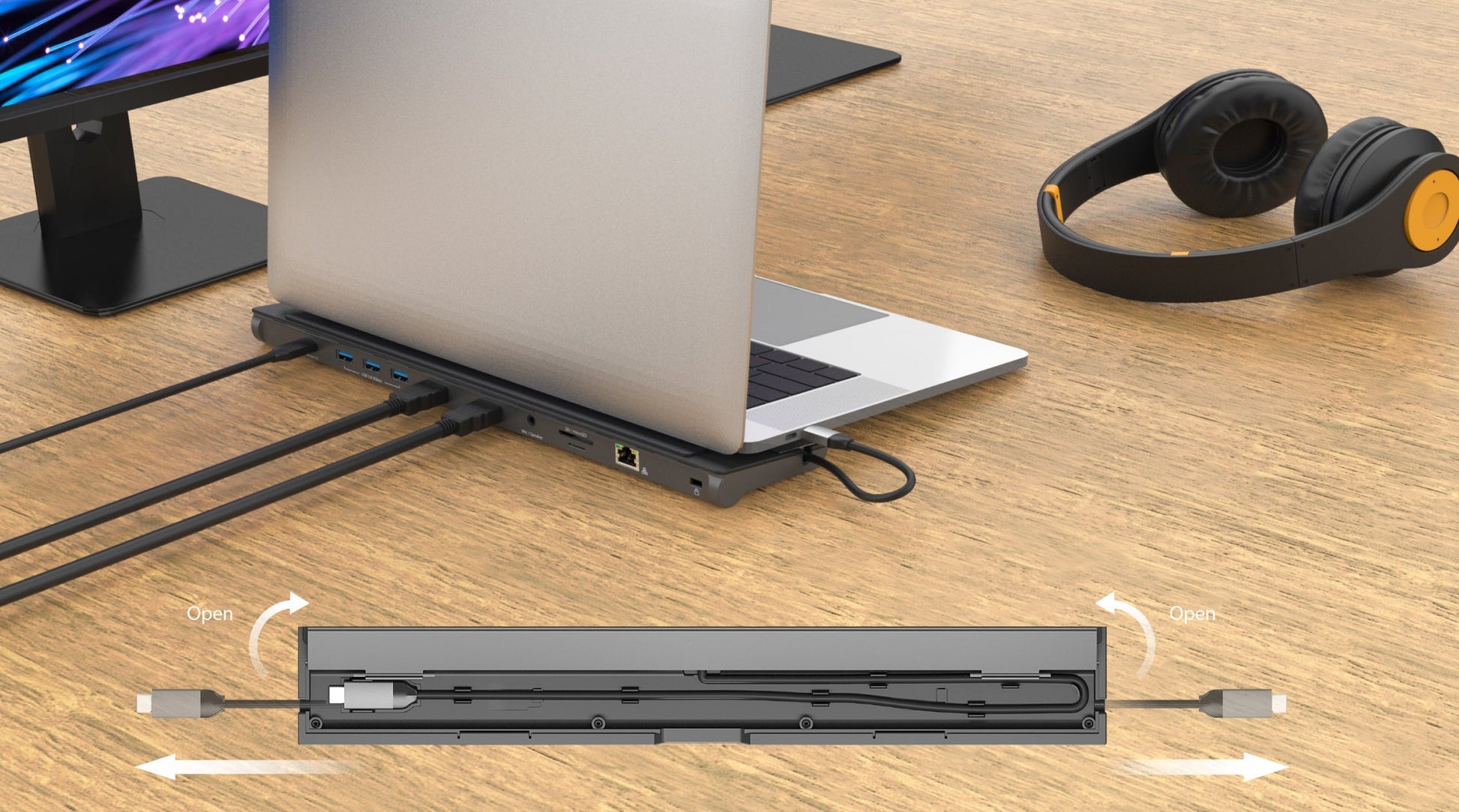

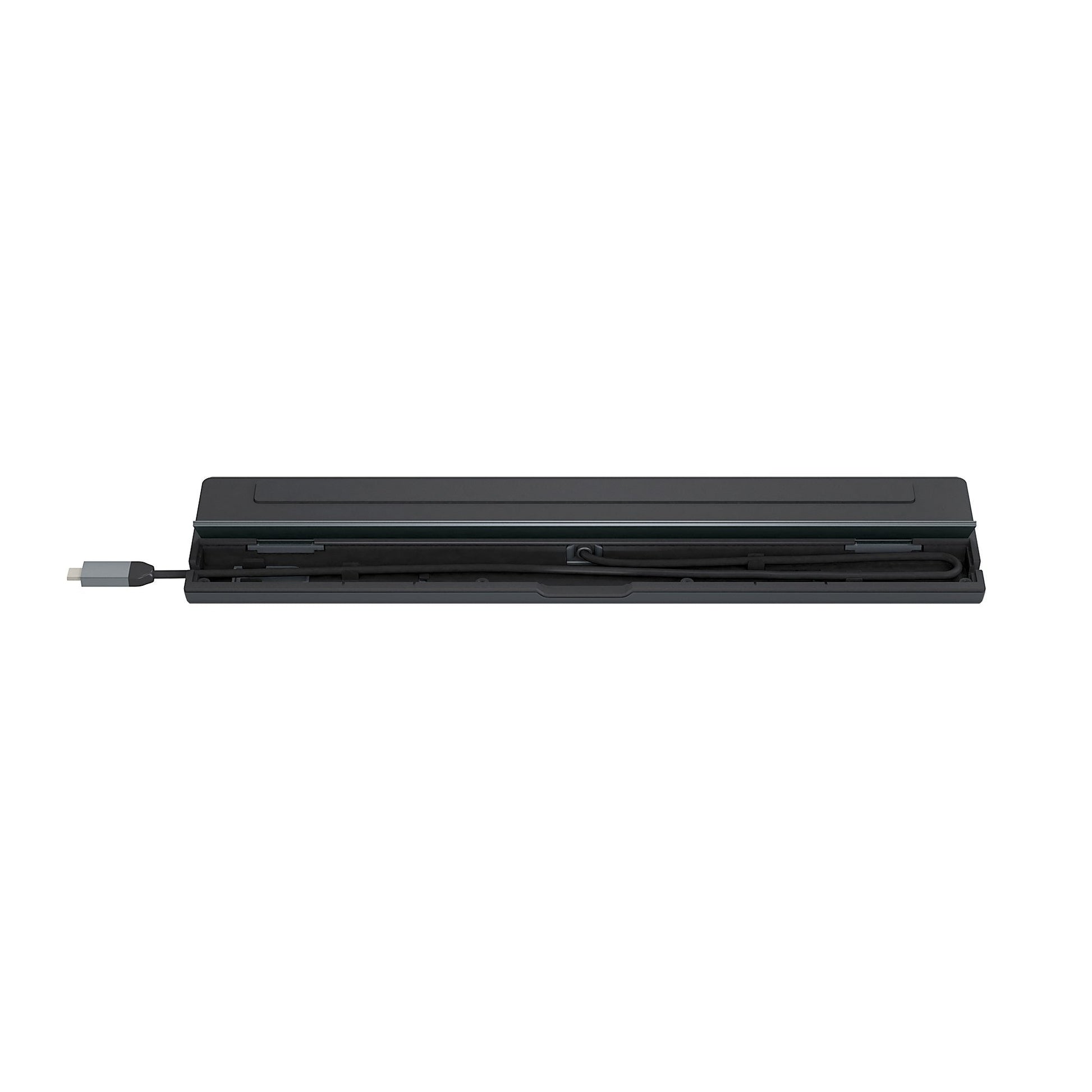

• Convenience setup with double-sided cable storage compartment
• Heat-eliminating design

System Requirements:

• Microsoft® Windows® 10 or later
• macOS® 10.14 or later
• Intel® HD Graphics 4000/ ATI™ HD 7xxx/ NVIDIA® 5XXM or higher
• Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
• Please refer to the manufacturer of your computer for more information about your device
• Extended Monitor: (More powerful processors recommended for multiple displays)
• One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
• CPU: Intel® Core™ i5 Quad Core
• RAM: 4 GB memory or higher
• Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
• CPU: Intel® Core™ i7 Quad Core
• RAM: 8 GB memory or higher

Special Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in

SPECIFICATIONS:

• Host Connector: USB-C® Male
• Video Output: 2 × HDMI™ Female
• Power Source: Bus-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes

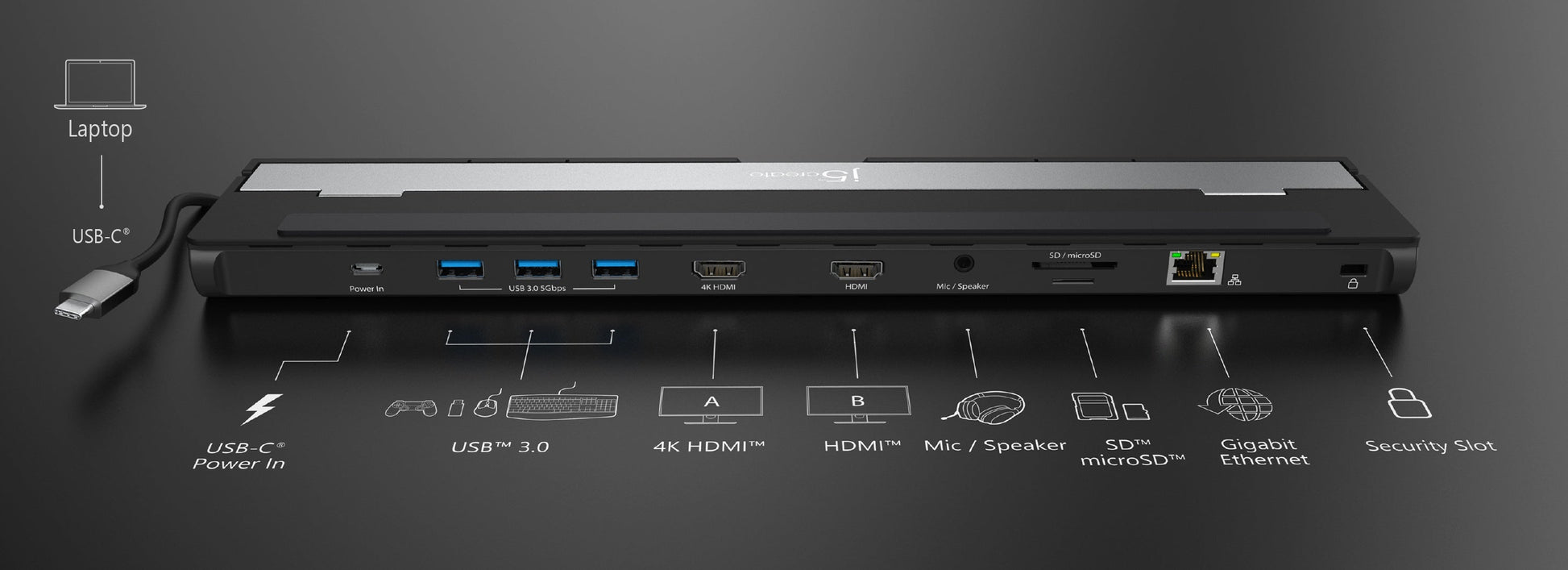

• Ports:
  • 1 × USB-C® Power Delivery 3.0
  • 3 × USB™ 3.0 Type-A
  • 1 × 4K HDMI™
  • 1 × 2K/1080p HDMI™
  • 1 × SD™ & microSD™ memory card reader/writer
  • 1 × RJ45 Gigabit Ethernet
  • 1 × 3.5 mm combo audio jack
• Maximum Display Resolution:
  • Dual Displays: 3840 × 2160 and 2048 × 1152 / 1920 × 1080
  • Single Display: 3840 × 2160
• Maximum Display Refresh Rate:
  • 4K @ 30 Hz
  • 2K @ 60 Hz
• Maximum Data Transfer Rate: 5 Gbps
• Displays Supported: 2
• Compatible Networks: 10 / 100 / 1000 Mbps
• Audio Channel: 2.1 via HDMI™ / 3.5 mm AUX
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 900 mA
• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 5A
• Output Voltage: Up to 20V
• Color: Grey & Black
• Enclosure Type: Aluminum

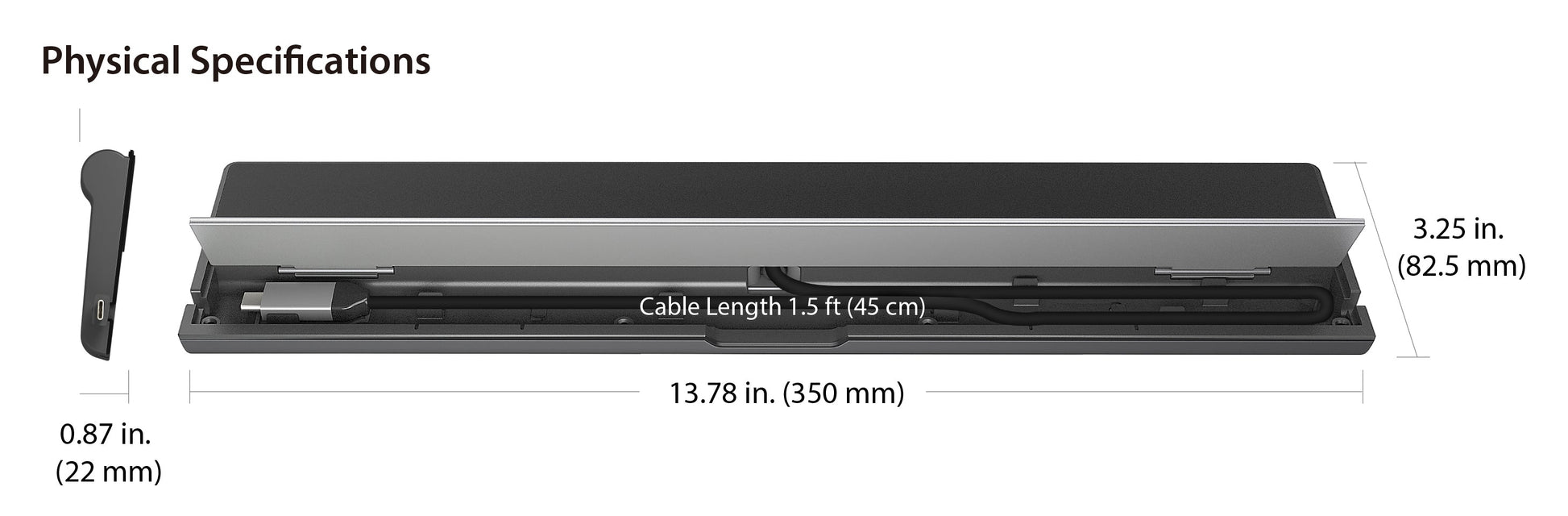

• Cable Length: 1.48 ft (45 cm)
• Product Height: 0.87 in. (21.98 mm)
• Product Width: 3.25 in. (82.46 mm)
• Product Depth: 13.79 in. (350.18 mm)
• Product Weight: 10.79 oz (306 g)
• Storage Temperature: 14 to 149°F (-10 to 65°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 32 to 118°F (0 to 48°C)
• Operating Humidity: < 85% non-condensing

WHAT'S IN THE BOX:

• JCD542 USB-C® Dual HDMI™ Docking Station x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
