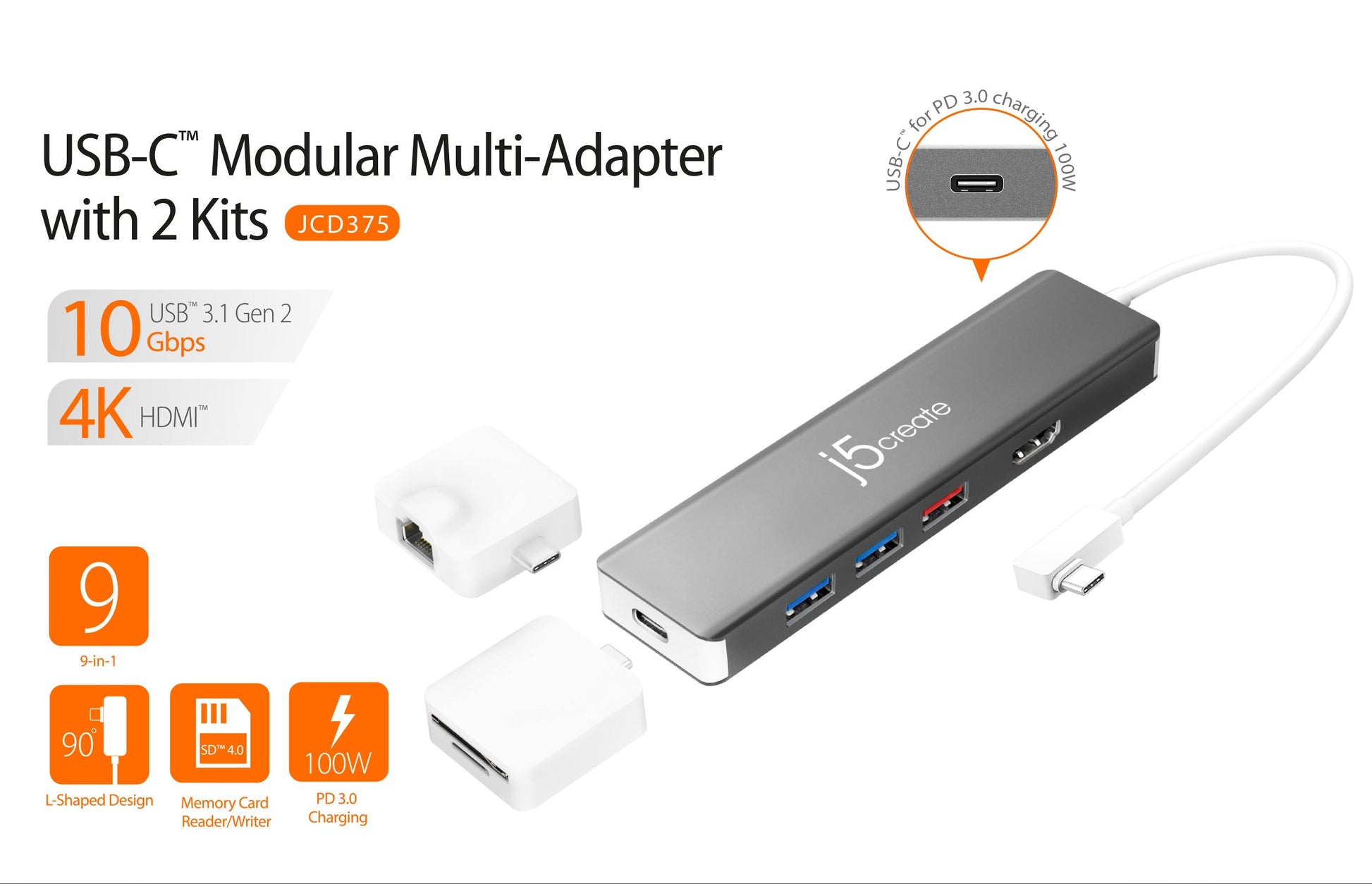

J5create USB-C Modular Multi-Adapter with 2 Kits - JCD375

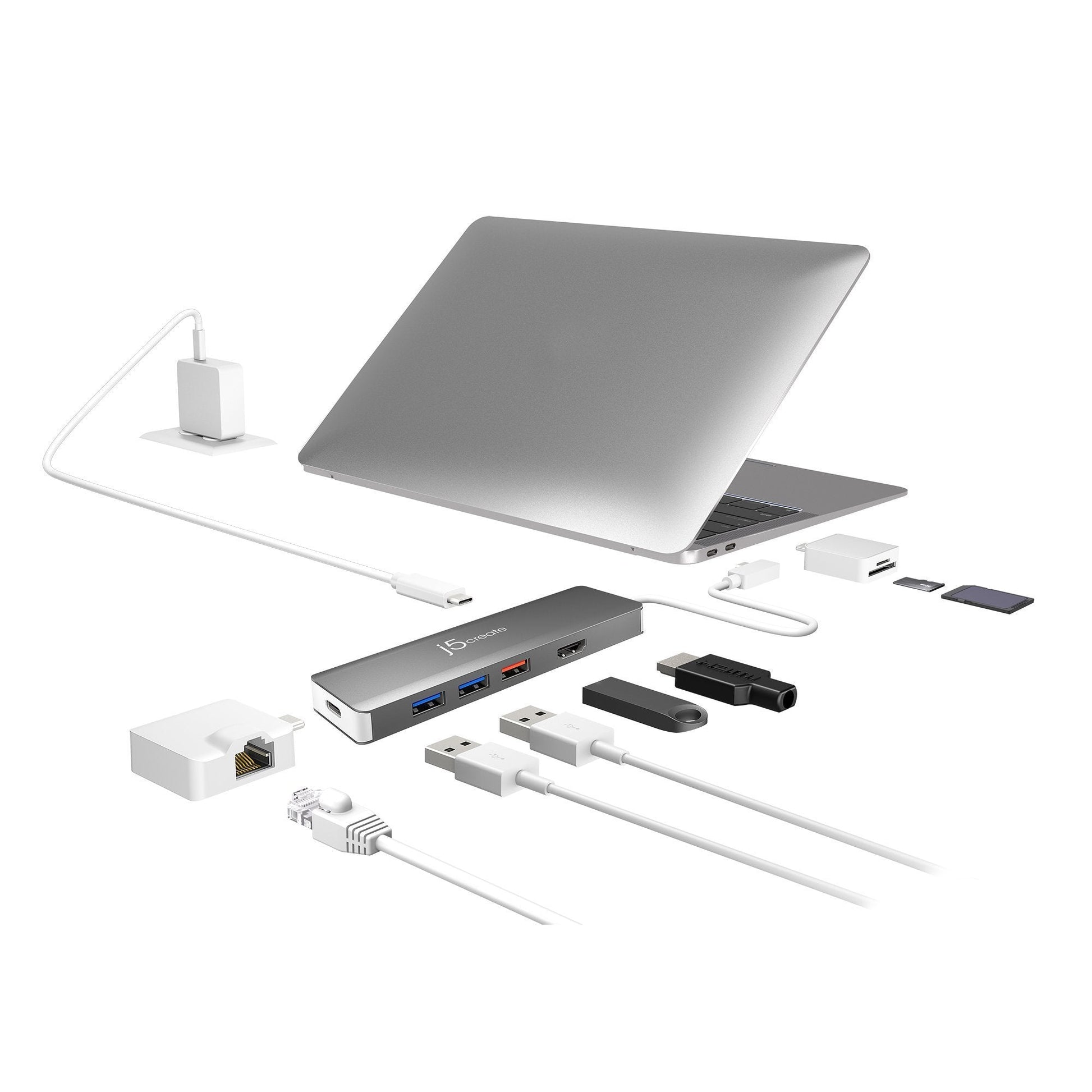

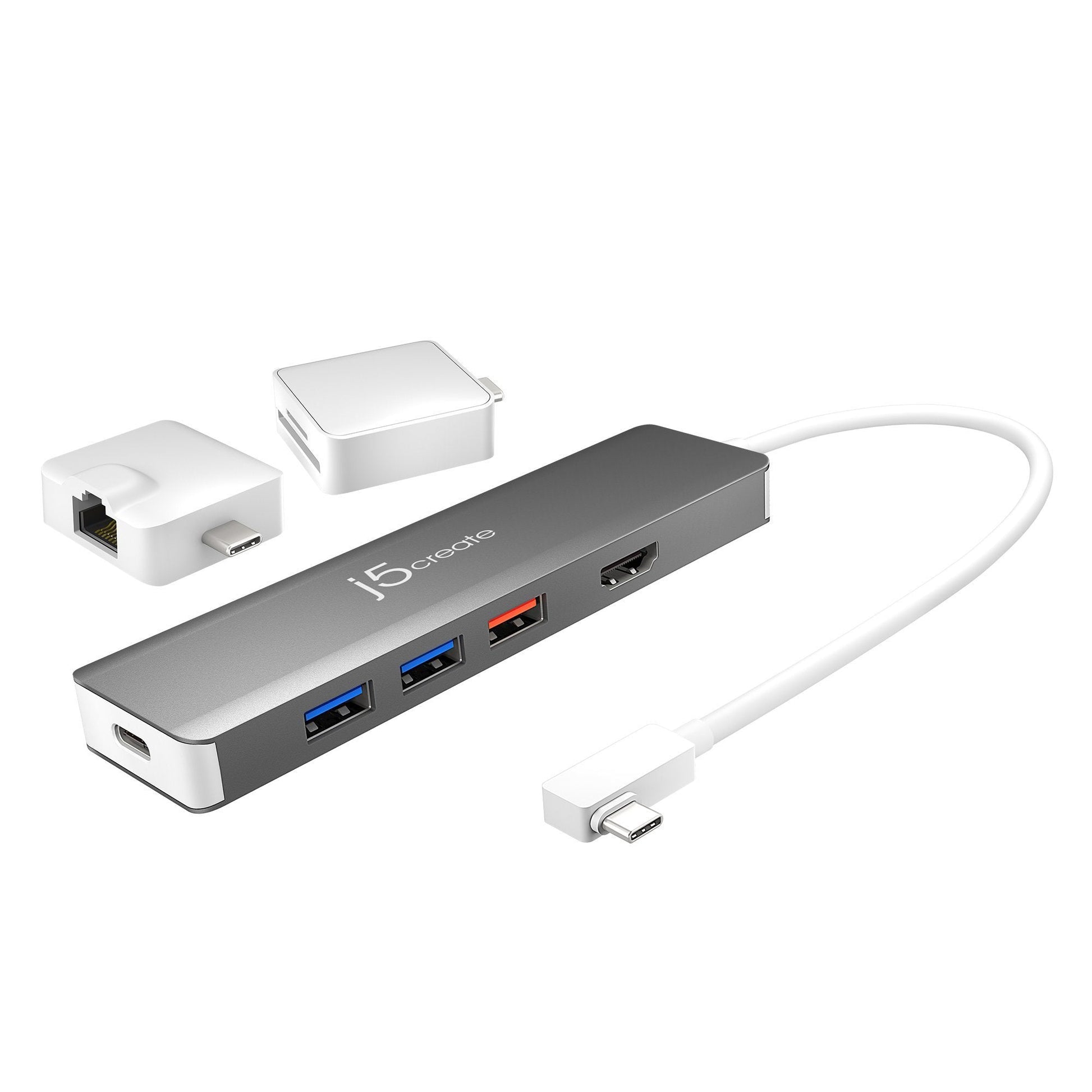

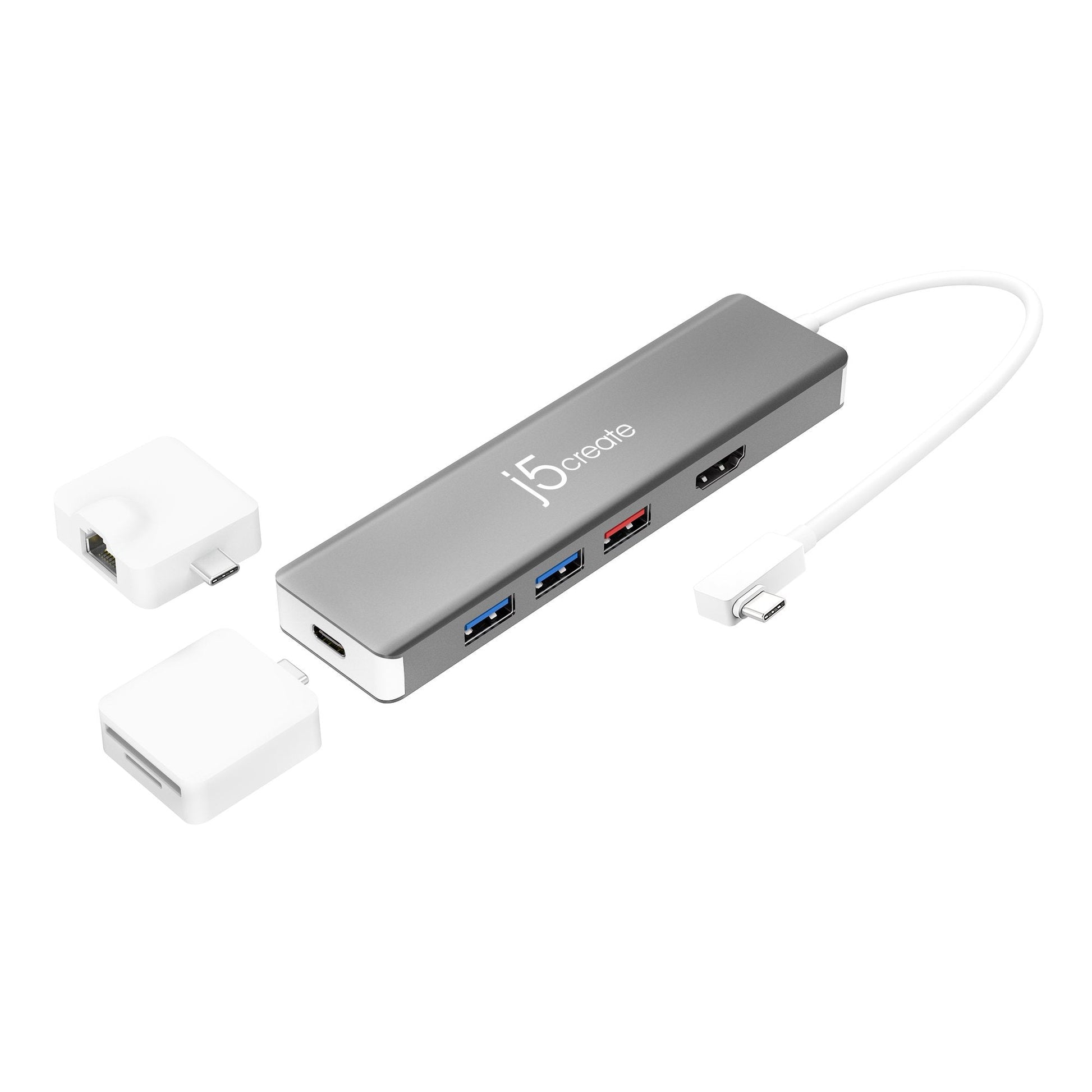

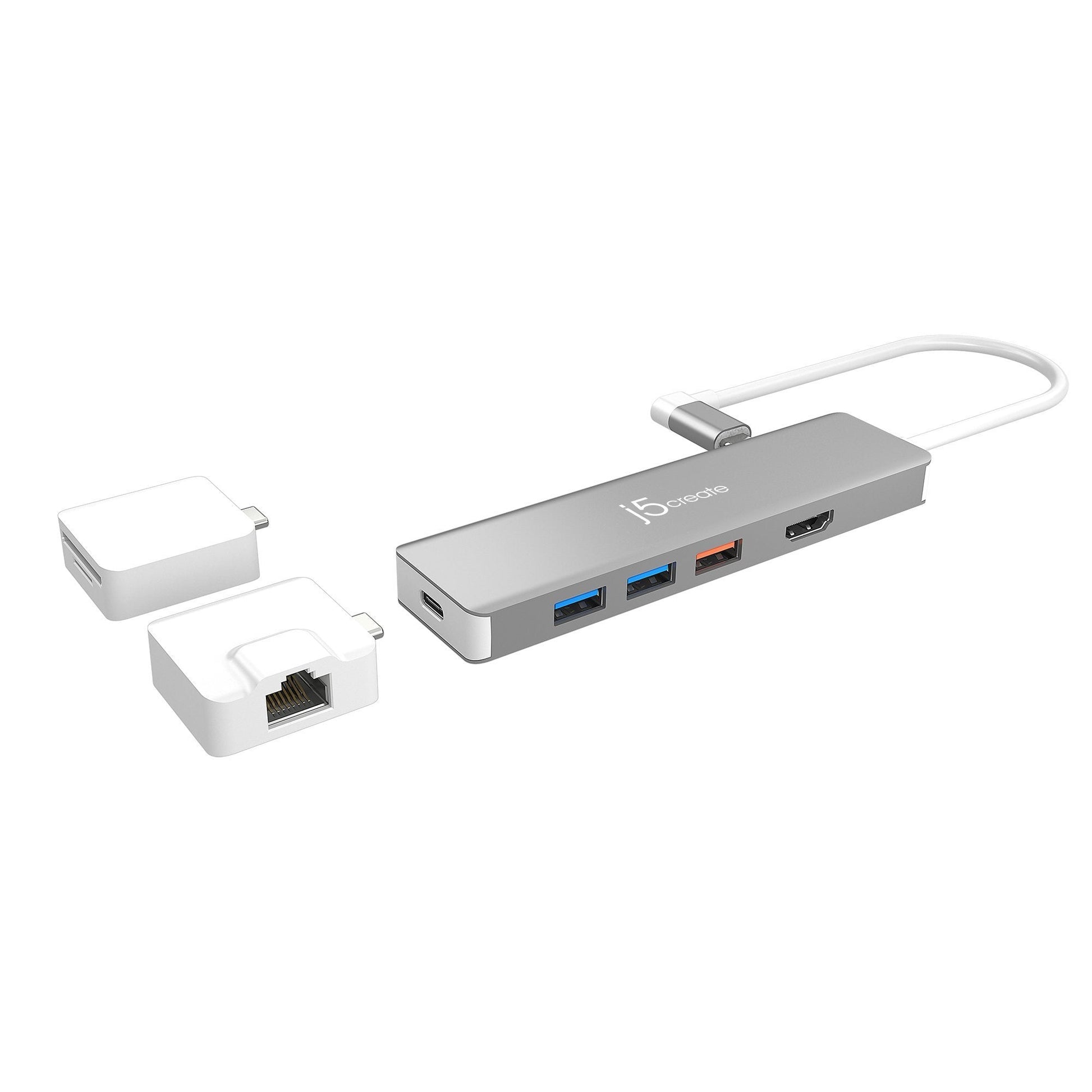

The JCD375 USB-C^™ Modular Mini Dock 9-in-1 provides extra connectivity for your USB-C^™ computer; featuring video, data storage and charging all in one. It includes 2 small detachable adapters (modular kits) to add extra ports and features to your laptop.

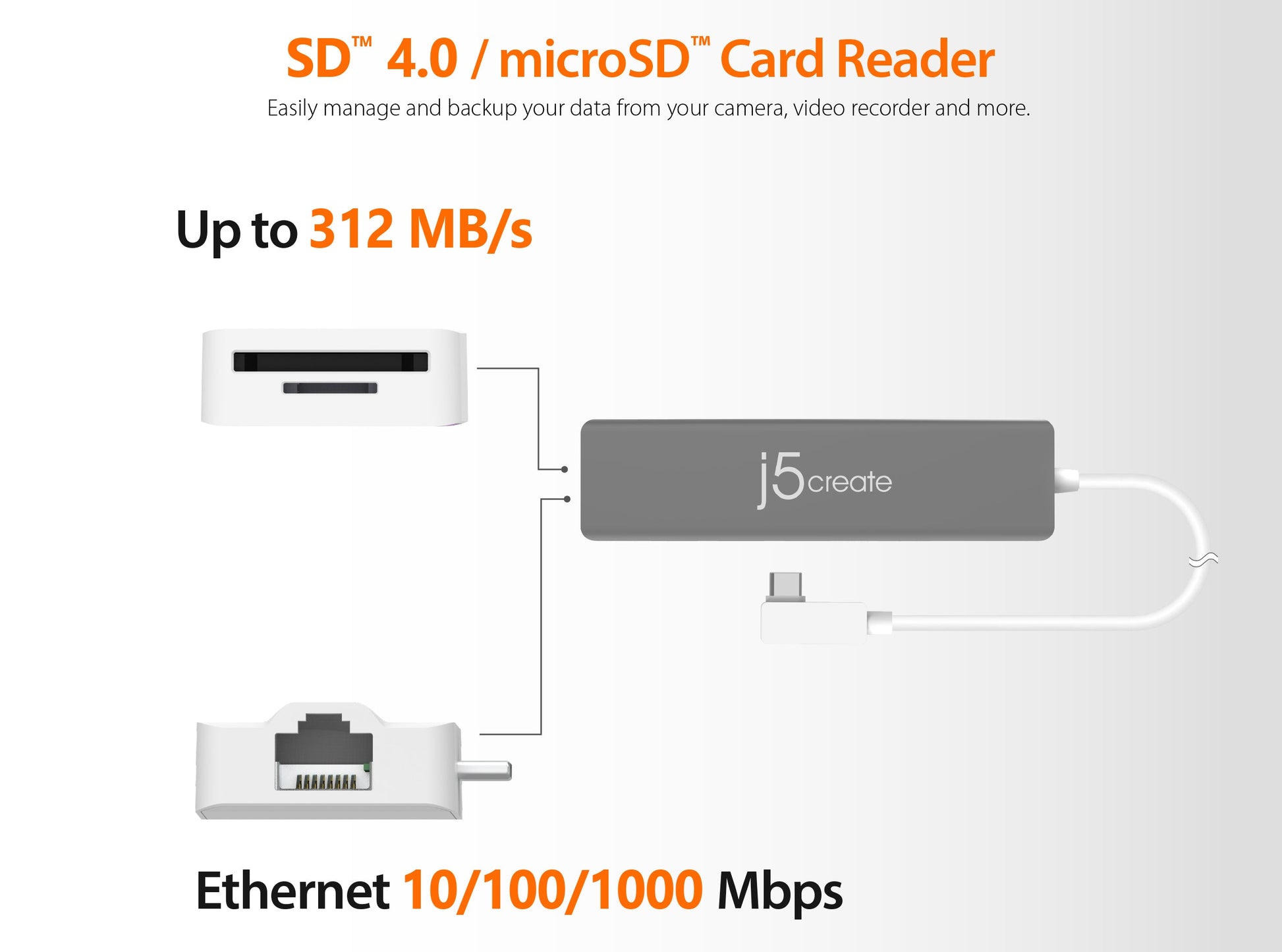

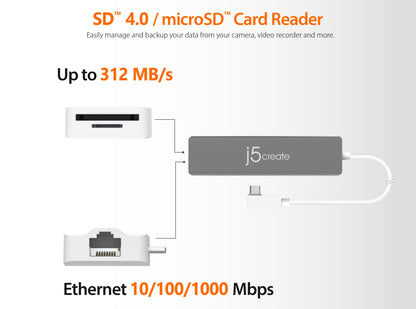

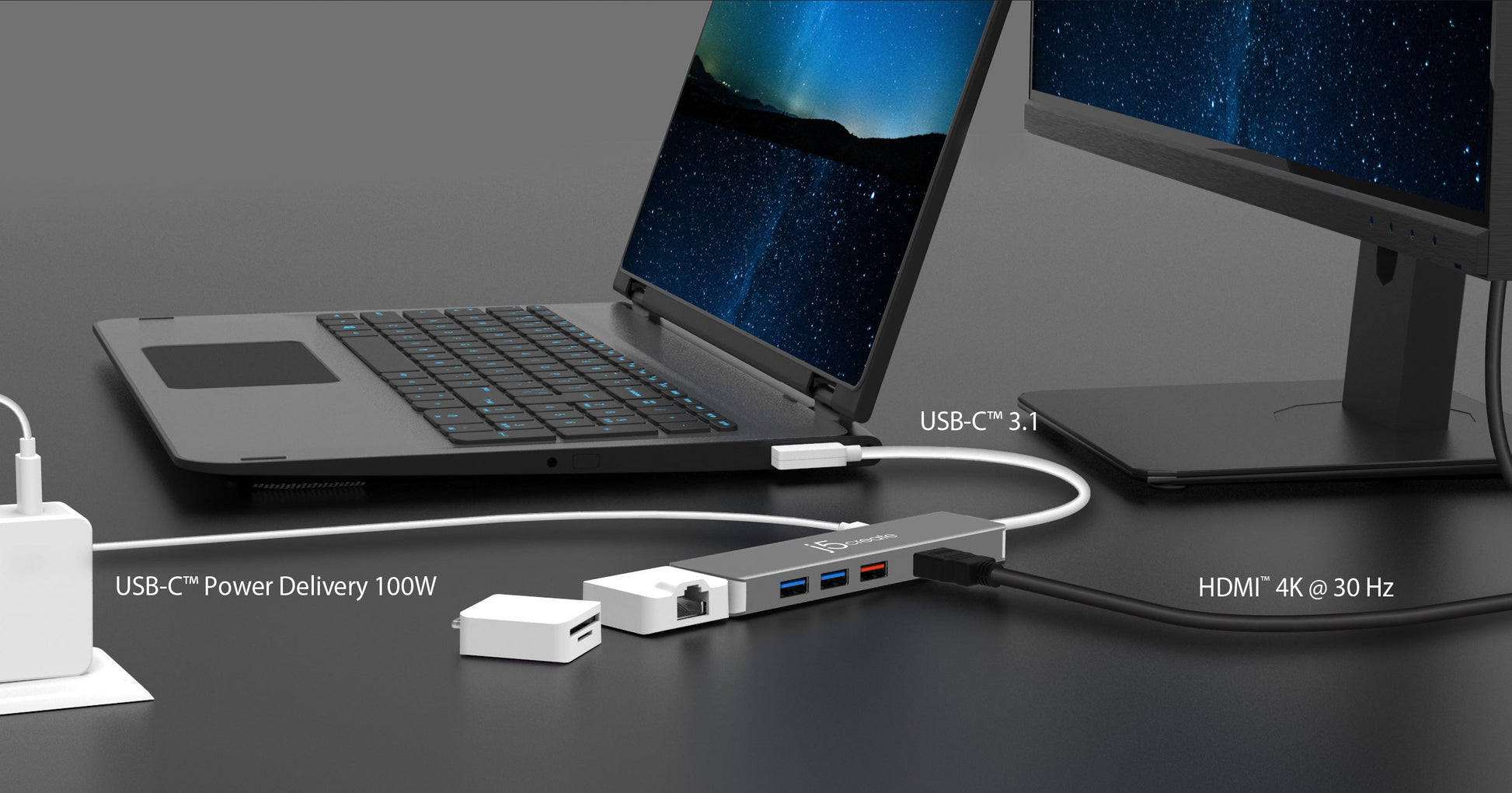

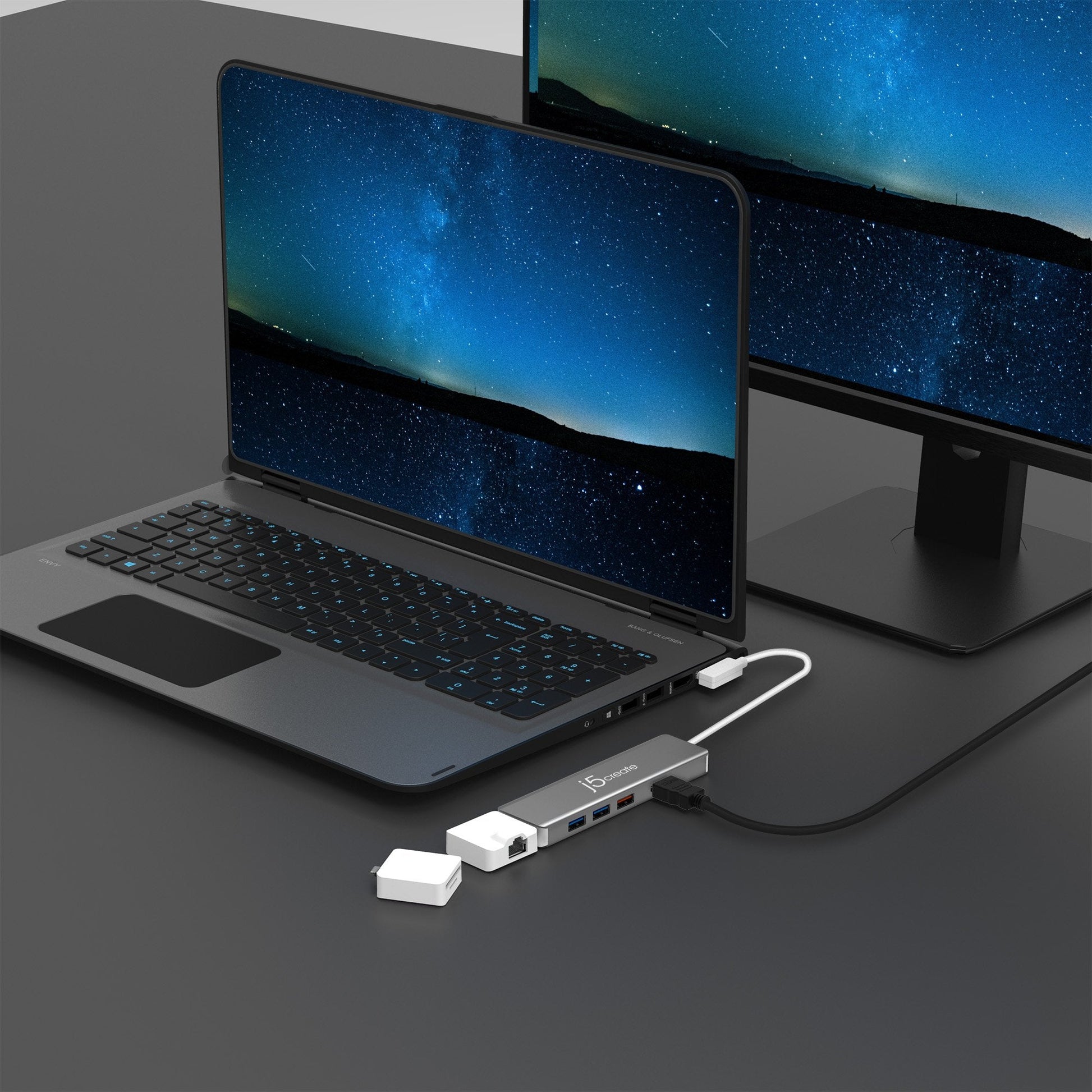

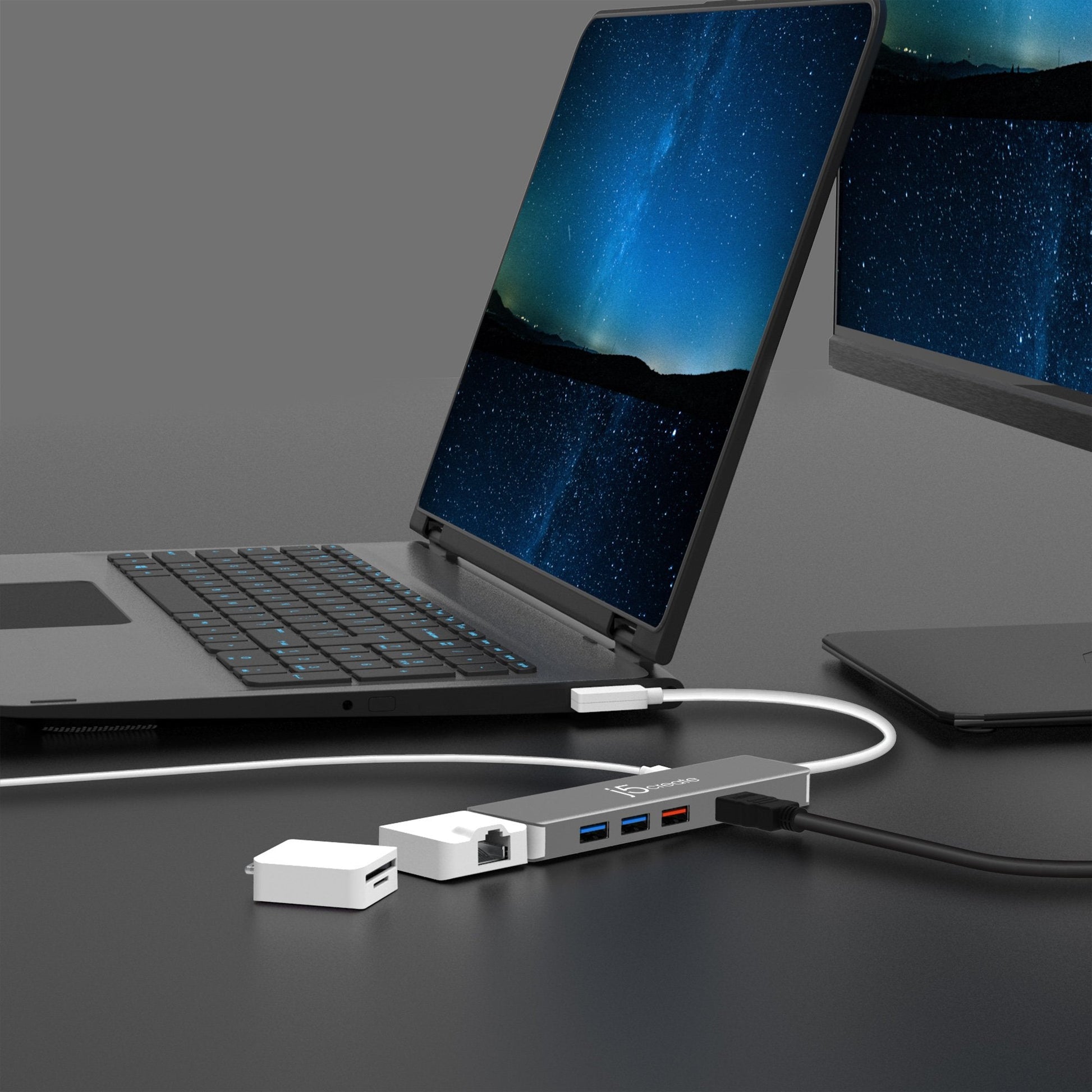

This pocket-sized multi-adapter allows you to add an additional USB^™ 10G computer peripheral and HDMI^™ monitor through your computer’s USB-C^™ port. It also provides two modular kits that add a gigabit Ethernet port and/or an SD^™ 4.0 card reader. Each kit can work separately as a complete mini adapter or be connected to the main body for use together.

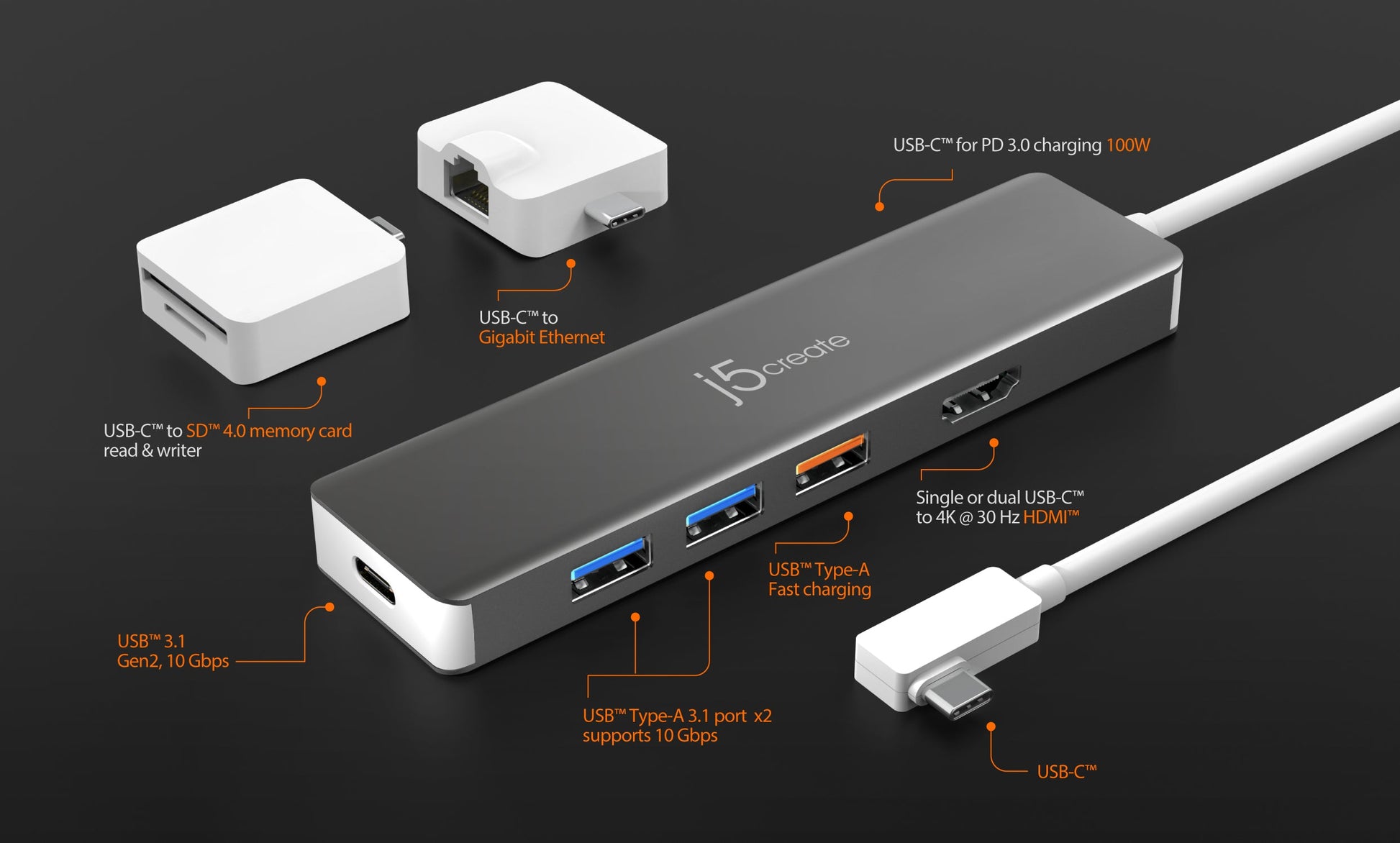

FEATURES:

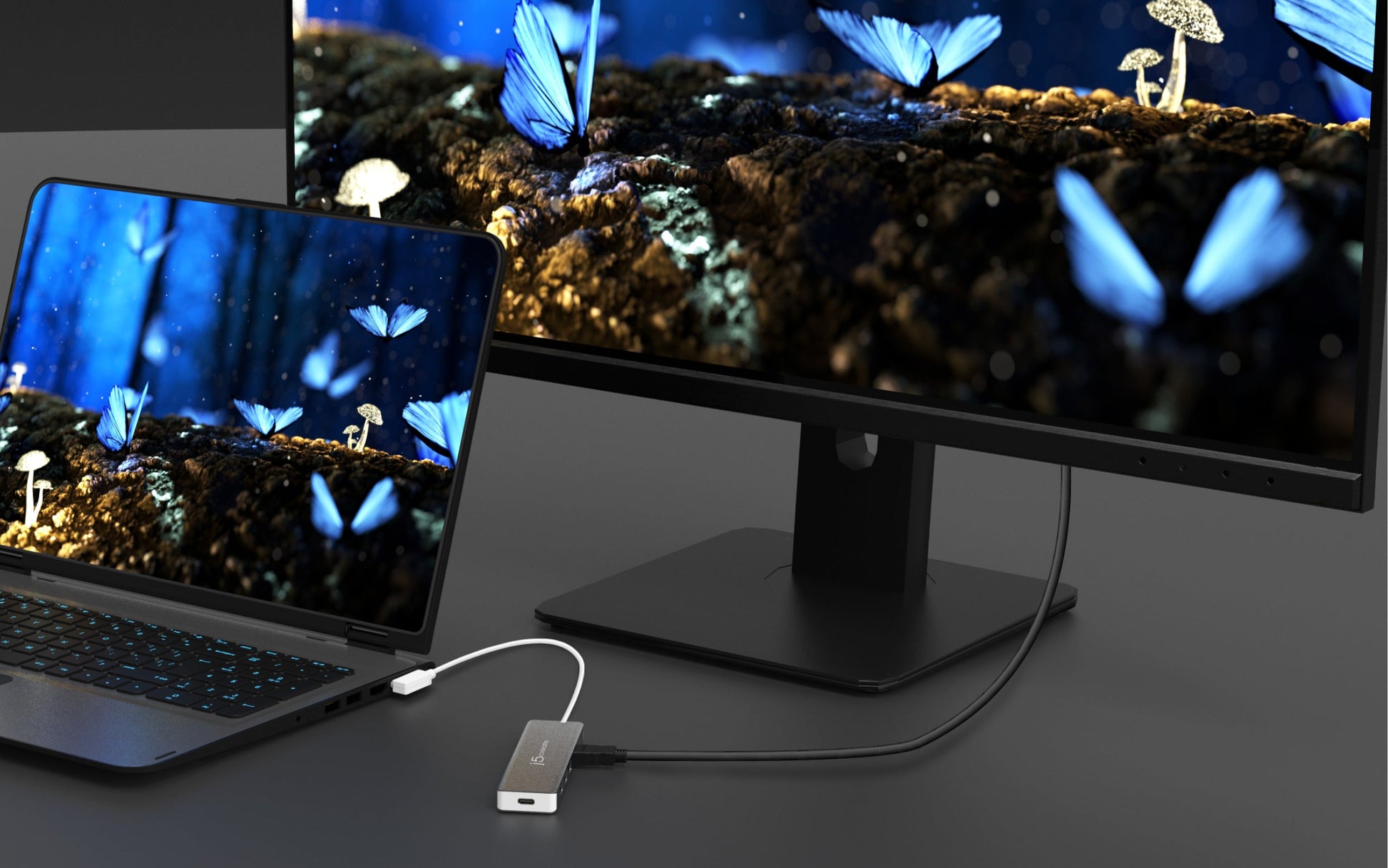

• 1 x HDMI^™ with resolutions up to 4K @ 30 Hz

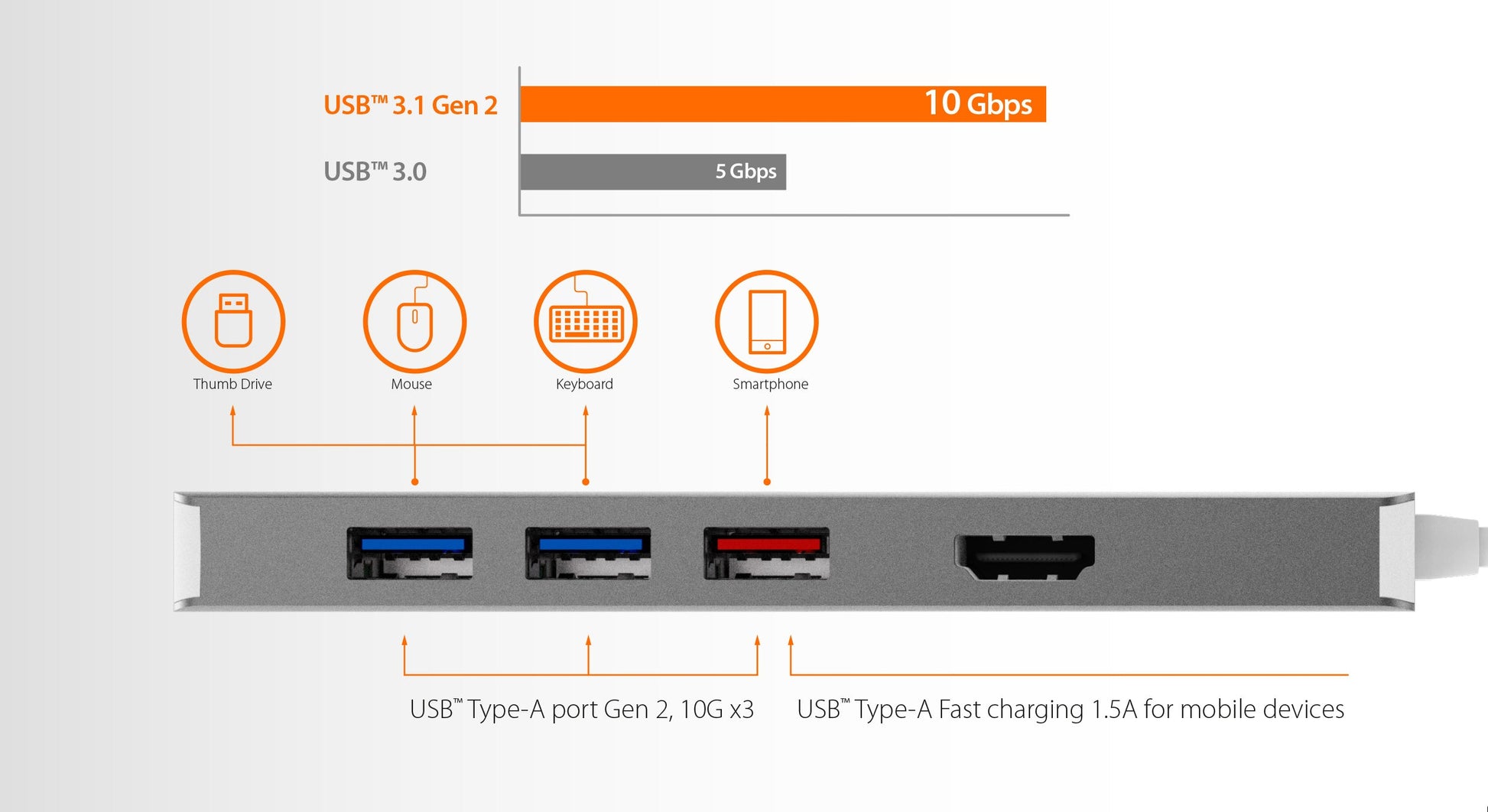

•  3 x USB^™ Type-A 3.1 Gen 2 ports support 10 Gbps of data transfer
• 1 x USB-C^™ 3.1 Gen 2 port supports 10 Gbps

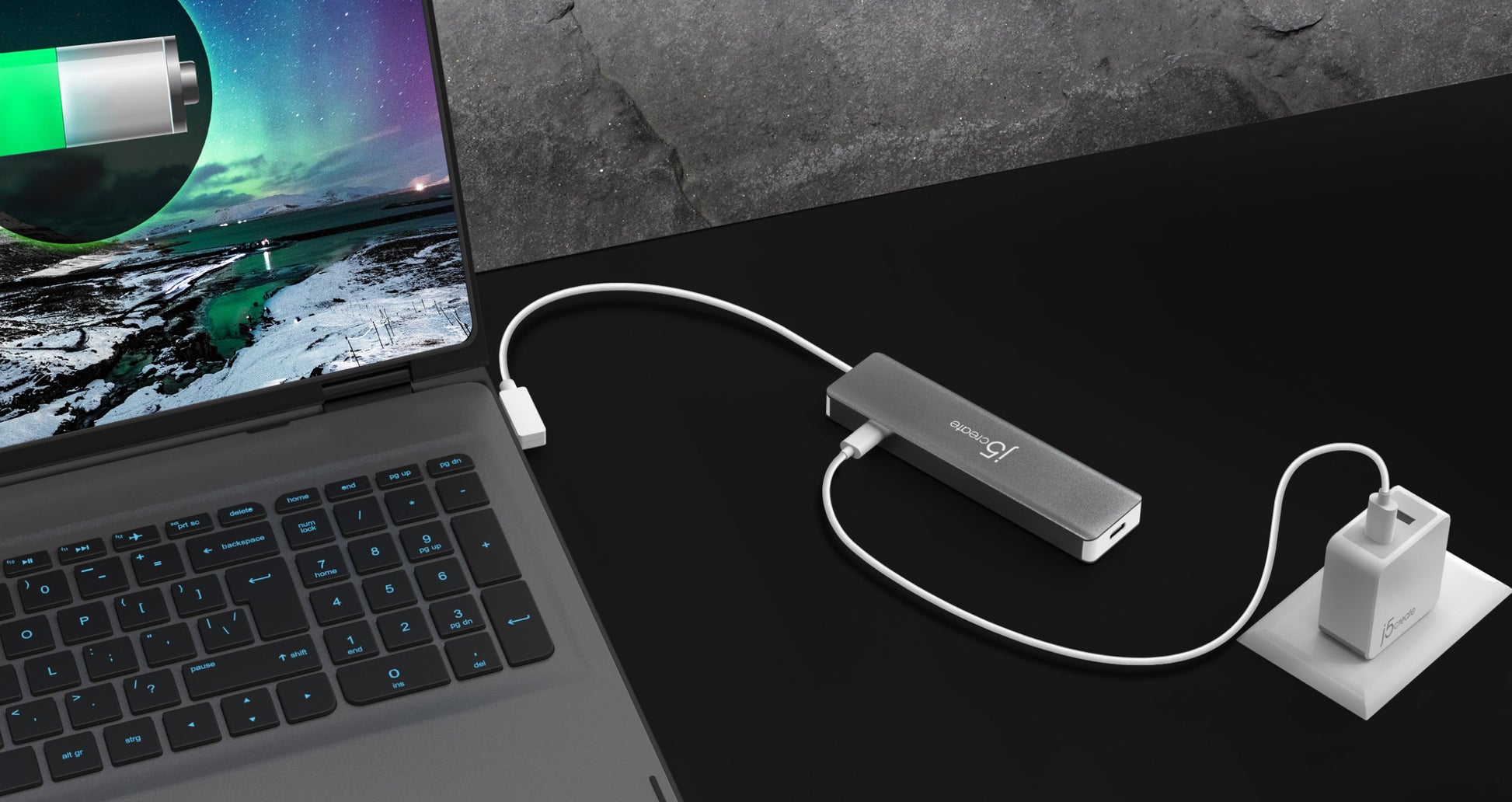

• 1 x USB-C^™ with power delivery charging up to 100W
• 1 x Gigabit Ethernet
• 1 x microSD™ & SD™ card reader 4.0 UHS-II 312 MB/s

• USB 3.1 Gen 2, 10 Gbps and SD 4.0 UHS-II 312 MB/s

• Supports fast charging for iPhone^®, Samsung^® phones, and other USB^™ devices.

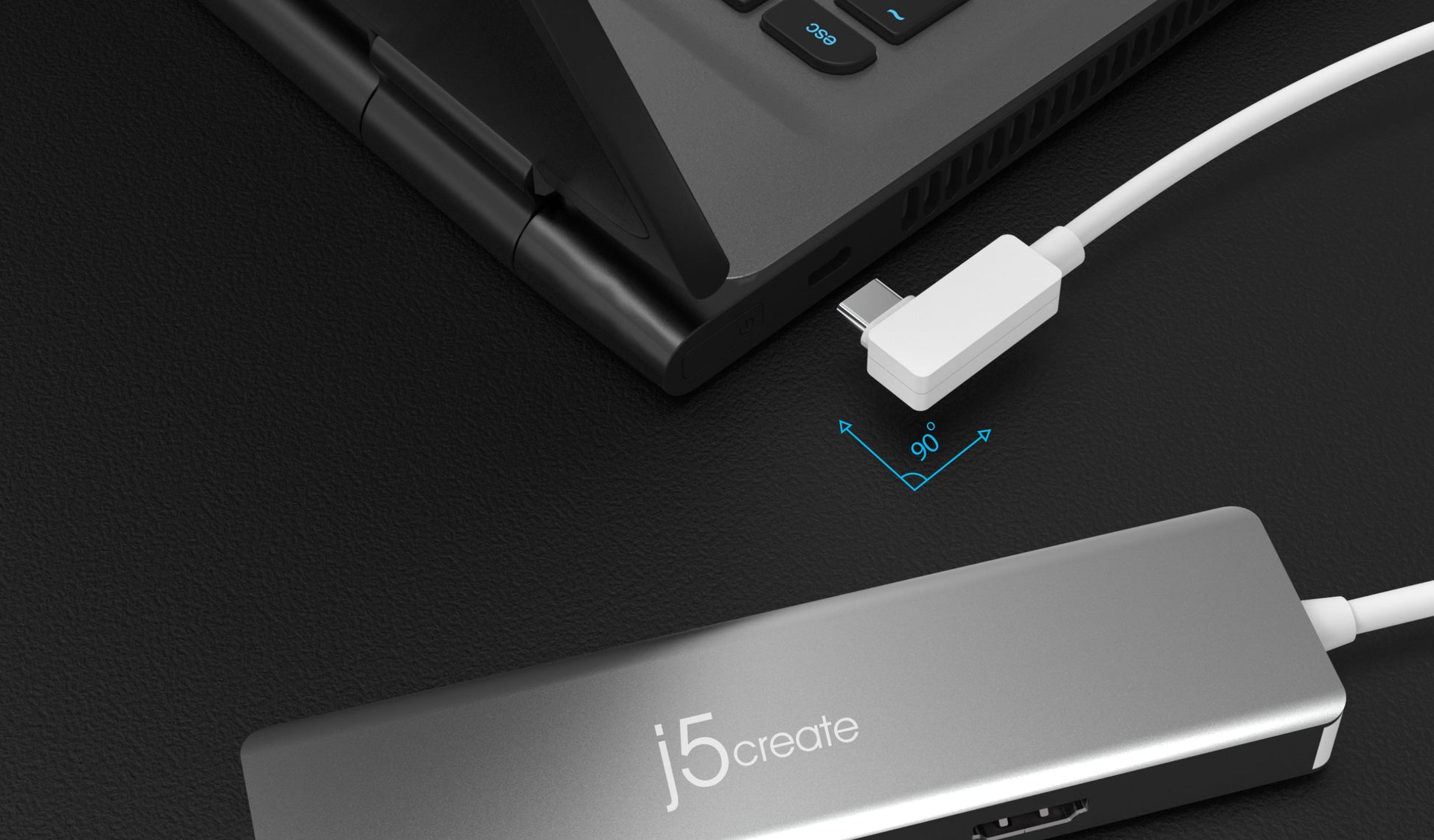

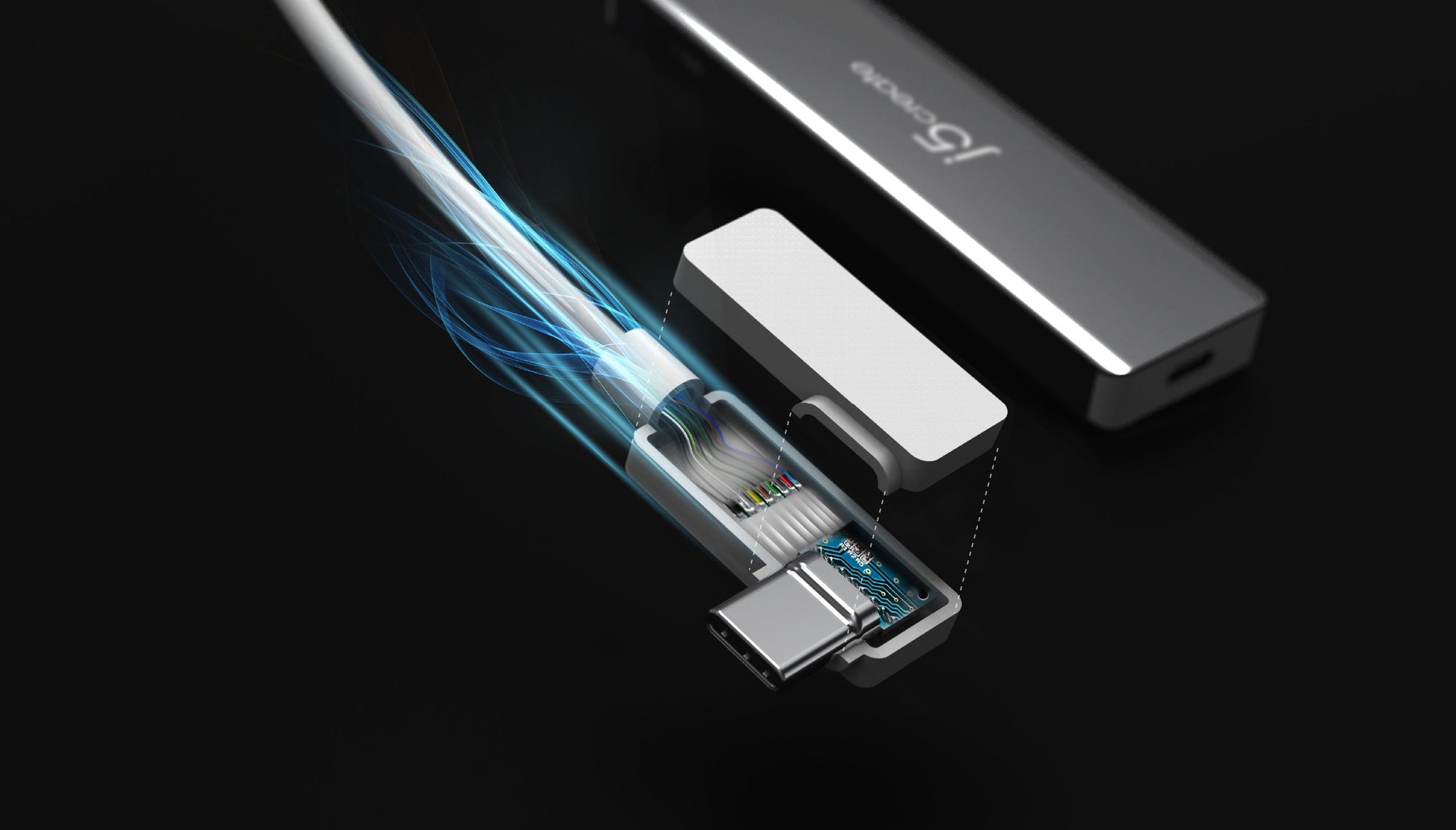

• Innovative 90-degree L-shaped design, it's more comfortable, sturdier and less hassle to connect to the side of your laptop or tablet.

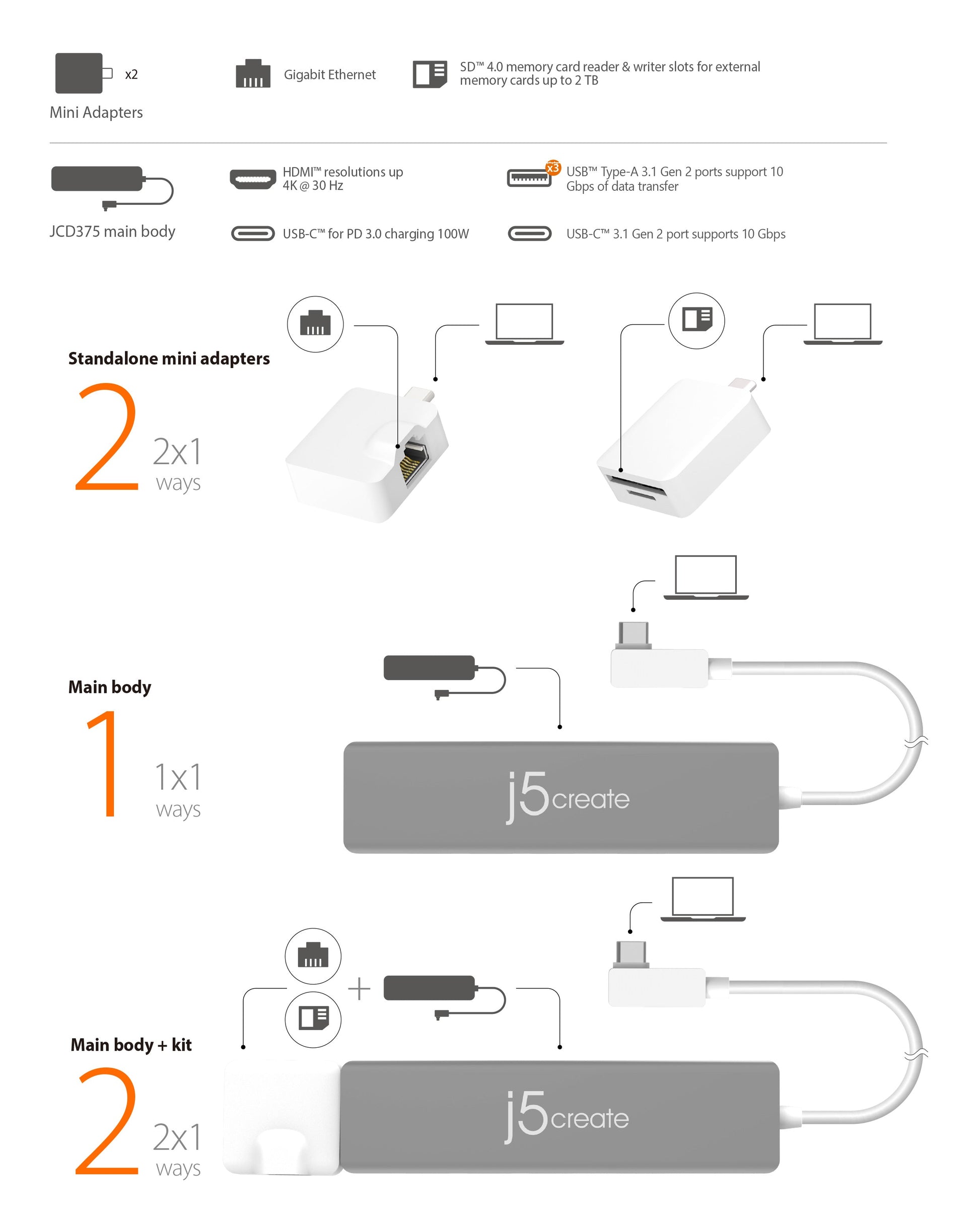

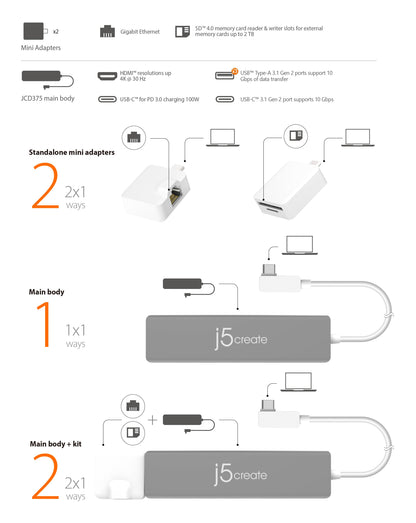

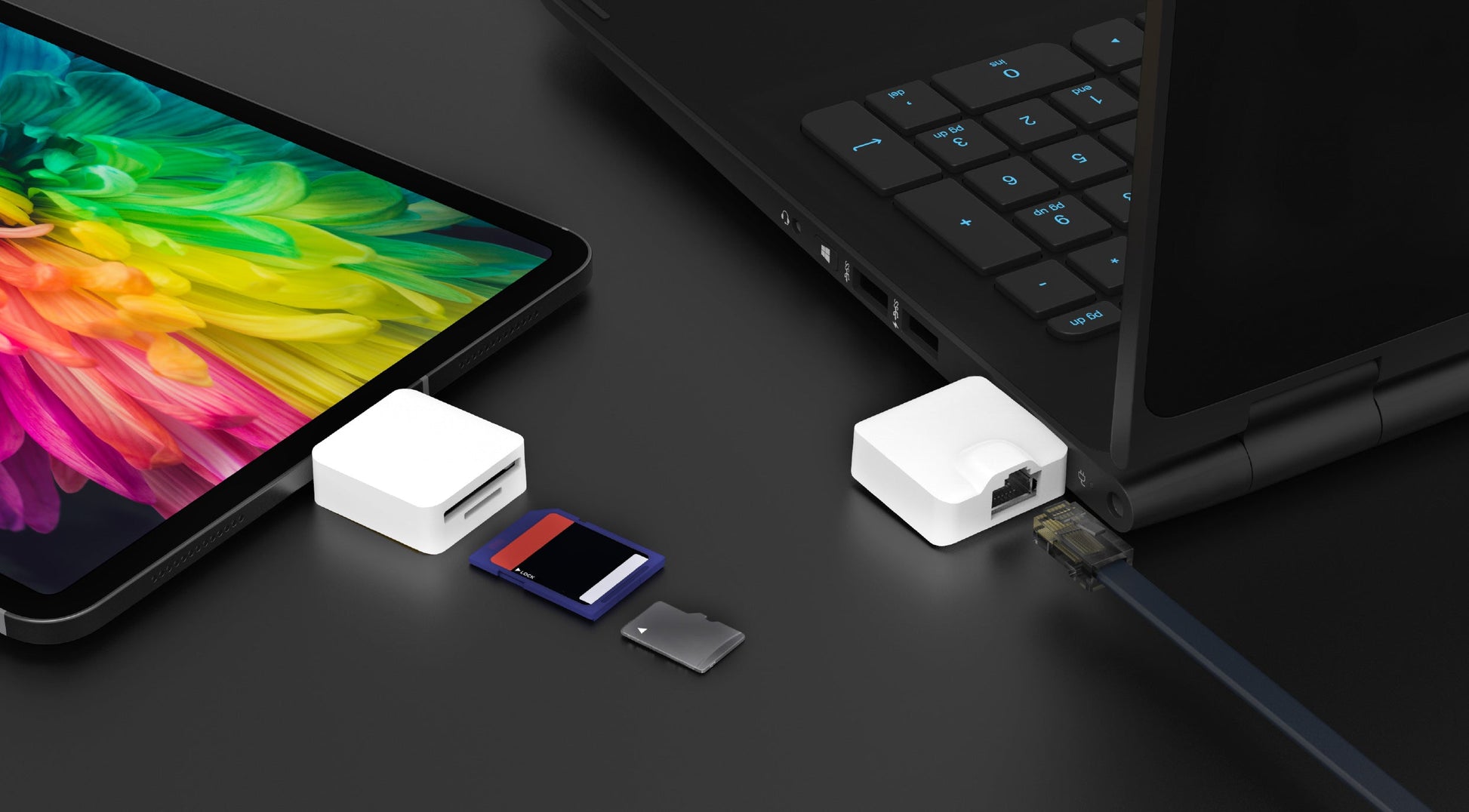

• Each module can be used individually or as an extension kit to the main body of the dock.
• Available DisplayPort^™ Alt Mode over USB-C^™ port
• Available USB-C^™ DisplayPort^™ Alt mode
• Available USB^™ power delivery over USB-C^™ to support upstream charging
• If you are using a high-powered USB^™, attach the USB-C^™ power supply to the power delivery port to ensure maximum performance

SPECIFICATIONS:

• Host Connector: USB-C™ 3.1 male
• Video Output: HDMI™ female
• Network Interface: RJ45 (Gigabit Ethernet)
• Card Reader: SD™ / microSD™
• Audio Supported: Yes
• Power Source: Bus-Powered & Self-Powered

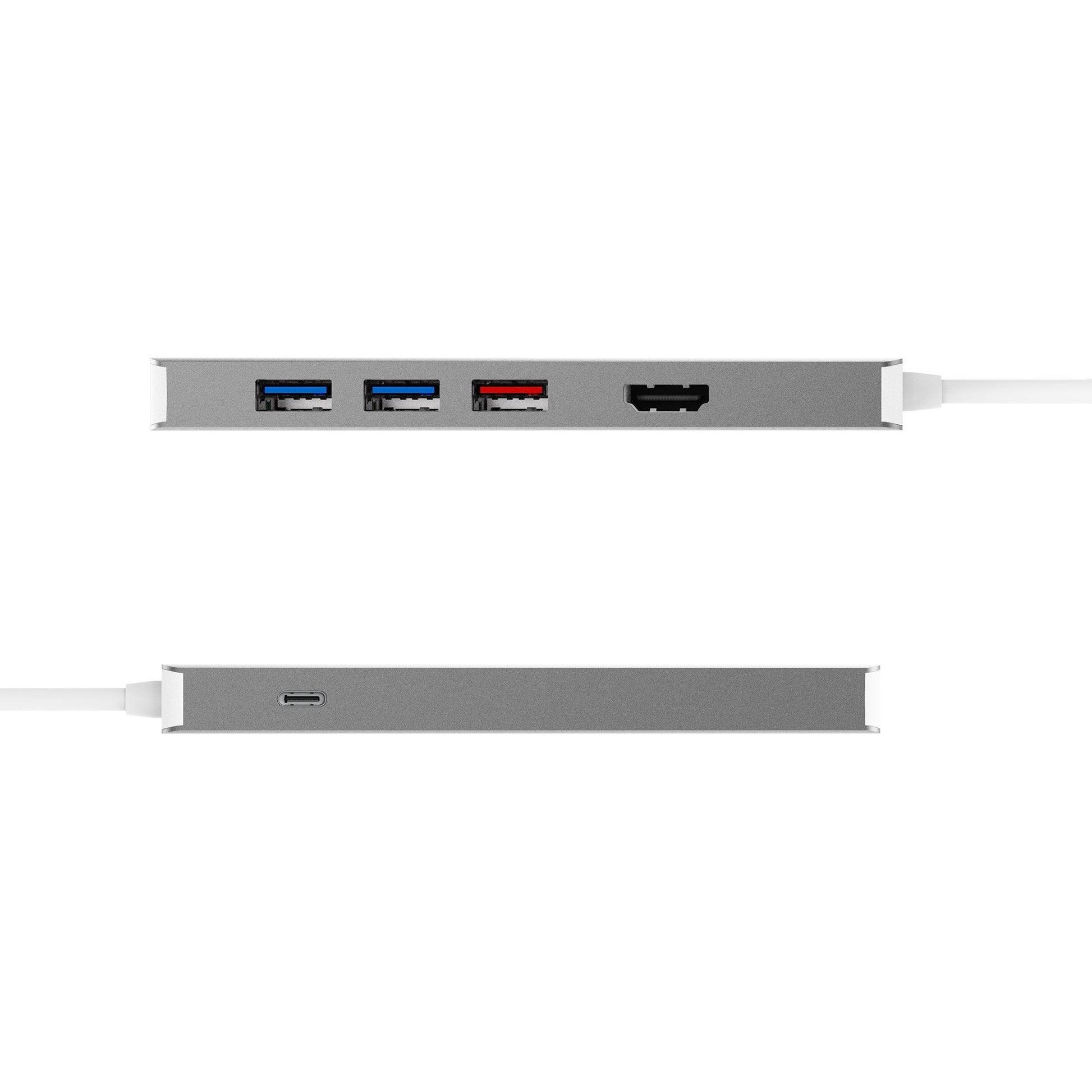

• Ports:
  • USB™ Type-A × 3
  • USB-C™ (PD) × 1
  • USB-C™ (Data Transfer) × 1
  • Gigabit Ethernet
  • microSD™ & SD™ Card Reader
• Maximum Display Resolution:
  • 3840 × 2160 @ 30 Hz
  • 1920 × 1080 @ 60 Hz
• Maximum Display Refresh Rate:
  • 3840 × 2160 @ 30 Hz
  • 1920 × 1080 @ 60 Hz
• Maximum Data Transfer Rate: 10 Gbps
• Displays Supported: 1
• Compatible Networks: 10/100/1000 Mbps
• Compatible Cards: SD™ / microSD™ (UHS-I, UHS-II) up to 312 Mbps
• Audio Channel: 2.1 via HDMI™
• Fast Charging: BC1.2 Max 1.5A
• Power Delivery: 100W
• Color: Silver / White
• Enclosure Type: Aluminum, ABS Plastic
• Cable Length: 7.87 in. (200 mm)

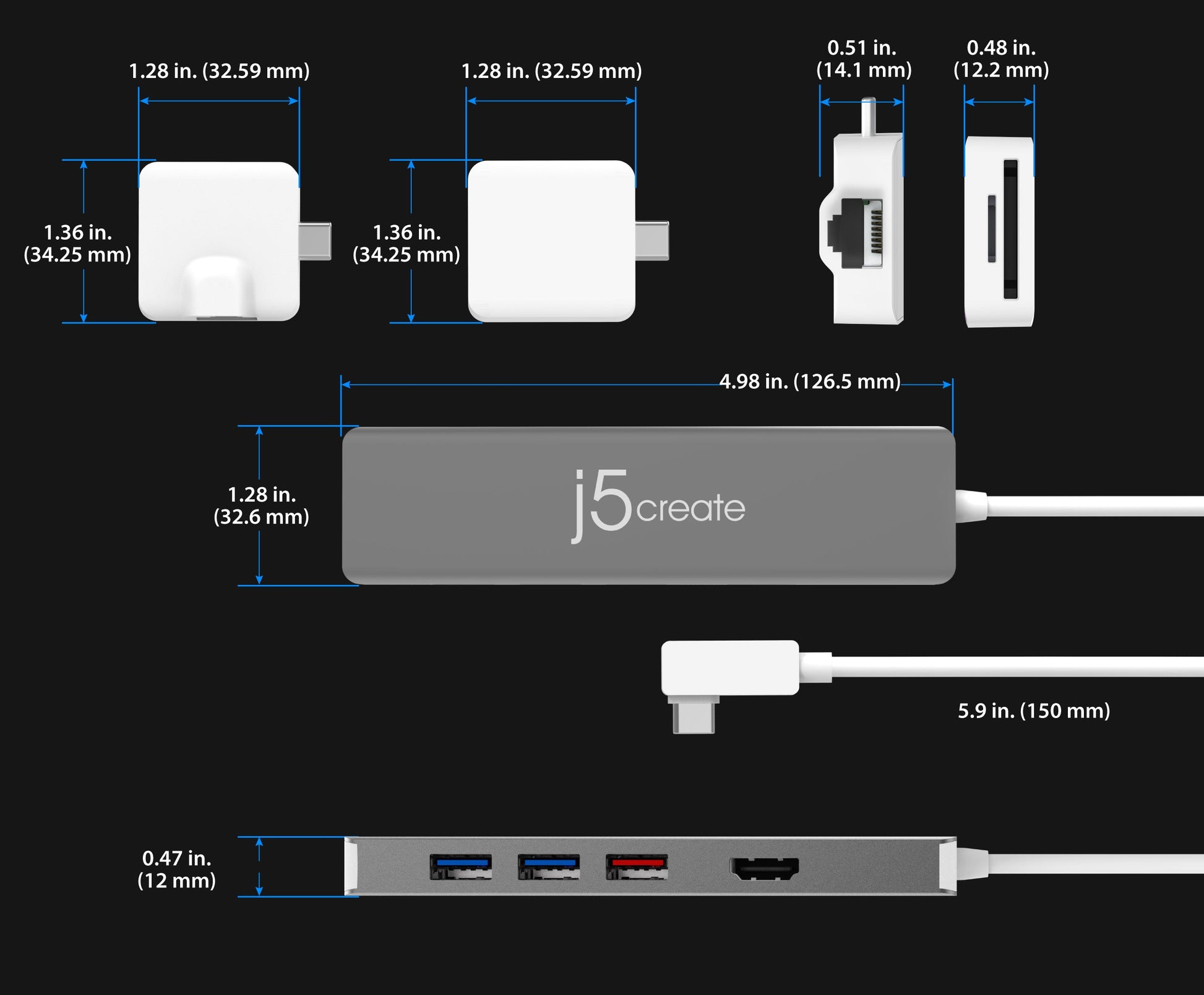

• Height: 4.99 in. (126.5 mm)
• Width: 1.28 in. (32.6 mm)
• Depth: 0.48 in. (12.2 mm)
• Size (L × W × D): 4.99 × 1.28 × 0.48 in. (126.5 × 32.6 × 12.2 mm)
• Weight: 3.17 oz (90 g)
• Gigabit Ethernet: 34.25 × 32.59 × 14.10 mm
• microSD™ & SD™ Card Reader: 34.25 × 32.58 × 12.20 mm
• Gigabit Ethernet: 0.32 oz (9.2 g)
• microSD™ & SD™ Card Reader: 0.36 oz (10.2 g)
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Operating Humidity: < 85% non-condensing
• Storage Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD375 ULTRADRIVE KIT USB-C™ Modular Mini Dock 9-in-1 x1
• Modular kits x2
• Quick Installation Guide x1

WARRANTY:

• 24 Months
