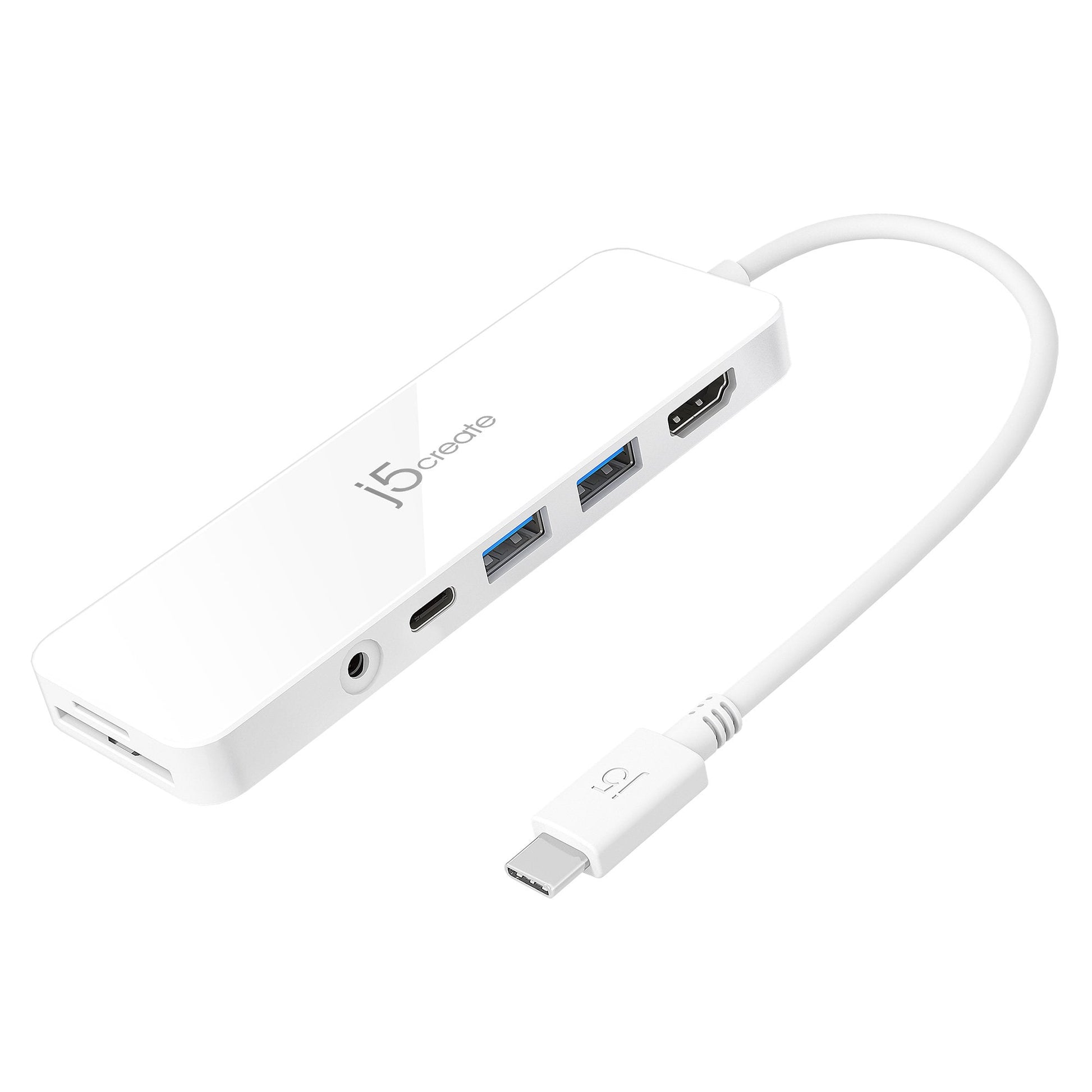

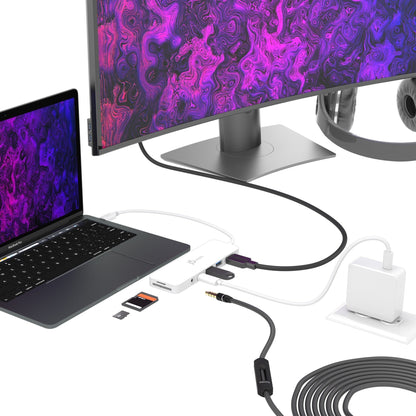

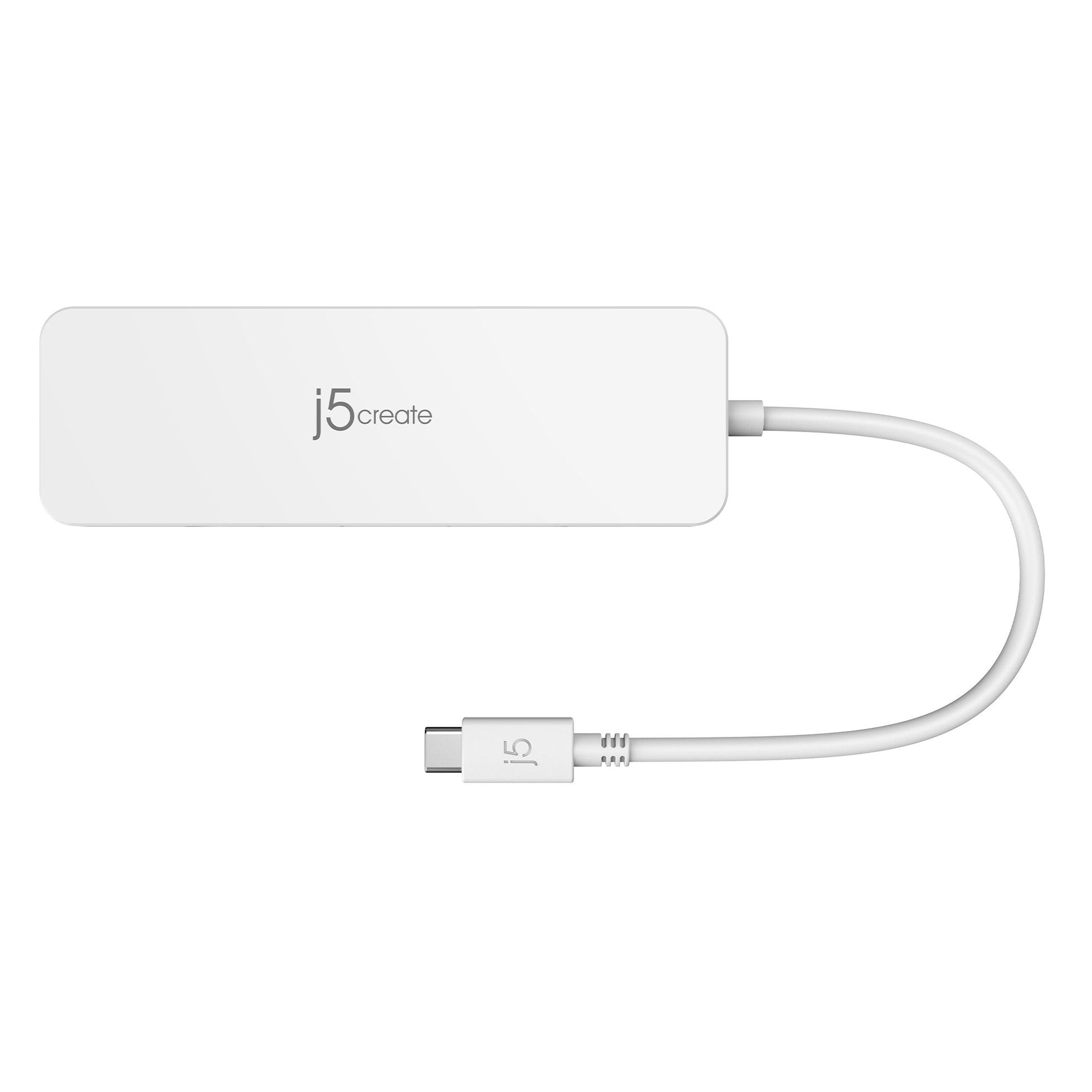

J5create USB-C Multi-Port Hub with Power Delivery - JCD373

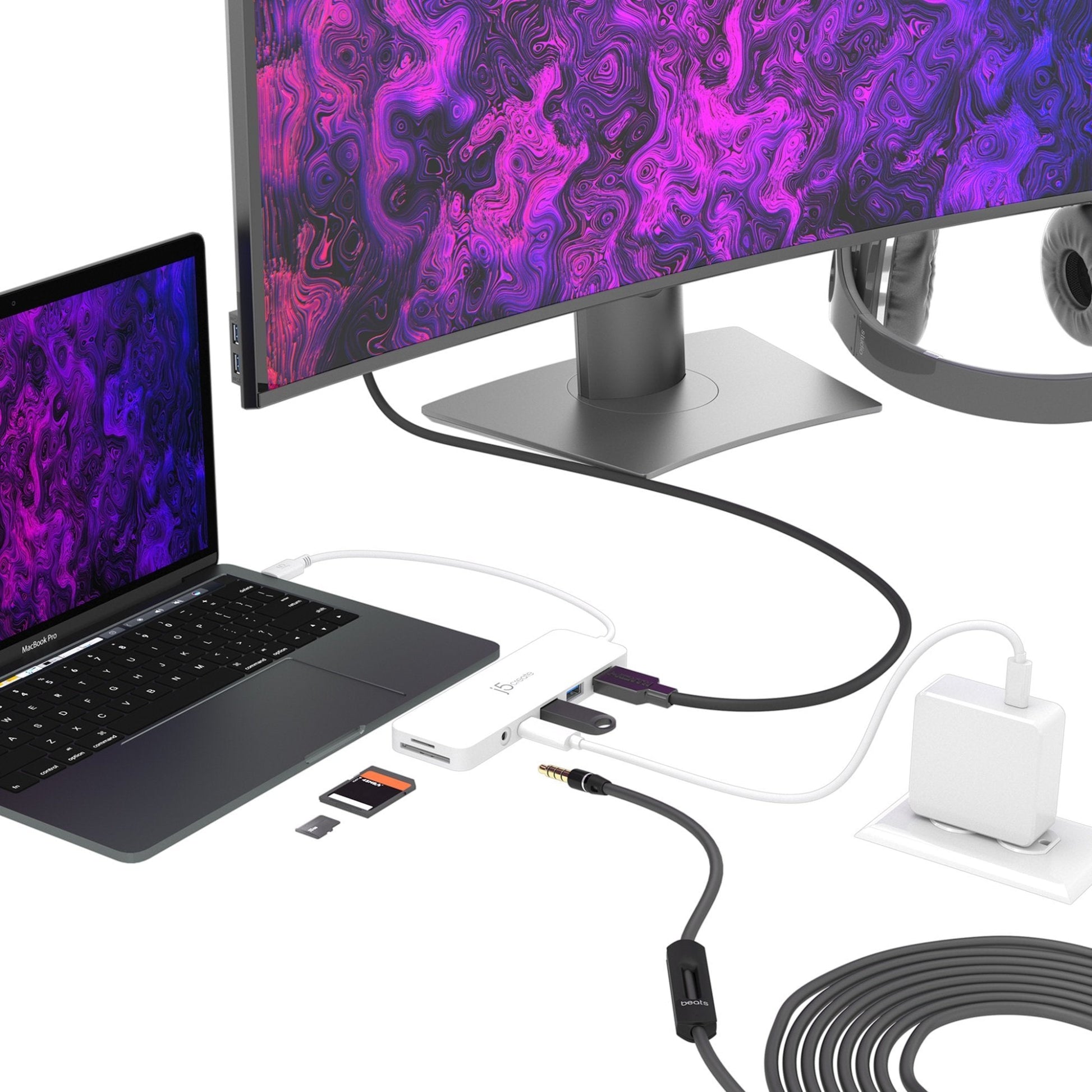

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.

Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.

FEATURES:

• Ultra slim and light weight design
• Supports HDMI™ resolutions up to 4K @ 30 Hz
• 2 x USB™ 3.1 Gen 1 ports provide up to 5 Gbps transfer speed
• Power delivery 3.0 provides up to 60W of charging power
• Memory card reader/writer slots allow for external memory access up to 2 TB, supporting microSD™ and SD™ 3.0 UHS-I with data transfer speeds up to 104 MB/s
• 3.5 mm audio / mic combo jack allows you to connect your headphone set or speakers.
• Plug-and-play, no driver installation required

System Requirements:

• Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  Please refer to the manufacturer of your hardware for more information on your device

Special Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0

SPECIFICATIONS:

• Host Connector: 1 - USB-C® 3.1 male
• Video Output: 1 - HDMI™ Female
• Power Source: Bus-powered or self-powered
• Network Interface: N/A
• Audio Supported: Yes

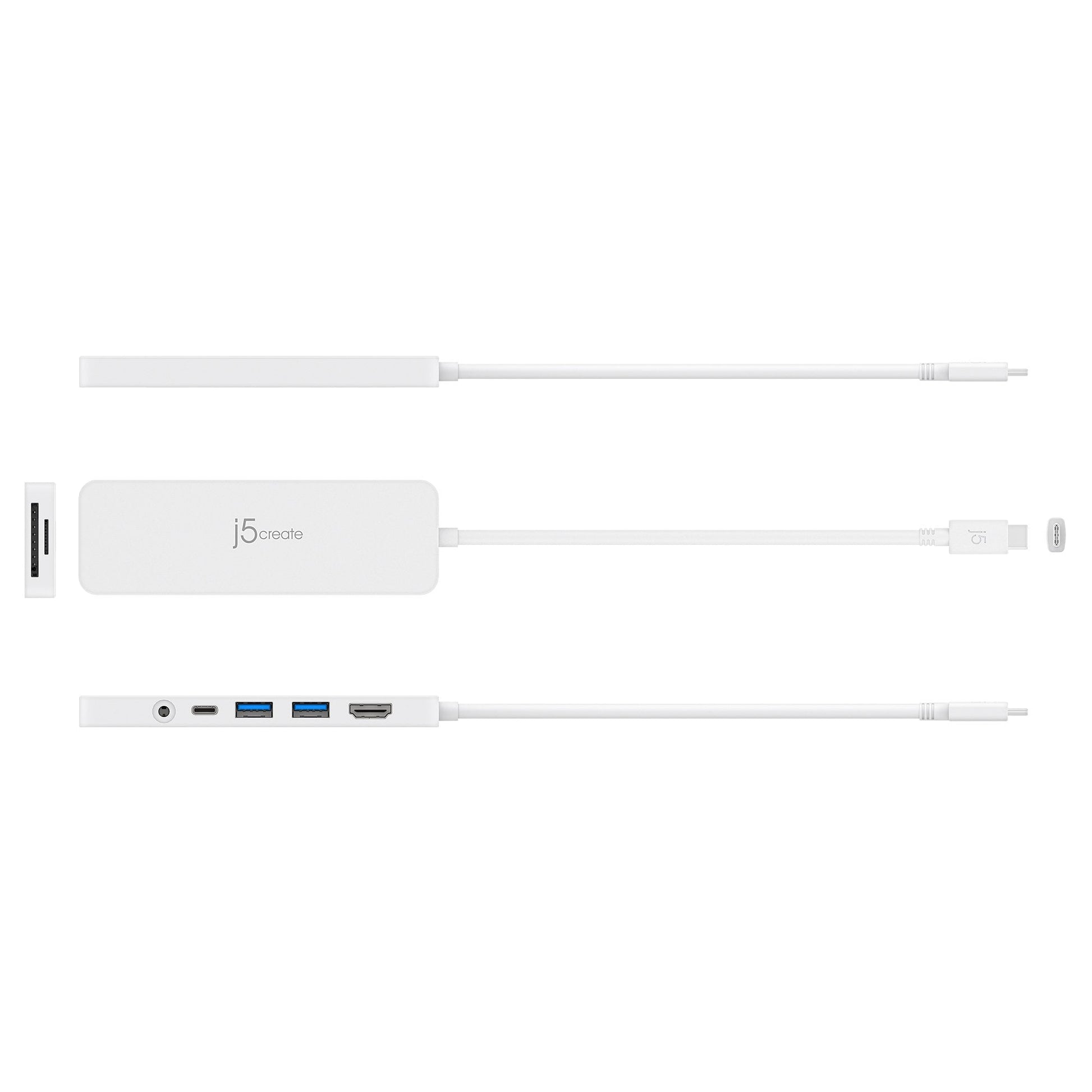

• Ports: 2 - USB™ Type-A 3.1 Gen 1; 1 - USB-C® for PD 3.0 charging; 1 - microSD™ & SD™ card reader/writer; 1 - HDMI™; 1 - 3.5 mm audio/mic combo jack
• Performance – Maximum Display Resolution: 3840 x 2160
• Performance – Maximum Display Refresh Rate: 30 Hz
• Performance – Maximum Data Transfer Rate: 5 Gbps
• Performance – Displays Supported: 1
• Performance – Compatible Networks: N/A
• Performance – Audio Channel: 3.5 mm audio/mic combo jack
• Power – Power Delivery: Up to 60W via USB-C®
• Power – Power Consumption: 400 mA
• Power – Input Current: Up to 3A
• Power – Input Voltage: Up to 20V
• Power – Output Current: Up to 3A
• Power – Output Voltage: Up to 20V
• Physical Specifications – Color: White
• Physical Specifications – Enclosure Type: ABS Plastic
• Physical Specifications – Cable Length: 5.9 in. (150 mm)
• Physical Specifications – Product Height: 4.8 in. (122 mm)
• Physical Specifications – Product Width: 1.53 in. (39 mm)

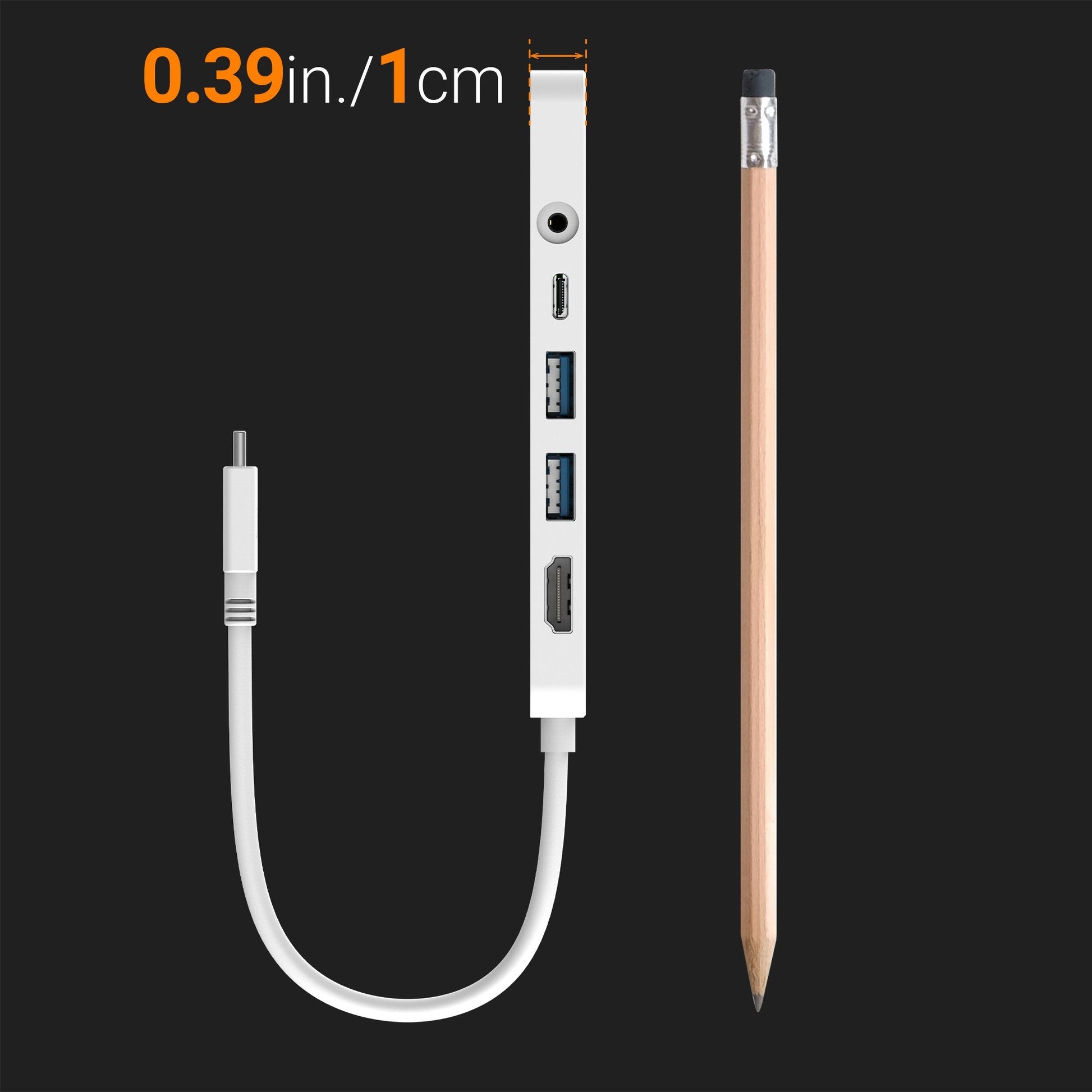

• Physical Specifications – Product Depth: 0.43 in. (11 mm)
• Physical Specifications – Product Weight: 1.8 oz (51g)
• Environmental – Storage Temperature: 0 to 155°F (-17 to 68°C)
• Environmental – Storage Humidity: < 85% non-condensing
• Environmental – Operating Temperature: 30 to 116°F (-1 to 41°C)
• Environmental – Operating Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD373 USB-C® Multi-Port Hub with Power Delivery x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
