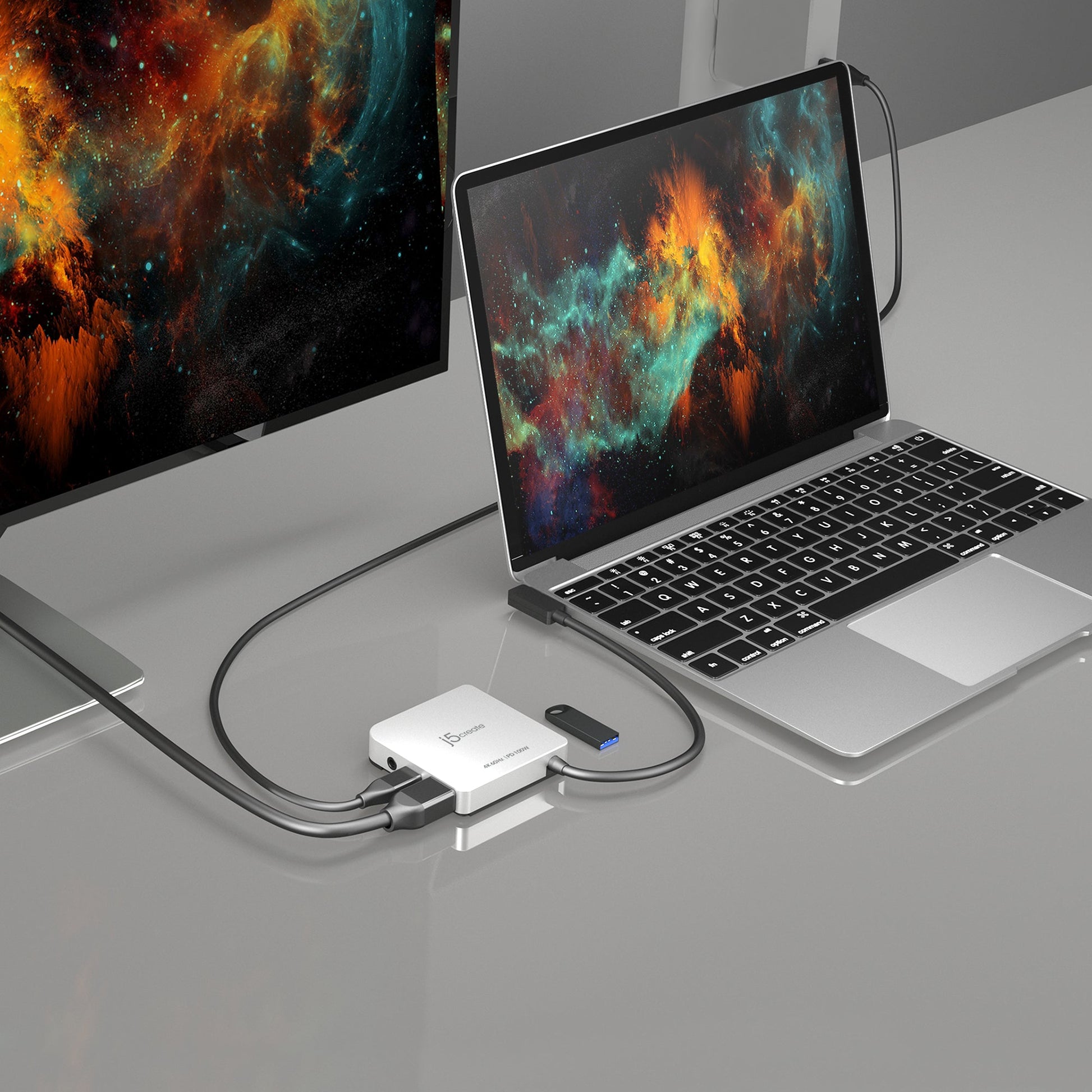

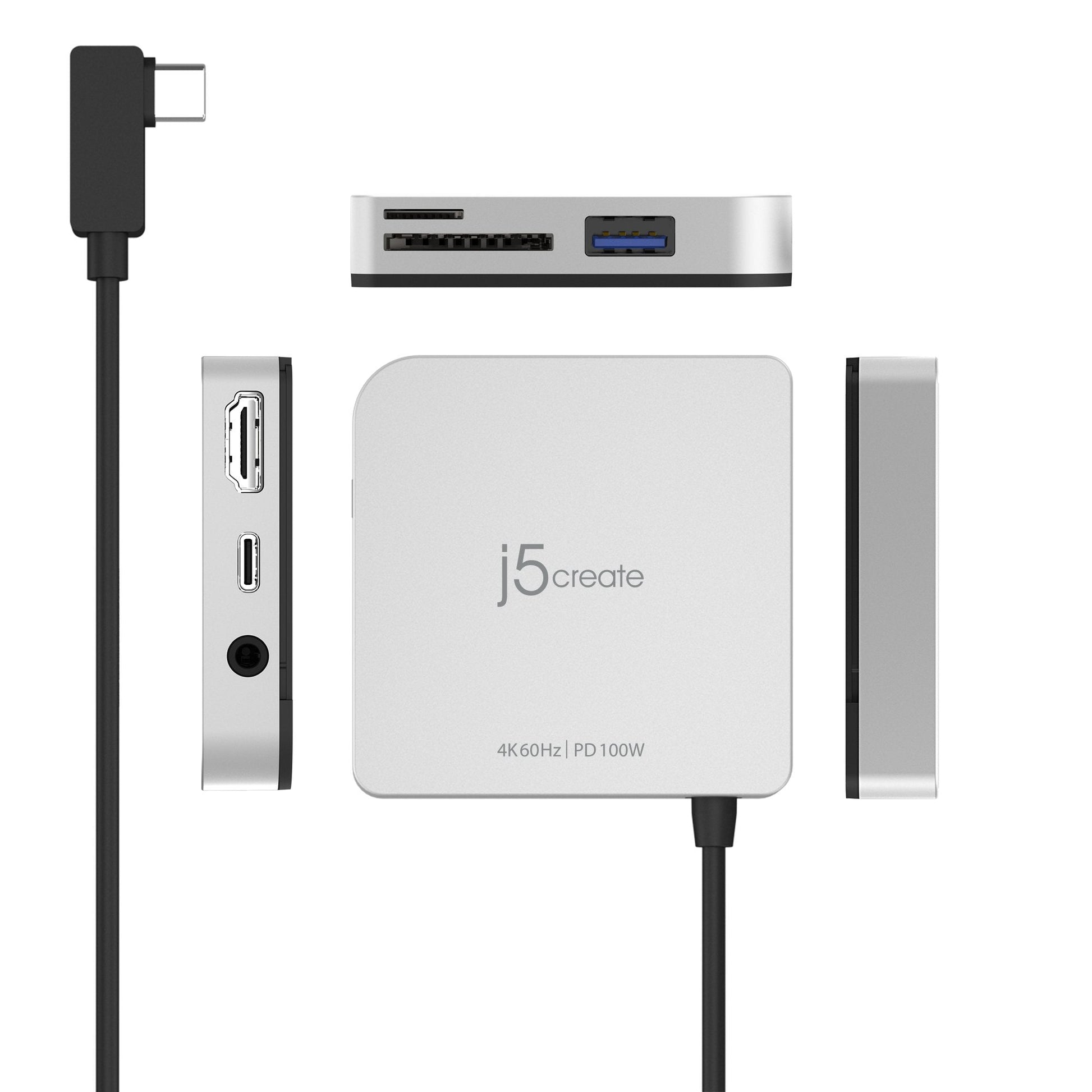

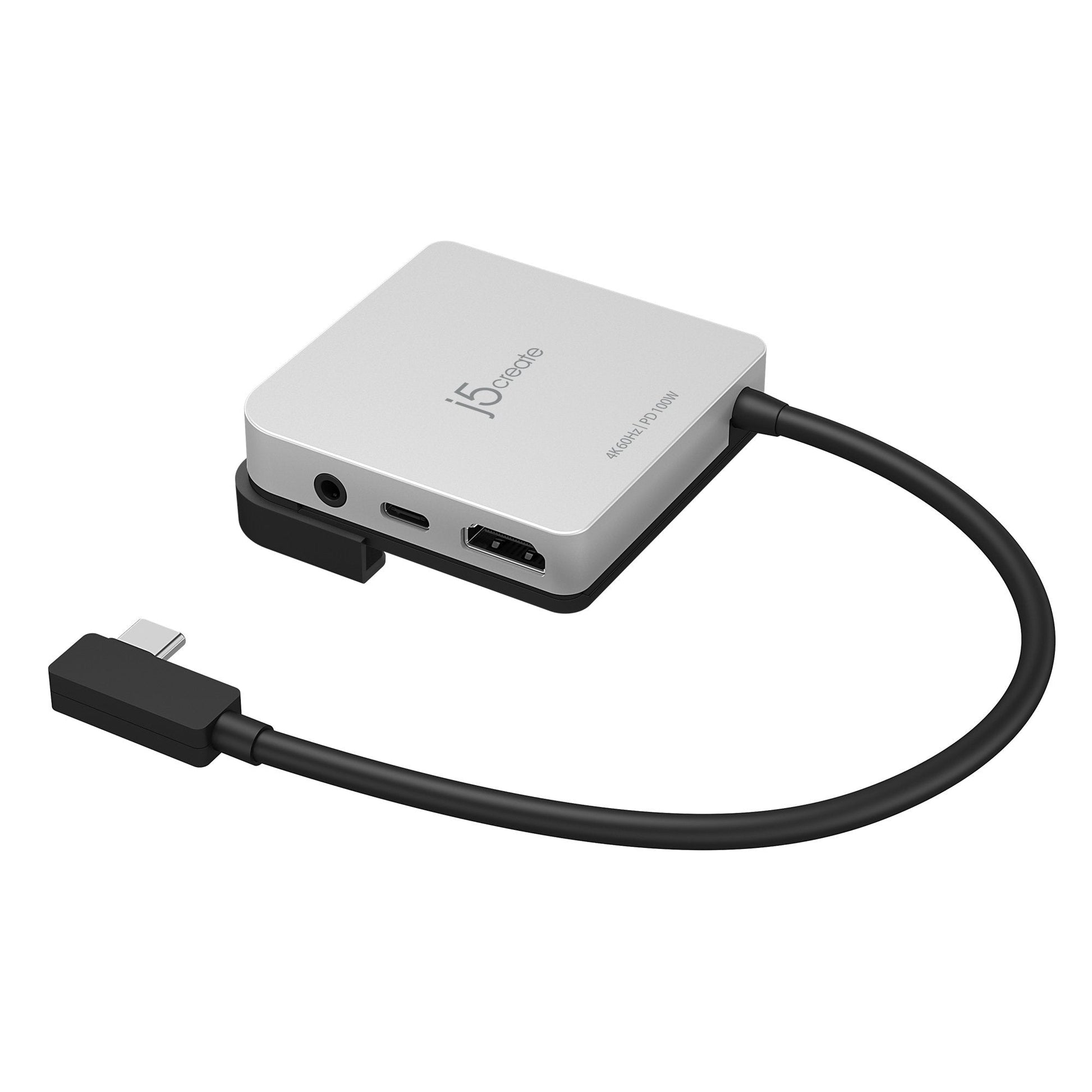

The JCD612 USB-C™ to 4K60 Hz HDMI™ Travel Dock for iPad Pro® provides extra connectivity for your USB-C™ Apple® computer.

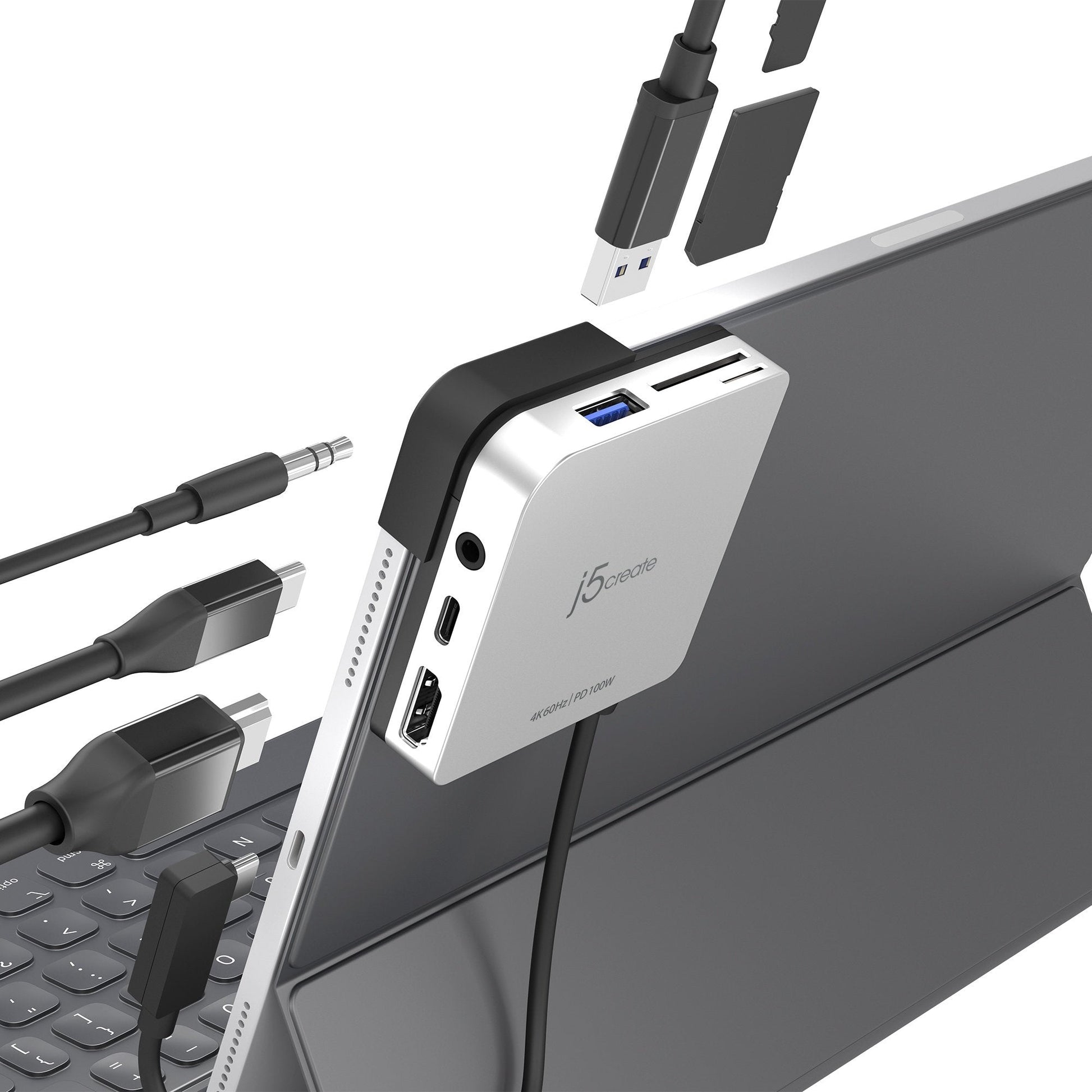

This pocket-sized multi-adapter allows you to add an additional USB™ 2.0/3.0/3.1 computer peripheral, HDMI™ monitor, SD™ card reader, and a 3.5 mm audio jack through your computer’s USB-C™ port.
FEATURES:

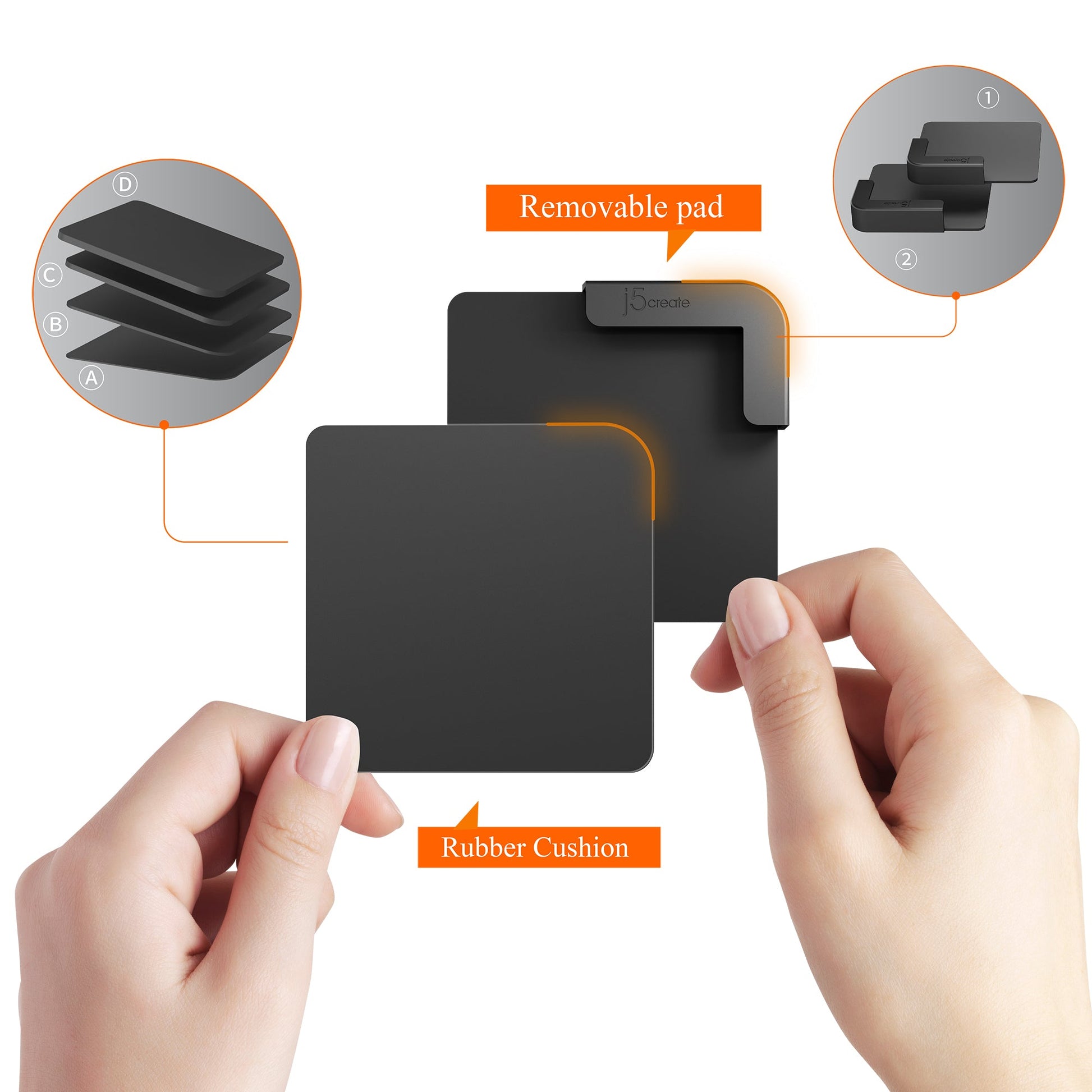

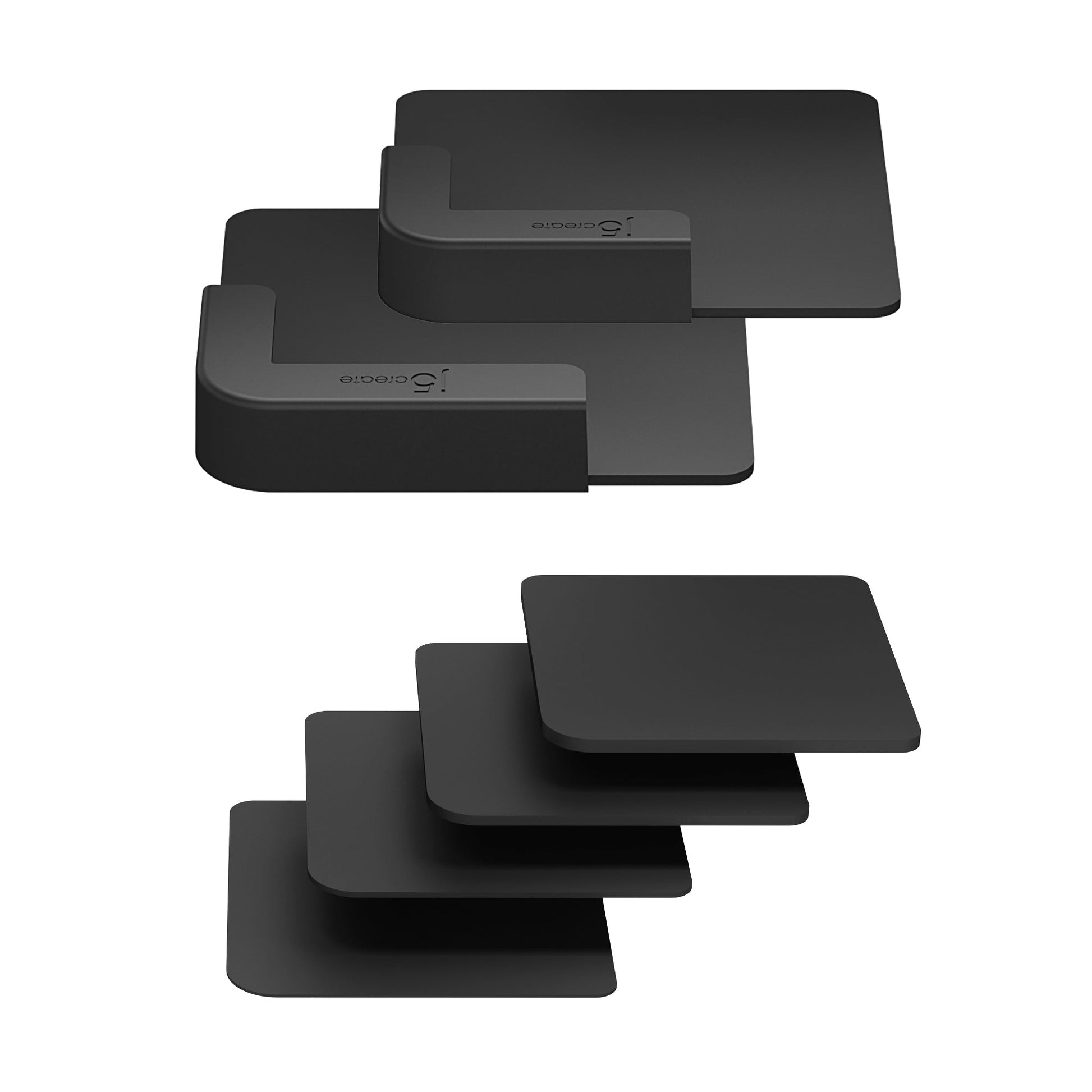

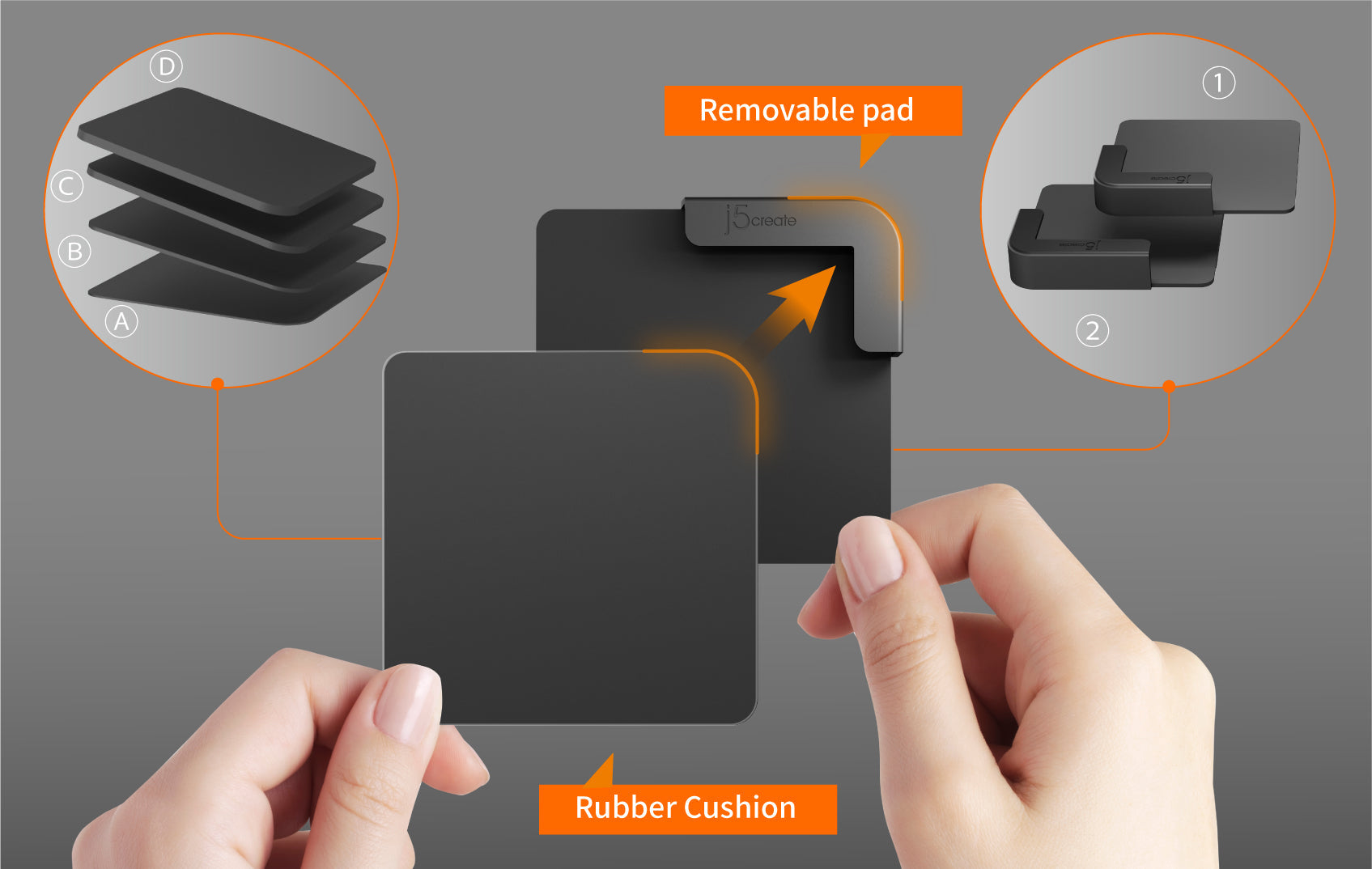

Soft rubber to protect your device: fits flush on the corner of the iPad Pro®

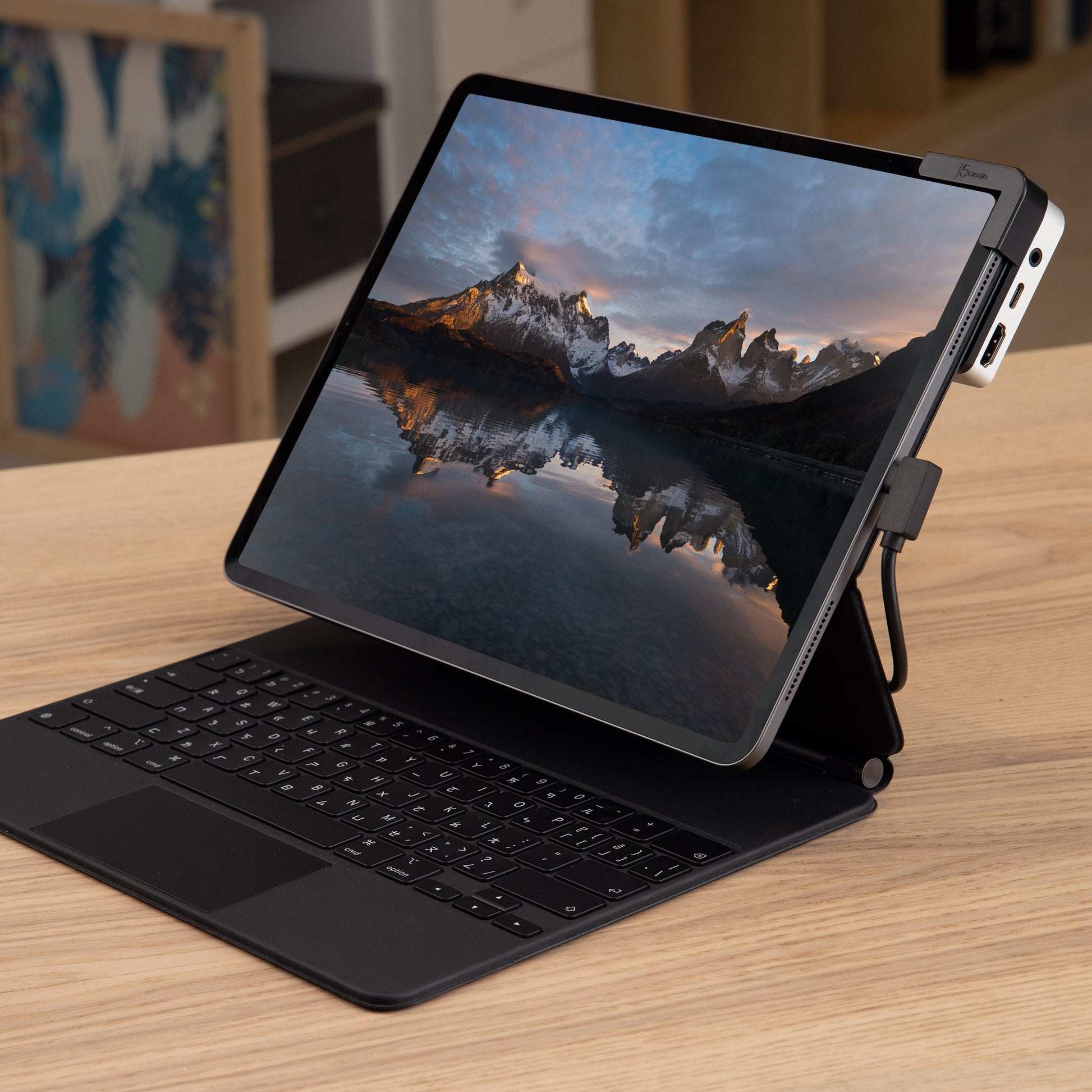

Designed for iPad Pro®: fits perfectly with iPad Pro® 11 inch and 12.9 inch with or without a case

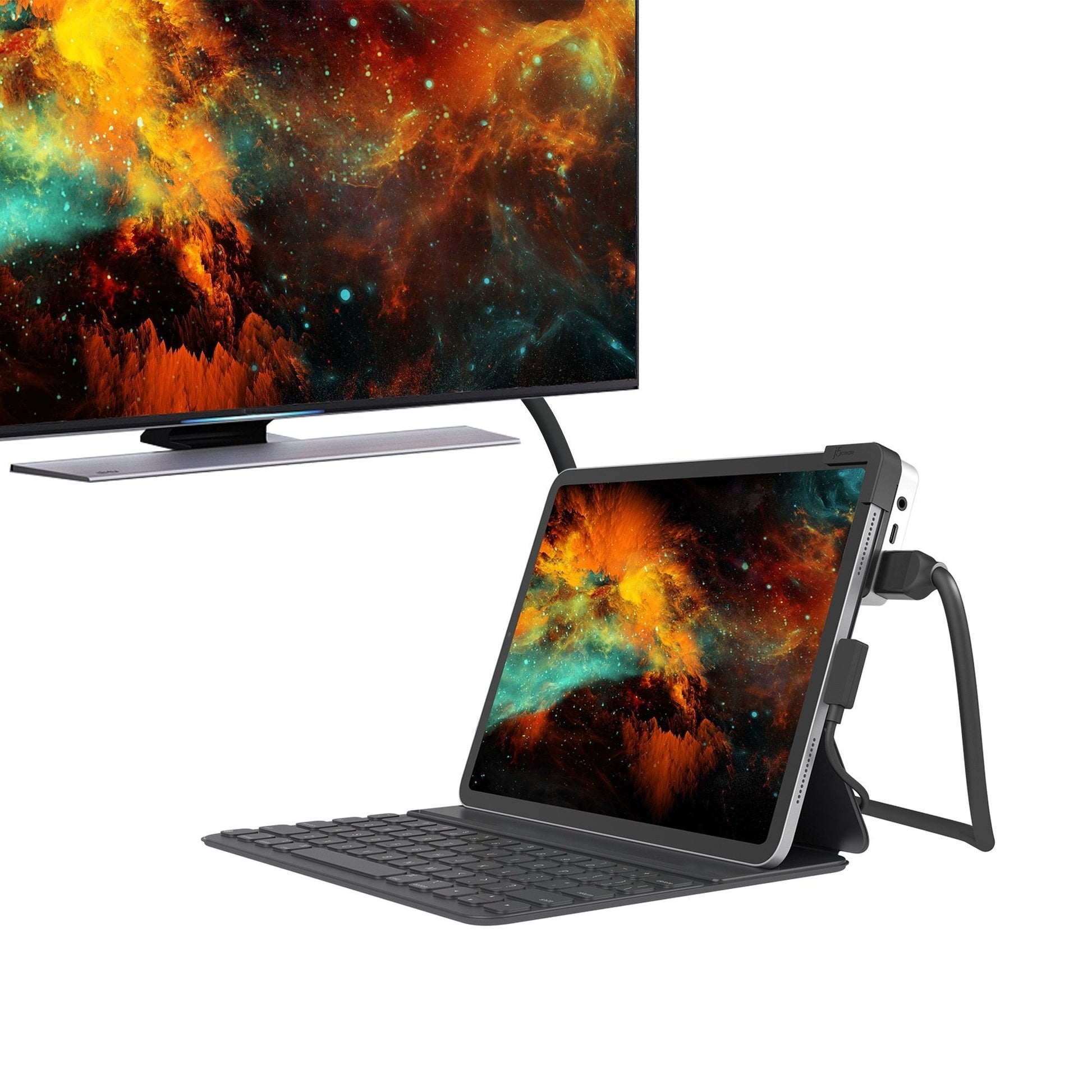

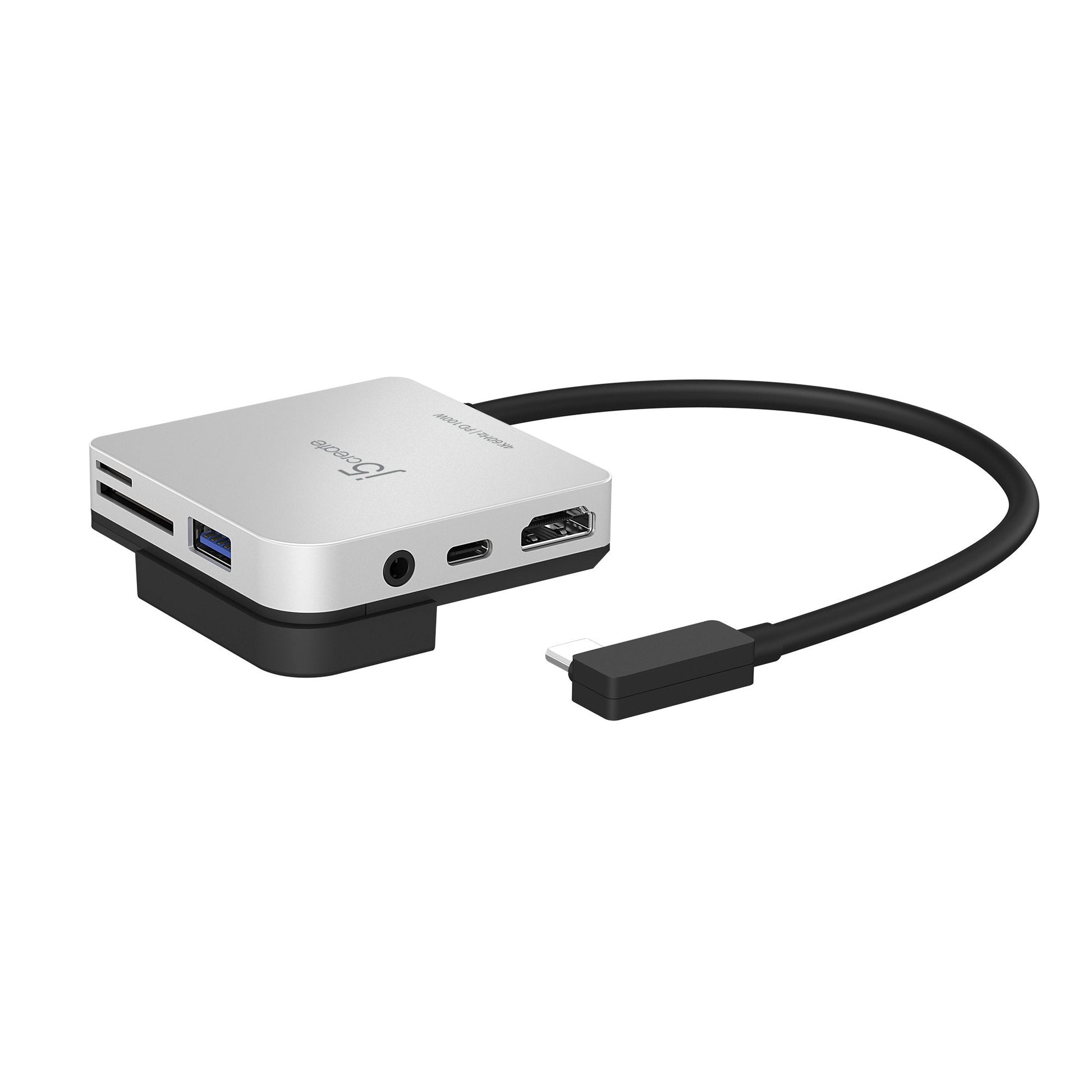

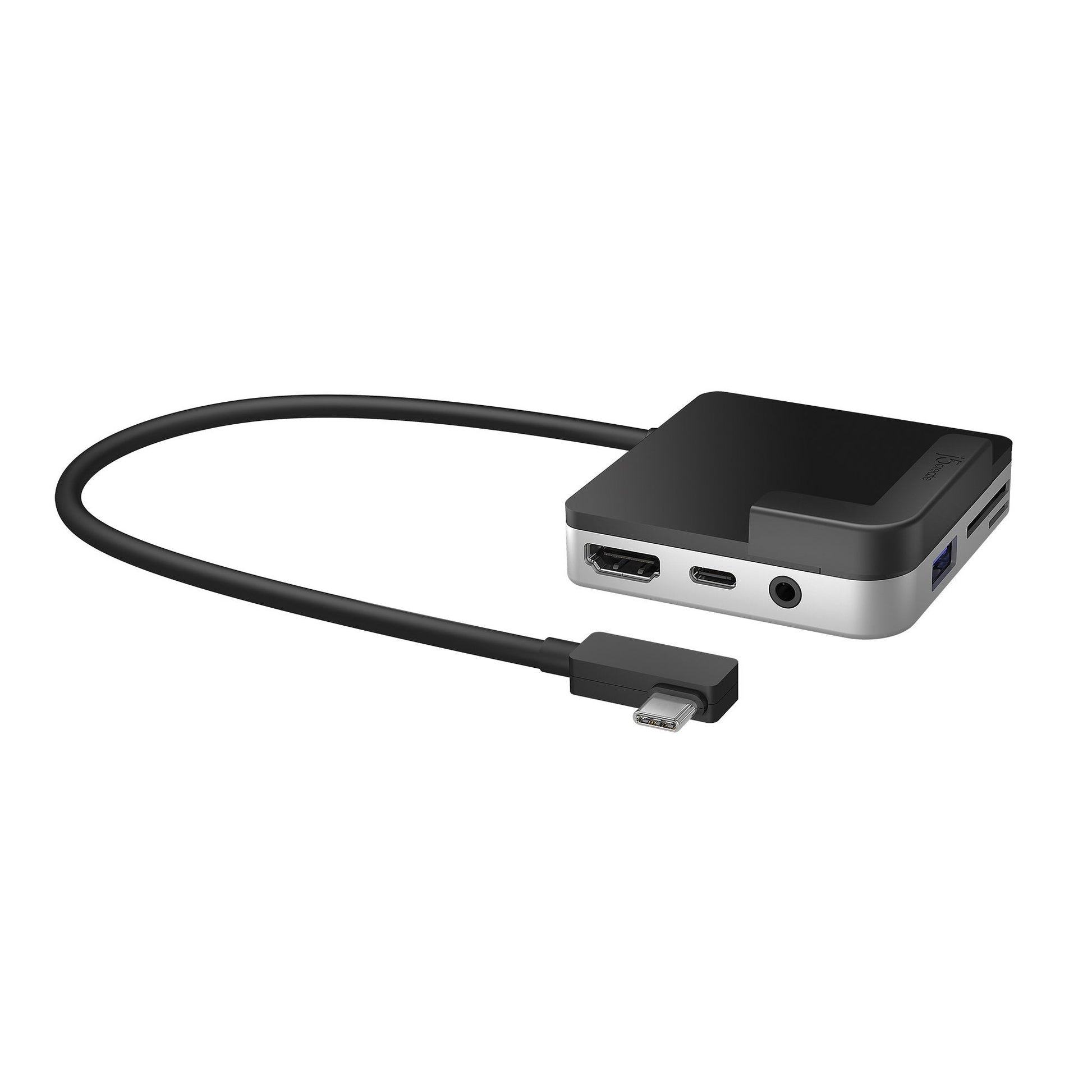

Right angle cable for your comfort: With an innovative 90-degree L-shaped design, it's more comfortable, sturdier and easier to connect the USB-C™ when you set the iPad® upright on a table.

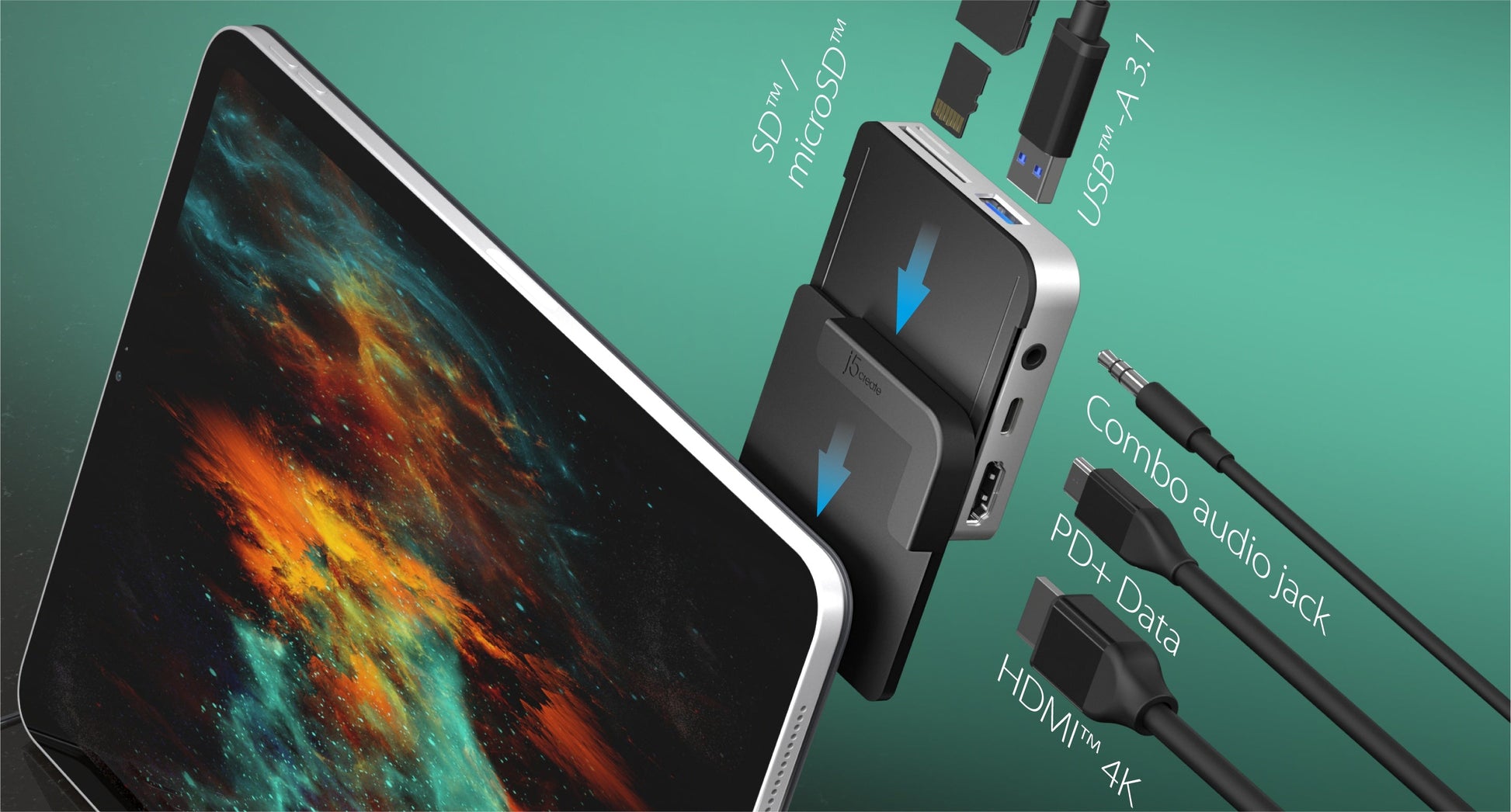

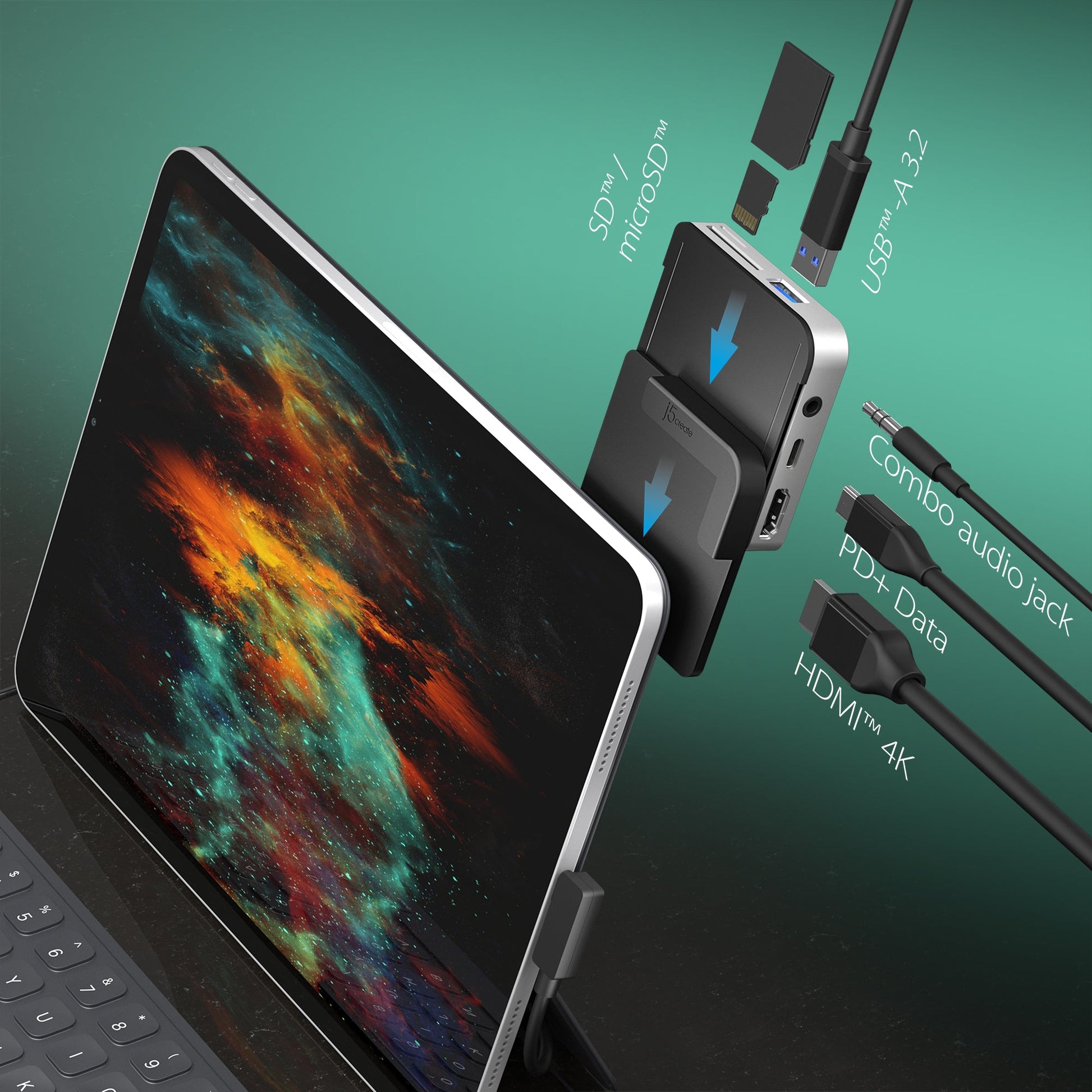

Functions:
HDMI™ 4K @ 60 Hz
1-port USB™ Type-A 3.1 supports 5 Gbps data transfer
1-port USB-C™ 3.1 supports 5 Gbps data transfer with PD 3.0 pass-through charging up to 100W
SD™/microSD™ card reader SD™ 3.0 UHS-I 104 MB/s
Headphone & microphone combo audio jack
System Requirements:
Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
DisplayPort™ v1.4 is required on graphics card or video source to support 4K resolution @ 60 Hz. If your system only supports DisplayPort™ v1.2, the 4K resolution will be displayed at 30 Hz.
Special Notes:
The adapter can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution

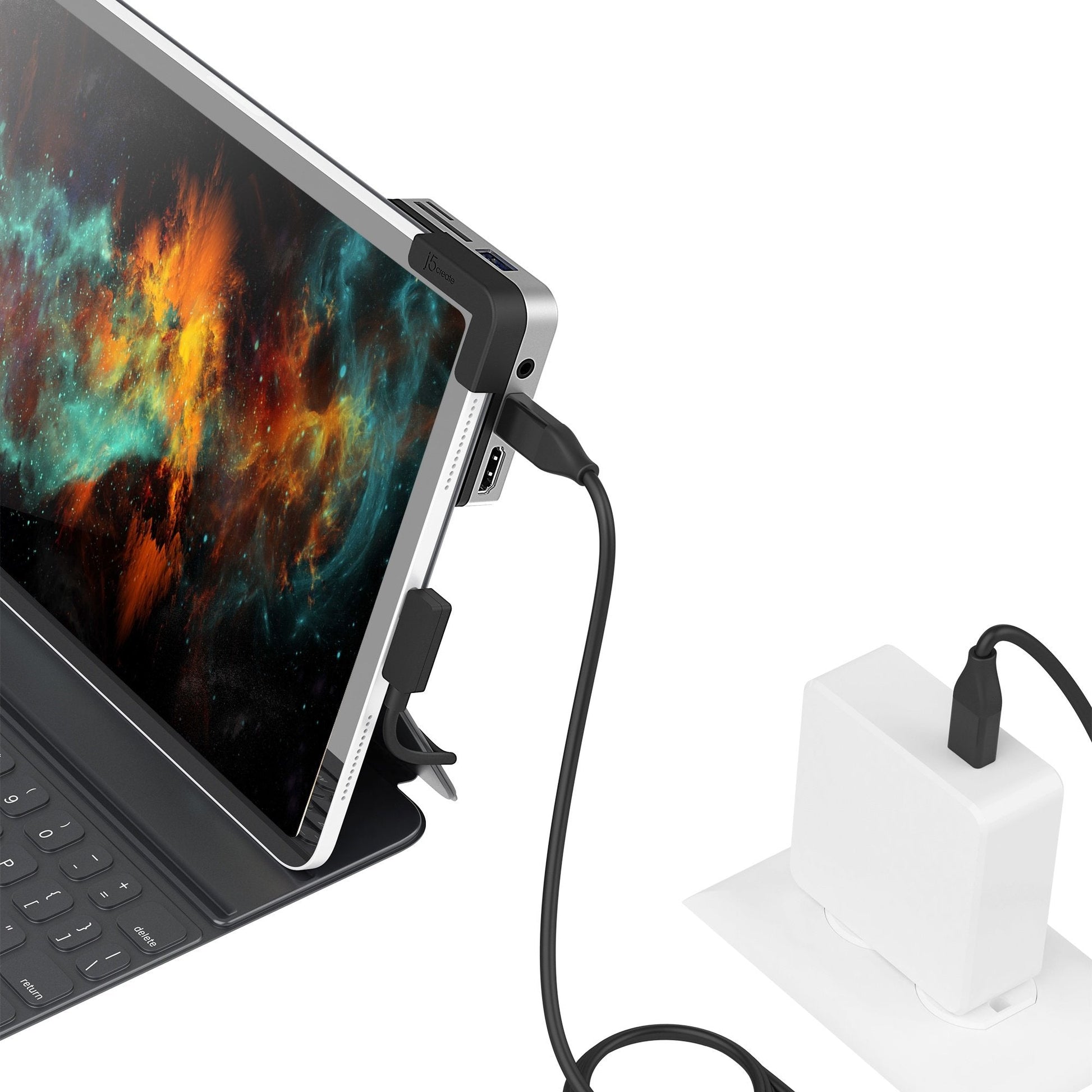

If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the power delivery port to ensure maximum performance. When using your USB-C™ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0.
The device may become warm to moderately hot while transferring bulk data or while a USB-C™ power supply is plugged in.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution.
Only one audio output port can be used at a time (HDMI™ or 3.5 mm audio jack). If the HDMI™ and 3.5 mm audio jack are connected simultaneously, the 3.5 mm audio jack takes priority.
SPECIFICATIONS:
Host Connector: 1 - USB-C™ Male
Video Output: 1 - HDMI™ Female
Power Source: Bus-powered or self-powered
Network Interface: N/A
Audio Supported: Yes
Ports: 1 - HDMI™ 4K @ 60 Hz; 1 - USB™ 5 Gbps port; 1 - USB-C™ 5 Gbps data transfer with Power Delivery 3.0 upstream charging up to 100W; 1 - SD™ & microSD™ UHS-I 104 MB/s; 1 - combo audio mic/speaker
Maximum Display Resolution: 3840 x 2160
Maximum Display Refresh Rate: 60 Hz
Maximum Data Transfer Rate: 5 Gbps
Displays Supported: 1
Compatible Networks: N/A
Audio Channel: 3.5 mm combo audio jack
Power Delivery: Up to 100W via USB-C™
Power Consumption: 500 mA
Input Current: N/A
Input Voltage: N/A
Output Current: N/A
Output Voltage: N/A
Color: Silver, Black
Enclosure Type: Aluminum, ABS Plastic

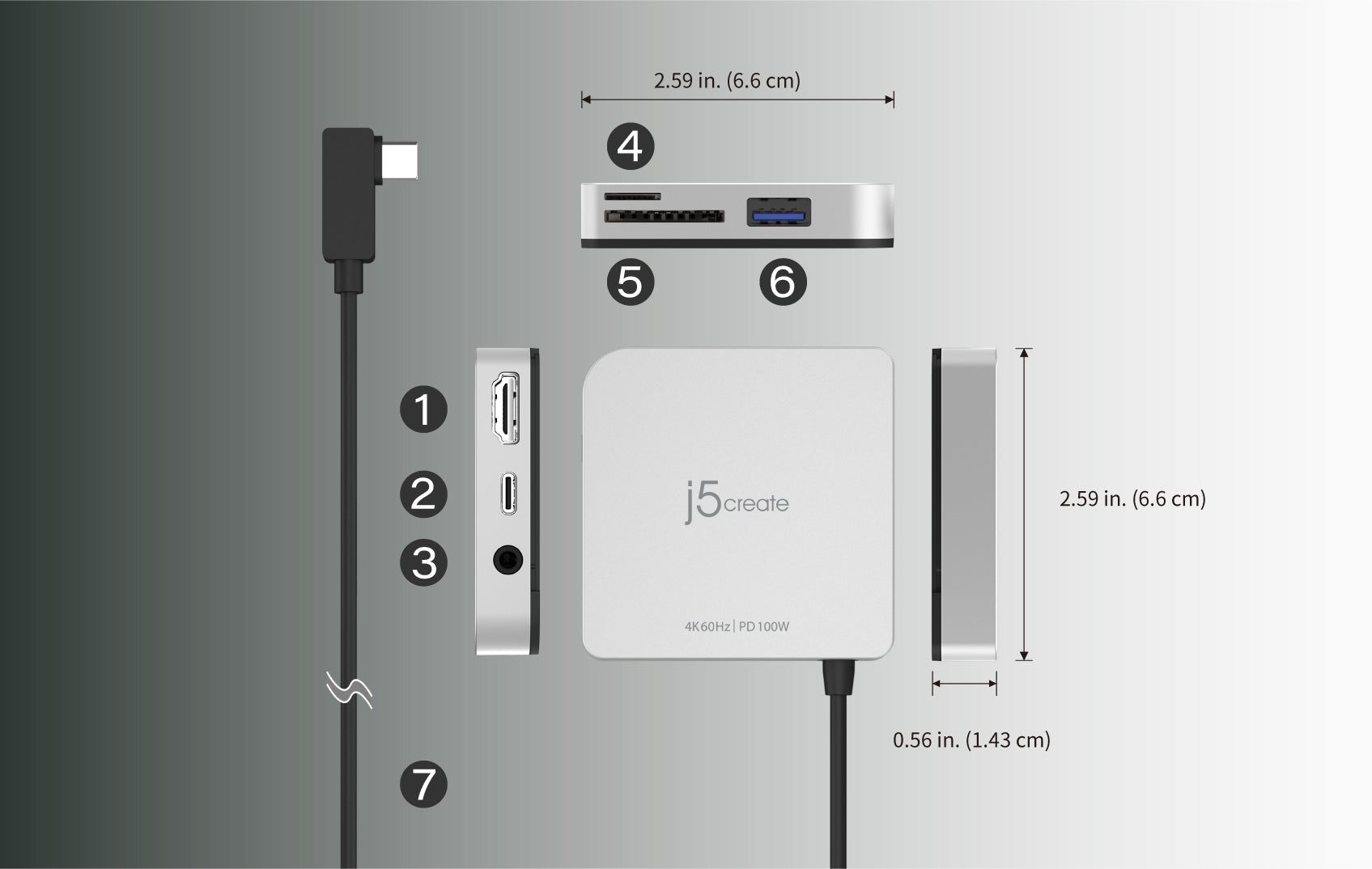

Cable Length: 7.87 in. (20 cm)
Product Height: 0.56 in. (1.43 cm)
Product Width: 2.59 in. (6.6 cm)
Product Depth: 2.59 in. (6.6 cm)
Product Weight: Body: 2.54 oz. (72g); Pad: 0.35 oz. (10g)
Environmental – Storage Temperature: 0 to 155°F (-17 to 68°C)
Environmental – Operating Temperature: 30 to 106°F (-1 to 41°C)
