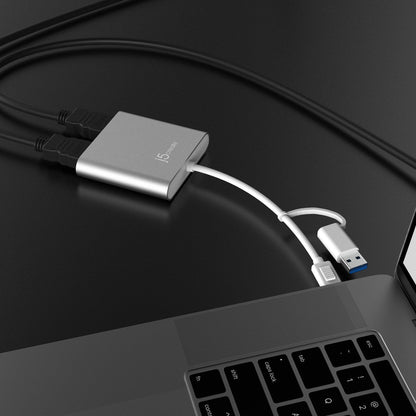

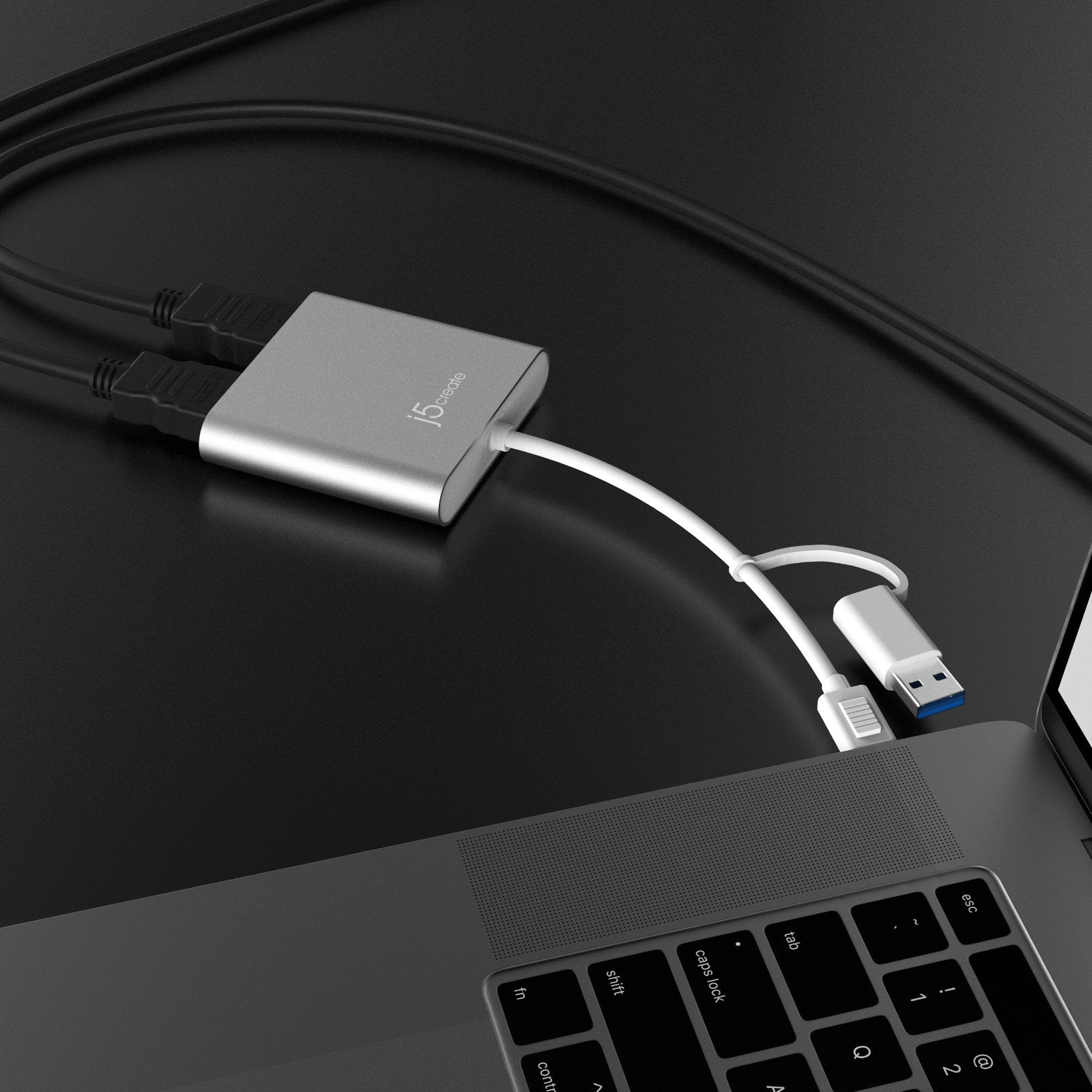

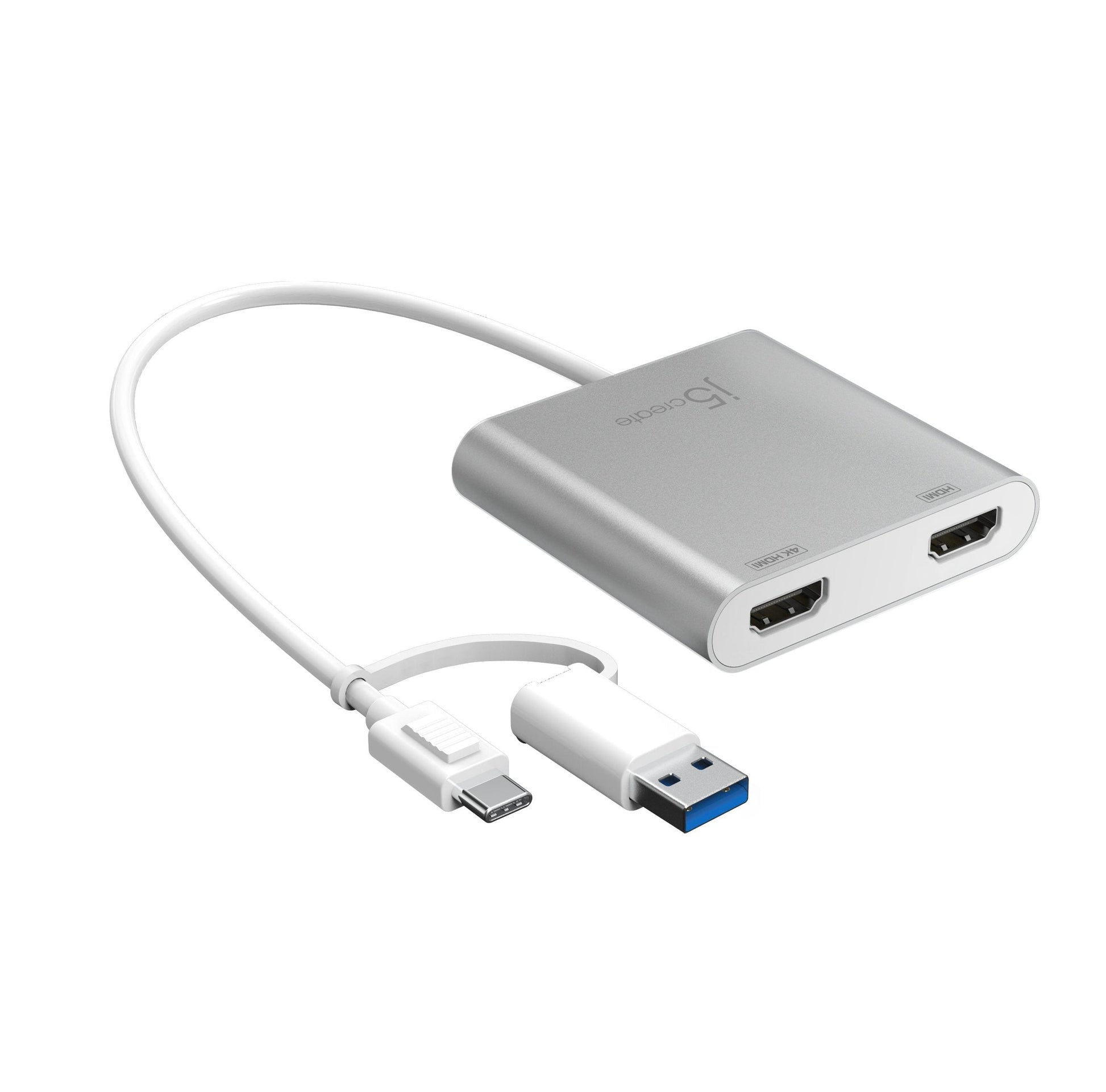

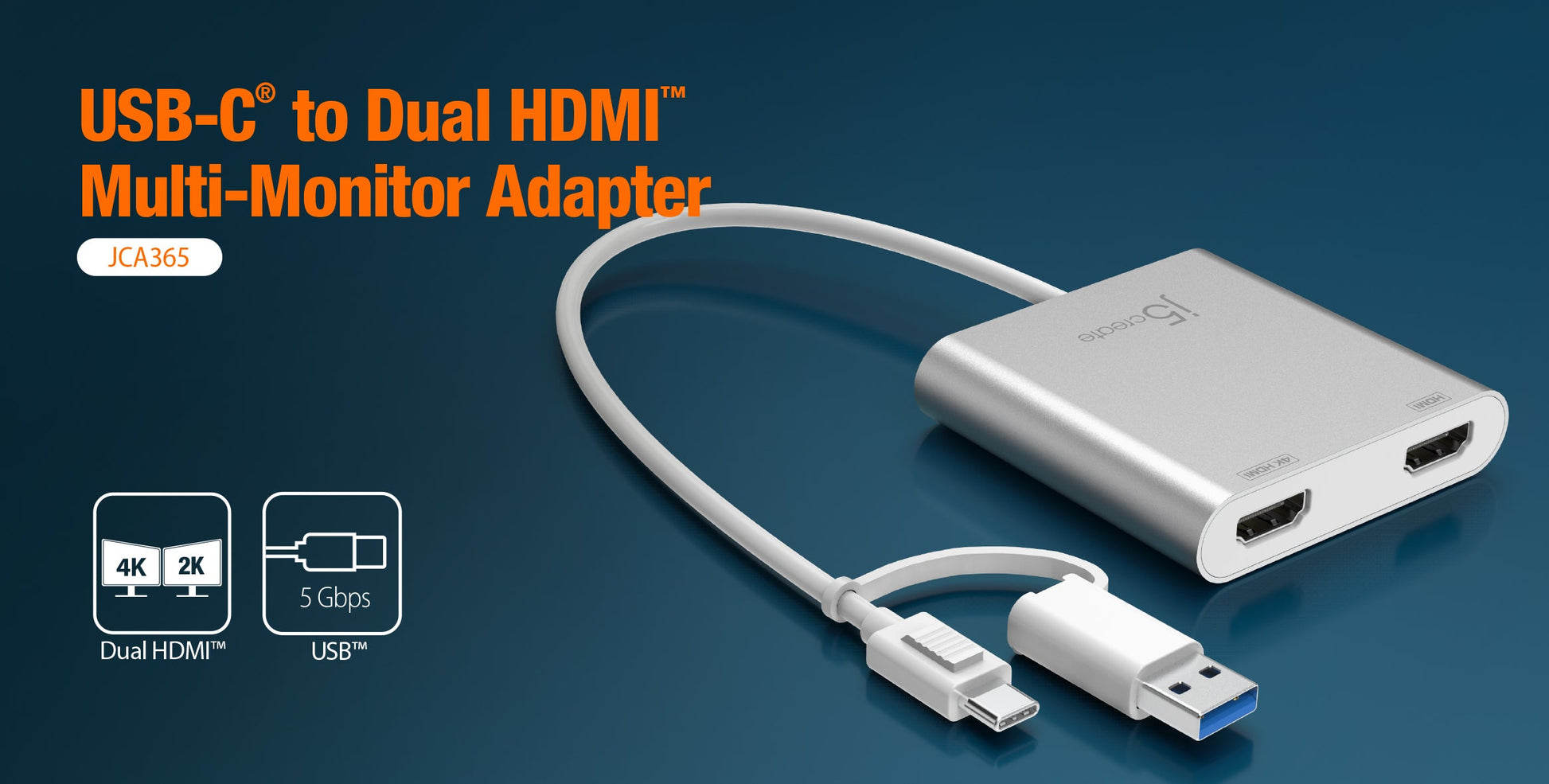

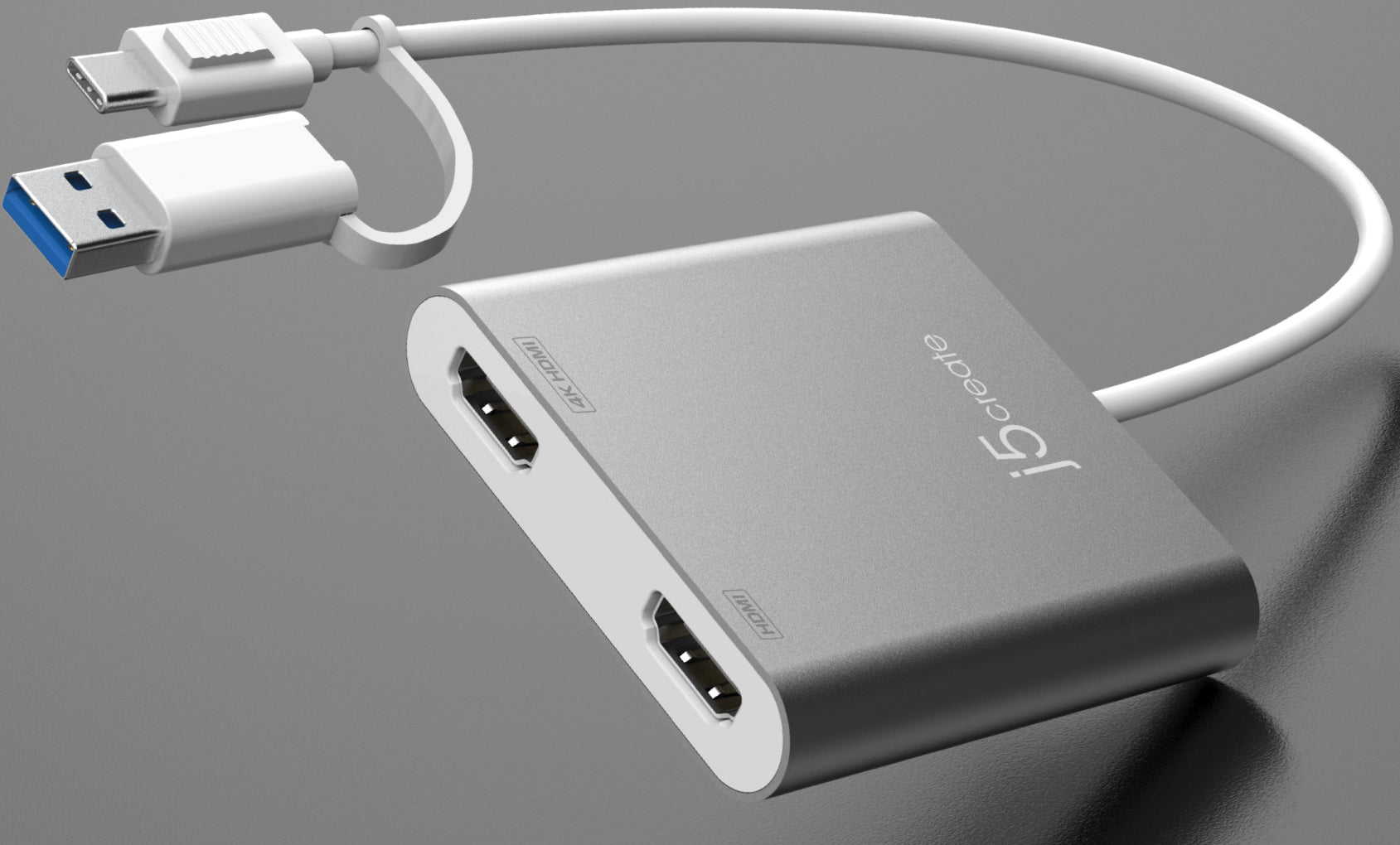

J5create USB-C to Dual HDMI Multi-Monitor Adapter - JCA365

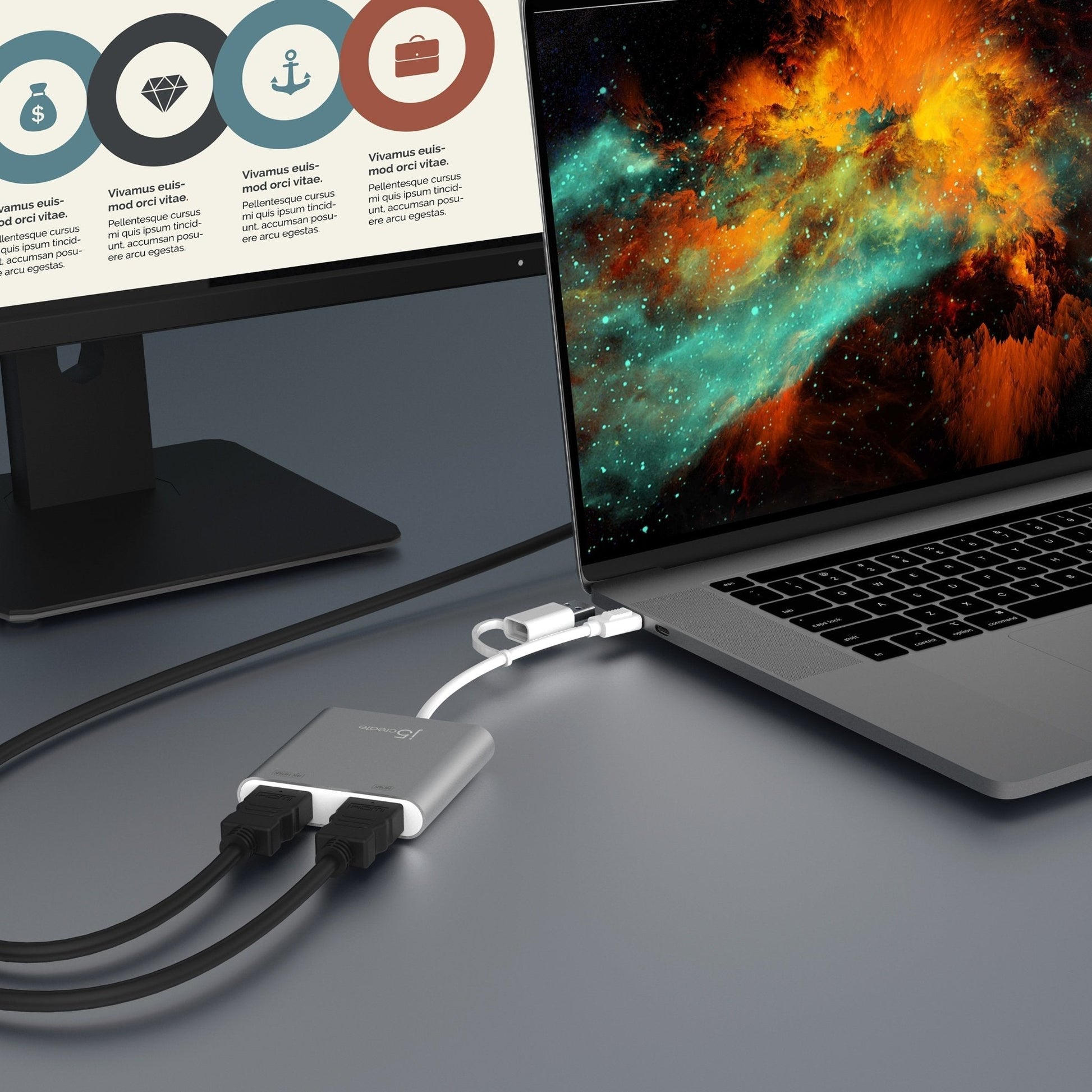

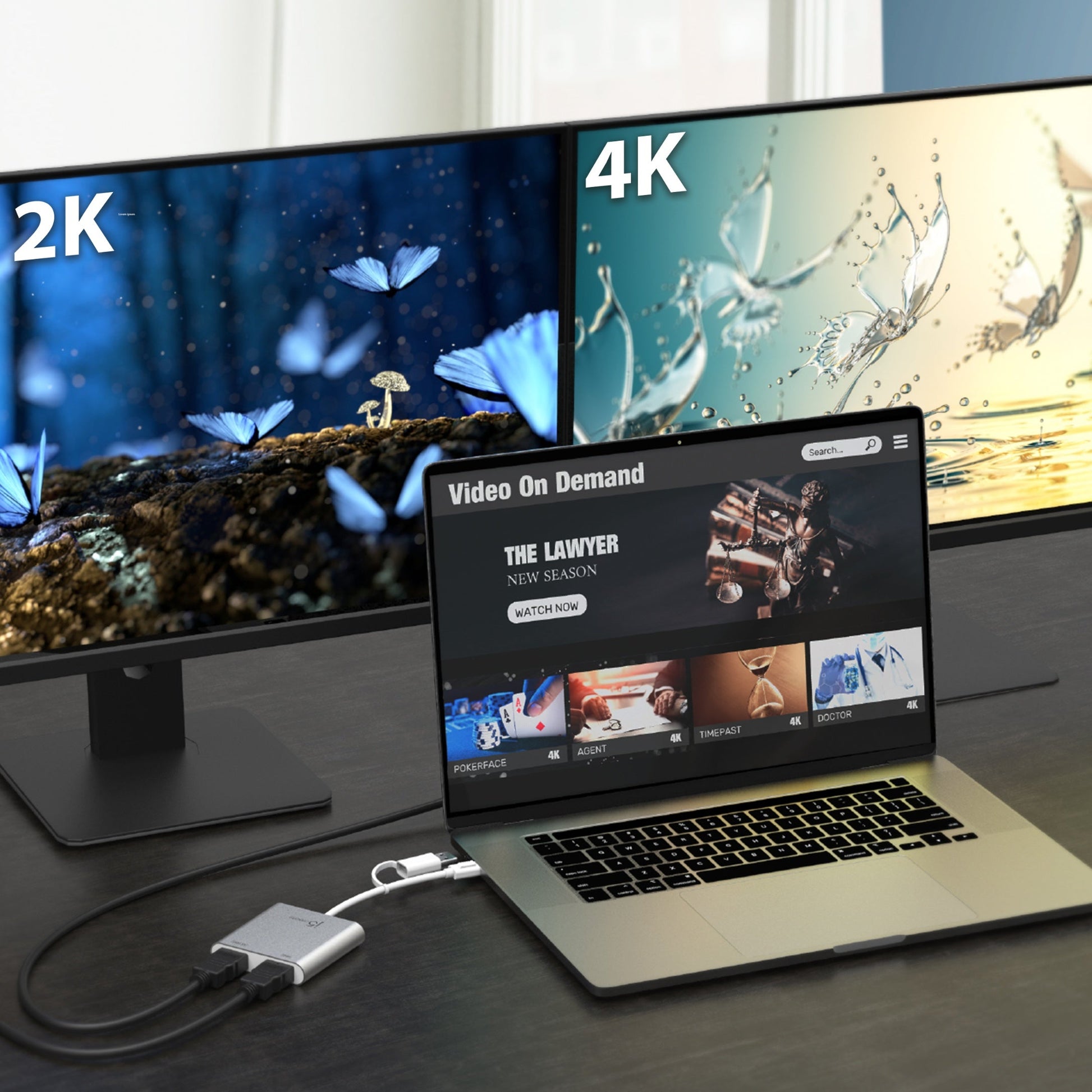

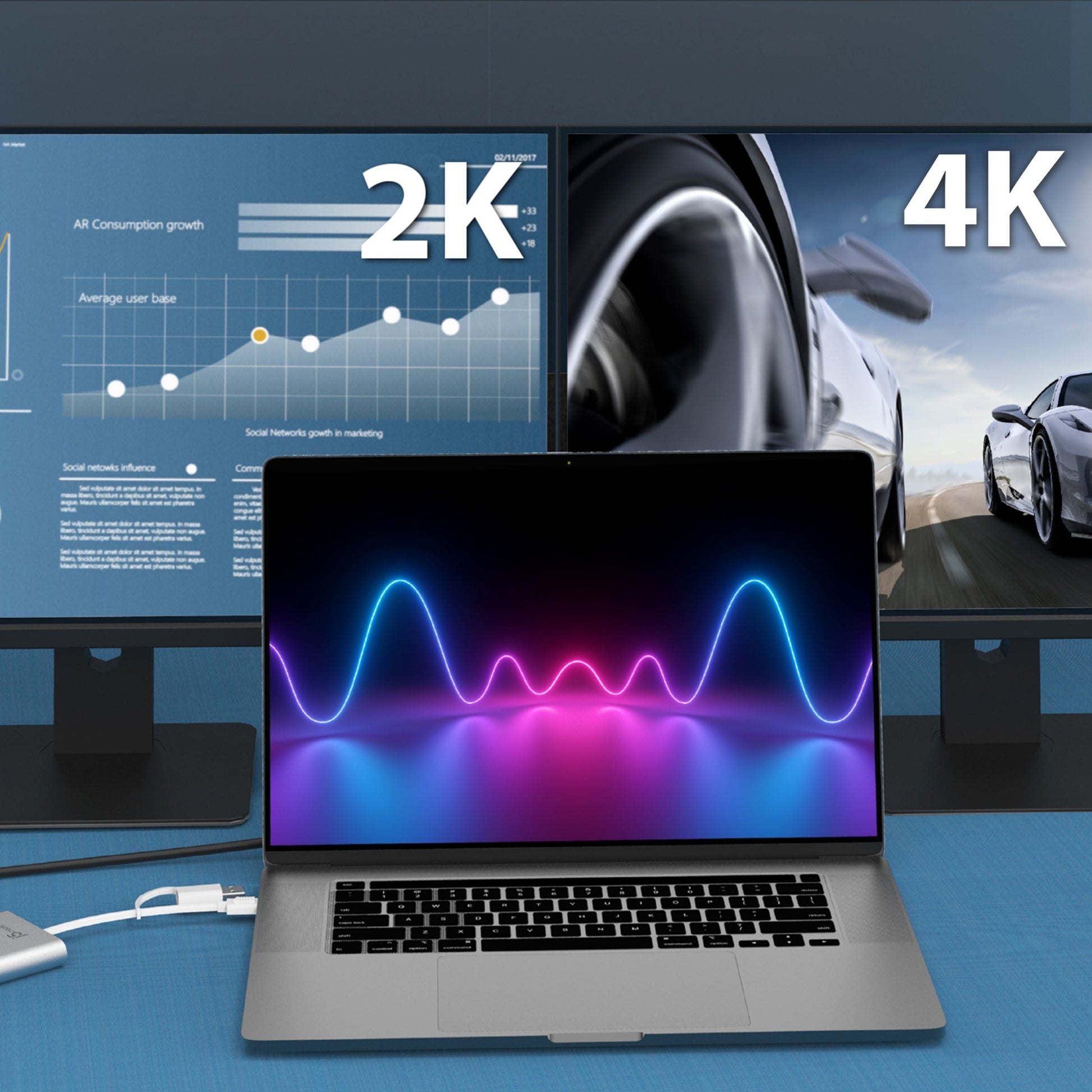

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.

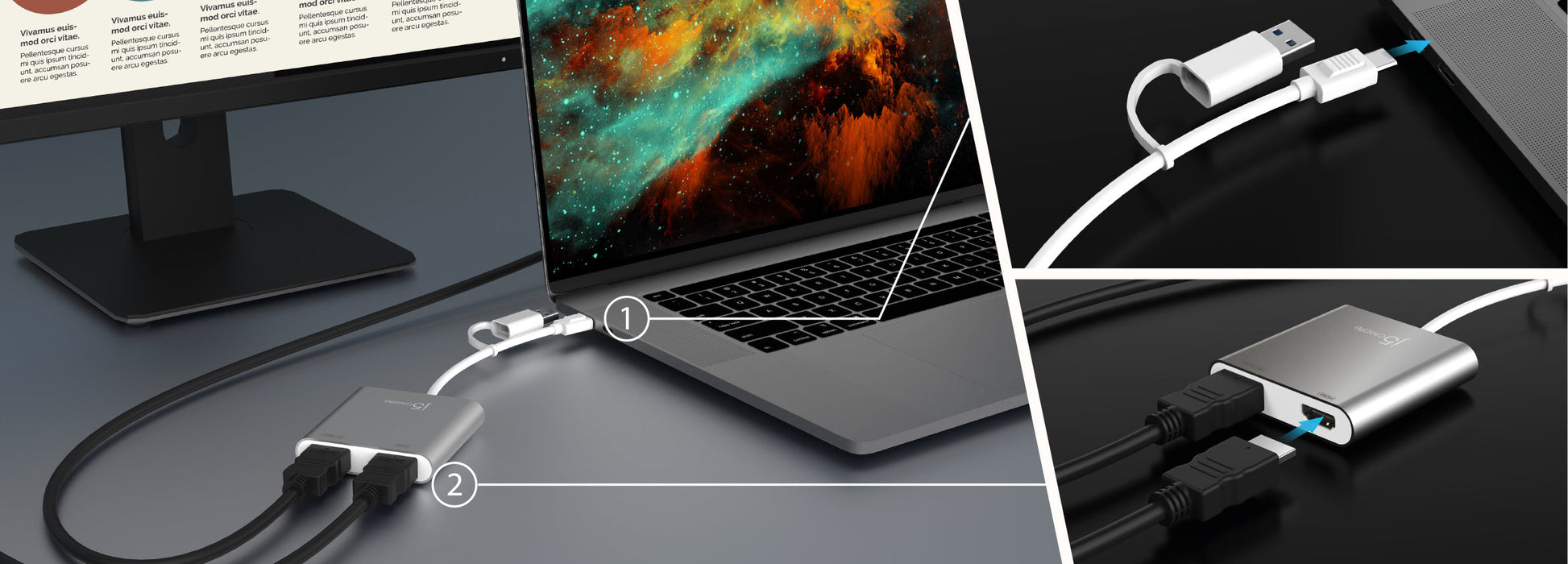

Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!

FEATURES:

• Easily add two HDMI™ video outputs though a single USB-C® port
• Compatible with USB-C® enabled macOS® & Windows® laptops
• Compact and lightweight design for maximum portability
• 4 display modes: Mirror, Extend, Primary, or Rotation*
  *Rotation mode only available on Windows® computers
• Supports resolutions up to 3840 x 2160 @ 30 Hz & 2048 x 1152 @ 60 Hz
• Hot swappable USB™ enables you to add or remove monitors without rebooting your system
• USB™ 3.1 provides up to 5 Gbps transfer rate which is 10x faster than USB™ 2.0
• 2-channel audio support

System Requirements:

• Windows® 10 or later
  macOS® 10.14 or later
• Available USB-C® port
  USB™ 3.1/3.0 is required for 4K resolutions
• For Office applications/Web browsers:
  • CPU: Intel® Core™ i3 5th gen Dual Core 1.8 GHz
  • RAM: 4 GB memory or higher
• For 2048 x 1152 @ 60 Hz full-screen video playback:
  • CPU: Intel® Core™ i5 5th gen Quad Core
  • RAM: 4 GB memory or higher
• For one 4K or two 2048 x 1152 @ 60 Hz full-screen video playback:
  • CPU: Intel® Core™ i7 5th gen Quad Core
  • RAM: 8 GB memory or higher
  • GPU: Intel® HD Graphics 5xx or AMD™/ NVIDIA® equivalent or higher

Special Notes:

• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
• The adapter is not intended for graphic intensive applications, such as gaming
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• The adapter can connect to a USB™ 2.0 port, but it will only support resolutions up to 2048 x 1152 @ 60 Hz
• Rotation mode is supported on Windows® only
• Only one adapter is supported per macOS® computer
• Content protected by HDCP may not play when connected to an unsupported display
• Internet access is required to automatically install the driver on Windows® 10

SPECIFICATIONS:

• Host connector: USB-C® 3.1 male
• Video output: HDMI™ female
• Power source: Bus-powered
• Audio supported: Yes (2.1 via HDMI™)
• USB™ pass-through: No
• Ports: 1 × HDMI™; 1 × 4K HDMI™
• Maximum display resolution: 3840 × 2160
• Maximum refresh rate: 4K @ 30 Hz; 2K @ 60 Hz
• Displays supported: 2
• Audio channel: 2.1 via HDMI™
• Power: no Power Delivery; power consumption ≤600 mA
• Color: Silver
• Enclosure type: Aluminum
• Cable length: 7.87 in (200 mm)

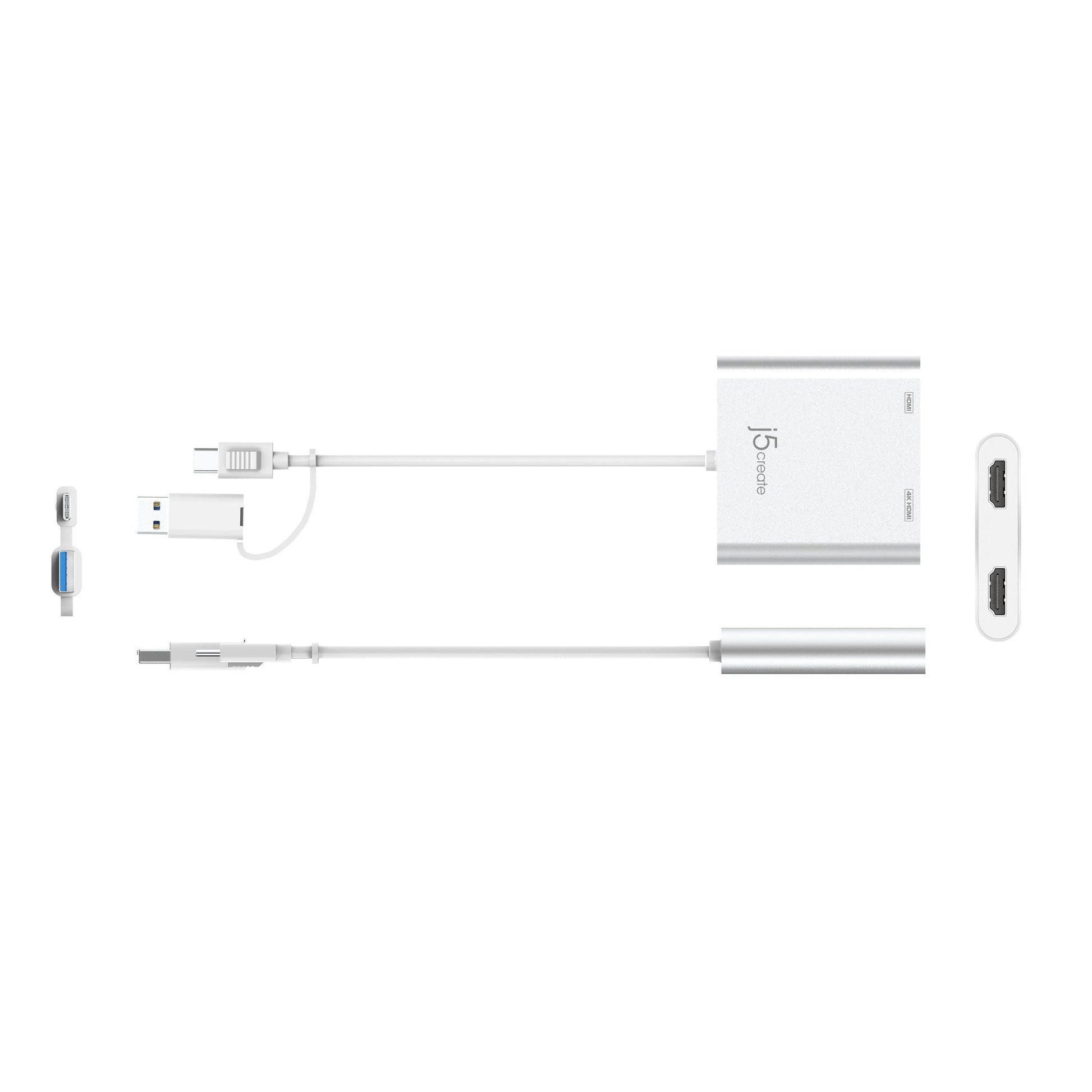

• Product dimensions: 2.4 × 2.68 × 0.59 in (61 × 68 × 15 mm)
• Product weight: 2.96 oz (84 g)
• Storage temperature: 14 to 149°F (-10 to 65°C)
• Storage humidity: <85% non-condensing
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operating humidity: <85% non-condensing

WHAT'S IN THE BOX:

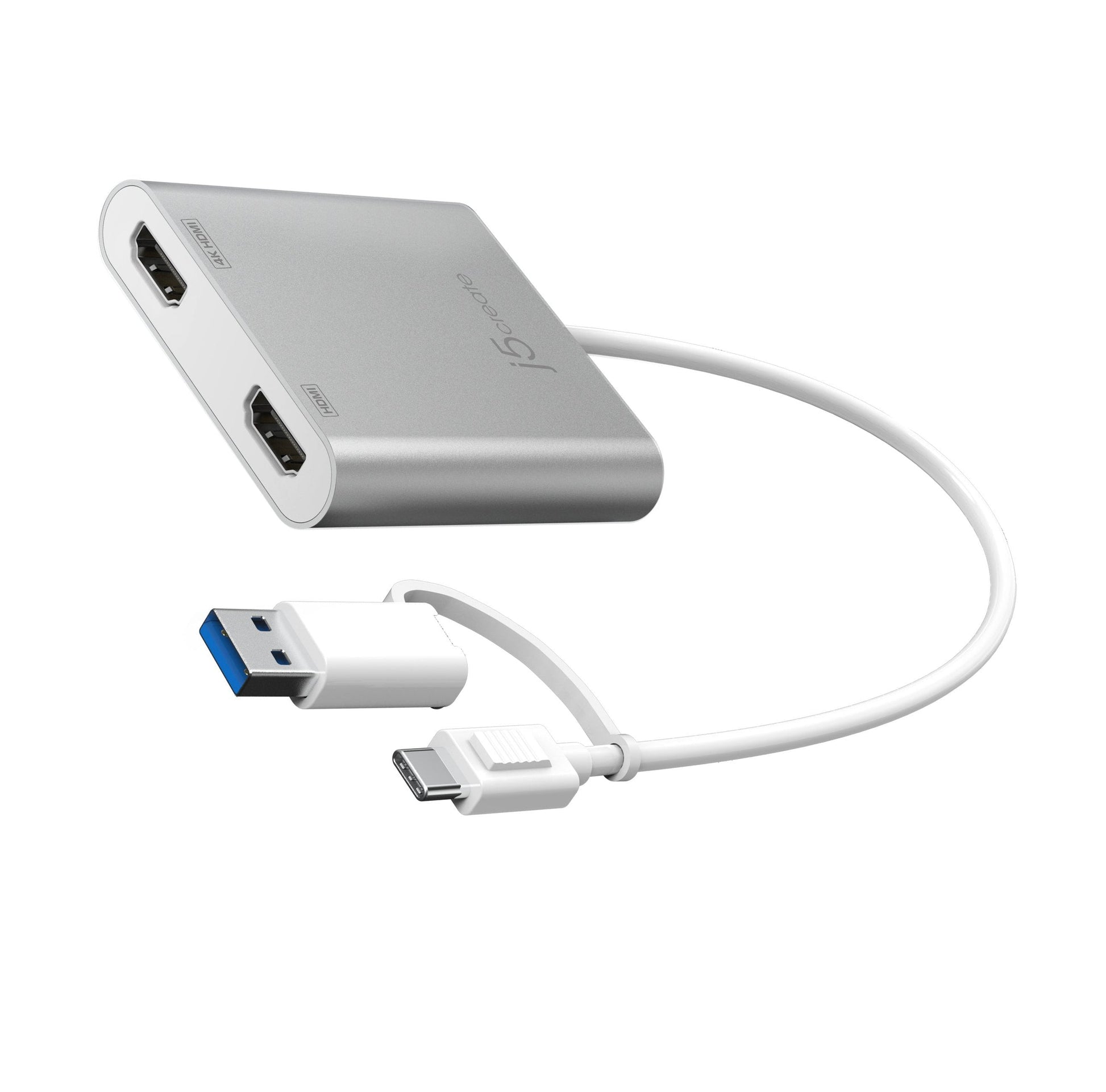

• USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365) x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
