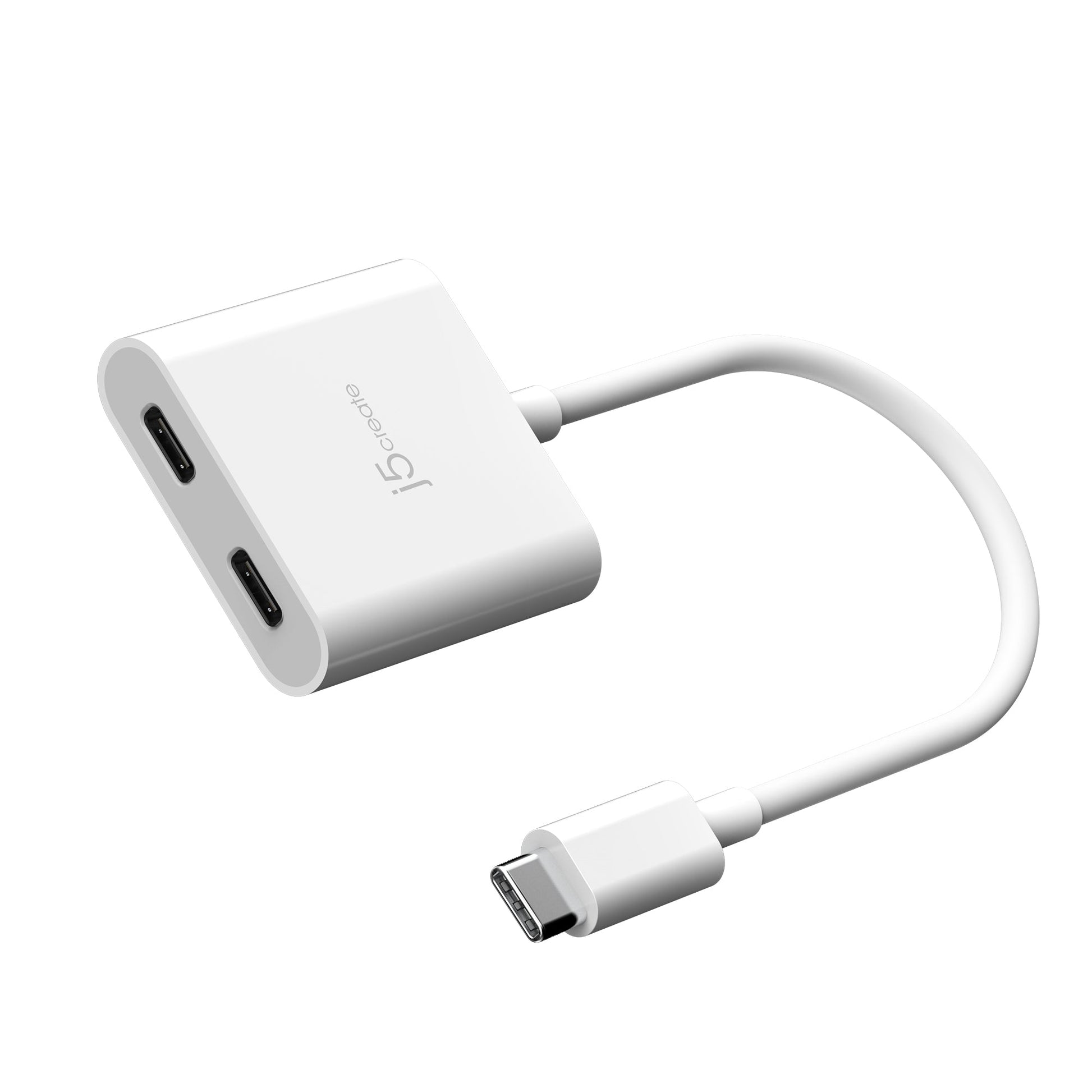

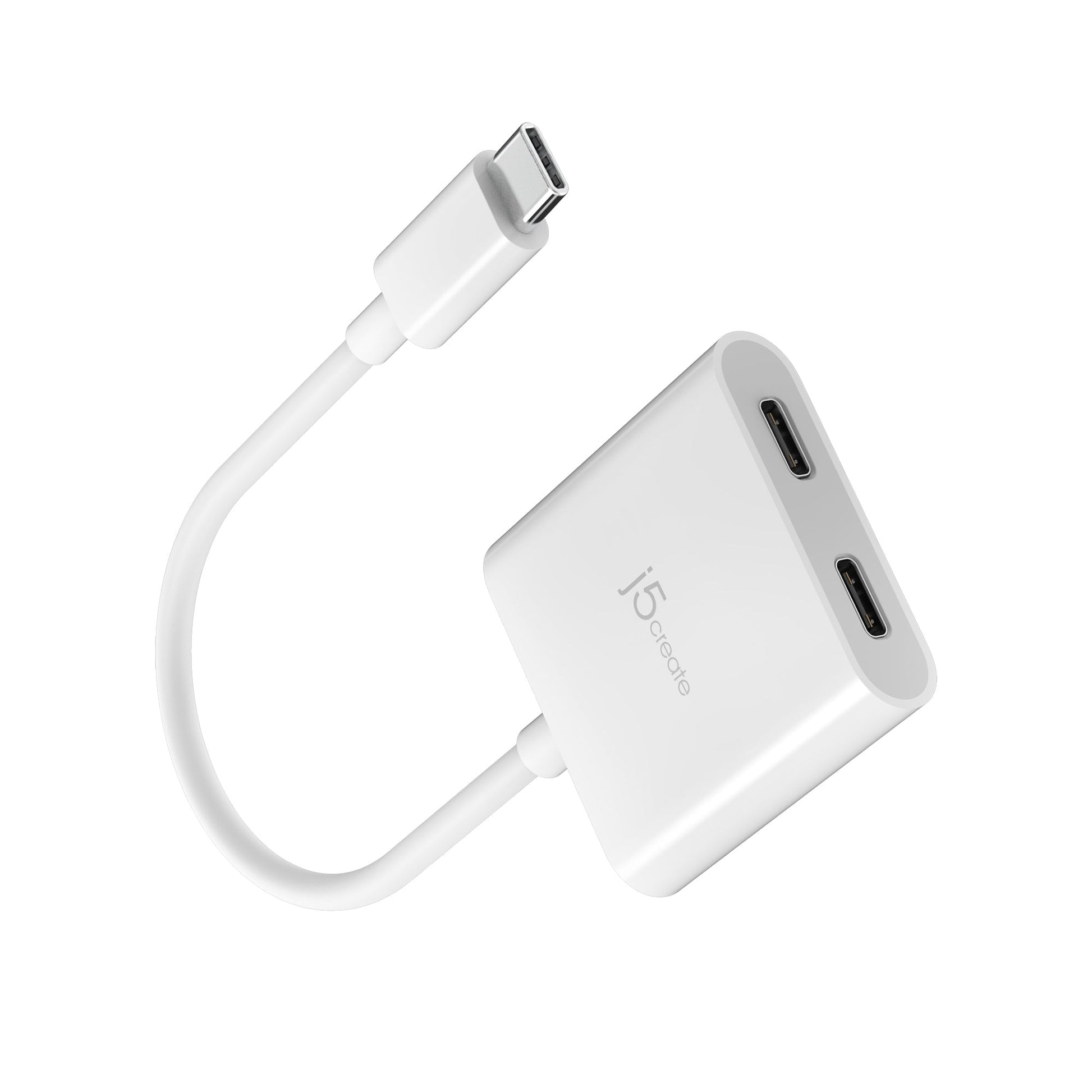

J5create USB-C to Dual USB-C with Video or Power Delivery - JCA164

J5create USB-C to Dual USB-C with Video or Power Delivery - JCA164

R 679.00 ZAR
R 679.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space.

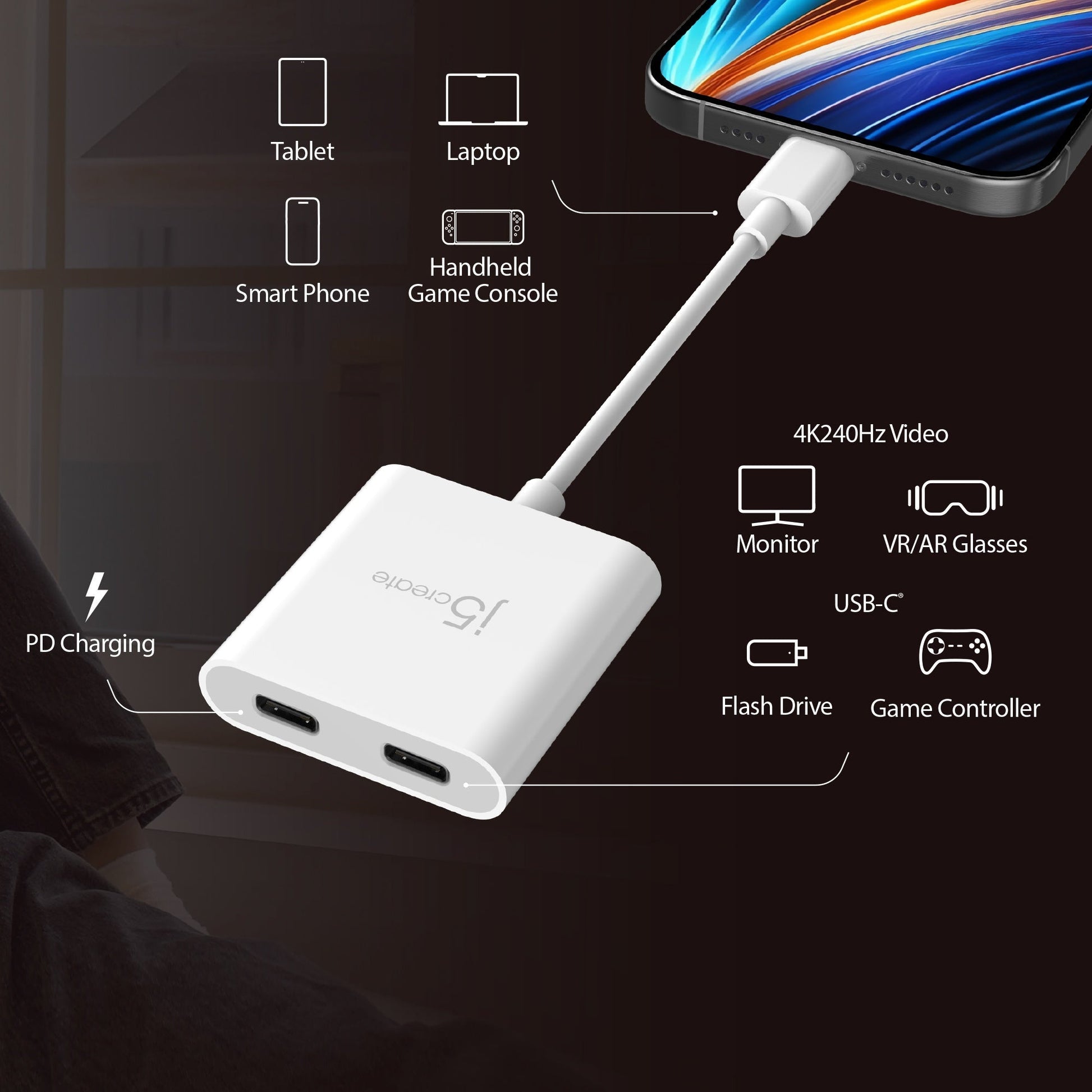

This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected.

The 4K240 Hz USB-C® port supports Extended, and Mirrored display modes. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.

FEATURES:

  • Supports USB-C® video resolution up to 4K @ 240 Hz for VR/AR glasses and USB-C® monitor
  • Designed specifically for AR glasses or high-resolution monitor, features a USB-C® port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience.

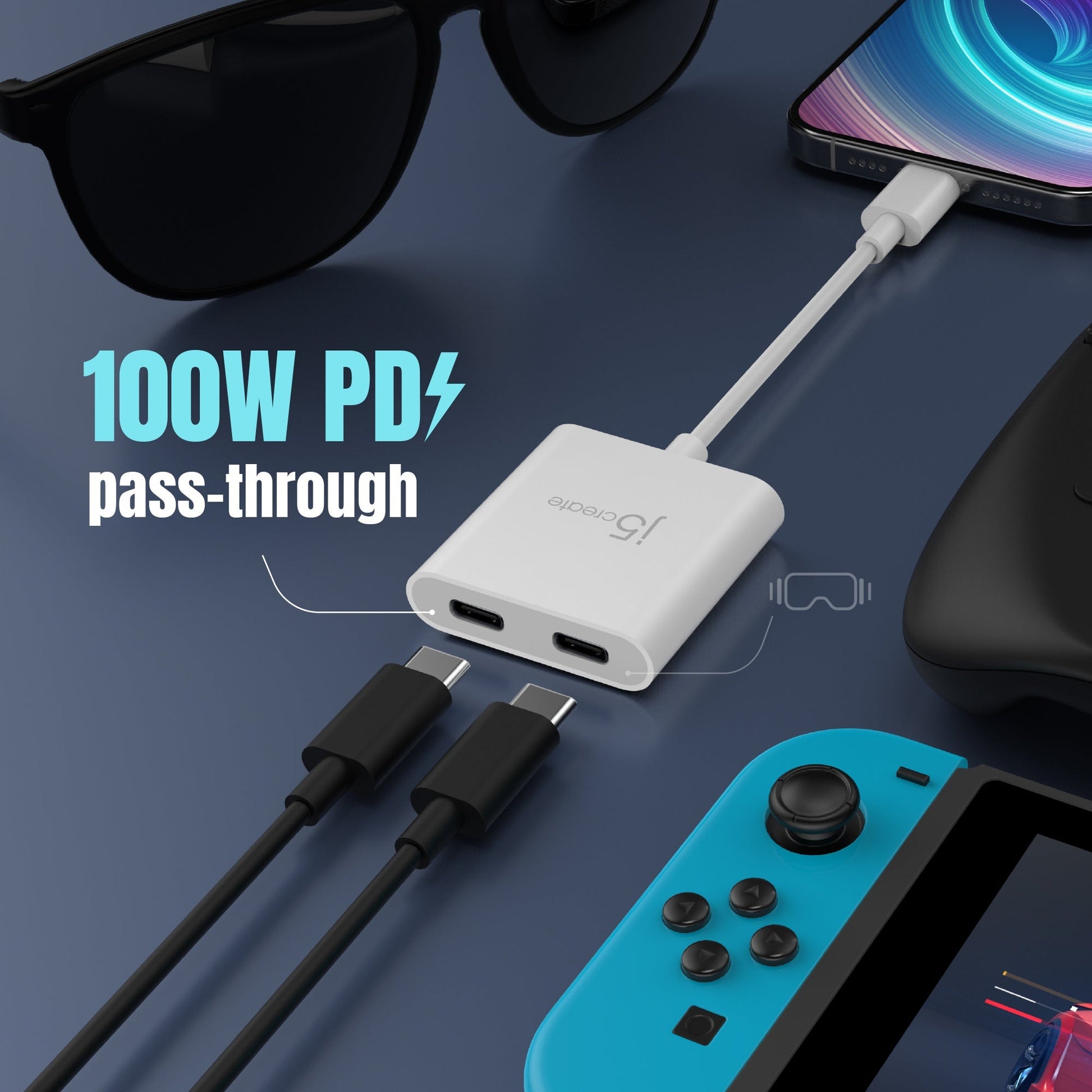

  • Charge while playing! Equipped with a USB-C® charging input supporting up to PD 100W.
  • Suitable for iPhone® 15, Android™ phone or handheld game console like Nintendo Switch® and Steam Deck™.
  • Plug-and-play, no driver installation is required

System Requirements:

  • Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  • Available USB™ Power Delivery over USB-C® to support charging to a mobile device.
  • Host device must have an available USB-C® port with video output and PD charging capabilities.

Special Notes:

  • The adapter can connect to an USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
  • If you are using a high-powered USB™ device, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
  • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0.
  • The device may become warm to moderately hot while transferring bulk data or while a USB-C® power supply is plugged in.

SPECIFICATIONS:

  • Audio supported: Yes
  • Host connector: 1 × USB-C® male
  • Network interface: N/A
  • Ports: 1 × USB-C® (4K @ 240 Hz with USB 480 Mbps); 1 × USB-C® with Power Delivery 3.0 upstream charging up to 100W
  • Video output: 2 × USB-C® female
  • Power source: Bus-powered or self-powered
  • Audio channel: N/A
  • Displays supported: 1
  • Maximum data transfer rate: 480 Mbps
  • Maximum display refresh rate: 240 Hz
  • Maximum display resolution: 3840 × 2160 @ 240 Hz; 2560 × 1440 @ 240 Hz; 1920 × 1080 @ 240 Hz
  • Power: Power Delivery up to 100W via USB-C®; PD input up to 20V/5A; PD output up to 20V/4.75A; power consumption ≥350 mA
  • Color: White
  • Enclosure type: ABS plastic
  • Cable length: 3.93 in (100 mm)

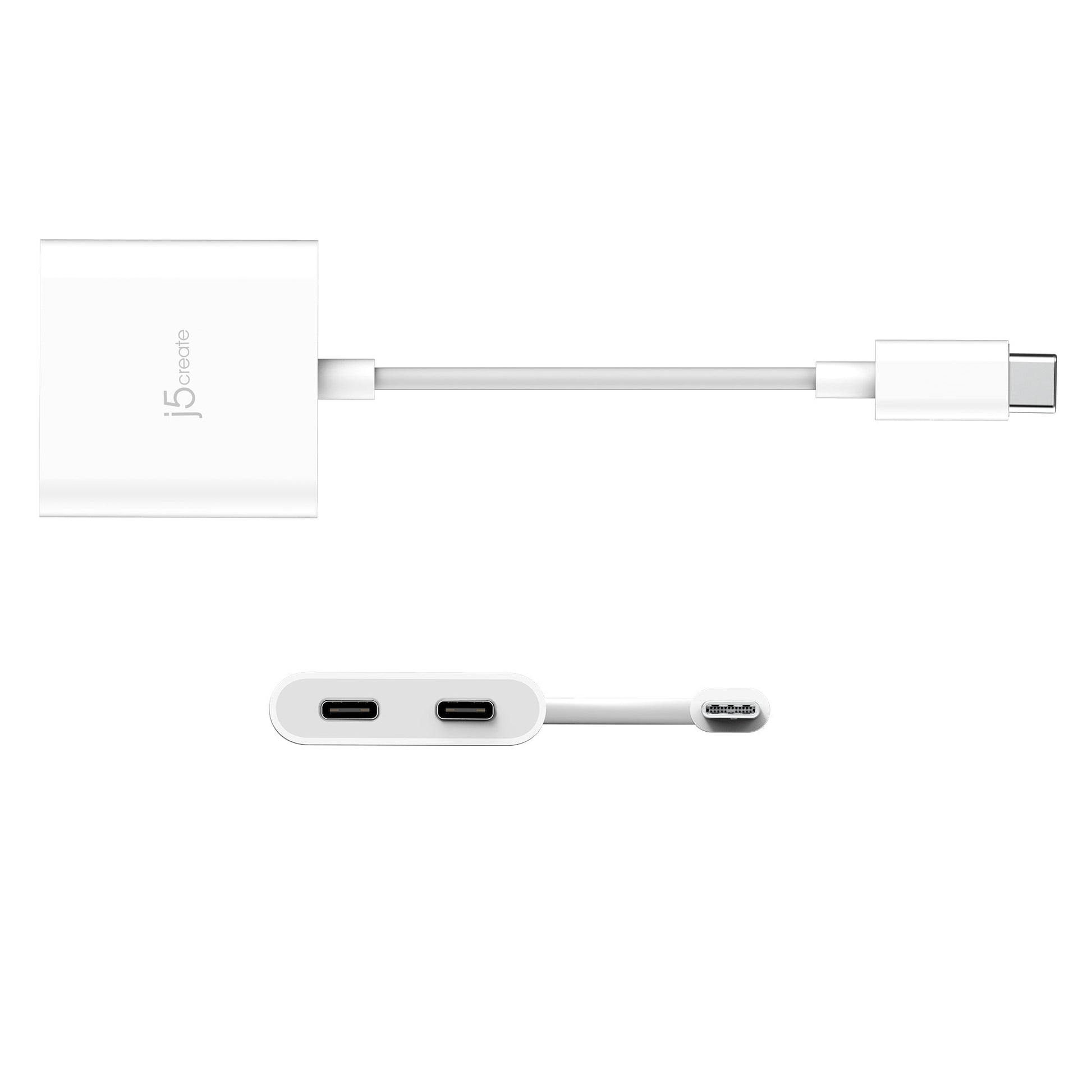

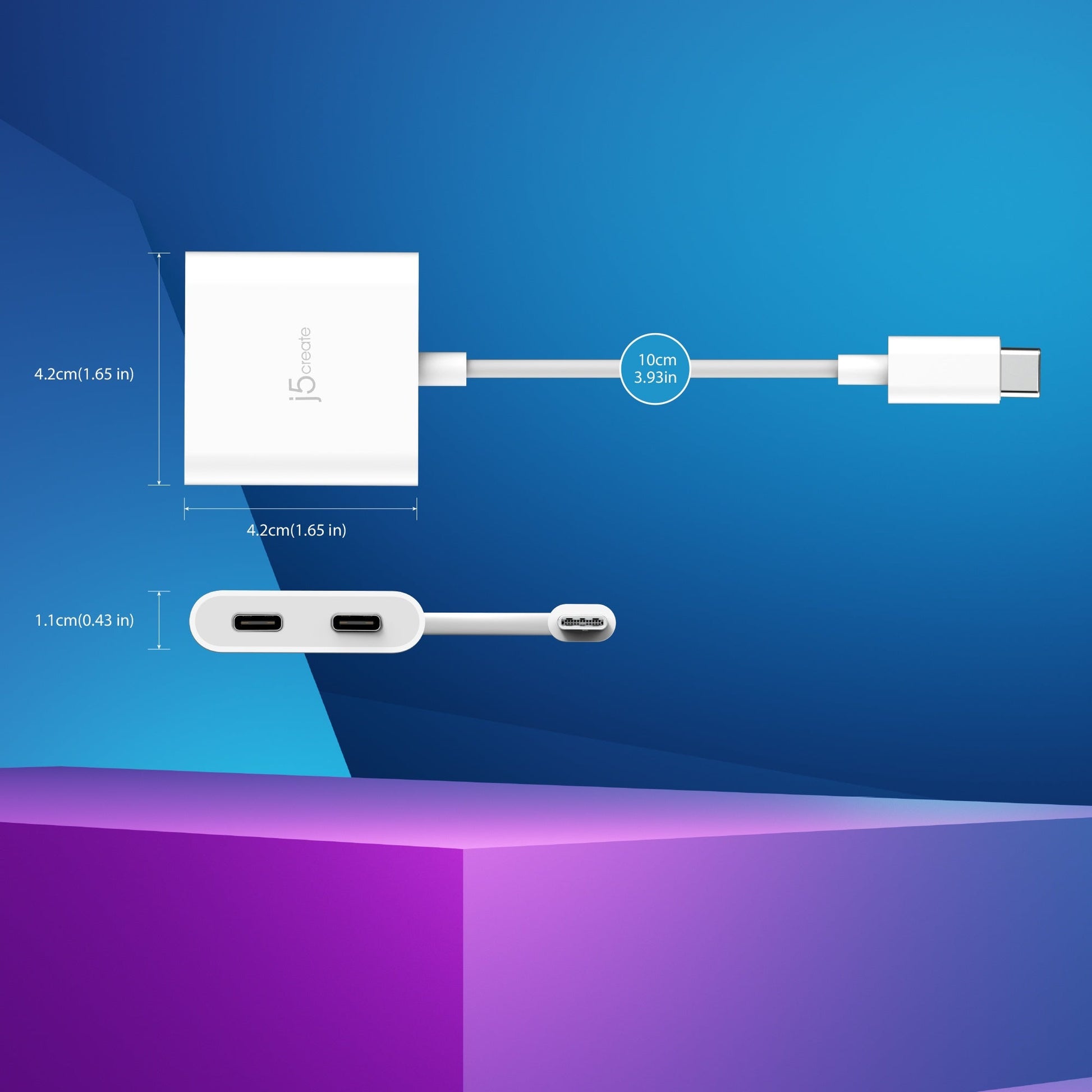

  • Product dimensions: 1.65 × 1.65 × 0.43 in (42 × 42 × 11 mm)
  • Product weight: 23.2 g
  • Operating temperature: 30 to 106°F (-1 to 41°C)
  • Storage temperature: 0 to 155°F (-17 to 68°C)

WHAT'S IN THE BOX:

  • USB-C® to Dual USB-C® with Video or Power Delivery (JCA164) x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
