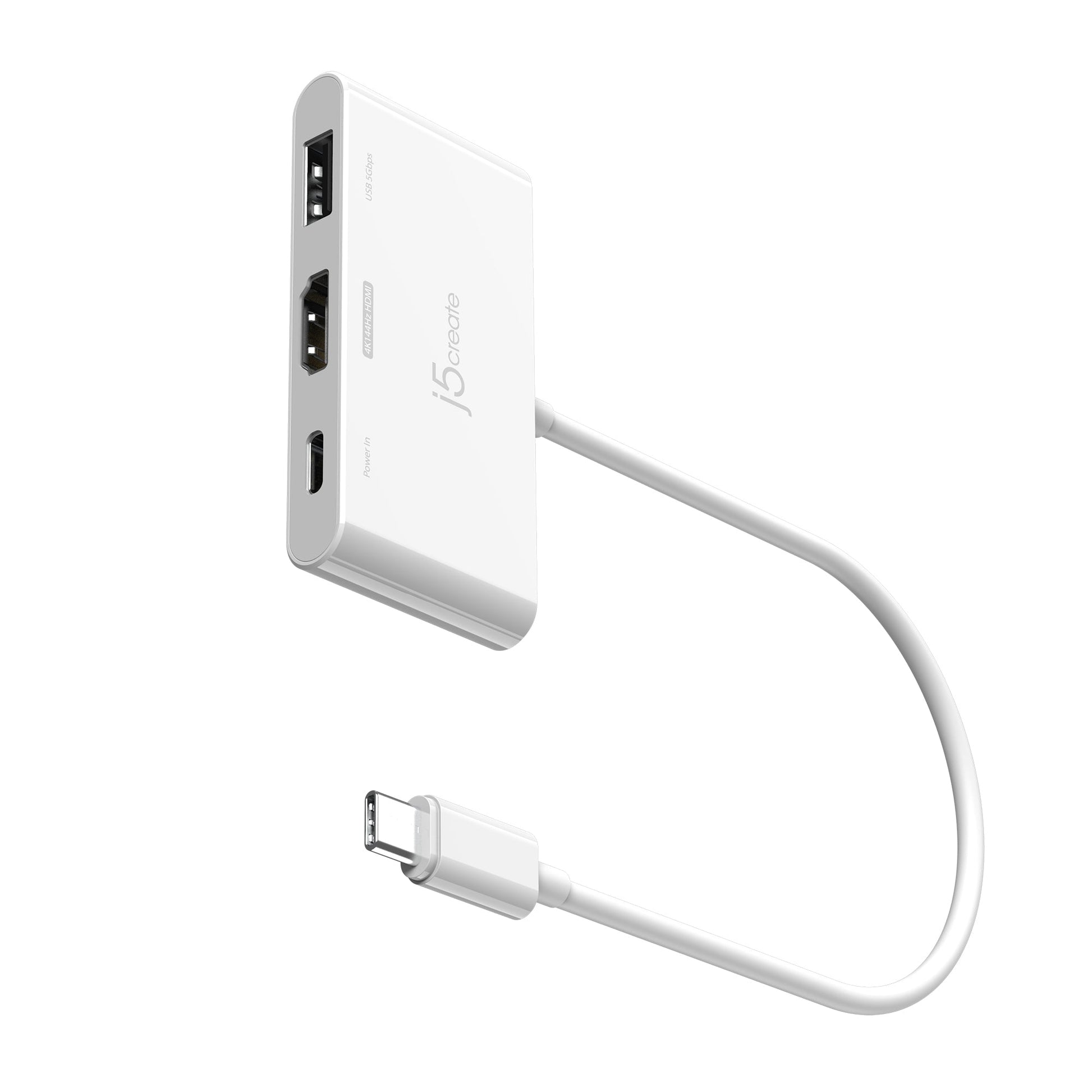

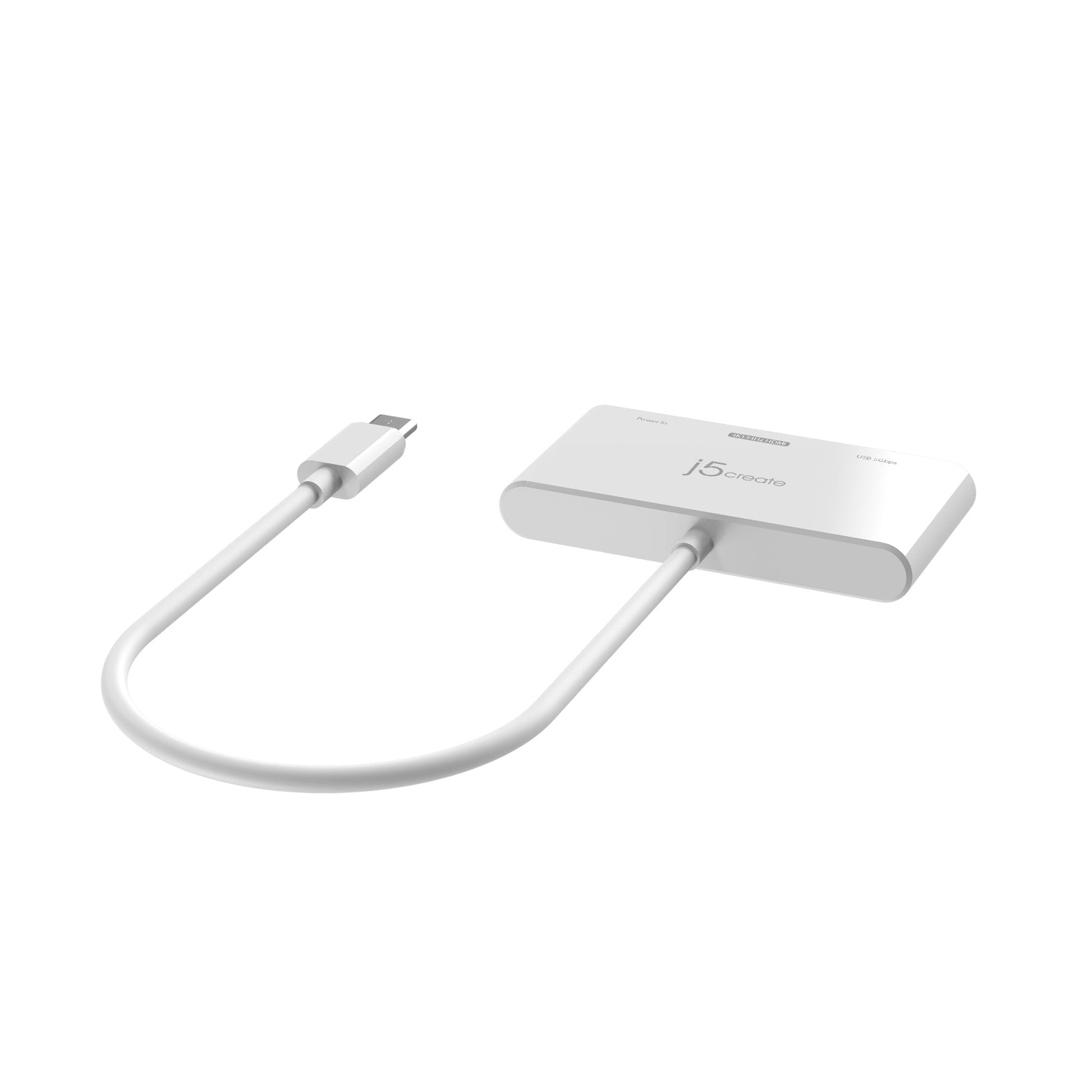

J5create USB-C to HDMI 4K144Hz & USB 3.2 with Power Delivery 100W - JCA399

J5create USB-C to HDMI 4K144Hz & USB 3.2 with Power Delivery 100W - JCA399

R 819.00 ZAR
R 819.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship in 2-4 days

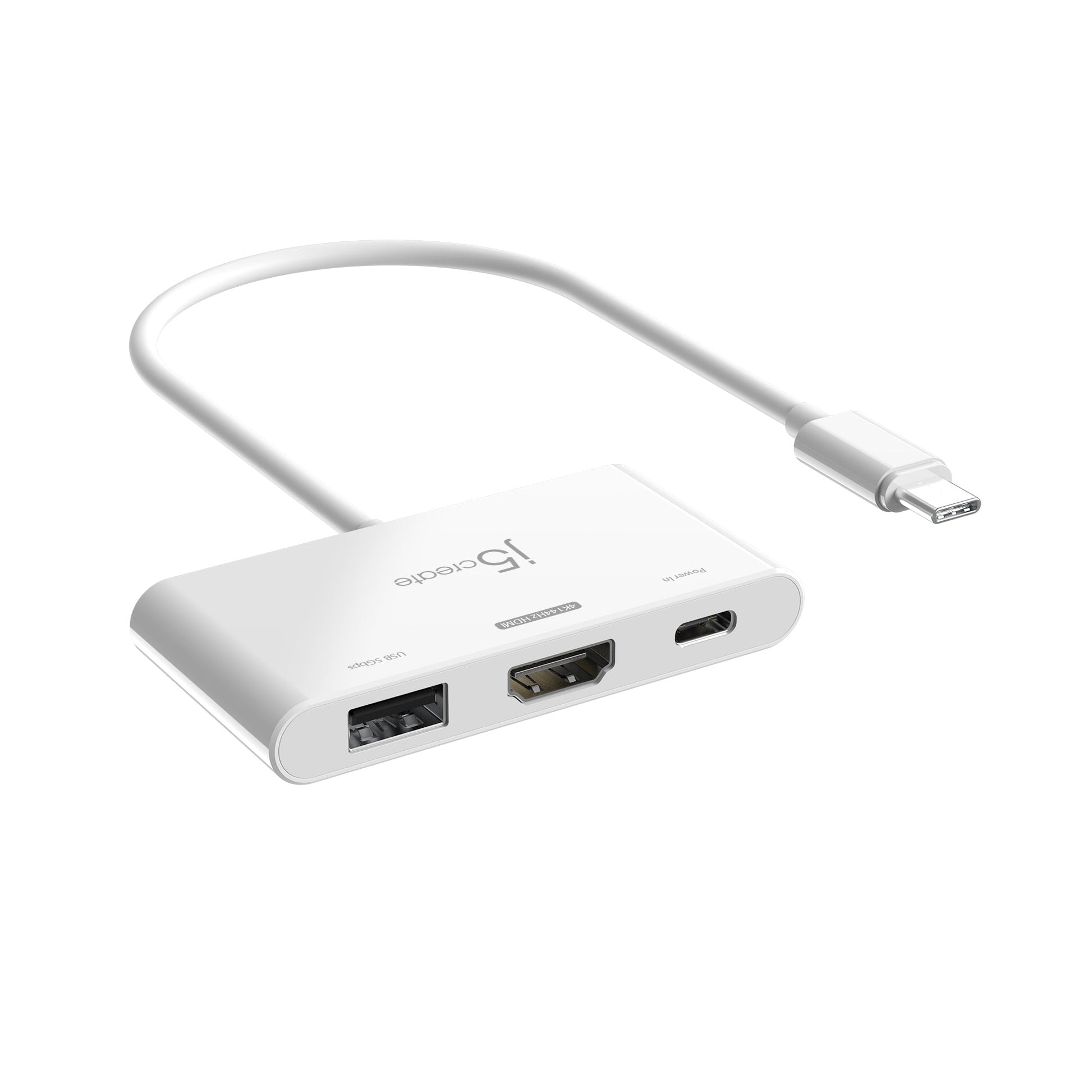

The JCA399 adapter adds extra functionality to your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space.

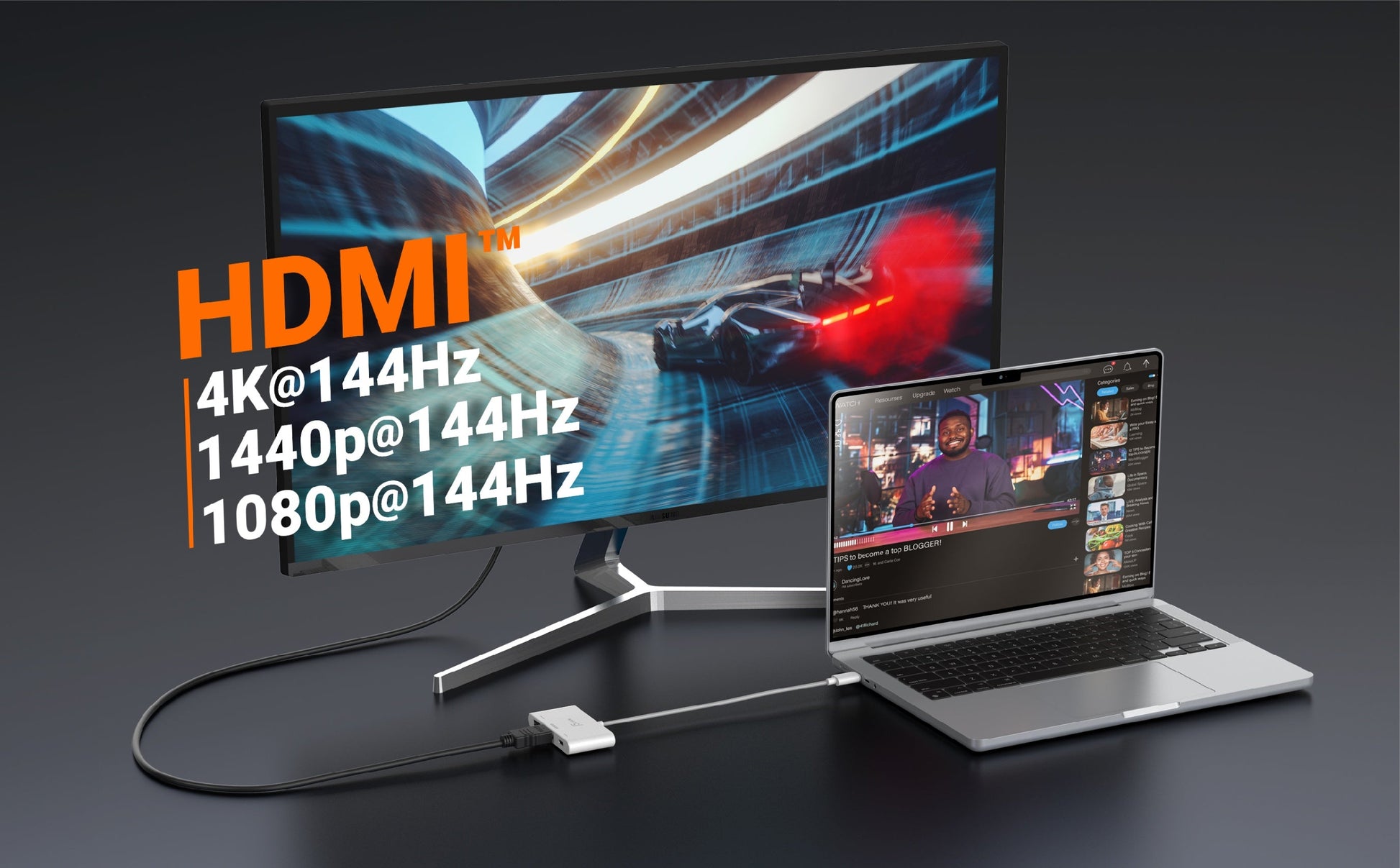

This adapter allows you to connect a display such as a monitor or TV to your device and supports resolutions up to 4K 144 Hz. Includes a 5Gbps USB™ Type-A port and a USB-C® Power Delivery port that can be used to charge your laptop when a USB-C® power adapter is connected.

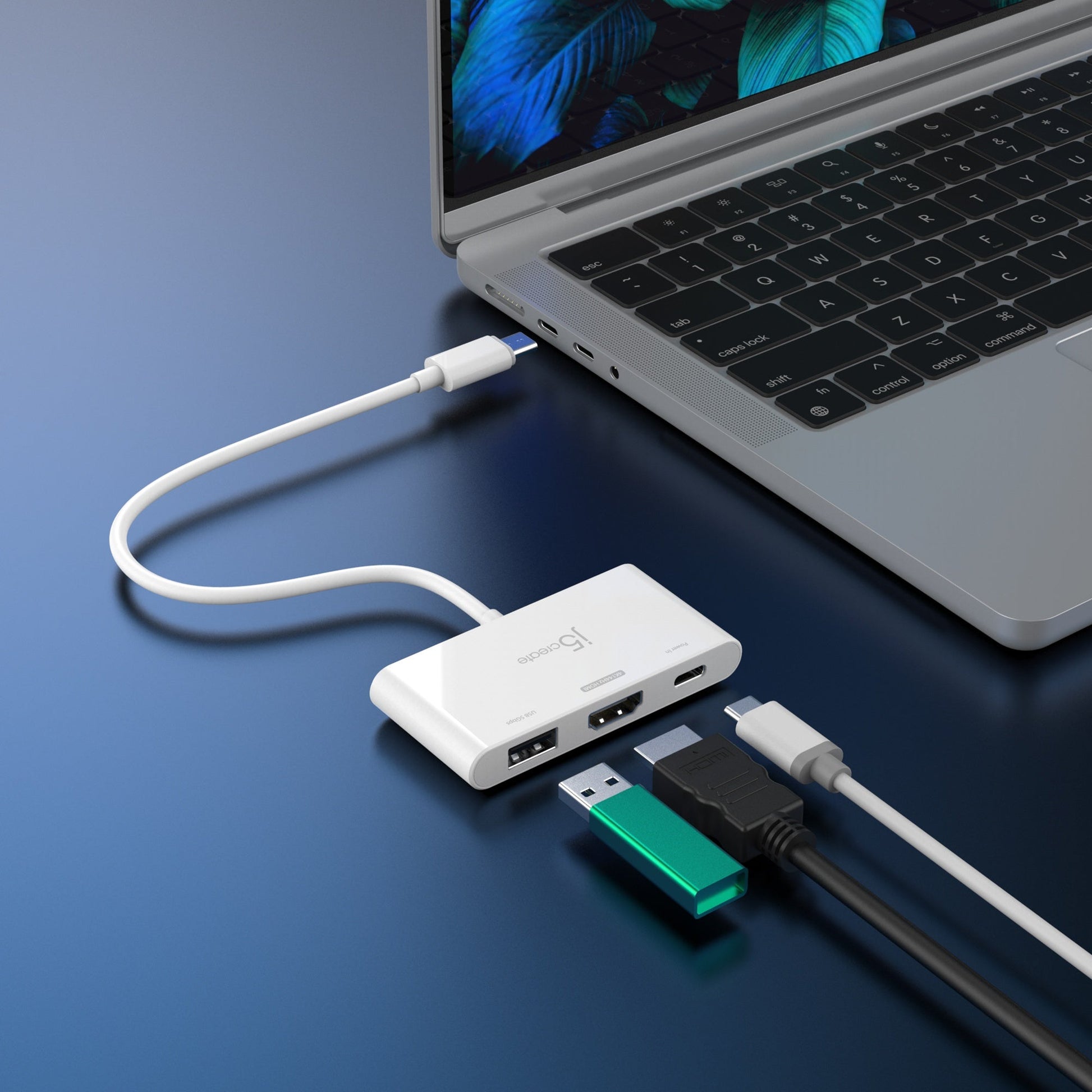

The 4K144 HDMI™ port supports Extended, and Mirrored display modes. It come with a 5Gbps USB™ Type-A that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. The USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.

FEATURES:

  • Supports HDMI™ resolution up to 4K @ 144 Hz
  • DisplayPort™ Alternate Mode for HDMI™
  • Supports USB™ Type-A 3.2 Gen 1 port, transfer rates up to 5Gbps. Backward compatible with USB™ 3.1 / 3.0 /2.0
  • Supports power delivery 3.0 upstream charging up to 100W
  • Plug-and-play, no driver installation is required

System Requirements:

  • Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  • DisplayPort™ v1.4 with DSC is required on graphics card or video source to support 4K @ 144 Hz. If your system only supports DisplayPort™ v1.4 (without DSC), the 4K resolution will be displayed at 60 Hz.
  • Available USB™ Power Delivery over USB-C® to support charging to a mobile device.

Special Notes:

  • The adapter can connect to an USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
  • If you are using a high-powered USB™ device, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
  • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0.
  • The device may become warm to moderately hot while transferring bulk data or while a USB-C® power supply is plugged in.

SPECIFICATIONS:

  • Audio Supported: Yes
  • Host Connector: 1 × USB-C® Male
  • Network Interface: N/A

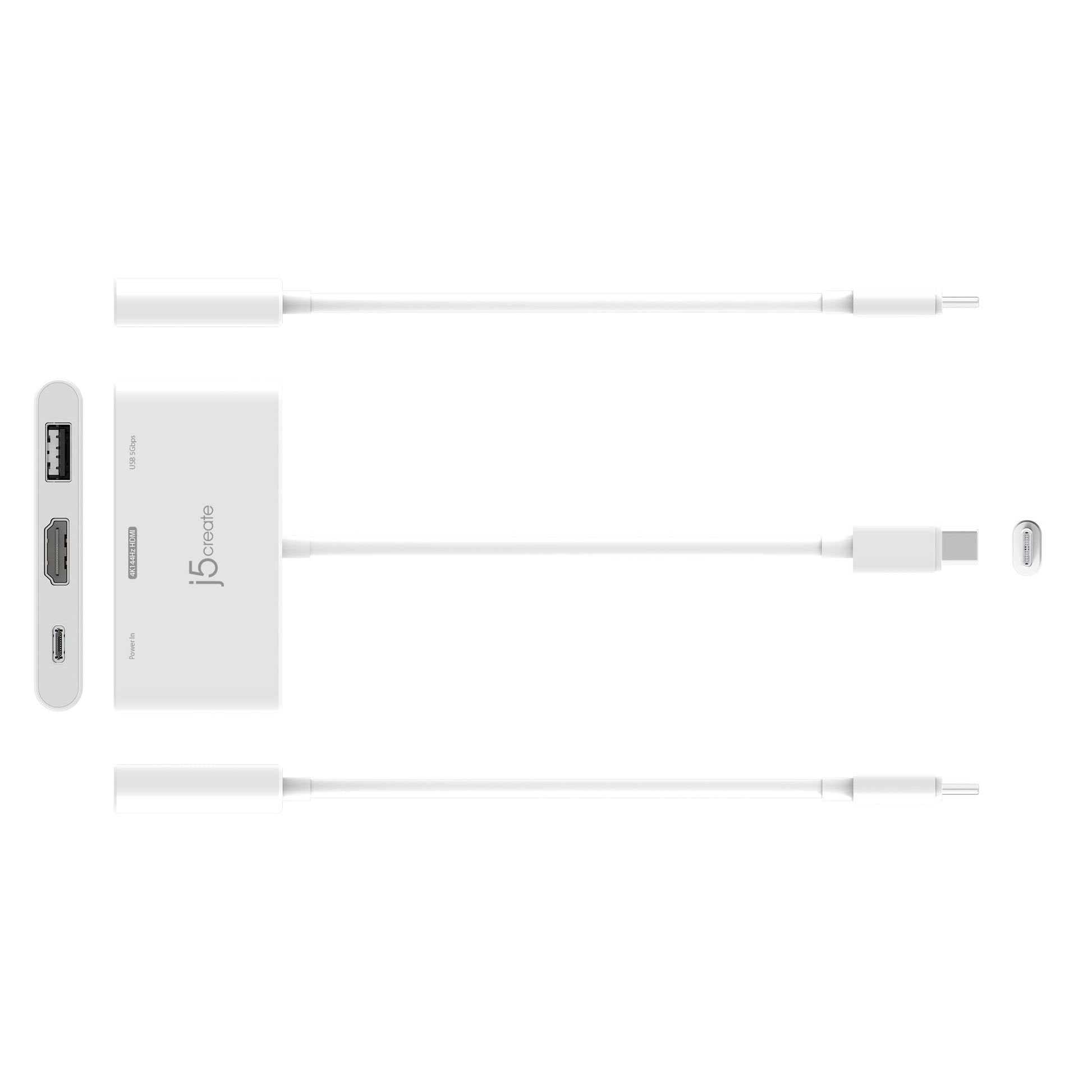

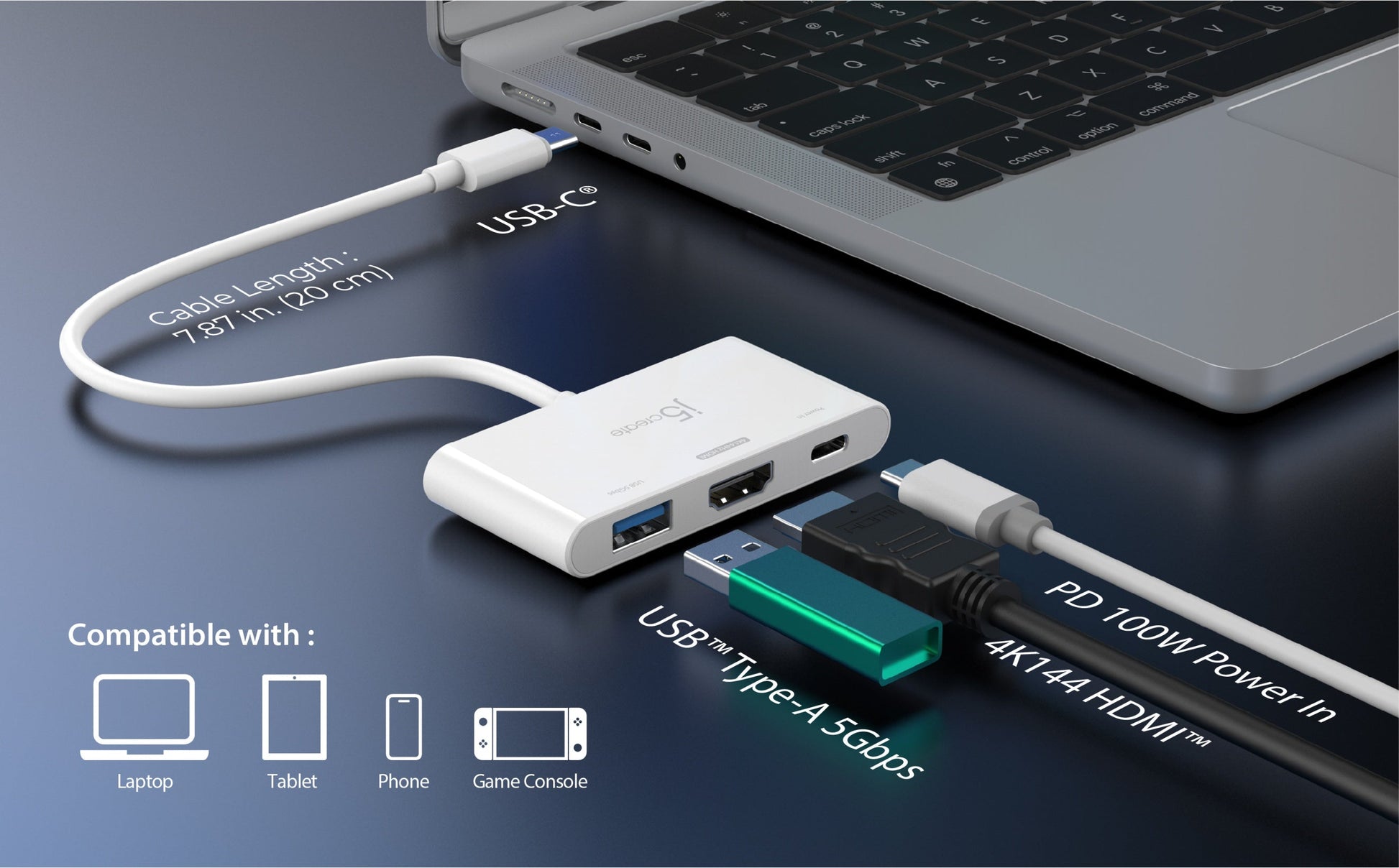

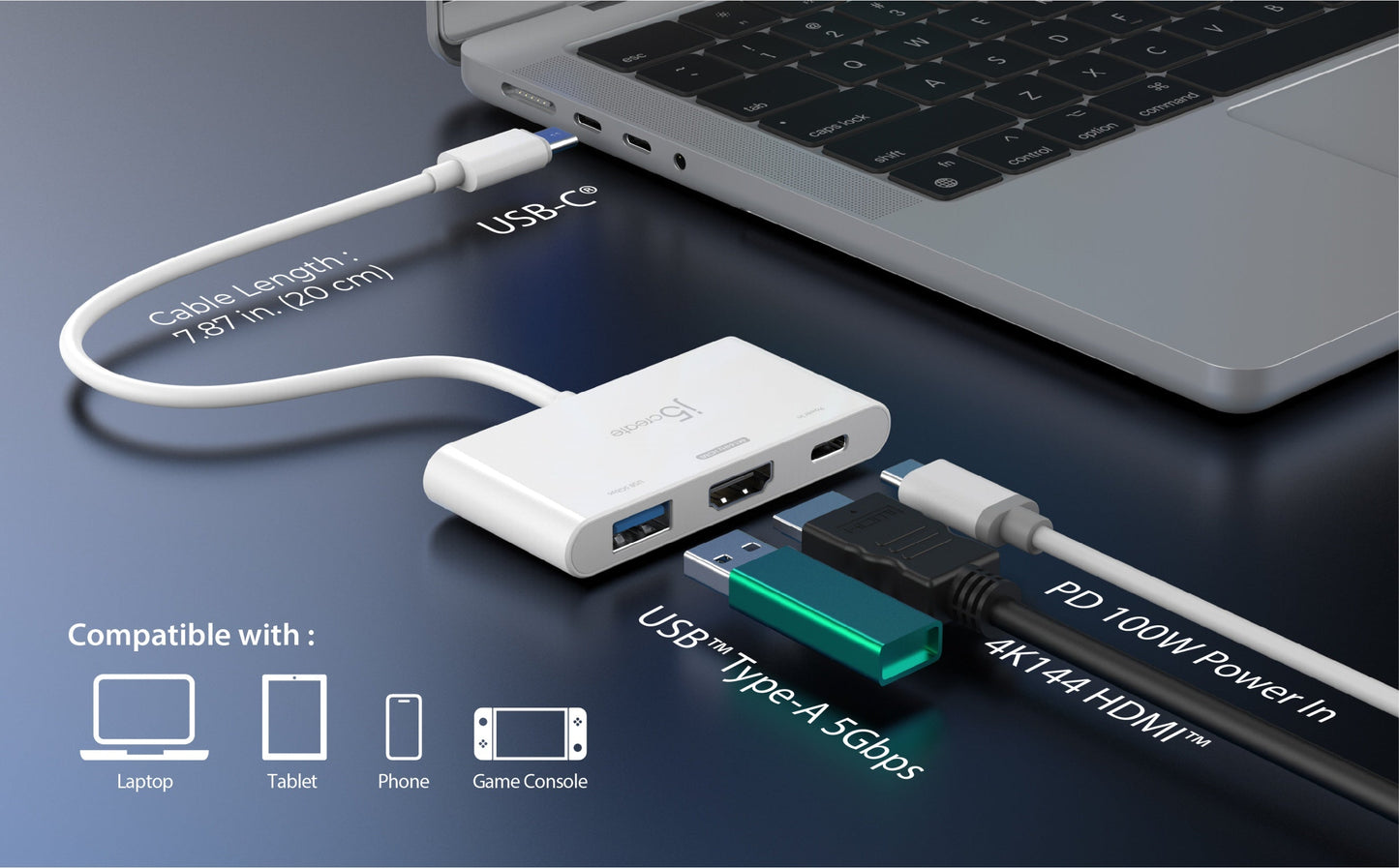

  • Ports:
    • 1 × HDMI™ (4K @ 144 Hz)
    • 1 × USB™ Type-A 3.2 Gen 1 (5 Gbps)
    • 1 × USB-C® with Power Delivery 3.0 (up to 100 W charging)
  • Power Source: Bus-powered or self-powered
  • Video Output: 1 × HDMI™ Female
  • Audio Channel: N/A
  • Compatible Networks: N/A
  • Displays Supported: 1
  • Max Data Transfer Rate: 5 Gbps
  • Max Display Refresh Rate: 144 Hz
  • Max Display Resolution:
    • 3840 × 2160 @ 144 Hz
    • 2560 × 1440 @ 144 Hz
    • 1920 × 1080 @ 144 Hz
  • PD Input Current: Up to 5 A
  • PD Input Voltage: Up to 20 V
  • PD Output Current: Up to 4.5 A
  • PD Output Voltage: Up to 20 V
  • Power Consumption: ≥ 350 mA
  • Power Delivery: Up to 100 W via USB-C®
  • Cable Length: 7.87 in. (20 cm)
  • Color: White
  • Enclosure Type: ABS Plastic
  • Operating Temperature :30 to 106°F (-1 to 41°C)
  • Product Dimensions: Width: 3 in. (75 mm) Depth: 1.8 in. (45 mm) Height: 0.43 in. (11 mm)
  • Product Weight: 1.11 oz (31.5 g)
  • Storage Temperature: 0 to 155°F (-17 to 68°C)

WHAT’S IN THE BOX:

  • USB-C® to HDMI™ 4K144Hz & USB™ 3.2 with Power Delivery 100W (JCA399) x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
