J5create USB-C to HDMI, Ethernet, 2 x USB Type- A and USB-C Hub - JCA374

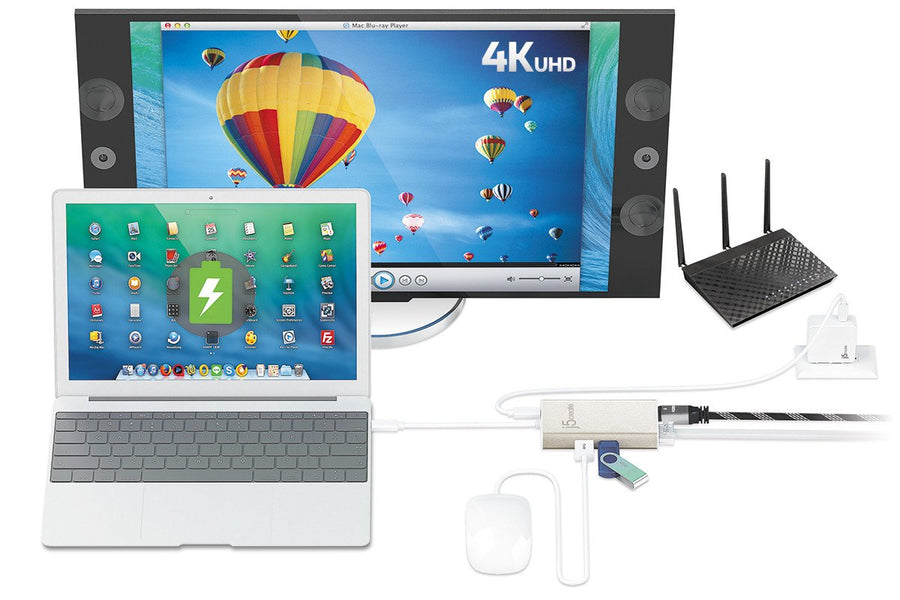

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.

FEATURES:

• Supports HDMI™ resolutions up to 4K @ 30 Hz
• Reliable network connectivity via the Gigabit Ethernet port with LED indicators
• Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
• 2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
• Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
• Compact and lightweight design for maximum portability

System Requirements:

• Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0.
  Please refer to the manufacturer of your hardware for more information on your device
• DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30Hz resolution

Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance.
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files

SPECIFICATIONS:

• Warranty: 2 Year Limited
• Host Connector: 1 × USB-C™ (Male)
• Video Output: 1 × HDMI™ (Female)
• Power Source: Bus-powered or self-powered
• Network Interface: RJ45 (Gigabit Ethernet)
• Audio Supported: Yes
• Ports:
  • 2 × USB™ 3.0 Type-A
  • 1 × RJ45 Gigabit Ethernet
  • 1 × 4K HDMI™
  • 1 × USB-C® (Power Delivery)
• Maximum Display Resolution: 3840 × 2160 (4K)
• Maximum Refresh Rate:
  • 60 Hz @ 1920 × 1080
  • 30 Hz @ 3840 × 2160
• Maximum Data Transfer Rate: 5 Gbps
• Displays Supported: Yes (single display)
• Compatible Networks: 10 / 100 / 1000 Mbps
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 60W via USB-C®
• Power Consumption: ≥ 350 mA
• Input: Up to 20V / 3A
• Output: Up to 20V / 3A
• Color: Champagne Metallic
• Enclosure: Aluminum
• Cable Length: 3.93 in (100 mm)
• Dimensions:
  • Height: 0.59 in (15 mm)
  • Width: 1.98 in (50.5 mm)
  • Depth: 3.79 in (96.5 mm)
  • Weight: 2.43 oz (69 g)
• Storage Temperature: 14 to 140°F (-10 to 65°C)
• Operating Temperature: 32 to 98°F (0 to 37°C)
• Storage Humidity: < 85% (non-condensing)
• Operating Humidity: < 85% (non-condensing)

WHAT’S IN THE BOX:

• JCA374 USB-C® Multi-Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
