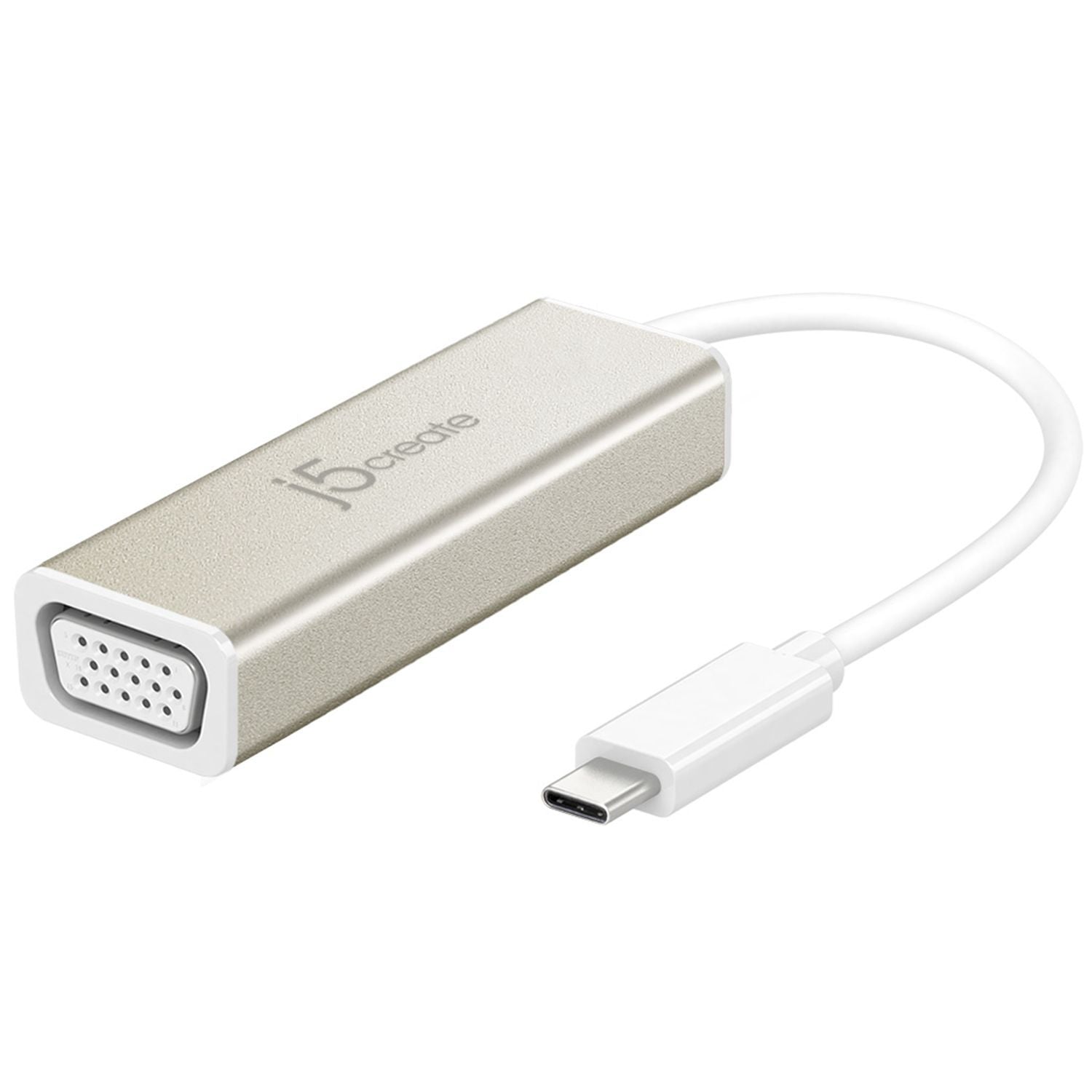

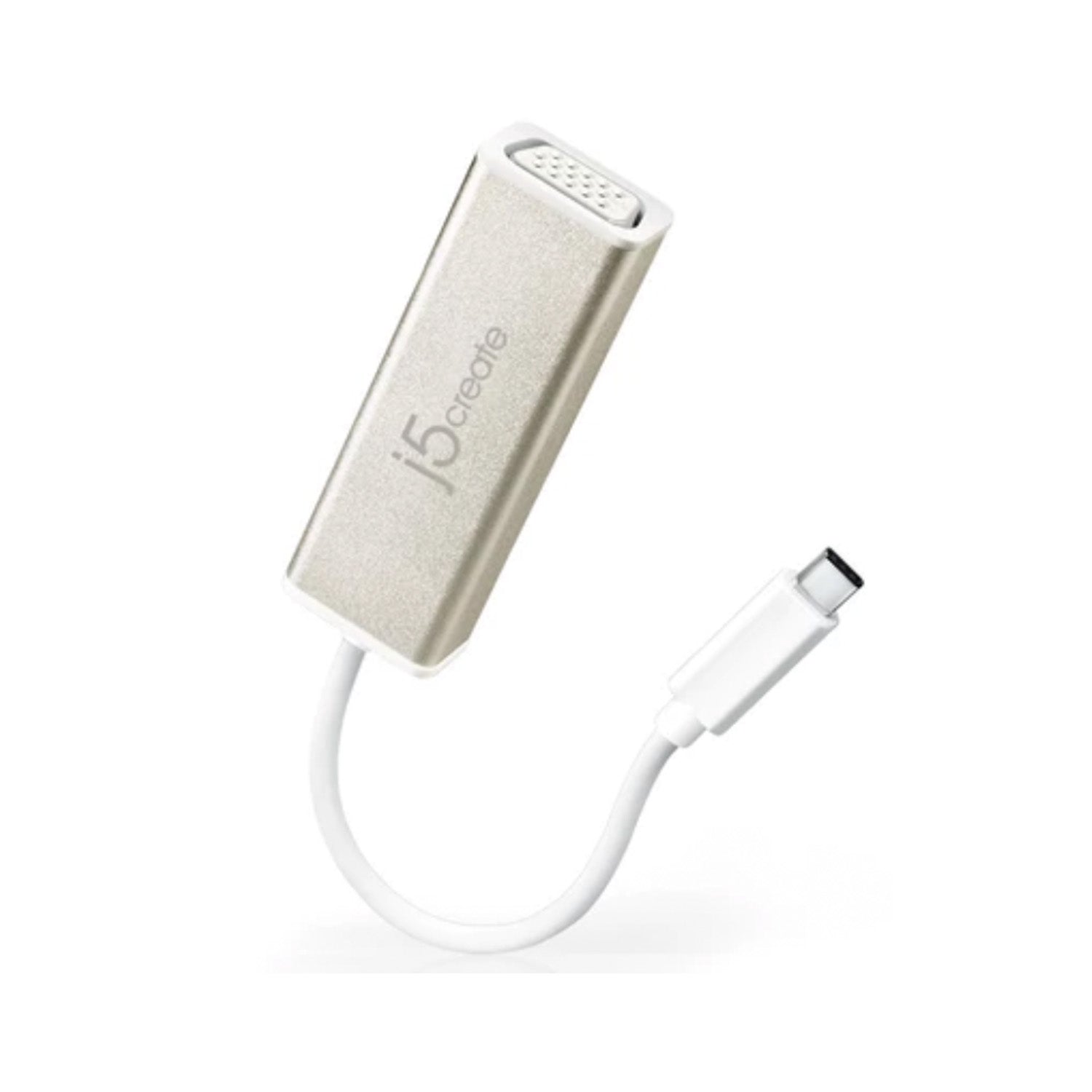

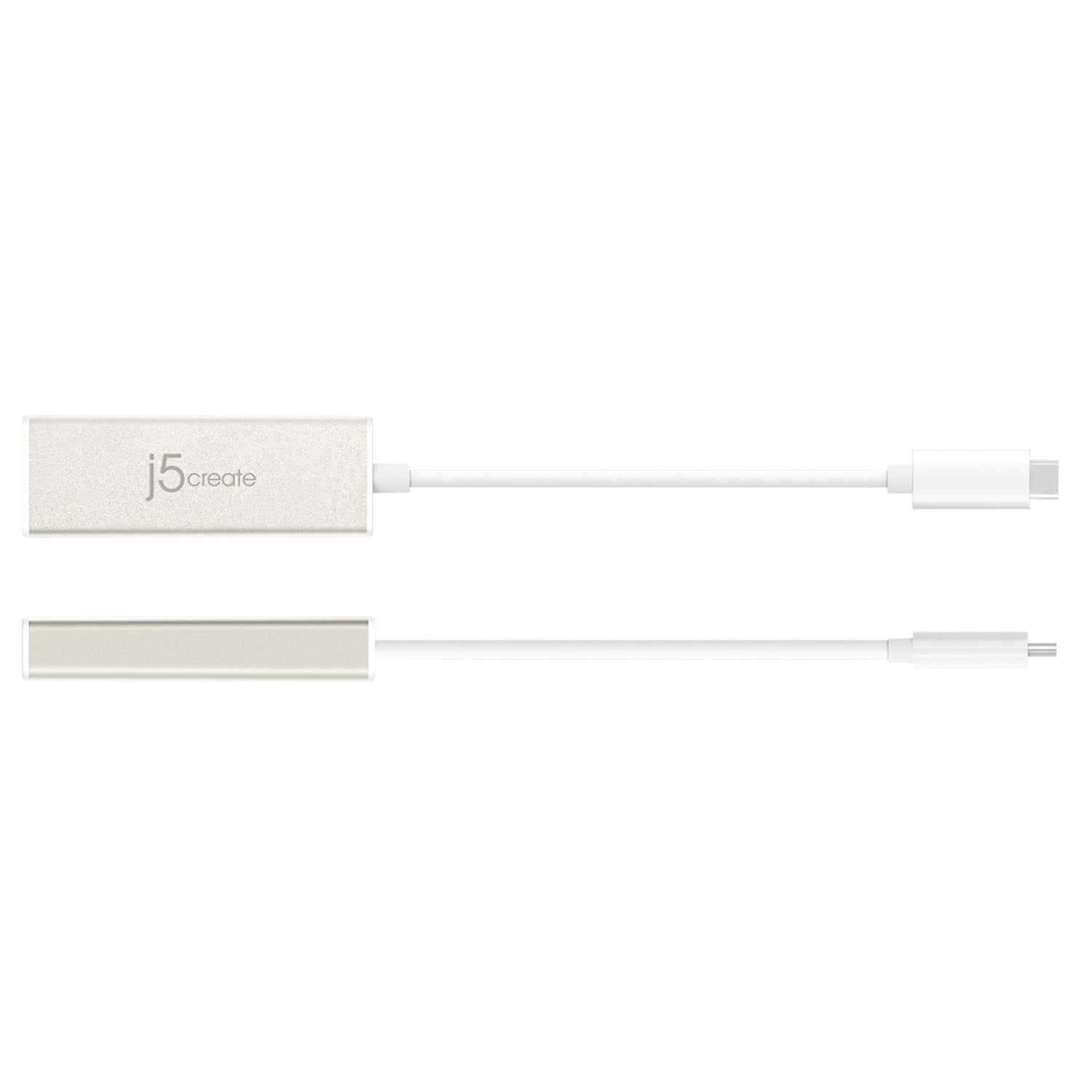

J5create USB-C to VGA Adapter - JCA111

Quickly and easily connect your USB-C® equipped desktop or laptop to an external monitor, HDTV, projector, or other display device with a VGA input. This adapter works with all USB-C® devices that supports DisplayPort™ alternate mode, making it the perfect accessory for your MacBook® and Chromebook®. With its plug-and-play technology, there is no need to download any drivers to start using the adapter.

FEATURES:

• Easy connection with the reversible USB-C® connector
• Supports VGA resolutions up to 1920 x 1200 and 1080p @ 60 Hz
• Ideal accessory for MacBook®, Chromebook®, tablets, PC's, and laptops with a USB-C® port
• Thunderbolt 3 compatible
• Aluminum housing for extra durability

System Requirements:

• Windows® 10
• macOS®
• Linux®
• Chrome OS™
• Available USB-C® port that supports DisplayPort™ Alt Mode

SPECIFICATIONS:

• Host connector: 1 × USB-C® male
• Video output: 1 × VGA female
• Power source: Bus-powered
• Audio support: N/A
• USB™ pass-through: N/A
• Ports: 1 × VGA
• Maximum display resolution: 1920 × 1200
• Maximum refresh rate: 60 Hz
• Displays supported: 1 (wide screen supported)
• Audio channel: N/A
• Power: no Power Delivery; power consumption ≤150 mA
• Color: Champagne metallic
• Enclosure type: Aluminum
• Cable length: 5.71 in (145 mm)
• Product height: 2.67 in (68 mm)
• Product width: 0.92 in (23.4 mm)
• Product depth: 0.56 in (14.4 mm)
• Product weight: 1.00 oz (28.4 g)
• Storage temperature: 14 to 149°F (-10 to 65°C)
• Storage humidity: <85% non-condensing
• Operating temperature: 32 to 118°F (0 to 48°C)
• Operating humidity: <85% non-condensing

WHAT'S IN THE BOX:

• JCA111 USB-C® to VGA Adapter x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
