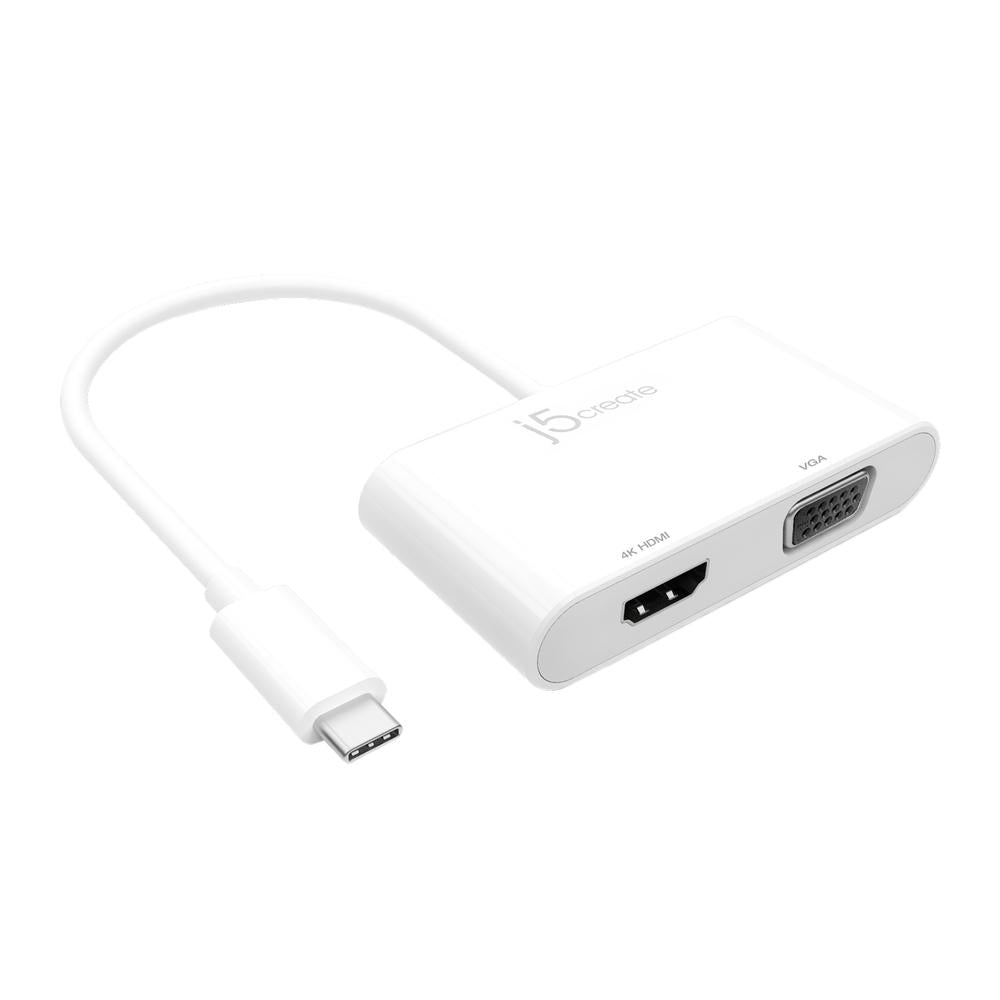

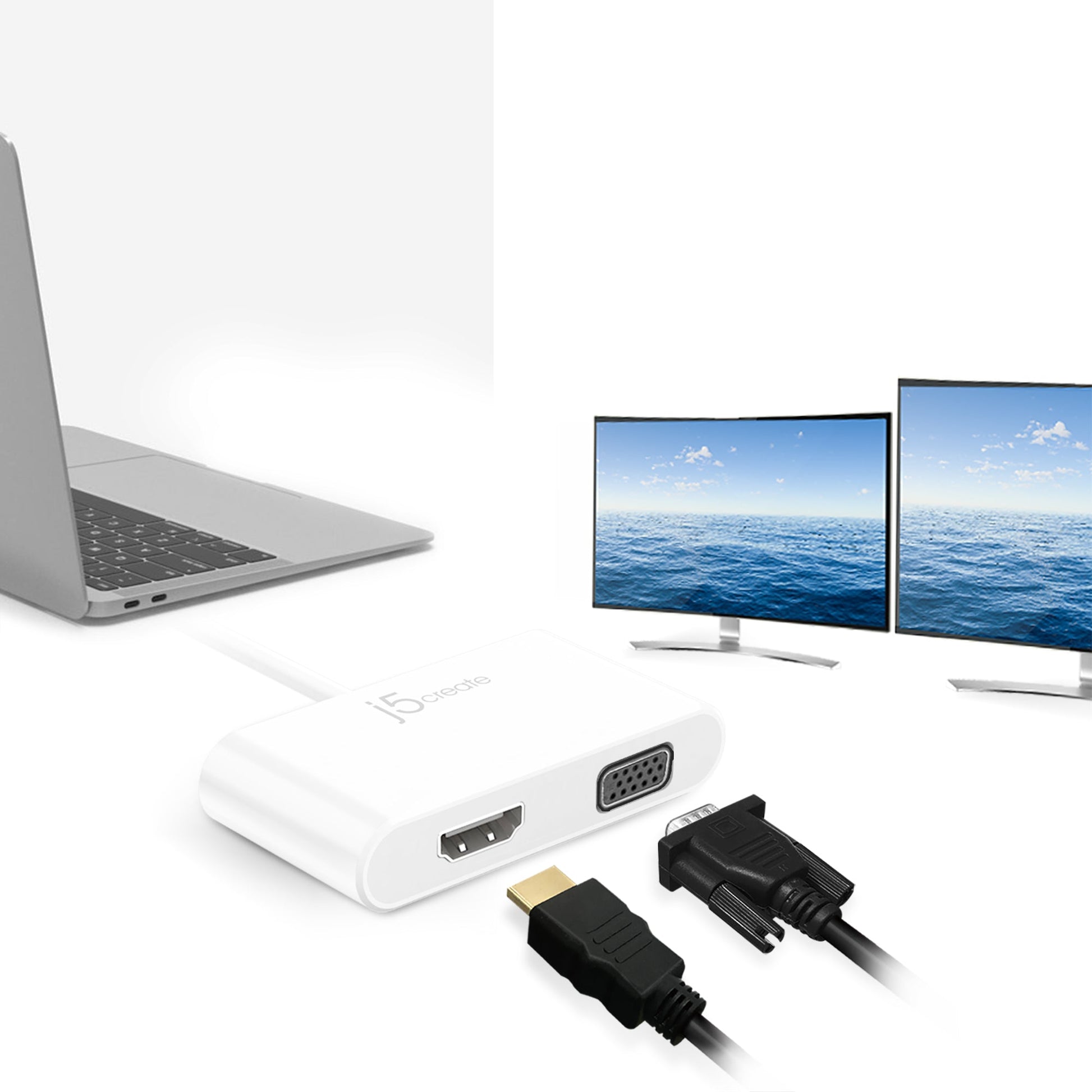

The JCA174 is a lightweight and portable adapter that connects a USB Type-C™to an HDMI™and VGA monitor or projector through an HDMI™and a VGA cable. It supports HDMI™resolutions up to 4K (3840 x 2160 @ 60 Hz) and VGA resolutions up to 1080P (1920 x 1080 @ 60 Hz) when they are used separately, which allows you to capture every detail of an image and gives you audio output to your external display screen through HDMI™. Both Mirror mode and Extended mode are supported when the HDMI™or VGA port is used separately. When the two output ports are used simultaneously, the maximum resolution of both of them together is 1080P @ 60 Hz and only Mirror mode is supported.
Plug-and-play, no drivers or software required. No external power supply needed. You can use it anytime, anywhere. 2-in-1 ports enable you to add devices such as an external monitor, TV or projector simultaneously for extending your HDMI™or VGA input terminals. Portable for easy carrying when traveling. Great for use in the office, home theater, teaching, etc.
FEATURES:

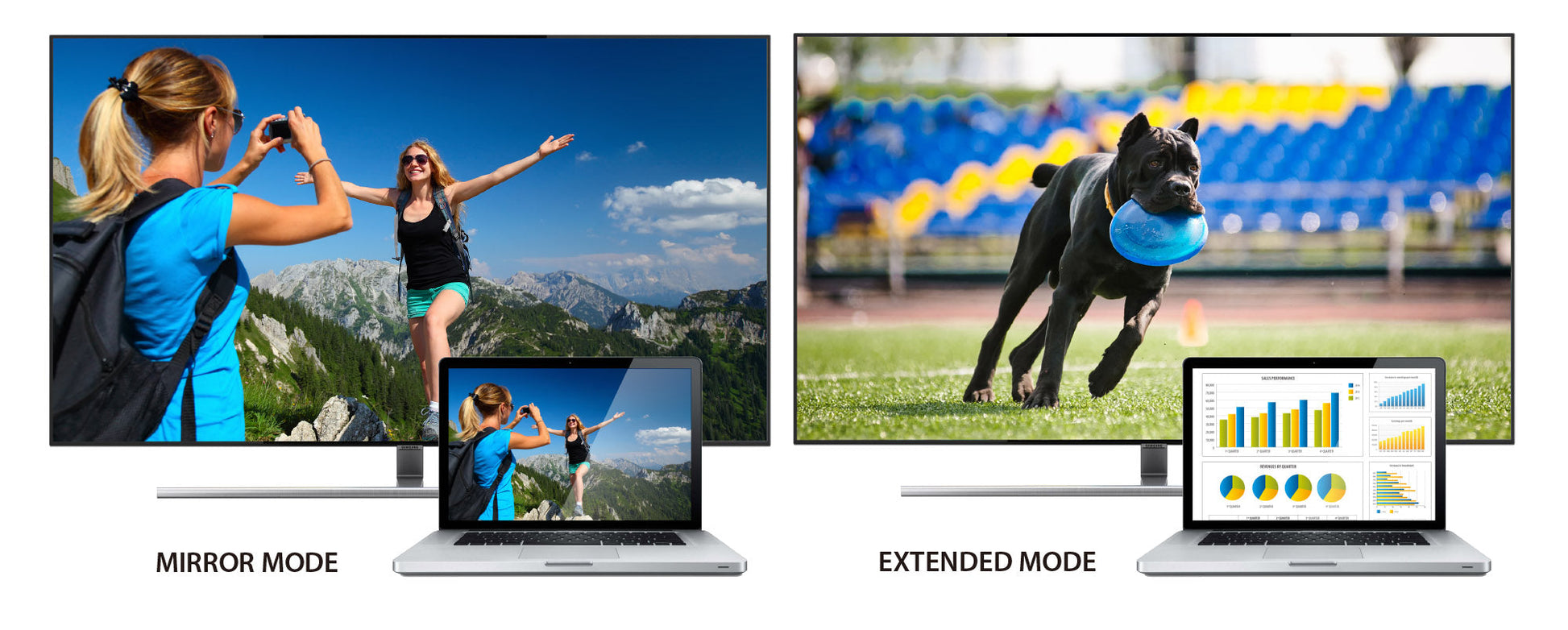

Dual screen display

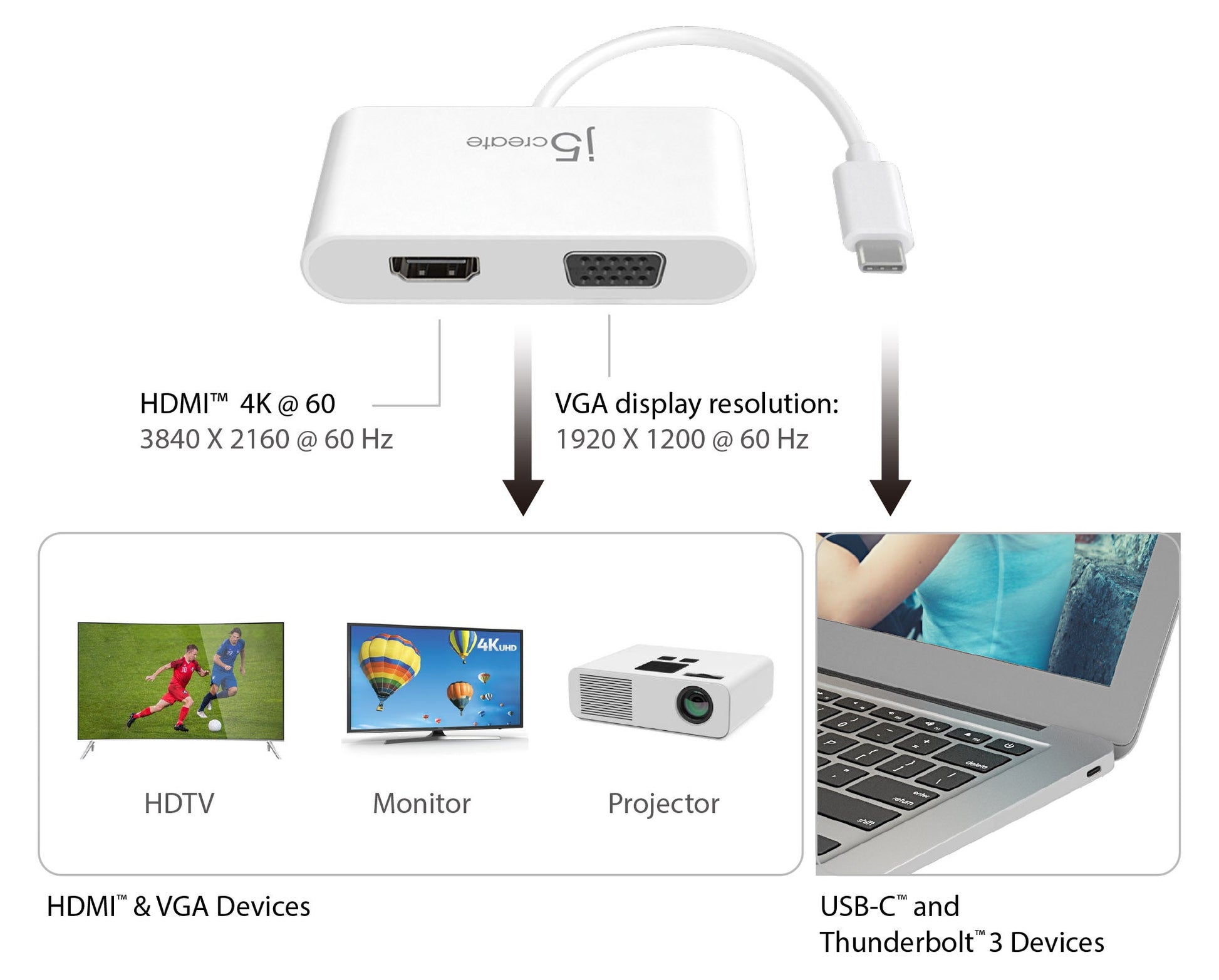

Supports HDMI™resolutions up to 4K at 3840 x 2160 @ 60 Hz; VGA resolutions up to 1920 x 1200 or 1080P @ 60 Hz. Supports Mirror and Extended modes.

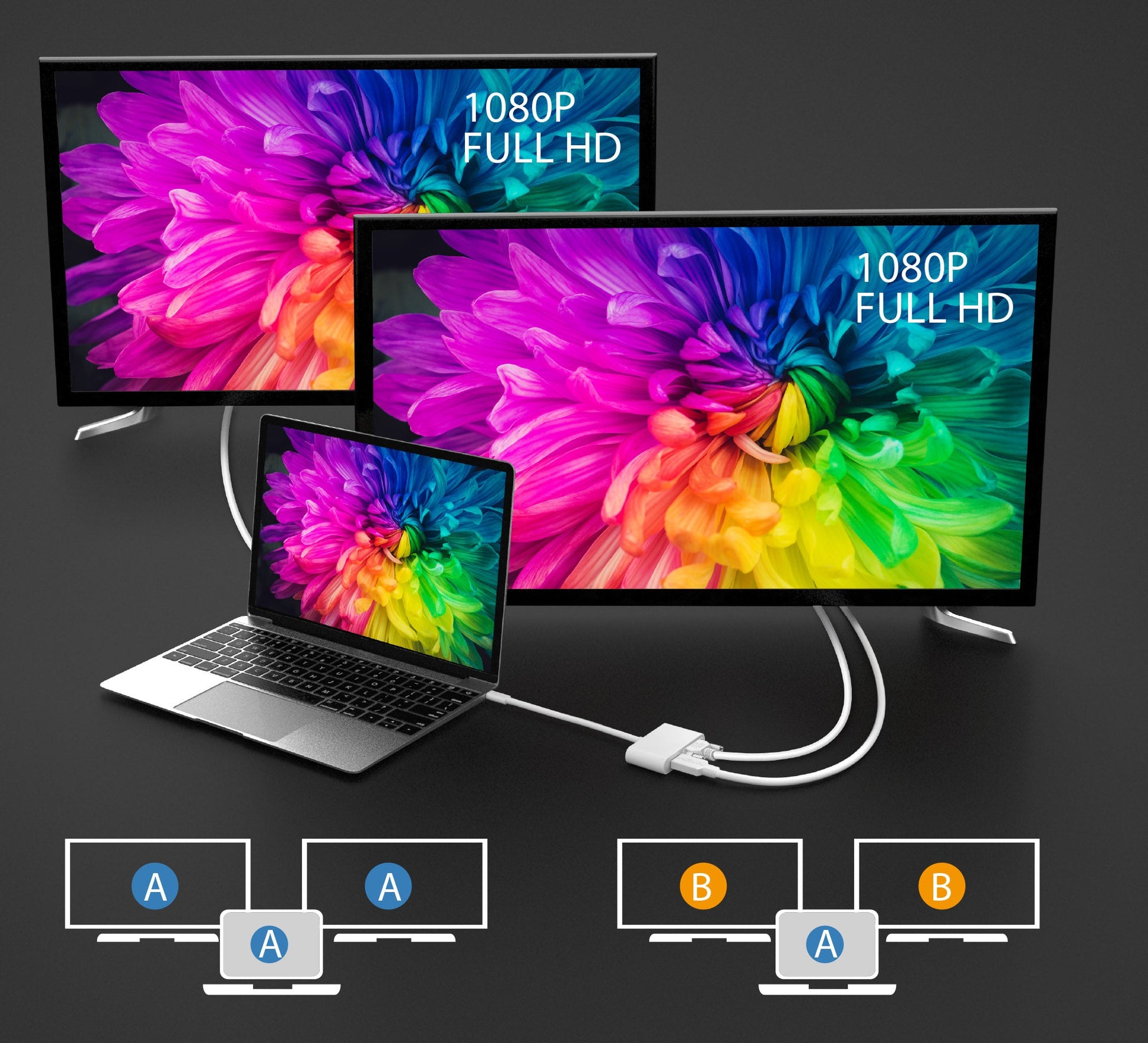

When connected to both the VGA and HDMI™, only Mirror mode is supported with a resolution up to 1920 x 1080 @ 60 Hz; Extended mode is not supported.

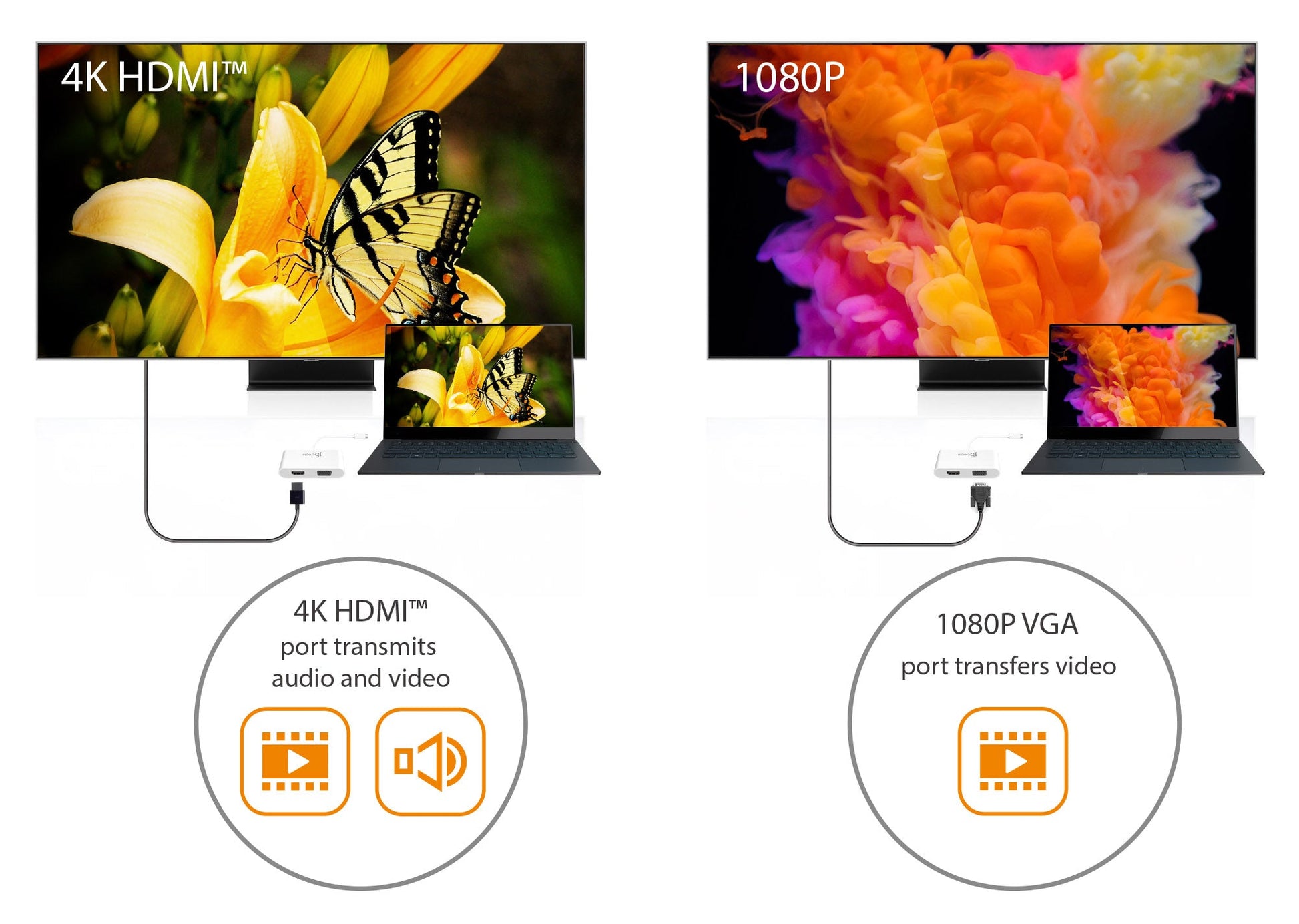

The HDMI™port transfers audio and video, the VGA port transfers video.
No software/drivers required
System Requirements:
Available DisplayPort™Alt Mode over USB-C™port
SPECIFICATIONS:
Interface: USB-C™ male connector

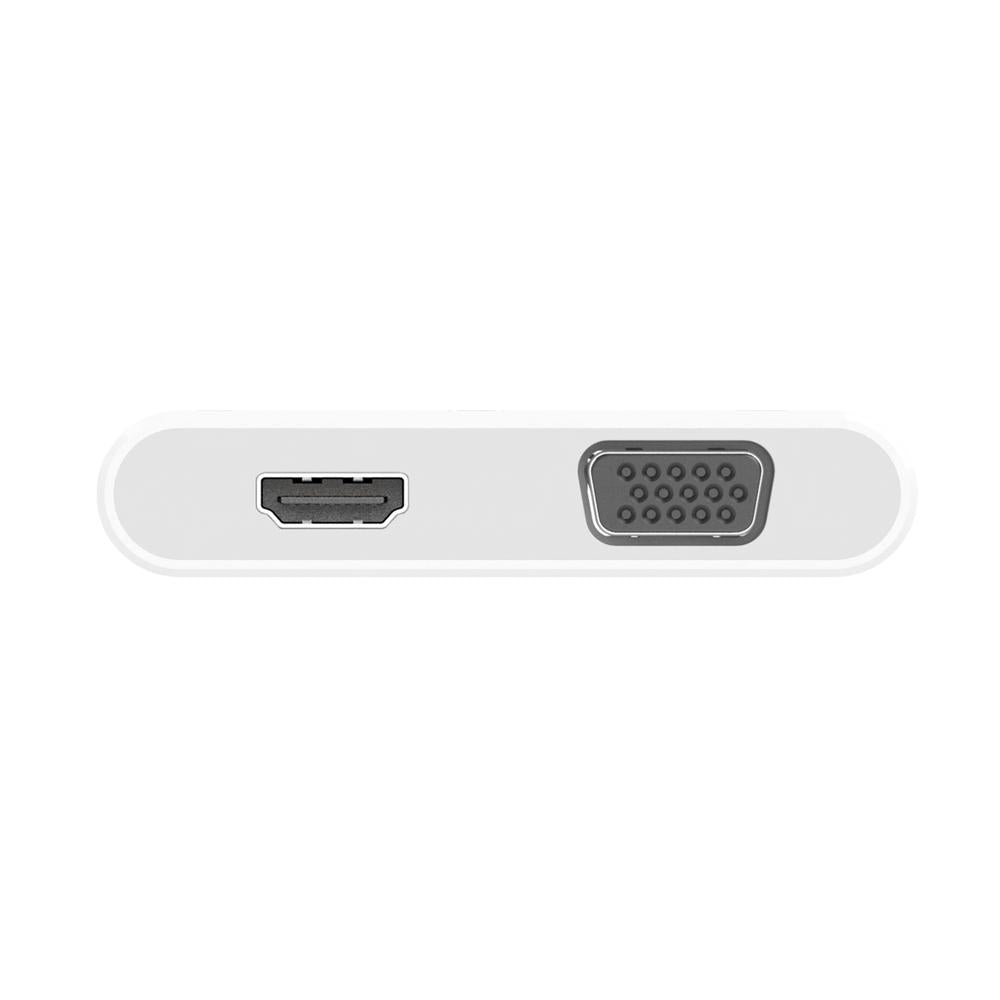

Video interfaces: HDMI™ female connector; VGA female connector
Display functions: HDMI™ up to 3840 × 2160 @ 60 Hz; VGA up to 1920 × 1200 @ 60 Hz
Housing material: Plastic
Dimensions: Main body 75.4 × 37.8 × 15.2 mm; cable length 5.90 in (15 cm)
