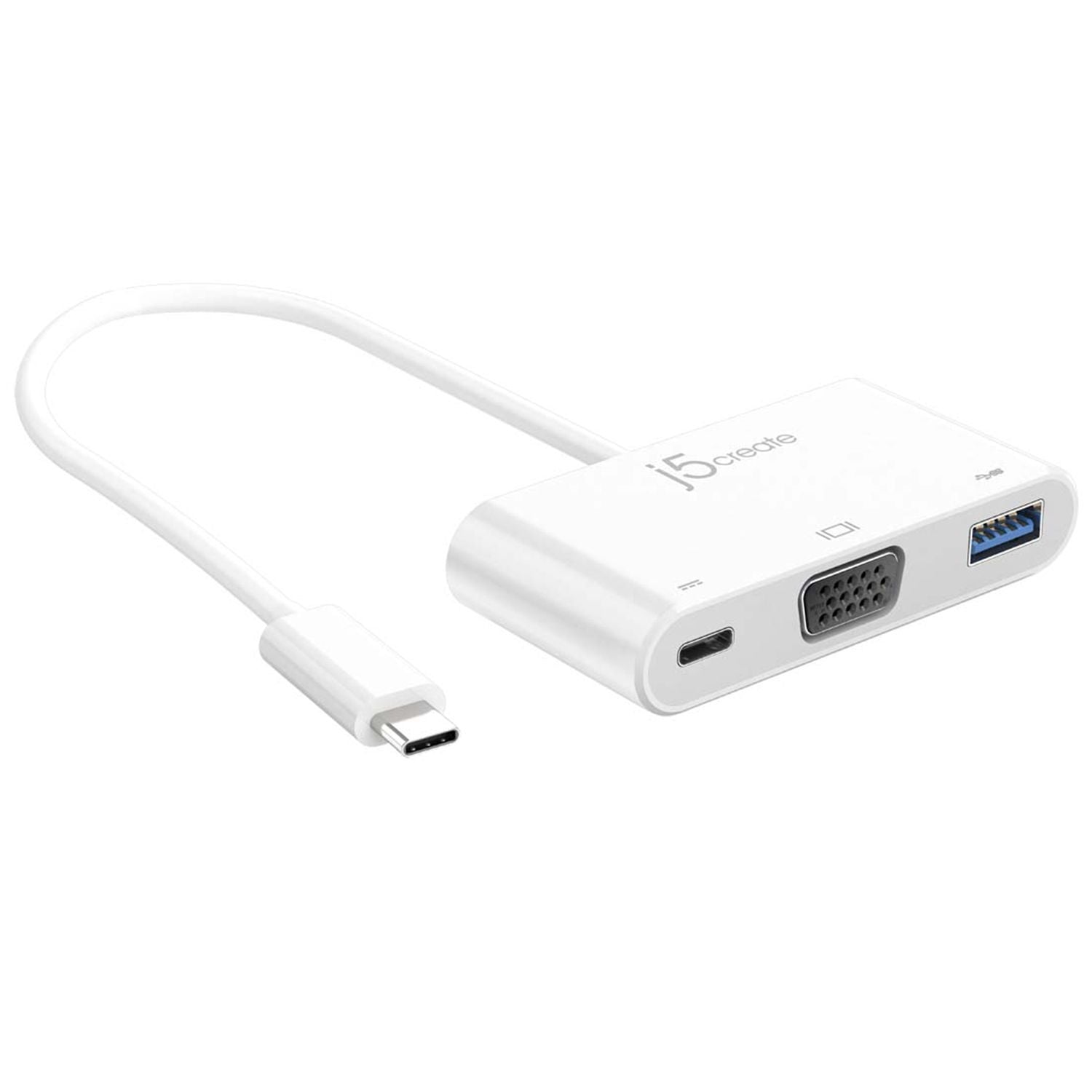

J5create USB-C to VGA & USB 3.0 with Power Delivery Adapter - JCA378

The JCA378 USB Type-C^™ to VGA & USB^™ 3.0 Power Delivery provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB^™ 3.0 port, VGA Monitor and USB Type-C^™. USB Type‐C^™ is the new standard for connecting desktops and laptops and will eventually replace all current USB^™ cables and connectors. This new USB^™ standard can be found on laptops, phones, tablets, etc. The USB Type‐C^™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type‐C^™ offers greater power delivery and faster data transfer rates up to 10 Gbps.

FEATURES:

• 2 USB^™ 3.0 SuperSpeed ports

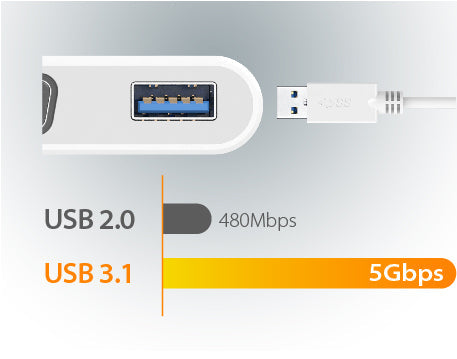

• Transfer rates up to 5 Gbps enables bulky file backup
• Backwards compatible with USB^™ 2.0 and USB^™ 1.0 devices
• Hot-swapping connection/disconnection without powering down
• DisplayPort^™ Alt Mode for VGA
• Supports display max resolution: 1920 x 1200 @ 60 Hz
• Supports 1080p Video Playback
• Supports Display Modes: Primary, Extended, Mirror
• Display Rotation: 0°, 90°, 180°, 270°

System Requirements:

• Available USB Type-C^™ port (USB^™ 3.0 is recommended)
• Available DisplayPort^™ Alternate Mode over USB Type-C^™ connector. DisplayPort^™ v1.2 required on graphics card or video source to support 1920 X 1200 @ 60 Hz resolution.
• Available USB^™ power delivery over USB Type-C^™ to support upstream charging
• macOS^® X 10.8 or later

SPECIFICATIONS:

• Host Interface: USB Type-C™ (Male)
• Video Interface: VGA (Female connector)
• USB Port: 1 × USB™ 3.0 (Female connector)
• Power Mode: Bus-powered or self-powered
• Display Resolution: 1920 × 1200 @ 60 Hz
• Housing Material: Plastic
• Main Body: 75.4 (H) × 37.8 (W) × 15.2 (D) mm
• Cable Length: 9.8 in (25 cm)
• Weight: ~43 g

WHAT’S IN THE BOX:

• JCA378 USB Type-C^™ to VGA & USB^™ 3.0 with Power Delivery x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 12 Months
