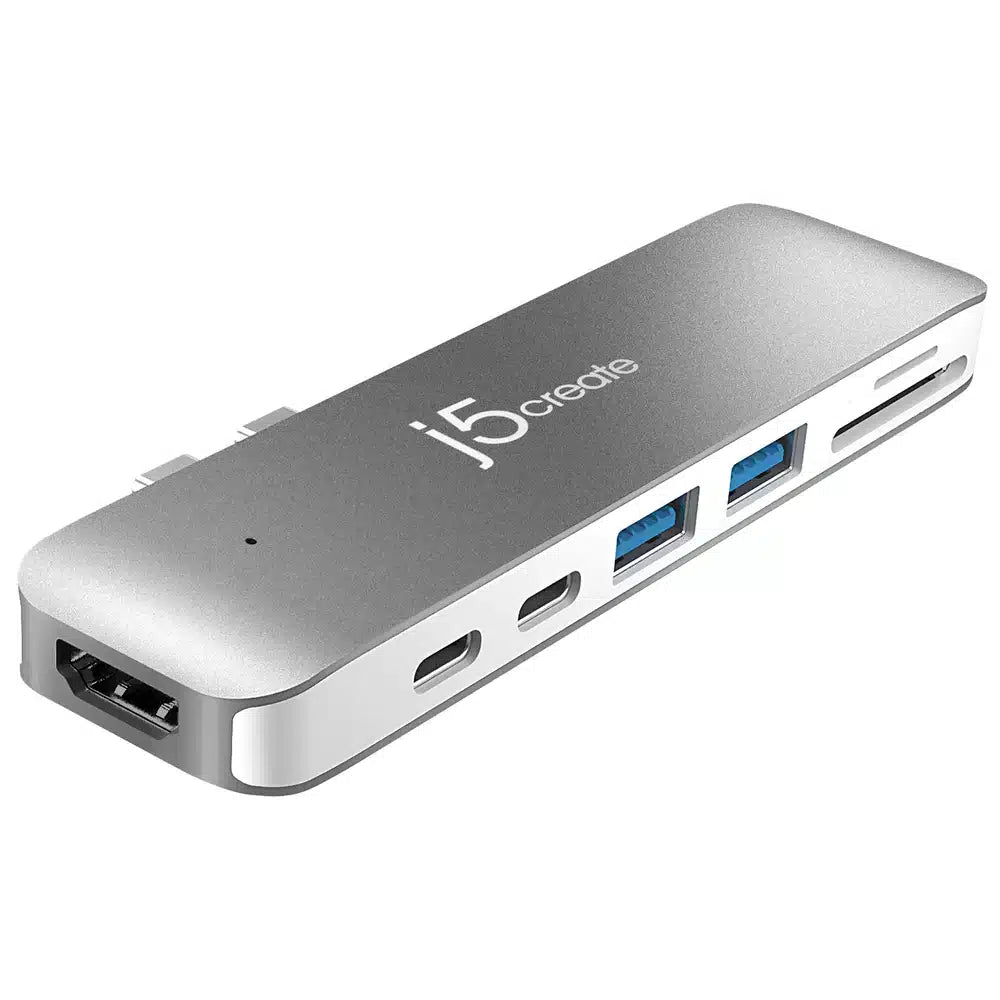

J5create USB-C ULTRADRIVE MINIDOCK - JCD382

The JCD382 ULTRADRIVE MINIDOCK can be used with the MacBook Pro 13"/15" 2016/2017/2018/2019 and MacBook Air 2018/2019. The dock gives you the ability to keep a Thunderbolt 3 port and add several standard connections. The connections include, USB-C 3.1 Gen 1, 4K HDMI , USB 3.1 Gen 1 Type-A x2 and a USB 3.0 microSD and SD card reader/writer through the two Thunderbolt 3 male connectors on the other side of the dock.

Thunderbolt 3 uses the USB-C connector to deliver faster speeds (40 Gbps), more pixels (two 4K) and higher power (up to 100W) via more supported protocols (Thunderbolt , USB , DisplayPort and PCIe).

FEATURES:

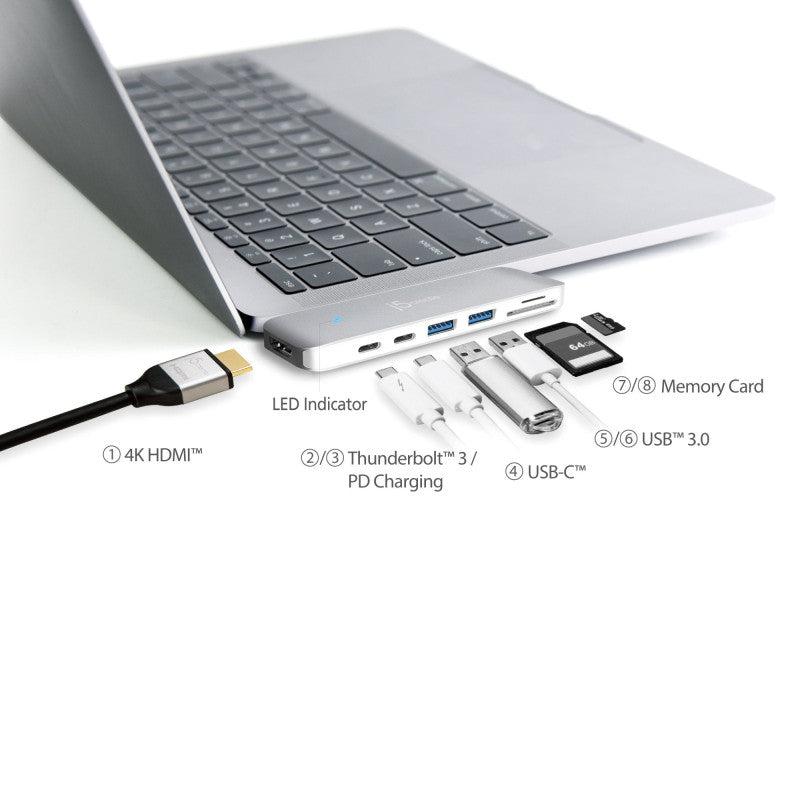

• Transform two USB-C ports on a MacBook Pro into 7 ports (Thunderbolt 3, USB-C 3.1 Gen 1, HDMI , USB 3.1 Gen 1 Type-A x2 and SD and microSD )
• Supports a Thunderbolt 3 display up to 5K @ 60 Hz or dual 4K @ 60 Hz, 40 Gbps data and max 100W power delivery
• Supports USB-C 3.1 Gen 1 downstream with 5 Gbps data transfer
• Supports HDMI resolution up to 4K @ 30 Hz
• Supports USB 3.1 Gen 1 Type-A SuperSpeed (backwards compatible with USB 2.0)
• USB SD /microSD slots for an external memory card up to 2 TB
• Plug-and-play
• Aluminum housing
• Perfect for MacBook Pro 13"/15" 2016/2017/2018/2019 and MacBook Air 2018/2019

SPECIFICATIONS:

• System Requirements:
  • USB-C MacBook Pro 13"/15" 2016/2017/2018/2019 and MacBook Air 2018/2019

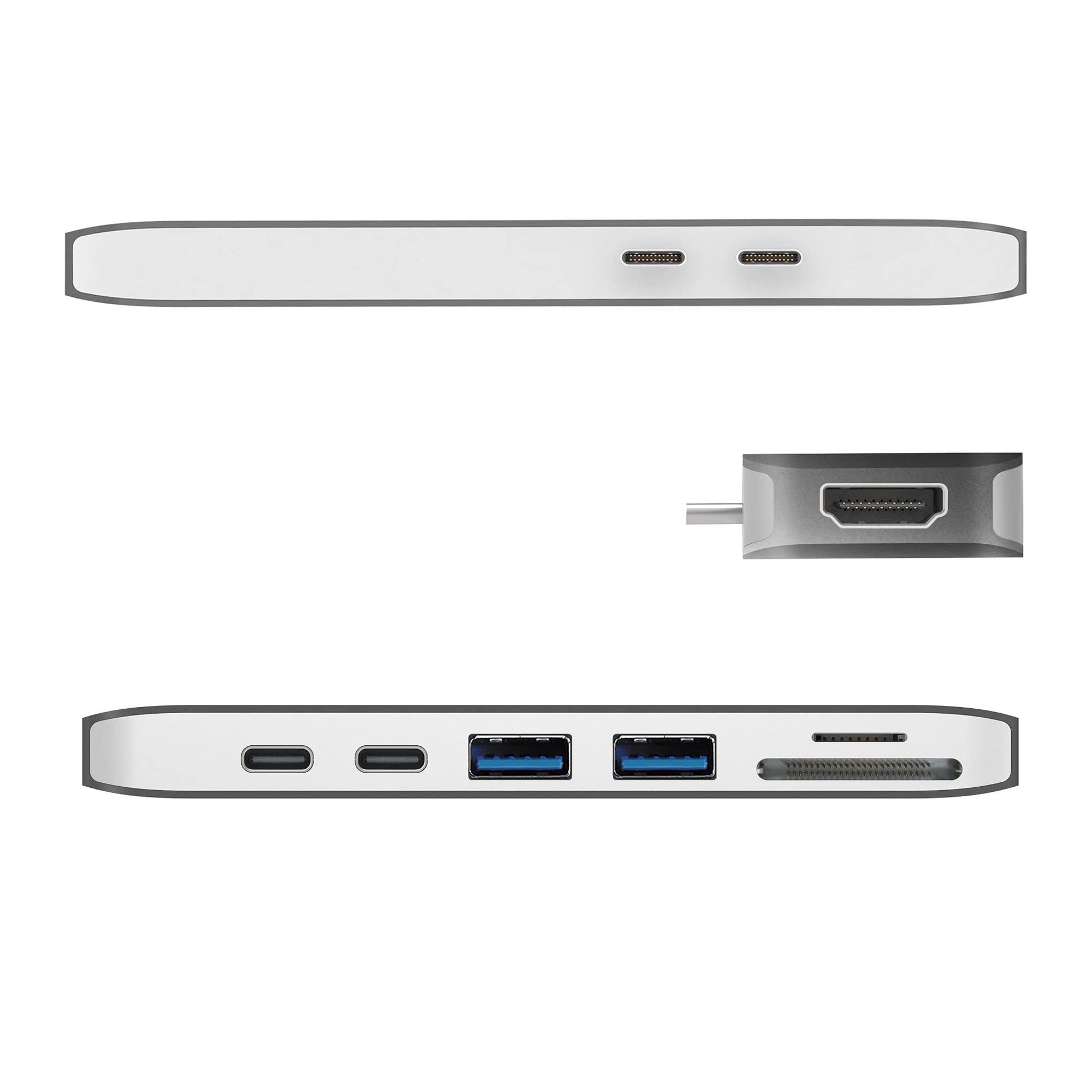

• Host Interface: Thunderbolt 3 USB-C male connector x 2
• Thunderbolt 3: Thunderbolt 3 USB-C female connector x 1
• USB-C : USB-C female connector x 1
• Video Interface: HDMI female connector x 1
• USB Port: USB Type-A female connector x 2
• Card slots: SD x 1 slot female
• microSD x 1 slot female
• Power Mode: Bus-powered
• Thunderbolt 3: Display up to 5K @ 60 Hz or dual 2x 4K @ 60 Hz, 40 Gbps data and max 100W power delivery
• USB-C : USB-C 3.1 Gen 1 downstream 5 Gbps data transfer
• HDMI : Display resolution: 4K @ 30 Hz
• USB : USB 3.1 Gen 1 Type-A 5 Gbps
• SD /microSD : Max drive capacity 2 TB
• Dimensions: 120 (W) x 32 (H) x 12 (D) mm
• Weight: Approximately 56g
• Storage Temperature: -10 - 65 C
• Storage Humidity: < 85% non-condensing
• Operation Temperature: 0 - 40 C
• Operation Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• ULTRADRIVEMINI™ Dock for MacBook® (JCD382) x1

• Quick Installation Guide x1

WARRANTY:

• 24 Months
