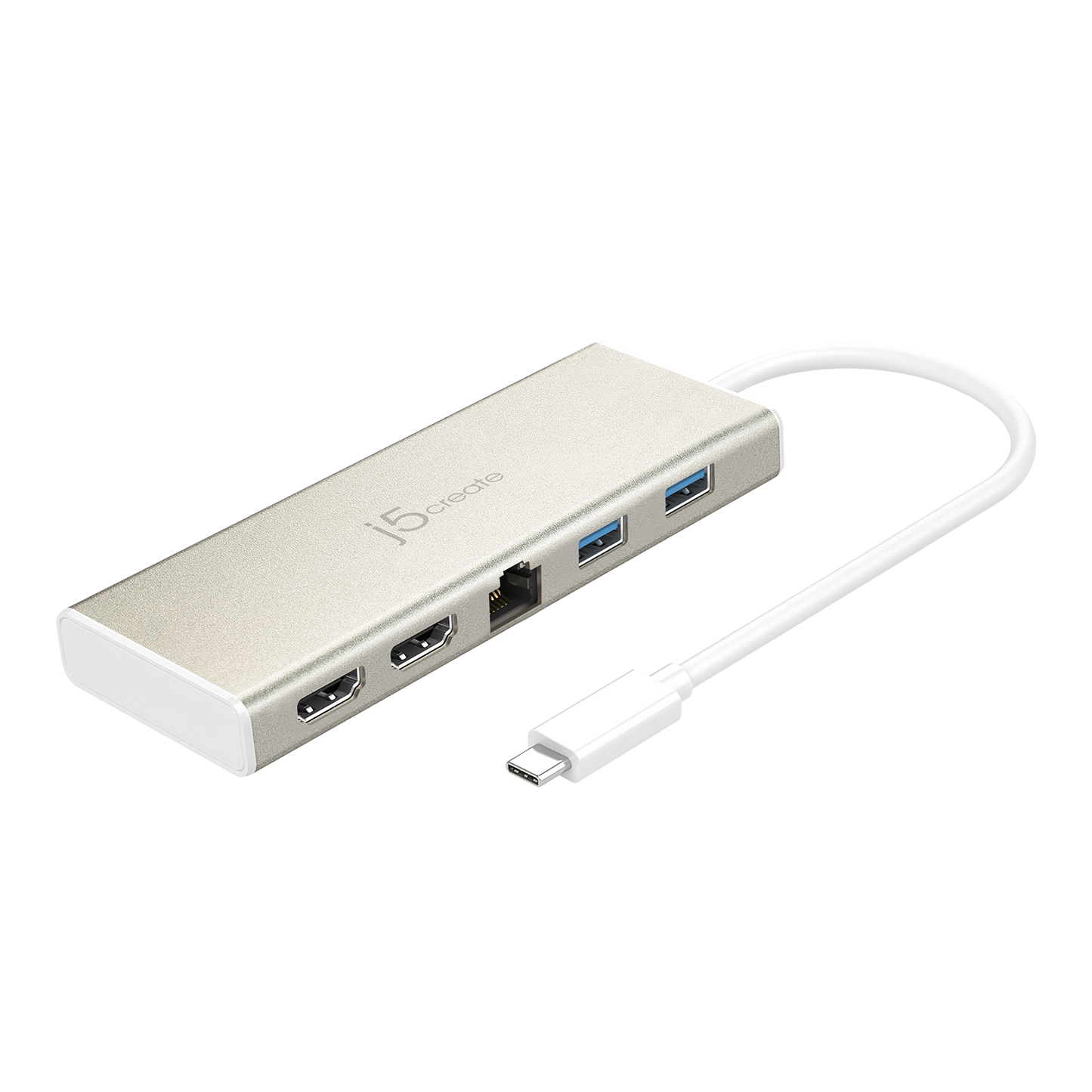

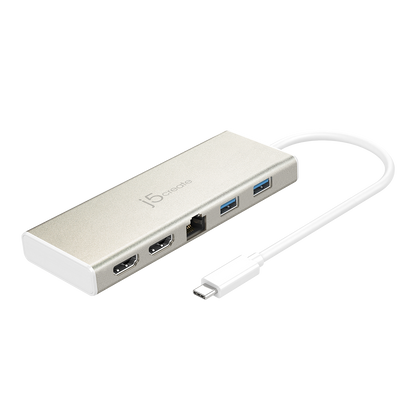

J5create USB Type-C Dual HDMI Mini Dock-Ethernet/ USB 3.1 HUB / PD2.0 - JCD381

The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.

FEATURES:

• Easily add a 4K or two 2K displays via HDMI™
• USB-C® power delivery 2.0 provides charging power to the connected devices
• Connect or charge your USB™ devices with 2 x USB™ ports
• SuperSpeed USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
• Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
• Reliable network connectivity via the Gigabit Ethernet port
• System Requirements:
  • Windows® 10 or later
    macOS® 10.14 or later
  • Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0. (USB™ 3.0 is recommended)
    Please refer to the manufacturer of your hardware for more information on your device.
  • For office applications / Web:
    • CPU: Intel® Core™ i3 Dual Core 2.8 GHz
    •  RAM: 2 GB memory or higher
  • For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:
    • CPU: Intel® Core™ i5 Quad Core
    • RAM: 4 GB memory or higher
  • For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:
    • CPU: Intel® Core™ i7 Quad Core
    • RAM: 8 GB memory or higher
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.

SPECIFICATIONS:

• Host Connector: 1 × USB-C™ Male
• Video Output:
  • 2 × HDMI™ Female
• Power Source: Bus-powered or self-powered
• Network Interface: Yes
• Audio Supported: Yes
• Ports:
  • 1 × USB-C® Power Delivery 2.0
  • 2 × USB™ Type-A 3.0
  • 1 × RJ45 Gigabit Ethernet
  • 1 × 4K HDMI™
  • 1 × HDMI™
• Maximum Display Resolution:
  • Dual Displays:
    • 3840 × 2160 + 2048 × 1152 / 1920 × 1080
  • Single Display:
    • 3840 × 2160
• Maximum Display Refresh Rate:
  • 4K @ 30 Hz
  • 2K / 1080p @ 60 Hz
• Maximum Data Transfer Rate: 5 Gbps
• Displays Supported: 2
• Compatible Networks: 10/100/1000 Mbps
• Audio Channel: HDMI™ 2.1
• Power Delivery: Up to 60W via USB-C®
• Power Consumption: ≤ 450 mA
• Input Voltage: Up to 20V
• Input Current: Up to 3A
• Output Voltage: Up to 20V
• Output Current: Up to 3A
• Color: Champagne Metallic
• Enclosure Type: Aluminum
• Cable Length: 7.8 in. (198.12 mm)
• Height: 2.1 in. (54 mm)
• Width: 5.1 in. (130 mm)
• Depth: 0.6 in. (15 mm)
• 4.00 oz (113.5 g)
• Operating Temperature: 32 to 98°F (0 to 37°C)
• Storage Temperature: 14 to 140°F (-10 to 65°C)
• Operating Humidity: < 85% non-condensing
• Storage Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCD381 USB-C® Dual HDMI™ Mini Dock x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
